Technical Information · issue 4 of 1994
New electric blower BE 55
IssueTI 4/1994
Full text
Page 1 of 4
Technical Information
04.94
New STIHL BE 55 Electric Blower - Series 4804

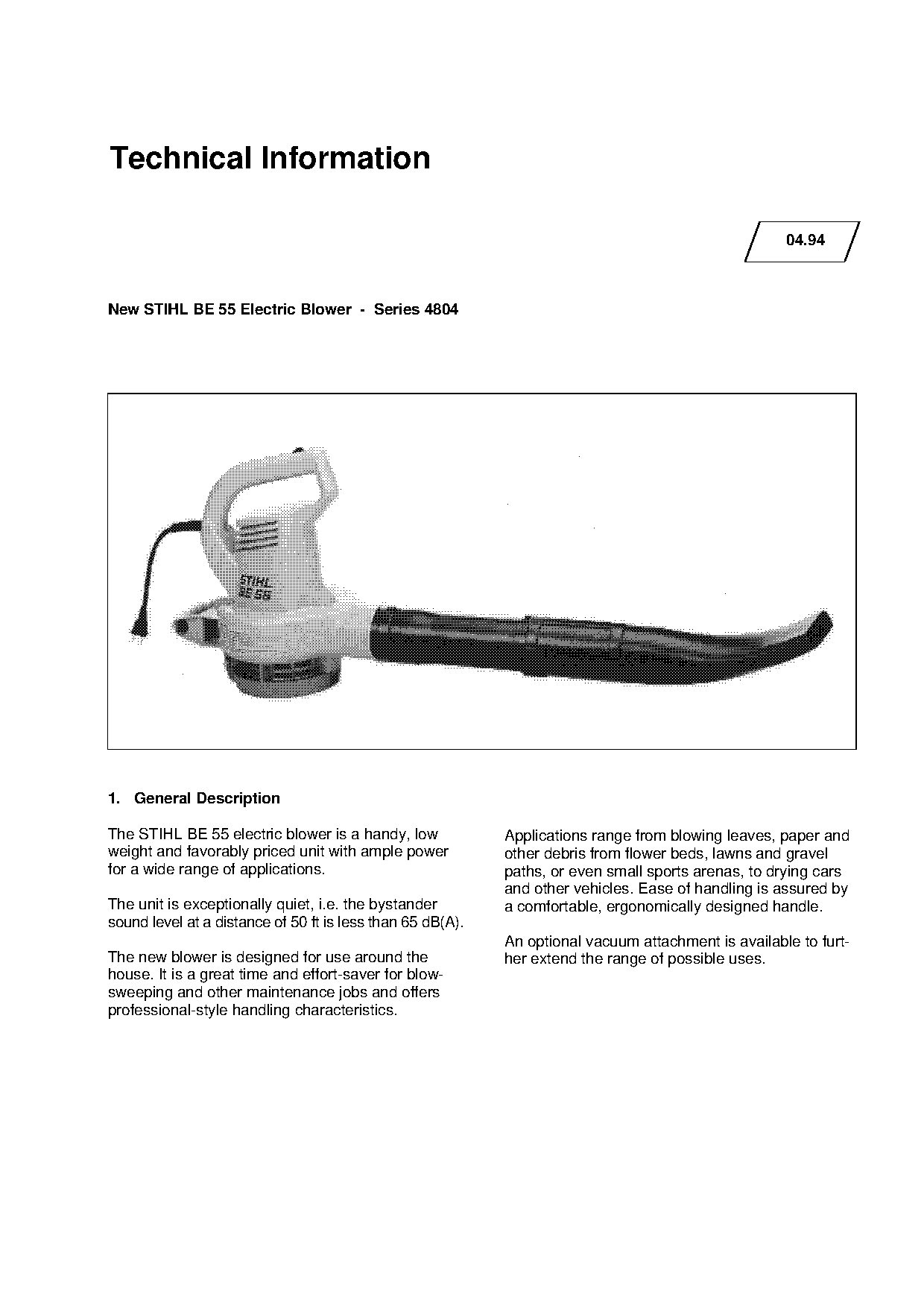

1. General Description
The STIHL BE 55 electric blower is a handy, low Applications range from blowing leaves, paper and
weight and favorably priced unit with ample power other debris from flower beds, lawns and gravel
for a wide range of applications. paths, or even small sports arenas, to drying cars
and other vehicles. Ease of handling is assured by
The unit is exceptionally quiet, i.e. the bystander a comfortable, ergonomically designed handle.
sound level at a distance of 50 ft is less than 65 dB(A).
An optional vacuum attachment is available to furt-
The new blower is designed for use around the her extend the range of possible uses.
house. It is a great time and effort-saver for blow-
sweeping and other maintenance jobs and offers
professional-style handling characteristics. Page 2 of 4
Technical Information 04.94 - Page 2

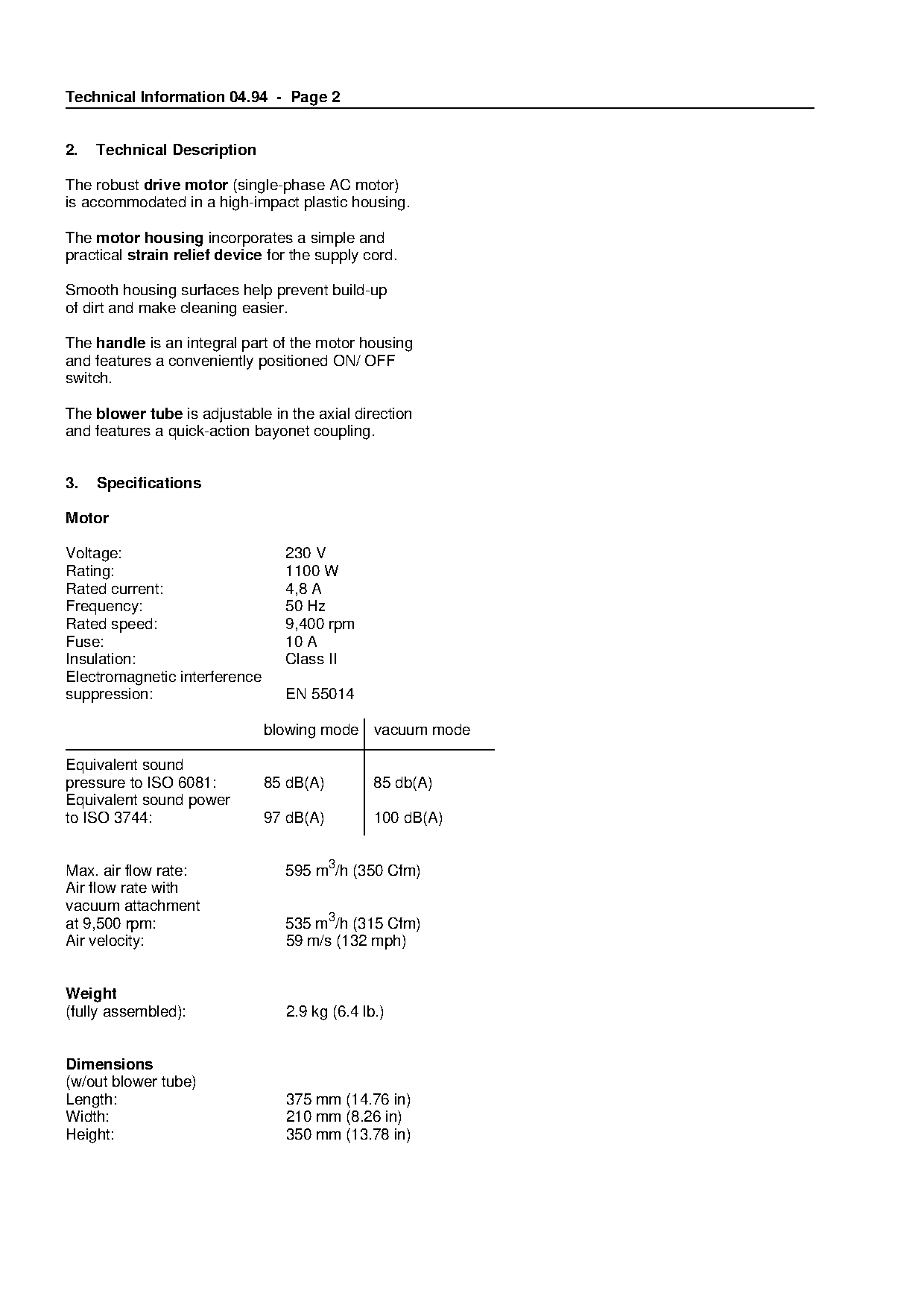

2. Technical Description
The robust drive motor (single-phase AC motor)
is accommodated in a high-impact plastic housing.
The motor housing incorporates a simple and
practical strain relief device for the supply cord.
Smooth housing surfaces help prevent build-up
of dirt and make cleaning easier.
The handle is an integral part of the motor housing
and features a conveniently positioned ON/ OFF
switch.
The blower tube is adjustable in the axial direction
and features a quick-action bayonet coupling.
3. Specifications
Motor
Voltage:
Rating:
230 V
1100 W
Rated current: 4,8 A
Frequency: 50 Hz
Rated speed: 9,400 rpm
Fuse: 10 A
Insulation: Class II
Electromagnetic interference
suppression: EN 55014
blowing mode vacuum mode
Equivalent sound
pressure to ISO 6081: 85 dB(A) 85 db(A)
Equivalent sound power
to ISO 3744: 97 dB(A) 100 dB(A)
Max. air flow rate: 595 m3/h (350 Cfm)
Air flow rate with
vacuum attachment
at 9,500 rpm: 535 m3/h (315 Cfm)
Air velocity: 59 m/s (132 mph)
Weight
(fully assembled): 2.9 kg (6.4 lb.)
Dimensions
(w/out blower tube)
Length: 375 mm (14.76 in)
Width: 210 mm (8.26 in)
Height: 350 mm (13.78 in) Page 3 of 4
Technical Information 04.94 - Page 3

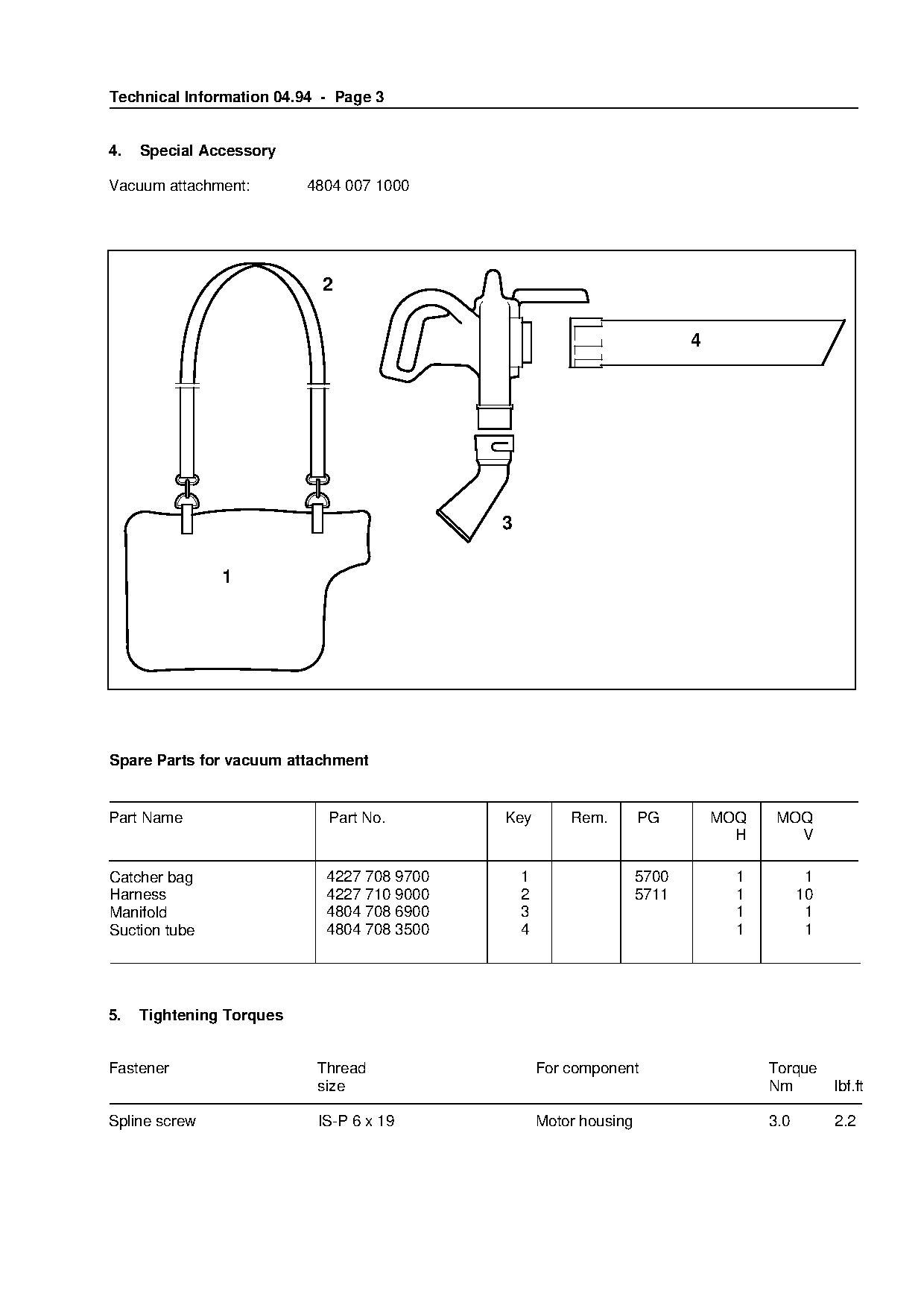

4. Special Accessory
Vacuum attachment: 4804 007 1000
Spare Parts for vacuum attachment
Part Name Part No. Key Rem. PG MOQ MOQ
H V
Catcher bag 4227 708 9700 1 5700 1 1
Harness 4227 710 9000 2 5711 1 10
Manifold 4804 708 6900 3 1 1
Suction tube 4804 708 3500 4 1 1
5. Tightening Torques
Fastener Thread For component Torque
size Nm lbf.ft
Spline screw IS-P 6 x 19 Motor housing 3.0 2.2 Page 4 of 4
Technical Information 04.94 - Page 4

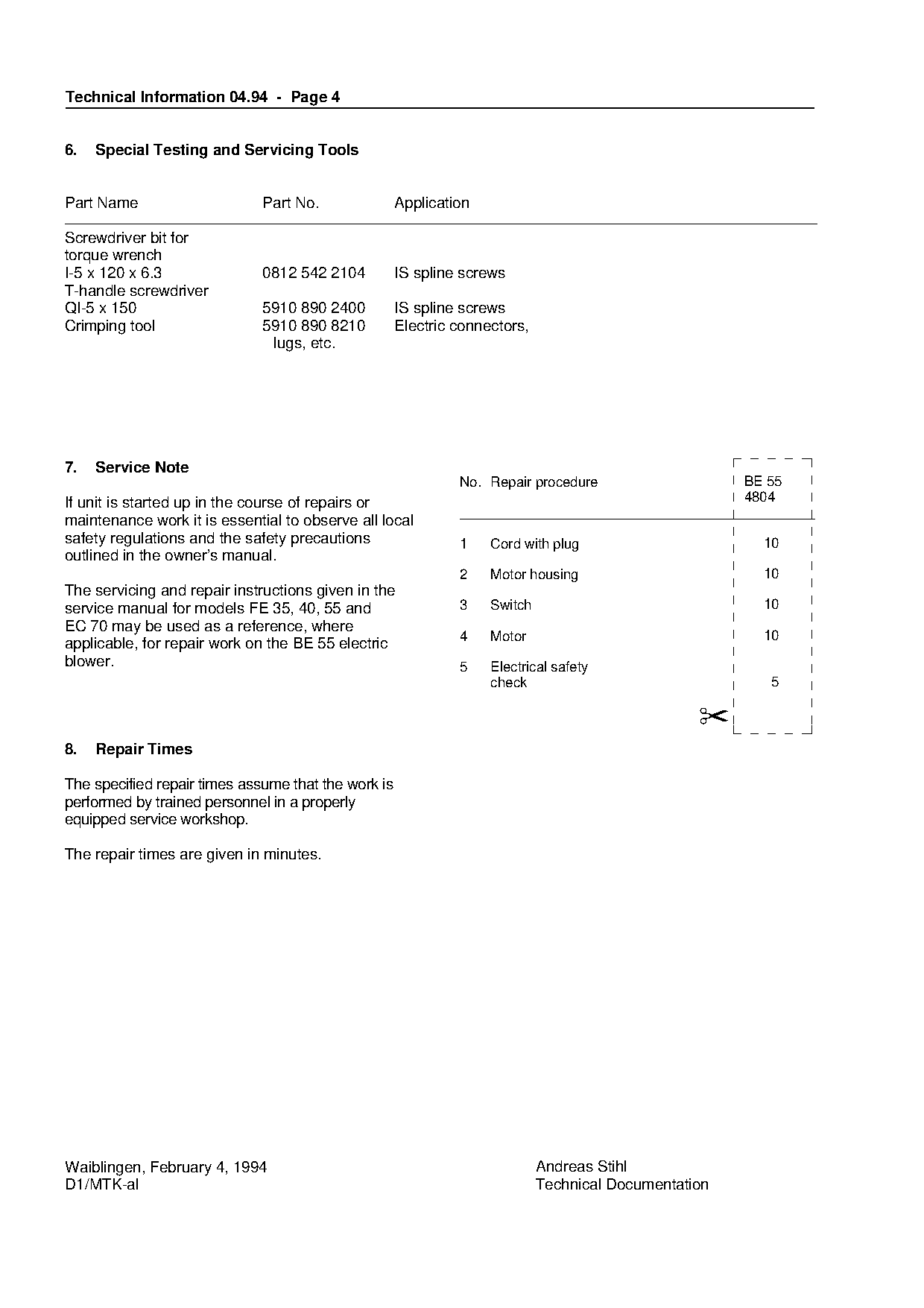

6. Special Testing and Servicing Tools
Part Name Part No. Application
Screwdriver bit for
torque wrench
I-5 x 120 x 6.3 0812 542 2104 IS spline screws
T-handle screwdriver
QI-5 x 150 5910 890 2400 IS spline screws
Crimping tool 5910 890 8210 Electric connectors,
lugs, etc.
7. Service Note
No. Repair procedure BE 55
If unit is started up in the course of repairs or 4804
maintenance work it is essential to observe all local
safety regulations and the safety precautions
outlined in the owner’s manual.
1
2
Cord with plug
Motor housing
10
10
The servicing and repair instructions given in the
service manual for models FE 35, 40, 55 and 3 Switch 10
EC 70 may be used as a reference, where
4 Motor 10
applicable, for repair work on the BE 55 electric
blower. 5 Electrical safety
check 5
✂
8. Repair Times
The specified repair times assume that the work is
performed by trained personnel in a properly
equipped service workshop.
The repair times are given in minutes.
Waiblingen, February 4, 1994 Andreas Stihl
