Technical Information · issue 8 of 1994
Carburetor; crankshaft; piston/cylinder; front han
IssueTI 8/1994
Engine family 1122
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1121 160 5000 | 1128 160 5000 | Lever 1121 160 5000 will be replaced by the new version 1128 160 5000 which has been designed to help reduce the force necessary to activate the chain brake. |
| 1122 080 6500 | 1122 080 6501 | Starter post 1122 080 6500 will be replaced by starter post 1122 080 6501. |
Full text
Page 1 of 4

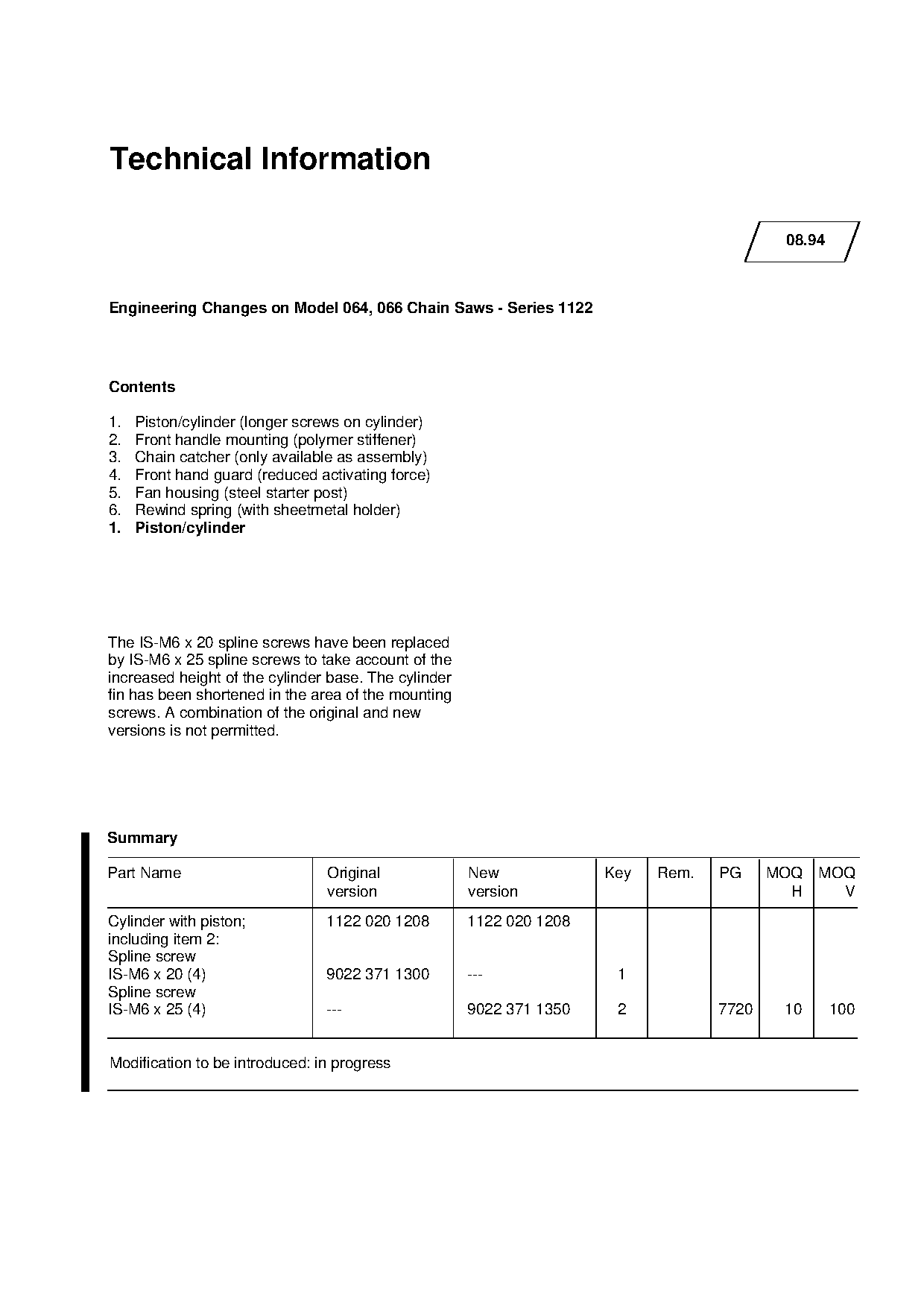

Technical Information
08.94
Engineering Changes on Model 064, 066 Chain Saws - Series 1122
Contents
1. Piston/cylinder (longer screws on cylinder)
2. Front handle mounting (polymer stiffener)
3. Chain catcher (only available as assembly)
4. Front hand guard (reduced activating force)
5. Fan housing (steel starter post)
6. Rewind spring (with sheetmetal holder)
1. Piston/cylinder
The IS-M6 x 20 spline screws have been replaced
by IS-M6 x 25 spline screws to take account of the
increased height of the cylinder base. The cylinder
fin has been shortened in the area of the mounting
screws. A combination of the original and new
versions is not permitted.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Cylinder with piston; 1122 020 1208 1122 020 1208
including item 2:
Spline screw
IS-M6 x 20 (4) 9022 371 1300 --- 1
Spline screw
IS-M6 x 25 (4) --- 9022 371 1350 2 7720 10 100
Modification to be introduced: in progress Page 2 of 4

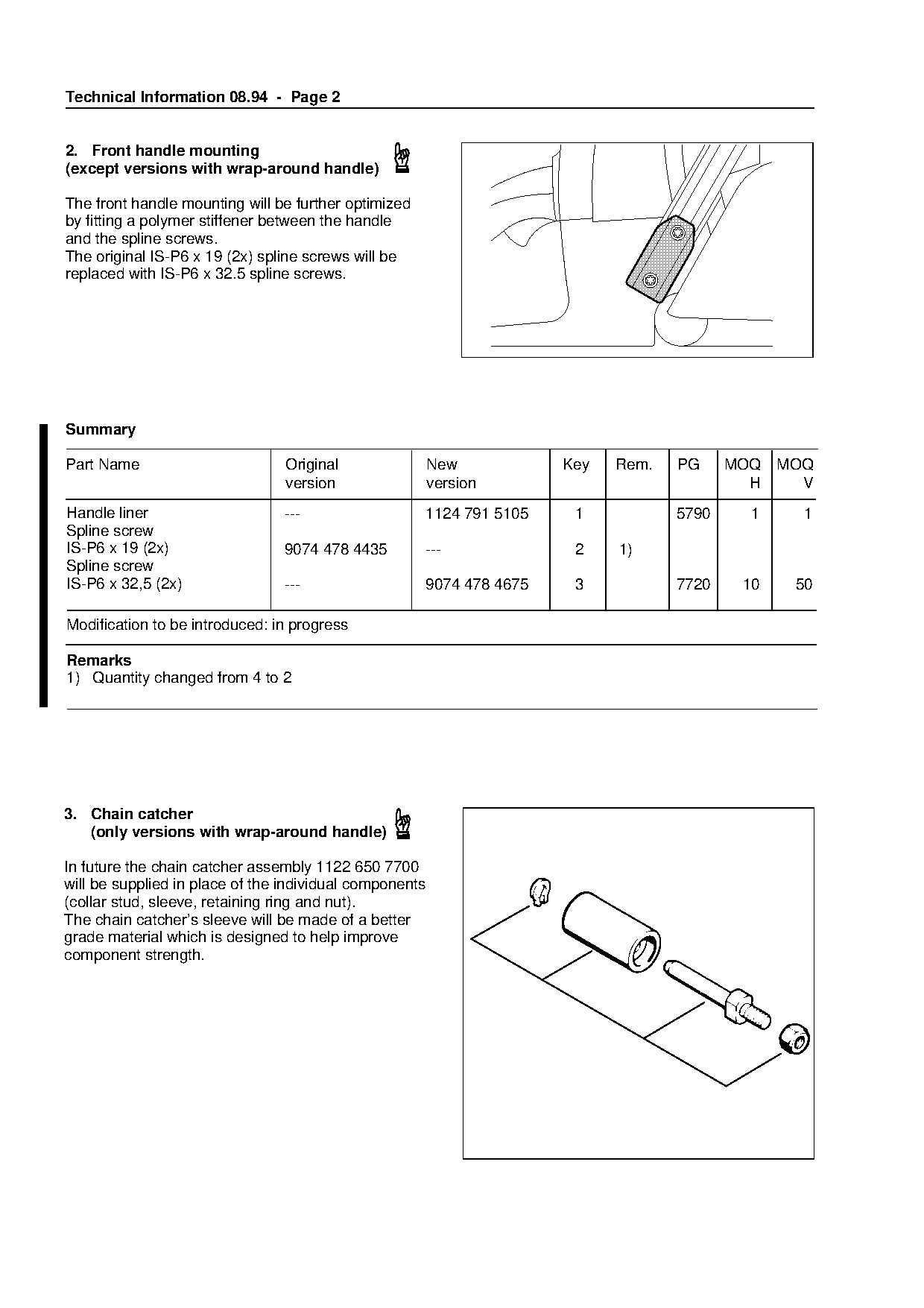

Technical Information 08.94 - Page 2
2. Front handle mounting
(except versions with wrap-around handle)
The front handle mounting will be further optimized
by fitting a polymer stiffener between the handle
and the spline screws.
The original IS-P6 x 19 (2x) spline screws will be
replaced with IS-P6 x 32.5 spline screws.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Handle liner --- 1124 791 5105 1 5790 1 1
Spline screw
IS-P6 x 19 (2x)
Spline screw
9074 478 4435 --- fo 2 1)
IS-P6 x 32,5 (2x) --- 9074 478 4675 3 7720 10 50
Modification to be introduced: in progress
Remarks
1) Quantity changed from 4 to 2
3. Chain catcher
(only versions with wrap-around handle)
In future the chain catcher assembly 1122 650 7700
will be supplied in place of the individual components
(collar stud, sleeve, retaining ring and nut).
The chain catcher’s sleeve will be made of a better
grade material which is designed to help improve
component strength. Page 3 of 4

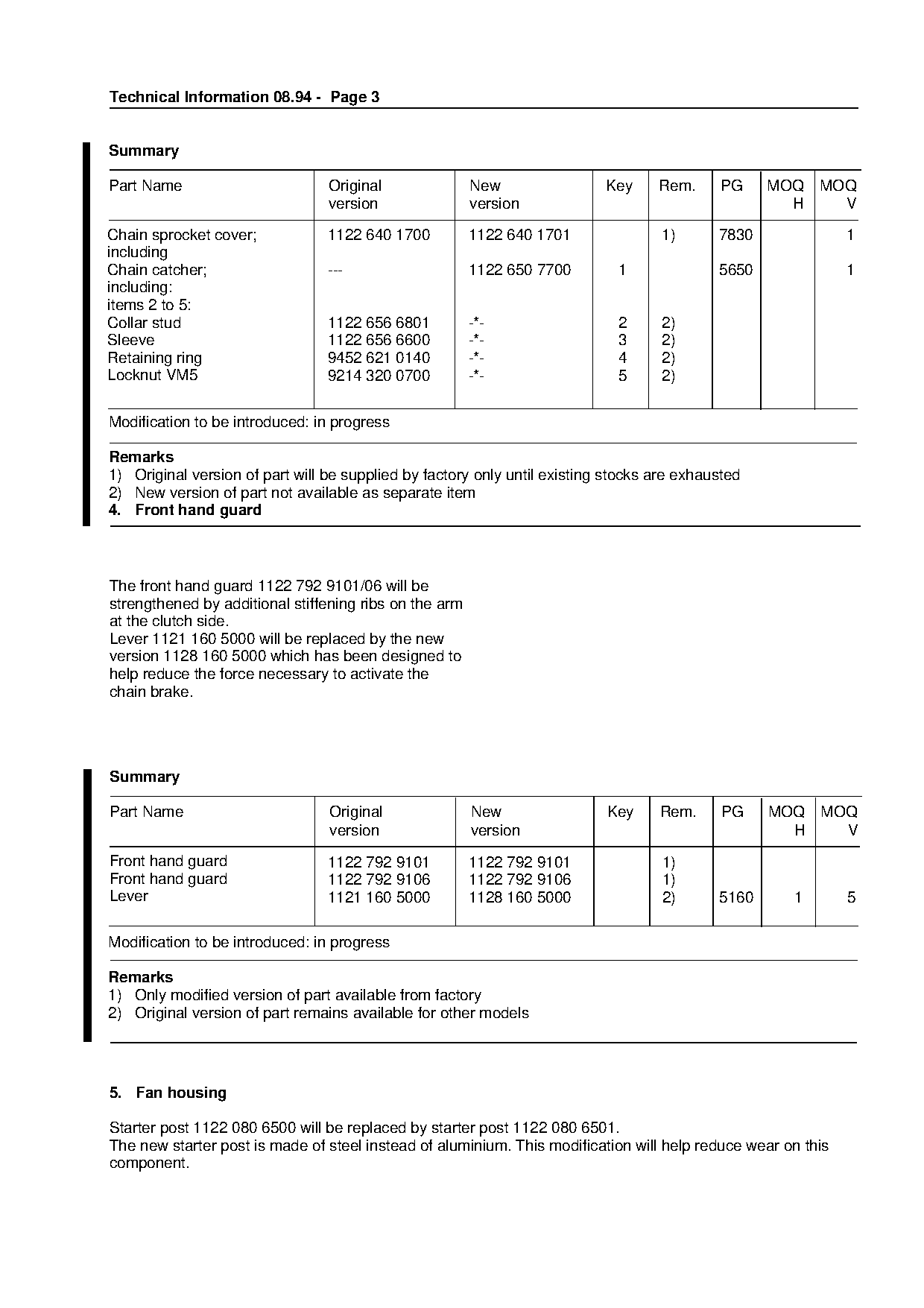

Technical Information 08.94 - Page 3
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Chain sprocket cover; 1122 640 1700 1122 640 1701 1) 7830 1
including
Chain catcher; --- 1122 650 7700 1 5650 1
including:
items 2 to 5:
Collar stud 1122 656 6801 -*- 2 2)
Sleeve 1122 656 6600 -*- 3 2)
Retaining ring 9452 621 0140 -*- 4 2)
Locknut VM5 9214 320 0700 -*- 5 2)
Modification to be introduced: in progress
Remarks
1) Original version of part will be supplied by factory only until existing stocks are exhausted
2) New version of part not available as separate item
4. Front hand guard
The front hand guard 1122 792 9101/06 will be
strengthened by additional stiffening ribs on the arm
at the clutch side.
Lever 1121 160 5000 will be replaced by the new
version 1128 160 5000 which has been designed to
help reduce the force necessary to activate the
chain brake.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Front hand guard 1122 792 9101 1122 792 9101 1)
Front hand guard 1122 792 9106 1122 792 9106 1)
Lever 1121 160 5000 1128 160 5000 2) 5160 1 5
Modification to be introduced: in progress
Remarks
1) Only modified version of part available from factory
2) Original version of part remains available for other models
5. Fan housing
Starter post 1122 080 6500 will be replaced by starter post 1122 080 6501.
The new starter post is made of steel instead of aluminium. This modification will help reduce wear on this
component. Page 4 of 4

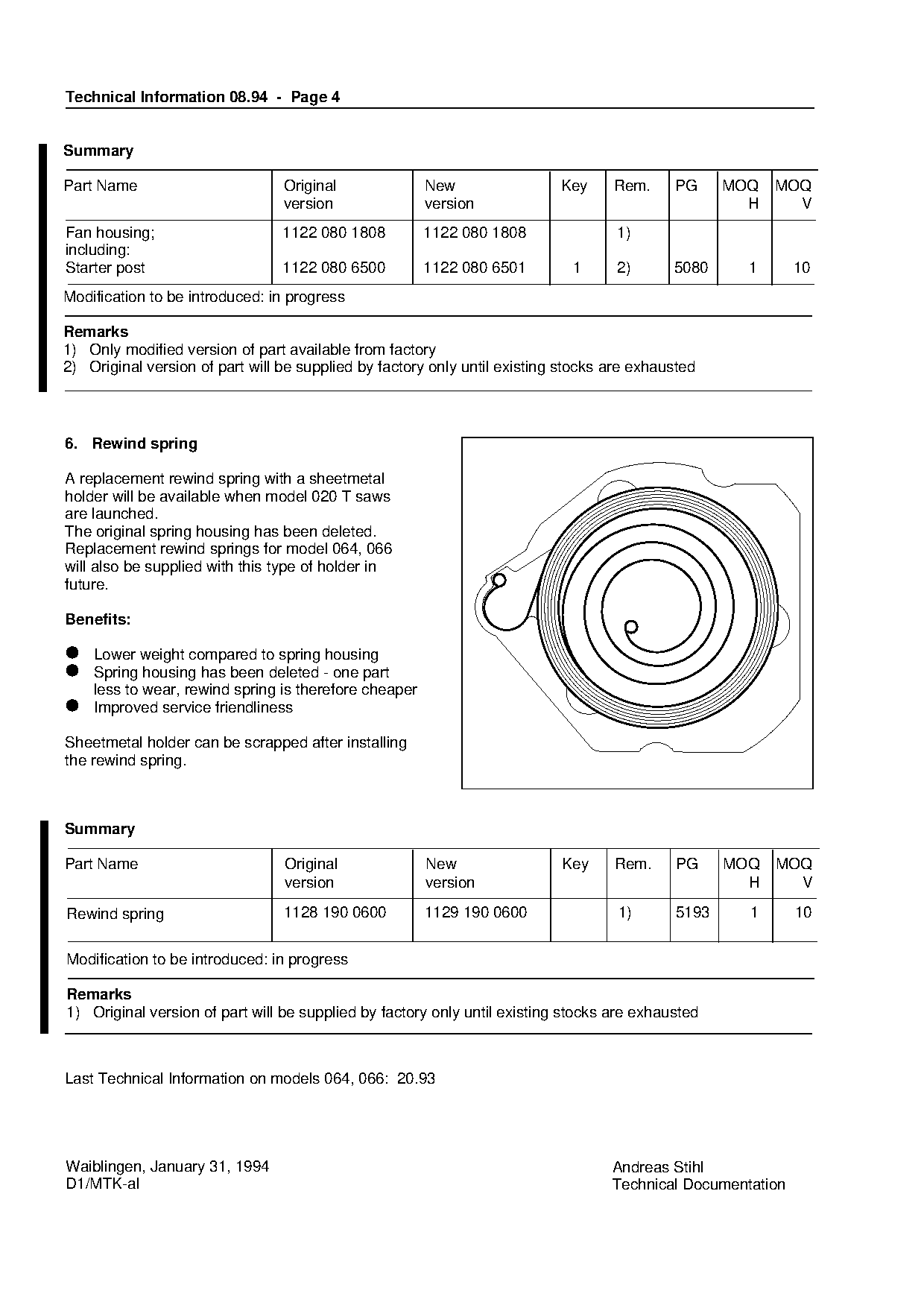

Technical Information 08.94 - Page 4
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Fan housing; 1122 080 1808 1122 080 1808 1)
including:
Starter post 1122 080 6500 1122 080 6501 1 2) 5080 1 10
Modification to be introduced: in progress
Remarks
1) Only modified version of part available from factory
2) Original version of part will be supplied by factory only until existing stocks are exhausted
6. Rewind spring
A replacement rewind spring with a sheetmetal
holder will be available when model 020 T saws
are launched.
The original spring housing has been deleted.
Replacement rewind springs for model 064, 066
will also be supplied with this type of holder in
future.
Benefits:
• Lower
weight compared to spring housing
• less
Spring housing has been deleted - one part
to wear, rewind spring is therefore cheaper
• Improved service friendliness
Sheetmetal holder can be scrapped after installing
the rewind spring.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Rewind spring 1128 190 0600 1129 190 0600 1) 5193 1 10
Modification to be introduced: in progress
Remarks
1) Original version of part will be supplied by factory only until existing stocks are exhausted
Last Technical Information on models 064, 066: 20.93
Waiblingen, January 31, 1994 Andreas Stihl
