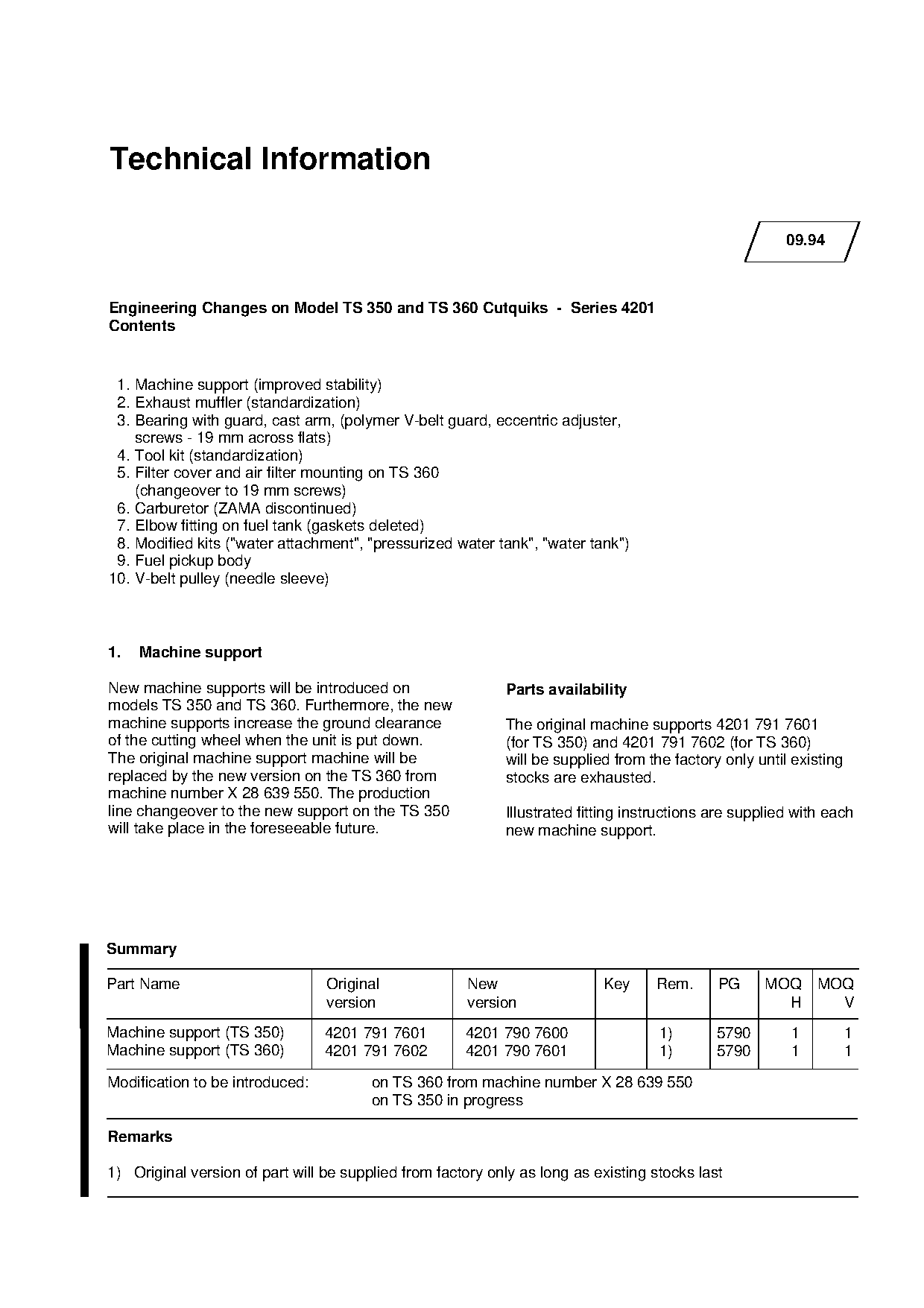

Technical Information
09.94
Engineering Changes on Model TS 350 and TS 360 Cutquiks - Series 4201
Contents
1. Machine support (improved stability)
2. Exhaust muffler (standardization)
3. Bearing with guard, cast arm, (polymer V-belt guard, eccentric adjuster,
screws - 19 mm across flats)
4. Tool kit (standardization)
5. Filter cover and air filter mounting on TS 360
(changeover to 19 mm screws)
6. Carburetor (ZAMA discontinued)
7. Elbow fitting on fuel tank (gaskets deleted)

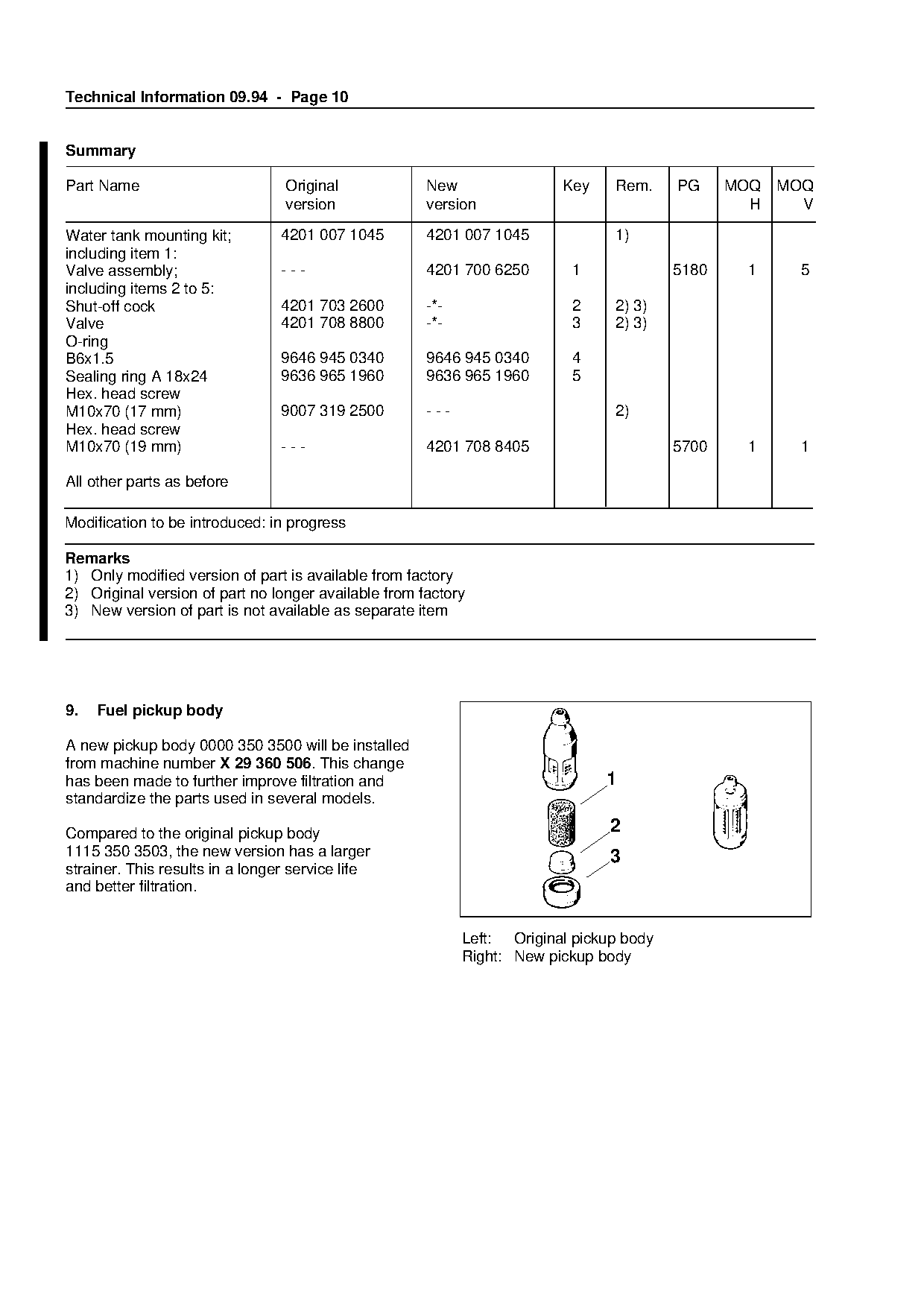

9. Fuel pickup body

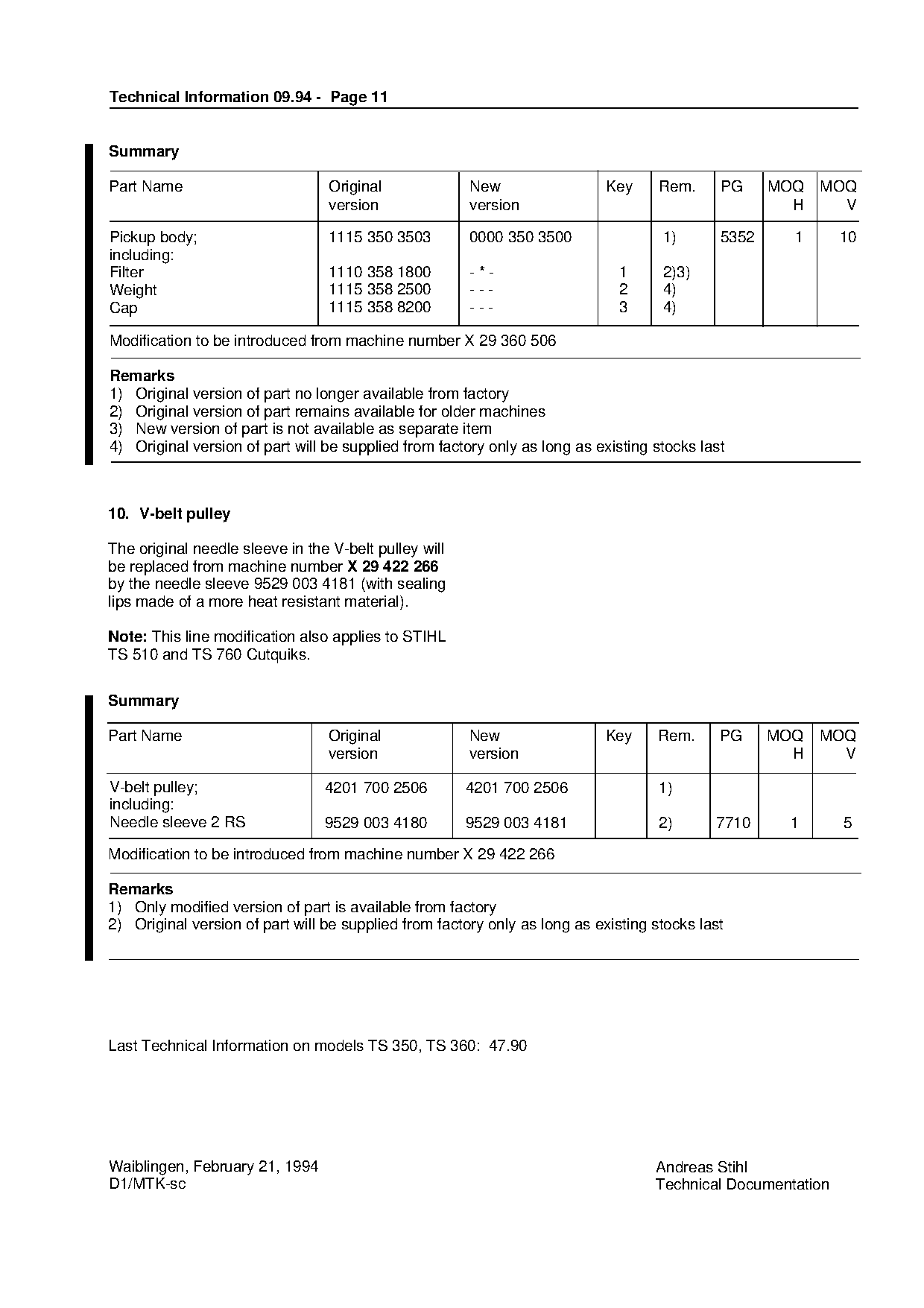

10. V-belt pulley (needle sleeve)

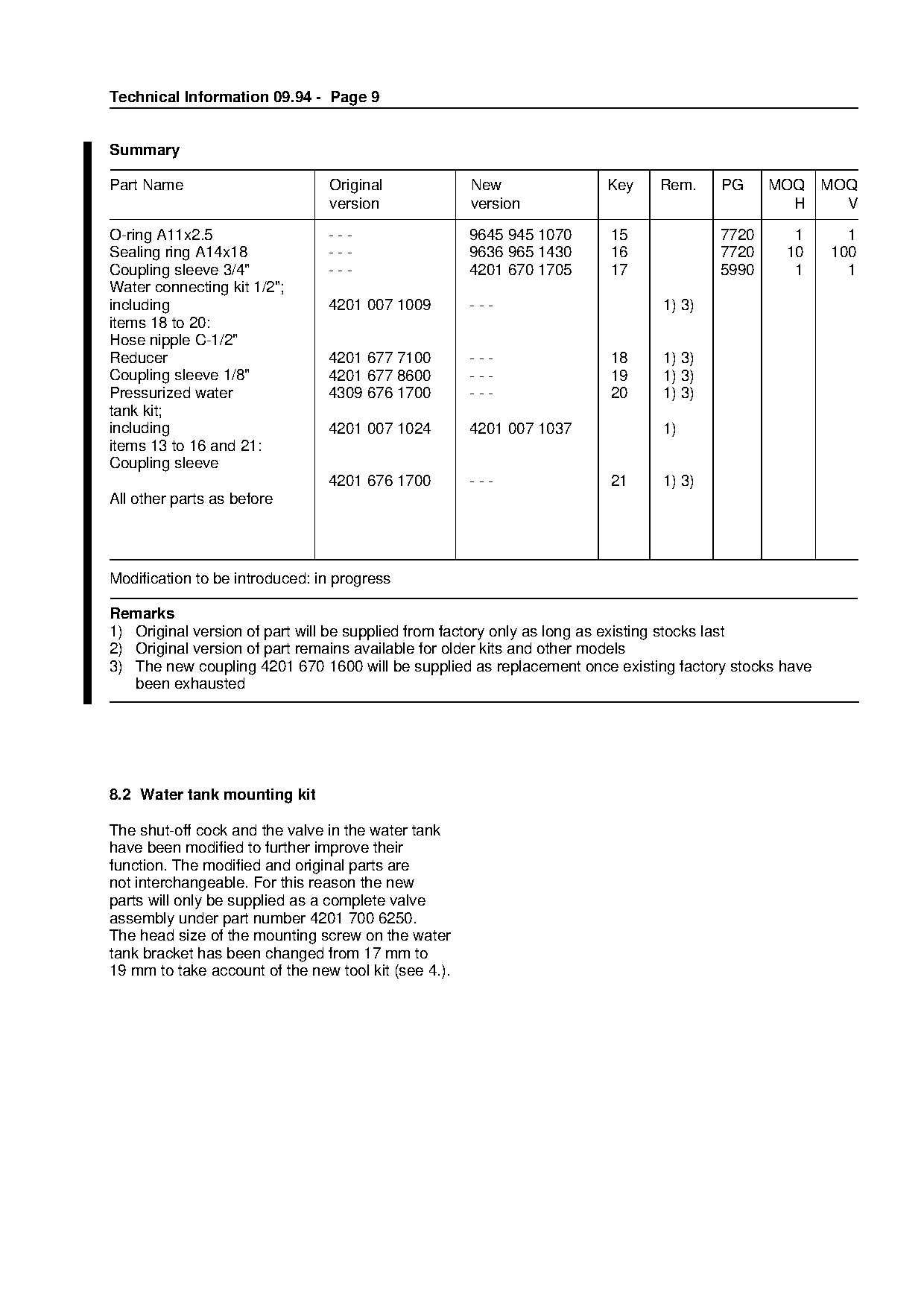

8. Modified kits ("water attachment", "pressurized water tank", "water tank")
1. Machine support
New machine supports will be introduced on Parts availability
models TS 350 and TS 360. Furthermore, the new
machine supports increase the ground clearance The original machine supports 4201 791 7601
of the cutting wheel when the unit is put down. (for TS 350) and 4201 791 7602 (for TS 360)
The original machine support machine will be will be supplied from the factory only until existing
replaced by the new version on the TS 360 from stocks are exhausted.
machine number X 28 639 550. The production
line changeover to the new support on the TS 350 Illustrated fitting instructions are supplied with each
will take place in the foreseeable future. new machine support.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Machine support (TS 350) 4201 791 7601 4201 790 7600 1) 5790 1 1
Machine support (TS 360) 4201 791 7602 4201 790 7601 1) 5790 1 1
Modification to be introduced: on TS 360 from machine number X 28 639 550
on TS 350 in progress
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last Page 2 of 11

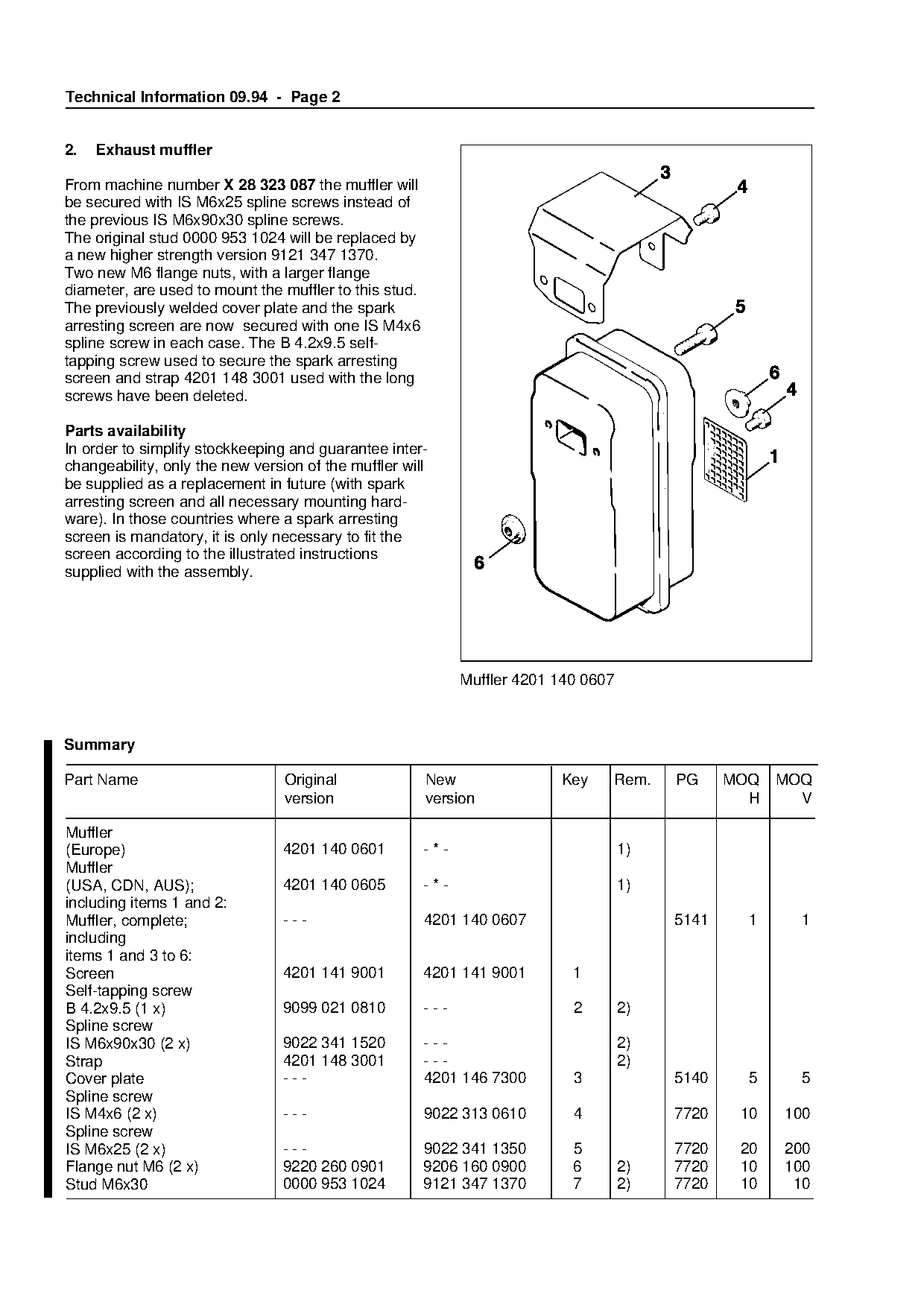

Technical Information 09.94 - Page 2
2. Exhaust muffler
From machine number X 28 323 087 the muffler will
be secured with IS M6x25 spline screws instead of
the previous IS M6x90x30 spline screws.
The original stud 0000 953 1024 will be replaced by
a new higher strength version 9121 347 1370.
Two new M6 flange nuts, with a larger flange
diameter, are used to mount the muffler to this stud.
The previously welded cover plate and the spark
arresting screen are now secured with one IS M4x6
spline screw in each case. The B 4.2x9.5 self-
tapping screw used to secure the spark arresting
screen and strap 4201 148 3001 used with the long
screws have been deleted.
Parts availability
In order to simplify stockkeeping and guarantee inter-
changeability, only the new version of the muffler will
be supplied as a replacement in future (with spark
arresting screen and all necessary mounting hard-
ware). In those countries where a spark arresting
screen is mandatory, it is only necessary to fit the
screen according to the illustrated instructions
supplied with the assembly.
Muffler 4201 140 0607
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Muffler
(Europe) 4201 140 0601 -*- 1)
Muffler
(USA, CDN, AUS); 4201 140 0605 -*- 1)
including items 1 and 2:
Muffler, complete; --- 4201 140 0607 5141 1 1
including
items 1 and 3 to 6:
Screen 4201 141 9001 4201 141 9001 1
Self-tapping screw
B 4.2x9.5 (1 x) 9099 021 0810 --- 2 2)
Spline screw
IS M6x90x30 (2 x) 9022 341 1520 --- 2)
Strap 4201 148 3001 --- 2)
Cover plate --- 4201 146 7300 3 5140 5 5
Spline screw
IS M4x6 (2 x) --- 9022 313 0610 4 7720 10 100
Spline screw
IS M6x25 (2 x) --- 9022 341 1350 5 7720 20 200
Flange nut M6 (2 x) 9220 260 0901 9206 160 0900 6 2) 7720 10 100
Stud M6x30 0000 953 1024 9121 347 1370 7 2) 7720 10 10 Page 3 of 11

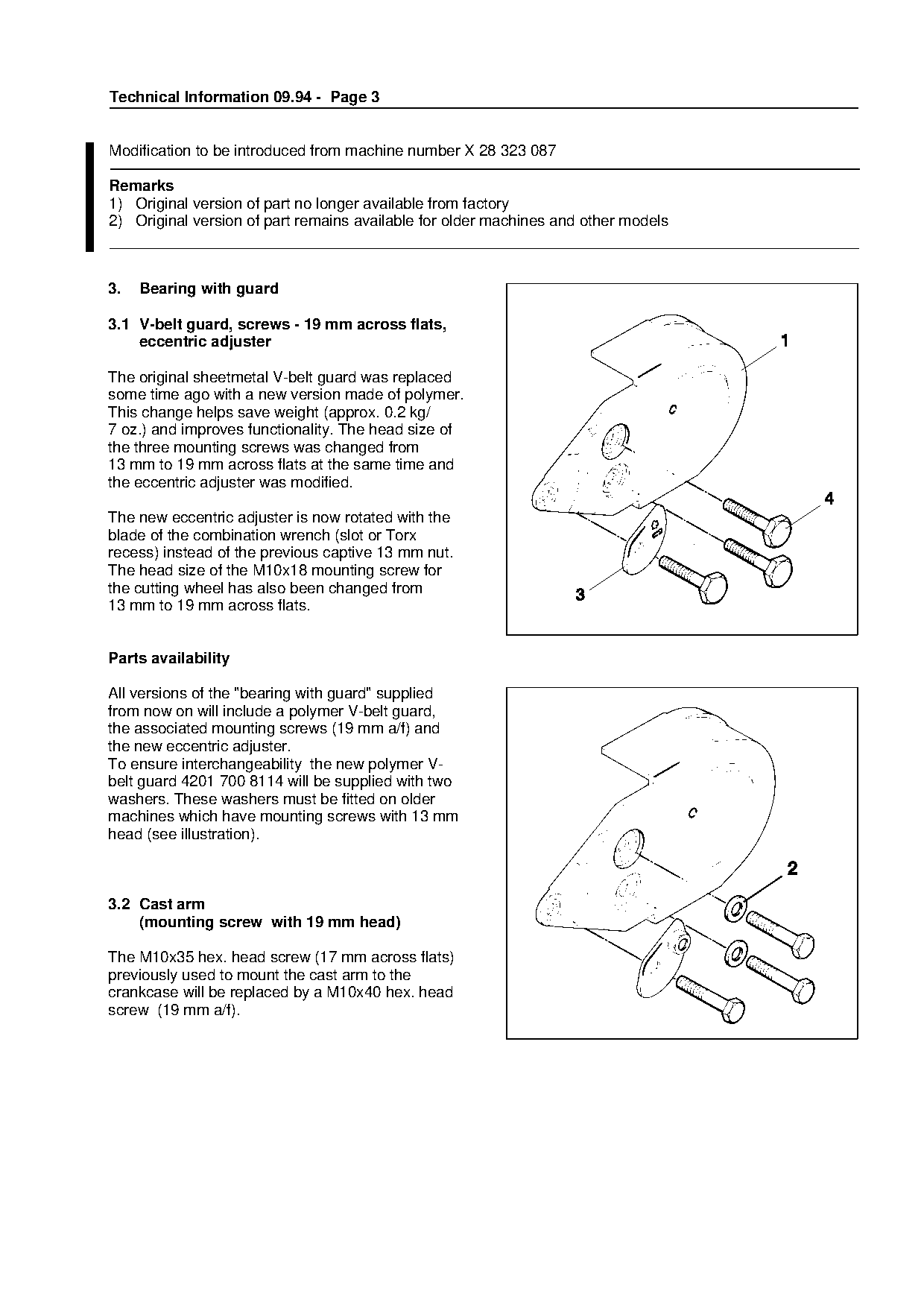

Technical Information 09.94 - Page 3
Modification to be introduced from machine number X 28 323 087
Remarks
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines and other models
3. Bearing with guard
3.1 V-belt guard, screws - 19 mm across flats,
eccentric adjuster
The original sheetmetal V-belt guard was replaced
some time ago with a new version made of polymer.
This change helps save weight (approx. 0.2 kg/
7 oz.) and improves functionality. The head size of
the three mounting screws was changed from
13 mm to 19 mm across flats at the same time and
the eccentric adjuster was modified.
The new eccentric adjuster is now rotated with the
blade of the combination wrench (slot or Torx
recess) instead of the previous captive 13 mm nut.
The head size of the M10x18 mounting screw for
the cutting wheel has also been changed from
13 mm to 19 mm across flats.
Parts availability
All versions of the "bearing with guard" supplied
from now on will include a polymer V-belt guard,
the associated mounting screws (19 mm a/f) and
the new eccentric adjuster.
To ensure interchangeability the new polymer V-
belt guard 4201 700 8114 will be supplied with two
washers. These washers must be fitted on older
machines which have mounting screws with 13 mm
head (see illustration).
3.2 Cast arm
(mounting screw with 19 mm head)
The M10x35 hex. head screw (17 mm across flats)
previously used to mount the cast arm to the
crankcase will be replaced by a M10x40 hex. head
screw (19 mm a/f). Page 4 of 11

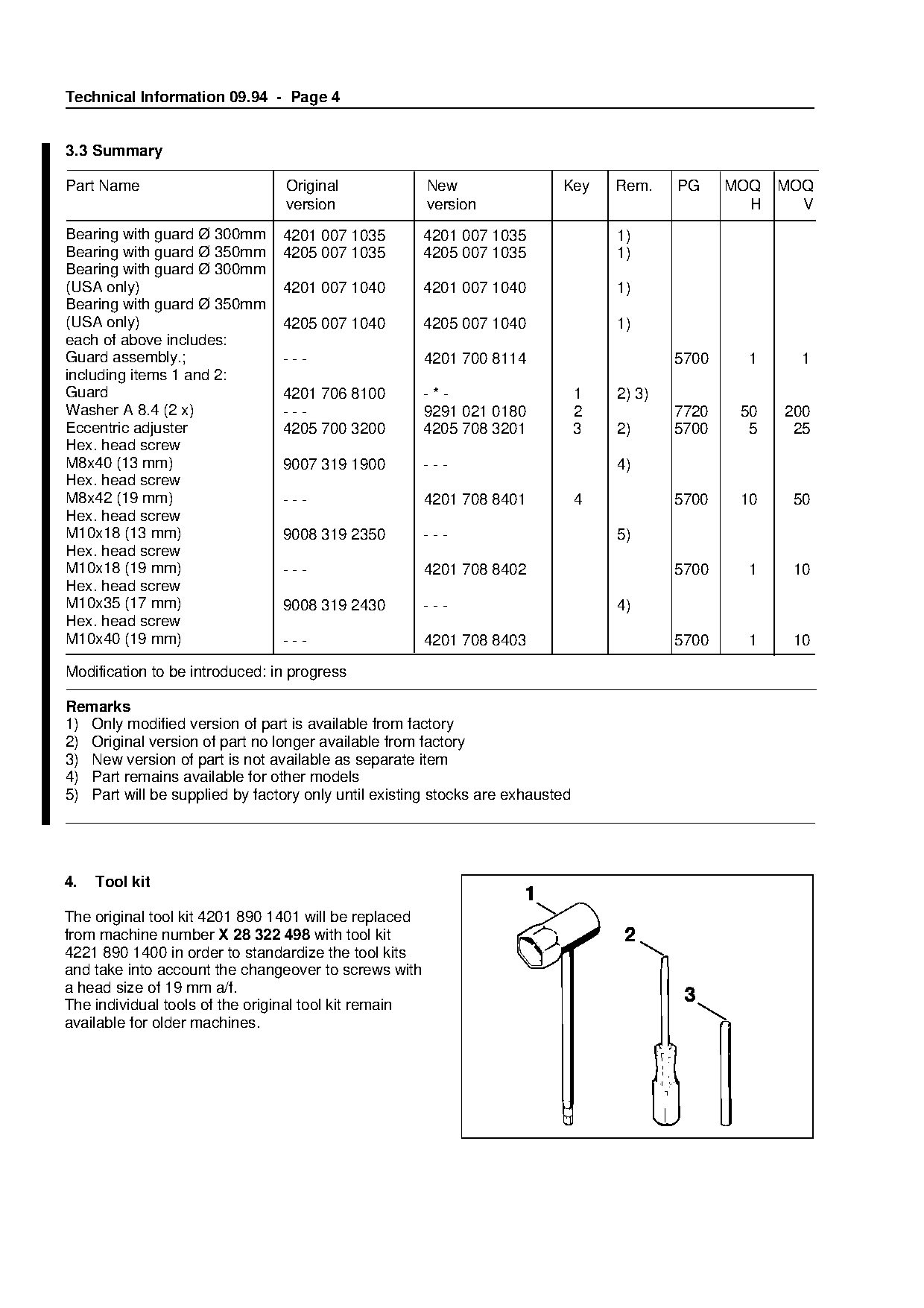

Technical Information 09.94 - Page 4
3.3 Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Bearing with guard Ø 300mm 4201 007 1035 4201 007 1035 1)
Bearing with guard Ø 350mm 4205 007 1035 4205 007 1035 1)
Bearing with guard Ø 300mm
(USA only) 4201 007 1040 4201 007 1040 1)
Bearing with guard Ø 350mm
(USA only) 4205 007 1040 4205 007 1040 1)
each of above includes:
Guard assembly.; --- 4201 700 8114 5700 1 1
including items 1 and 2:
Guard 4201 706 8100 -*- 1 2) 3)
Washer A 8.4 (2 x) --- 9291 021 0180 2 7720 50 200
Eccentric adjuster 4205 700 3200 4205 708 3201 3 2) 5700 5 25
Hex. head screw
M8x40 (13 mm) 9007 319 1900 --- 4)
Hex. head screw
M8x42 (19 mm) --- 4201 708 8401 4 5700 10 50
Hex. head screw
M10x18 (13 mm) 9008 319 2350 --- 5)
Hex. head screw
M10x18 (19 mm) ---
4201 708 8402 5700 1 10
Hex. head screw
M10x35 (17 mm) 9008 319 2430 --- 4)
Hex. head screw
M10x40 (19 mm)
--- 4201 708 8403 5700 1 10
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory
2) Original version of part no longer available from factory
3) New version of part is not available as separate item
4) Part remains available for other models
5) Part will be supplied by factory only until existing stocks are exhausted
4. Tool kit
The original tool kit 4201 890 1401 will be replaced
from machine number X 28 322 498 with tool kit
4221 890 1400 in order to standardize the tool kits
and take into account the changeover to screws with
a head size of 19 mm a/f.
The individual tools of the original tool kit remain
available for older machines. Page 5 of 11

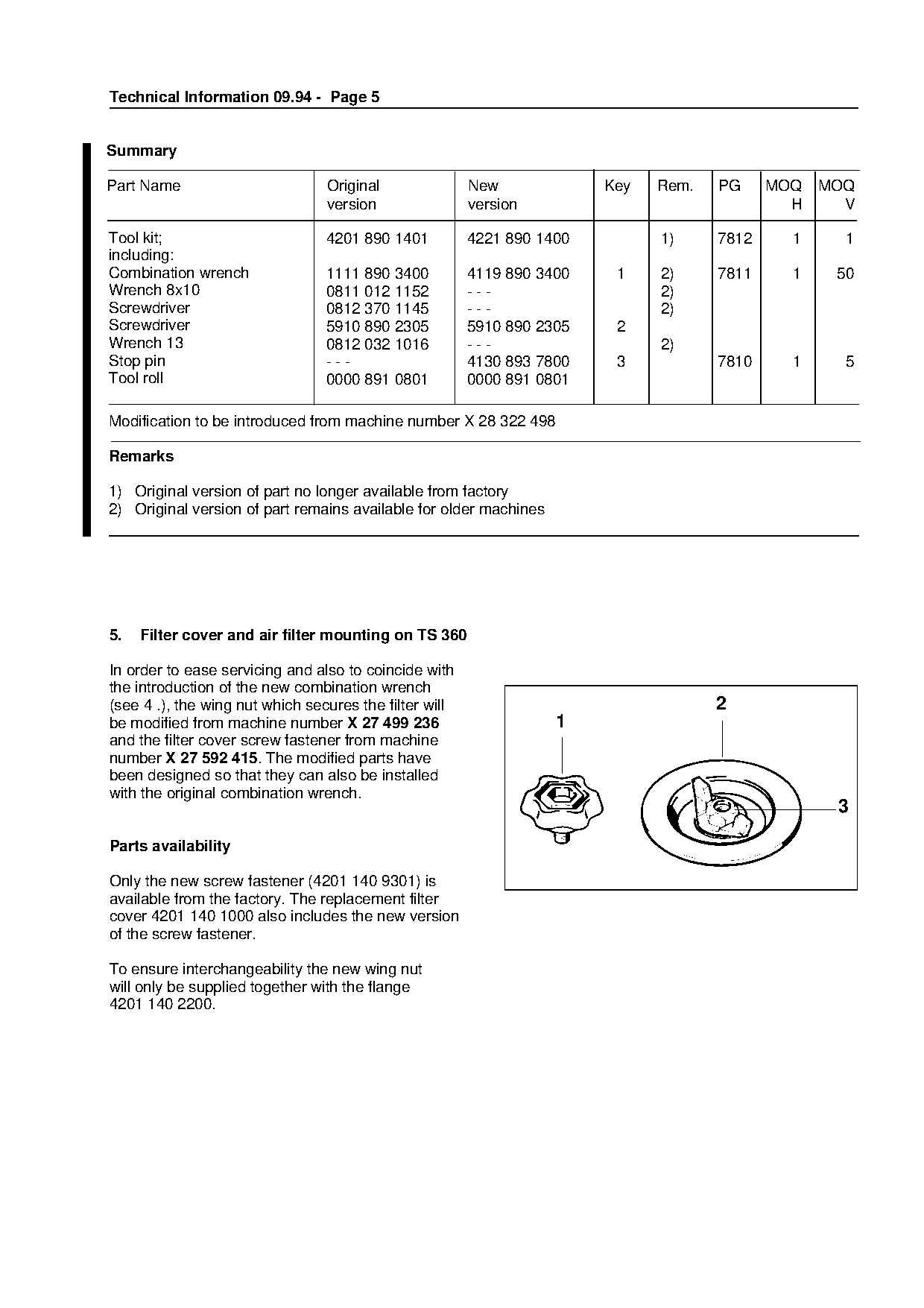

Technical Information 09.94 - Page 5
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Tool kit; 4201 890 1401 4221 890 1400 1) 7812 1 1
including:
Combination wrench 1111 890 3400 4119 890 3400 1 2) 7811 1 50
Wrench 8x10 0811 012 1152 --- 2)
Screwdriver 0812 370 1145 --- 2)
Screwdriver 5910 890 2305 5910 890 2305 2
Wrench 13 0812 032 1016 --- 2)
Stop pin --- 4130 893 7800 3 7810 1 5
Tool roll 0000 891 0801 0000 891 0801
Modification to be introduced from machine number X 28 322 498
Remarks
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines
5. Filter cover and air filter mounting on TS 360
In order to ease servicing and also to coincide with
the introduction of the new combination wrench
(see 4 .), the wing nut which secures the filter will 2
be modified from machine number X 27 499 236 1
and the filter cover screw fastener from machine
number X 27 592 415. The modified parts have
been designed so that they can also be installed
with the original combination wrench.
Parts availability
Only the new screw fastener (4201 140 9301) is
available from the factory. The replacement filter
cover 4201 140 1000 also includes the new version
of the screw fastener.
To ensure interchangeability the new wing nut
will only be supplied together with the flange
4201 140 2200. Page 6 of 11

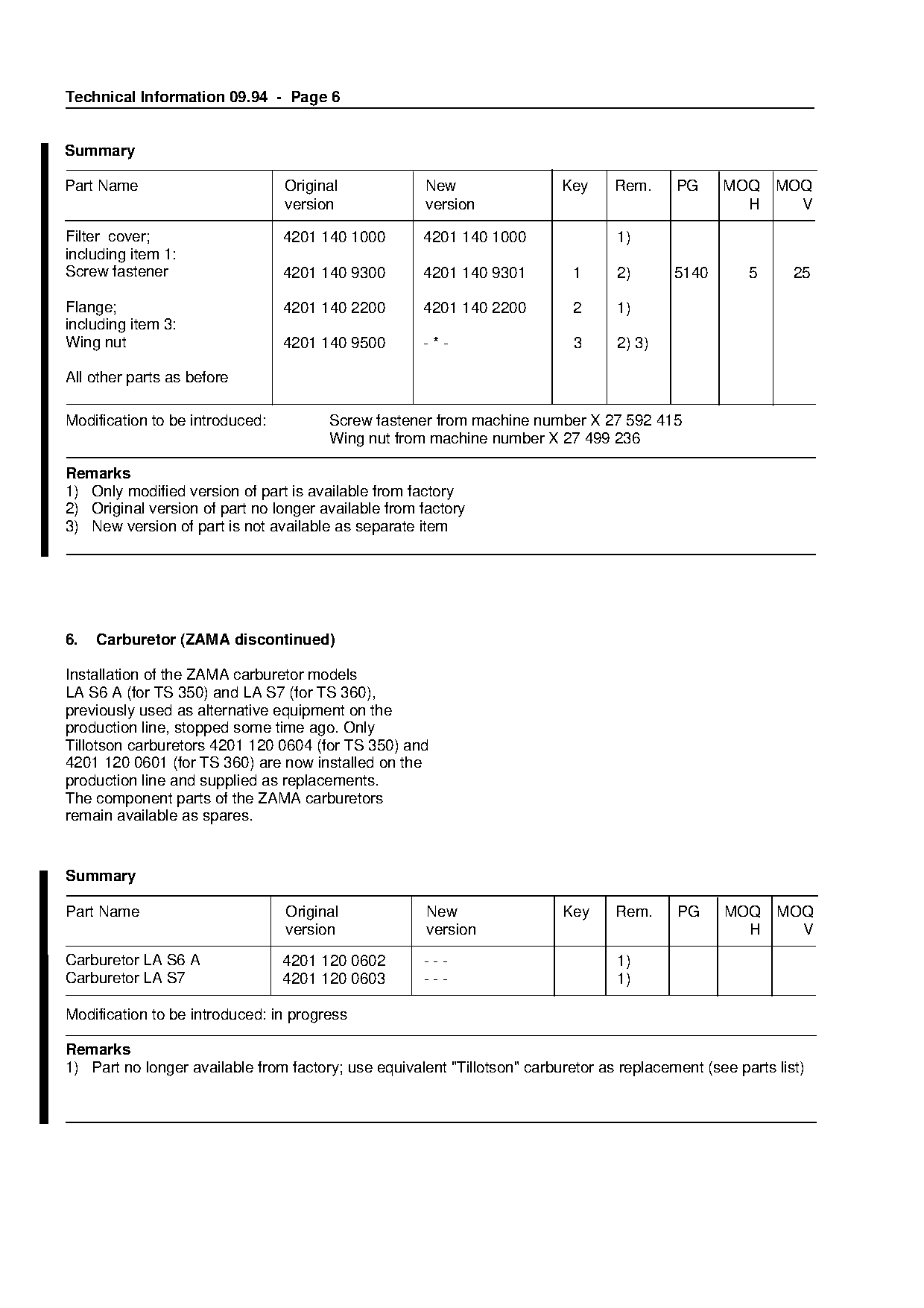

Technical Information 09.94 - Page 6
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Filter cover; 4201 140 1000 4201 140 1000 1)
including item 1:
Screw fastener 4201 140 9300 4201 140 9301 1 2) 5140 5 25
Flange; 4201 140 2200 4201 140 2200 2 1)
including item 3:
Wing nut 4201 140 9500 -*- 3 2) 3)
All other parts as before
Modification to be introduced: Screw fastener from machine number X 27 592 415
Wing nut from machine number X 27 499 236
Remarks
1) Only modified version of part is available from factory
2) Original version of part no longer available from factory
3) New version of part is not available as separate item
6. Carburetor (ZAMA discontinued)
Installation of the ZAMA carburetor models
LA S6 A (for TS 350) and LA S7 (for TS 360),
previously used as alternative equipment on the
production line, stopped some time ago. Only
Tillotson carburetors 4201 120 0604 (for TS 350) and
4201 120 0601 (for TS 360) are now installed on the
production line and supplied as replacements.
The component parts of the ZAMA carburetors
remain available as spares.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Carburetor LA S6 A 4201 120 0602 --- 1)
Carburetor LA S7 4201 120 0603 --- 1)
Modification to be introduced: in progress
Remarks
1) Part no longer available from factory; use equivalent "Tillotson" carburetor as replacement (see parts list) Page 7 of 11

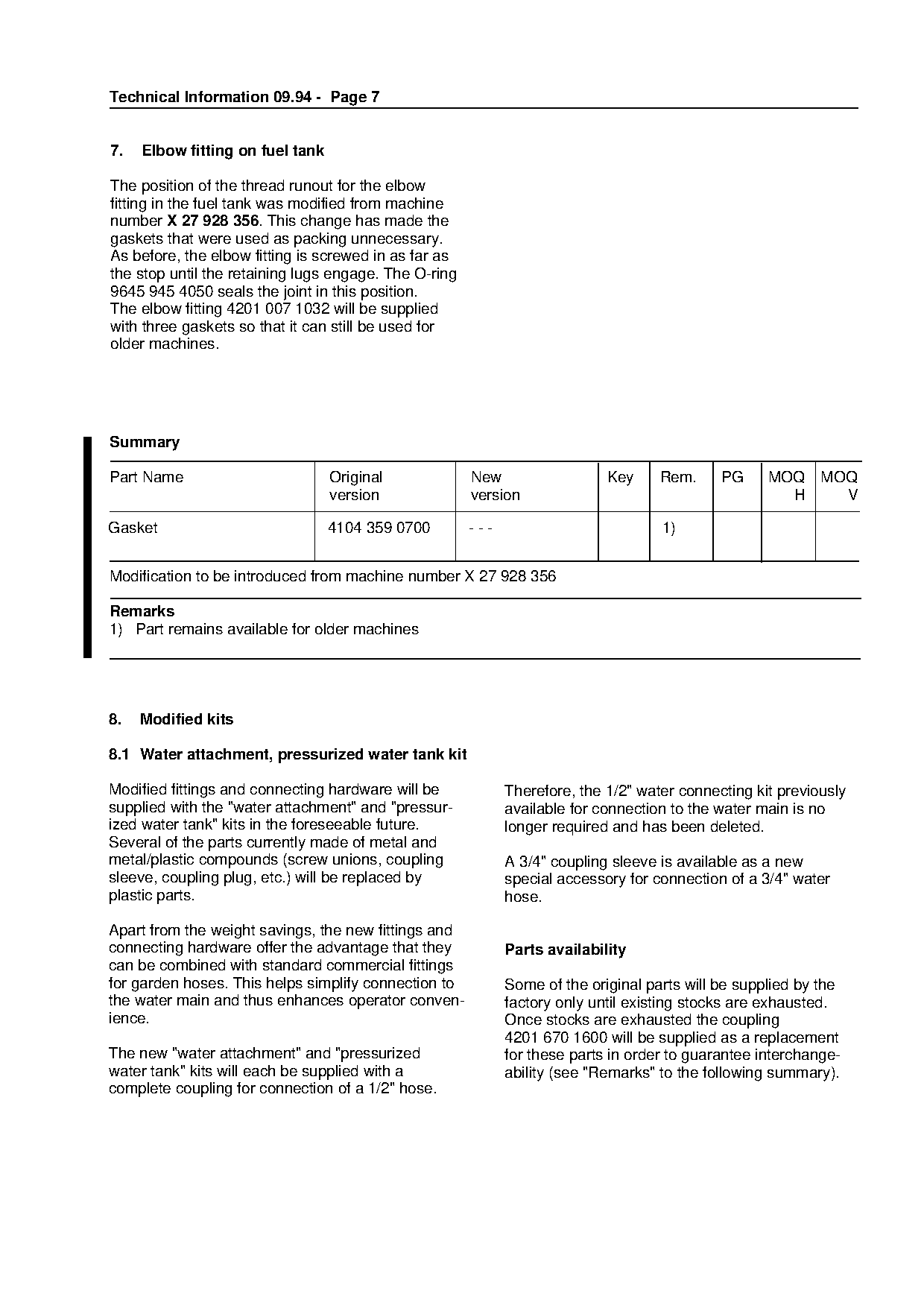

Technical Information 09.94 - Page 7
7. Elbow fitting on fuel tank
The position of the thread runout for the elbow
fitting in the fuel tank was modified from machine
number X 27 928 356. This change has made the
gaskets that were used as packing unnecessary.
As before, the elbow fitting is screwed in as far as
the stop until the retaining lugs engage. The O-ring
9645 945 4050 seals the joint in this position.
The elbow fitting 4201 007 1032 will be supplied
with three gaskets so that it can still be used for
older machines.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Gasket 4104 359 0700 --- 1)
Modification to be introduced from machine number X 27 928 356
Remarks
1) Part remains available for older machines
8. Modified kits

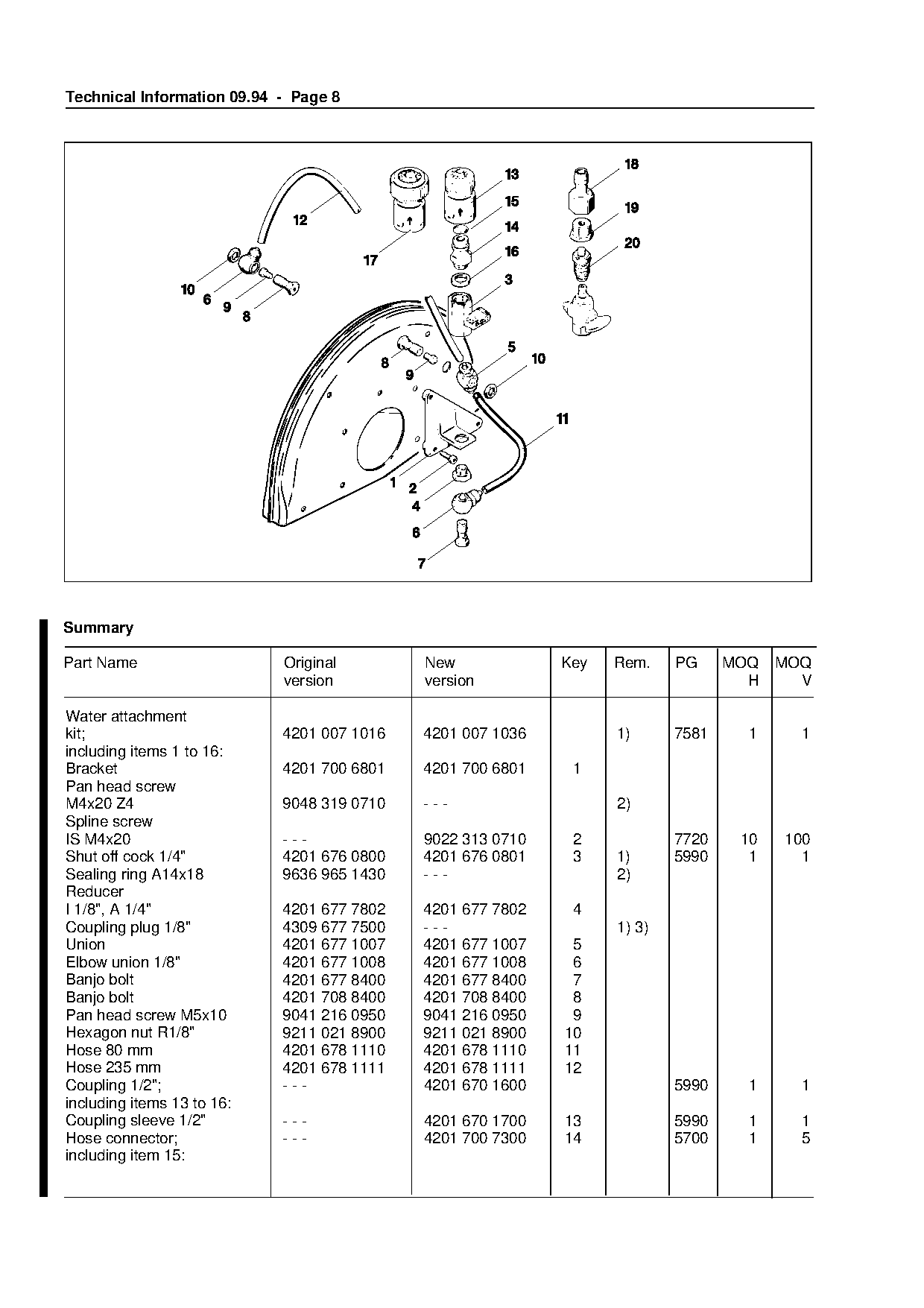

8.1 Water attachment, pressurized water tank kit
Modified fittings and connecting hardware will be Therefore, the 1/2" water connecting kit previously
supplied with the "water attachment" and "pressur- available for connection to the water main is no
ized water tank" kits in the foreseeable future. longer required and has been deleted.
Several of the parts currently made of metal and
metal/plastic compounds (screw unions, coupling A 3/4" coupling sleeve is available as a new
sleeve, coupling plug, etc.) will be replaced by special accessory for connection of a 3/4" water
plastic parts. hose.
Apart from the weight savings, the new fittings and
connecting hardware offer the advantage that they Parts availability
can be combined with standard commercial fittings
for garden hoses. This helps simplify connection to Some of the original parts will be supplied by the
the water main and thus enhances operator conven- factory only until existing stocks are exhausted.
ience. Once stocks are exhausted the coupling
4201 670 1600 will be supplied as a replacement
The new "water attachment" and "pressurized for these parts in order to guarantee interchange-
water tank" kits will each be supplied with a ability (see "Remarks" to the following summary).
complete coupling for connection of a 1/2" hose. Page 8 of 11
Technical Information 09.94 - Page 8
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Water attachment
kit; 4201 007 1016 4201 007 1036 1) 7581 1 1
including items 1 to 16:
Bracket 4201 700 6801 4201 700 6801 1
Pan head screw
M4x20 Z4 9048 319 0710 --- 2)
Spline screw
IS M4x20 --- 9022 313 0710 2 7720 10 100
Shut off cock 1/4" 4201 676 0800 4201 676 0801 3 1) 5990 1 1
Sealing ring A14x18 9636 965 1430 --- 2)
Reducer
I 1/8", A 1/4" 4201 677 7802 4201 677 7802 4
Coupling plug 1/8" 4309 677 7500 --- 1) 3)
Union 4201 677 1007 4201 677 1007 5
Elbow union 1/8" 4201 677 1008 4201 677 1008 6
Banjo bolt 4201 677 8400 4201 677 8400 7
Banjo bolt 4201 708 8400 4201 708 8400 8
Pan head screw M5x10 9041 216 0950 9041 216 0950 9
Hexagon nut R1/8" 9211 021 8900 9211 021 8900 10
Hose 80 mm 4201 678 1110 4201 678 1110 11
Hose 235 mm 4201 678 1111 4201 678 1111 12
Coupling 1/2"; --- 4201 670 1600 5990 1 1
including items 13 to 16:
Coupling sleeve 1/2" --- 4201 670 1700 13 5990 1 1
Hose connector; --- 4201 700 7300 14 5700 1 5
including item 15: Page 9 of 11
Technical Information 09.94 - Page 9
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
O-ring A11x2.5 --- 9645 945 1070 15 7720 1 1
Sealing ring A14x18 --- 9636 965 1430 16 7720 10 100
Coupling sleeve 3/4" --- 4201 670 1705 17 5990 1 1
Water connecting kit 1/2";
including 4201 007 1009 --- 1) 3)
items 18 to 20:
Hose nipple C-1/2"
Reducer 4201 677 7100 --- 18 1) 3)
Coupling sleeve 1/8" 4201 677 8600 --- 19 1) 3)
Pressurized water 4309 676 1700 --- 20 1) 3)
tank kit;
including 4201 007 1024 4201 007 1037 1)
items 13 to 16 and 21:
Coupling sleeve
4201 676 1700 --- 21 1) 3)
All other parts as before
Modification to be introduced: in progress
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last
2) Original version of part remains available for older kits and other models
3) The new coupling 4201 670 1600 will be supplied as replacement once existing factory stocks have
been exhausted
8.2 Water tank mounting kit
The shut-off cock and the valve in the water tank
have been modified to further improve their
function. The modified and original parts are
not interchangeable. For this reason the new
parts will only be supplied as a complete valve
assembly under part number 4201 700 6250.
The head size of the mounting screw on the water
tank bracket has been changed from 17 mm to
19 mm to take account of the new tool kit (see 4.). Page 10 of 11
Technical Information 09.94 - Page 10
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Water tank mounting kit; 4201 007 1045 4201 007 1045 1)
including item 1:
Valve assembly; --- 4201 700 6250 1 5180 1 5
including items 2 to 5:
Shut-off cock 4201 703 2600 -*- 2 2) 3)
Valve 4201 708 8800 -*- 3 2) 3)
O-ring
B6x1.5 9646 945 0340 9646 945 0340 4
Sealing ring A 18x24 9636 965 1960 9636 965 1960 5
Hex. head screw
M10x70 (17 mm) 9007 319 2500 --- 2)
Hex. head screw
M10x70 (19 mm) --- 4201 708 8405 5700 1 1
All other parts as before
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory
2) Original version of part no longer available from factory
3) New version of part is not available as separate item
9. Fuel pickup body
A new pickup body 0000 350 3500 will be installed
from machine number X 29 360 506. This change
has been made to further improve filtration and 1
standardize the parts used in several models.
Compared to the original pickup body 2
1115 350 3503, the new version has a larger 3
strainer. This results in a longer service life
and better filtration.
Left: Original pickup body
Right: New pickup body Page 11 of 11
Technical Information 09.94 - Page 11
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Pickup body; 1115 350 3503 0000 350 3500 1) 5352 1 10
including:
Filter 1110 358 1800 -*- 1 2)3)
Weight 1115 358 2500 --- 2 4)
Cap 1115 358 8200 --- 3 4)
Modification to be introduced from machine number X 29 360 506
Remarks
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines
3) New version of part is not available as separate item
4) Original version of part will be supplied from factory only as long as existing stocks last
10. V-belt pulley
The original needle sleeve in the V-belt pulley will
be replaced from machine number X 29 422 266
by the needle sleeve 9529 003 4181 (with sealing
lips made of a more heat resistant material).
Note: This line modification also applies to STIHL
TS 510 and TS 760 Cutquiks.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
V-belt pulley; 4201 700 2506 4201 700 2506 1)
including:
Needle sleeve 2 RS 9529 003 4180 9529 003 4181 2) 7710 1 5
Modification to be introduced from machine number X 29 422 266
Remarks
1) Only modified version of part is available from factory
2) Original version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on models TS 350, TS 360: 47.90
Waiblingen, February 21, 1994 Andreas Stihl
D1/MTK-sc Technical Documentation Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
