Technical Information · issue 13 of 1994
Filler cap; hand guard; carburetor; muffler
Part changes (5)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1123 792 9100 | 1123 790 9150 | The original hand guard 1123 792 9100 will be replaced by hand guard 1123 790 9150. |
| 1123 792 5500 | 1127 791 7200 | In order to further standardize parts the bushing 1123 792 5500 (1) will be replaced by sleeve 1 1127 791 7200 (2). |
| 1123 358 7700 | 1123 358 7701 | The original fuel intake hose 1123 358 7700 will be replaced by the new hose 1123 358 7701. |
| 1120 350 3500 | 0000 350 3500 | pickup body 1120 350 3500 will be replaced by pik- kup body 0000 350 3500. |
| 1121 034 3001 | 1123 034 3003 | The original piston ring 1121 034 3001 will be The original connecting rod used in model 021 replaced by the new version 1123 034 3003. |
Full text
Page 1 of 4

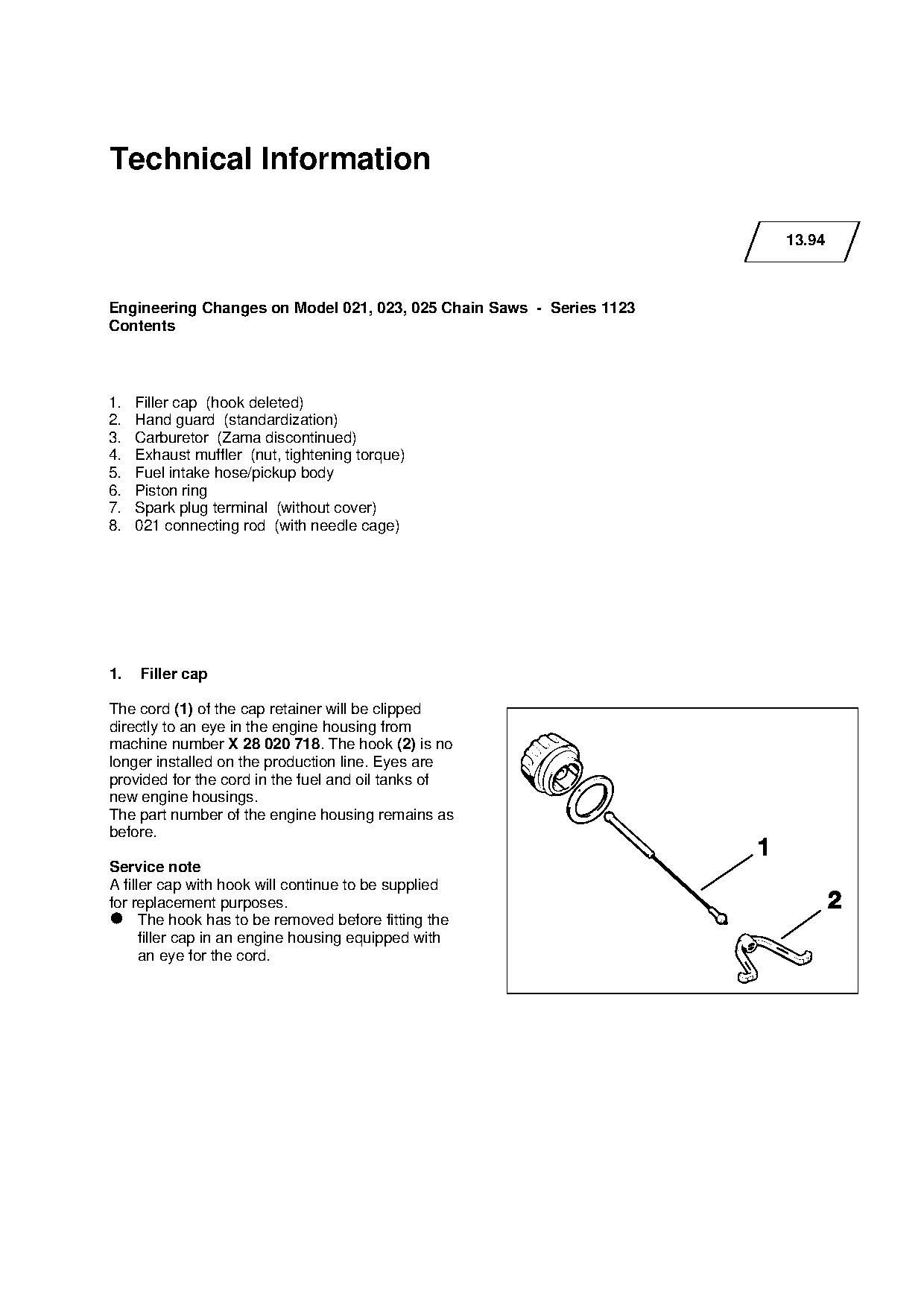

Technical Information
13.94
Engineering Changes on Model 021, 023, 025 Chain Saws - Series 1123
Contents
1. Filler cap (hook deleted)
2. Hand guard (standardization)
3. Carburetor (Zama discontinued)
4. Exhaust muffler (nut, tightening torque)
5. Fuel intake hose/pickup body
6. Piston ring
7. Spark plug terminal (without cover)
8. 021 connecting rod (with needle cage)
1. Filler cap
The cord (1) of the cap retainer will be clipped
directly to an eye in the engine housing from
machine number X 28 020 718. The hook (2) is no
longer installed on the production line. Eyes are
provided for the cord in the fuel and oil tanks of
new engine housings.
The part number of the engine housing remains as
before.
Service note
A filler cap with hook will continue to be supplied
for replacement purposes.
•
The hook has to be removed before fitting the
filler cap in an engine housing equipped with
an eye for the cord. Page 2 of 4

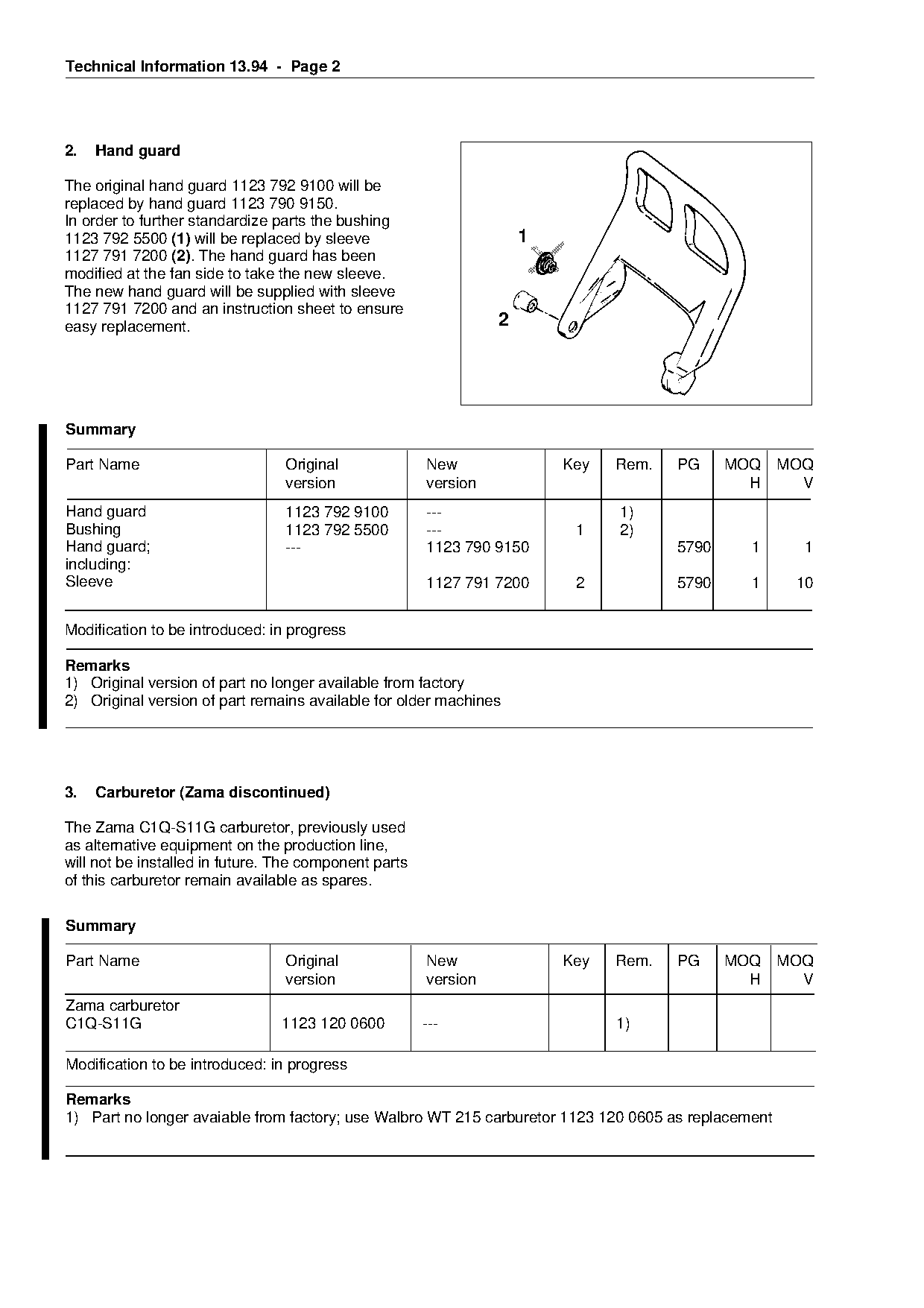

Technical Information 13.94 - Page 2
2. Hand guard
The original hand guard 1123 792 9100 will be
replaced by hand guard 1123 790 9150.
In order to further standardize parts the bushing
1123 792 5500 (1) will be replaced by sleeve 1
1127 791 7200 (2). The hand guard has been
modified at the fan side to take the new sleeve.
The new hand guard will be supplied with sleeve
1127 791 7200 and an instruction sheet to ensure
easy replacement. 2
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Hand guard 1123 792 9100 --- 1)
Bushing 1123 792 5500 --- 1 2)
Hand guard;
including:
--- 1123 790 9150 fo 5790 1 1
Sleeve 1127 791 7200 2 5790 1 10
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines
3. Carburetor (Zama discontinued)
The Zama C1Q-S11G carburetor, previously used
as alternative equipment on the production line,
will not be installed in future. The component parts
of this carburetor remain available as spares.
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Zama carburetor
C1Q-S11G 1123 120 0600 --- 1)
Modification to be introduced: in progress
Remarks
1) Part no longer avaiable from factory; use Walbro WT 215 carburetor 1123 120 0605 as replacement Page 3 of 4

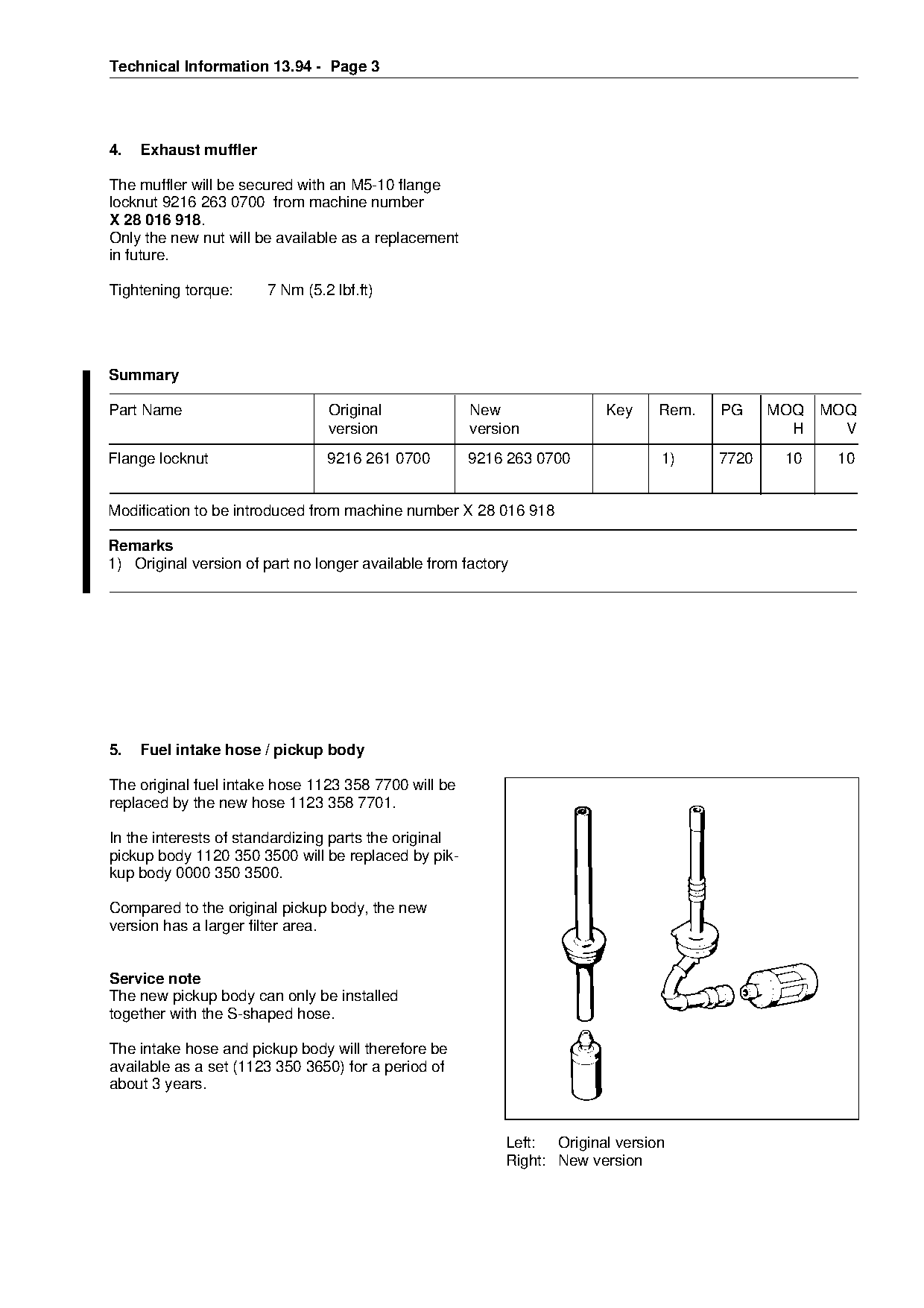

Technical Information 13.94 - Page 3
4. Exhaust muffler
The muffler will be secured with an M5-10 flange
locknut 9216 263 0700 from machine number
X 28 016 918.
Only the new nut will be available as a replacement
in future.
Tightening torque: 7 Nm (5.2 lbf.ft)
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Flange locknut 9216 261 0700 9216 263 0700 1) 7720 10 10
Modification to be introduced from machine number X 28 016 918
Remarks
1) Original version of part no longer available from factory
5. Fuel intake hose / pickup body
The original fuel intake hose 1123 358 7700 will be
replaced by the new hose 1123 358 7701.
In the interests of standardizing parts the original
pickup body 1120 350 3500 will be replaced by pik-
kup body 0000 350 3500.
Compared to the original pickup body, the new
version has a larger filter area.
Service note
The new pickup body can only be installed
together with the S-shaped hose.
The intake hose and pickup body will therefore be
available as a set (1123 350 3650) for a period of
about 3 years.
Left: Original version
Right: New version Page 4 of 4

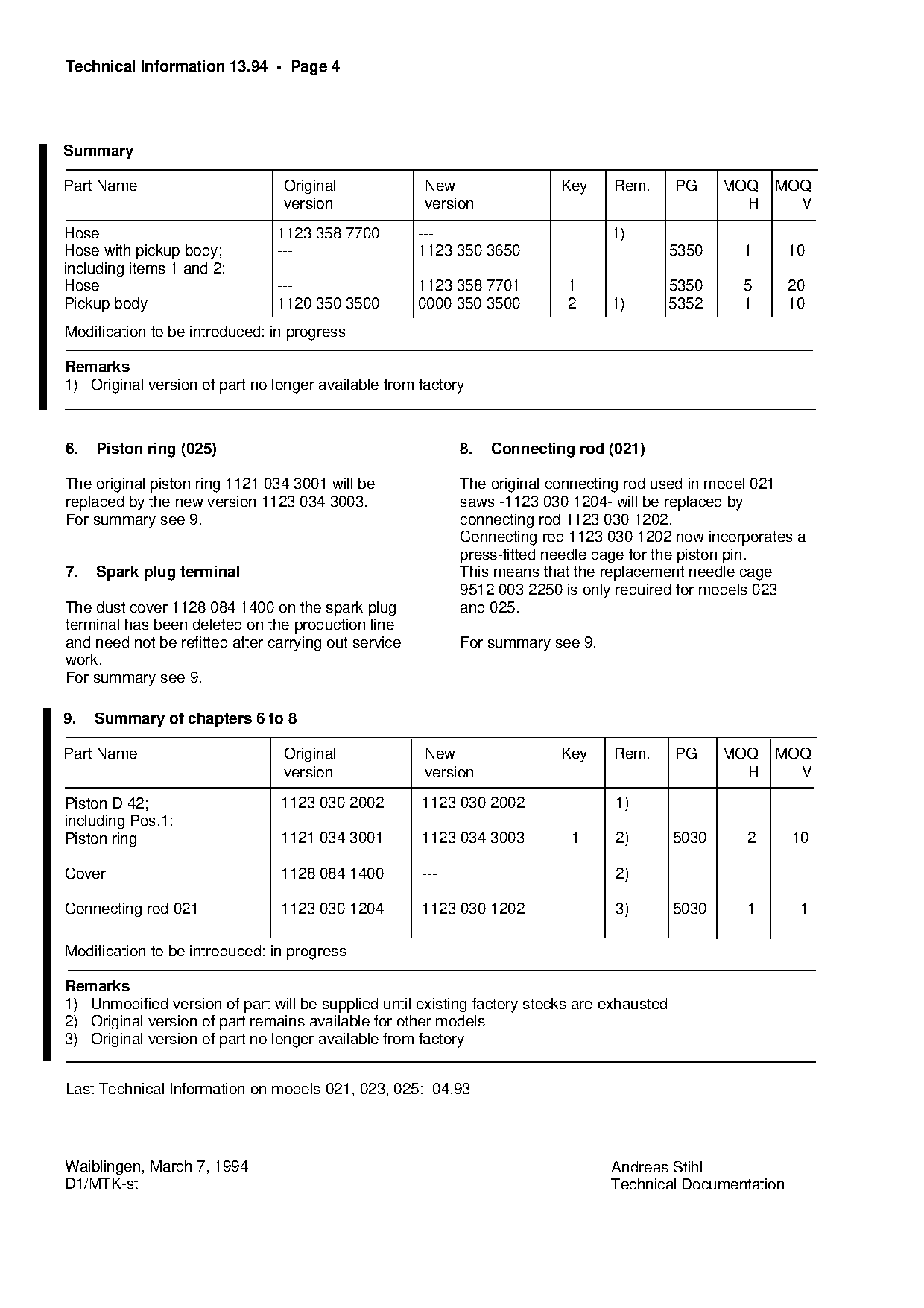

Technical Information 13.94 - Page 4
Summary
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Hose 1123 358 7700 --- 1)
Hose with pickup body; --- 1123 350 3650 5350 1 10
including items 1 and 2:
Hose --- 1123 358 7701 1 5350 5 20
Pickup body 1120 350 3500 0000 350 3500 2 1) 5352 1 10
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory
6. Piston ring (025) 8. Connecting rod (021)
The original piston ring 1121 034 3001 will be The original connecting rod used in model 021
replaced by the new version 1123 034 3003. saws -1123 030 1204- will be replaced by
For summary see 9. connecting rod 1123 030 1202.
Connecting rod 1123 030 1202 now incorporates a
7. Spark plug terminal
press-fitted needle cage for the piston pin.
This means that the replacement needle cage
9512 003 2250 is only required for models 023
The dust cover 1128 084 1400 on the spark plug and 025.
terminal has been deleted on the production line
and need not be refitted after carrying out service For summary see 9.
work.
For summary see 9.
9. Summary of chapters 6 to 8
Part Name Original New Key Rem. PG MOQ MOQ
version version H V
Piston D 42; 1123 030 2002 1123 030 2002 1)
including Pos.1:
Piston ring 1121 034 3001 1123 034 3003 1 2) 5030 2 10
Cover 1128 084 1400 --- 2)
Connecting rod 021 1123 030 1204 1123 030 1202 3) 5030 1 1
Modification to be introduced: in progress
Remarks
1) Unmodified version of part will be supplied until existing factory stocks are exhausted
2) Original version of part remains available for other models
3) Original version of part no longer available from factory
Last Technical Information on models 021, 023, 025: 04.93
Waiblingen, March 7, 1994 Andreas Stihl
