Technical Information · issue 14 of 1994

Aluminium drive tube; cutting head

Model FE 55 Electric Grass Trimmers - Series 4803

IssueTI 14/1994

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · FE 55

FE 55: flanged spool housing has conflicting printed numbers

Prose says 4803 710 3600; unchanged-number table says 4004 710 3600.

No exact-model IPL link: No exact FE 55 mowing-head or spool assembly is retained in the local IPL catalog. The bearing-housing sheet is not a spool drawing; preserve the exact FE 55 source claim without borrowing an unrelated assembly.

  • The original scan confirms a SOURCE CONFLICT: prose identifies modified housing as 4803 710 3600, while the summary prints 4004 710 3600 in BOTH original and new columns. Both are retained as printed identifiers; neither is silently corrected or asserted to supersede the other. Resolve the identity against additional evidence before choosing an order number.
  • Drawing identifies projecting flange (1) and rounded lugs (2), intended to stop line bending back and snapping on solid obstacles, preserve the minimum length for semi-automatic feed and reduce line waste. These are source-described aims, not measured performance or a guarantee against breakage.
  • The part number is said to stay unchanged, despite the prose/table conflict. Unmodified housing remains supplied until factory stocks are exhausted; introduction in progress, no serial. All other parts remain as before. No machine beyond FE 55 is admitted from this bulletin.
  • Historical TI 14/1994 guidance for the explicitly named models only; no successor or unlisted variant applicability inferred. Factory supply statements are historical, not current stock claims. MOQ columns are order quantities, not fitting quantities. No physical interchange test was performed.

Source: TI 14/1994, p. 2 — FE 55: flanged spool housing has conflicting printed numbers.

Part numbers (2)
  • 4803 710 3600 — Spool housing number in proseconflicting printed identifier; unresolved · FE 55: flanged spool housing has conflicting printed numbers
  • 4004 710 3600 — Spool housing number in summaryunchanged table identifier; conflicts with prose · FE 55: flanged spool housing has conflicting printed numbers

Service note · FE 55

FE 55: prewound 2 mm spool expands from USA/Canada to Europe

Spool with line 4004 710 4304 includes unchanged bare spool 4004 713 3000.

No exact-model IPL link: No exact FE 55 mowing-head or spool assembly is retained in the local IPL catalog. The bearing-housing sheet is not a spool drawing; preserve the exact FE 55 source claim without borrowing an unrelated assembly.

  • Prewound spool 4004 710 4304, previously available only in USA/Canada, is now available in EUROPE with immediate effect per this March 1, 1994 bulletin. The table specifies 2 mm × 7.5 m line and includes bare spool 4004 713 3000, whose number is unchanged.
  • This is a historical regional availability statement, not present stock, a new regional machine cutoff or a claim of fitment on other heads. It does not override previously retained FE 55 quiet-line restrictions; this TI does not specify a new line cross-section. Keep the prewound spool distinct from the unresolved housing number.
  • The table says modification introduction in progress, while prose says immediate European availability; neither gives a numeric serial. Previous TI43.91 is a source pointer, not review of that source or a full service manual.
  • Historical TI 14/1994 guidance for the explicitly named models only; no successor or unlisted variant applicability inferred. Factory supply statements are historical, not current stock claims. MOQ columns are order quantities, not fitting quantities. No physical interchange test was performed.

Source: TI 14/1994, p. 2 — FE 55: prewound 2 mm spool expands from USA/Canada to Europe.

Part numbers (2)
  • 4004 710 4304 — Prewound spool, 2 mm × 7.5 mEurope availability extension from USA/Canada · FE 55: prewound 2 mm spool expands from USA/Canada to Europe
  • 4004 713 3000 — Bare spool included in prewound assemblyunchanged number · FE 55: prewound 2 mm spool expands from USA/Canada to Europe

Full text

Page 1 of 2

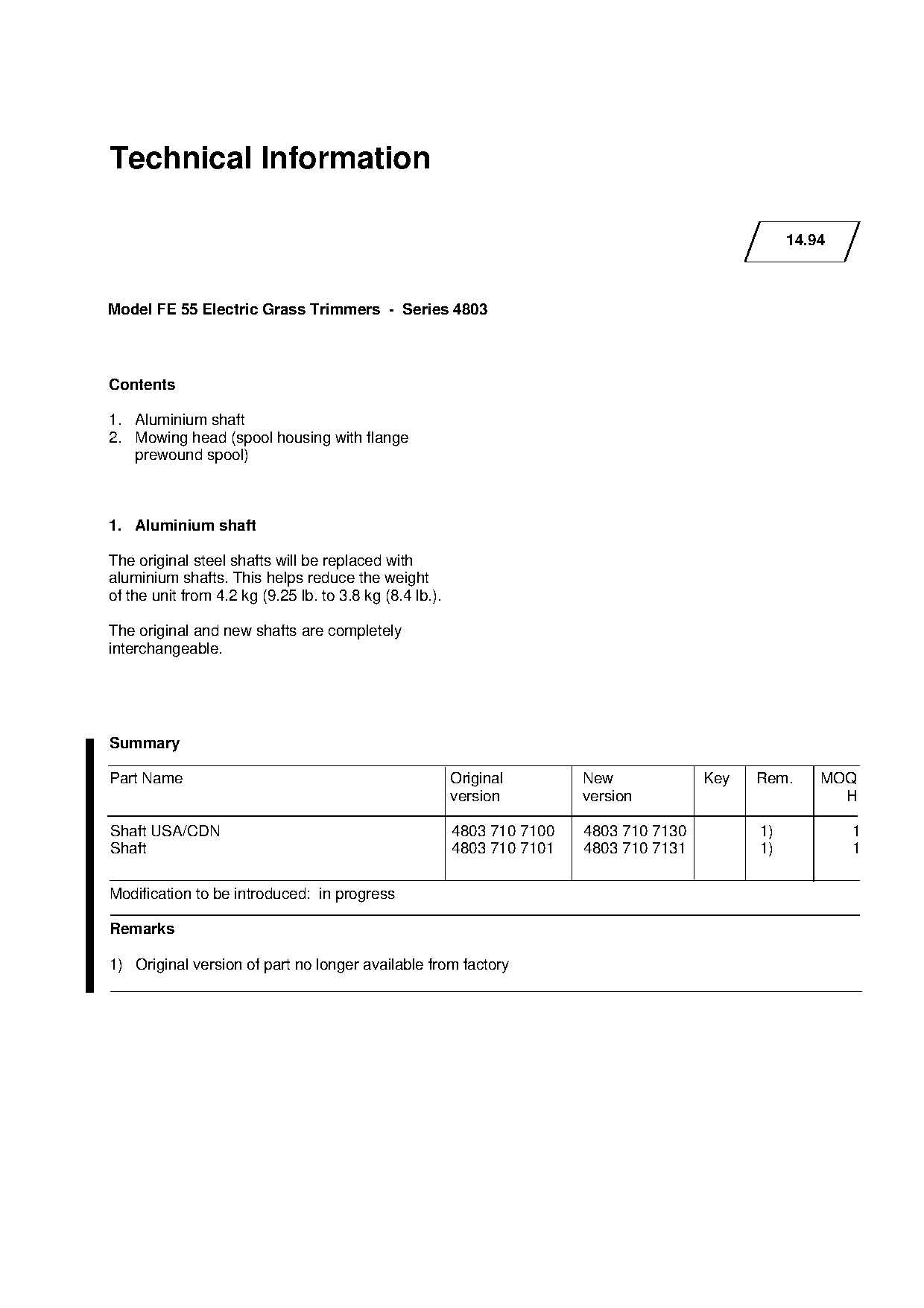

TI 14/1994 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                    14.94

Model FE 55 Electric Grass Trimmers - Series 4803

Contents

1. Aluminium shaft
2. Mowing head (spool housing with flange

   prewound spool)

1. Aluminium shaft

The original steel shafts will be replaced with
aluminium shafts. This helps reduce the weight
of the unit from 4.2 kg (9.25 lb. to 3.8 kg (8.4 lb.).

The original and new shafts are completely

interchangeable.

Summary

Part Name                                                Original        New             Key   Rem.     MOQ
                                                         version         version                          H

Shaft USA/CDN                                            4803 710 7100   4803 710 7130         1)           1

Shaft                                                    4803 710 7101   4803 710 7131         1)           1

Modification to be introduced: in progress

Remarks

1) Original version of part no longer available from factory

Page 2 of 2

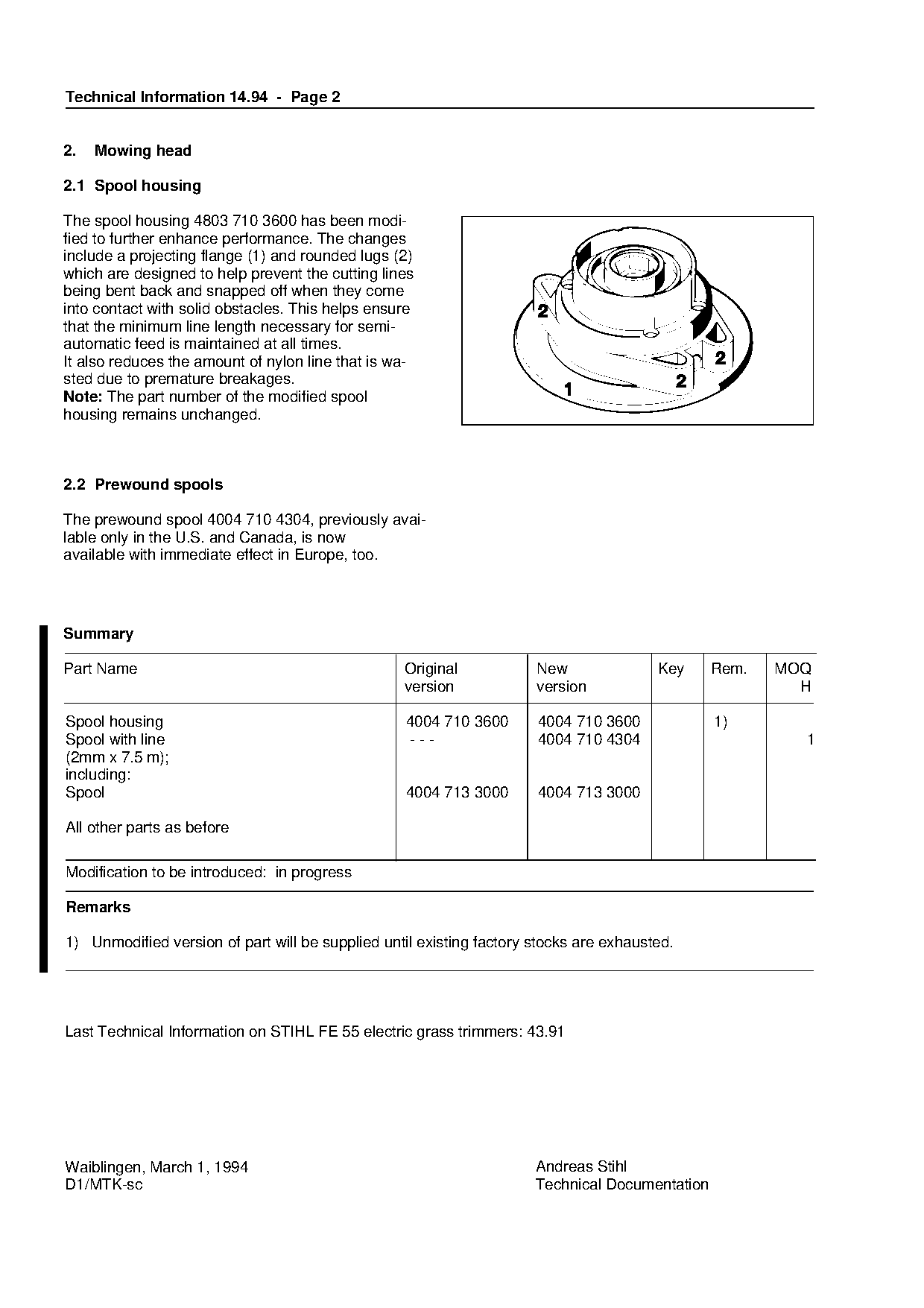

TI 14/1994 page 2
Text of page 2 — search, copy, screen readers
Technical Information 14.94 - Page 2

2.   Mowing head

2.1 Spool housing

The spool housing 4803 710 3600 has been modi-
fied to further enhance performance. The changes
include a projecting flange (1) and rounded lugs (2)
which are designed to help prevent the cutting lines
being bent back and snapped off when they come
into contact with solid obstacles. This helps ensure
that the minimum line length necessary for semi-
automatic feed is maintained at all times.
It also reduces the amount of nylon line that is wa-

sted due to premature breakages.

Note: The part number of the modified spool
housing remains unchanged.

2.2 Prewound spools

The prewound spool 4004 710 4304, previously avai-
lable only in the U.S. and Canada, is now
available with immediate effect in Europe, too.                    fo

Summary

Part Name                                         Original            New               Key     Rem.   MOQ
                                                  version             version                            H

Spool housing                                     4004 710 3600       4004 710 3600             1)

Spool with line                                    ---                4004 710 4304                      1
(2mm x 7.5 m);
including:
Spool                                             4004 713 3000       4004 713 3000

All other parts as before

Modification to be introduced: in progress

Remarks

1) Unmodified version of part will be supplied until existing factory stocks are exhausted.

Last Technical Information on STIHL FE 55 electric grass trimmers: 43.91

Waiblingen, March 1, 1994                                             Andreas Stihl
D1/MTK-sc                                                             Technical Documentation
