Technical Information · issue 15 of 1994
Clutch; clutch drum; starter cover; filter mat; co
Model FS 160, 180, 220, 280 Clearing Saws - Series 4119
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · FS 160 R
FS 160 R: extra torsion spring requires the new trigger and inner molding
Individual revised controls retrofit, but the added spring has a paired-parts condition.
No exact-model IPL link: No retained assembly names exact FS 160 R variant. Generic FS 160 loop-handle sheets do not establish exact variant binding; keep this source-only FS 160 R note.
X 27 390 596 (prose); X 27 390 59 (truncated summary) — Printed introduction for this component only; not a universal machine cutoff or interchange guarantee.
- FS 160 R LOOP-HANDLE variant only. Prose prints changeover X 27 390 596; the summary line in the original scan is truncated to X 27 390 59. Preserve this source discrepancy: the full prose number is cited, not silently reconstructed from the table or treated as two distinct cutoffs.
- Revised interlock 4126 182 0806 (1), trigger 4126 182 1007 (2) and inner molding 4126 790 1102 (3) may be used individually as replacement parts for ALL previous versions of this control handle. However, added torsion spring 4126 182 4507 (4) can fit an ORIGINAL-type handle ONLY when combined with BOTH the new throttle trigger AND new inner molding. Do not confuse individual-control retrofit permission with spring-only retrofit.
- Control assembly 4133 790 1301 keeps its number, includes items 1–4, and is supplied only in modified form. Original interlock 4126 182 0805, trigger 4126 182 1006 and inner molding 4126 790 1101 are no longer factory-available. All other parts remain as before.
- Cover models or common control-part prefixes do not extend this FS 160 R-specific change to two-handed handles or other models. Previous TI52.92 and April 28, 1994 date are context, not prior-TI or whole-manual acceptance.
- Historical TI 15/1994 guidance for the explicitly named models only; no successor or unlisted variant applicability inferred. Factory supply statements are historical, not current stock claims. MOQ columns are order quantities, not fitting quantities. No physical interchange test was performed.
Source: TI 15/1994, p. 4 — FS 160 R: extra torsion spring requires the new trigger and inner molding.
Part numbers (8)
- 4133 790 1301 — FS 160 R control handle assembly, items 1–4unchanged number; modified assembly only · FS 160 R: extra torsion spring requires the new trigger and inner molding
- 4126 182 0805 — Original trigger interlockno longer factory-available · FS 160 R: extra torsion spring requires the new trigger and inner molding
- 4126 182 0806 — Revised trigger interlock, item 1individual retrofit allowed · FS 160 R: extra torsion spring requires the new trigger and inner molding
- 4126 182 1006 — Original throttle triggerno longer factory-available · FS 160 R: extra torsion spring requires the new trigger and inner molding
- 4126 182 1007 — Revised throttle trigger, item 2required with added spring in old handle · FS 160 R: extra torsion spring requires the new trigger and inner molding
- 4126 790 1101 — Original inner handle moldingno longer factory-available · FS 160 R: extra torsion spring requires the new trigger and inner molding
- 4126 790 1102 — Revised inner handle molding, item 3required with added spring in old handle · FS 160 R: extra torsion spring requires the new trigger and inner molding
- 4126 182 4507 — Added torsion spring, item 4conditional retrofit only · FS 160 R: extra torsion spring requires the new trigger and inner molding
Full text
Page 1 of 4
Text of page 1 — search, copy, screen readers

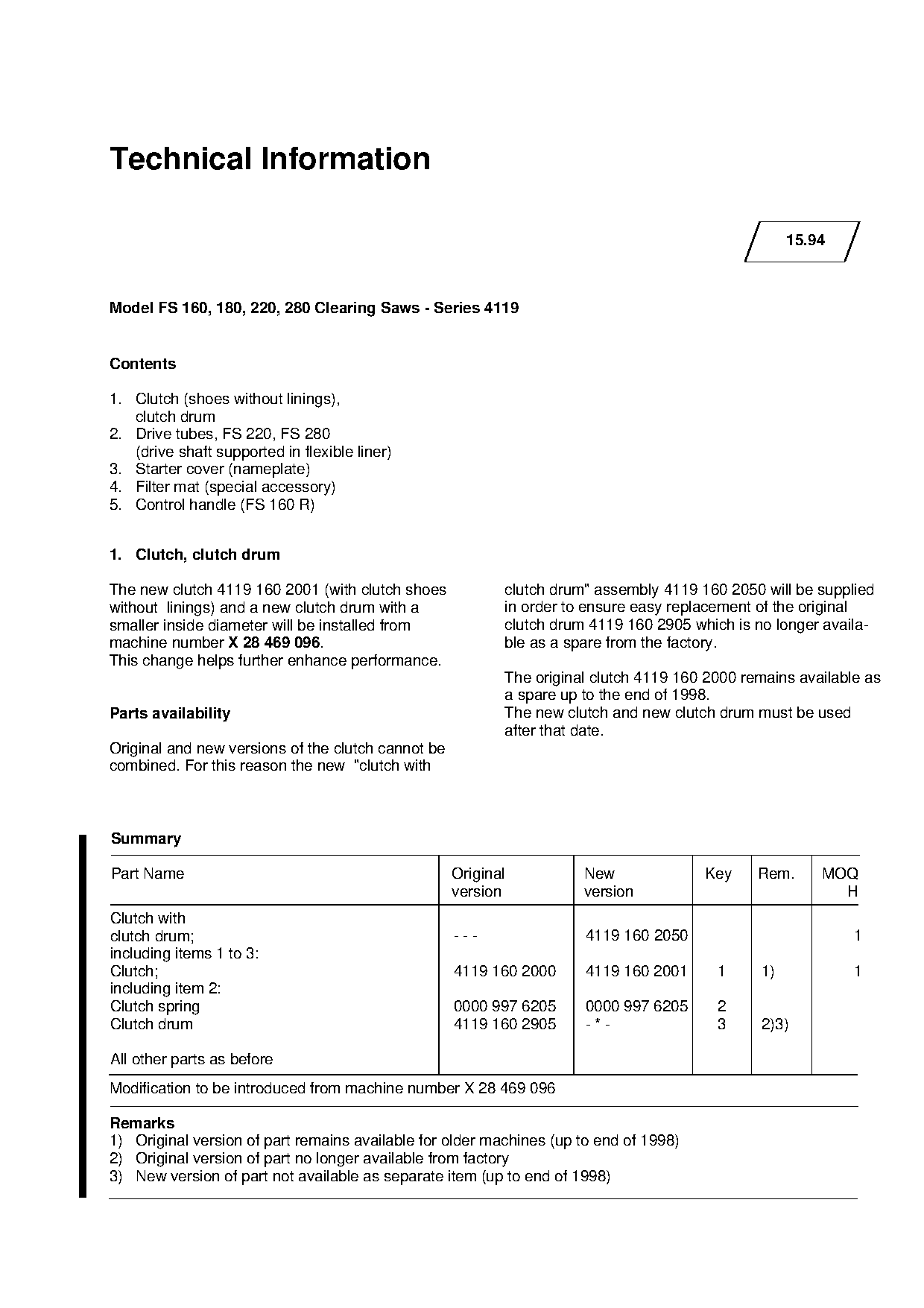

Technical Information
15.94
Model FS 160, 180, 220, 280 Clearing Saws - Series 4119
Contents
1. Clutch (shoes without linings),
clutch drum
2. Drive tubes, FS 220, FS 280
(drive shaft supported in flexible liner)
3. Starter cover (nameplate)
4. Filter mat (special accessory)
5. Control handle (FS 160 R)
1. Clutch, clutch drum fo
The new clutch 4119 160 2001 (with clutch shoes clutch drum" assembly 4119 160 2050 will be supplied
without linings) and a new clutch drum with a in order to ensure easy replacement of the original
smaller inside diameter will be installed from clutch drum 4119 160 2905 which is no longer availa-
machine number X 28 469 096. ble as a spare from the factory.
This change helps further enhance performance.
The original clutch 4119 160 2000 remains available as
a spare up to the end of 1998.
Parts availability The new clutch and new clutch drum must be used
after that date.
Original and new versions of the clutch cannot be
combined. For this reason the new "clutch with
Summary
Part Name Original New Key Rem. MOQ
version version H
Clutch with
clutch drum; --- 4119 160 2050 1
including items 1 to 3:
Clutch; 4119 160 2000 4119 160 2001 1 1) 1
including item 2:
Clutch spring 0000 997 6205 0000 997 6205 2
Clutch drum 4119 160 2905 -*- 3 2)3)
All other parts as before
Modification to be introduced from machine number X 28 469 096
Remarks
1) Original version of part remains available for older machines (up to end of 1998)
2) Original version of part no longer available from factory
3) New version of part not available as separate item (up to end of 1998) Page 2 of 4
Text of page 2 — search, copy, screen readers

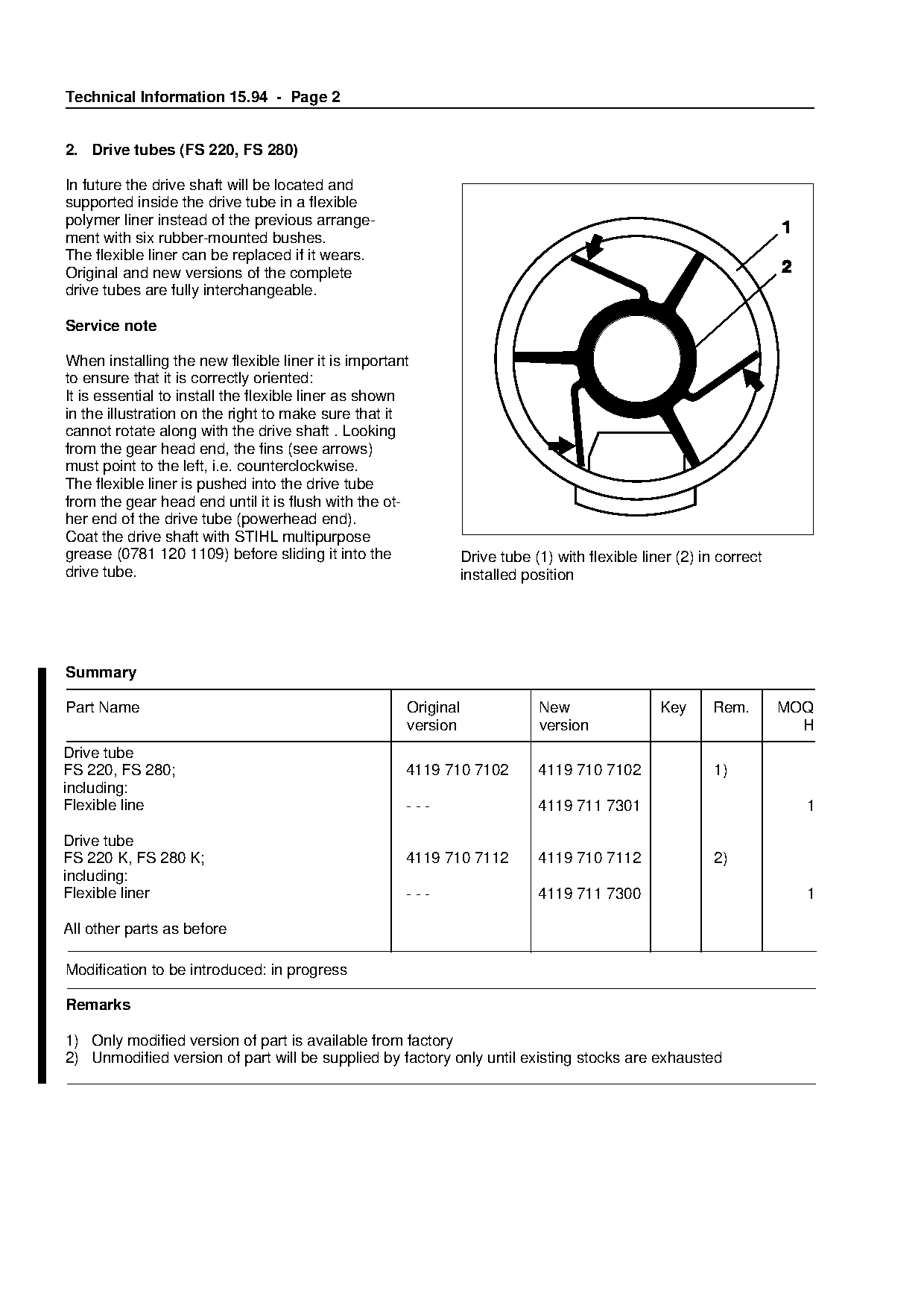

Technical Information 15.94 - Page 2
2. Drive tubes (FS 220, FS 280)
In future the drive shaft will be located and
supported inside the drive tube in a flexible
polymer liner instead of the previous arrange-
ment with six rubber-mounted bushes.
The flexible liner can be replaced if it wears.
Original and new versions of the complete
drive tubes are fully interchangeable.
Service note
When installing the new flexible liner it is important
to ensure that it is correctly oriented:
It is essential to install the flexible liner as shown
in the illustration on the right to make sure that it
cannot rotate along with the drive shaft . Looking
from the gear head end, the fins (see arrows)
must point to the left, i.e. counterclockwise.
The flexible liner is pushed into the drive tube
from the gear head end until it is flush with the ot-
her end of the drive tube (powerhead end).
Coat the drive shaft with STIHL multipurpose
grease (0781 120 1109) before sliding it into the
drive tube.
Drive tube (1) with flexible liner (2) in correct
installed position
Summary
Part Name Original New Key Rem. MOQ
version version H
Drive tube
FS 220, FS 280; 4119 710 7102 4119 710 7102 1)
including:
Flexible line --- 4119 711 7301 1
Drive tube
FS 220 K, FS 280 K; 4119 710 7112 4119 710 7112 2)
including:
Flexible liner --- 4119 711 7300 1
All other parts as before
Modification to be introduced: in progress
Remarks
1) Only modified version of part is available from factory
2) Unmodified version of part will be supplied by factory only until existing stocks are exhausted Page 3 of 4
Text of page 3 — search, copy, screen readers

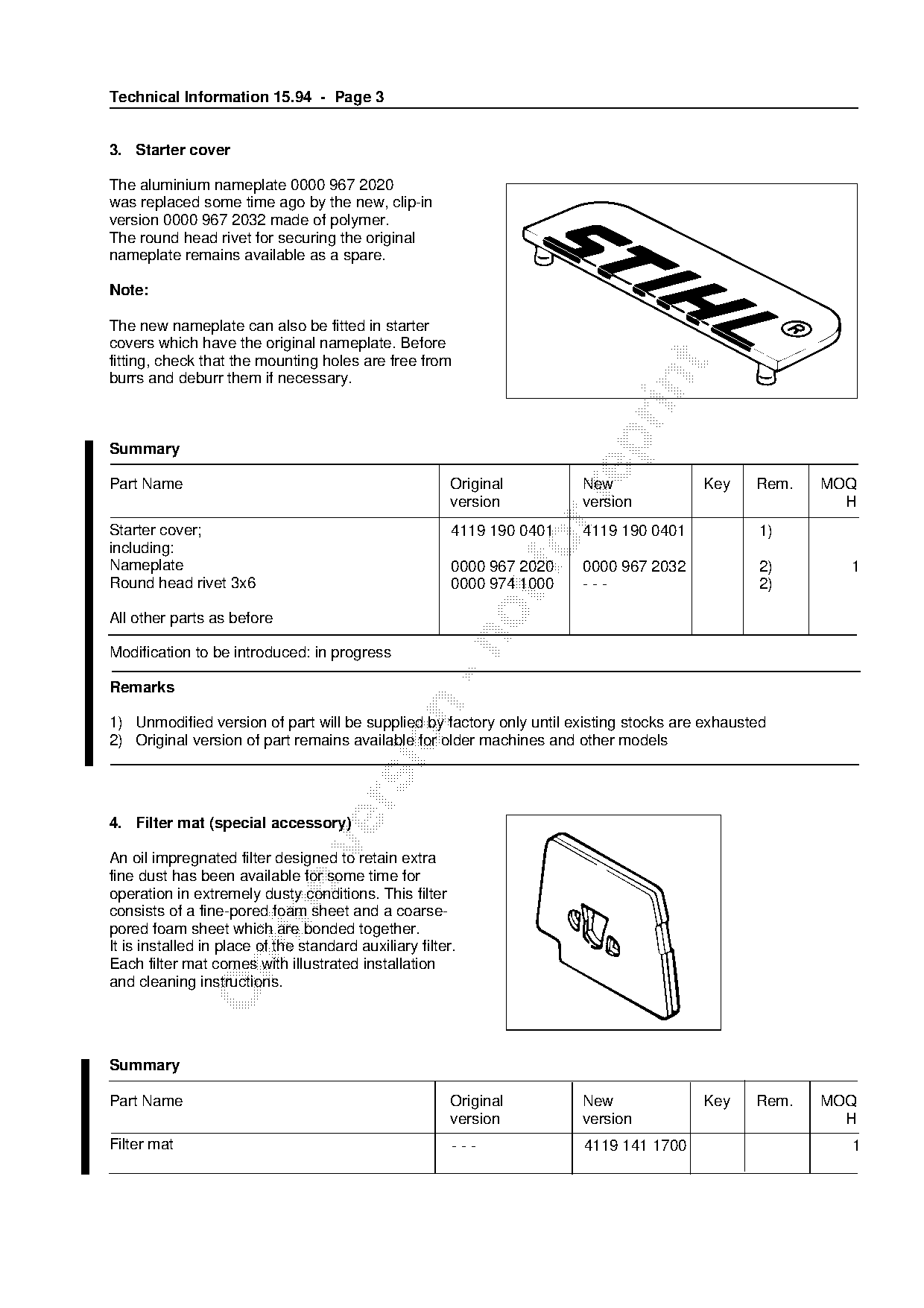

Technical Information 15.94 - Page 3
3. Starter cover
The aluminium nameplate 0000 967 2020
was replaced some time ago by the new, clip-in
version 0000 967 2032 made of polymer.
The round head rivet for securing the original
nameplate remains available as a spare.
Note:
The new nameplate can also be fitted in starter
covers which have the original nameplate. Before
fitting, check that the mounting holes are free from
burrs and deburr them if necessary.
Summary
Part Name Original New Key Rem. MOQ
version version H
Starter cover; 4119 190 0401 4119 190 0401 1)
including:
Nameplate
0000 967 2020 0000 967 2032 2) 1
Round head rivet 3x6 0000 974 1000 --- 2)
All other parts as before
Modification to be introduced: in progress
Remarks
1) Unmodified version of part will be supplied by factory only until existing stocks are exhausted
2) Original version of part remains available for older machines and other models
4. Filter mat (special accessory)
An oil impregnated filter designed to retain extra
fine dust has been available for some time for
operation in extremely dusty conditions. This filter
consists of a fine-pored foam sheet and a coarse-
pored foam sheet which are bonded together.
It is installed in place of the standard auxiliary filter.
Each filter mat comes with illustrated installation
and cleaning instructions.
Summary
Part Name Original New Key Rem. MOQ
version version H
Filter mat --- 4119 141 1700 1 Page 4 of 4
Text of page 4 — search, copy, screen readers

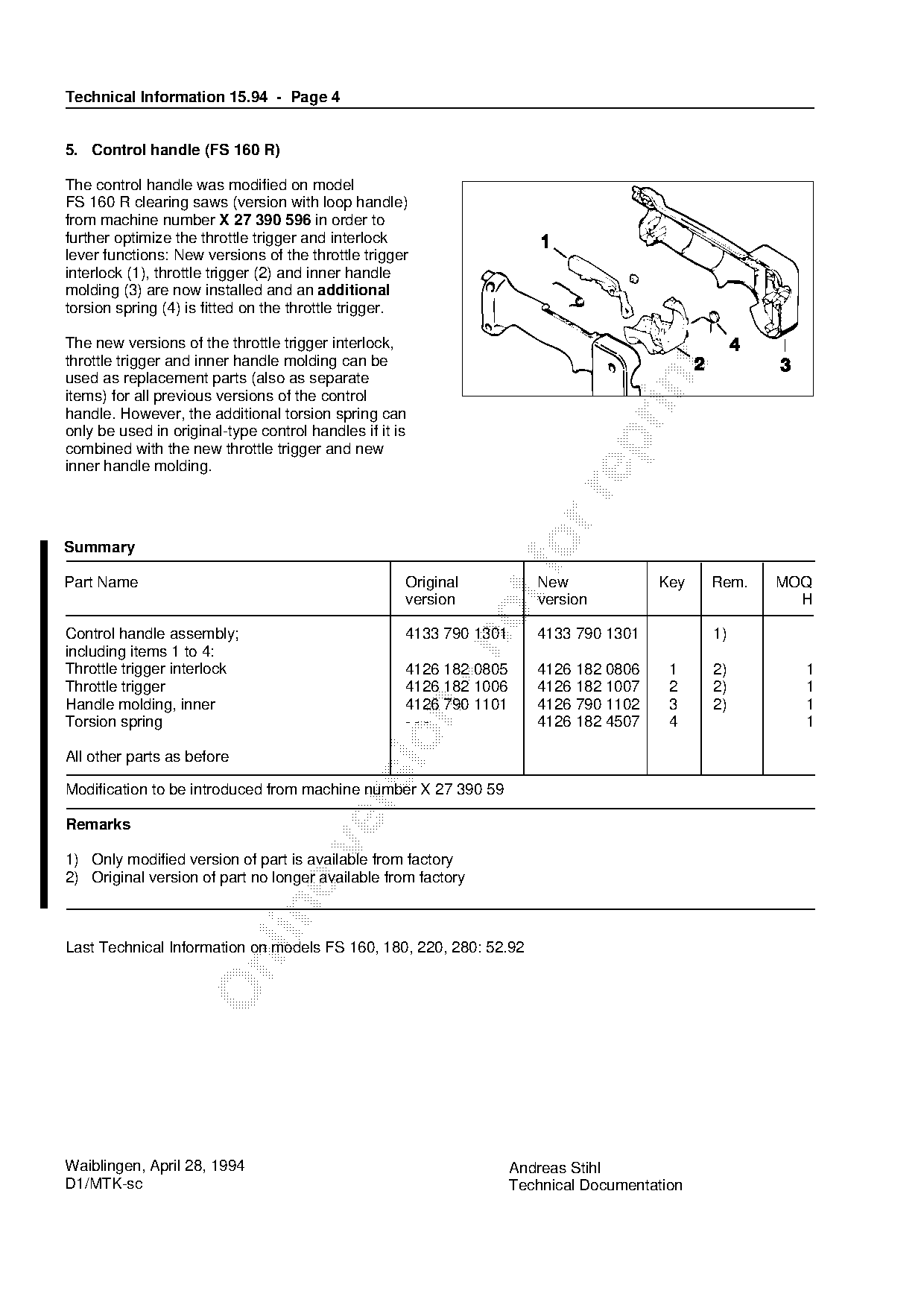

Technical Information 15.94 - Page 4
5. Control handle (FS 160 R)
The control handle was modified on model
FS 160 R clearing saws (version with loop handle)
from machine number X 27 390 596 in order to
further optimize the throttle trigger and interlock
lever functions: New versions of the throttle trigger
interlock (1), throttle trigger (2) and inner handle
molding (3) are now installed and an additional
torsion spring (4) is fitted on the throttle trigger.
The new versions of the throttle trigger interlock,
throttle trigger and inner handle molding can be
used as replacement parts (also as separate
items) for all previous versions of the control
handle. However, the additional torsion spring can
only be used in original-type control handles if it is
combined with the new throttle trigger and new
inner handle molding.
Summary fo
Part Name Original New Key Rem. MOQ
version version H
Control handle assembly; 4133 790 1301 4133 790 1301 1)
including items 1 to 4:
Throttle trigger interlock 4126 182 0805 4126 182 0806 1 2) 1
Throttle trigger 4126 182 1006 4126 182 1007 2 2) 1
Handle molding, inner 4126 790 1101 4126 790 1102 3 2) 1
Torsion spring --- 4126 182 4507 4 1
All other parts as before
Modification to be introduced from machine number X 27 390 59
Remarks
1) Only modified version of part is available from factory
2) Original version of part no longer available from factory
Last Technical Information on models FS 160, 180, 220, 280: 52.92
Waiblingen, April 28, 1994 Andreas Stihl
