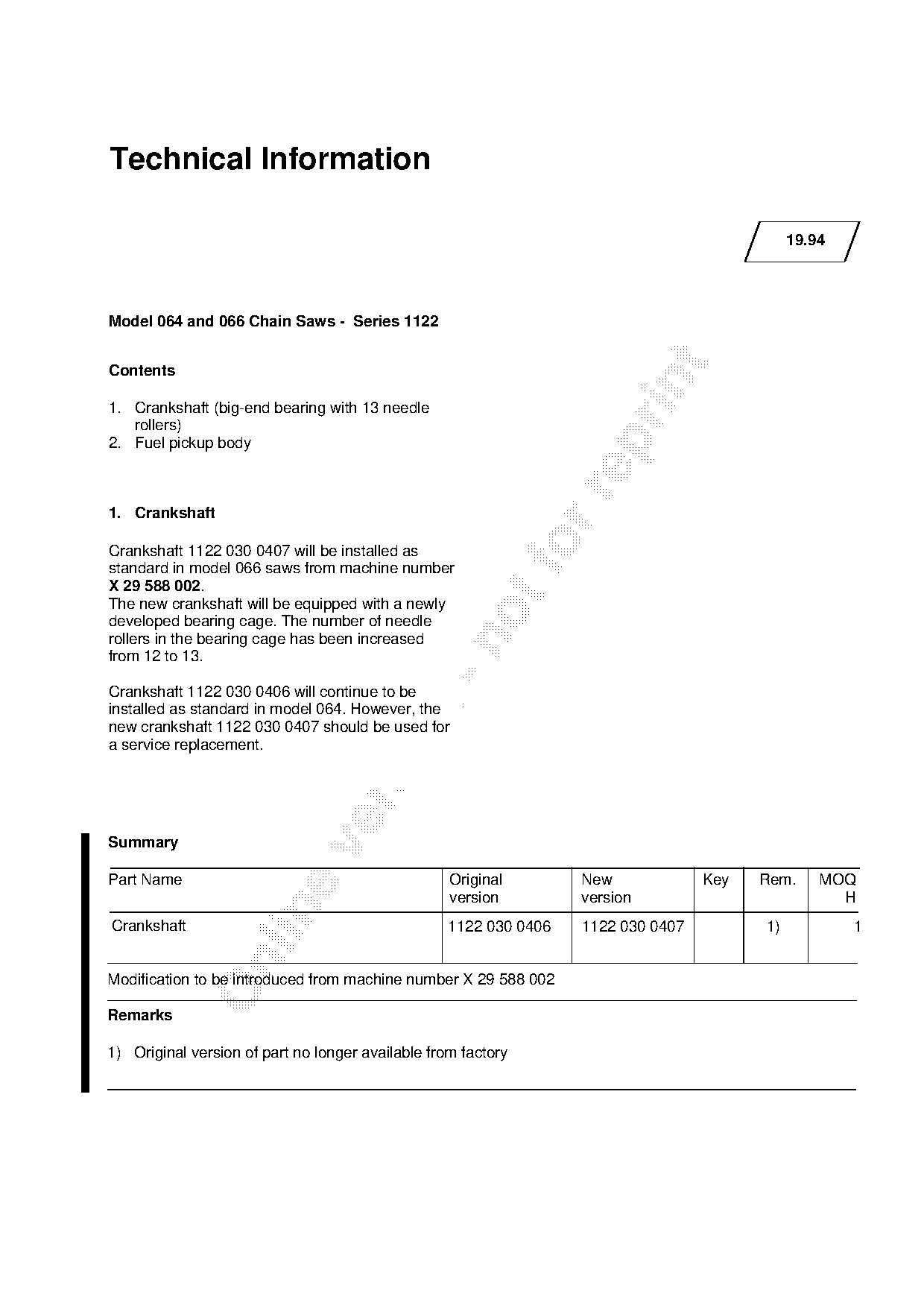

Model 064 and 066 Chain Saws - Series 1122
Full text
Page 1 of 2
Technical Information
19.94
Model 064 and 066 Chain Saws - Series 1122
Contents
1. Crankshaft (big-end bearing with 13 needle
rollers)
2. Fuel pickup body
1. Crankshaft
Crankshaft 1122 030 0407 will be installed as
standard in model 066 saws from machine number
X 29 588 002.
The new crankshaft will be equipped with a newly
developed bearing cage. The number of needle
rollers in the bearing cage has been increased
from 12 to 13.
Crankshaft 1122 030 0406 will continue to be
installed as standard in model 064. However, the
new crankshaft 1122 030 0407 should be used for
a service replacement.
Summary
Part Name Original New Key Rem. MOQ
version version H
Crankshaft 1122 030 0406 1122 030 0407 1) 1
Modification to be introduced from machine number X 29 588 002
Remarks
1) Original version of part no longer available from factory Page 2 of 2
Technical Information 19.94 - Page 2

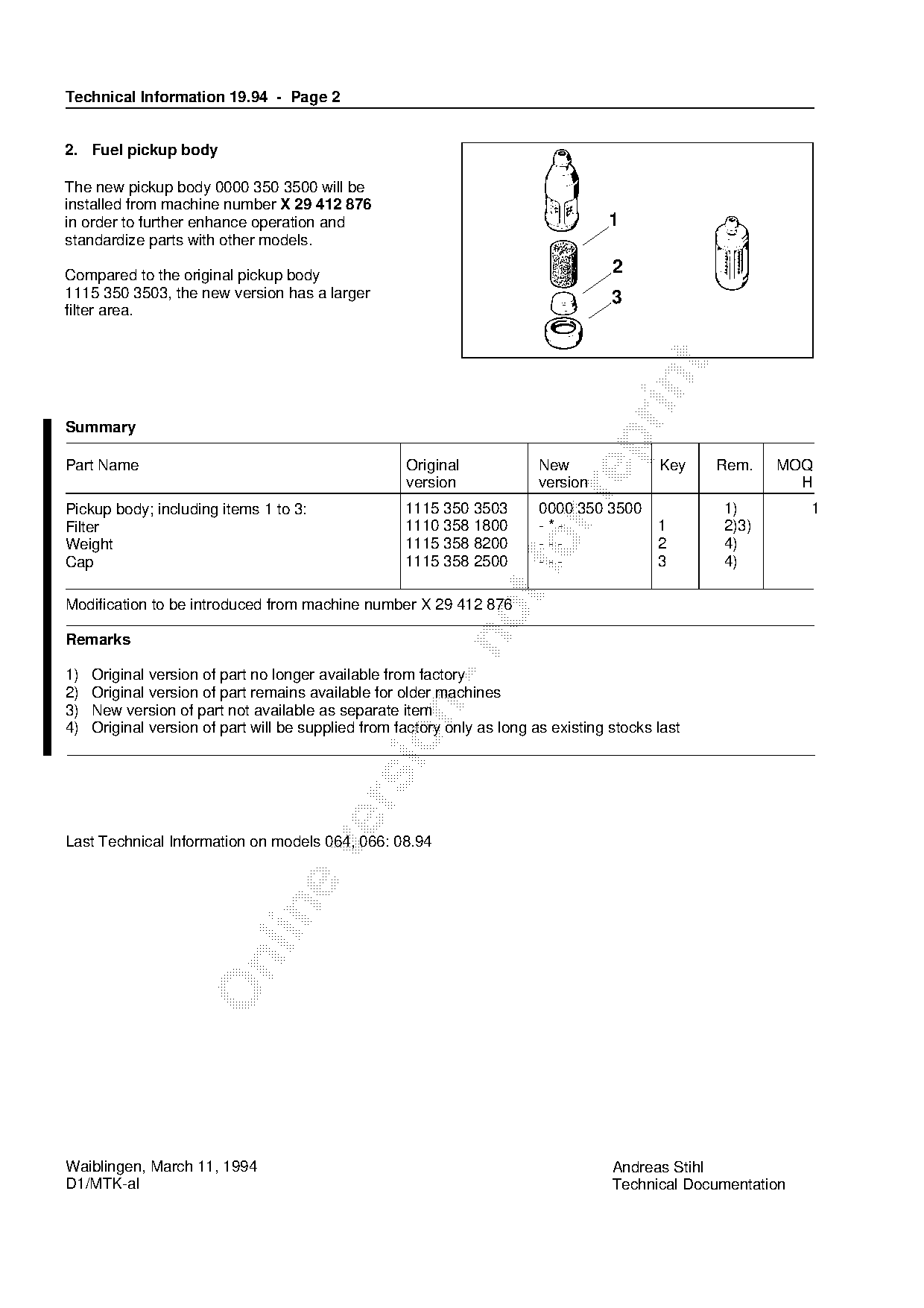

2. Fuel pickup body
The new pickup body 0000 350 3500 will be
installed from machine number X 29 412 876
in order to further enhance operation and 1
standardize parts with other models.
Compared to the original pickup body 2
1115 350 3503, the new version has a larger 3
filter area.
Summary
Part Name Original New Key Rem. MOQ
version version H
Pickup body; including items 1 to 3: 1115 350 3503 0000 350 3500 1) 1
Filter 1110 358 1800 -*- 1 2)3)
Weight
Cap
1115 358 8200
1115 358 2500
fo ---
---
2
3
4)
4)
Modification to be introduced from machine number X 29 412 876
Remarks
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines
3) New version of part not available as separate item
4) Original version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on models 064, 066: 08.94
Waiblingen, March 11, 1994 Andreas Stihl
