Fuel hose; fan housing; standard nozzle

Model BR 320, BR 400 Blowers and SR 320, SR 400 Mistblowers - Series 4203

IssueTI 21/1994
Serial references — see context below 25 117 539, 28 877 286

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · BR 320 / BR 400 / SR 320 / SR 400

BR / SR 320 / 400: replace fuel-hose grommet only on no-elbow versions

The elbow-deletion serial is not the new-grommet introduction cutoff.

No exact-model IPL link: Exact named models exist, but no retained tank/fuel-hose assembly sheet was established in their IPLs. Hose/grommet guidance stays source-only; carburetor gasket service is separately bound to the exact-model air-filter sheets.

  • Elbow connector in fuel tank was deleted FROM X 25 117 539 (TI17.92 reference). Hose 4203 358 7600 was then located by grommet A 0000 989 0816; new grommet B is 4221 353 9201. The new grommet introduction is IN PROGRESS, not assigned that earlier elbow-deletion serial.
  • Routine conversion to 4221 353 9201 is specified for ALL machine versions WITHOUT ELBOW CONNECTOR brought in for repairs or service of any kind, including machines already fitted with 0000 989 0816. This is not permission to fit the grommet to an elbow-equipped tank or to delete an elbow independently.
  • Fuel hose kit 4203 007 1017 includes hose (1), grommet (2), gasket 4203 129 0900 (3) and gasket 4114 129 0501 (4). Kit is supplied as replacement UP TO END OF 1995; NEW hose is not separately available UNTIL END OF 1995. Its table entry -*- is not an order number. Do not transfer either historical date qualification to grommet availability or invent a later hose number.
  • Detailed instruction sheet accompanies hose; the TI recommends a warranty application for incurred repair expense. Separate sheet is not reproduced here; no invented hose routing or current reimbursement promise. Diagram A/B distinguishes profiles, not dimensions. Gasket 4203 129 0900 OR 4114 129 0501 should be renewed EVERY TIME carburetor is removed; both kit inclusions do not instruct stacking both gaskets.
  • Historical TI 21/1994 guidance only. No successor or unlisted model applicability inferred. Factory supply and warranty statements are historical, not current availability or entitlement. MOQ columns are order quantities, not fitting quantities. No physical interchange test was performed.

Source: TI 21/1994, p. 1 · TI 21/1994, p. 2 — BR / SR 320 / 400: replace fuel-hose grommet only on no-elbow versions.

Part numbers (6)
  • 4203 358 7600 — Original fuel hosenew hose assembly-only through stated period · BR / SR 320 / 400: replace fuel-hose grommet only on no-elbow versions
  • 0000 989 0816 — Grommet Aconvert no-elbow versions · BR / SR 320 / 400: replace fuel-hose grommet only on no-elbow versions
  • 4221 353 9201 — Grommet Broutine replacement on no-elbow versions · BR / SR 320 / 400: replace fuel-hose grommet only on no-elbow versions
  • 4203 007 1017 — Fuel hose kit, items 1–4replacement up to end of 1995 · BR / SR 320 / 400: replace fuel-hose grommet only on no-elbow versions
  • 4203 129 0900 — Gasket, item 3renew on carburetor removal · BR / SR 320 / 400: replace fuel-hose grommet only on no-elbow versions
  • 4114 129 0501 — Gasket, item 4alternative gasket; renew on removal · BR / SR 320 / 400: replace fuel-hose grommet only on no-elbow versions

Full text

Page 1 of 2

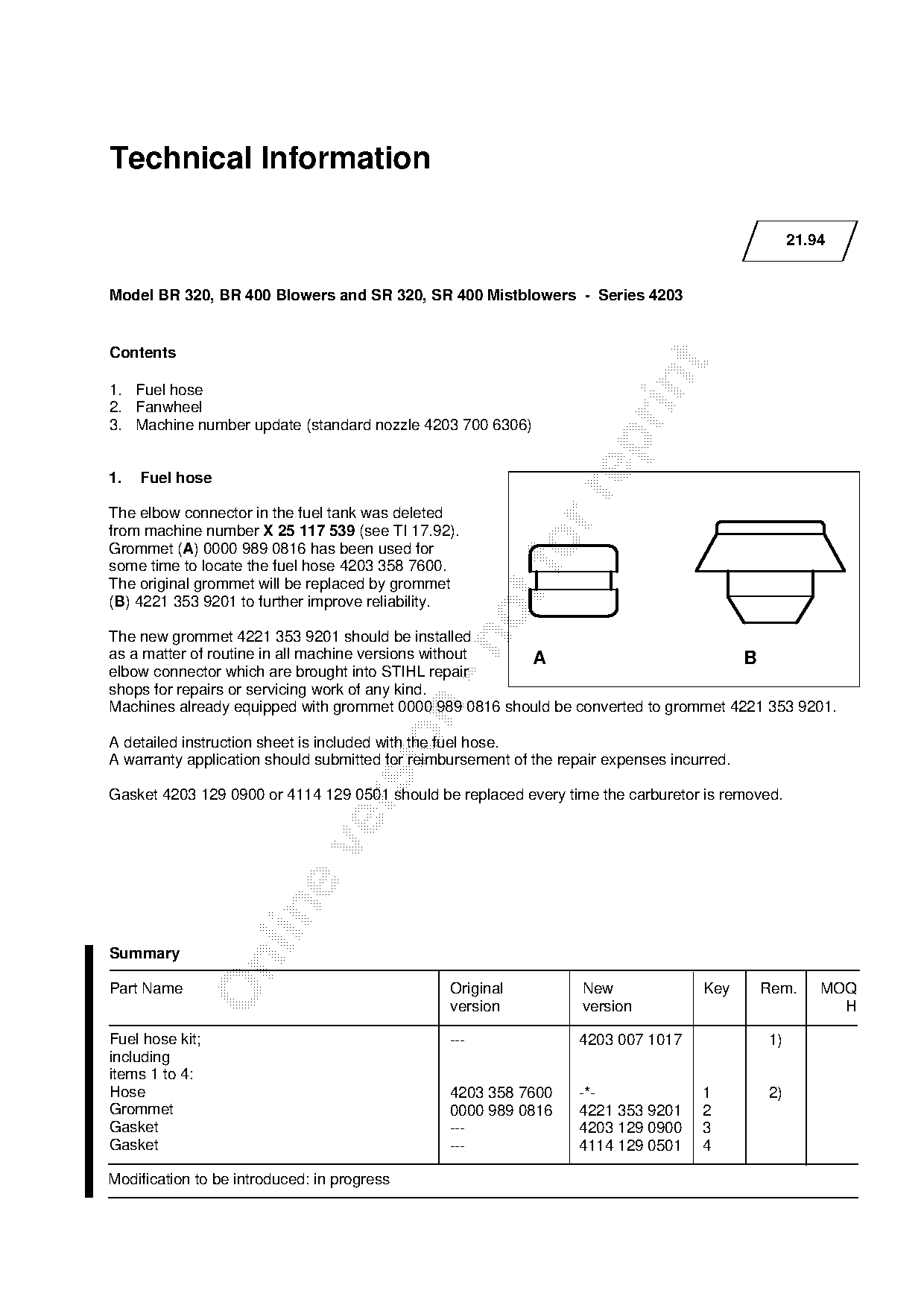

TI 21/1994 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                  21.94

Model BR 320, BR 400 Blowers and SR 320, SR 400 Mistblowers - Series 4203

Contents

1. Fuel hose
2. Fanwheel
3. Machine number update (standard nozzle 4203 700 6306)

1.   Fuel hose

The elbow connector in the fuel tank was deleted
from machine number X 25 117 539 (see TI 17.92).
Grommet (A) 0000 989 0816 has been used for
some time to locate the fuel hose 4203 358 7600.
The original grommet will be replaced by grommet
(B) 4221 353 9201 to further improve reliability.

The new grommet 4221 353 9201 should be installed

as a matter of routine in all machine versions without  A                             B
elbow connector which are brought into STIHL repair
shops for repairs or servicing work of any kind.
Machines already equipped with grommet 0000 989 0816 should be converted to grommet 4221 353 9201.

A detailed instruction sheet is included with the fuel hose.
A warranty application should submitted for reimbursement of the repair expenses incurred.

Gasket 4203 129 0900 or 4114 129 0501 should be replaced every time the carburetor is removed.

Summary

Part Name                                        Original           New               Key    Rem.     MOQ
                                                 version            version                             H

Fuel hose kit;                                   ---                4203 007 1017            1)
including
items 1 to 4:
Hose                                             4203 358 7600      -*-              1       2)
Grommet                                          0000 989 0816      4221 353 9201    2
Gasket                                           ---                4203 129 0900    3
Gasket                                           ---                4114 129 0501    4

Modification to be introduced: in progress

Page 2 of 2

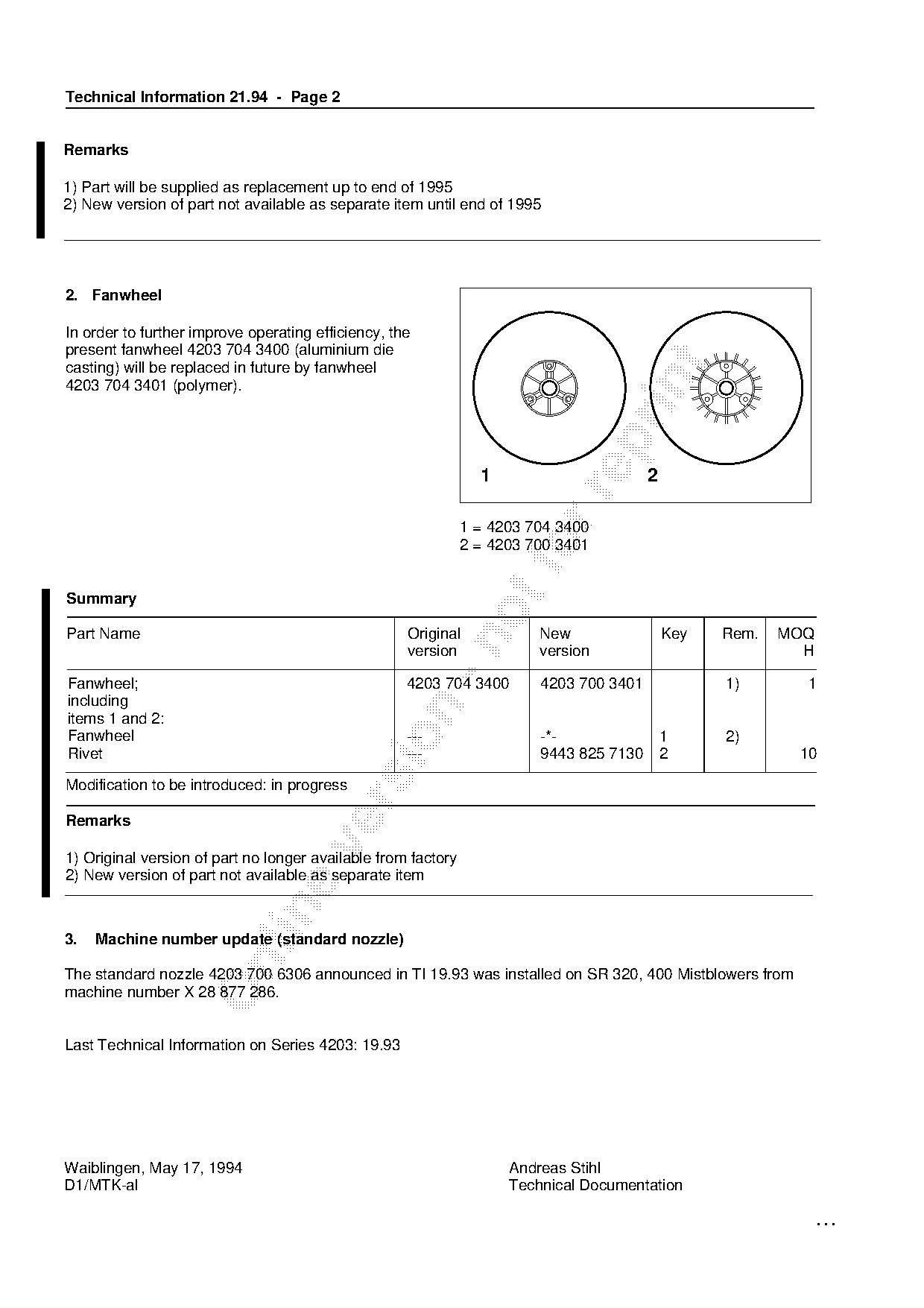

TI 21/1994 page 2
Text of page 2 — search, copy, screen readers
Technical Information 21.94 - Page 2

Remarks

1) Part will be supplied as replacement up to end of 1995
2) New version of part not available as separate item until end of 1995

2. Fanwheel

In order to further improve operating efficiency, the
present fanwheel 4203 704 3400 (aluminium die

casting) will be replaced in future by fanwheel

4203 704 3401 (polymer).

                                                                 1                       2

                                                               1 = 4203 704 3400
                                                               2 = 4203 700 3401
Summary

Part Name                                           Original             New                 Key   Rem.   MOQ

                                                    version              version                            H

Fanwheel;                                           4203 704 3400        4203 700 3401             1)       1
including

items 1 and 2:

Fanwheel                                            ---                  -*-                 1     2)
Rivet                                               ---                  9443 825 7130       2             10

Modification to be introduced: in progress

Remarks

1) Original version of part no longer available from factory
2) New version of part not available as separate item

3.   Machine number update (standard nozzle)

The standard nozzle 4203 700 6306 announced in TI 19.93 was installed on SR 320, 400 Mistblowers from
machine number X 28 877 286.

Last Technical Information on Series 4203: 19.93

Waiblingen, May 17, 1994                                             Andreas Stihl
D1/MTK-al                                                            Technical Documentation

                                                                                                                ...
