Technical Information · issue 22 of 1994
Cylinder gasket; HD filter (prefilter)
Model 066 Chain Saws - Series 1122
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1124 141 0300 | 1124 141 0301 | In future the prefilter 1124 141 0300 will be replaced by the version 1124 141 0301 in order to prolong the intervals between cleanings. |
Full text
Page 1 of 2
Technical Information
22.94
Model 066 Chain Saws - Series 1122
Contents
1. Cylinder gasket (coated steel gasket)
2. HD filter (prefilter)

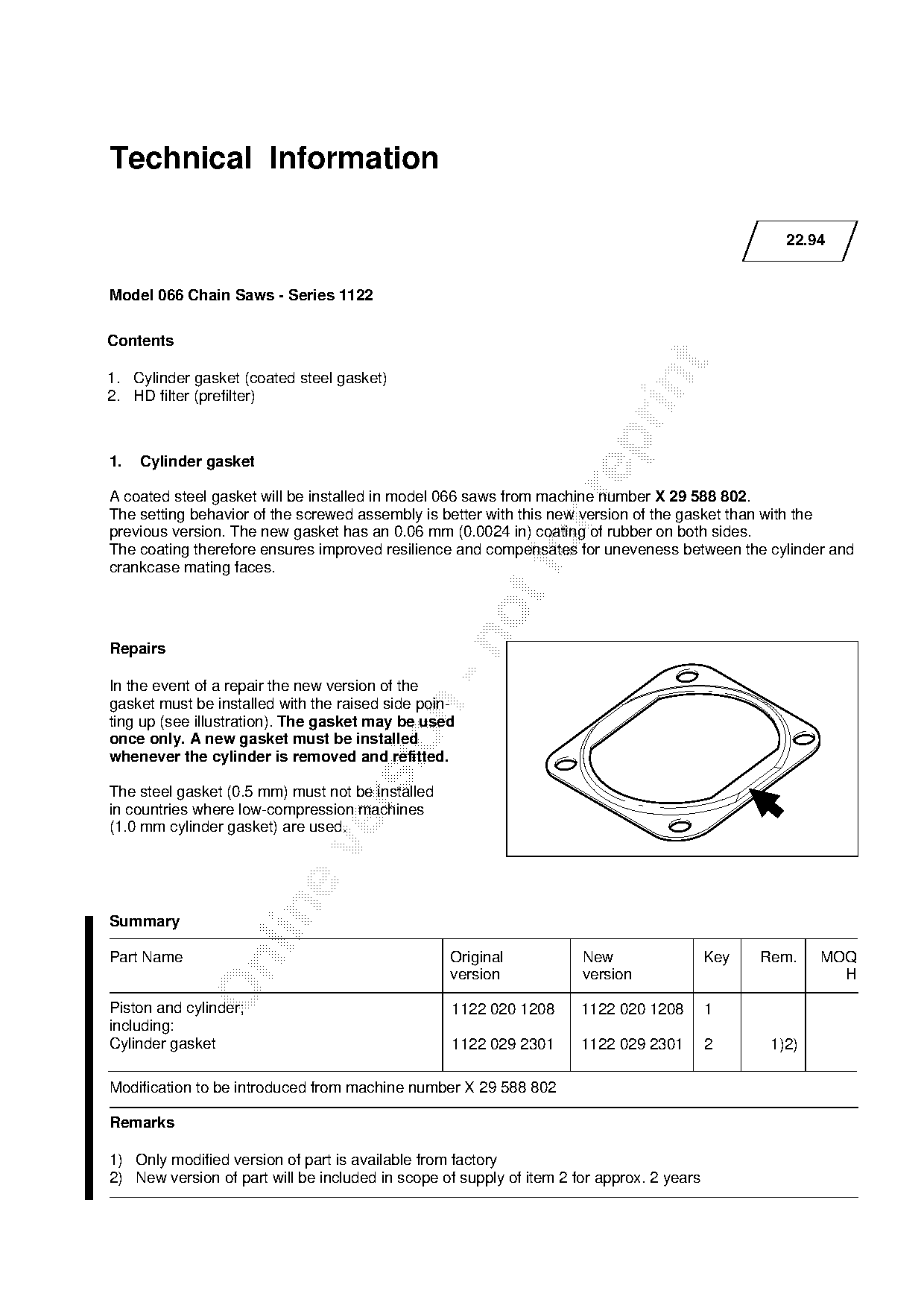

1. Cylinder gasket
A coated steel gasket will be installed in model 066 saws from machine number X 29 588 802.
The setting behavior of the screwed assembly is better with this new version of the gasket than with the
previous version. The new gasket has an 0.06 mm (0.0024 in) coating of rubber on both sides.
The coating therefore ensures improved resilience and compensates for uneveness between the cylinder and
crankcase mating faces.
Repairs
In the event of a repair the new version of the
gasket must be installed with the raised side poin-
ting up (see illustration). The gasket may be used
once only. A new gasket must be installed
whenever the cylinder is removed and refitted.
The steel gasket (0.5 mm) must not be installed
in countries where low-compression machines
(1.0 mm cylinder gasket) are used.
Summary
Part Name Original New Key Rem. MOQ
version version H
Piston and cylinder; 1122 020 1208 1122 020 1208 1
including:
Cylinder gasket 1122 029 2301 1122 029 2301 2 1)2)
Modification to be introduced from machine number X 29 588 802
Remarks
1) Only modified version of part is available from factory
2) New version of part will be included in scope of supply of item 2 for approx. 2 years Page 2 of 2
Technical Information 22.94 - Page 2

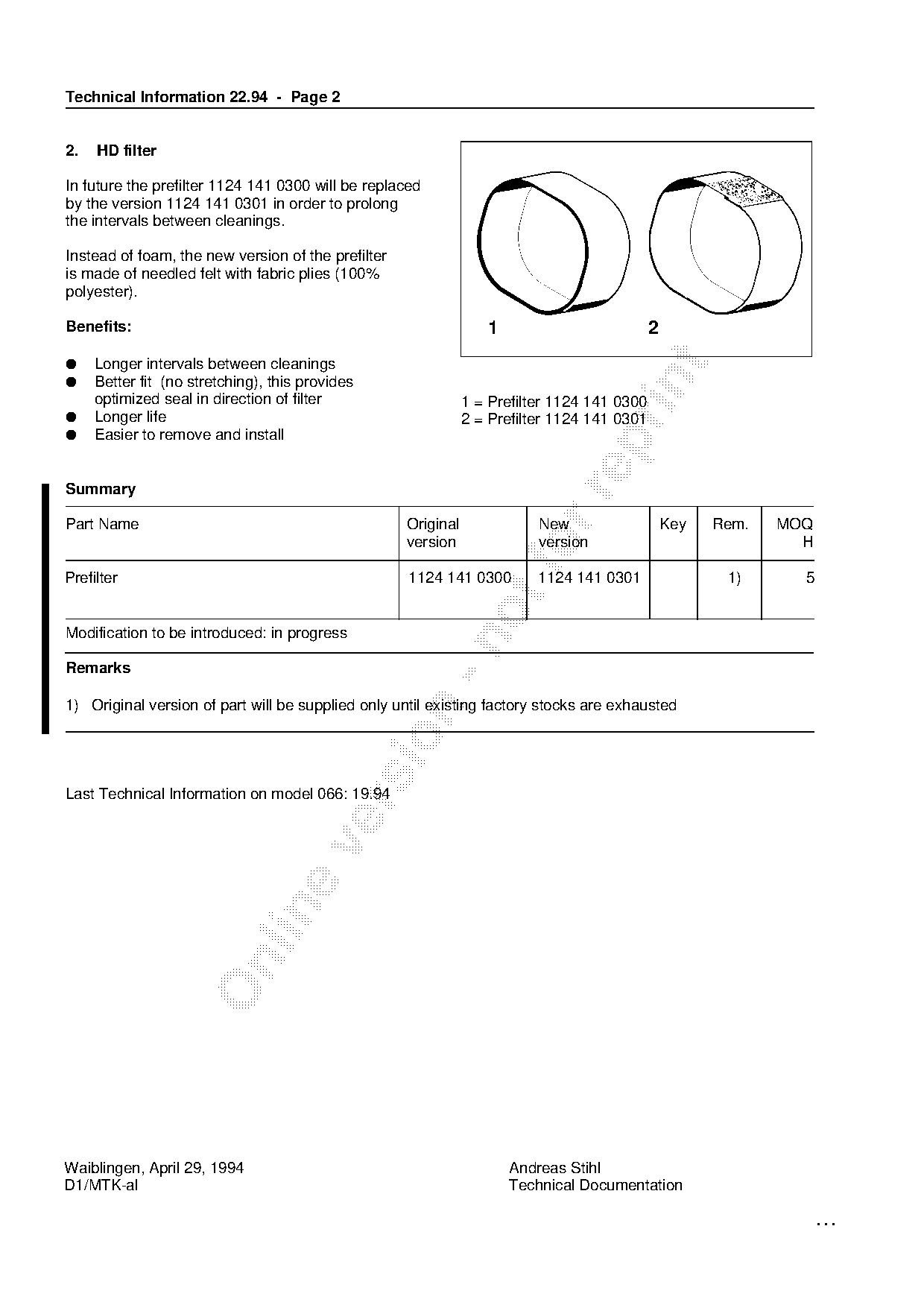

2. HD filter
In future the prefilter 1124 141 0300 will be replaced
by the version 1124 141 0301 in order to prolong
the intervals between cleanings.
Instead of foam, the new version of the prefilter
is made of needled felt with fabric plies (100%
polyester).
Benefits: 1 2
● Longer intervals between cleanings
● Better fit (no stretching), this provides
optimized seal in direction of filter 1 = Prefilter 1124 141 0300
● Longer life 2 = Prefilter 1124 141 0301
● Easier to remove and install
Summary
Part Name Original New Key Rem. MOQ
Prefilter
version
1124 141 0300
fo version
1124 141 0301 1)
H
Modification to be introduced: in progress
Remarks
1) Original version of part will be supplied only until existing factory stocks are exhausted
Last Technical Information on model 066: 19.94
Waiblingen, April 29, 1994 Andreas Stihl
D1/MTK-al Technical Documentation
