Technical Information · issue 23 of 1994

Guide bars: 3003 Rollomatic Standard 3/8" - 11 T -

IssueTI 23/1994

Accessory changes & notes

Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.

Service note · Accessory

37 cm Rollomatic Standard: 3/8-inch, eleven-tooth nose sprocket

New 3003 000 5211 adds the 37 cm / 15-inch length; no exact saw-model fitment is supplied.

  • Three-part Rollomatic Standard 3/8-inch bars with 11-tooth nose sprocket (3003 000 52..) previously offered 40/45/50/63 cm (16/18/20/25 in), now add 37 cm (15 in). New guide bar 3003 000 5211 includes 3/8-inch 11-tooth nose sprocket 3003 650 9935, including countersunk rivet 0000 974 0420.
  • Compared with 10-tooth version 3003 000 61.., 11-tooth nose has larger radius for lower feed effort in boring/bucking, especially as nose enters wood; larger sprocket bearing uses SIX RIVETS, as on Rollomatic S3003 000 94... Diagram confirms the six-rivet arrangement. MOQ10 for loose rivets is NOT the fitted count.
  • Source claims substantially lower weight than comparable Rollomatic S for similar applications and suitability for professional use in high-powered saws. No numeric weight, chain gauge, drive-link count or exact powerhead list is supplied; do not invent them or treat family prefixes as orderable full numbers. TI01.91 reference remains bibliography. Footer April 25, 1994.
  • Historical TI 23/1994 guidance only. No successor or unlisted model applicability inferred. Factory supply and warranty statements are historical, not current availability or entitlement. MOQ columns are order quantities, not fitting quantities. No physical interchange test was performed.

Source: TI 23/1994, p. 1 — 37 cm Rollomatic Standard: 3/8-inch, eleven-tooth nose sprocket.

Part numbers (3)
  • 3003 000 5211 — 37 cm / 15 in Rollomatic Standard guide bar3/8 inch; 11T · 37 cm Rollomatic Standard: 3/8-inch, eleven-tooth nose sprocket
  • 3003 650 9935 — 3/8 inch 11T nose sprocketincluded · 37 cm Rollomatic Standard: 3/8-inch, eleven-tooth nose sprocket
  • 0000 974 0420 — Countersunk rivetsix fitted; MOQ10 · 37 cm Rollomatic Standard: 3/8-inch, eleven-tooth nose sprocket

Full text

Page 1 of 1

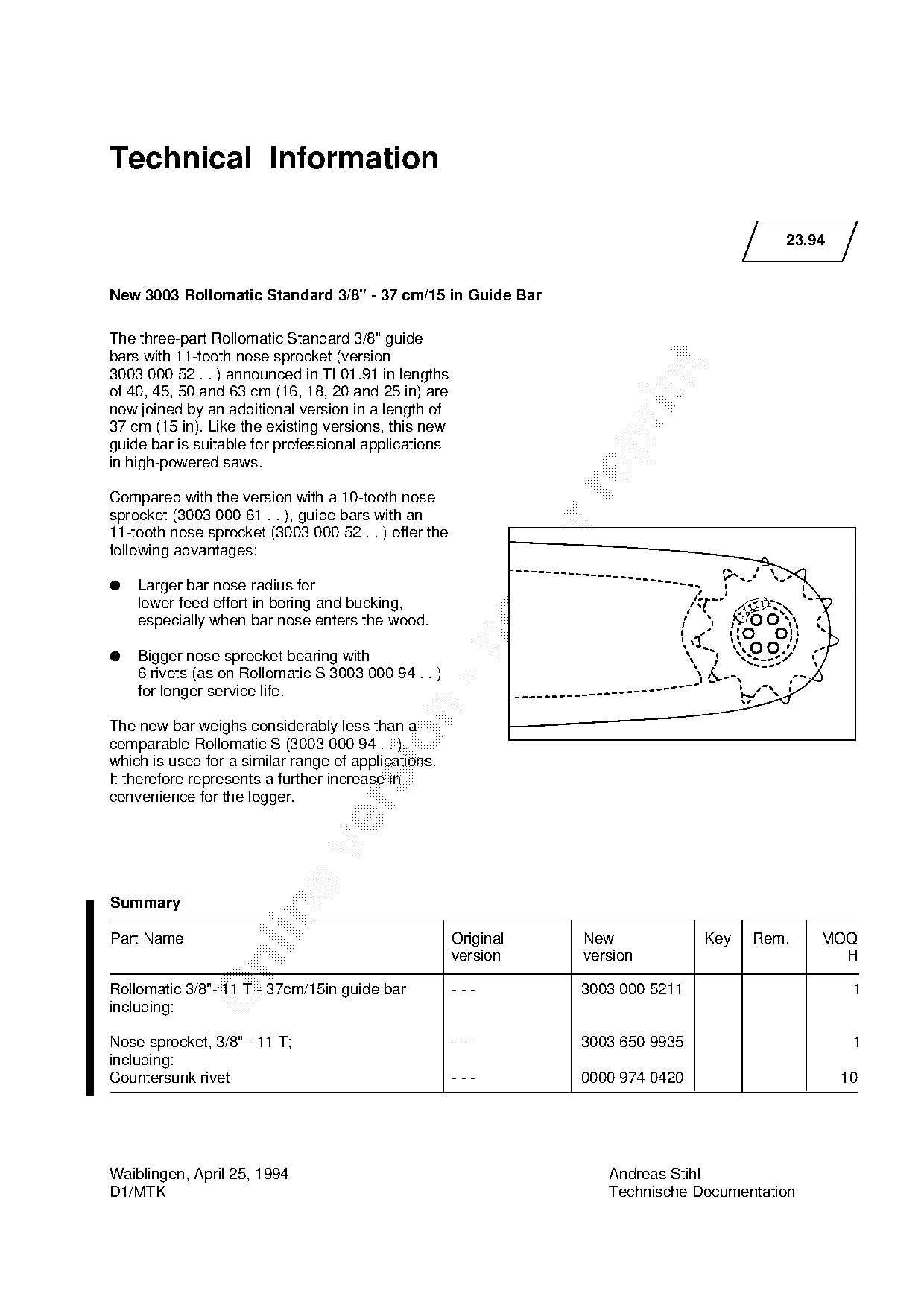

TI 23/1994 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                               23.94

New 3003 Rollomatic Standard 3/8" - 37 cm/15 in Guide Bar

The three-part Rollomatic Standard 3/8" guide
bars with 11-tooth nose sprocket (version

3003 000 52 . . ) announced in TI 01.91 in lengths

of 40, 45, 50 and 63 cm (16, 18, 20 and 25 in) are
now joined by an additional version in a length of
37 cm (15 in). Like the existing versions, this new

guide bar is suitable for professional applications
in high-powered saws.

Compared with the version with a 10-tooth nose
sprocket (3003 000 61 . . ), guide bars with an
11-tooth nose sprocket (3003 000 52 . . ) offer the
following advantages:                                            fo
●   Larger bar nose radius for
    lower feed effort in boring and bucking,
    especially when bar nose enters the wood.

●   Bigger nose sprocket bearing with
    6 rivets (as on Rollomatic S 3003 000 94 . . )
    for longer service life.

The new bar weighs considerably less than a

comparable Rollomatic S (3003 000 94 . . ),
which is used for a similar range of applications.
It therefore represents a further increase in
convenience for the logger.

Summary

Part Name                                             Original        New             Key   Rem.    MOQ
                                                      version         version                         H

Rollomatic 3/8"- 11 T - 37cm/15in guide bar           ---             3003 000 5211                     1
including:

Nose sprocket, 3/8" - 11 T;                           ---             3003 650 9935                     1
including:
Countersunk rivet                                     ---             0000 974 0420                    10

Waiblingen, April 25, 1994                                               Andreas Stihl
D1/MTK                                                                   Technische Documentation
