Technical Information · issue 26 of 1994
Chain brake; rewind starter
Model 021, 023, 025 Chain Saws - Series 1123
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1123 162 5010 | 1123 162 7800 | 1123 162 5010 with helical spring 0000 997 0628 will be replaced by flat spring 1123 162 7800 from machine number X 28 310 255. |
Full text
Page 1 of 2

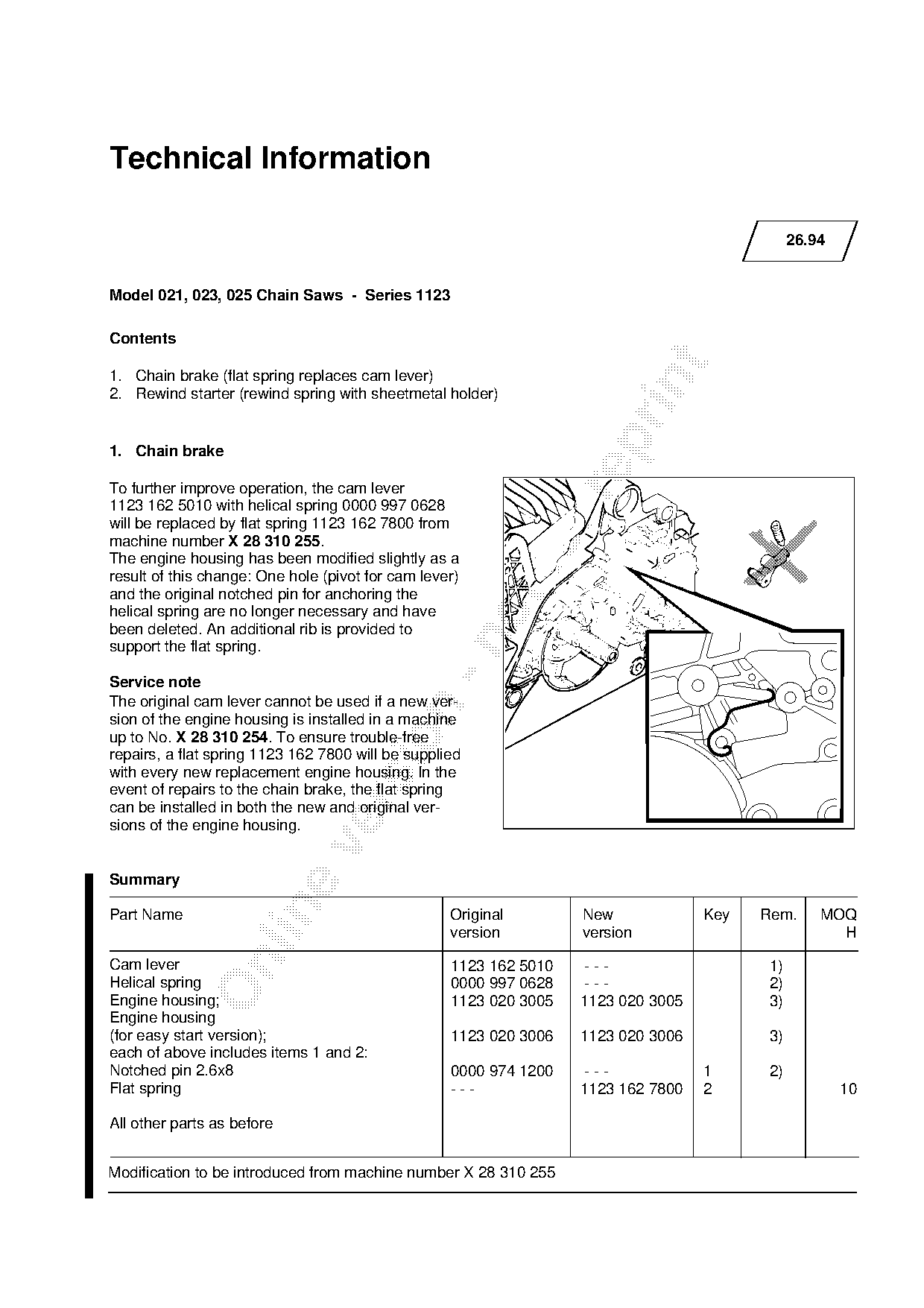

Technical Information
26.94
Model 021, 023, 025 Chain Saws - Series 1123
Contents
1. Chain brake (flat spring replaces cam lever)
2. Rewind starter (rewind spring with sheetmetal holder)
1. Chain brake
,
To further improve operation, the cam lever
1123 162 5010 with helical spring 0000 997 0628
will be replaced by flat spring 1123 162 7800 from
machine number X 28 310 255.
The engine housing has been modified slightly as a
result of this change: One hole (pivot for cam lever)
and the original notched pin for anchoring the
helical spring are no longer necessary and have
been deleted. An additional rib is provided to
support the flat spring.
Service note
The original cam lever cannot be used if a new ver-
sion of the engine housing is installed in a machine
up to No. X 28 310 254. To ensure trouble-free
repairs, a flat spring 1123 162 7800 will be supplied
with every new replacement engine housing. In the
event of repairs to the chain brake, the flat spring
can be installed in both the new and original ver-
sions of the engine housing.
Summary
Part Name Original New Key Rem. MOQ
version version H
Cam lever 1123 162 5010 --- 1)
Helical spring 0000 997 0628 --- 2)
Engine housing; 1123 020 3005 1123 020 3005 3)
Engine housing
(for easy start version); 1123 020 3006 1123 020 3006 3)
each of above includes items 1 and 2:
Notched pin 2.6x8 0000 974 1200 --- 1 2)
Flat spring --- 1123 162 7800 2 10
All other parts as before
Modification to be introduced from machine number X 28 310 255 Page 2 of 2

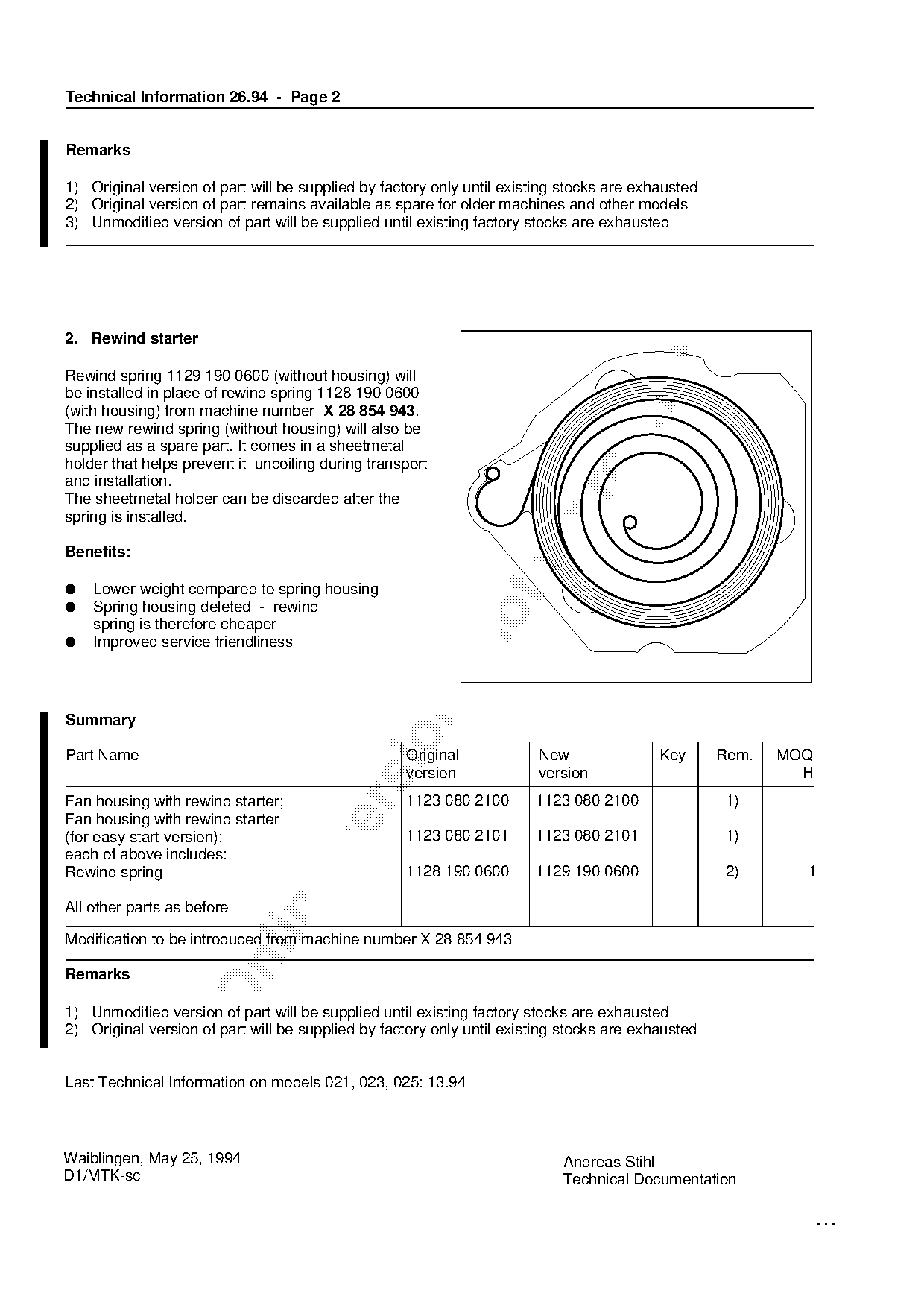

Technical Information 26.94 - Page 2
Remarks
1) Original version of part will be supplied by factory only until existing stocks are exhausted
2) Original version of part remains available as spare for older machines and other models
3) Unmodified version of part will be supplied until existing factory stocks are exhausted
2. Rewind starter
Rewind spring 1129 190 0600 (without housing) will
be installed in place of rewind spring 1128 190 0600
(with housing) from machine number X 28 854 943.
The new rewind spring (without housing) will also be
supplied as a spare part. It comes in a sheetmetal
holder that helps prevent it uncoiling during transport
and installation.
The sheetmetal holder can be discarded after the
spring is installed.
Benefits: fo
● Lower weight compared to spring housing
● Spring housing deleted - rewind
spring is therefore cheaper
● Improved service friendliness
Summary
Part Name Original New Key Rem. MOQ
version version H
Fan housing with rewind starter; 1123 080 2100 1123 080 2100 1)
Fan housing with rewind starter
(for easy start version); 1123 080 2101 1123 080 2101 1)
each of above includes:
Rewind spring 1128 190 0600 1129 190 0600 2) 1
All other parts as before
Modification to be introduced from machine number X 28 854 943
Remarks
1) Unmodified version of part will be supplied until existing factory stocks are exhausted
2) Original version of part will be supplied by factory only until existing stocks are exhausted
Last Technical Information on models 021, 023, 025: 13.94
Waiblingen, May 25, 1994 Andreas Stihl
D1/MTK-sc Technical Documentation
