Technical Information · issue 27 of 1994

Rewind starter

Model TS 350, TS 360 Cutquiks - Series 4201

IssueTI 27/1994
Serial references — see context below 15 584 173, 29 517 447

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · TS 360 / TS 350 AV

TS 360 / 350 AV: early no-boss machines retain special starter assembly

4201 080 2101 retains number but receives the new spring; applicability ends at X 15 584 173.

No exact-model IPL link: TS360 exact model is retained, but TS350 AV has no separately established exact-name IPL sheet; catalogue TS350 AVE is not silently equated. Full early-machine rule stays source-only for both named models.

  • Fan housing with starter 4201 080 2101 remains for TS 360/350AV UP TO AND INCLUDING X 15 584 173, without crankcase mounting bosses for annular buffer and muffler guard. ONLY MODIFIED version supplied, with new spring 4201 190 0600; assembly number unchanged. This early-machine upper limit is NOT new-spring production start X 29 517 447.
  • Prose also names TS 350AV alongside TS 360 for original 4201 080 2100 starter kit, while summary labels TS 360 only; preserve named prose scope without silently equating AV with catalogue AVE. New early-machine assembly includes items 2–4: spring and two countersunk screws 9076 478 2996 replace prior single 9099 021 0818 screw arrangement. Old spring 1117 190 0601 and old screw remain for older machines; do not infer new housed spring fits original fan housing.
  • TI 31.86 and 17.88 are referenced for early crankcase configuration, not newly accepted sources. Footer September 15,1994; preceding TI 09.94 reference remains bibliography.
  • Historical TI 27/1994 guidance only. No successor or unlisted model applicability inferred. Factory supply and warranty statements are historical, not current availability or entitlement. MOQ columns are order quantities, not fitting quantities. No physical interchange test was performed.

Source: TI 27/1994, p. 1 · TI 27/1994, p. 2 — TS 360 / 350 AV: early no-boss machines retain special starter assembly.

Part numbers (6)
  • 4201 080 2101 — Early no-boss starter assemblysame number; modified version only · TS 360 / 350 AV: early no-boss machines retain special starter assembly
  • 4201 080 2100 — Original starter assemblyprose also names TS350AV · TS 360 / 350 AV: early no-boss machines retain special starter assembly
  • 4201 190 0600 — Polymer-housed rewind springincluded in modified early assembly · TS 360 / 350 AV: early no-boss machines retain special starter assembly
  • 9076 478 2996 — PT4 x12 countersunk screw2 fitted in new arrangement · TS 360 / 350 AV: early no-boss machines retain special starter assembly
  • 9099 021 0818 — Original spring anchor screwretained for older machines · TS 360 / 350 AV: early no-boss machines retain special starter assembly
  • 1117 190 0601 — Original rewind springretained for older machines · TS 360 / 350 AV: early no-boss machines retain special starter assembly

Full text

Page 1 of 2

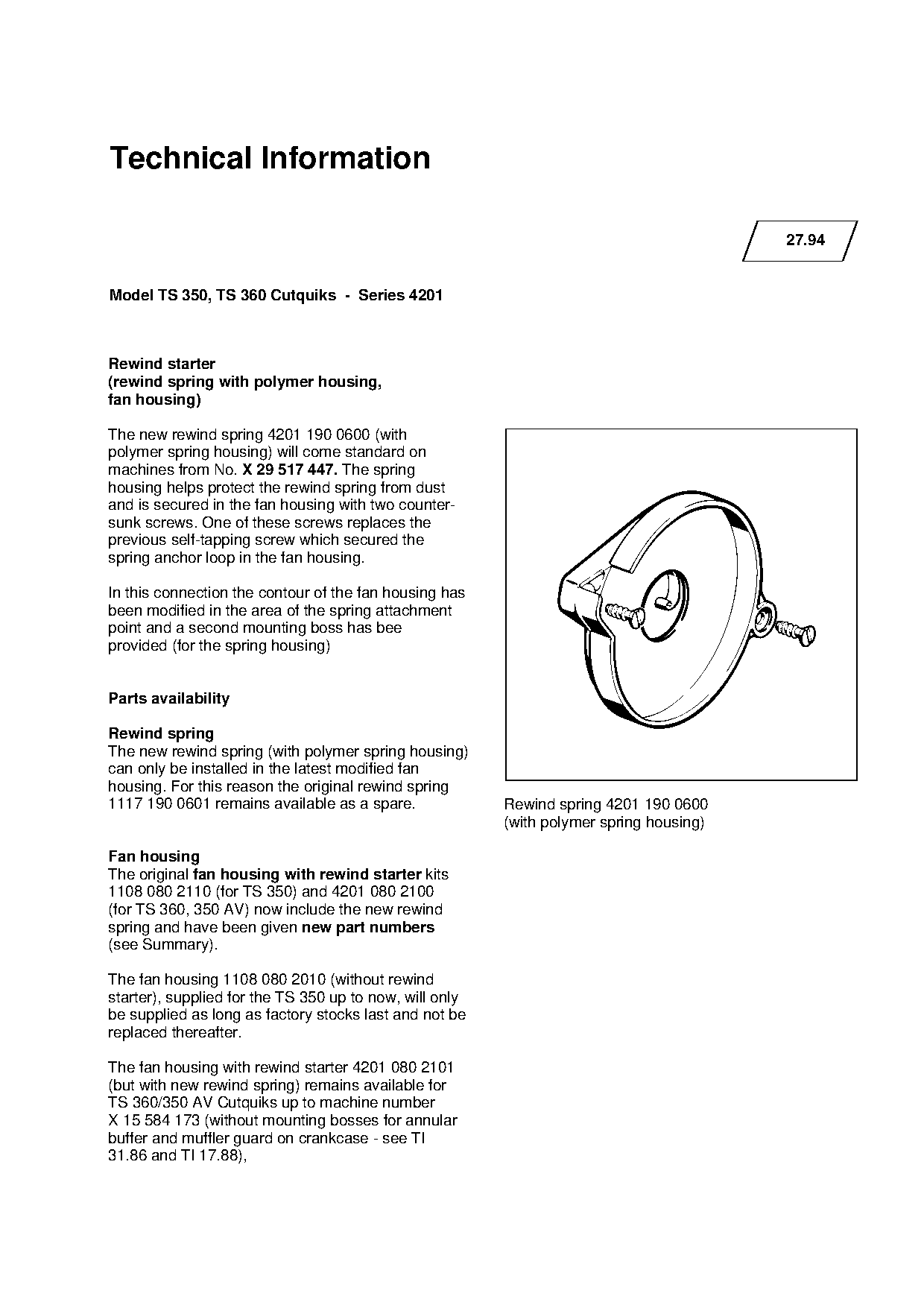

TI 27/1994 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                         27.94

Model TS 350, TS 360 Cutquiks - Series 4201

Rewind starter

(rewind spring with polymer housing,
fan housing)

The new rewind spring 4201 190 0600 (with

polymer spring housing) will come standard on
machines from No. X 29 517 447. The spring
housing helps protect the rewind spring from dust

and is secured in the fan housing with two counter-
sunk screws. One of these screws replaces the
previous self-tapping screw which secured the
spring anchor loop in the fan housing.                    fo
In this connection the contour of the fan housing has
been modified in the area of the spring attachment
point and a second mounting boss has bee

provided (for the spring housing)

Parts availability

Rewind spring

The new rewind spring (with polymer spring housing)
can only be installed in the latest modified fan
housing. For this reason the original rewind spring

1117 190 0601 remains available as a spare.              Rewind spring 4201 190 0600
                                                         (with polymer spring housing)

Fan housing
The original fan housing with rewind starter kits
1108 080 2110 (for TS 350) and 4201 080 2100

(for TS 360, 350 AV) now include the new rewind
spring and have been given new part numbers
(see Summary).

The fan housing 1108 080 2010 (without rewind
starter), supplied for the TS 350 up to now, will only
be supplied as long as factory stocks last and not be
replaced thereafter.

The fan housing with rewind starter 4201 080 2101
(but with new rewind spring) remains available for
TS 360/350 AV Cutquiks up to machine number
X 15 584 173 (without mounting bosses for annular
buffer and muffler guard on crankcase - see TI
31.86 and TI 17.88),

Page 2 of 2

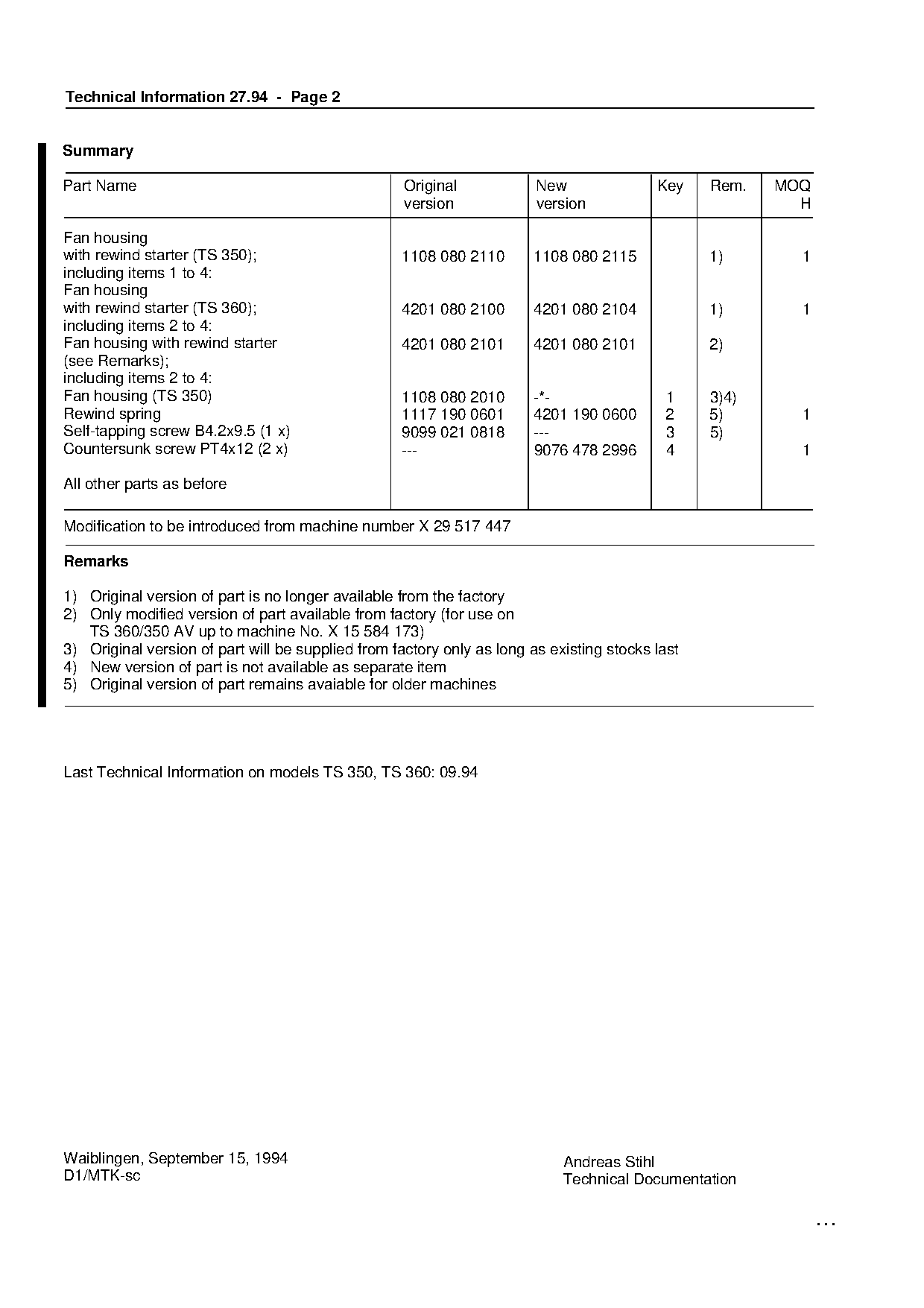

TI 27/1994 page 2
Text of page 2 — search, copy, screen readers
Technical Information 27.94 - Page 2

Summary

Part Name                                           Original            New               Key    Rem.   MOQ
                                                    version             version                           H

Fan housing
with rewind starter (TS 350);                      1108 080 2110       1108 080 2115             1)       1
including items 1 to 4:
Fan housing
with rewind starter (TS 360);                      4201 080 2100       4201 080 2104             1)       1
including items 2 to 4:
Fan housing with rewind starter                    4201 080 2101       4201 080 2101             2)
(see Remarks);

including items 2 to 4:

Fan housing (TS 350)                               1108 080 2010       -*-                  1    3)4)
Rewind spring                                      1117 190 0601       4201 190 0600        2    5)       1
Self-tapping screw B4.2x9.5 (1 x)                  9099 021 0818       ---                  3    5)

Countersunk screw PT4x12 (2 x)                     ---                 9076 478 2996        4             1

All other parts as before

Modification to be introduced from machine number X 29 517 447

Remarks
1) Original version of part is no longer available from the factory
2) Only modified version of part available from factory (for use on
   TS 360/350 AV up to machine No. X 15 584 173)

3) Original version of part will be supplied from factory only as long as existing stocks last
4) New version of part is not available as separate item
5) Original version of part remains avaiable for older machines

Last Technical Information on models TS 350, TS 360: 09.94

Waiblingen, September 15, 1994                                              Andreas Stihl
D1/MTK-sc                                                                   Technical Documentation

                                                                                                              ...
