Technical Information · issue 37 of 1994

New brushcutters

Model: FS 88 FS 108

IssueTI 37/1994

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · FS 88 / FS 88 R / FS 108 / FS 108 R

FS 88 / 108: bike-handle and R versions

FS 88 is series 4126; FS 108 is series 4135. R denotes the loop-handle version.

No exact-model IPL link: The source explicitly distinguishes bike-handle and R loop-handle versions; exact R model tokens are not separately bound by the available FS 88 / FS 108 catalog sheets.

  • FS 88 and FS 108 have bike handles; FS 88 R and FS 108 R have loop handles. The four photographs confirm those layouts, not a complete supplied-accessory list. Handles can be repositioned along the shaft; an antivibration element is between shaft and engine.
  • Design is based on FS 86 and FS 106, with higher-torque engines and service-friendlier construction; this is NOT a blanket parts interchange declaration. Stated users include demanding occasional users, landscape gardeners, municipalities, agriculture and forestry. General cutting, weeds, reed, brush, scrub, shrubs and small wood are described uses, not permission for every tool on every handle version.
  • For safety reasons METAL CUTTING TOOLS MUST NOT BE FITTED OR USED on loop-handle machines (FS 88 R / FS 108 R). The broad introductory uses do not override this explicit page 2 restriction.
  • Historical TI 37/1994 source guidance, not present-day approval, current stock or a physical interchange test. No serial cutoff is supplied. Exact-model catalog links are navigation, not proof that later service parts or carburetor variants equal the original configuration. No hardware operation was performed.

Source: TI 37/1994, p. 1 · TI 37/1994, p. 2 — FS 88 / 108: bike-handle and R versions.

No additional parts-table entry added.

Service note · FS 88 / FS 88 R / FS 108 / FS 108 R

FS 88 / 108: metal tools exclude loop handles

The source also lists BC 30, but gives no handle-specific installation procedure for that attachment.

No exact-model IPL link: The source explicitly distinguishes bike-handle and R loop-handle versions; exact R model tokens are not separately bound by the available FS 88 / FS 108 catalog sheets.

  • Keys 8–12 show two cutting blades, the three-point brush knife and two different saw-tooth forms. These METAL CUTTING TOOLS MUST NOT BE FITTED OR USED on FS 88 R or FS 108 R (loop handles). A shared title or model search hit is not approval for those variants.
  • Key 13 is cultivator attachment BC 30, 4600 710 1500. It is listed as an attachment; no separate R-version installation approval or exception to the metal-tool warning is printed. Do not infer a blanket loop-handle exemption from the drawing. No attachment installation instructions or unprinted mounting parts supplied here.
  • Historical TI 37/1994 source guidance, not present-day approval, current stock or a physical interchange test. No serial cutoff is supplied. Exact-model catalog links are navigation, not proof that later service parts or carburetor variants equal the original configuration. No hardware operation was performed.

Source: TI 37/1994, p. 2 — FS 88 / 108: metal tools exclude loop handles.

Part numbers (6)
  • 4001 713 3801 — 8 Cutting blade 230-4historical listed item · FS 88 / 108: metal tools exclude loop handles
  • 4001 713 3803 — 9 Cutting blade 230-8historical listed item · FS 88 / 108: metal tools exclude loop handles
  • 4112 713 4100 — 10 Brush knife 250-3historical listed item · FS 88 / 108: metal tools exclude loop handles
  • 4112 713 4201 — 11 Circular saw blade 200, scratcher toothhistorical listed item · FS 88 / 108: metal tools exclude loop handles
  • 4112 713 4203 — 12 Circular saw blade 200, chisel toothhistorical listed item · FS 88 / 108: metal tools exclude loop handles
  • 4600 710 1500 — 13 BC 30 cultivator attachmenthistorical listed item · FS 88 / 108: metal tools exclude loop handles

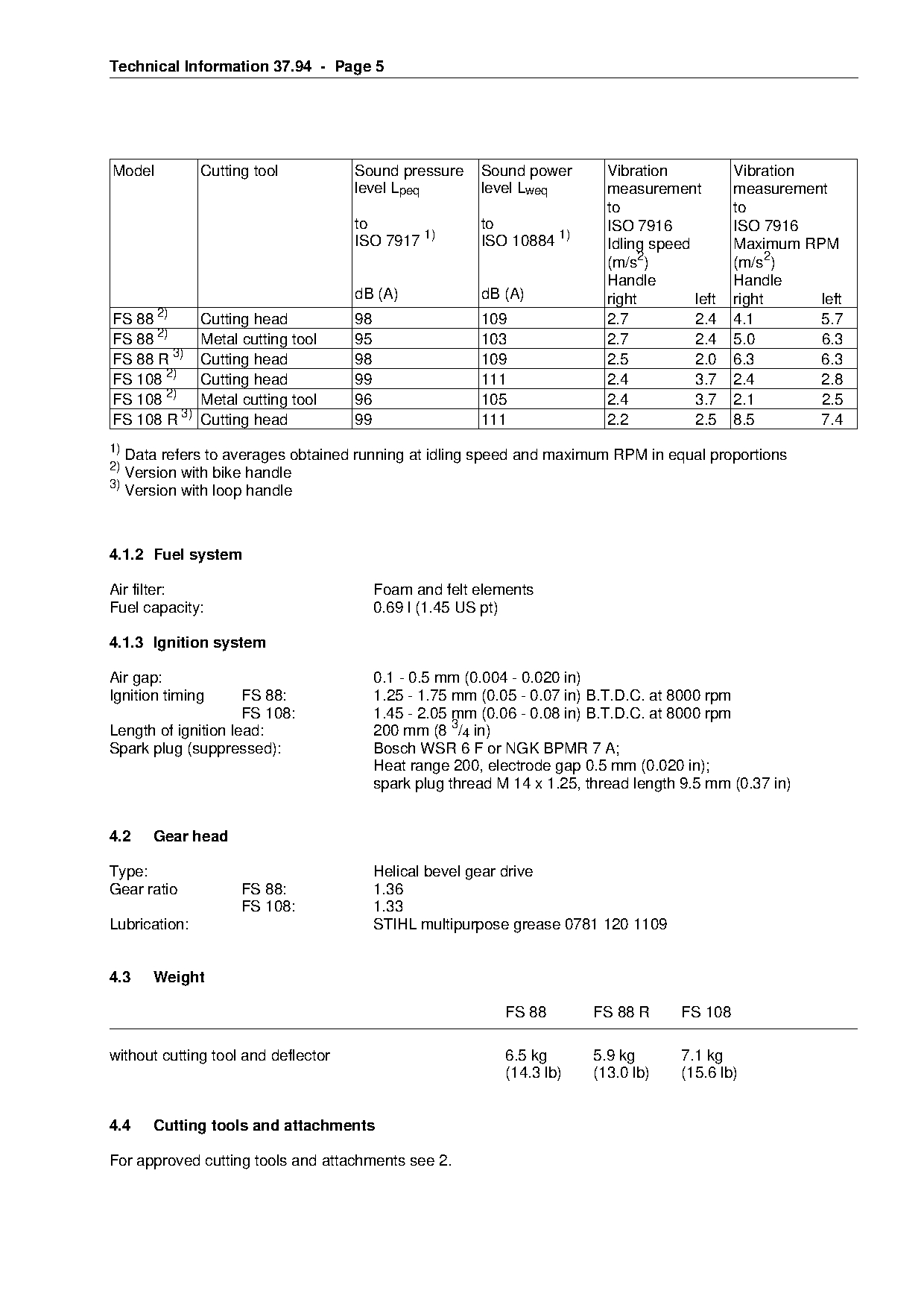

Service note · FS 88 / FS 88 R / FS 108 / FS 108 R

FS 88 / 108: handle-specific noise and vibration

The six original rows keep tool type, handle side and operating condition separate.

No exact-model IPL link: The source explicitly distinguishes bike-handle and R loop-handle versions; exact R model tokens are not separately bound by the available FS 88 / FS 108 catalog sheets.

  • Each row below is sound pressure / sound power in dB(A); idle vibration RIGHT / LEFT; maximum-rpm vibration RIGHT / LEFT in m/s². Pressure to ISO 7917, power to ISO 10884, vibration to ISO 7916. Sound footnote 1 specifies equal proportions of idling and maximum-rpm operation; this must NOT be applied as an averaging rule to the separate vibration columns.
  • FS 88 bike handle, cutting head: 98 / 109; 2.7 / 2.4; 4.1 / 5.7. FS 88 bike handle, metal tool: 95 / 103; 2.7 / 2.4; 5.0 / 6.3. FS 88 R loop handle, cutting head: 98 / 109; 2.5 / 2.0; 6.3 / 6.3.
  • FS 108 bike handle, cutting head: 99 / 111; 2.4 / 3.7; 2.4 / 2.8. FS 108 bike handle, metal tool: 96 / 105; 2.4 / 3.7; 2.1 / 2.5. FS 108 R loop handle, cutting head: 99 / 111; 2.2 / 2.5; 8.5 / 7.4.
  • No loop-handle metal-tool row is printed; metal cutting tools must not be fitted or used on loop-handle machines. Historical test values are not present-machine measurements or personal exposure estimates.
  • Historical TI 37/1994 source guidance, not present-day approval, current stock or a physical interchange test. No serial cutoff is supplied. Exact-model catalog links are navigation, not proof that later service parts or carburetor variants equal the original configuration. No hardware operation was performed.

Source: TI 37/1994, p. 5 — FS 88 / 108: handle-specific noise and vibration.

No additional parts-table entry added.

Service note · FS 88 / FS 88 R / FS 108 / FS 108 R

FS 88 / 108: weights omit cutting tool and deflector

FS 108 R has no weight entry in this table.

No exact-model IPL link: The source explicitly distinguishes bike-handle and R loop-handle versions; exact R model tokens are not separately bound by the available FS 88 / FS 108 catalog sheets.

  • WITHOUT CUTTING TOOL AND DEFLECTOR: FS 88 6.5 kg (14.3 lb); FS 88 R 5.9 kg (13.0 lb); FS 108 7.1 kg (15.6 lb). FS 108 R is an introduced version but its weight is NOT PRINTED in section 4.3. Do not copy the FS 108 bike-handle weight, interpolate, or insert zero.
  • Section 4.4 points back to approved tools in section 2; this is not an additional tool approval or an exception to loop-handle metal-tool restrictions.
  • Historical TI 37/1994 source guidance, not present-day approval, current stock or a physical interchange test. No serial cutoff is supplied. Exact-model catalog links are navigation, not proof that later service parts or carburetor variants equal the original configuration. No hardware operation was performed.

Source: TI 37/1994, p. 1 · TI 37/1994, p. 5 — FS 88 / 108: weights omit cutting tool and deflector.

No additional parts-table entry added.

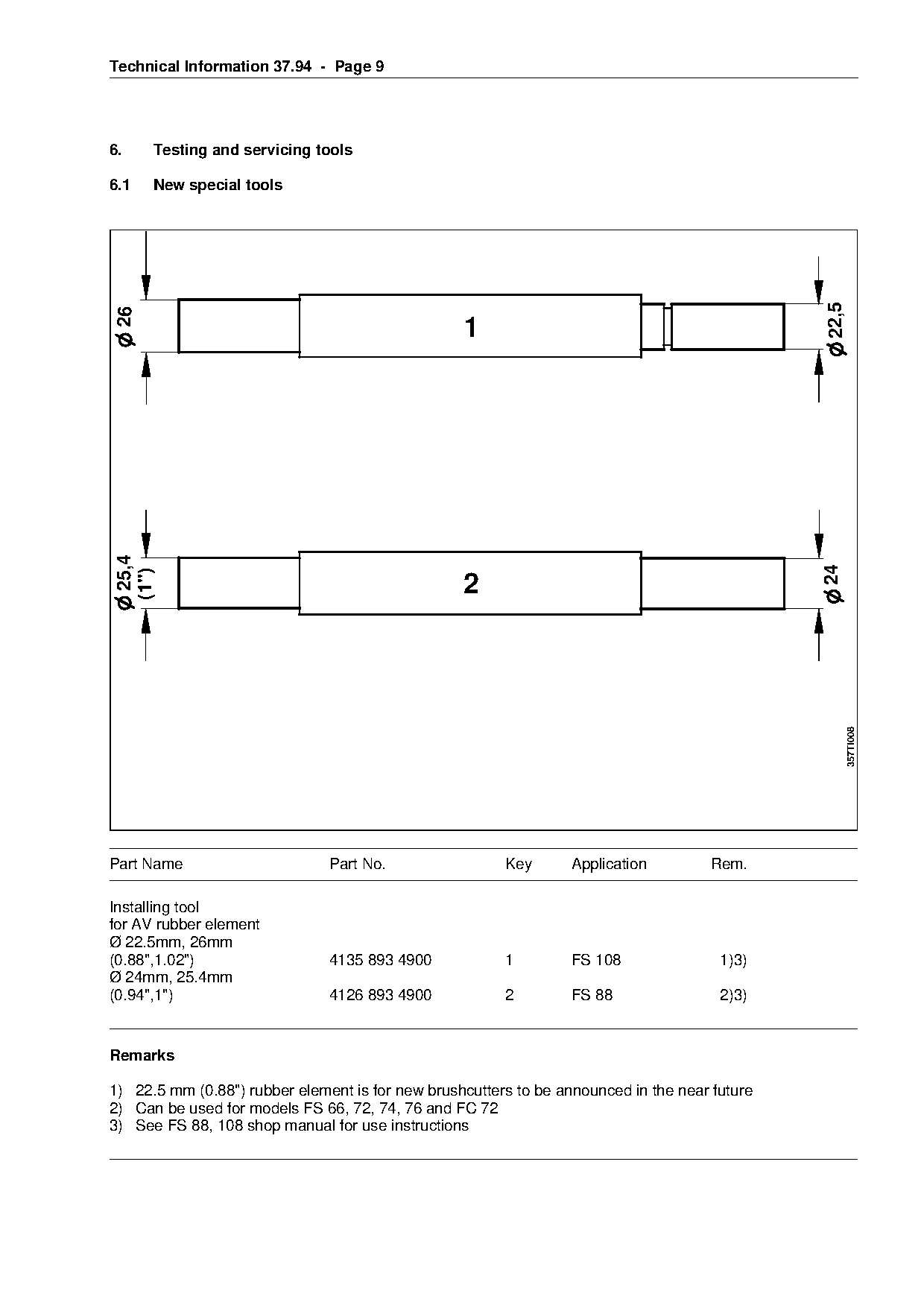

Service note · Service tool

FS 88 / 108: AV installing tools and future-model end

The 22.5 mm end is reserved for unannounced future brushcutters, not assigned to FS 108.

  • Drawing key 1, 4135 893 4900, FS 108 installing tool: end diameters 26 mm and 22.5 mm (1.02 / 0.88 in as printed). Footnote 1 explicitly assigns the 22.5 mm rubber element to NEW BRUSHCUTTERS TO BE ANNOUNCED; do not identify those future models or treat both ends as FS 108 sizes.
  • Drawing key 2, 4126 893 4900, FS 88: end diameters 25.4 mm (1 in) and 24 mm (0.94 in). Footnote 2 also permits use for FS 66, 72, 74, 76 and FC 72. This additional roster applies to tool 2, not tool 1.
  • The two stepped-tool drawings show different ends, not fabrication lengths. Footnote 3 refers to the FS 88 / 108 shop manual for use instructions; no pressing orientation, depth or substitute fabrication specification is supplied by this TI.
  • Historical TI 37/1994 guidance, not current stock, a complete repair procedure or physical verification. Exact-model catalog links are navigation, not proof that later configurations are identical. No hardware operation was performed.

Source: TI 37/1994, p. 9 — AV installing tools and future-model end.

Part numbers (2)
  • 4135 893 4900 — FS 108 AV installer; 22.5 mm end for unnamed future brushcuttershistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 4126 893 4900 — FS 88 AV installer; also FS 66/72/74/76 and FC 72historical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note

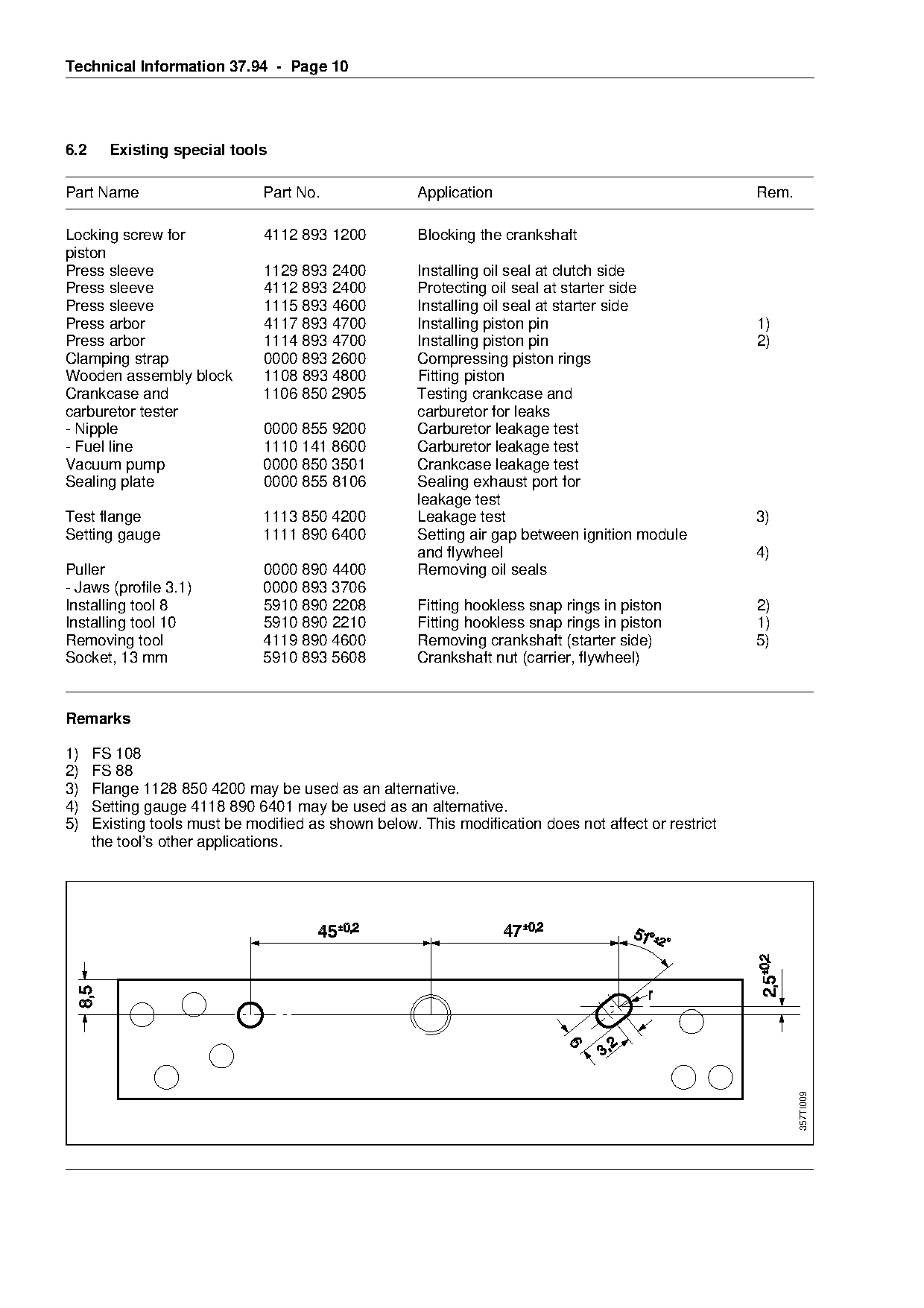

Service note · Service tool

FS 88 / 108: piston and oil-seal service tools

FS 88 and FS 108 use different piston-pin arbors and snap-ring installers.

  • Locking screw 4112 893 1200 blocks crankshaft. Press sleeve 1129 893 2400 INSTALLS clutch-side oil seal; 4112 893 2400 PROTECTS starter-side seal; 1115 893 4600 INSTALLS starter-side seal. Protection and pressing are distinct operations.
  • Piston-pin press arbors: FS 108 4117 893 4700; FS 88 1114 893 4700. Hookless piston snap-ring installers: FS 88 tool 8, 5910 890 2208; FS 108 tool 10, 5910 890 2210. Tool names 8 and 10 are not inferred pin diameters.
  • Clamping strap 0000 893 2600 compresses piston rings; wooden block 1108 893 4800 supports piston fitting. Oil-seal puller 0000 890 4400 uses jaws profile 3.1, 0000 893 3706. Socket 13 mm 5910 893 5608 is for crankshaft nuts at carrier/flywheel. Listing tools does not supply the repair sequence.
  • Historical TI 37/1994 guidance, not current stock, a complete repair procedure or physical verification. Exact-model catalog links are navigation, not proof that later configurations are identical. No hardware operation was performed.

Source: TI 37/1994, p. 10 — piston and oil-seal service tools.

Part numbers (13)
  • 4112 893 1200 — Crankshaft locking screwhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1129 893 2400 — Clutch-side seal installing sleevehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 4112 893 2400 — Starter-side seal protecting sleevehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1115 893 4600 — Starter-side seal installing sleevehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 4117 893 4700 — FS 108 piston-pin arborhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1114 893 4700 — FS 88 piston-pin arborhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0000 893 2600 — Piston ring clamping straphistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1108 893 4800 — Wooden piston assembly blockhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0000 890 4400 — Oil-seal pullerhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0000 893 3706 — Puller jaws profile 3.1historical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 890 2208 — FS 88 hookless snap-ring installer 8historical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 890 2210 — FS 108 hookless snap-ring installer 10historical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 893 5608 — 13 mm crankshaft-nut sockethistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note

Service note · Service tool

FS 88 / 108: leak-test and ignition setting tools

Only the explicitly named flange and gauge alternatives are admitted.

  • Tester 1106 850 2905 tests crankcase and carburetor for leaks; nipple 0000 855 9200 and fuel line 1110 141 8600 are for carburetor leakage test. Vacuum pump 0000 850 3501 is for crankcase leakage; sealing plate 0000 855 8106 seals the exhaust port.
  • Test flange 1113 850 4200 has the explicit alternative 1128 850 4200. Ignition module/flywheel air-gap gauge 1111 890 6400 has explicit alternative 4118 890 6401. These footnotes do not make unrelated flanges or gauges interchangeable. Test pressures/basic settings are separately recorded from page 7; a tool list is not a complete leakage-test procedure.
  • Historical TI 37/1994 guidance, not current stock, a complete repair procedure or physical verification. Exact-model catalog links are navigation, not proof that later configurations are identical. No hardware operation was performed.

Source: TI 37/1994, p. 10 — leak-test and ignition setting tools.

Part numbers (9)
  • 1106 850 2905 — Crankcase and carburetor testerhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0000 855 9200 — Carburetor-test nipplehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1110 141 8600 — Carburetor-test fuel linehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0000 850 3501 — Crankcase vacuum pumphistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0000 855 8106 — Exhaust sealing platehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1113 850 4200 — Leak-test flangehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1128 850 4200 — Explicit alternative leak-test flangehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1111 890 6400 — Ignition air-gap gaugehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 4118 890 6401 — Explicit alternative air-gap gaugehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note

Service note · Service tool

FS 88 / 108: crankshaft remover requires modification

Existing 4119 890 4600 must be modified to drawing 357TI009 before this application.

  • Removing tool 4119 890 4600 is listed for removing the crankshaft at the STARTER SIDE. Footnote 5 requires existing tools to be modified AS SHOWN in drawing 357TI009 and says the modification does not affect or restrict the tool’s other applications. This is not approval to use an unmodified example.
  • The original drawing is the geometry authority: it shows a left circular feature and right oblique rounded slot relative to the central bore and existing hole pattern. Dimension annotations are 45 ±0.2 and 47 ±0.2 between marked longitudinal references, 8.5 vertical reference, 2.5 ±0.2 offset, 57° ±2°, and local slot annotations 6 and 3.2. The radius is labelled r without a numeric value. Preserve the source image for dimension endpoints and slot orientation; this prose is NOT a fabrication drawing.
  • No material, tool thickness, complete hole pattern, numeric radius or machining/inspection procedure is specified. Do not derive an unprinted radius or infer that this figure specifies a complete newly fabricated tool. The drawing and modification requirement were visually reviewed, not physically tested.
  • Historical TI 37/1994 guidance, not current stock, a complete repair procedure or physical verification. Exact-model catalog links are navigation, not proof that later configurations are identical. No hardware operation was performed.

Source: TI 37/1994, p. 10 — crankshaft remover requires modification.

Part numbers (1)
  • 4119 890 4600 — Starter-side crankshaft remover; existing tools require modificationhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note

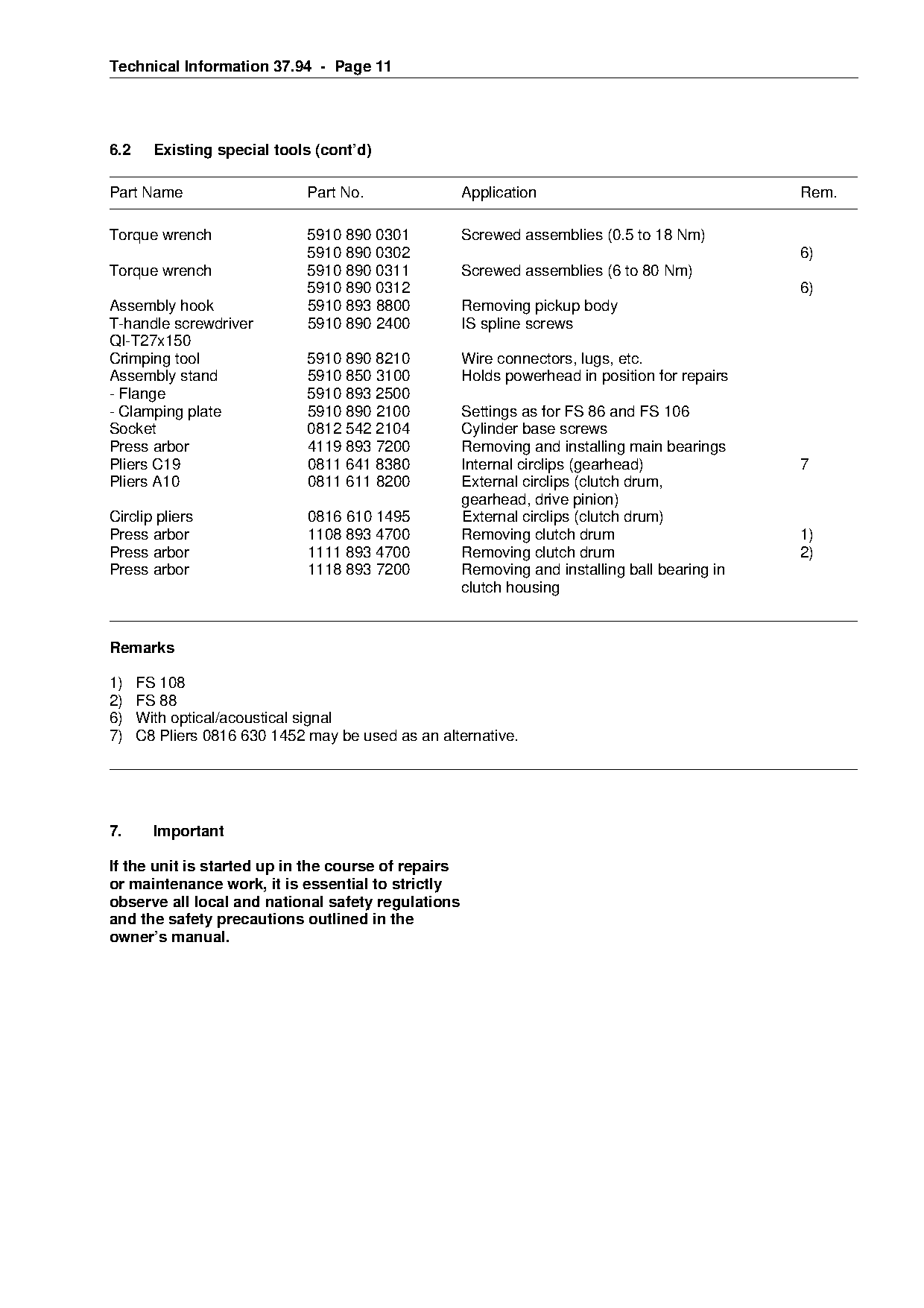

Service note · Service tool

FS 88 / 108: torque wrenches and workshop hand tools

Optical/acoustical signal applies to the second wrench in each range.

  • Wrenches 5910 890 0301 and 5910 890 0302: 0.5–18 Nm screwed assemblies; 5910 890 0311 and 5910 890 0312: 6–80 Nm. Footnote 6 specifies optical/acoustical signal for 0302 and 0312. A range does not prove calibration or accuracy; the 19 Nm plug specification is outside the first range.
  • Assembly hook 5910 893 8800 removes pickup body. T-handle QI-T27x150 screwdriver 5910 890 2400 is for IS spline screws. Crimping tool 5910 890 8210 is for wire connectors/lugs. Socket 0812 542 2104 is for cylinder-base screws; no socket drive size is stated.
  • Historical TI 37/1994 guidance, not current stock, a complete repair procedure or physical verification. Exact-model catalog links are navigation, not proof that later configurations are identical. No hardware operation was performed.

Source: TI 37/1994, p. 11 — torque wrenches and workshop hand tools.

Part numbers (8)
  • 5910 890 0301 — Torque wrench 0.5–18 Nmhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 890 0302 — Torque wrench 0.5–18 Nm with signalhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 890 0311 — Torque wrench 6–80 Nmhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 890 0312 — Torque wrench 6–80 Nm with signalhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 893 8800 — Pickup-body assembly hookhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 890 2400 — QI-T27x150 T-handle screwdriverhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 890 8210 — Wire crimping toolhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0812 542 2104 — Cylinder-base screw sockethistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note

Service note · Service tool

FS 88 / 108: stand, bearing and circlip tools

Clutch-drum removal arbors remain model-specific.

  • Assembly stand 5910 850 3100 holds powerhead for repairs; flange 5910 893 2500 and clamping plate 5910 890 2100 are listed beneath it. Plate settings are as for FS 86 / FS 106; the TI supplies no numeric settings. Press arbor 4119 893 7200 removes/installs main bearings.
  • C19 pliers 0811 641 8380: INTERNAL gearhead circlips; alternative C8 pliers 0816 630 1452 (footnote 7). A10 pliers 0811 611 8200: EXTERNAL circlips at clutch drum, gearhead and drive pinion. Circlip pliers 0816 610 1495: EXTERNAL clutch-drum circlips. The alternative footnote belongs to C19, not every circlip tool.
  • Clutch-drum removal press arbor: FS 108 1108 893 4700; FS 88 1111 893 4700. Arbor 1118 893 7200 removes/installs ball bearing in clutch housing. Similar arbor names do not establish cross-model interchange.
  • Historical TI 37/1994 guidance, not current stock, a complete repair procedure or physical verification. Exact-model catalog links are navigation, not proof that later configurations are identical. No hardware operation was performed.

Source: TI 37/1994, p. 11 — stand, bearing and circlip tools.

Part numbers (11)
  • 5910 850 3100 — Powerhead assembly standhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 893 2500 — Assembly stand flangehistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 5910 890 2100 — Clamping plate; FS 86/106 settingshistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 4119 893 7200 — Main-bearing press arborhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0811 641 8380 — C19 internal gearhead circlip pliershistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0816 630 1452 — Alternative C8 internal circlip pliershistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0811 611 8200 — A10 external circlip pliershistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 0816 610 1495 — External clutch-drum circlip pliershistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1108 893 4700 — FS 108 clutch-drum removal arborhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1111 893 4700 — FS 88 clutch-drum removal arborhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note
  • 1118 893 7200 — Clutch-housing ball-bearing arborhistorical listed service tool · FS 88 / FS 108 subject to the model and task restrictions in this note

Full text

Page 1 of 12

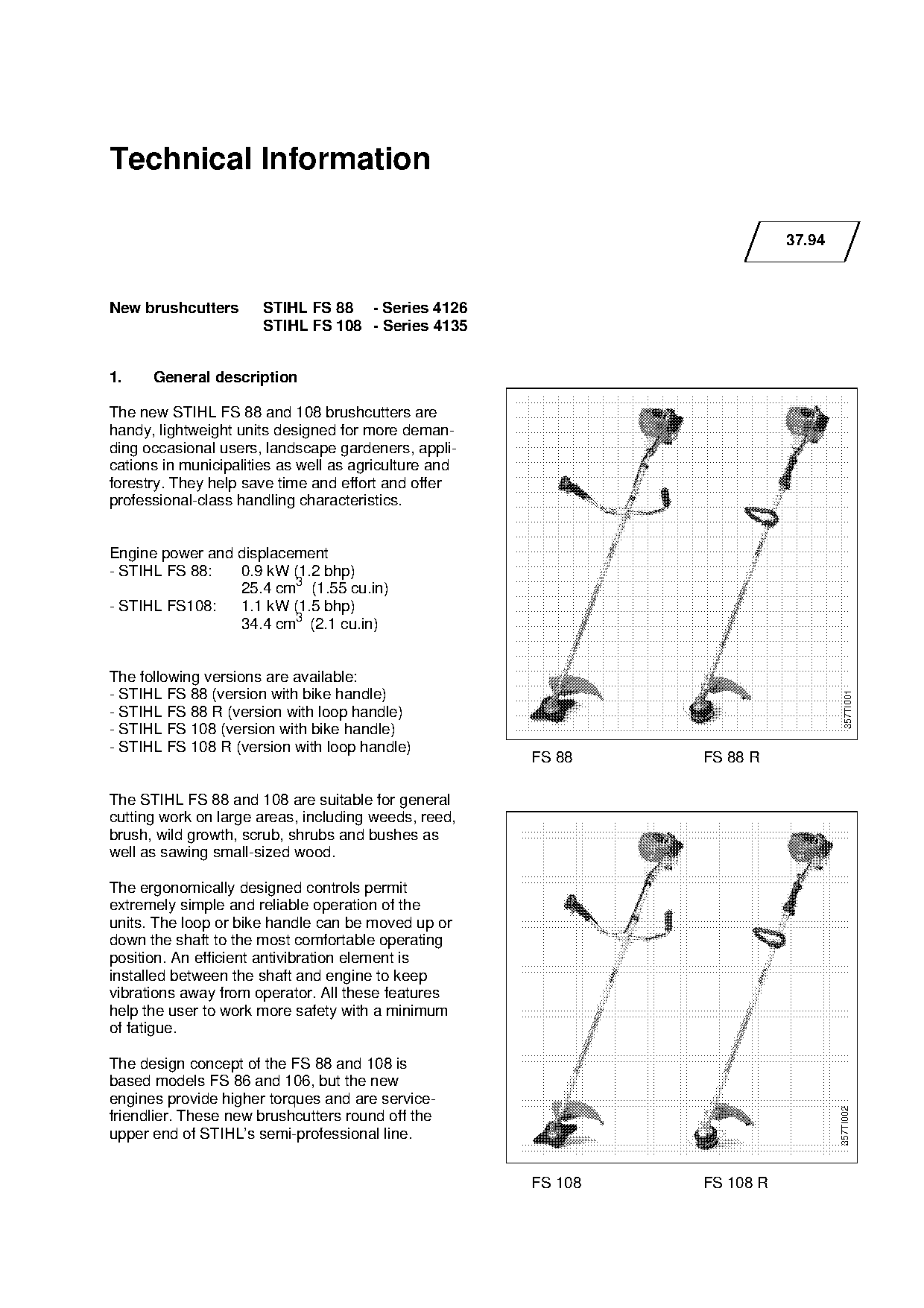

TI 37/1994 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                37.94

New brushcutters       STIHL FS 88 - Series 4126
                       STIHL FS 108 - Series 4135

1.    General description

The new STIHL FS 88 and 108 brushcutters are
handy, lightweight units designed for more deman-

ding occasional users, landscape gardeners, appli-
cations in municipalities as well as agriculture and
forestry. They help save time and effort and offer

professional-class handling characteristics.

Engine power and displacement
- STIHL FS 88:   0.9 kW (1.2 bhp)
                 25.4 cm3 (1.55 cu.in)
- STIHL FS108:   1.1 kW (1.5 bhp)
                 34.4 cm3 (2.1 cu.in)

The following versions are available:
- STIHL FS 88 (version with bike handle)

                                                                                          357TI001

- STIHL FS 88 R (version with loop handle)
- STIHL FS 108 (version with bike handle)

- STIHL FS 108 R (version with loop handle)
                                                        FS 88        FS 88 R

The STIHL FS 88 and 108 are suitable for general

cutting work on large areas, including weeds, reed,
brush, wild growth, scrub, shrubs and bushes as

well as sawing small-sized wood.

The ergonomically designed controls permit
extremely simple and reliable operation of the

units. The loop or bike handle can be moved up or
down the shaft to the most comfortable operating
position. An efficient antivibration element is

installed between the shaft and engine to keep
vibrations away from operator. All these features
help the user to work more safety with a minimum
of fatigue.

The design concept of the FS 88 and 108 is
based models FS 86 and 106, but the new
engines provide higher torques and are service-
                                                                                        357TI002

friendlier. These new brushcutters round off the
upper end of STIHL’s semi-professional line.

                                                        FS 108       FS 108 R

Page 2 of 12

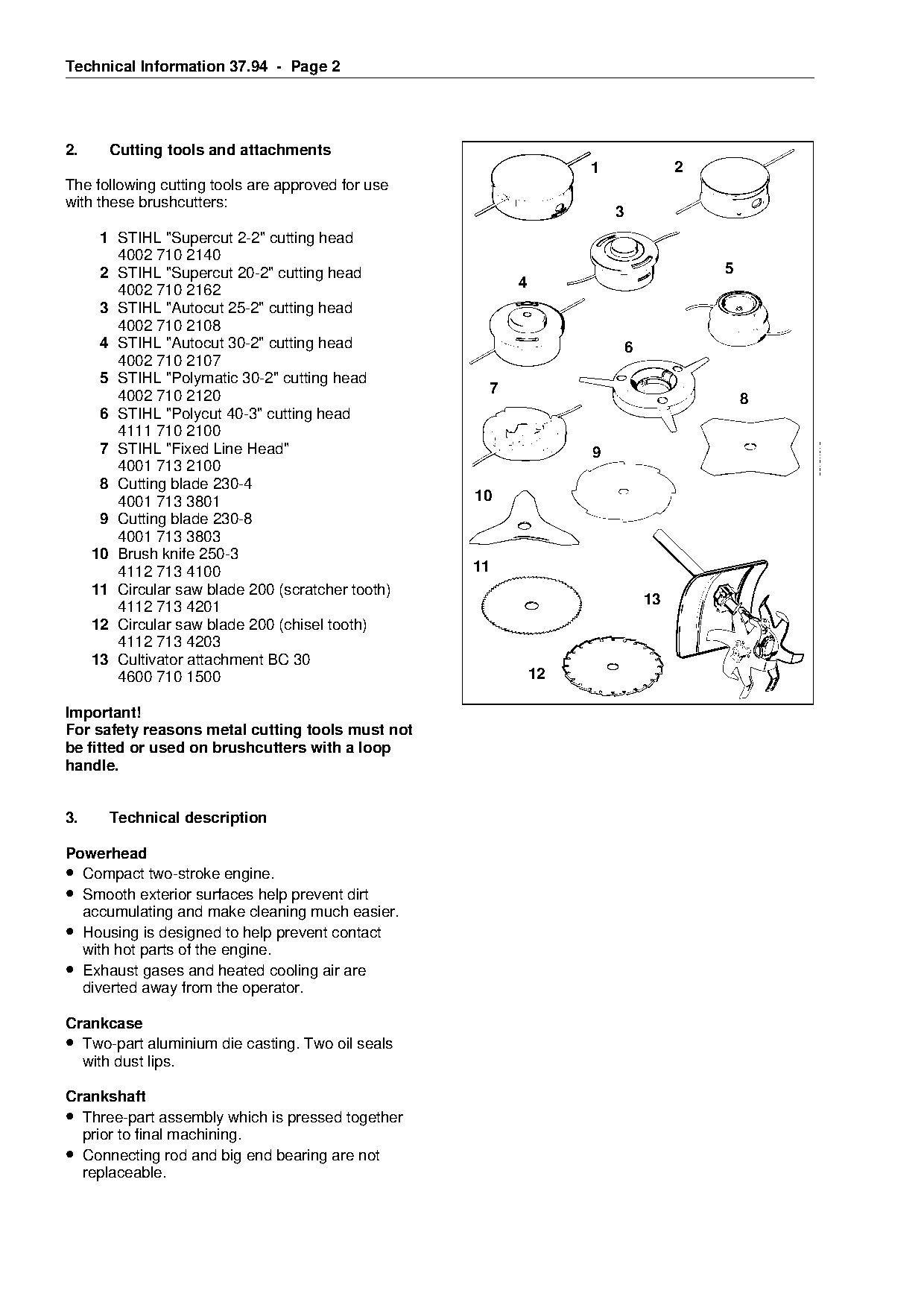

TI 37/1994 page 2
Text of page 2 — search, copy, screen readers
Technical Information 37.94 - Page 2

2.       Cutting tools and attachments
                                                                         1                     2
The following cutting tools are approved for use

                                                                                                                      681FK003
                                                                           681FK001
with these brushcutters:
                                                                                      3
       1 STIHL "Supercut 2-2" cutting head
         4002 710 2140

                                                                                                   681FK006
       2 STIHL "Supercut 20-2" cutting head                                                                   5
         4002 710 2162                                       4
       3 STIHL "Autocut 25-2" cutting head
         4002 710 2108

                                                                       681FK007
       4 STIHL "Autocut 30-2" cutting head                                            6
         4002 710 2107

       5 STIHL "Polymatic 30-2" cutting head

         4002 710 2120                                   7
                                                                                                                  8
       6 STIHL "Polycut 40-3" cutting head
         4111 710 2100

                                                                                                                                 681FK013
       7 STIHL "Fixed Line Head"                                           9
         4001 713 2100
       8 Cutting blade 230-4

         4001 713 3801                                  10
       9 Cutting blade 230-8
         4001 713 3803
      10 Brush knife 250-3
         4112 713 4100                                  11
      11 Circular saw blade 200 (scratcher tooth)
         4112 713 4201                                                                    13
      12 Circular saw blade 200 (chisel tooth)

         4112 713 4203
      13 Cultivator attachment BC 30
         4600 710 1500                                           12

Important!
For safety reasons metal cutting tools must not

be fitted or used on brushcutters with a loop
handle.

3.       Technical description

Powerhead
• Compact two-stroke engine.
• Smooth exterior surfaces help prevent dirt

     accumulating and make cleaning much easier.
• Housing is designed to help prevent contact
  with hot parts of the engine.

• Exhaust gases and heated cooling air are
  diverted away from the operator.

Crankcase
• Two-part aluminium die casting. Two oil seals
     with dust lips.

Crankshaft
• Three-part assembly which is pressed together
     prior to final machining.
• Connecting rod and big end bearing are not
     replaceable.

Page 3 of 12

TI 37/1994 page 3
Text of page 3 — search, copy, screen readers
Technical Information 37.94 - Page 3

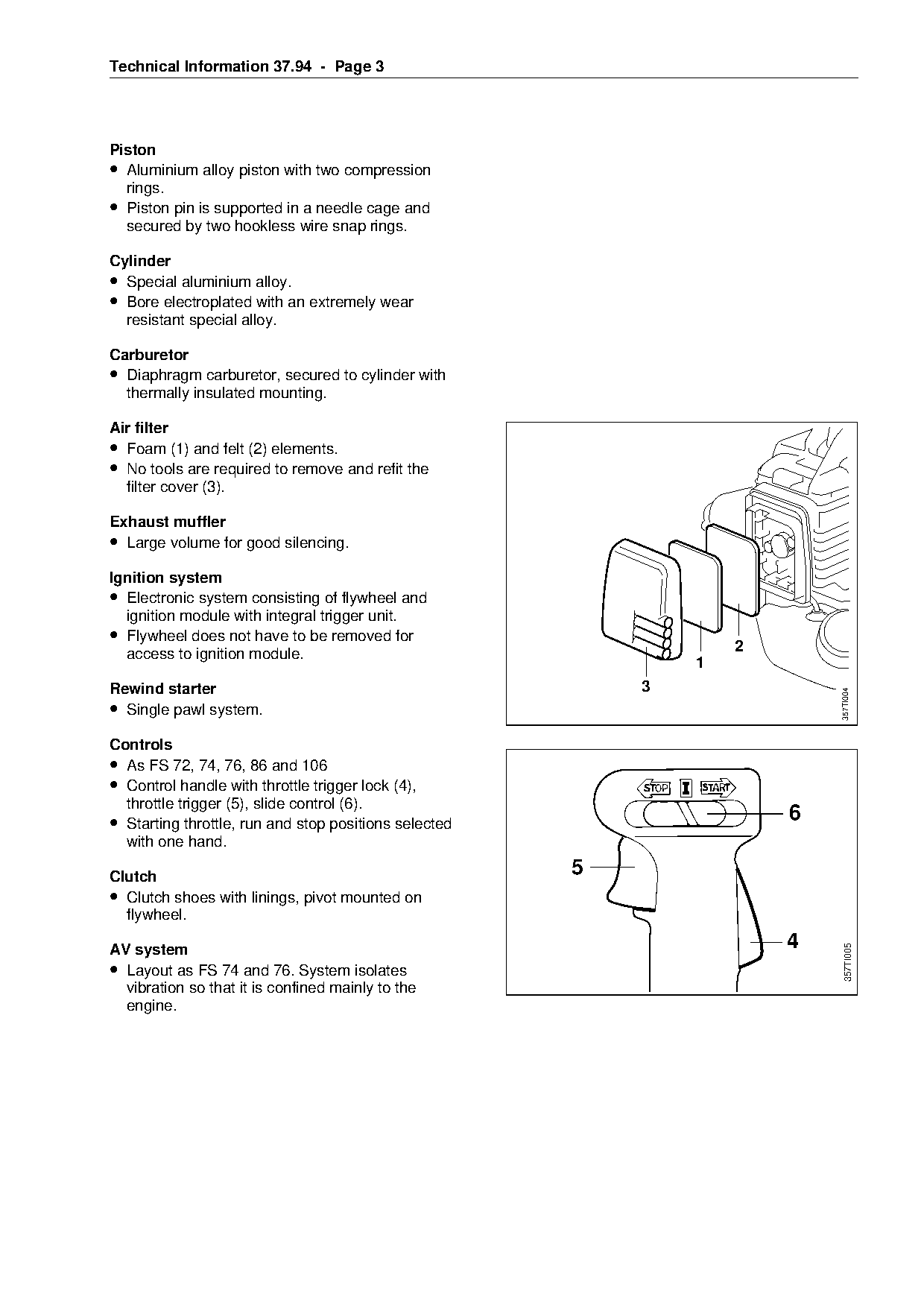

Piston
• Aluminium alloy piston with two compression
  rings.
• Piston pin is supported in a needle cage and
  secured by two hookless wire snap rings.

Cylinder
• Special aluminium alloy.
• Bore electroplated with an extremely wear
  resistant special alloy.

Carburetor

• Diaphragm carburetor, secured to cylinder with

  thermally insulated mounting.

Air filter

• Foam (1) and felt (2) elements.
• No tools are required to remove and refit the
  filter cover (3).

Exhaust muffler
• Large volume for good silencing.                      fo
Ignition system
• Electronic system consisting of flywheel and
  ignition module with integral trigger unit.
• Flywheel does not have to be removed for

  access to ignition module.                                             2
                                                                     1
Rewind starter                                                   3

                                                                                 357TI004
• Single pawl system.

Controls
• As FS 72, 74, 76, 86 and 106
• Control handle with throttle trigger lock (4),

  throttle trigger (5), slide control (6).
• Starting throttle, run and stop positions selected                         6
  with one hand.

Clutch                                                      5
• Clutch shoes with linings, pivot mounted on

  flywheel.
                                                                             4
                                                                                   357TI005

AV system

• Layout as FS 74 and 76. System isolates
  vibration so that it is confined mainly to the
  engine.

Page 4 of 12

TI 37/1994 page 4
Text of page 4 — search, copy, screen readers
Technical Information 37.94 - Page 4

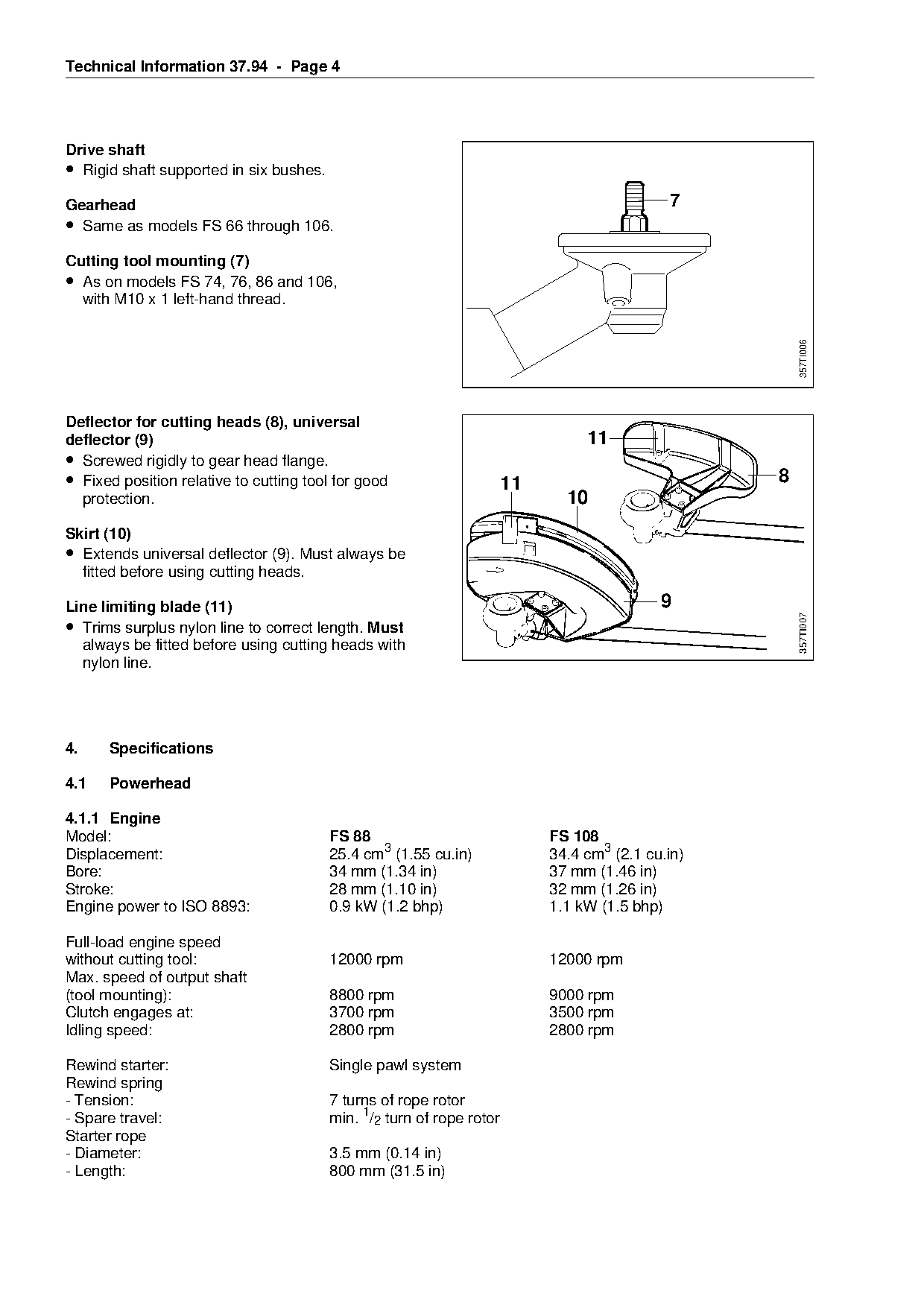

Drive shaft
• Rigid shaft supported in six bushes.
Gearhead                                                                                     7
• Same as models FS 66 through 106.
Cutting tool mounting (7)
• As on models FS 74, 76, 86 and 106,
  with M10 x 1 left-hand thread.

                                                                                                       357TI006
Deflector for cutting heads (8), universal
                                                                                 11

deflector (9)
• Screwed rigidly to gear head flange.
• Fixed position relative to cutting tool for good                     11                          8

  protection.                                                                 10
Skirt (10)
• Extends universal deflector (9). Must always be
  fitted before using cutting heads.
Line limiting blade (11)                                                                    9

                                                                                                       357TI007
• Trims surplus nylon line to correct length. Must

  always be fitted before using cutting heads with
  nylon line.

4.    Specifications

4.1   Powerhead

4.1.1 Engine
Model:                                   FS 88                              FS 108

Displacement:                            25.4 cm3 (1.55 cu.in)              34.4 cm3 (2.1 cu.in)
Bore:                                    34 mm (1.34 in)                    37 mm (1.46 in)
Stroke:                                  28 mm (1.10 in)                    32 mm (1.26 in)
Engine power to ISO 8893:                0.9 kW (1.2 bhp)                   1.1 kW (1.5 bhp)

Full-load engine speed
without cutting tool:                    12000 rpm                          12000 rpm

Max. speed of output shaft
(tool mounting):                         8800 rpm                           9000 rpm
Clutch engages at:                       3700 rpm                           3500 rpm
Idling speed:                            2800 rpm                           2800 rpm

Rewind starter:                          Single pawl system
Rewind spring
- Tension:                               7 turns of rope rotor
- Spare travel:                          min. 1/2 turn of rope rotor
Starter rope
- Diameter:                              3.5 mm (0.14 in)
- Length:                                800 mm (31.5 in)

Page 5 of 12

TI 37/1994 page 5
Text of page 5 — search, copy, screen readers
Technical Information 37.94 - Page 5

Model          Cutting tool          Sound pressure      Sound power        Vibration           Vibration
                                     level Lpeq          level Lweq         measurement         measurement
                                                                            to                  to
                                     to                  to                 ISO 7916            ISO 7916
                                     ISO 7917 1)         ISO 10884 1)       Idling speed        Maximum RPM
                                                                            (m/s2)              (m/s2)
                                                                            Handle              Handle
                                     dB (A)              dB (A)             right        left   right     left
        2)
FS 88       Cutting head             98                  109                2.7          2.4    4.1       5.7
FS 88 2)    Metal cutting tool       95                  103                2.7          2.4    5.0       6.3
FS 88 R 3) Cutting head              98                  109                2.5          2.0    6.3       6.3

FS 108 2)   Cutting head             99                  111                2.4          3.7    2.4       2.8

FS 108 2)   Metal cutting tool       96                  105                2.4          3.7    2.1       2.5
FS 108 R 3) Cutting head             99                  111                2.2          2.5    8.5       7.4

1)
   Data refers to averages obtained running at idling speed and maximum RPM in equal proportions
2)
   Version with bike handle
3)
  Version with loop handle

4.1.2 Fuel system                                              fo
Air filter:                               Foam and felt elements
Fuel capacity:                            0.69 l (1.45 US pt)

4.1.3 Ignition system

Air gap:                                  0.1 - 0.5 mm (0.004 - 0.020 in)
Ignition timing      FS 88:               1.25 - 1.75 mm (0.05 - 0.07 in) B.T.D.C. at 8000 rpm

                     FS 108:              1.45 - 2.05 mm (0.06 - 0.08 in) B.T.D.C. at 8000 rpm
Length of ignition lead:                  200 mm (8 3/4 in)

Spark plug (suppressed):                  Bosch WSR 6 F or NGK BPMR 7 A;
                                          Heat range 200, electrode gap 0.5 mm (0.020 in);
                                          spark plug thread M 14 x 1.25, thread length 9.5 mm (0.37 in)

4.2   Gear head

Type:                                     Helical bevel gear drive
Gear ratio           FS 88:               1.36
                     FS 108:              1.33

Lubrication:                              STIHL multipurpose grease 0781 120 1109

4.3   Weight

                                                             FS 88        FS 88 R      FS 108

without cutting tool and deflector                           6.5 kg       5.9 kg       7.1 kg
                                                             (14.3 lb)    (13.0 lb)    (15.6 lb)

4.4   Cutting tools and attachments

For approved cutting tools and attachments see 2.

Page 6 of 12

TI 37/1994 page 6
Text of page 6 — search, copy, screen readers
Technical Information 37.94 - Page 6

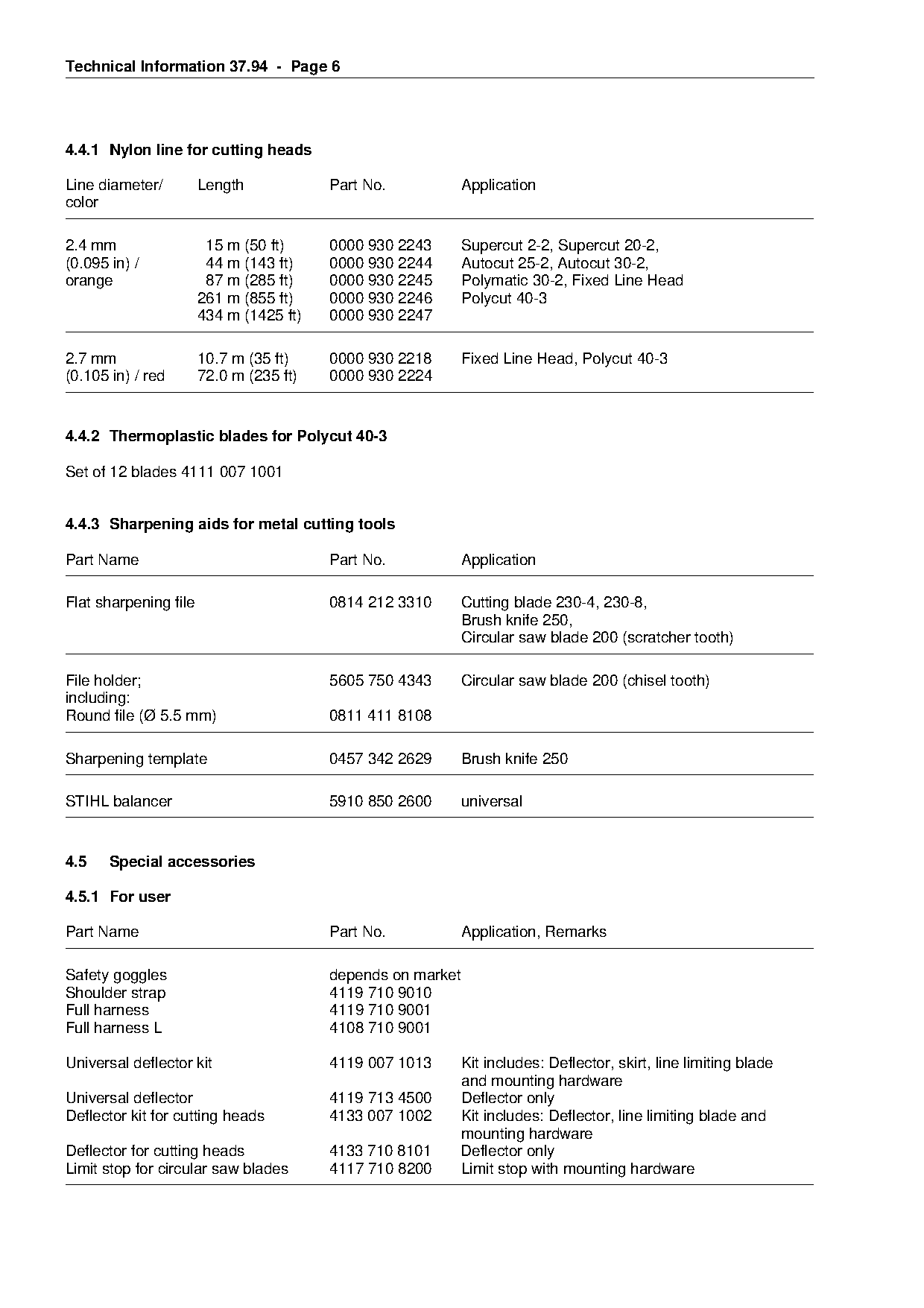

4.4.1 Nylon line for cutting heads

Line diameter/         Length            Part No.            Application
color

2.4 mm                  15 m (50 ft)     0000 930 2243       Supercut 2-2, Supercut 20-2,
(0.095 in) /            44 m (143 ft)    0000 930 2244       Autocut 25-2, Autocut 30-2,
orange                  87 m (285 ft)    0000 930 2245       Polymatic 30-2, Fixed Line Head
                       261 m (855 ft)    0000 930 2246       Polycut 40-3
                       434 m (1425 ft)   0000 930 2247

2.7 mm                 10.7 m (35 ft)    0000 930 2218       Fixed Line Head, Polycut 40-3

(0.105 in) / red       72.0 m (235 ft)   0000 930 2224

4.4.2 Thermoplastic blades for Polycut 40-3

Set of 12 blades 4111 007 1001

4.4.3 Sharpening aids for metal cutting tools

Part Name                                Part No.
                                                             Application
Flat sharpening file                     0814 212 3310   Cutting blade 230-4, 230-8,
                                                         Brush knife 250,
                                                         Circular saw blade 200 (scratcher tooth)

File holder;                             5605 750 4343       Circular saw blade 200 (chisel tooth)
including:

Round file (Ø 5.5 mm)                    0811 411 8108

Sharpening template                      0457 342 2629   Brush knife 250

STIHL balancer                           5910 850 2600   universal

4.5    Special accessories

4.5.1 For user

Part Name                                Part No.            Application, Remarks

Safety goggles                           depends on market
Shoulder strap                           4119 710 9010
Full harness                             4119 710 9001
Full harness L                           4108 710 9001

Universal deflector kit                  4119 007 1013   Kit includes: Deflector, skirt, line limiting blade
                                                         and mounting hardware
Universal deflector                      4119 713 4500   Deflector only
Deflector kit for cutting heads          4133 007 1002   Kit includes: Deflector, line limiting blade and
                                                         mounting hardware
Deflector for cutting heads              4133 710 8101   Deflector only
Limit stop for circular saw blades       4117 710 8200   Limit stop with mounting hardware

Page 7 of 12

TI 37/1994 page 7
Text of page 7 — search, copy, screen readers
Technical Information 37.94 - Page 7

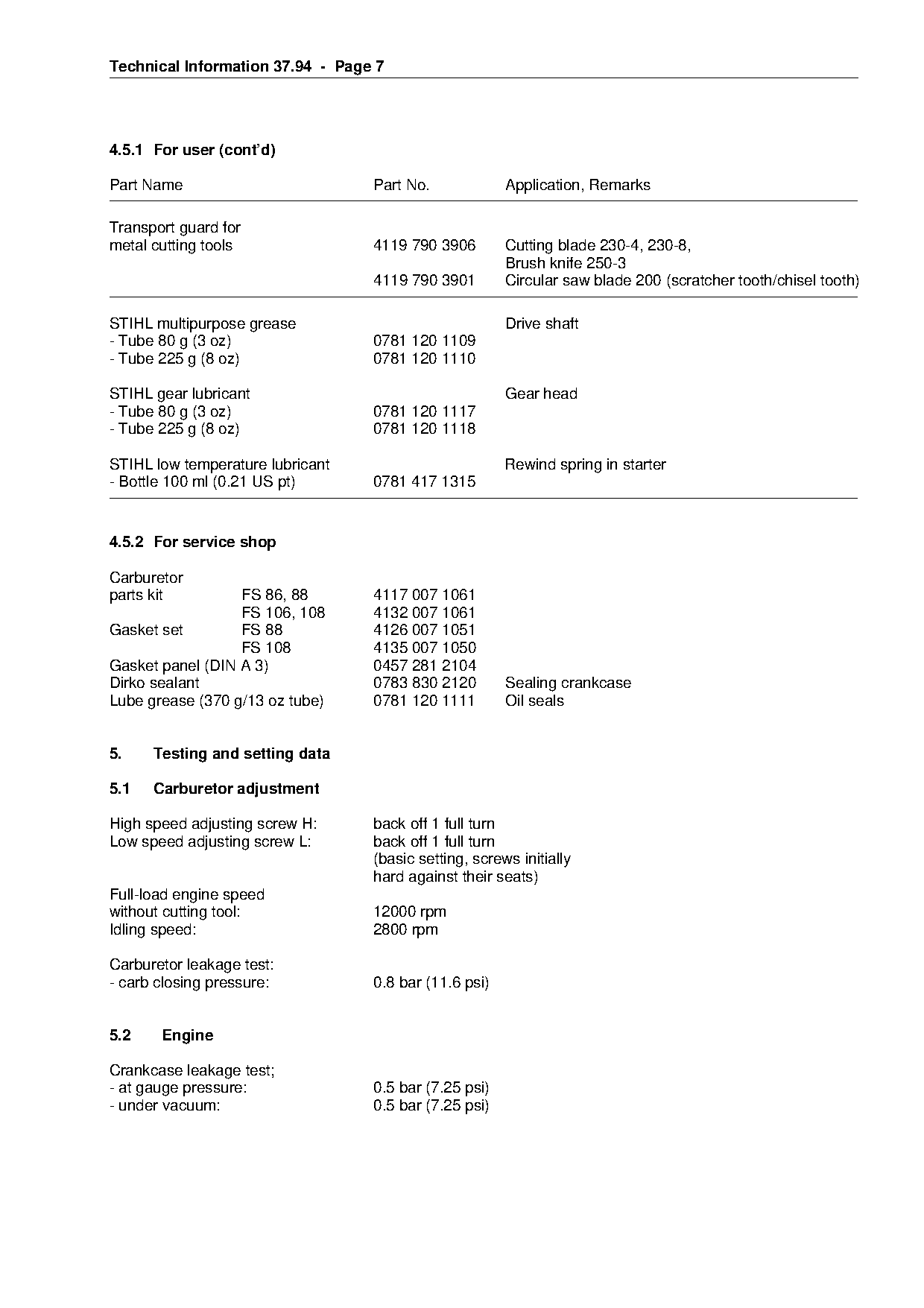

4.5.1 For user (cont’d)

Part Name                          Part No.             Application, Remarks

Transport guard for
metal cutting tools                4119 790 3906        Cutting blade 230-4, 230-8,
                                                        Brush knife 250-3
                                   4119 790 3901        Circular saw blade 200 (scratcher tooth/chisel tooth)

STIHL multipurpose grease                               Drive shaft
- Tube 80 g (3 oz)                 0781 120 1109
- Tube 225 g (8 oz)                0781 120 1110

STIHL gear lubricant                                    Gear head
- Tube 80 g (3 oz)                 0781 120 1117
- Tube 225 g (8 oz)                0781 120 1118

STIHL low temperature lubricant                         Rewind spring in starter
- Bottle 100 ml (0.21 US pt)       0781 417 1315

4.5.2 For service shop

Carburetor
parts kit         FS 86, 88        4117 007 1061
                  FS 106, 108      4132 007 1061
Gasket set        FS 88            4126 007 1051

                  FS 108           4135 007 1050
Gasket panel (DIN A 3)             0457 281 2104
Dirko sealant                      0783 830 2120        Sealing crankcase
Lube grease (370 g/13 oz tube)     0781 120 1111        Oil seals

5.    Testing and setting data

5.1   Carburetor adjustment

High speed adjusting screw H:      back off 1 full turn
Low speed adjusting screw L:       back off 1 full turn

                                   (basic setting, screws initially
                                   hard against their seats)
Full-load engine speed

without cutting tool:              12000 rpm
Idling speed:                      2800 rpm

Carburetor leakage test:
- carb closing pressure:           0.8 bar (11.6 psi)

5.2    Engine

Crankcase leakage test;
- at gauge pressure:               0.5 bar (7.25 psi)
- under vacuum:                    0.5 bar (7.25 psi)

Page 8 of 12

TI 37/1994 page 8
Text of page 8 — search, copy, screen readers

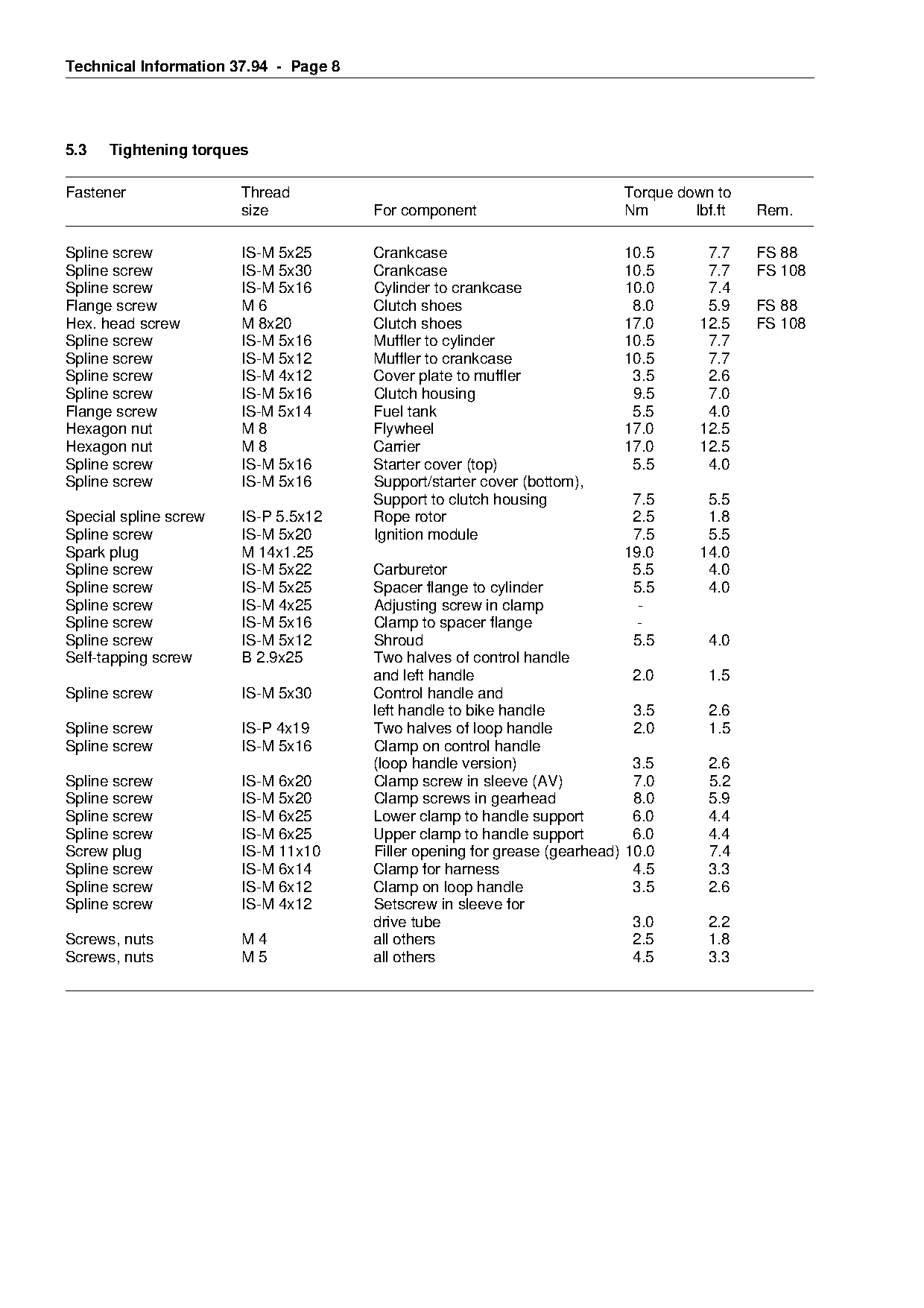

Technical Information 37.94 - Page 8

5.3   Tightening torques

Fastener               Thread                                              Torque down to
                       size            For component                       Nm       lbf.ft   Rem.

Spline screw           IS-M 5x25       Crankcase                           10.5       7.7    FS 88
Spline screw           IS-M 5x30       Crankcase                           10.5       7.7    FS 108
Spline screw           IS-M 5x16       Cylinder to crankcase               10.0       7.4
Flange screw           M6              Clutch shoes                         8.0       5.9    FS 88
Hex. head screw        M 8x20          Clutch shoes                        17.0      12.5    FS 108
Spline screw           IS-M 5x16       Muffler to cylinder                 10.5       7.7
Spline screw           IS-M 5x12       Muffler to crankcase                10.5       7.7

Spline screw           IS-M 4x12       Cover plate to muffler               3.5       2.6

Spline screw           IS-M 5x16       Clutch housing                       9.5       7.0
Flange screw           IS-M 5x14       Fuel tank                            5.5       4.0
Hexagon nut            M8              Flywheel                            17.0      12.5

Hexagon nut            M8              Carrier                             17.0      12.5
Spline screw           IS-M 5x16       Starter cover (top)                  5.5       4.0
Spline screw           IS-M 5x16       Support/starter cover (bottom),

                                       Support to clutch housing            7.5       5.5
Special spline screw   IS-P 5.5x12     Rope rotor                           2.5       1.8
Spline screw           IS-M 5x20       Ignition module                      7.5       5.5
Spark plug
Spline screw
                       M 14x1.25
                       IS-M 5x22       Carburetor
                                                           fo              19.0
                                                                            5.5
                                                                                     14.0
                                                                                      4.0
Spline screw           IS-M 5x25       Spacer flange to cylinder            5.5       4.0
Spline screw           IS-M 4x25       Adjusting screw in clamp              -
Spline screw           IS-M 5x16       Clamp to spacer flange                -

Spline screw           IS-M 5x12       Shroud                               5.5       4.0
Self-tapping screw     B 2.9x25        Two halves of control handle
                                       and left handle                       2.0      1.5
Spline screw           IS-M 5x30       Control handle and

                                       left handle to bike handle            3.5      2.6
Spline screw           IS-P 4x19       Two halves of loop handle             2.0      1.5

Spline screw           IS-M 5x16       Clamp on control handle
                                       (loop handle version)                 3.5      2.6
Spline screw           IS-M 6x20       Clamp screw in sleeve (AV)            7.0      5.2
Spline screw           IS-M 5x20       Clamp screws in gearhead              8.0      5.9

Spline screw           IS-M 6x25       Lower clamp to handle support         6.0      4.4
Spline screw           IS-M 6x25       Upper clamp to handle support         6.0      4.4

Screw plug             IS-M 11x10      Filler opening for grease (gearhead) 10.0      7.4
Spline screw           IS-M 6x14       Clamp for harness                     4.5      3.3
Spline screw           IS-M 6x12       Clamp on loop handle                  3.5      2.6
Spline screw           IS-M 4x12       Setscrew in sleeve for

                                       drive tube                            3.0      2.2
Screws, nuts           M4              all others                            2.5      1.8
Screws, nuts           M5              all others                            4.5      3.3

Page 9 of 12

TI 37/1994 page 9
Text of page 9 — search, copy, screen readers
Technical Information 37.94 - Page 9

6.    Testing and servicing tools

6.1   New special tools

                                                                                               22,5
 26


  25,4

                                                                                               24
 (1")


                                                                                                      357TI008

Part Name                      Part No.                 Key       Application        Rem.

Installing tool

for AV rubber element
Ø 22.5mm, 26mm
(0.88",1.02")                  4135 893 4900            1         FS 108               1)3)

Ø 24mm, 25.4mm
(0.94",1")                     4126 893 4900            2         FS 88                2)3)

Remarks

1) 22.5 mm (0.88") rubber element is for new brushcutters to be announced in the near future
2) Can be used for models FS 66, 72, 74, 76 and FC 72
3) See FS 88, 108 shop manual for use instructions

Page 10 of 12

TI 37/1994 page 10
Text of page 10 — search, copy, screen readers
Technical Information 37.94 - Page 10

6.2     Existing special tools

Part Name                      Part No.               Application                                     Rem.

Locking screw for              4112 893 1200          Blocking the crankshaft
piston
Press sleeve                   1129 893 2400          Installing oil seal at clutch side
Press sleeve                   4112 893 2400          Protecting oil seal at starter side
Press sleeve                   1115 893 4600          Installing oil seal at starter side
Press arbor                    4117 893 4700          Installing piston pin                           1)
Press arbor                    1114 893 4700          Installing piston pin                           2)
Clamping strap                 0000 893 2600          Compressing piston rings

Wooden assembly block          1108 893 4800          Fitting piston

Crankcase and                  1106 850 2905          Testing crankcase and
carburetor tester                                     carburetor for leaks
- Nipple                       0000 855 9200          Carburetor leakage test

- Fuel line                    1110 141 8600          Carburetor leakage test
Vacuum pump                    0000 850 3501          Crankcase leakage test
Sealing plate                  0000 855 8106          Sealing exhaust port for

                                                      leakage test
Test flange                    1113 850 4200          Leakage test                                    3)
Setting gauge                  1111 890 6400          Setting air gap between ignition module

Puller                         0000 890 4400
                                                      and flywheel   fo
                                                      Removing oil seals
                                                                                                      4)

- Jaws (profile 3.1)           0000 893 3706
Installing tool 8              5910 890 2208          Fitting hookless snap rings in piston           2)
Installing tool 10             5910 890 2210          Fitting hookless snap rings in piston           1)

Removing tool                  4119 890 4600          Removing crankshaft (starter side)              5)
Socket, 13 mm                  5910 893 5608          Crankshaft nut (carrier, flywheel)

Remarks

1)    FS 108
2)    FS 88
3)    Flange 1128 850 4200 may be used as an alternative.

4)    Setting gauge 4118 890 6401 may be used as an alternative.
5)    Existing tools must be modified as shown below. This modification does not affect or restrict
      the tool’s other applications.

                                                                                                             357TI009

Page 11 of 12

TI 37/1994 page 11
Text of page 11 — search, copy, screen readers
Technical Information 37.94 - Page 11

6.2     Existing special tools (cont’d)

Part Name                     Part No.               Application                               Rem.

Torque wrench                 5910 890 0301          Screwed assemblies (0.5 to 18 Nm)
                              5910 890 0302                                                    6)
Torque wrench                 5910 890 0311          Screwed assemblies (6 to 80 Nm)
                              5910 890 0312                                                    6)
Assembly hook                 5910 893 8800          Removing pickup body
T-handle screwdriver          5910 890 2400          IS spline screws
QI-T27x150
Crimping tool                 5910 890 8210          Wire connectors, lugs, etc.

Assembly stand                5910 850 3100          Holds powerhead in position for repairs

- Flange                      5910 893 2500
- Clamping plate              5910 890 2100          Settings as for FS 86 and FS 106
Socket                        0812 542 2104          Cylinder base screws

Press arbor                   4119 893 7200          Removing and installing main bearings
Pliers C19                    0811 641 8380          Internal circlips (gearhead)              7
Pliers A10                    0811 611 8200          External circlips (clutch drum,

                                                     gearhead, drive pinion)
Circlip pliers                0816 610 1495          External circlips (clutch drum)
Press arbor                   1108 893 4700          Removing clutch drum                      1)
Press arbor
Press arbor
                              1111 893 4700
                              1118 893 7200
                                                     Removing clutch drum
                                                     Removing and installing ball bearing in
                                                                                               2)

                                                     clutch housing

Remarks

1)    FS 108
2)    FS 88

6)    With optical/acoustical signal
7)    C8 Pliers 0816 630 1452 may be used as an alternative.

7.      Important

If the unit is started up in the course of repairs
or maintenance work, it is essential to strictly
observe all local and national safety regulations

and the safety precautions outlined in the
owner’s manual.

Page 12 of 12

TI 37/1994 page 12
Text of page 12 — search, copy, screen readers

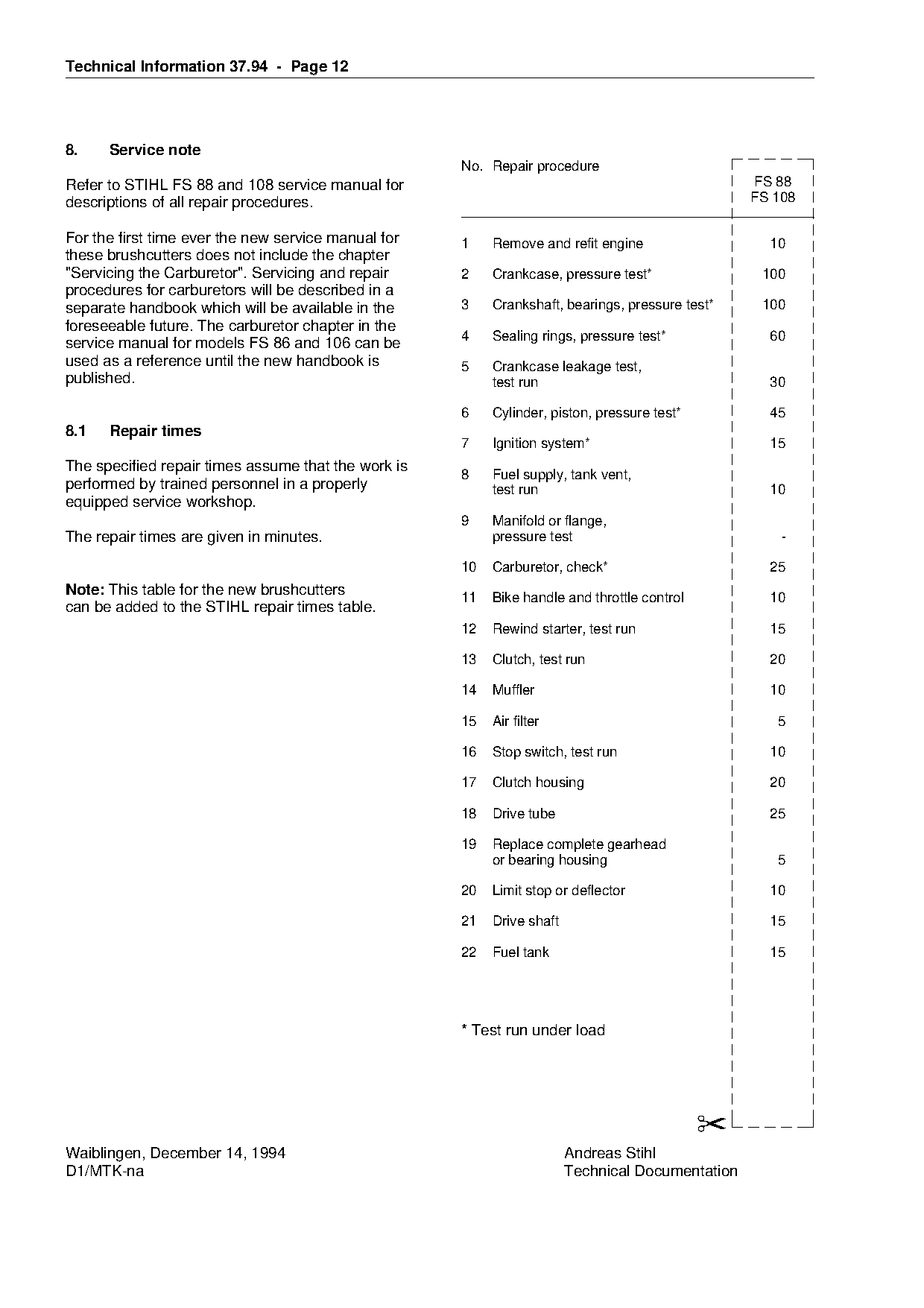

Technical Information 37.94 - Page 12

8.    Service note
                                                         No. Repair procedure
Refer to STIHL FS 88 and 108 service manual for                                                       FS 88
descriptions of all repair procedures.                                                                FS 108

For the first time ever the new service manual for       1    Remove and refit engine                   10
these brushcutters does not include the chapter
"Servicing the Carburetor". Servicing and repair         2    Crankcase, pressure test*                100
procedures for carburetors will be described in a
separate handbook which will be available in the         3    Crankshaft, bearings, pressure test*     100
foreseeable future. The carburetor chapter in the
                                                         4    Sealing rings, pressure test*             60
service manual for models FS 86 and 106 can be
used as a reference until the new handbook is

                                                         5    Crankcase leakage test,
published.

                                                              test run                                  30

                                                         6    Cylinder, piston, pressure test*          45
8.1   Repair times

                                                         7    Ignition system*                          15
The specified repair times assume that the work is
                                                         8    Fuel supply, tank vent,
performed by trained personnel in a properly                  test run                                  10

equipped service workshop.
                                                         9    Manifold or flange,
The repair times are given in minutes.                        pressure test                               -

                                                         10
                                                              Carburetor, check*                        25
Note: This table for the new brushcutters
                                                         11   Bike handle and throttle control          10
can be added to the STIHL repair times table.
                                                         12   Rewind starter, test run                  15

                                                         13   Clutch, test run                          20

                                                         14   Muffler                                   10

                                                         15   Air filter                                 5

                                                         16   Stop switch, test run                     10

                                                         17   Clutch housing                            20

                                                         18   Drive tube                                25

                                                         19   Replace complete gearhead

                                                              or bearing housing                         5

                                                         20   Limit stop or deflector                   10

                                                         21   Drive shaft                               15

                                                         22   Fuel tank                                 15

                                                         * Test run under load

                                                                                                 ✂
Waiblingen, December 14, 1994                                               Andreas Stihl
D1/MTK-na                                                                   Technical Documentation

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
