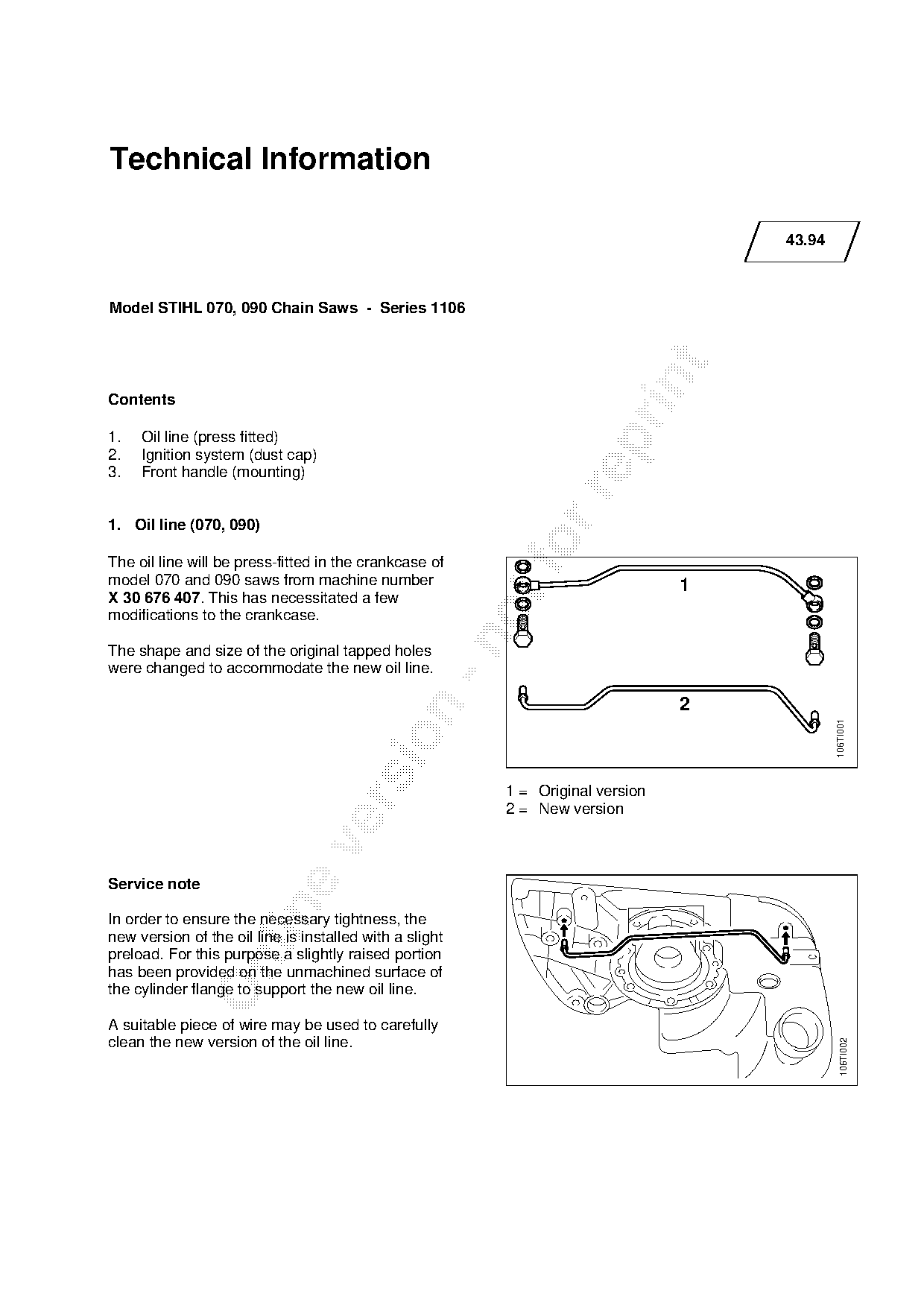

Technical Information
43.94
Model STIHL 070, 090 Chain Saws - Series 1106
Contents
1. Oil line (press fitted)
2. Ignition system (dust cap)
3. Front handle (mounting)
1. Oil line (070, 090)
The oil line will be press-fitted in the crankcase of
model 070 and 090 saws from machine number 1
X 30 676 407. This has necessitated a few
modifications to the crankcase.
The shape and size of the original tapped holes
were changed to accommodate the new oil line.
106TI001
1 = Original version
2 = New version
Service note
In order to ensure the necessary tightness, the
new version of the oil line is installed with a slight
preload. For this purpose a slightly raised portion
has been provided on the unmachined surface of
the cylinder flange to support the new oil line.
A suitable piece of wire may be used to carefully
clean the new version of the oil line.
106TI002 Page 2 of 3

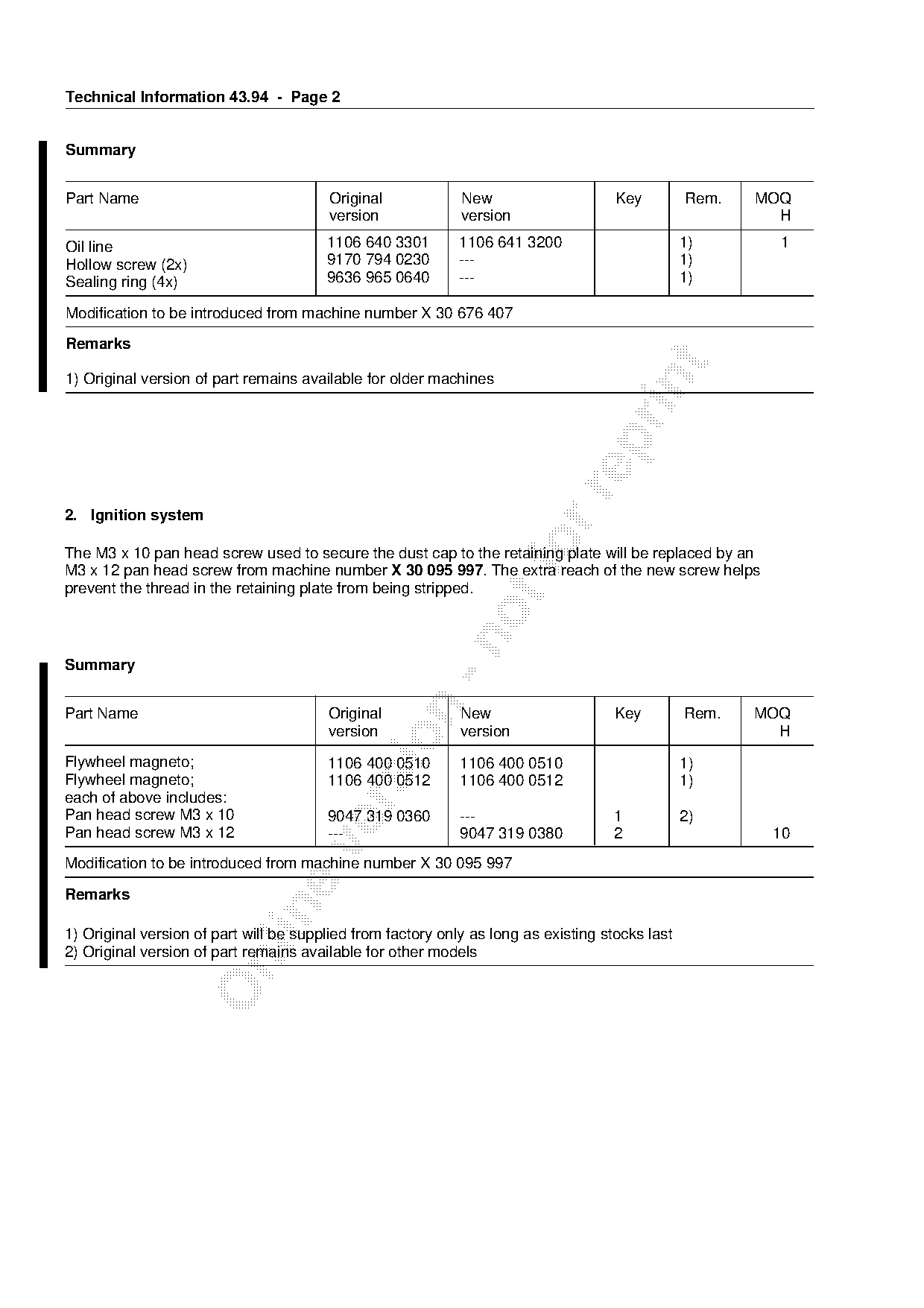

Technical Information 43.94 - Page 2
Summary
Part Name Original New Key Rem. MOQ
version version H
Oil line 1106 640 3301 1106 641 3200 1) 1
Hollow screw (2x) 9170 794 0230 --- 1)
Sealing ring (4x) 9636 965 0640 --- 1)
Modification to be introduced from machine number X 30 676 407
Remarks
1) Original version of part remains available for older machines
2. Ignition system
The M3 x 10 pan head screw used to secure the dust cap to the retaining plate will be replaced by an
M3 x 12 pan head screw from machine number X 30 095 997. The extra reach of the new screw helps
prevent the thread in the retaining plate from being stripped.
Summary
Part Name Original New Key Rem. MOQ
version version H
Flywheel magneto; 1106 400 0510 1106 400 0510 1)
Flywheel magneto; 1106 400 0512 1106 400 0512 1)
each of above includes:
Pan head screw M3 x 10 9047 319 0360 --- 1 2)
Pan head screw M3 x 12 --- 9047 319 0380 2 10
Modification to be introduced from machine number X 30 095 997
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last
2) Original version of part remains available for other models Page 3 of 3

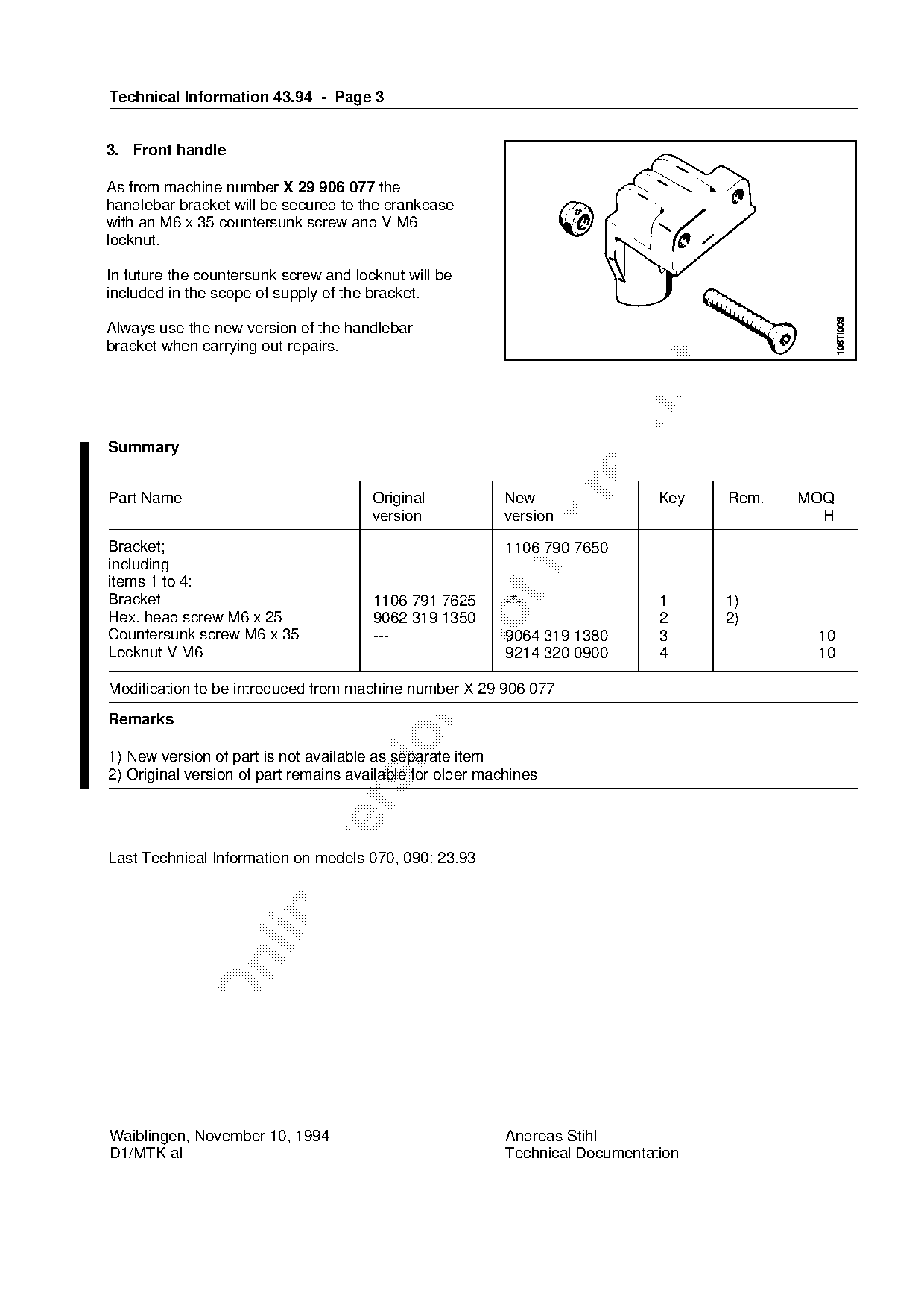

Technical Information 43.94 - Page 3
3. Front handle
As from machine number X 29 906 077 the
handlebar bracket will be secured to the crankcase
with an M6 x 35 countersunk screw and V M6
locknut.
In future the countersunk screw and locknut will be
included in the scope of supply of the bracket.
Always use the new version of the handlebar
bracket when carrying out repairs.
Summary
Part Name Original New Key Rem. MOQ
version version H
Bracket;
including
--- fo
1106 790 7650
items 1 to 4:
Bracket 1106 791 7625 -*- 1 1)
Hex. head screw M6 x 25 9062 319 1350 --- 2 2)
Countersunk screw M6 x 35 --- 9064 319 1380 3 10
Locknut V M6 9214 320 0900 4 10
Modification to be introduced from machine number X 29 906 077
Remarks
1) New version of part is not available as separate item
2) Original version of part remains available for older machines
Last Technical Information on models 070, 090: 23.93
Waiblingen, November 10, 1994 Andreas Stihl
