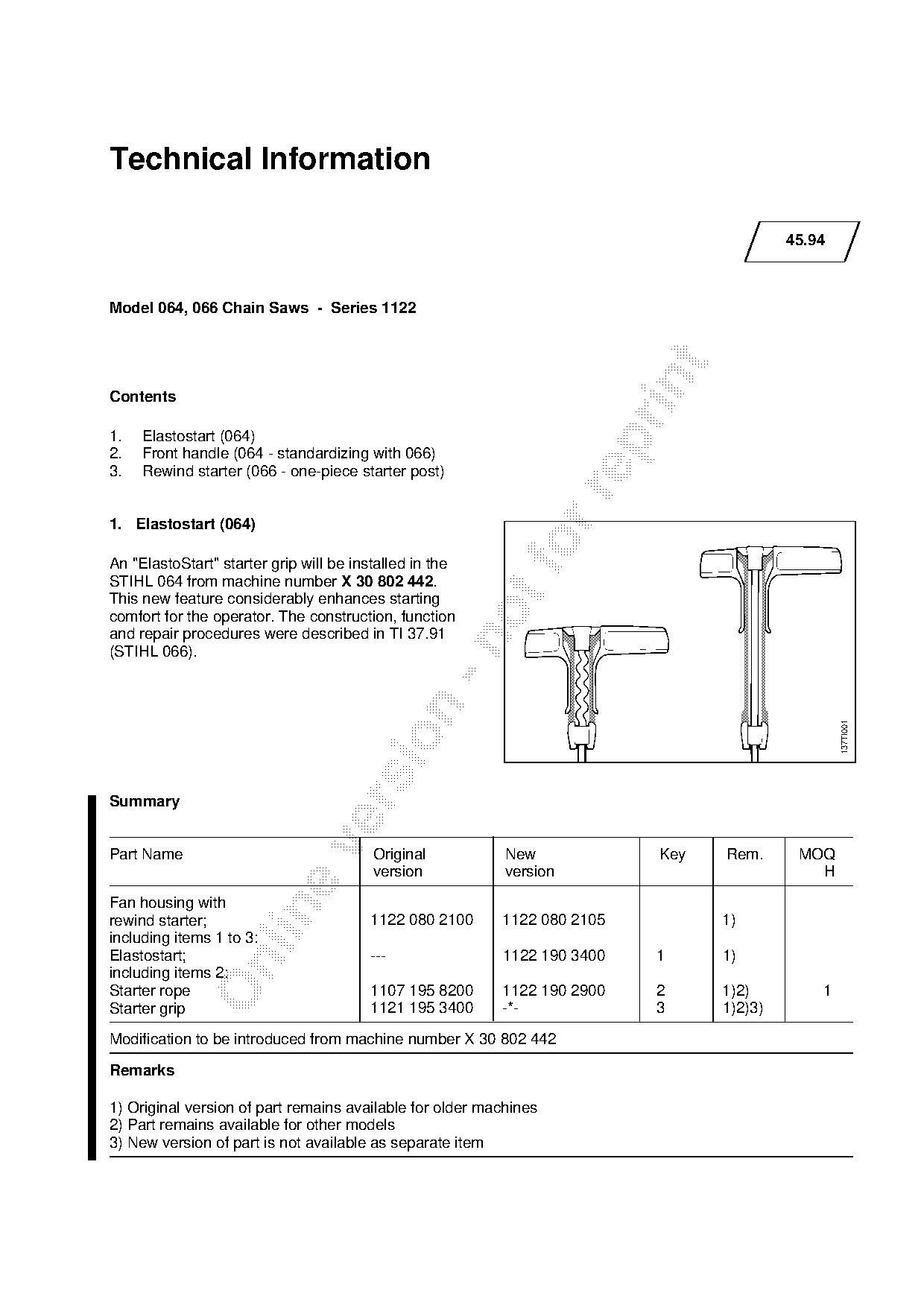

Technical Information
45.94
Model 064, 066 Chain Saws - Series 1122
Contents
1. Elastostart (064)
2. Front handle (064 - standardizing with 066)
3. Rewind starter (066 - one-piece starter post)
1. Elastostart (064)
An "ElastoStart" starter grip will be installed in the
STIHL 064 from machine number X 30 802 442.
This new feature considerably enhances starting
comfort for the operator. The construction, function
and repair procedures were described in TI 37.91
(STIHL 066).
137TI001
Summary
Part Name Original New Key Rem. MOQ
version version H
Fan housing with
rewind starter; 1122 080 2100 1122 080 2105 1)
including items 1 to 3:
Elastostart; --- 1122 190 3400 1 1)
including items 2:
Starter rope 1107 195 8200 1122 190 2900 2 1)2) 1
Starter grip 1121 195 3400 -*- 3 1)2)3)
Modification to be introduced from machine number X 30 802 442
Remarks
1) Original version of part remains available for older machines
2) Part remains available for other models
3) New version of part is not available as separate item Page 2 of 2
Technical Information 45.94 - Page 2

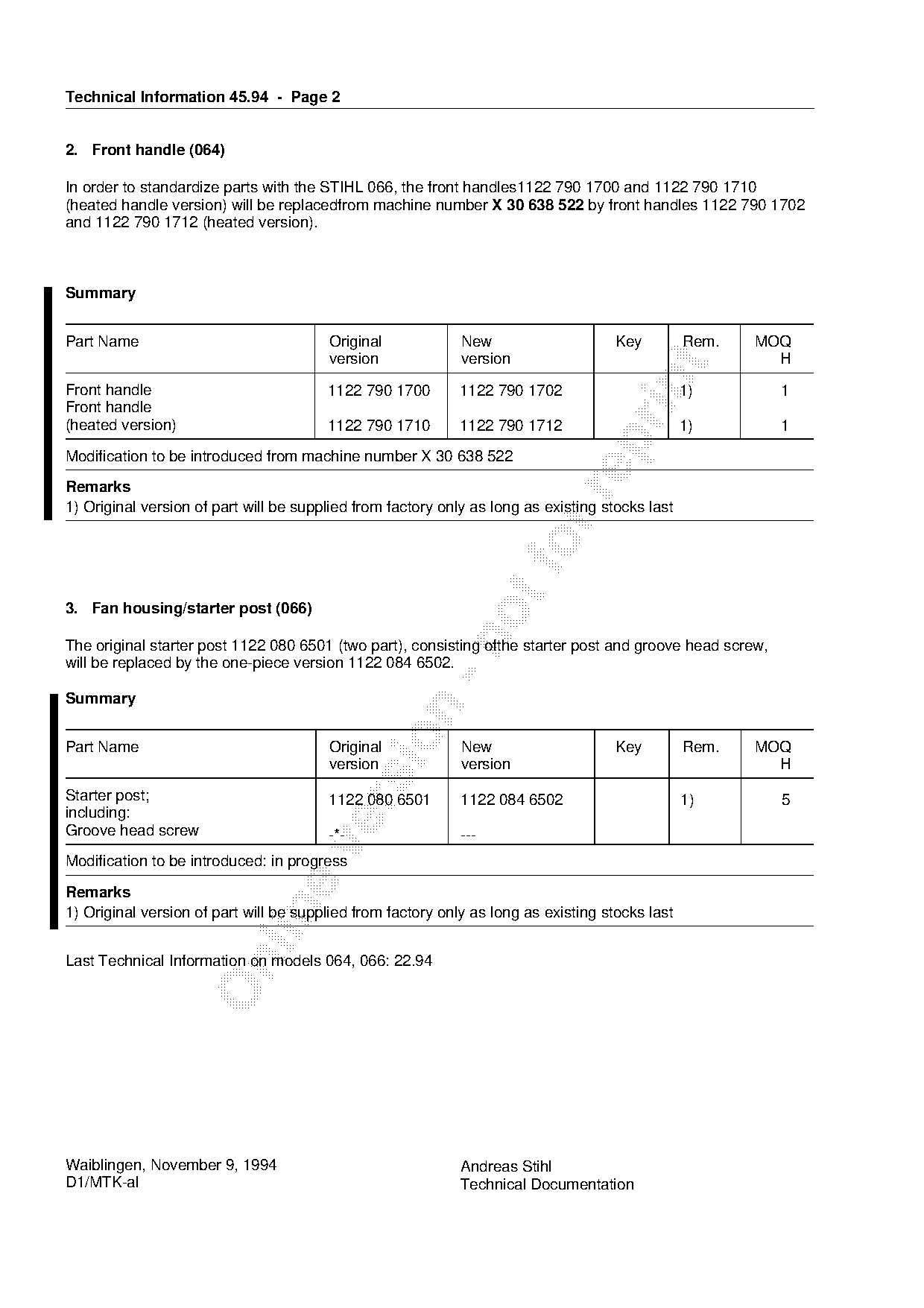

2. Front handle (064)
In order to standardize parts with the STIHL 066, the front handles1122 790 1700 and 1122 790 1710
(heated handle version) will be replacedfrom machine number X 30 638 522 by front handles 1122 790 1702
and 1122 790 1712 (heated version).
Summary
Part Name Original New Key Rem. MOQ
version version H
Front handle 1122 790 1700 1122 790 1702 1) 1
Front handle
(heated version) 1122 790 1710 1122 790 1712 1) 1
Modification to be introduced from machine number X 30 638 522
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last
3. Fan housing/starter post (066)
The original starter post 1122 080 6501 (two part), consisting ofthe starter post and groove head screw,
will be replaced by the one-piece version 1122 084 6502.
Summary
Part Name Original New Key Rem. MOQ
version version H
Starter post; 1122 080 6501 1122 084 6502 1) 5
including:
Groove head screw -*- ---
Modification to be introduced: in progress
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on models 064, 066: 22.94
Waiblingen, November 9, 1994 Andreas Stihl
