Technical Information · issue 48 of 1994
Clutch; gearhead; spark plug terminal; starter cup
Model FS 360 and FS 420 Clearing Saws - Series 4116
IssueTI 48/1994
From serial 29 624 027, 30 629 622
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 0000 350 3520 | 0000 350 3502 | In order to standardize parts with other models, the original pickup body 0000 350 3520 will be deleted from machine number X 29 624 027 1 and replaced by pickup body 0000 350 3502. |
Full text

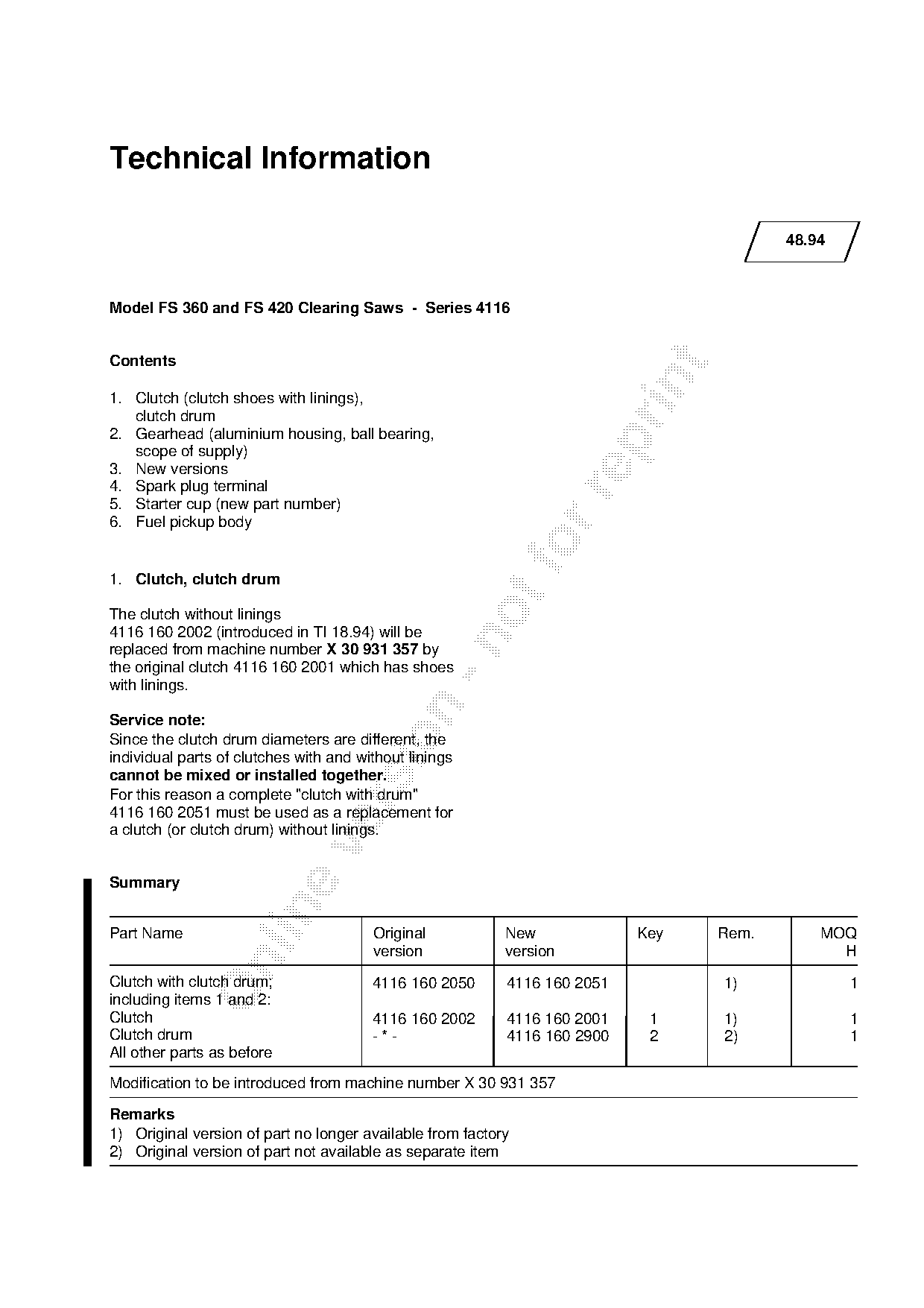

Page 1 of 5
Technical Information
48.94
Model FS 360 and FS 420 Clearing Saws - Series 4116
Contents
1. Clutch (clutch shoes with linings),
clutch drum
2. Gearhead (aluminium housing, ball bearing,
scope of supply)
3. New versions
4. Spark plug terminal
5. Starter cup (new part number)
6. Fuel pickup body
1. Clutch, clutch drum
The clutch without linings
4116 160 2002 (introduced in TI 18.94) will be
replaced from machine number X 30 931 357 by
the original clutch 4116 160 2001 which has shoes
with linings.
Service note:
Since the clutch drum diameters are different, the
individual parts of clutches with and without linings
cannot be mixed or installed together.
For this reason a complete "clutch with drum"
4116 160 2051 must be used as a replacement for
a clutch (or clutch drum) without linings.
Summary
Part Name Original New Key Rem. MOQ
version version H
Clutch with clutch drum; 4116 160 2050 4116 160 2051 1) 1
including items 1 and 2:
Clutch 4116 160 2002 4116 160 2001 1 1) 1
Clutch drum -*- 4116 160 2900 2 2) 1
All other parts as before
Modification to be introduced from machine number X 30 931 357
Remarks
1) Original version of part no longer available from factory
2) Original version of part not available as separate item Page 2 of 5

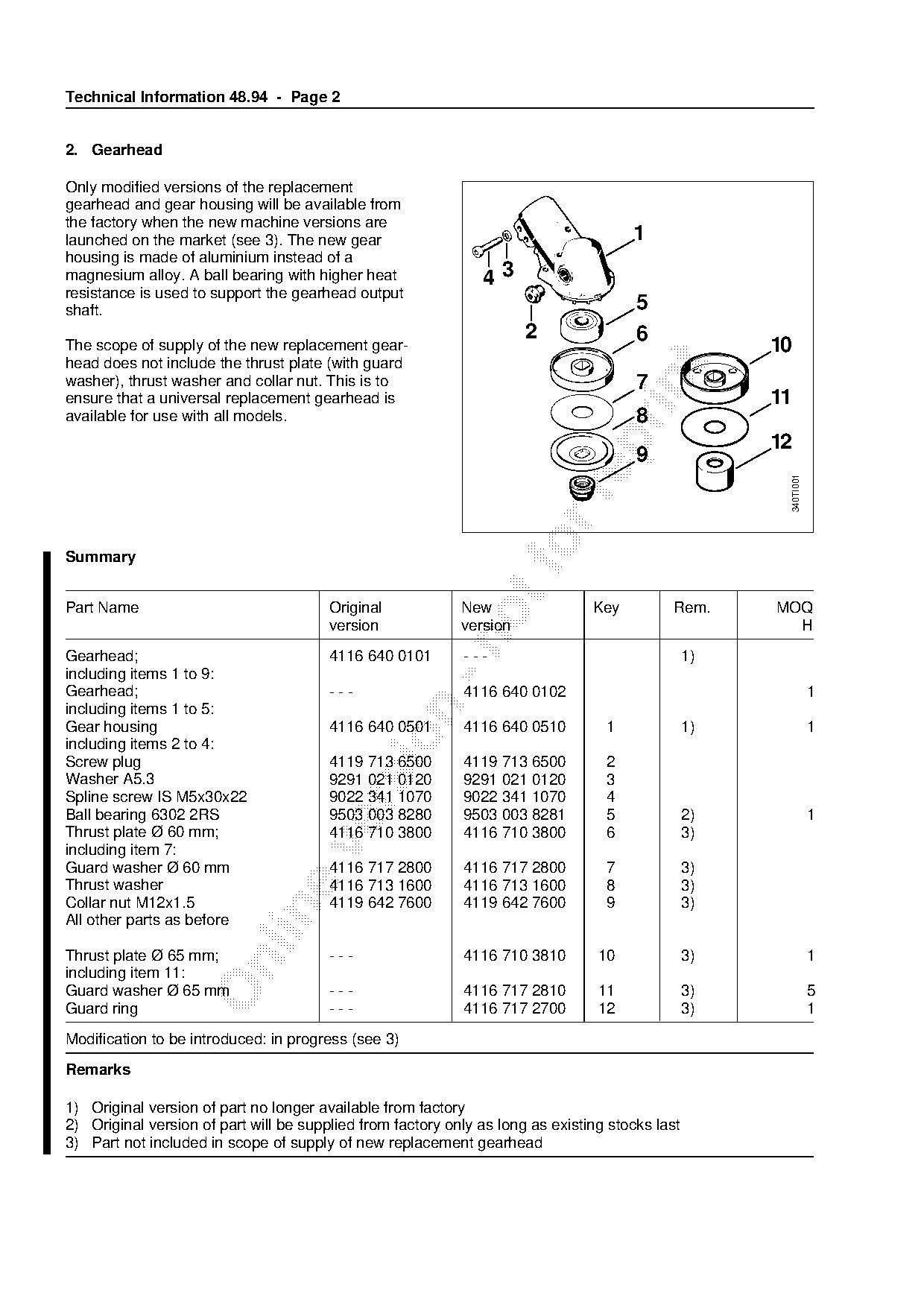

Technical Information 48.94 - Page 2
2. Gearhead
Only modified versions of the replacement
gearhead and gear housing will be available from
the factory when the new machine versions are
launched on the market (see 3). The new gear 1
housing is made of aluminium instead of a
magnesium alloy. A ball bearing with higher heat 43
resistance is used to support the gearhead output
shaft. 5
2 6
The scope of supply of the new replacement gear- 10
head does not include the thrust plate (with guard
washer), thrust washer and collar nut. This is to 7
ensure that a universal replacement gearhead is 11
available for use with all models. 8
12
9
340TI001
Summary fo
Part Name Original New Key Rem. MOQ
version version H
Gearhead; 4116 640 0101 --- 1)
including items 1 to 9:
Gearhead; --- 4116 640 0102 1
including items 1 to 5:
Gear housing 4116 640 0501 4116 640 0510 1 1) 1
including items 2 to 4:
Screw plug 4119 713 6500 4119 713 6500 2
Washer A5.3 9291 021 0120 9291 021 0120 3
Spline screw IS M5x30x22 9022 341 1070 9022 341 1070 4
Ball bearing 6302 2RS 9503 003 8280 9503 003 8281 5 2) 1
Thrust plate Ø 60 mm; 4116 710 3800 4116 710 3800 6 3)
including item 7:
Guard washer Ø 60 mm 4116 717 2800 4116 717 2800 7 3)
Thrust washer 4116 713 1600 4116 713 1600 8 3)
Collar nut M12x1.5 4119 642 7600 4119 642 7600 9 3)
All other parts as before
Thrust plate Ø 65 mm; --- 4116 710 3810 10 3) 1
including item 11:
Guard washer Ø 65 mm --- 4116 717 2810 11 3) 5
Guard ring --- 4116 717 2700 12 3) 1
Modification to be introduced: in progress (see 3)
Remarks
1) Original version of part no longer available from factory
2) Original version of part will be supplied from factory only as long as existing stocks last
3) Part not included in scope of supply of new replacement gearhead Page 3 of 5

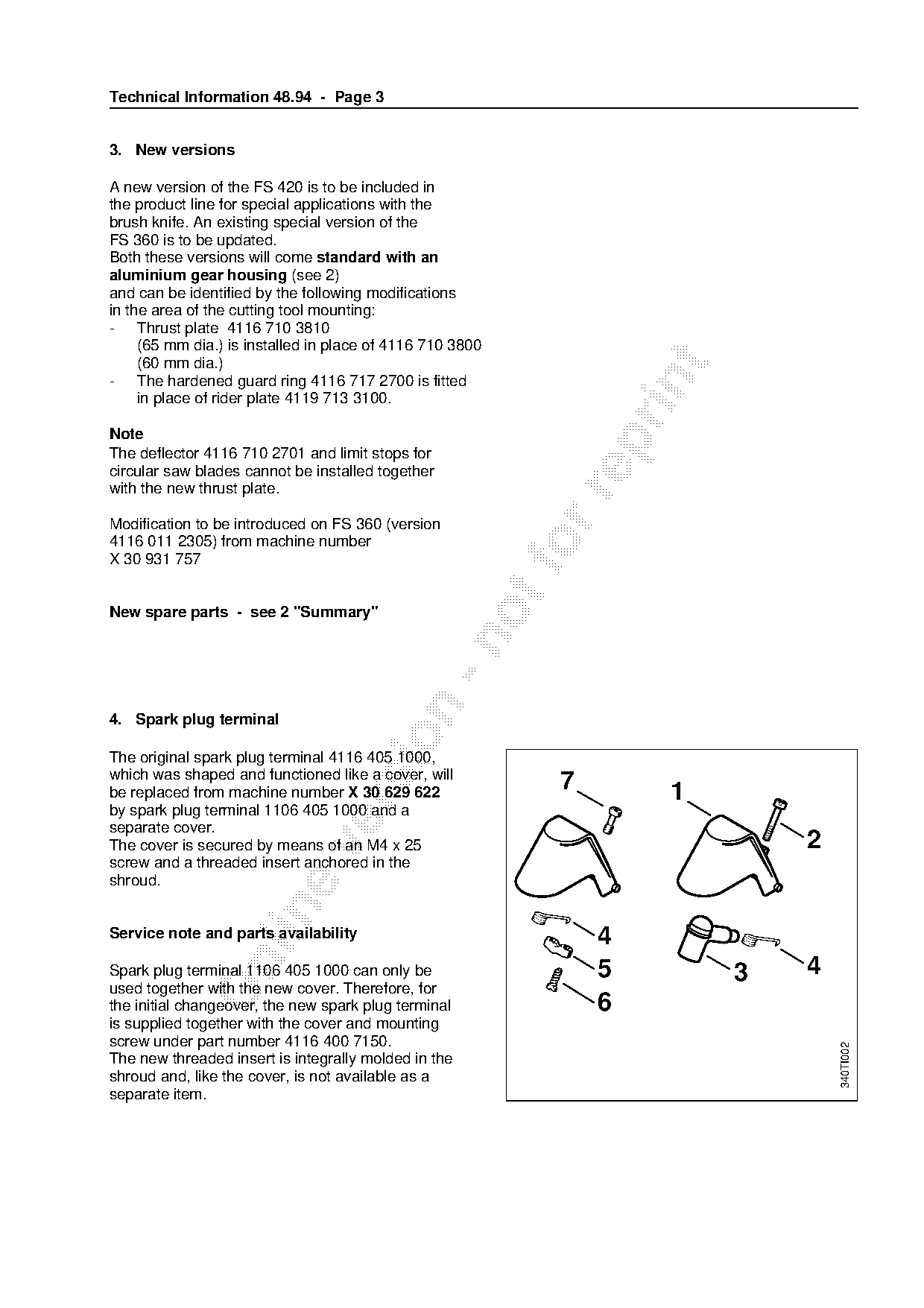

Technical Information 48.94 - Page 3
3. New versions
A new version of the FS 420 is to be included in
the product line for special applications with the
brush knife. An existing special version of the
FS 360 is to be updated.
Both these versions will come standard with an
aluminium gear housing (see 2)
and can be identified by the following modifications
in the area of the cutting tool mounting:
- Thrust plate 4116 710 3810
(65 mm dia.) is installed in place of 4116 710 3800
(60 mm dia.)
- The hardened guard ring 4116 717 2700 is fitted
in place of rider plate 4119 713 3100.
Note
The deflector 4116 710 2701 and limit stops for
circular saw blades cannot be installed together
with the new thrust plate.
Modification to be introduced on FS 360 (version
4116 011 2305) from machine number
X 30 931 757
New spare parts - see 2 "Summary"
4. Spark plug terminal
The original spark plug terminal 4116 405 1000,
which was shaped and functioned like a cover, will
be replaced from machine number X 30 629 622
7 1
by spark plug terminal 1106 405 1000 and a
separate cover.
2
The cover is secured by means of an M4 x 25
screw and a threaded insert anchored in the
shroud.
Service note and parts availability 4
Spark plug terminal 1106 405 1000 can only be 5 3 4
used together with the new cover. Therefore, for
the initial changeover, the new spark plug terminal 6
is supplied together with the cover and mounting
screw under part number 4116 400 7150.
340TI002
The new threaded insert is integrally molded in the
shroud and, like the cover, is not available as a
separate item. Page 4 of 5

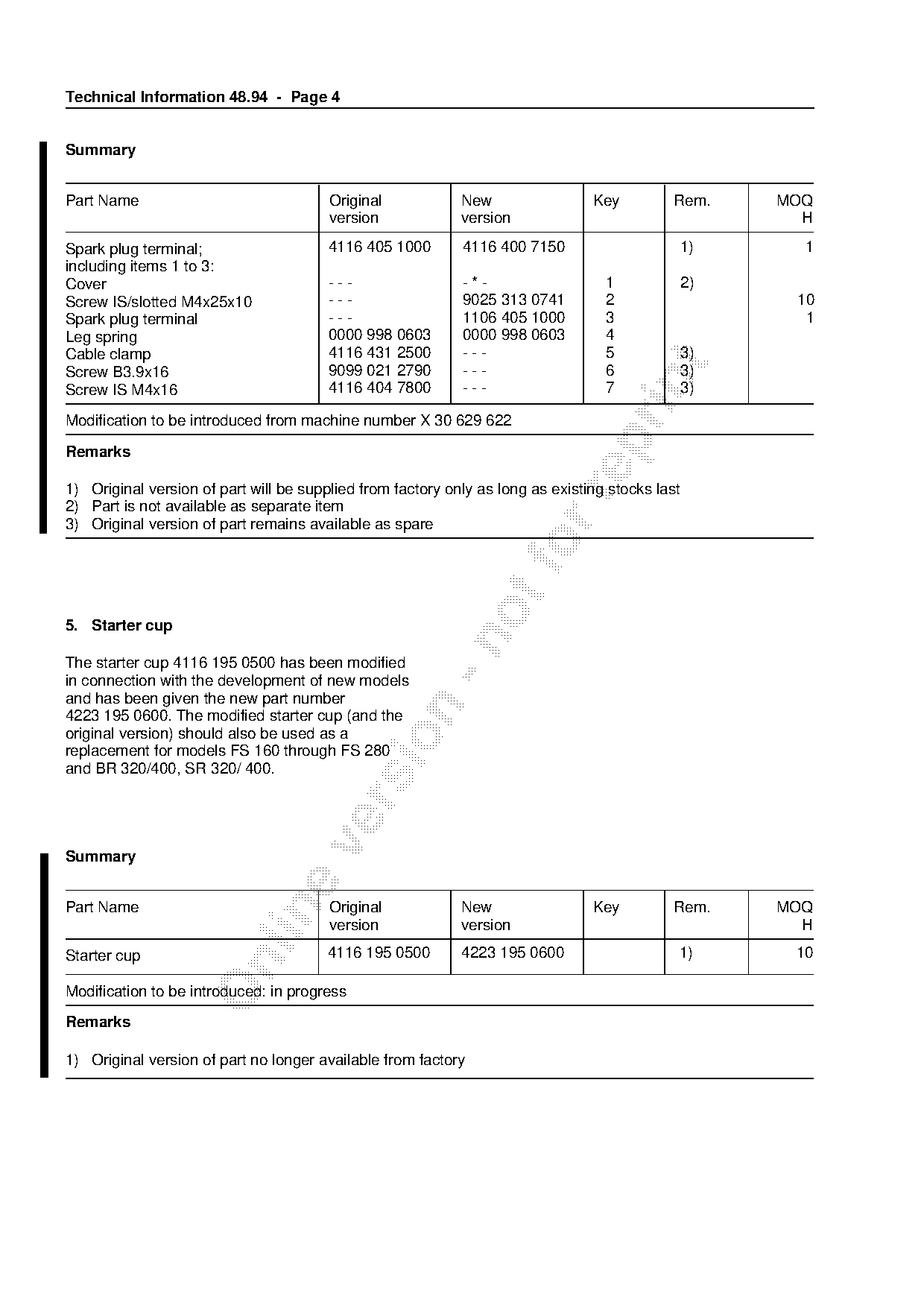

Technical Information 48.94 - Page 4
Summary
Part Name Original New Key Rem. MOQ
version version H
Spark plug terminal; 4116 405 1000 4116 400 7150 1) 1
including items 1 to 3:
Cover --- -*- 1 2)
Screw IS/slotted M4x25x10 --- 9025 313 0741 2 10
Spark plug terminal --- 1106 405 1000 3 1
Leg spring 0000 998 0603 0000 998 0603 4
Cable clamp 4116 431 2500 --- 5 3)
Screw B3.9x16 9099 021 2790 --- 6 3)
Screw IS M4x16 4116 404 7800 --- 7 3)
Modification to be introduced from machine number X 30 629 622
Remarks
1) Original version of part will be supplied from factory only as long as existing stocks last
2) Part is not available as separate item
3) Original version of part remains available as spare
5. Starter cup
The starter cup 4116 195 0500 has been modified
in connection with the development of new models
and has been given the new part number
4223 195 0600. The modified starter cup (and the
original version) should also be used as a
replacement for models FS 160 through FS 280
and BR 320/400, SR 320/ 400.
Summary
Part Name Original New Key Rem. MOQ
version version H
Starter cup 4116 195 0500 4223 195 0600 1) 10
Modification to be introduced: in progress
Remarks
1) Original version of part no longer available from factory Page 5 of 5

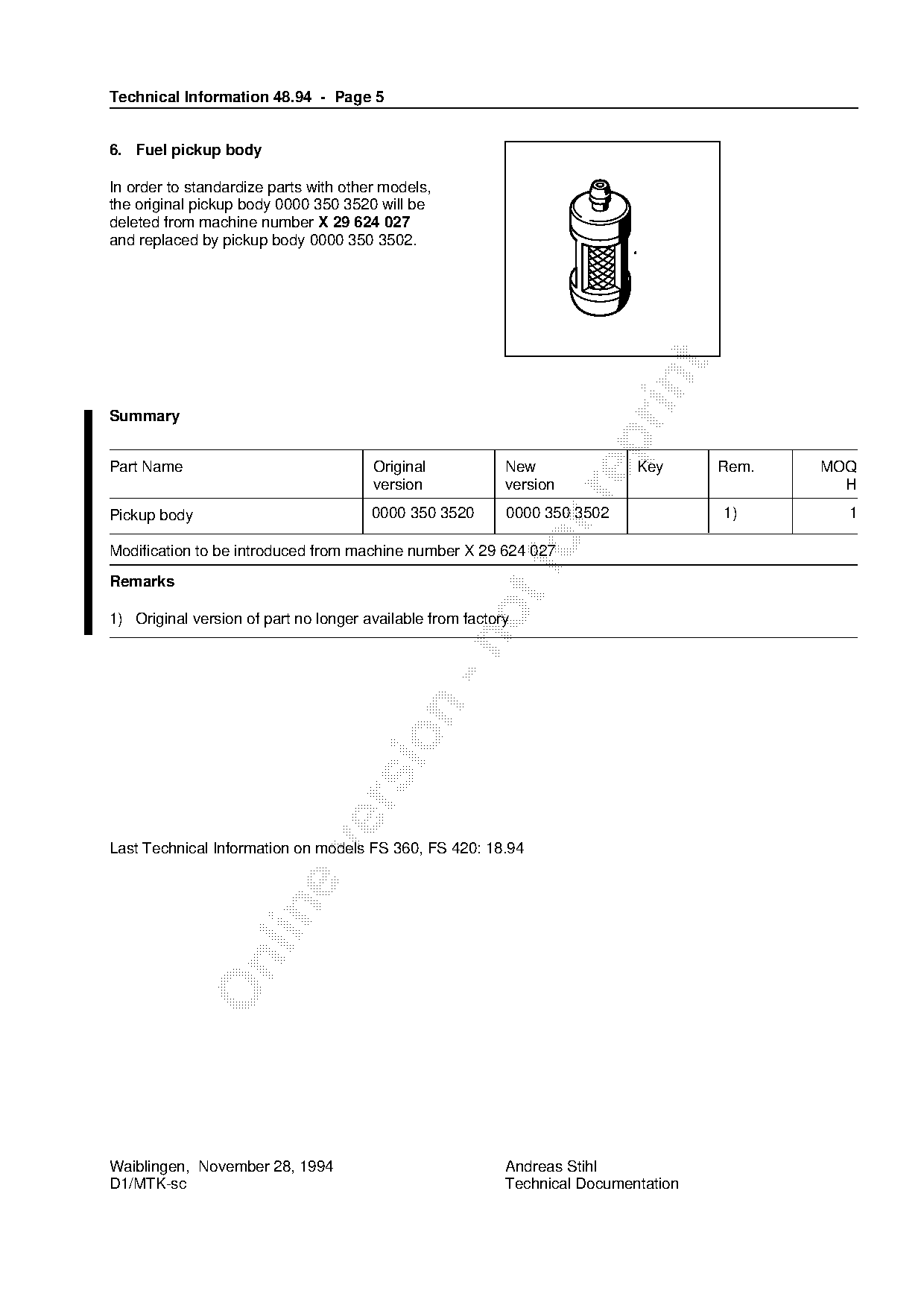

Technical Information 48.94 - Page 5
6. Fuel pickup body
In order to standardize parts with other models,
the original pickup body 0000 350 3520 will be
deleted from machine number X 29 624 027 1
and replaced by pickup body 0000 350 3502.
Summary
Part Name Original New Key Rem. MOQ
version version H
Pickup body 0000 350 3520 0000 350 3502 1) 1
Modification to be introduced from machine number X 29 624 027 fo
Remarks
1) Original version of part no longer available from factory
Last Technical Information on models FS 360, FS 420: 18.94
Waiblingen, November 28, 1994 Andreas Stihl
