Technical Information · issue 51 of 1994
EY-V ignition module; flywheel; carburetor
Model 064, 066 Chain Saws - Series 1122
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1122 400 1303 | 1122 400 1311 | The original version 1122 400 1303 (with electronic speed governor) will be replaced by version 1122 400 1311 (without electronic speed governor). |
| 1122 400 1307 | 1122 400 1311 | The original ignition module 1122 400 1307 (with electronic speed governor) will be replaced by version 1122 400 1311 (without electronic speed governor). |
| 0000 400 1300 | 1122 400 1311 | The original version 0000 400 1300 will be replaced by version 1122 400 1311. |
Full text

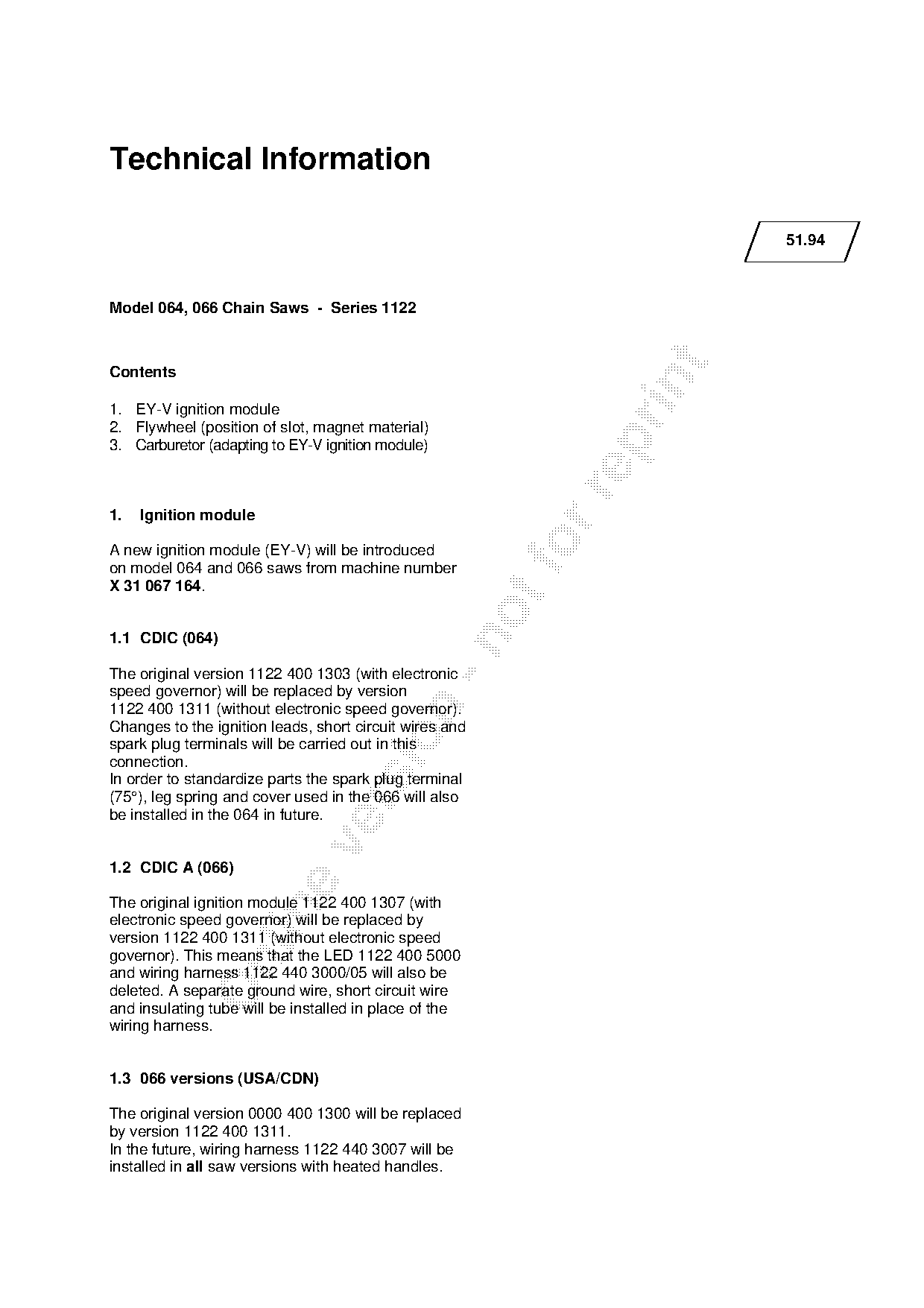

Page 1 of 5
Technical Information
51.94
Model 064, 066 Chain Saws - Series 1122
Contents
1. EY-V ignition module
2. Flywheel (position of slot, magnet material)
3. Carburetor (adapting to EY-V ignition module)
1. Ignition module
A new ignition module (EY-V) will be introduced
on model 064 and 066 saws from machine number
X 31 067 164.
1.1 CDIC (064)
The original version 1122 400 1303 (with electronic
speed governor) will be replaced by version
1122 400 1311 (without electronic speed governor).
Changes to the ignition leads, short circuit wires and
spark plug terminals will be carried out in this
connection.
In order to standardize parts the spark plug terminal
(75°), leg spring and cover used in the 066 will also
be installed in the 064 in future.
1.2 CDIC A (066)
The original ignition module 1122 400 1307 (with
electronic speed governor) will be replaced by
version 1122 400 1311 (without electronic speed
governor). This means that the LED 1122 400 5000
and wiring harness 1122 440 3000/05 will also be
deleted. A separate ground wire, short circuit wire
and insulating tube will be installed in place of the
wiring harness.
1.3 066 versions (USA/CDN)
The original version 0000 400 1300 will be replaced
by version 1122 400 1311.
In the future, wiring harness 1122 440 3007 will be
installed in all saw versions with heated handles. Page 2 of 5

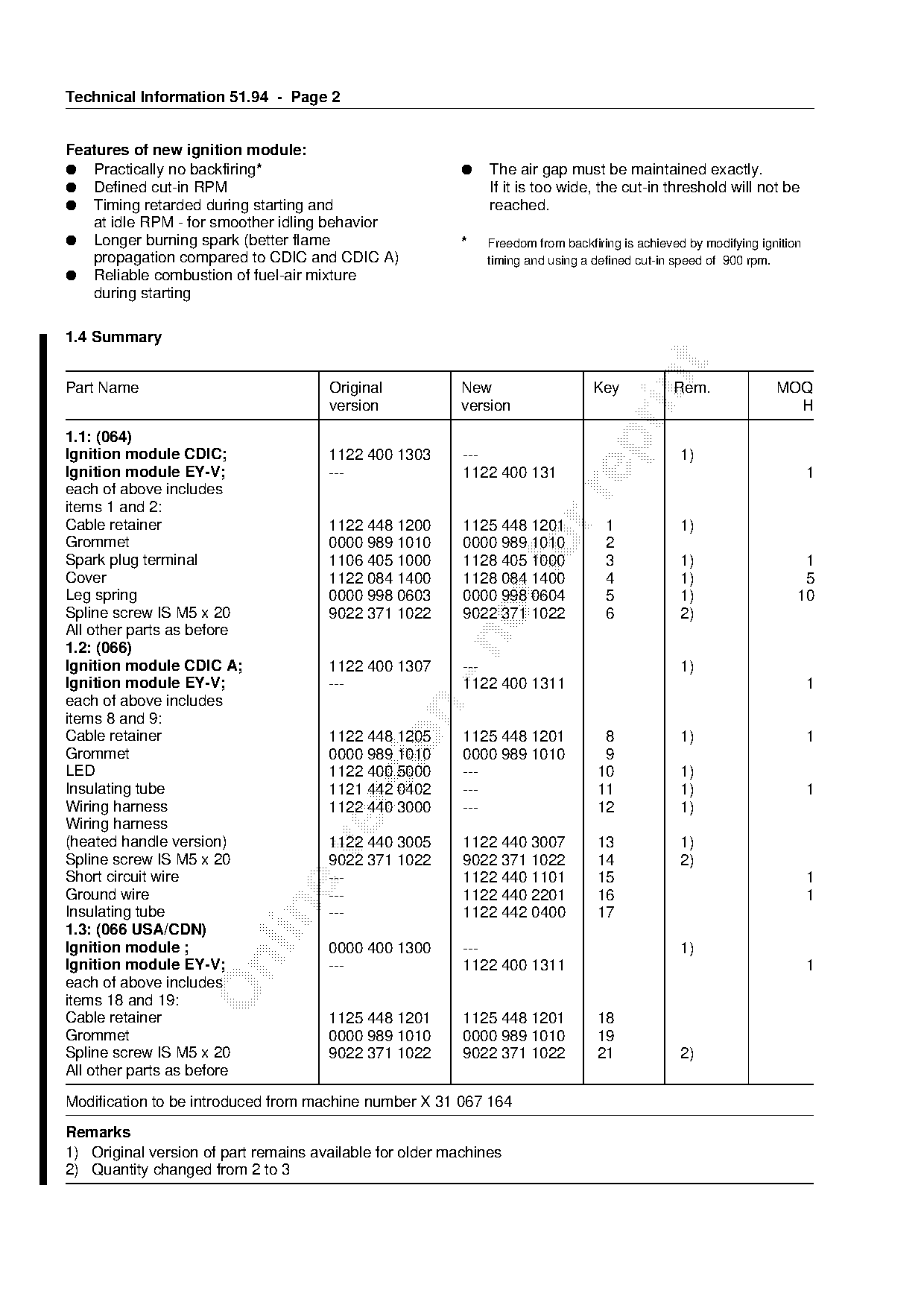

Technical Information 51.94 - Page 2
Features of new ignition module:
● Practically no backfiring* ● The air gap must be maintained exactly.
● Defined cut-in RPM If it is too wide, the cut-in threshold will not be
● Timing retarded during starting and reached.
at idle RPM - for smoother idling behavior
● Longer burning spark (better flame * Freedom from backfiring is achieved by modifying ignition
propagation compared to CDIC and CDIC A) timing and using a defined cut-in speed of 900 rpm.
● Reliable combustion of fuel-air mixture
during starting
1.4 Summary
Part Name Original New Key Rem. MOQ
version version H
1.1: (064)
Ignition module CDIC; 1122 400 1303 --- 1)
Ignition module EY-V; --- 1122 400 131 1
each of above includes
items 1 and 2:
Cable retainer 1122 448 1200 1125 448 1201 1 1)
Grommet
Spark plug terminal
Cover
0000 989 1010
1106 405 1000
1122 084 1400
0000 989 1010
1128 405 1000
1128 084 1400
2
3
4
1)
1)
1
5
Leg spring 0000 998 0603 0000 998 0604 5 1) 10
Spline screw IS M5 x 20 9022 371 1022 9022 371 1022 6 2)
All other parts as before
1.2: (066)
Ignition module CDIC A; 1122 400 1307 --- 1)
Ignition module EY-V; --- 1122 400 1311 1
each of above includes
items 8 and 9:
Cable retainer
1122 448 1205 1125 448 1201 8 1) 1
Grommet 0000 989 1010 0000 989 1010 9
LED 1122 400 5000 --- 10 1)
Insulating tube 1121 442 0402 --- 11 1) 1
Wiring harness 1122 440 3000 --- 12 1)
Wiring harness
(heated handle version) 1122 440 3005 1122 440 3007 13 1)
Spline screw IS M5 x 20 9022 371 1022 9022 371 1022 14 2)
Short circuit wire --- 1122 440 1101 15 1
Ground wire --- 1122 440 2201 16 1
Insulating tube --- 1122 442 0400 17
1.3: (066 USA/CDN)
Ignition module ; 0000 400 1300 --- 1)
Ignition module EY-V; --- 1122 400 1311 1
each of above includes
items 18 and 19:
Cable retainer 1125 448 1201 1125 448 1201 18
Grommet 0000 989 1010 0000 989 1010 19
Spline screw IS M5 x 20 9022 371 1022 9022 371 1022 21 2)
All other parts as before
Modification to be introduced from machine number X 31 067 164
Remarks
1) Original version of part remains available for older machines
2) Quantity changed from 2 to 3 Page 3 of 5

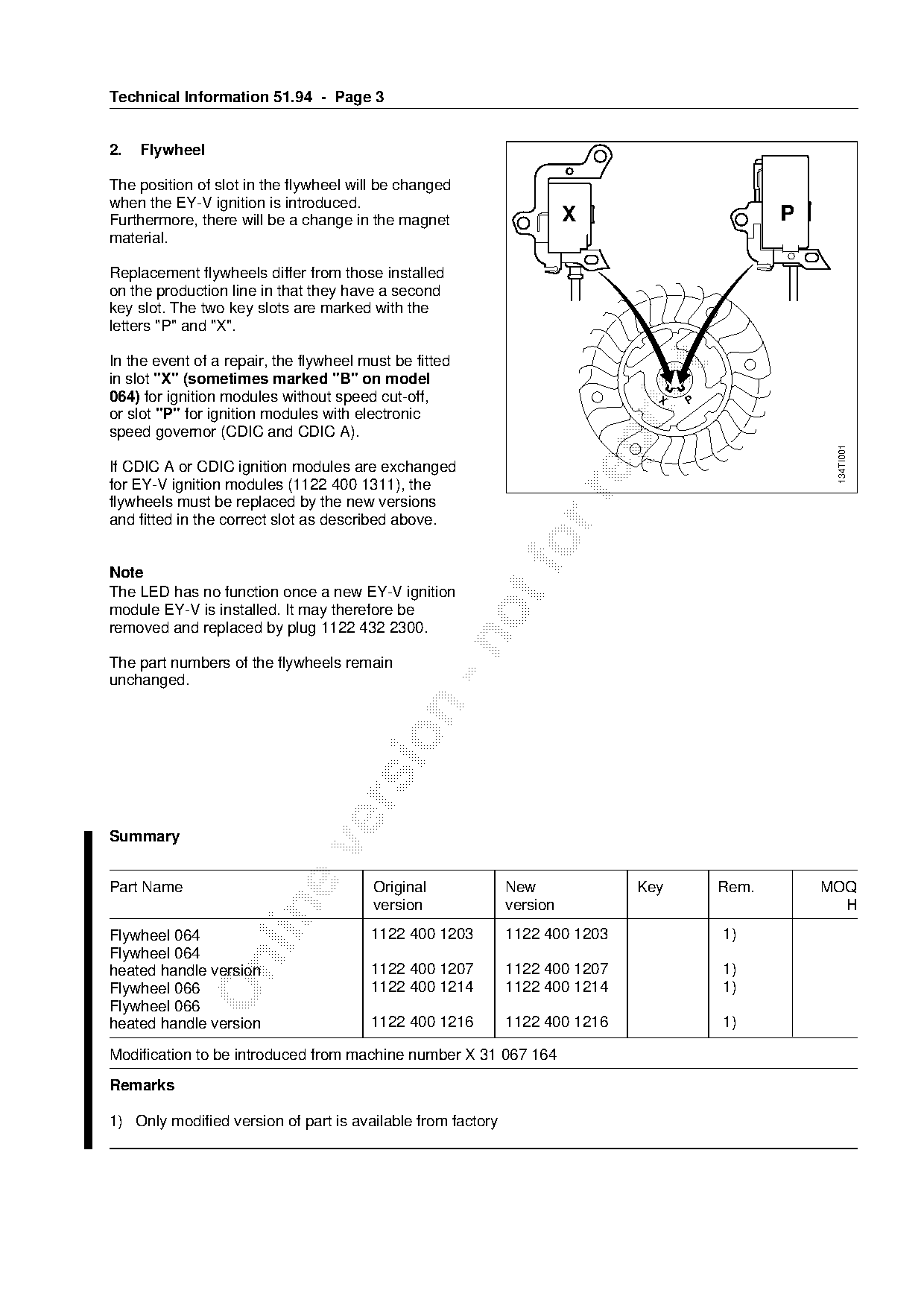

Technical Information 51.94 - Page 3
2. Flywheel
The position of slot in the flywheel will be changed
when the EY-V ignition is introduced.
Furthermore, there will be a change in the magnet X P
material.
Replacement flywheels differ from those installed
on the production line in that they have a second
key slot. The two key slots are marked with the
letters "P" and "X".
In the event of a repair, the flywheel must be fitted
in slot "X" (sometimes marked "B" on model
064) for ignition modules without speed cut-off, X P
or slot "P" for ignition modules with electronic
speed governor (CDIC and CDIC A).
134TI001
If CDIC A or CDIC ignition modules are exchanged
for EY-V ignition modules (1122 400 1311), the
flywheels must be replaced by the new versions
and fitted in the correct slot as described above.
Note
The LED has no function once a new EY-V ignition
module EY-V is installed. It may therefore be
removed and replaced by plug 1122 432 2300.
The part numbers of the flywheels remain
unchanged.
Summary
Part Name Original New Key Rem. MOQ
version version H
Flywheel 064 1122 400 1203 1122 400 1203 1)
Flywheel 064
heated handle version 1122 400 1207 1122 400 1207 1)
Flywheel 066 1122 400 1214 1122 400 1214 1)
Flywheel 066
heated handle version 1122 400 1216 1122 400 1216 1)
Modification to be introduced from machine number X 31 067 164
Remarks
1) Only modified version of part is available from factory Page 4 of 5

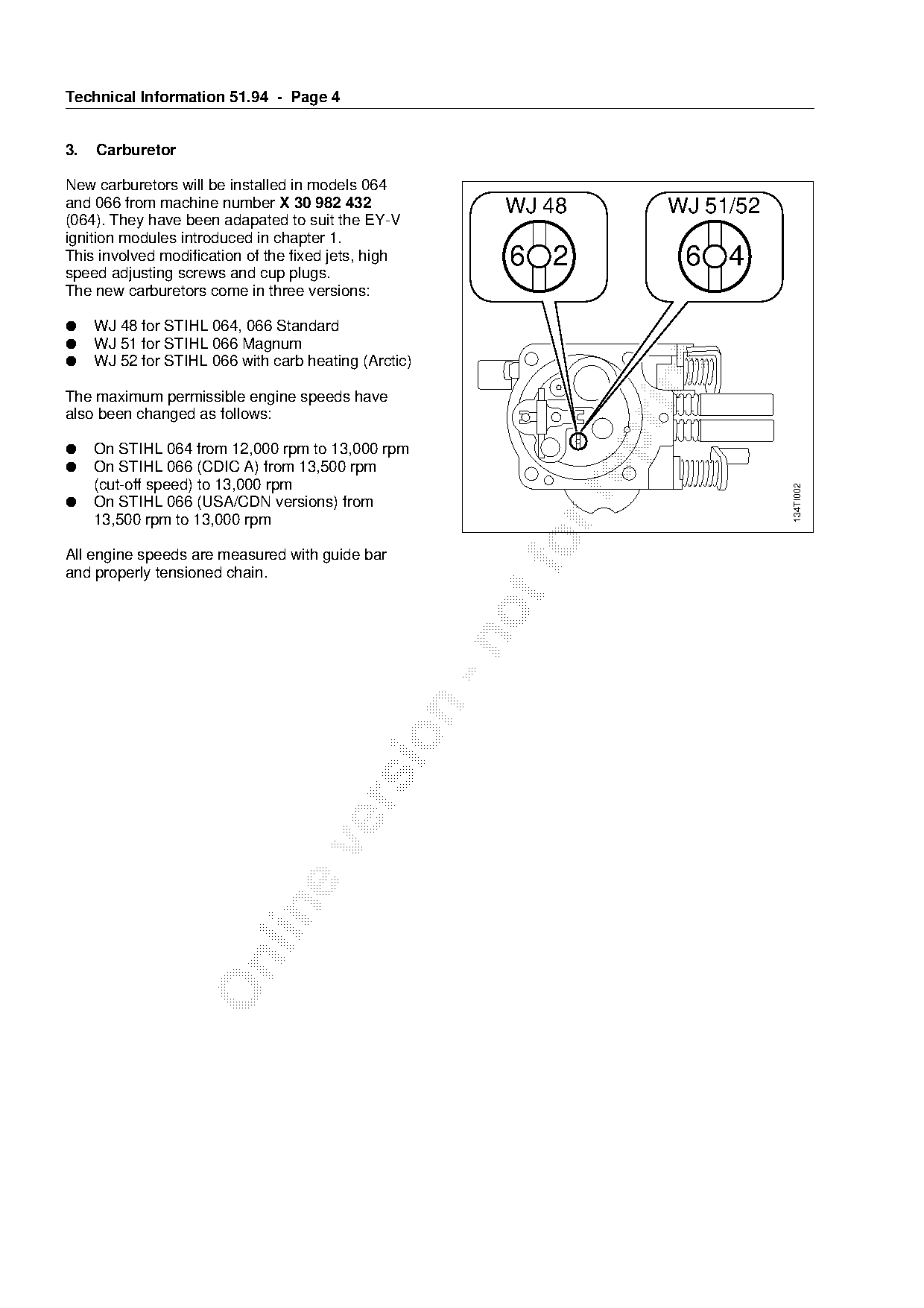

Technical Information 51.94 - Page 4
3. Carburetor
New carburetors will be installed in models 064
and 066 from machine number X 30 982 432 WJ 48 WJ 51/52
(064). They have been adapated to suit the EY-V
ignition modules introduced in chapter 1.
This involved modification of the fixed jets, high
speed adjusting screws and cup plugs.
6 2 6 4
The new carburetors come in three versions:
● WJ 48 for STIHL 064, 066 Standard
● WJ 51 for STIHL 066 Magnum
● WJ 52 for STIHL 066 with carb heating (Arctic)
The maximum permissible engine speeds have
also been changed as follows:
● On STIHL 064 from 12,000 rpm to 13,000 rpm
● On STIHL 066 (CDIC A) from 13,500 rpm
(cut-off speed) to 13,000 rpm
134TI002
● On STIHL 066 (USA/CDN versions) from
13,500 rpm to 13,000 rpm
All engine speeds are measured with guide bar
and properly tensioned chain. Page 5 of 5

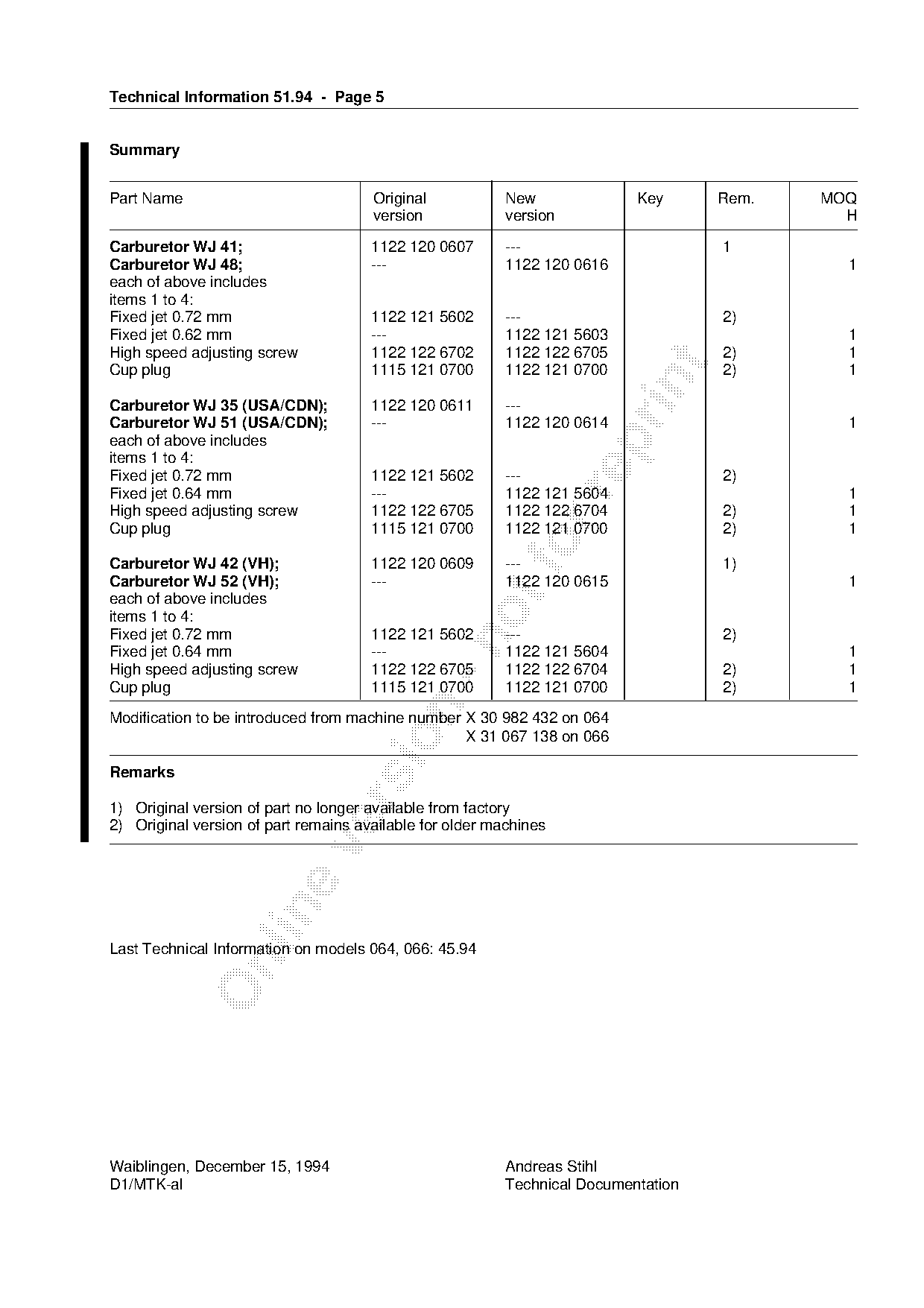

Technical Information 51.94 - Page 5
Summary
Part Name Original New Key Rem. MOQ
version version H
Carburetor WJ 41; 1122 120 0607 --- 1
Carburetor WJ 48; --- 1122 120 0616 1
each of above includes
items 1 to 4:
Fixed jet 0.72 mm 1122 121 5602 --- 2)
Fixed jet 0.62 mm --- 1122 121 5603 1
High speed adjusting screw 1122 122 6702 1122 122 6705 2) 1
Cup plug 1115 121 0700 1122 121 0700 2) 1
Carburetor WJ 35 (USA/CDN); 1122 120 0611 ---
Carburetor WJ 51 (USA/CDN); --- 1122 120 0614 1
each of above includes
items 1 to 4:
Fixed jet 0.72 mm 1122 121 5602 --- 2)
Fixed jet 0.64 mm --- 1122 121 5604 1
High speed adjusting screw 1122 122 6705 1122 122 6704 2) 1
Cup plug 1115 121 0700 1122 121 0700 2) 1
Carburetor WJ 42 (VH); 1122 120 0609
--- 1)
Carburetor WJ 52 (VH); --- 1122 120 0615 1
each of above includes
items 1 to 4:
Fixed jet 0.72 mm 1122 121 5602 --- 2)
Fixed jet 0.64 mm --- 1122 121 5604 1
High speed adjusting screw 1122 122 6705 1122 122 6704 2) 1
Cup plug 1115 121 0700 1122 121 0700 2) 1
Modification to be introduced from machine number X 30 982 432 on 064
X 31 067 138 on 066
Remarks
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines
Last Technical Information on models 064, 066: 45.94
Waiblingen, December 15, 1994 Andreas Stihl
