Technical Information · issue 1 of 1995

Guide bars: New STIHL Rollomatic E Light guide bar

IssueTI 1/1995

Accessory changes & notes

Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.

Service note · Accessory

Rollomatic E Light: two-plate composite bar and nine-tooth nose

Two steel plates with polyamide fill; 35 cm / 14 in bar 3005 000 7409 includes the 3/8-inch P, nine-tooth nose sprocket.

  • Two profiled, hollowed-out steel plates are welded together; bosses at the welds maintain spacing equivalent to the finished groove width. Remaining cavities are injection-filled with fiberglass-reinforced polyamide, leaving the sprocket space and bar groove. The groove bottom is polyamide with an integrally molded Ematic ramp at the oil inlet. Illustration shows the hollowed plate above the finished bar; this is not a three-steel-plate bar.
  • The nose sprocket is the same as that in three-part bars 3005 000 48..; this is a family prefix, NOT a complete order number. At publication, E Light is offered in 35 cm (14 in) as 3005 000 7409, 3/8 inch P - 9 T, including nose sprocket 3005 650 9903. Each summary row has MOQ H 1; no original part number or replacement/supersession is specified.
  • Source claims 38% lower weight compared with three-part construction, less fatigue and higher daily output, improved balance with center of gravity nearer the powerhead, and high stability. These are historical comparative claims, not an independently measured weight or strength rating. Listed uses: initial thinning, small wood harvesting, tree surgery, landscape maintenance, building trade and crafts.
  • No exact powerhead list, numerical groove gauge, drive-link count or serial cutoff is supplied; do not infer saw fitment from series 3005 alone. TI08.93 is described as a limited-market announcement with the same content; it is not needed to complete this self-contained bulletin. Footer November 02, 1994, copyright 1995: neither is the review date.
  • Historical TI 01/1995 guidance only. Factory availability and performance claims are historical, not current stock or measured results. MOQ means order quantity, not installed quantity. No unlisted-model applicability inferred. No hardware operation was performed.

Source: TI 1/1995, p. 1 · TI 1/1995, p. 2 — Rollomatic E Light: two-plate composite bar and nine-tooth nose.

Part numbers (2)
  • 3005 000 7409 — Rollomatic E Light guide bar 35 cm / 14 in3/8 inch P; 9 T; includes nose sprocket · Rollomatic E Light: two-plate composite bar and nine-tooth nose
  • 3005 650 9903 — Nose sprocket3/8 inch P; 9 T; included · Rollomatic E Light: two-plate composite bar and nine-tooth nose

Full text

Page 1 of 2

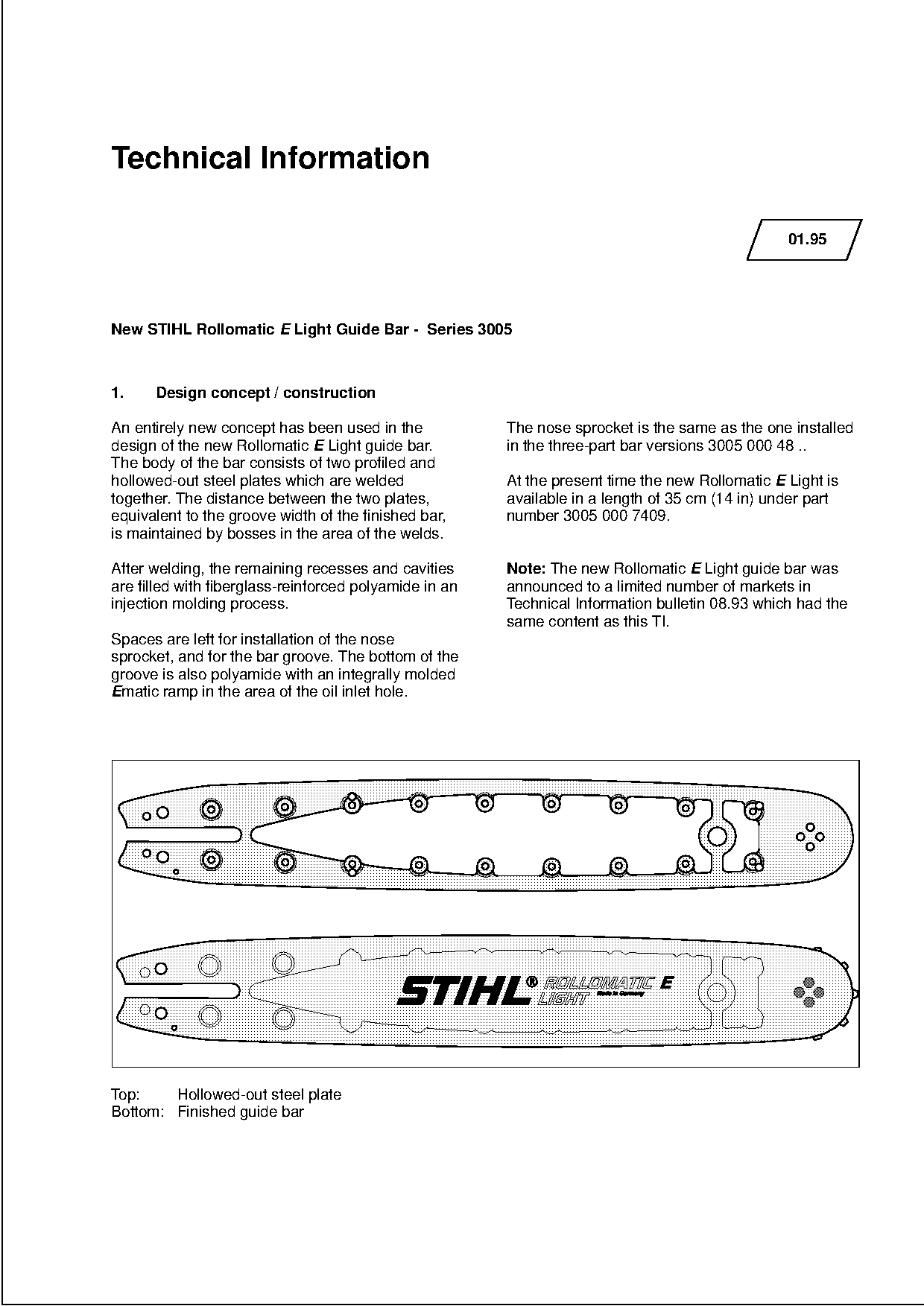

TI 1/1995 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                                 01.95

New STIHL Rollomatic E Light Guide Bar - Series 3005

1.    Design concept / construction

An entirely new concept has been used in the            The nose sprocket is the same as the one installed

design of the new Rollomatic E Light guide bar.         in the three-part bar versions 3005 000 48 ..
The body of the bar consists of two profiled and
hollowed-out steel plates which are welded              At the present time the new Rollomatic E Light is

together. The distance between the two plates,          available in a length of 35 cm (14 in) under part
equivalent to the groove width of the finished bar,     number 3005 000 7409.
is maintained by bosses in the area of the welds.

After welding, the remaining recesses and cavities
                                                        Note: The new Rollomatic E Light guide bar was
are filled with fiberglass-reinforced polyamide in an   announced to a limited number of markets in
injection molding process.                              Technical Information bulletin 08.93 which had the
                                                        same content as this TI.

Spaces are left for installation of the nose
sprocket, and for the bar groove. The bottom of the
groove is also polyamide with an integrally molded
Ematic ramp in the area of the oil inlet hole.

Top:    Hollowed-out steel plate
Bottom: Finished guide bar

Page 2 of 2

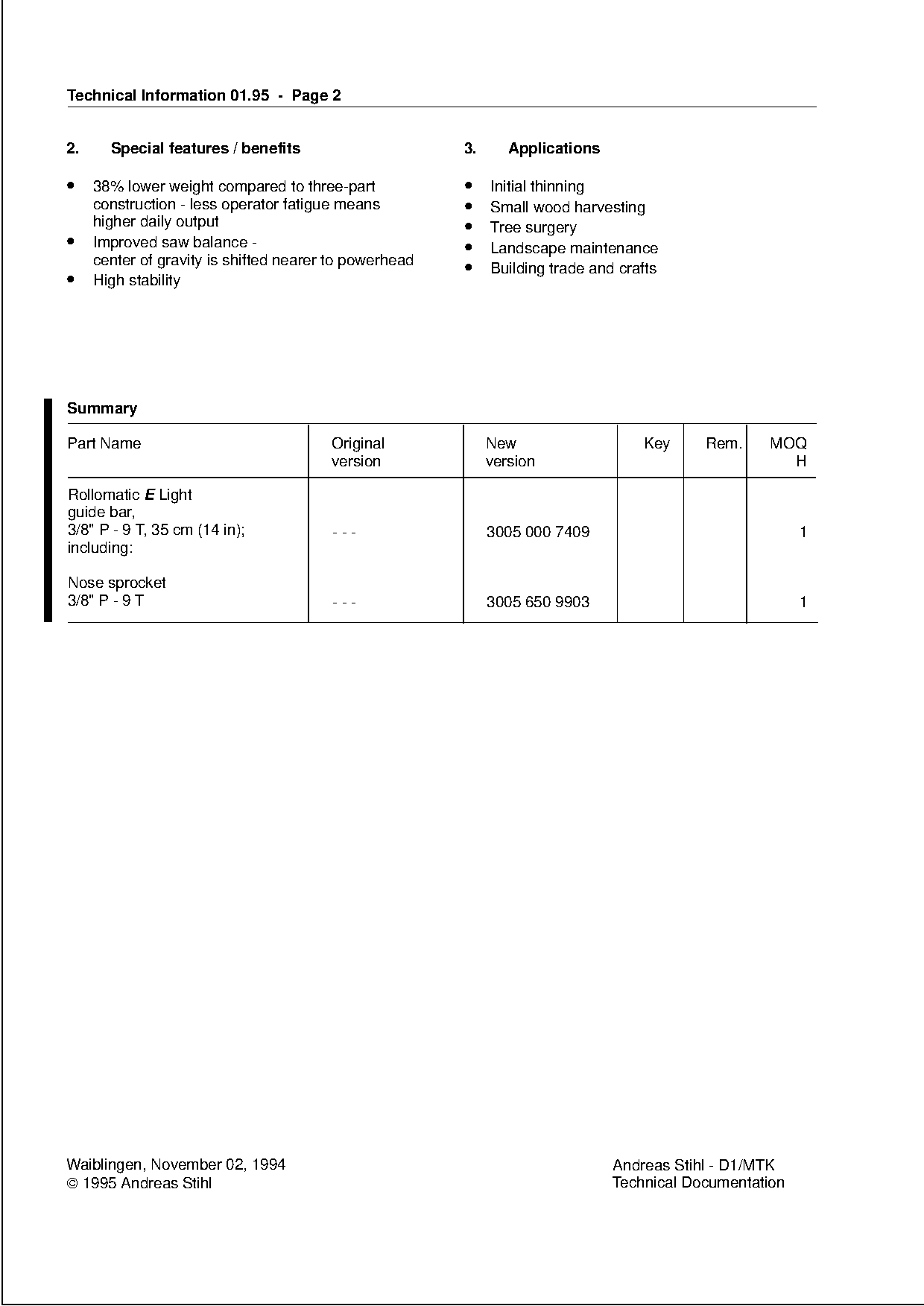

TI 1/1995 page 2
Text of page 2 — search, copy, screen readers
Technical Information 01.95 - Page 2

2.     Special features / benefits                      3.      Applications

• 38% lower weight compared to three-part               •    Initial thinning
     construction - less operator fatigue means         •    Small wood harvesting
     higher daily output                                •    Tree surgery
•    Improved saw balance -                             •    Landscape maintenance
     center of gravity is shifted nearer to powerhead
                                                        •    Building trade and crafts
•    High stability

Summary

Part Name                               Original             New                   Key     Rem.     MOQ
                                        version              version                                  H

Rollomatic E Light
guide bar,
3/8" P - 9 T, 35 cm (14 in);            ---                  3005 000 7409                               1
including:                                                       fo
Nose sprocket
3/8" P - 9 T                            ---                  3005 650 9903                               1

Waiblingen, November 02, 1994                                                  Andreas Stihl - D1/MTK
 1995 Andreas Stihl                                                           Technical Documentation
