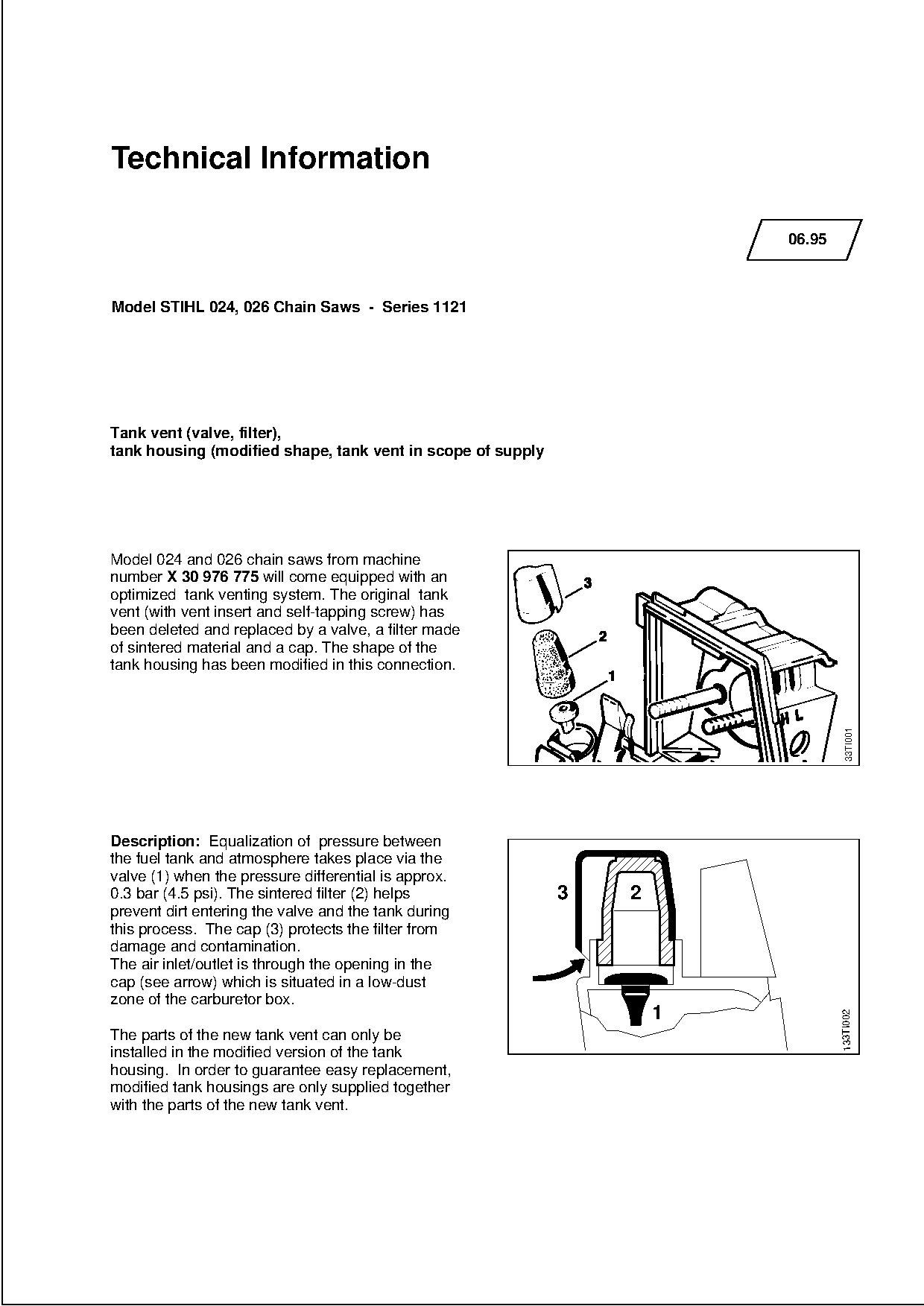

Technical Information
06.95
Model STIHL 024, 026 Chain Saws - Series 1121
Tank vent (valve, filter),
tank housing (modified shape, tank vent in scope of supply
Model 024 and 026 chain saws from machine
number X 30 976 775 will come equipped with an
optimized tank venting system. The original tank
vent (with vent insert and self-tapping screw) has
been deleted and replaced by a valve, a filter made
of sintered material and a cap. The shape of the
tank housing has been modified in this connection.
33TI001
Description: Equalization of pressure between
the fuel tank and atmosphere takes place via the
valve (1) when the pressure differential is approx.
0.3 bar (4.5 psi). The sintered filter (2) helps 3 2
prevent dirt entering the valve and the tank during
this process. The cap (3) protects the filter from
damage and contamination.
The air inlet/outlet is through the opening in the
cap (see arrow) which is situated in a low-dust
zone of the carburetor box.
1
133TI002
The parts of the new tank vent can only be
installed in the modified version of the tank
housing. In order to guarantee easy replacement,
modified tank housings are only supplied together
with the parts of the new tank vent. Page 2 of 2
Technical Information 06.95 - Page 2
Summary

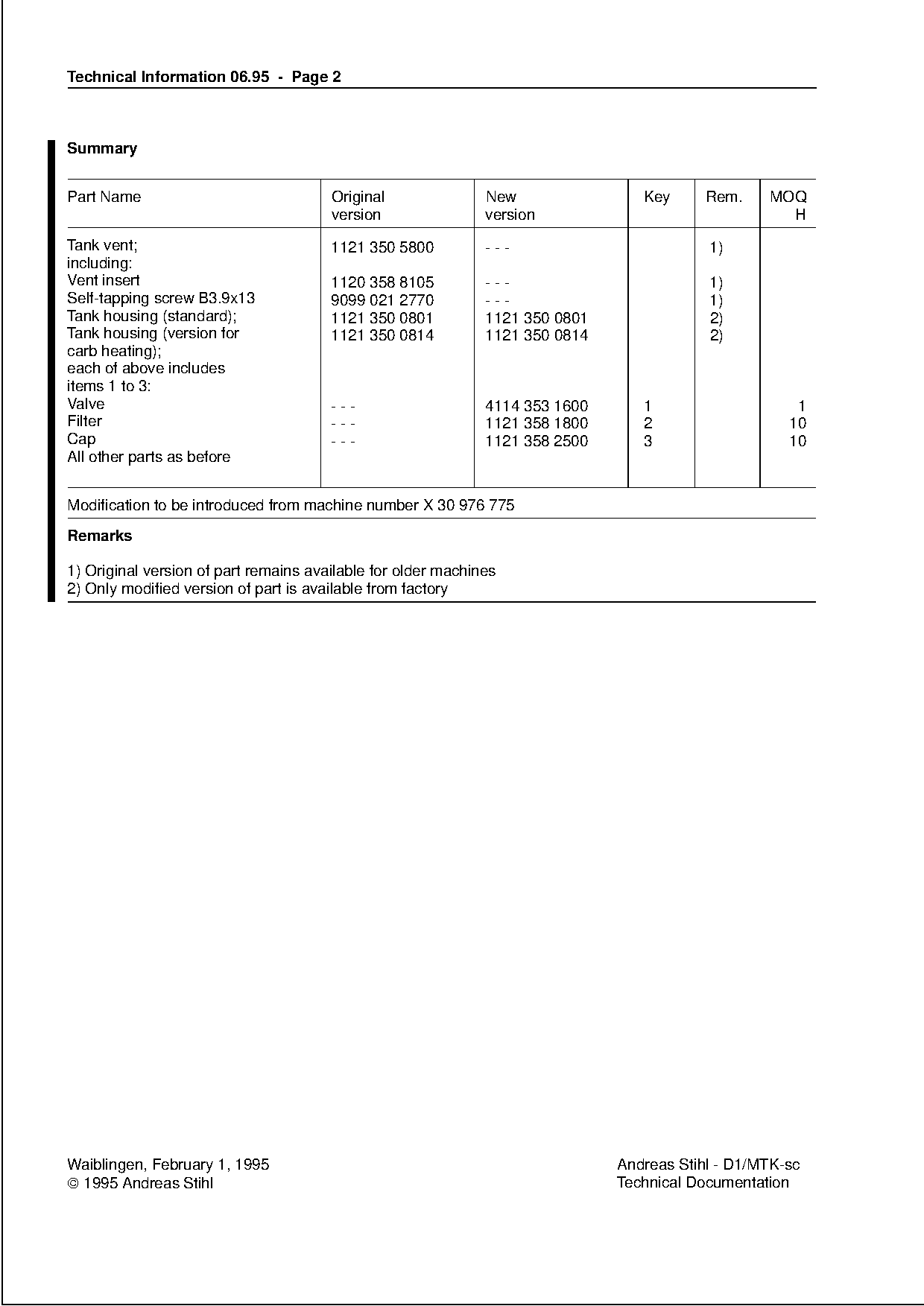

Part Name Original New Key Rem. MOQ
version version H
Tank vent; 1121 350 5800 --- 1)
including:
Vent insert 1120 358 8105 --- 1)
Self-tapping screw B3.9x13 9099 021 2770 --- 1)
Tank housing (standard); 1121 350 0801 1121 350 0801 2)
Tank housing (version for 1121 350 0814 1121 350 0814 2)
carb heating);
each of above includes
items 1 to 3:
Valve --- 4114 353 1600 1 1
Filter --- 1121 358 1800 2 10
Cap --- 1121 358 2500 3 10
All other parts as before
Modification to be introduced from machine number X 30 976 775
Remarks
1) Original version of part remains available for older machines
2) Only modified version of part is available from factory
Waiblingen, February 1, 1995 Andreas Stihl - D1/MTK-sc
