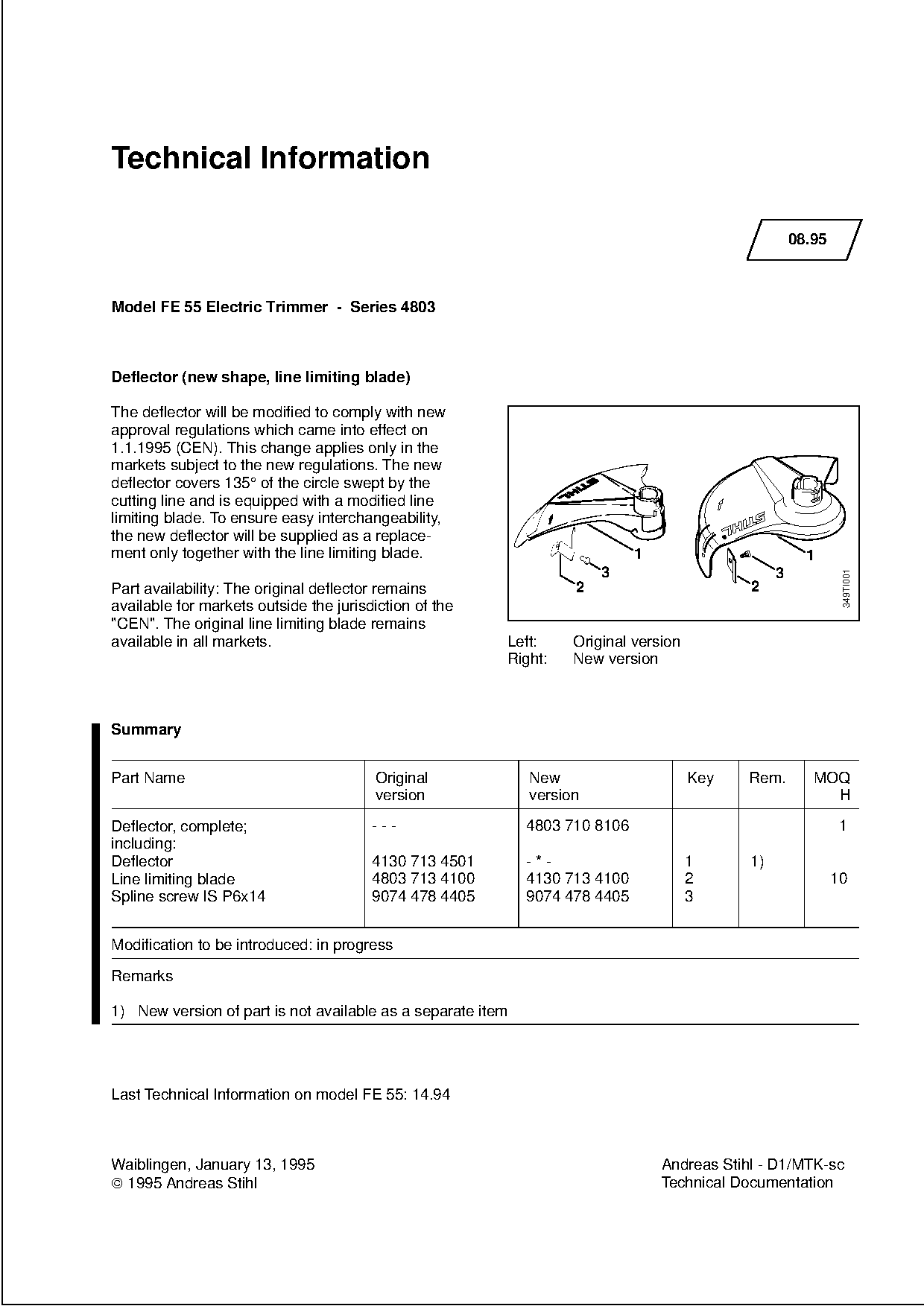

Technical Information
08.95
Model FE 55 Electric Trimmer - Series 4803
Deflector (new shape, line limiting blade)
The deflector will be modified to comply with new
approval regulations which came into effect on
1.1.1995 (CEN). This change applies only in the
markets subject to the new regulations. The new
deflector covers 135° of the circle swept by the
cutting line and is equipped with a modified line
limiting blade. To ensure easy interchangeability,
the new deflector will be supplied as a replace-
ment only together with the line limiting blade. fo 3
1
3
1
349TI001
Part availability: The original deflector remains 2 2
available for markets outside the jurisdiction of the
"CEN". The original line limiting blade remains
available in all markets. Left: Original version
Right: New version
Summary
Part Name Original New Key Rem. MOQ
version version H
Deflector, complete; --- 4803 710 8106 1
including:
Deflector 4130 713 4501 -*- 1 1)
Line limiting blade 4803 713 4100 4130 713 4100 2 10
Spline screw IS P6x14 9074 478 4405 9074 478 4405 3
Modification to be introduced: in progress
Remarks
1) New version of part is not available as a separate item
Last Technical Information on model FE 55: 14.94
Waiblingen, January 13, 1995 Andreas Stihl - D1/MTK-sc
