Technical Information · issue 16 of 1995
Carburetor on FS 160/180/220; air filter on FS 280
Model FS 160, 180, 220, 280 Clearing Saws - Series 411
IssueTI 16/1995
From serial 29 643 202, 29 972 731
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1120 121 0802 | 1123 121 0801 | The original end cover 1120 121 0802 (light alloy casting) has been deleted and replaced by the version 1123 121 0801 (made of steel). |
Full text

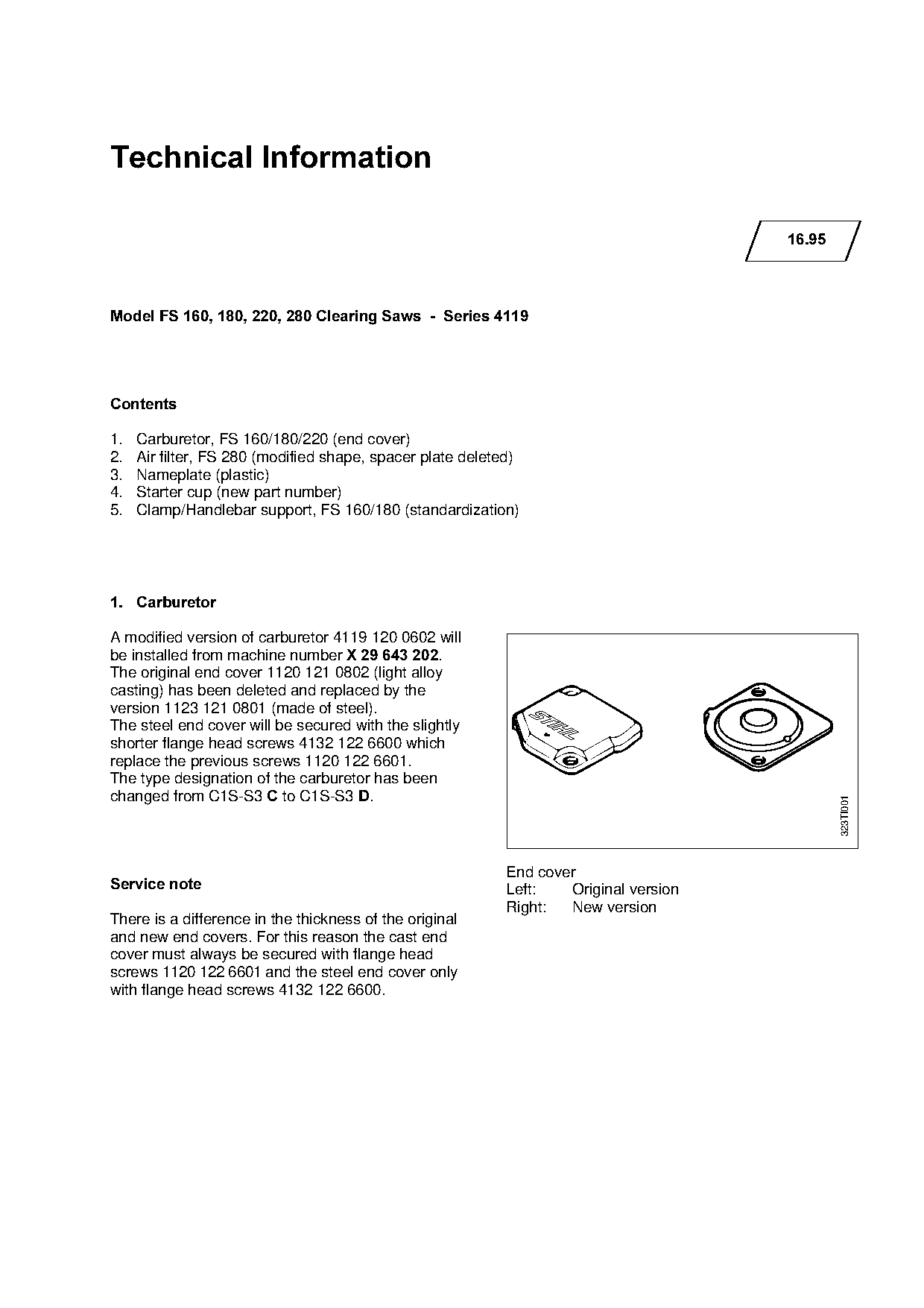

Page 1 of 4
Technical Information
16.95
Model FS 160, 180, 220, 280 Clearing Saws - Series 411
&RQWHQWV
1. Carburetor, FS 160/180/220 (end cover)
2. Air filter, FS 280 (modified shape, spacer plate deleted)
3. Nameplate (plastic)
4. Starter cup (new part number)
5. Clamp/Handlebar support, FS 160/180 (standardization)
1.=Carburetor
A modified version of carburetor 4119 120 0602 will
be installed from machine number X 29 643 202.
The original end cover 1120 121 0802 (light alloy
casting) has been deleted and replaced by the
version 1123 121 0801 (made of steel).
The steel end cover will be secured with the slightly
shorter flange head screws 4132 122 6600 which
replace the previous screws 1120 122 6601.
The type designation of the carburetor has been
changed from C1S-S3 & to C1S-S3 '.
323TI001
End cover
Service note================================================ieft: Original version
Right: New version
There is a difference in the thickness of the original
and new end covers. For this reason the cast end
cover must always be secured with flange head
screws 1120 122 6601 and the steel end cover only
with flange head screws 4132 122 6600.

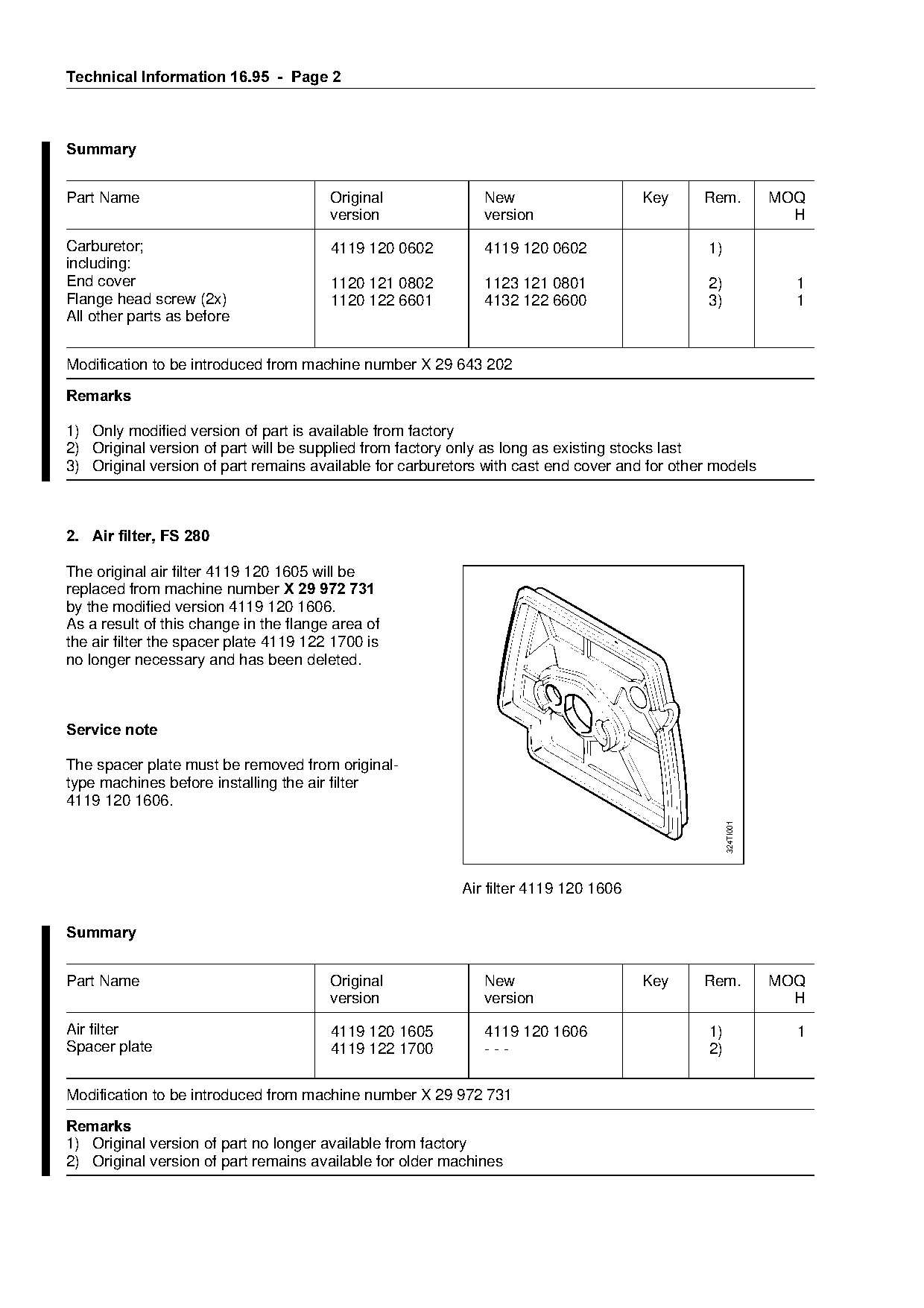

)Technical Information 16.95 - Page 2
6XPPDU\
Part Name Original New Key Rem. MOQ
version version H
Carburetor; 4119 120 0602 4119 120 0602 1)
including:
End cover 1120 121 0802 1123 121 0801 2) 1
Flange head screw (2x) 1120 122 6601 4132 122 6600 3) 1
All other parts as before
Modification to be introduced from machine number X 29 643 202
5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part will be supplied from factory only as long as existing stocks last
3) Original version of part remains available for carburetors with cast end cover and for other models
2.=Air filter, FS 280
The original air filter 4119 120 1605 will be
replaced from machine number X 29 972 731
by the modified version 4119 120 1606.
As a result of this change in the flange area of
the air filter the spacer plate 4119 122 1700 is
no longer necessary and has been deleted.
Service note
The spacer plate must be removed from original-
type machines before installing the air filter
4119 120 1606.
324TI001
Air filter 4119 120 1606
6XPPDU\
Part Name Original New Key Rem. MOQ
version version H
Air filter 4119 120 1605 4119 120 1606 1) 1
Spacer plate 4119 122 1700 --- 2)
Modification to be introduced from machine number X 29 972 731
5HPDUNV
1) Original version of part no longer available from factory
2) Original version of part remains available for older machines

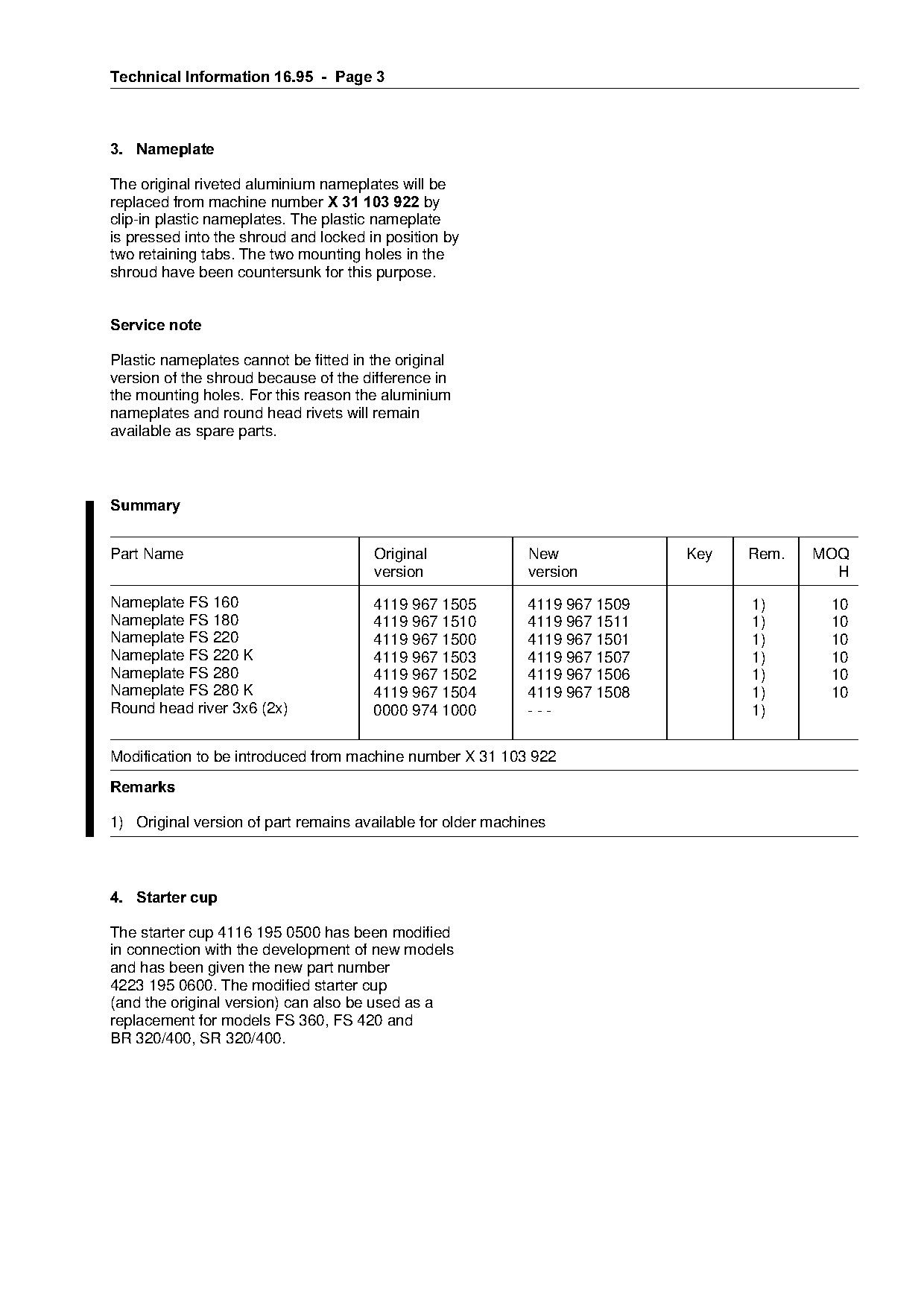

)Technical Information 16.95 - Page 3
3.=Nameplate
The original riveted aluminium nameplates will be
replaced from machine number X 31 103 922=by
clip-in plastic nameplates. The plastic nameplate
is pressed into the shroud and locked in position by
two retaining tabs. The two mounting holes in the
shroud have been countersunk for this purpose.
Service note
Plastic nameplates cannot be fitted in the original
version of the shroud because of the difference in
the mounting holes. For this reason the aluminium
nameplates and round head rivets will remain
available as spare parts.
6XPPDU\
Part Name Original
version
foNew
version
Key Rem. MOQ
H
Nameplate FS 160 4119 967 1505 4119 967 1509 1) 10
Nameplate FS 180 4119 967 1510 4119 967 1511 1) 10
Nameplate FS 220
4119 967 1500 4119 967 1501 1) 10
Nameplate FS 220 K 4119 967 1503 4119 967 1507 1) 10
Nameplate FS 280 4119 967 1502 4119 967 1506 1) 10
Nameplate FS 280 K 4119 967 1504 4119 967 1508 1) 10
Round head river 3x6 (2x) 0000 974 1000 --- 1)
Modification to be introduced from machine number X 31 103 922
5HPDUNV
1) Original version of part remains available for older machines
4.=Starter cup
The starter cup 4116 195 0500 has been modified
in connection with the development of new models
and has been given the new part number
4223 195 0600. The modified starter cup
(and the original version) can also be used as a
replacement for models FS 360, FS 420 and
BR 320/400, SR 320/400.

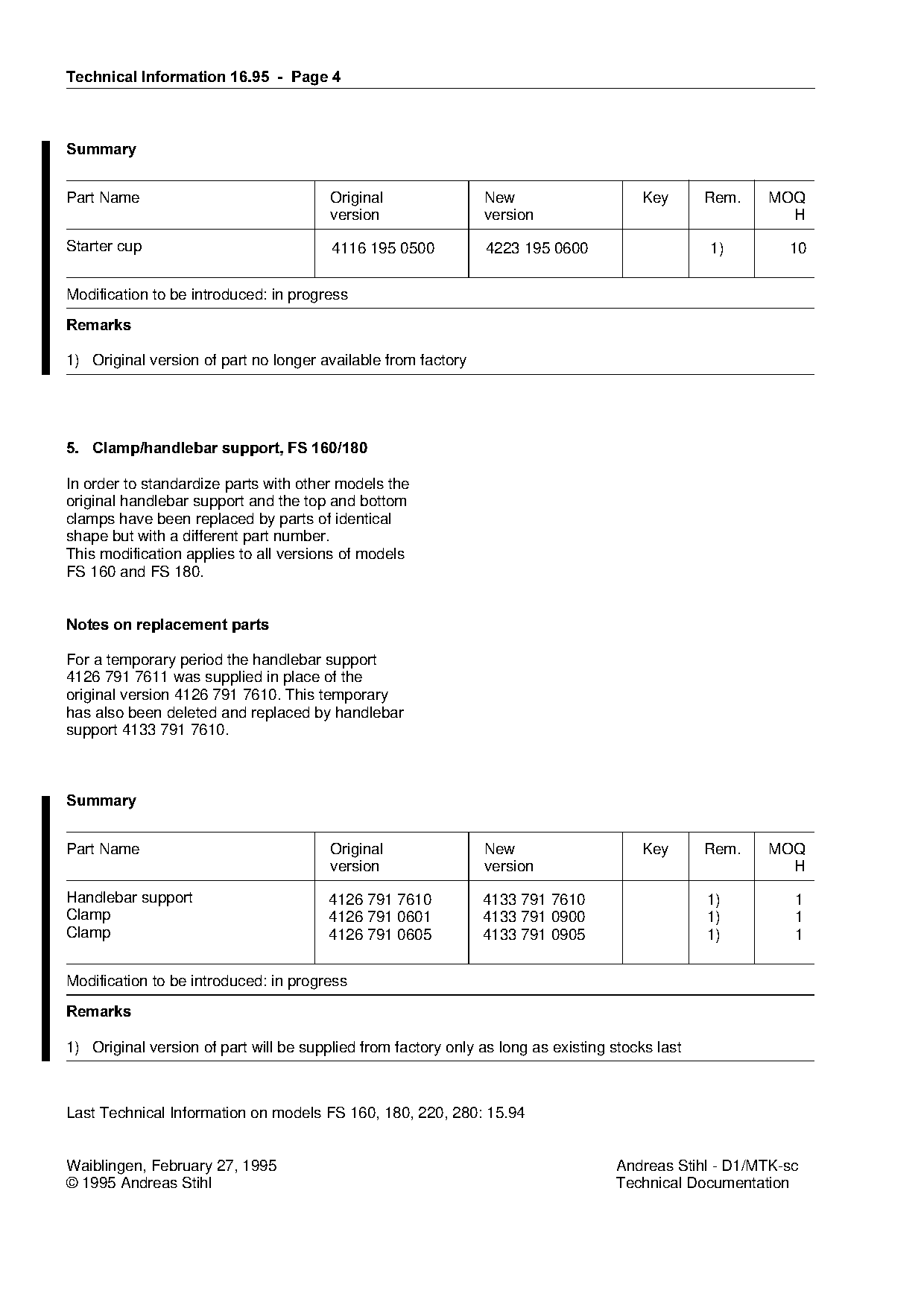

)Technical Information 16.95 - Page 4
6XPPDU\
Part Name Original New Key Rem. MOQ
version version H
Starter cup 4116 195 0500 4223 195 0600 1) 10
Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory
5.=Clamp/handlebar support, FS 160/180
In order to standardize parts with other models the
original handlebar support and the top and bottom
clamps have been replaced by parts of identical
shape but with a different part number.
This modification applies to all versions of models
FS 160 and FS 180.
Notes on replacement parts
For a temporary period the handlebar support
4126 791 7611 was supplied in place of the
original version 4126 791 7610. This temporary
has also been deleted and replaced by handlebar
support 4133 791 7610.
6XPPDU\
Part Name Original New Key Rem. MOQ
version version H
Handlebar support 4126 791 7610 4133 791 7610 1) 1
Clamp 4126 791 0601 4133 791 0900 1) 1
Clamp 4126 791 0605 4133 791 0905 1) 1
Modification to be introduced: in progress
5HPDUNV
1) Original version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on models FS 160, 180, 220, 280: 15.94
Waiblingen, February 27, 1995 Andreas Stihl - D1/MTK-sc
© 1995 Andreas Stihl Technical Documentation Page 2 of 4
Page 3 of 4
Page 4 of 4
