Technical Information · issue 17 of 1995
023 L: New low-noise version
Model 023 Chain Saws - Series 1123
Accessory changes & notes
Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.
Service note · 023 L
023 L low-noise version: distinct power and sound measurements
The 1.1 kW low-noise variant is not standard 023; cutting and equivalent sound levels are different measurements.
No exact-model IPL link: Exact 023 L is absent from structured IPL used_by labels, even on 023 L-titled sheets; source-only variant reference avoids silently binding it as standard 023.
- The TI introduces STIHL 023 L (low noise), series 1123, for noise-sensitive residential/public areas including hospitals, nursing homes, parks and zoos. “World’s quietest”, twelve 023 L saws equalling one standard 023, and the electric-typewriter comparison at 10 m / 33 ft are historical manufacturer claims, not independent tests or present-day noise compliance.
- Table columns are 023 L / 023 / 021 respectively: power 1.1 / 1.9 / 1.5 kW (1.47 / 2.55 / 2.0 bhp); weight 4.7 / 4.6 / 4.5 kg (10.4 / 10.1 / 9.9 lb). Cutting sound pressure at the operator’s ear is 92 / 103 / 100 dB(A), whereas EQUIVALENT sound pressure is 89 / 102 / 99 dB(A). These are not sound-power ratings. The weight configuration is not specified here.
- Equivalent sound pressure combines idle, cutting/full-load and racing/no-load measurements; individual values follow ISO 7182. No weighting formula is supplied. The 023 L cutting attachment refers to section 2.7; dashes for 023/021 do not mean those machines have no attachment.
- Section 3 lists ONLY differences from TI03.90. That baseline TI is not present in the 690 retained bulletins or resource filename inventory: omitted baseline specifications remain a named source gap, not zeros or values copied from standard 023. Local RA_135_01_01_01.PDF explicitly includes 023 L (PDF 3); this is corroboration, not recovery of TI03.90.
- Section 4 requires local/national safety rules and owner-manual precautions whenever starting for repair/maintenance. The exact 023 L owner’s manual referenced here and for adjustment was not identified in the bounded local manual/cover/resource inventory; a service manual is not that owner’s manual. No operation is authorized by this reference note.
- Footer reads March 2,1995, Andreas Stihl D 1/MTK-st Technical Documentation. “Last TI” reads 42.95 (California 41.94,52.94), despite issue 17.95: retain the apparent chronology discrepancy without silently correcting it. These are bibliographic pointers, not prerequisites for the stated changes.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 1 · TI 17/1995, p. 2 · TI 17/1995, p. 9 · TI 17/1995, p. 10 — Sections 1,2 introduction, 3–4 and footer.
No additional parts-table entry added.
Service note · 023 L
023 L engine: cylinder and acoustic damping parts
Low-speed torque design, clutch-side fin damper and handle-housing cover are variant-specific.
No exact-model IPL link: Exact 023 L is absent from structured IPL used_by labels, even on 023 L-titled sheets; source-only variant reference avoids silently binding it as standard 023.
- Ignition timing is designed for high torque at lower speeds, with maximum power at relatively low rpm; this TI gives no timing angle or rpm setting. Cylinder with piston is 1123 020 1213. Do not infer a standard-023 conversion from a shared engine family.
- Rubber element 1123 028 1400 fits BETWEEN cylinder cooling fins on the CLUTCH SIDE (figure 135TI008). Cover 1123 791 7505 in the HANDLE HOUSING reduces radiated sound (135TI009). These are two different acoustic parts, not interchangeable covers.
- Later 1123 B engine sheet lists cylinder 1213 at key 2 alongside other cylinders; O handle-housing sheet lists cover 7505 at key 25. Shared used_by labels omit 023 L, so these observations do not widen the note’s variant scope.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 2 · TI 17/1995, p. 10 — Section 2.1, figures 135TI008/009 and section 5 engine rows.
Part numbers (3)
- 1123 020 1213 — Cylinder with piston023 L new spare · 023 L
- 1123 028 1400 — Rubber elementclutch-side cylinder-fin damper · 023 L
- 1123 791 7505 — Handle-housing coveracoustic cover · 023 L
Service note · 023 L
023 L intake resonator: remove filter base before spark plug
Sealed two-channel cover and integral intake pipe form a tuned filter system; the filter pulls out for cleaning.
No exact-model IPL link: Exact 023 L is absent from structured IPL used_by labels, even on 023 L-titled sheets; source-only variant reference avoids silently binding it as standard 023.
- The encapsulated space between cover inlet and cylinder is sealed at component joints to form a defined filter-box volume. Two channels in cover 1123 140 1905 and this volume attenuate high frequencies. Channel dimensions, volume and target frequency are not specified, and no trimming or substitution is endorsed.
- Filter base 1123 120 3400 has an integral intake pipe immediately ahead of the carburetor, described as improving filling/torque. The filter base MUST BE REMOVED BEFORE unscrewing the spark plug. Air filter 1123 120 1601 sits in the carburetor box cover and is PULLED OUT for cleaning; the illustration shows its removal direction, not permission to run without it.
- Filter base includes item 5 slotted nut 1123 141 8310. Twist lock 1124 140 9500 is listed separately. The printed remark 2 on the twist-lock row incorrectly points to chain-sprocket-cover replacement wording; that mismatch is retained in the separate cover note, not interpreted as a twist lock replacing a sprocket cover.
- Later exact-title N air-filter 023 L sheet corroborates base at 6, slotted nut 10, filter 11, cover 12 and twist lock 13. It also lists WT-396; that later carburetor is not silently substituted for this TI’s WT-360.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 3 · TI 17/1995, p. 4 · TI 17/1995, p. 10 — Sections 2.2–2.3.2, figures 135TI010/012/013 and section 5 filter rows.
Part numbers (5)
- 1123 140 1905 — Carburetor box covertwo-channel resonator · 023 L
- 1123 120 3400 — Filter base with intake pipeincludes item 5; remove before spark plug · 023 L
- 1123 141 8310 — Slotted nutitem 5 included in filter base · 023 L
- 1123 120 1601 — Air filterpull out from cover for cleaning · 023 L
- 1124 140 9500 — Twist lockprinted remark 2 mismatch retained · 023 L
Service note · 023 L
023 L muffler: resonator and market-specific assembly
Integrated exhaust pipe and modified wall thickness reduce high-frequency noise; listed assembly is USA/CAN/AUS.
No exact-model IPL link: Exact 023 L is absent from structured IPL used_by labels, even on 023 L-titled sheets; source-only variant reference avoids silently binding it as standard 023.
- The muffler’s integrated exhaust pipe acts as a resonator; modified wall thickness changes the sound pattern. No dimensions, cutting/drilling procedure or unrestricted standard-muffler swap is given.
- Section 5 identifies muffler 1123 140 0607 for USA, CAN, AUS, INCLUDING item 7 cover plate 1123 145 0607 and item 8 screen 1123 141 9001. The market restriction is not expanded to all countries. Later J muffler sheet lists this assembly at 6, plate 7 and screen 8 alongside other mufflers; neighboring parts do not prove equivalence.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 4 · TI 17/1995, p. 10 — Section 2.4 figure 135TI014 and section 5 muffler rows.
Part numbers (3)
- 1123 140 0607 — Muffler USA/CAN/AUSincludes items 7 and 8 · 023 L
- 1123 145 0607 — Cover plateincluded item 7 · 023 L
- 1123 141 9001 — Screenincluded item 8 · 023 L
Service note · 023 L
023 L hand guard: separate bushing and lower annular buffer
Acoustic decoupling uses a hand-guard bushing; the lower guard/engine mounting also gets a different annular buffer.
No exact-model IPL link: Exact 023 L is absent from structured IPL used_by labels, even on 023 L-titled sheets; source-only variant reference avoids silently binding it as standard 023.
- Figure 135TI015 identifies hand guard(1) and rubber bushing(2); the bushing acoustically decouples the guard to reduce transmitted vibration. Bushing 1123 792 5505 is listed in section 5 and later H chain-brake sheet key 13. No replacement guard number is specified by this TI.
- At the LOWER HAND-GUARD/ENGINE-HOUSING mounting point shown by the arrow in 135TI018, annular buffer 1127 790 9900 replaces original 1123 790 9900 for 023 L. Remark 1 says the new buffer already exists for other models, but does not name them or authorize replacing every buffer on those models. The hand-guard bushing and annular buffer are not the same part.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 4 · TI 17/1995, p. 9 · TI 17/1995, p. 10 — Sections 2.5,2.10, figures 135TI015/018 and section 5 rows.
Part numbers (3)
- 1123 792 5505 — Rubber bushing on hand guardacoustic decoupling · 023 L
- 1123 790 9900 — Original annular bufferreplaced at indicated lower mounting · 023 L
- 1127 790 9900 — Annular buffer023 L lower mounting; remark 1 · 023 L
Service note · Accessory

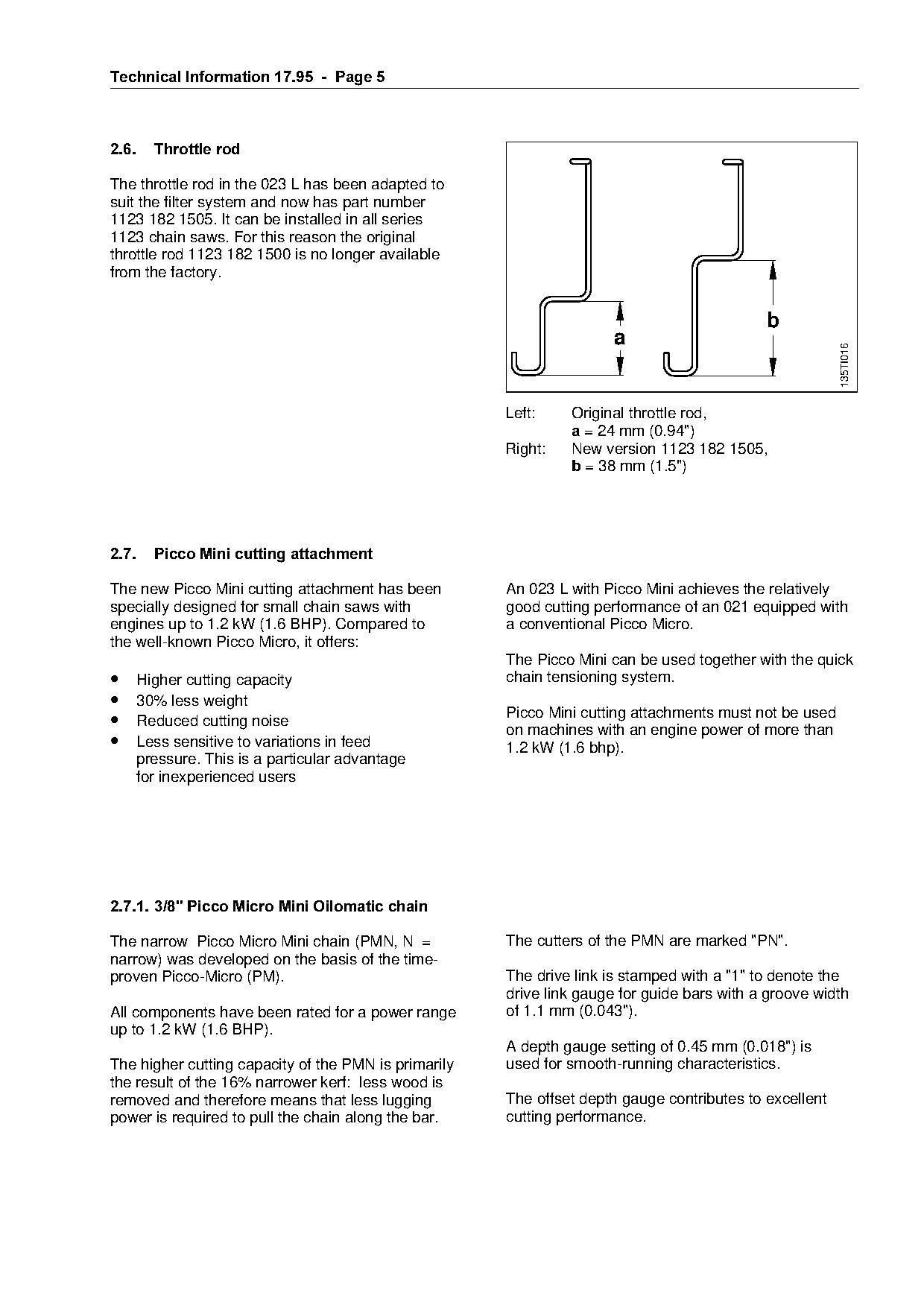

Picco Mini PMN chain: 1.2 kW ceiling and 0.45 mm depth setting
Narrow 1.1 mm chain is not a general upgrade for standard 021/023; preserve its power limit and identification marks.
- Picco Mini is designed for engines UP TO 1.2 kW (1.6 bhp) and MUST NOT BE USED on machines ABOVE 1.2 kW. It can be used with quick chain tensioning. The TI says 023 L/Picco Mini approaches 021/Picco Micro cutting performance; this comparison does NOT approve Picco Mini on the 1.5 kW 021 or 1.9 kW standard 023.

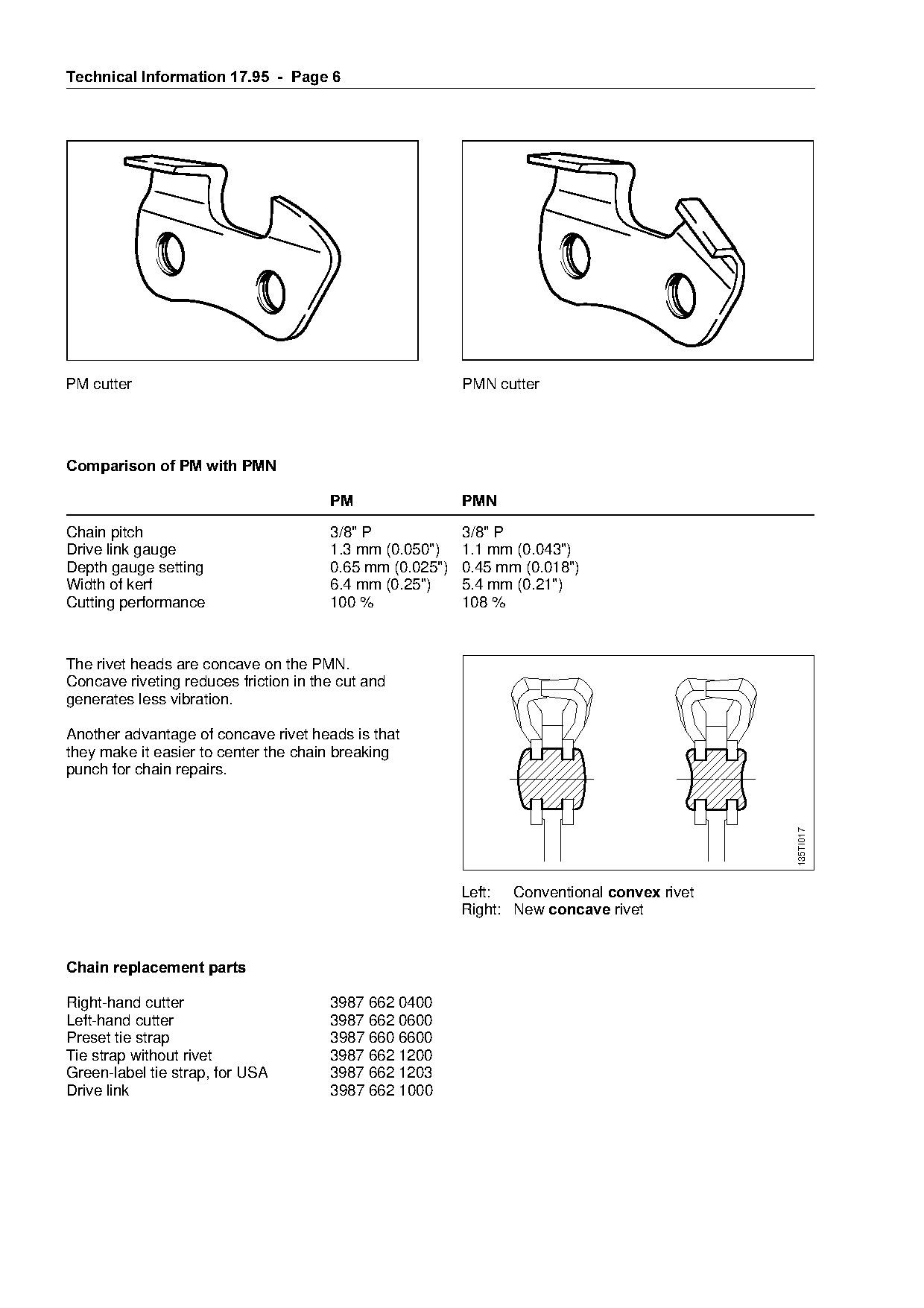

- PMN means Picco Micro Mini (N=narrow), derived from PM. Cutters are marked PN; drive links are stamped 1 for 1.1 mm /0.043 inch bar grooves. Offset depth gauge setting is 0.45 mm /0.018 inch, NOT PM’s 0.65 mm /0.025 inch.
- Comparison PM / PMN: both 3/8 P pitch; drive-link gauge 1.3 /1.1 mm (0.050 /0.043 inch); kerf 6.4 /5.4 mm (0.25 /0.21 inch); relative cutting performance 100 /108 percent. Stated 16% narrower kerf, 30% less attachment weight, lower cutting noise and less feed-pressure sensitivity are historical comparative claims, not new measurements. No drive-link count or full chain order number is given.
- Concave PMN rivet heads replace the illustrated conventional convex style, described as reducing friction/vibration and improving chain-breaking punch centering. The six listed replacement parts are retained separately, including green-label tie strap 3987 662 1203 for USA. No cutter handedness or riveted/preset distinction is collapsed.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 5 · TI 17/1995, p. 6 · TI 17/1995, p. 9 — Sections 2.7–2.7.1, all comparison/parts rows and section 3 power context.
Part numbers (6)
- 3987 662 0400 — Right-hand cutterPMN replacement · Picco Mini PMN chain: 1.2 kW ceiling and 0.45 mm depth setting
- 3987 662 0600 — Left-hand cutterPMN replacement · Picco Mini PMN chain: 1.2 kW ceiling and 0.45 mm depth setting
- 3987 660 6600 — Preset tie strapPMN replacement with rivets · Picco Mini PMN chain: 1.2 kW ceiling and 0.45 mm depth setting
- 3987 662 1200 — Tie strap without rivetPMN replacement · Picco Mini PMN chain: 1.2 kW ceiling and 0.45 mm depth setting
- 3987 662 1203 — Green-label tie strapUSA · Picco Mini PMN chain: 1.2 kW ceiling and 0.45 mm depth setting
- 3987 662 1000 — Drive linkPMN replacement · Picco Mini PMN chain: 1.2 kW ceiling and 0.45 mm depth setting
Service note · Accessory
PMN sharpening and repair: special depth gauge, shared PM tooling
Gauge 0000 893 4000 preserves 0.45 mm depth; PM USG settings and 1.3 mm clamping rails are specified for PMN.
- PMN uses the SAME sharpening angles as PM, but depth-gauge setting is 0.45 mm (0.018 inch). Filing gauge 0000 893 4000 is modified for that depth. No numerical angles or file diameter are supplied here, so none are fabricated from a later chain generation.
- Use PM setting data on the USG and the clamping rails for 1.3 mm (0.050 inch) drive links for PMN. Shared RAILS do not change PMN’s 1.1 mm chain gauge or its 0.45 mm depth setting. A full USG setup procedure is not supplied in this TI.
- PMN repair can use the SAME dies and punches as standard PM, e.g. NG4 or NG5. A FEW convex rivet heads do not interfere with smooth running; this is not blanket approval for arbitrary rivets or all modern chain families. Picco Mini’s section 2.7 power ceiling remains 1.2 kW.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 7 — Section 2.7.2 complete sharpening and repair guidance.
Part numbers (1)
- 0000 893 4000 — Modified filing gaugePMN 0.45 mm depth setting · PMN sharpening and repair: special depth gauge, shared PM tooling
Service note · Accessory

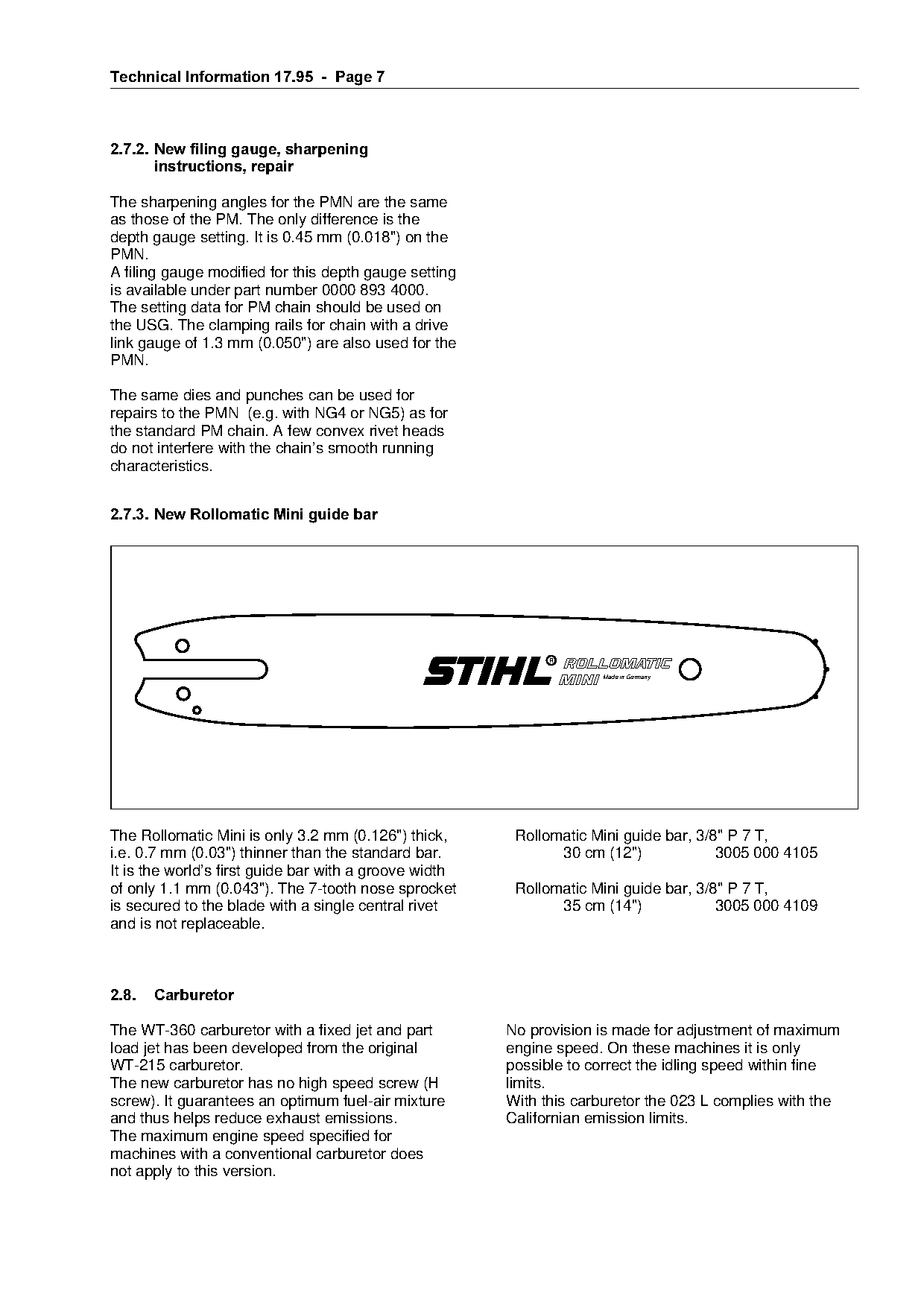

Rollomatic Mini bars: 1.1 mm groove and nonreplaceable nose
30 cm 4105 and 35 cm 4109 bars use a 7-tooth 3/8 P nose sprocket secured by one central rivet.
- Rollomatic Mini blade thickness is 3.2 mm (0.126 inch), 0.7 mm (0.03 inch) thinner than the stated standard comparison bar. Groove width is 1.1 mm (0.043 inch). Blade thickness and groove width are different dimensions.
- The 7-tooth nose sprocket is secured by ONE CENTRAL RIVET and is NOT REPLACEABLE. The seven teeth are not a powerhead sprocket or chain drive-link count. Both bars are 3/8 P 7T:30 cm /12 inch 3005 000 4105 and 35 cm /14 inch 3005 000 4109.
- The source calls this the first 1.1 mm groove bar; that is a historical claim. Section 2.7 permits quick chain tensioning but prohibits this Picco Mini system above 1.2 kW. No complete powerhead-fitment list, drive-link count or tip-repair permission is inferred from series 3005.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 5 · TI 17/1995, p. 7 — Sections 2.7 and 2.7.3, bar drawing and both part rows.
Part numbers (2)
- 3005 000 4105 — Rollomatic Mini 30 cm /12 inch3/8 P 7T;1.1 mm groove · Rollomatic Mini bars: 1.1 mm groove and nonreplaceable nose
- 3005 000 4109 — Rollomatic Mini 35 cm /14 inch3/8 P 7T;1.1 mm groove · Rollomatic Mini bars: 1.1 mm groove and nonreplaceable nose
Service note · 023 L

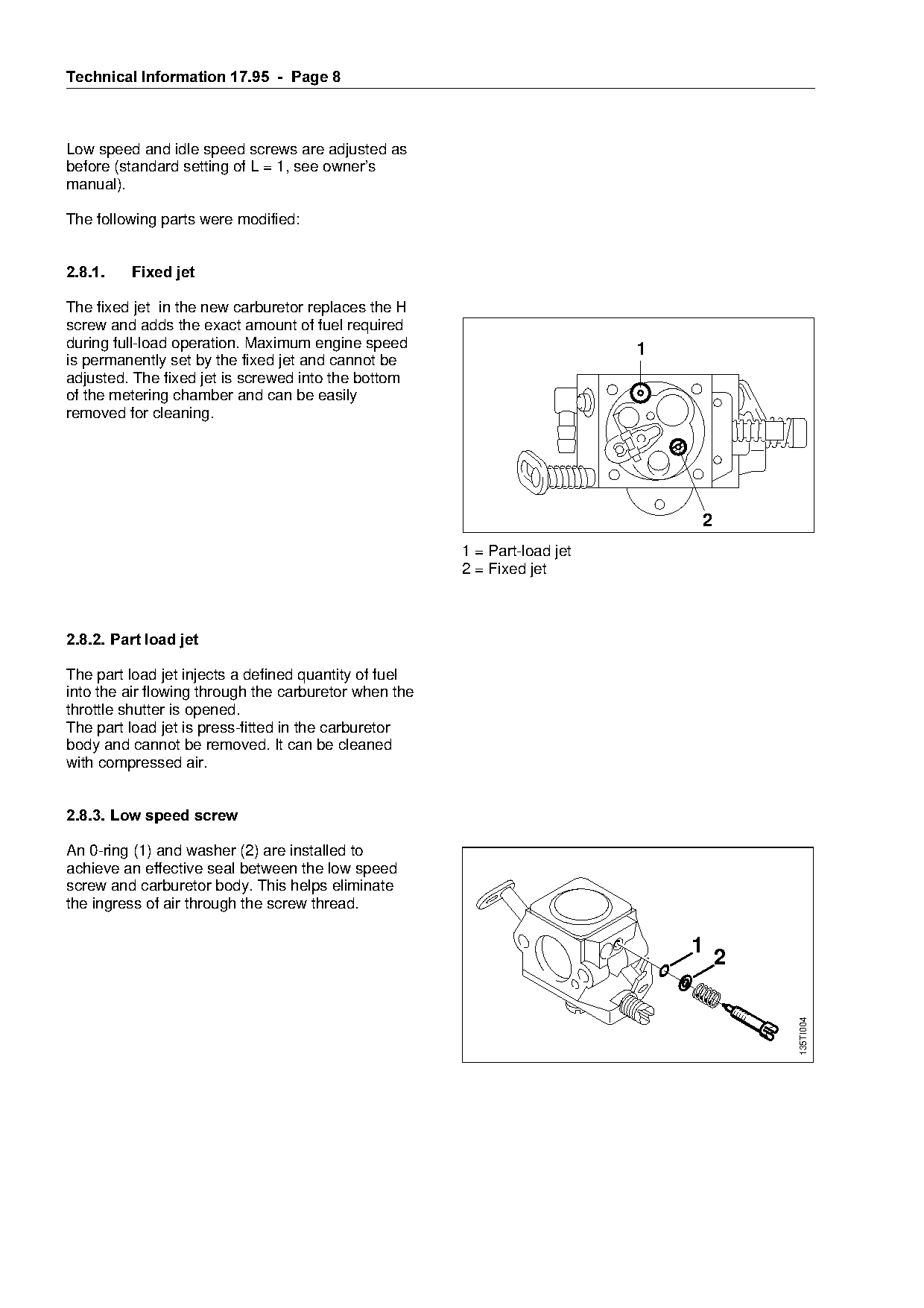

023 L WT-360: no high-speed adjustment, distinct jet service rules
Removable fixed jet and nonremovable press-fit part-load jet must not be confused; later jet-number difference remains unresolved.
No exact-model IPL link: Exact 023 L is absent from structured IPL used_by labels, even on 023 L-titled sheets; source-only variant reference avoids silently binding it as standard 023.
- WT-360 derives from WT-215 but has a FIXED JET instead of an H screw and a part-load jet. Conventional-carburetor maximum-speed specifications DO NOT APPLY. Maximum engine speed CANNOT BE ADJUSTED; only idle correction within fine limits is provided. California-emission compliance is the historical TI claim, not new certification.
- TI prints standard L=1 and refers to the owner’s manual. Exact 023 L service manual RA_135_01_01_01.PDF section 10.2.4 (PDF 44, RIGHT column) corroborates one full turn from the seated L position and fixed maximum speed; its left columns continue a different three-screw procedure and MUST NOT be blended into 023 L instructions. No H setting or maximum rpm is invented here. The referenced owner’s manual remains unlocated; this is not a complete running-adjustment procedure.
- In the metering-chamber drawing, 1=PART-LOAD JET and 2=FIXED JET. Fixed jet screws into the chamber bottom and may be removed for cleaning. Part-load jet is PRESS-FITTED and CANNOT BE REMOVED; the TI allows compressed-air cleaning. These figure numbers are not section 5 item numbers.
- Low-speed screw is sealed by O-ring(1) and washer(2) to reduce air entry through its thread. Gray grommet 1123 123 7502 has TWO openings, L and LA, not an H access opening. Figure 135TI005 shows original on LEFT and 023 L grommet on RIGHT.

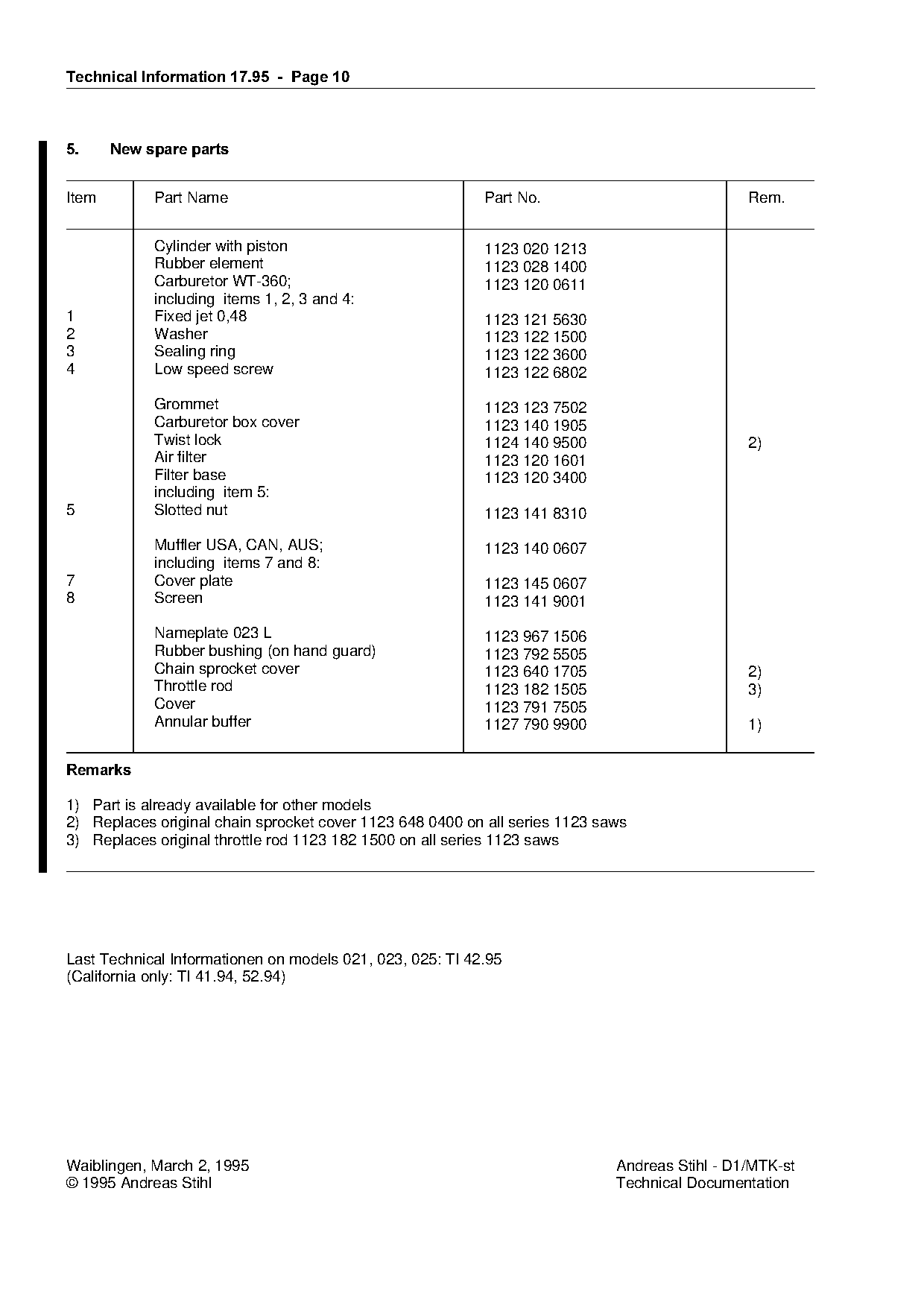

- Complete WT-360 1123 120 0611 includes section 5 items 1–4: fixed jet 0,48 number 1123 121 5630, washer 1123 122 1500, sealing ring 1123 122 3600 and low-speed screw 1123 122 6802. No unit for 0,48 is invented. The separately mentioned part-load jet has no part number in this TI.
- Later R WT-360/WT-396 IPL instead lists 0.48 fixed jet 1121 121 5604 at key 3 and 0.46 jet 1123 121 5631 at 4. The TI’s 1123 121 5630 is NOT silently replaced by 1121 121 5604 or interpreted as a proven supersession. Later WT-396 and other jet sizes are not settings for this TI’s WT-360.
- Historical TI guidance for the stated variant or accessory only; catalog links and shared numbers are not proof of unrestricted interchange. No serial changeover, current supply guarantee or physical fitment test is implied. No hardware operation was performed.
Source: TI 17/1995, p. 7 · TI 17/1995, p. 8 · TI 17/1995, p. 9 · TI 17/1995, p. 10 — Sections 2.8–2.9, figures 135TI004/005 and section 5 carburetor rows.
Part numbers (6)
- 1123 120 0611 — Carburetor WT-360includes section 5 items 1–4 · 023 L
- 1123 121 5630 — Fixed jet 0,48item 1; removable for cleaning · 023 L
- 1123 122 1500 — Washeritem 2; low-speed screw seal · 023 L
- 1123 122 3600 — Sealing ringitem 3; low-speed screw seal · 023 L
- 1123 122 6802 — Low speed screwitem 4; L setting · 023 L

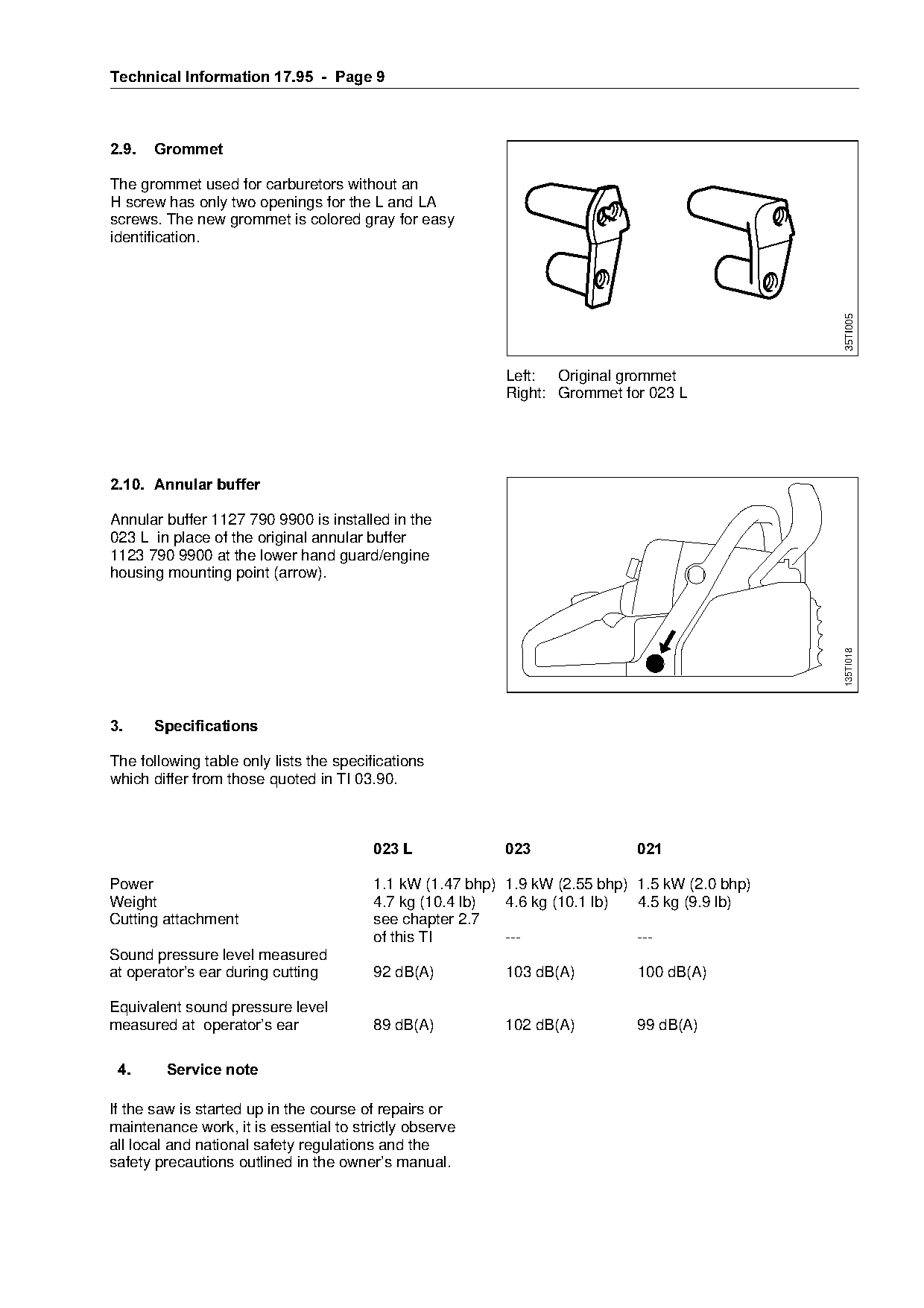

- 1123 123 7502 — Gray grommetL/LA openings only · 023 L
Full text

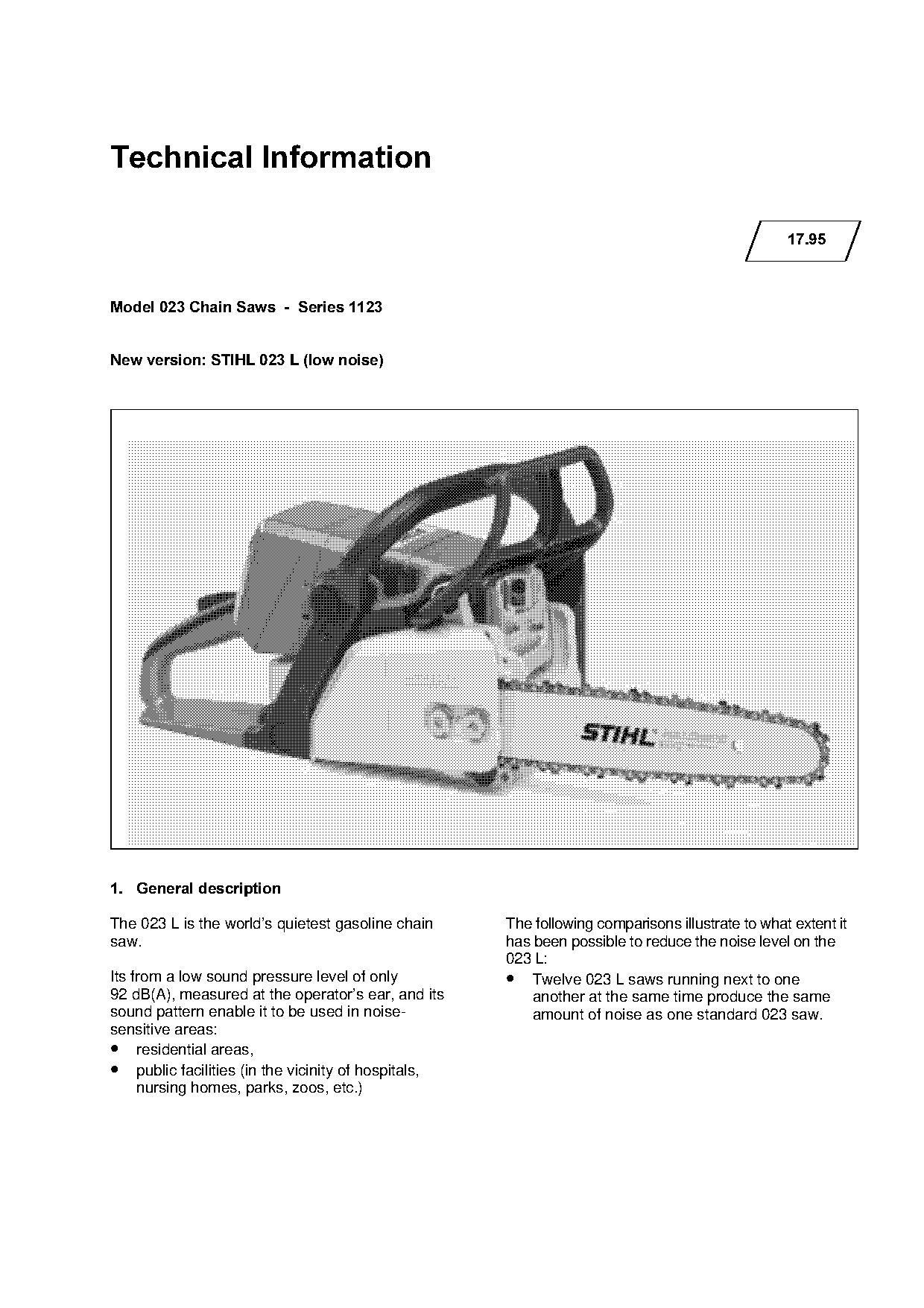

Page 1 of 10
Text of page 1 — search, copy, screen readers
Technical Information
17.95
Model 023 Chain Saws - Series 1123
New version: STIHL 023 L =low noise
1.=General description
The 023 L is the world’s quietest gasoline chain The following comparisons illustrate to what extent it
saw. has been possible to reduce the noise level on the
023 L:
Its from a low sound pressure level of only • Twelve 023 L saws running next to one
92 dB(A), measured at the operator’s ear, and its another at the same time produce the same
sound pattern enable it to be used in noise- amount of noise as one standard 023 saw.
sensitive areas:
• residential areas,
• public facilities (in the vicinity of hospitals,
nursing homes, parks, zoos, etc.) Page 2 of 10

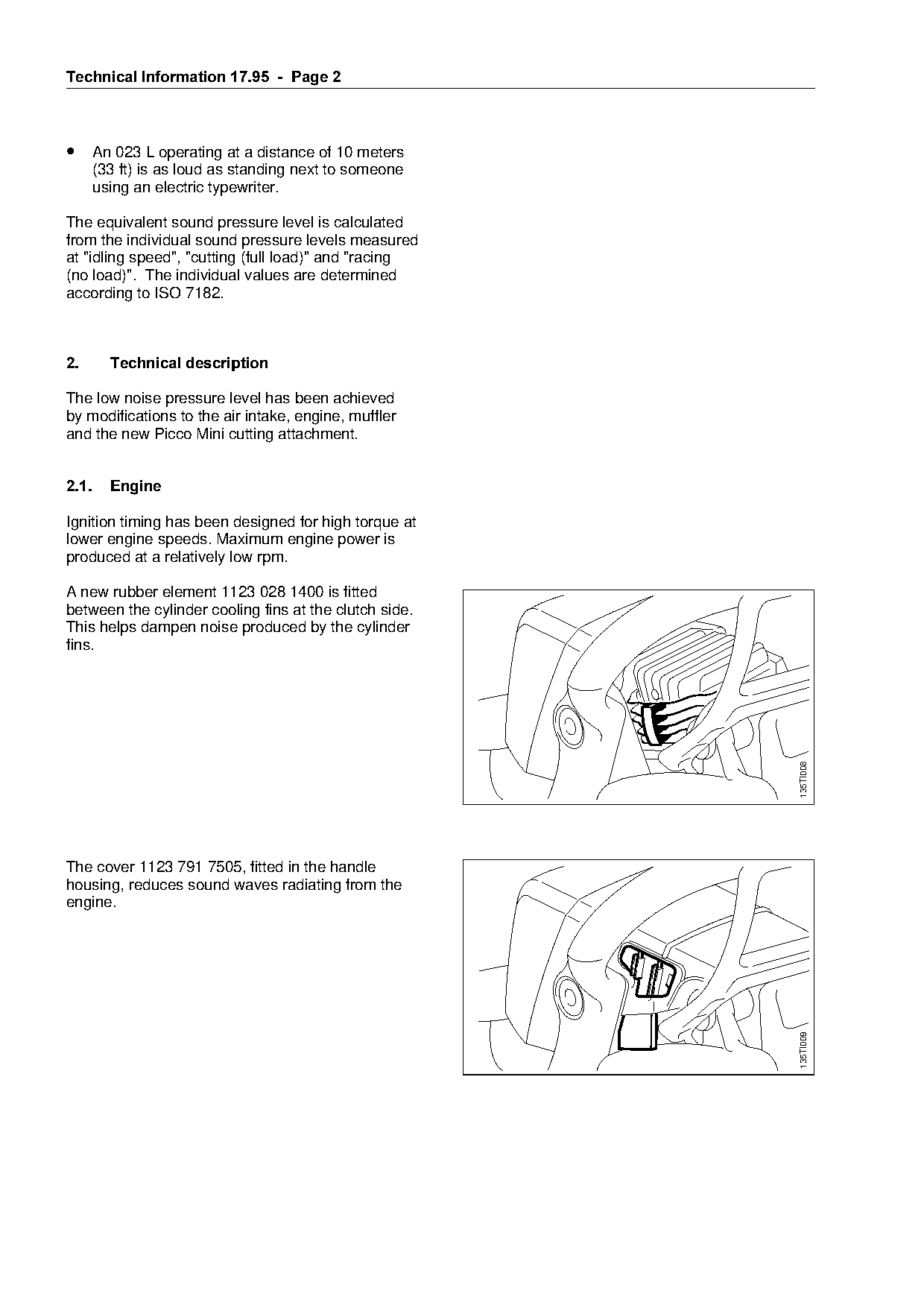

Text of page 2 — search, copy, screen readers
Technical Information 17.95 - Page 2
• An 023 L operating at a distance of 10 meters
(33 ft) is as loud as standing next to someone
using an electric typewriter.
The equivalent sound pressure level is calculated
from the individual sound pressure levels measured
at "idling speed", "cutting (full load)" and "racing
(no load)". The individual values are determined
according to ISO 7182.
2.=======Technical description
The low noise pressure level has been achieved
by modifications to the air intake, engine, muffler
and the new Picco Mini cutting attachment.
2.1.=====Engine
Ignition timing has been designed for high torque at
lower engine speeds. Maximum engine power is
produced at a relatively low rpm. fo
A new rubber element 1123 028 1400 is fitted
between the cylinder cooling fins at the clutch side.
This helps dampen noise produced by the cylinder
fins.
135TI008
The cover 1123 791 7505, fitted in the handle
housing, reduces sound waves radiating from the
engine.
135TI009 Page 3 of 10

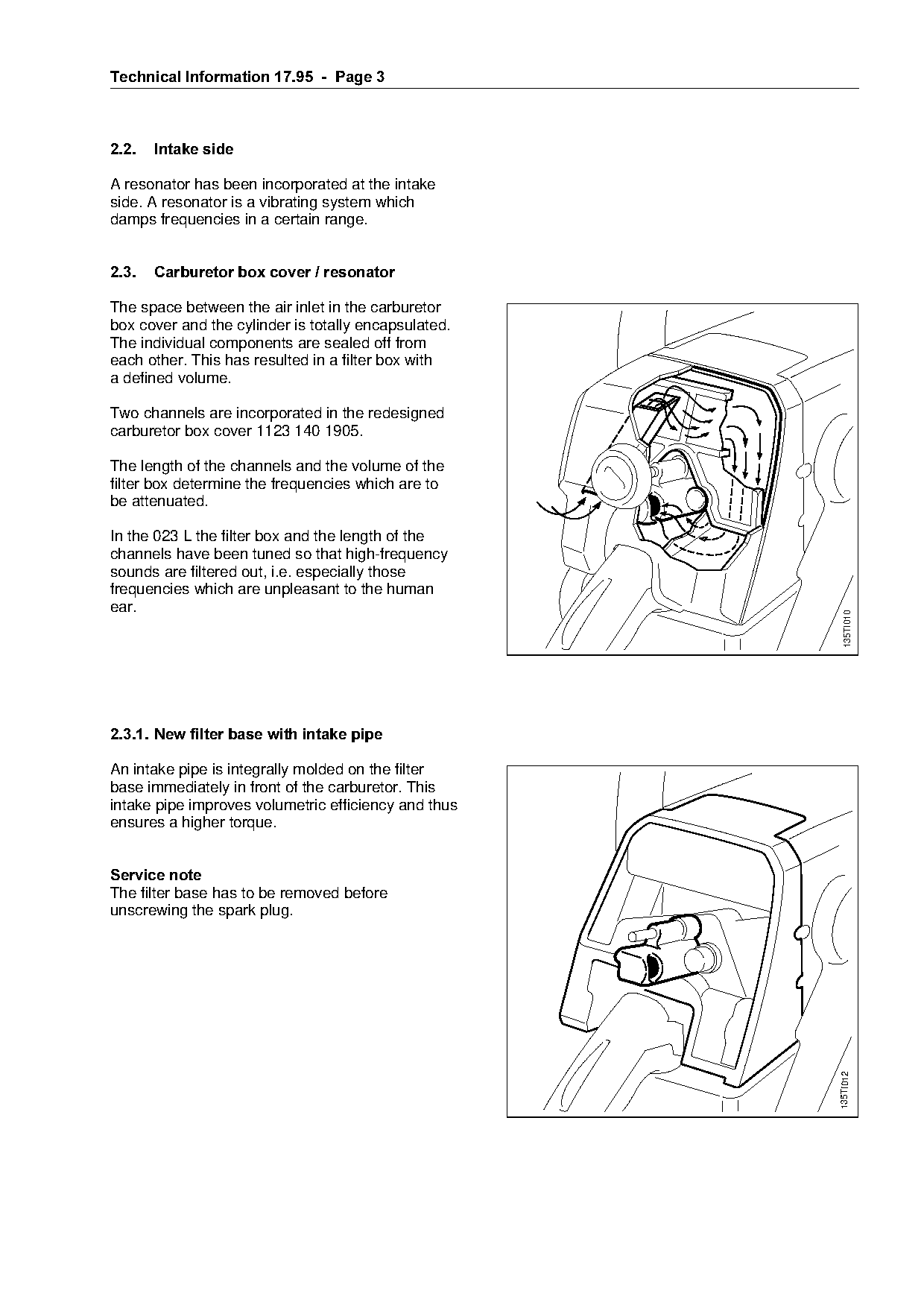

Text of page 3 — search, copy, screen readers
Technical Information 17.95 - Page 3
2.2.===Intake side
A resonator has been incorporated at the intake
side. A resonator is a vibrating system which
damps frequencies in a certain range.
2.3.===Carburetor box cover / resonator
The space between the air inlet in the carburetor
box cover and the cylinder is totally encapsulated.
The individual components are sealed off from
each other. This has resulted in a filter box with
a defined volume.
Two channels are incorporated in the redesigned
carburetor box cover 1123 140 1905.
The length of the channels and the volume of the
filter box determine the frequencies which are to
be attenuated.
In the 023 L the filter box and the length of the
channels have been tuned so that high-frequency
sounds are filtered out, i.e. especially those
frequencies which are unpleasant to the human
ear.
135TI010
2.3.1.=New filter base with intake pipe
An intake pipe is integrally molded on the filter
base immediately in front of the carburetor. This
intake pipe improves volumetric efficiency and thus
ensures a higher torque.
Service note
The filter base has to be removed before
unscrewing the spark plug.
135TI012 Page 4 of 10

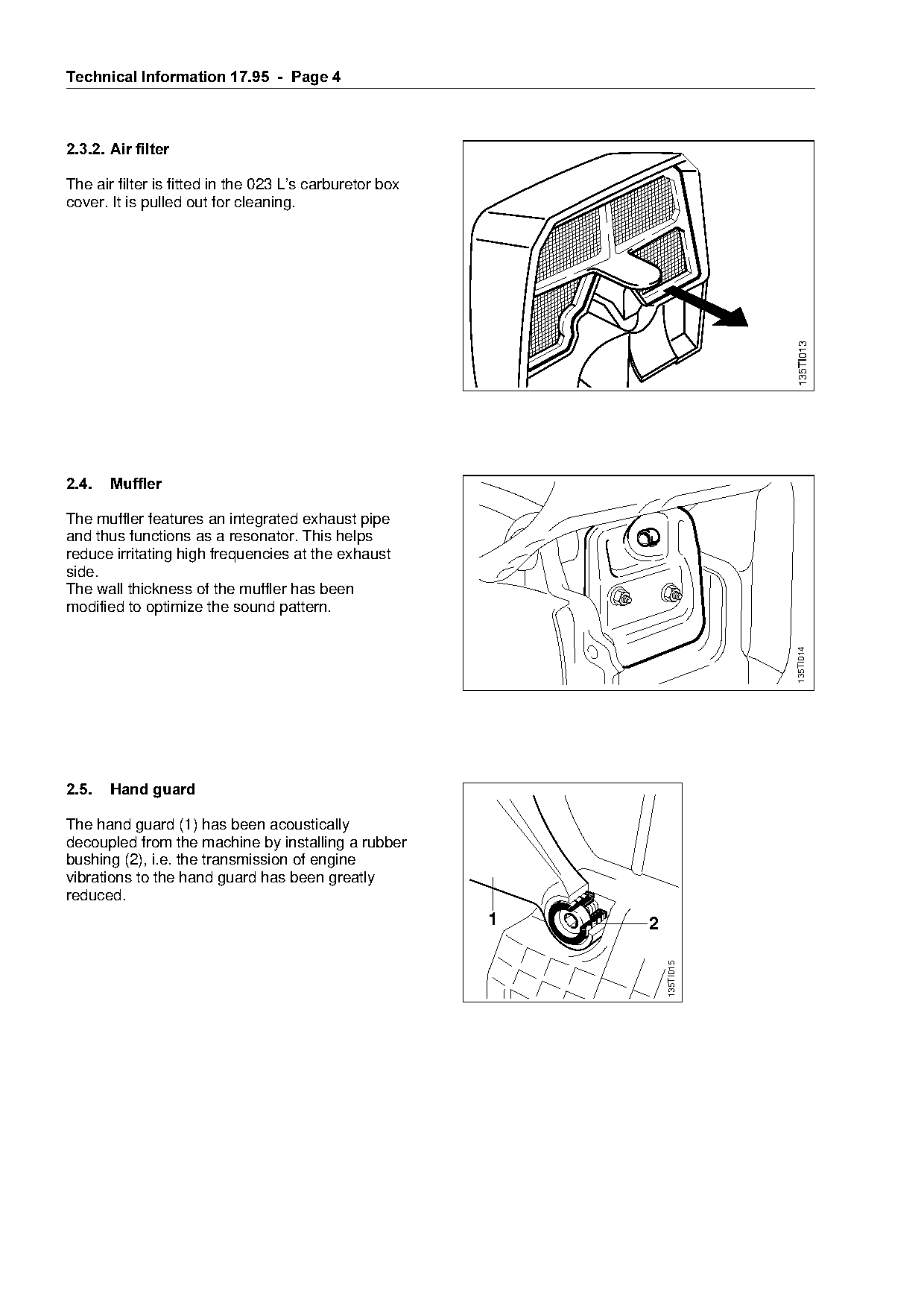

Text of page 4 — search, copy, screen readers
Technical Information 17.95 - Page 4
2.3.2.=Air filter
The air filter is fitted in the 023 L’s carburetor box
cover. It is pulled out for cleaning.
135TI013
2.4.===Muffler
The muffler features an integrated exhaust pipe
and thus functions as a resonator. This helps
reduce irritating high frequencies at the exhaust
side.
The wall thickness of the muffler has been
modified to optimize the sound pattern.
135TI014
2.5.===Hand guard
The hand guard (1) has been acoustically
decoupled from the machine by installing a rubber
bushing (2), i.e. the transmission of engine
vibrations to the hand guard has been greatly
reduced.
1 2
135TI015 Page 5 of 10
Text of page 5 — search, copy, screen readers
Technical Information 17.95 - Page 5
2.6.=====Throttle rod
The throttle rod in the 023 L has been adapted to
suit the filter system and now has part number
1123 182 1505. It can be installed in all series
1123 chain saws. For this reason the original
throttle rod 1123 182 1500 is no longer available
from the factory.
b
a
135TI016
Left: Original throttle rod,
a Z=OQ=mm (0.94")
Right: New version 1123 182 1505,
E = 38 mm (1.5")
2.7.=====Picco Mini cutting attachment=================fo
The new Picco Mini cutting attachment has been An 023 L with Picco Mini achieves the relatively
specially designed for small chain saws with good cutting performance of an 021 equipped with
engines up to 1.2 kW (1.6 BHP). Compared to a conventional Picco Micro.
the well-known Picco Micro, it offers:
The Picco Mini can be used together with the quick
• Higher cutting capacity chain tensioning system.
• 30% less weight
Picco Mini cutting attachments must not be used
• Reduced cutting noise
on machines with an engine power of more than
•
Less sensitive to variations in feed 1.2 kW (1.6 bhp).
pressure. This is a particular advantage
for inexperienced users
2.7.1.=3/8" Picco Micro Mini Oilomatic chain
The narrow Picco Micro Mini chain (PMN, N = The cutters of the PMN are marked "PN".
narrow) was developed on the basis of the time-
proven Picco-Micro (PM). The drive link is stamped with a "1" to denote the
drive link gauge for guide bars with a groove width
All components have been rated for a power range of 1.1 mm (0.043").
up to 1.2 kW (1.6 BHP).
A depth gauge setting of 0.45 mm (0.018") is
The higher cutting capacity of the PMN is primarily used for smooth-running characteristics.
the result of the 16% narrower kerf: less wood is
removed and therefore means that less lugging The offset depth gauge contributes to excellent
power is required to pull the chain along the bar. cutting performance. Page 6 of 10
Text of page 6 — search, copy, screen readers
Technical Information 17.95 - Page 6
PM cutter PMN cutter
Comparison of PM with PMN
30 301
Chain pitch 3/8" P 3/8" P
Drive link gauge
Depth gauge setting
1.3 mm (0.050")
0.65 mm (0.025")
1.1 mm (0.043")
0.45 mm (0.018")
Width of kerf 6.4 mm (0.25") 5.4 mm (0.21")
Cutting performance 100 % 108 %
The rivet heads are concave on the PMN.
Concave riveting reduces friction in the cut and
generates less vibration.
Another advantage of concave rivet heads is that
they make it easier to center the chain breaking
punch for chain repairs.
135TI017
Left: Conventional convex=rivet
Right: New FRQFDYH rivet
Chain replacement parts
Right-hand cutter 3987 662 0400
Left-hand cutter 3987 662 0600
Preset tie strap 3987 660 6600
Tie strap without rivet 3987 662 1200
Green-label tie strap, for USA 3987 662 1203
Drive link 3987 662 1000 Page 7 of 10
Text of page 7 — search, copy, screen readers
Technical Information 17.95 - Page 7
2.7.2.=New filing gauge, sharpening
instructions, repair
The sharpening angles for the PMN are the same
as those of the PM. The only difference is the
depth gauge setting. It is 0.45 mm (0.018") on the
PMN.
A filing gauge modified for this depth gauge setting
is available under part number 0000 893 4000.
The setting data for PM chain should be used on
the USG. The clamping rails for chain with a drive
link gauge of 1.3 mm (0.050") are also used for the
PMN.
The same dies and punches can be used for
repairs to the PMN (e.g. with NG4 or NG5) as for
the standard PM chain. A few convex rivet heads
do not interfere with the chain’s smooth running
characteristics.
2.7.3.=New Rollomatic Mini guide bar
Made in Germany
The Rollomatic Mini is only 3.2 mm (0.126") thick, Rollomatic Mini guide bar, 3/8" P 7 T,
i.e. 0.7 mm (0.03") thinner than the standard bar. 30 cm (12") 3005 000 4105
It is the world’s first guide bar with a groove width
of only 1.1 mm (0.043"). The 7-tooth nose sprocket Rollomatic Mini guide bar, 3/8" P 7 T,
is secured to the blade with a single central rivet 35 cm (14") 3005 000 4109
and is not replaceable.
2.8.===Carburetor
The WT-360 carburetor with a fixed jet and part No provision is made for adjustment of maximum
load jet has been developed from the original engine speed. On these machines it is only
WT-215 carburetor. possible to correct the idling speed within fine
The new carburetor has no high speed screw (H limits.
screw). It guarantees an optimum fuel-air mixture With this carburetor the 023 L complies with the
and thus helps reduce exhaust emissions. Californian emission limits.
The maximum engine speed specified for
machines with a conventional carburetor does
not apply to this version. Page 8 of 10
Text of page 8 — search, copy, screen readers
Technical Information 17.95 - Page 8
Low speed and idle speed screws are adjusted as
before (standard setting of L = 1, see owner’s
manual).
The following parts were modified:
2.8.1.===Fixed jet
The fixed jet in the new carburetor replaces the H
screw and adds the exact amount of fuel required
during full-load operation. Maximum engine speed 1
is permanently set by the fixed jet and cannot be
adjusted. The fixed jet is screwed into the bottom
of the metering chamber and can be easily
removed for cleaning.
2
1 = Part-load jet
2 = Fixed jet
2.8.2.=Part load jet
The part load jet injects a defined quantity of fuel
into the air flowing through the carburetor when the
throttle shutter is opened.
The part load jet is press-fitted in the carburetor
body and cannot be removed. It can be cleaned
with compressed air.
2.8.3.=Low speed screw
An 0-ring (1) and washer (2) are installed to
achieve an effective seal between the low speed
screw and carburetor body. This helps eliminate
the ingress of air through the screw thread.
1
2
135TI004 Page 9 of 10
Text of page 9 — search, copy, screen readers
Technical Information 17.95 - Page
2.9.===Grommet
The grommet used for carburetors without an
H screw has only two openings for the L and LA
screws. The new grommet is colored gray for easy
identification.
35TI005
Left: Original grommet
Right: Grommet for 023 L
2.10.=Annular buffer
Annular buffer 1127 790 9900 is installed in the
023 L in place of the original annular buffer
1123 790 9900 at the lower hand guard/engine
housing mounting point (arrow).
135TI018
3.=====Specifications
The following table only lists the specifications
which differ from those quoted in TI 03.90.
023 L=============023===============021
Power 1.1 kW (1.47 bhp) 1.9 kW (2.55 bhp) 1.5 kW (2.0 bhp)
Weight 4.7 kg (10.4 lb) 4.6 kg (10.1 lb) 4.5 kg (9.9 lb)
Cutting attachment see chapter 2.7
of this TI --- ---
Sound pressure level measured
at operator’s ear during cutting 92 dB(A) 103 dB(A) 100 dB(A)
Equivalent sound pressure level
measured at operator’s ear 89 dB(A) 102 dB(A) 99 dB(A)
4.=====Service note
If the saw is started up in the course of repairs or
maintenance work, it is essential to strictly observe
all local and national safety regulations and the
safety precautions outlined in the owner’s manual. Page 10 of 10
Text of page 10 — search, copy, screen readers
Technical Information 17.95 - Page 10
5.=====New spare parts
Item Part Name Part No. Rem.
Cylinder with piston 1123 020 1213
Rubber element 1123 028 1400
Carburetor WT-360; 1123 120 0611
including items 1, 2, 3 and 4:
1 Fixed jet 0,48 1123 121 5630
2 Washer 1123 122 1500
3 Sealing ring 1123 122 3600
4 Low speed screw 1123 122 6802
Grommet 1123 123 7502
Carburetor box cover 1123 140 1905
Twist lock 1124 140 9500 2)
Air filter 1123 120 1601
Filter base 1123 120 3400
including item 5:
5 Slotted nut 1123 141 8310
Muffler USA, CAN, AUS;
including items 7 and 8:
1123 140 0607
7 Cover plate 1123 145 0607
8 Screen 1123 141 9001
Nameplate 023 L 1123 967 1506
Rubber bushing (on hand guard) 1123 792 5505
Chain sprocket cover 1123 640 1705 2)
Throttle rod 1123 182 1505 3)
Cover 1123 791 7505
Annular buffer 1127 790 9900 1)
5HPDUNV
1) Part is already available for other models
2) Replaces original chain sprocket cover 1123 648 0400 on all series 1123 saws
3) Replaces original throttle rod 1123 182 1500 on all series 1123 saws
Last Technical Informationen on models 021, 023, 025: TI 42.95
(California only: TI 41.94, 52.94)
Waiblingen, March 2, 1995 Andreas Stihl - D1/MTK-st
© 1995 Andreas Stihl Technical Documentation Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
