Technical Information · issue 18 of 1995

HD air filter; ignition system

Model 084 Chain Saws - Series 1124

IssueTI 18/1995

Engine family 1124

From serial 31 237 198

Part changes (1)

Was	Becomes	What the bulletin says
1124 400 1306	1124 400 1308	The original version 1124 400 1306 (CDIC with electronic speed governor) will be replaced by version 1124 400 1308 (without electronic speed governor).

Full text

Page 1 of 4

Technical Information

18.95

Model 084 Chain Saws - Series 1124

&RQWHQWV

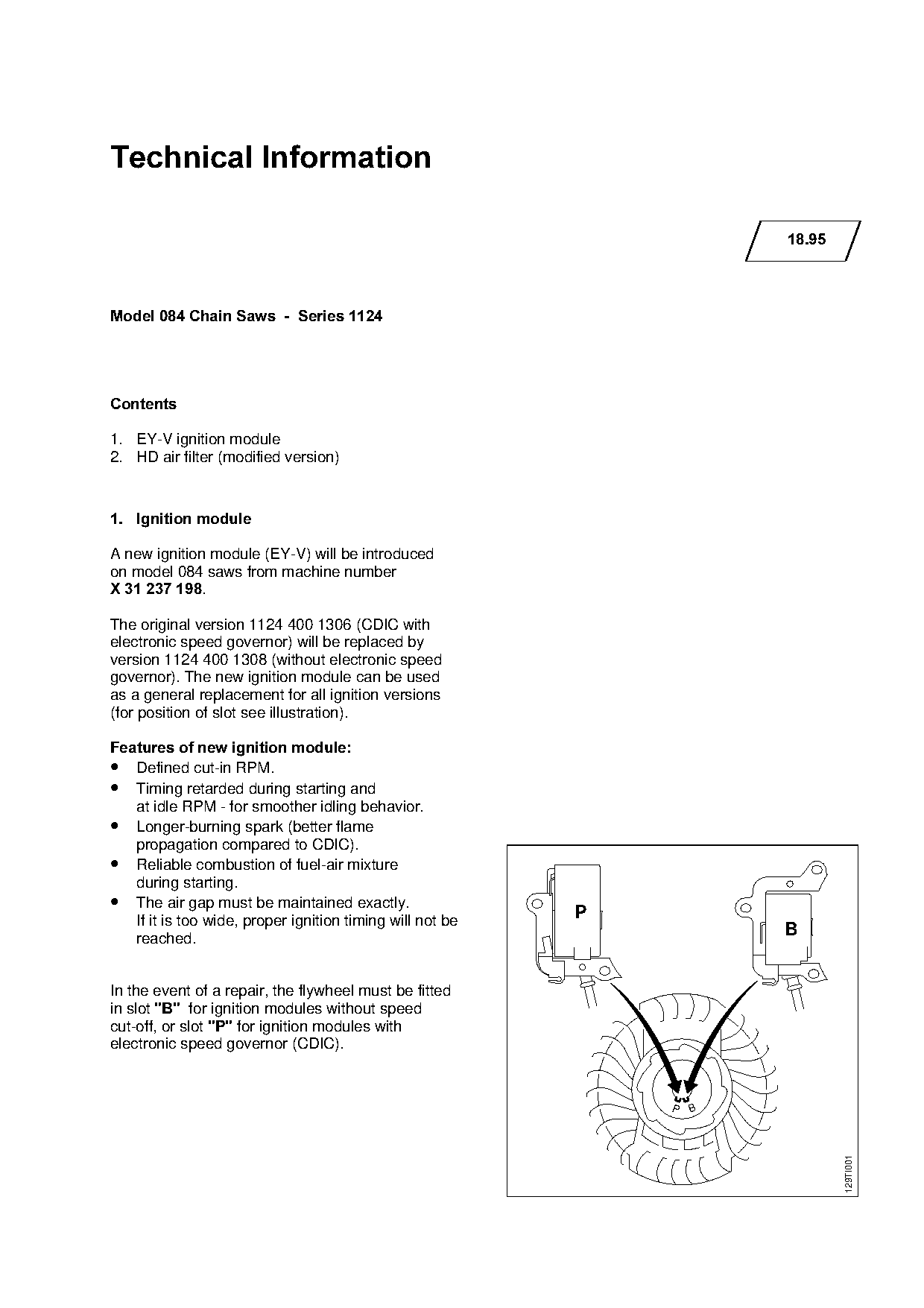

1. EY-V ignition module
2. HD air filter (modified version)

1.=Ignition module

A new ignition module (EY-V) will be introduced
on model 084 saws from machine number
X 31 237 198.

The original version 1124 400 1306 (CDIC with

electronic speed governor) will be replaced by
version 1124 400 1308 (without electronic speed
governor). The new ignition module can be used
as a general replacement for all ignition versions

(for position of slot see illustration).

Features of new ignition module
• Defined cut-in RPM.
• Timing retarded during starting and

at idle RPM - for smoother idling behavior.
• Longer-burning spark (better flame
propagation compared to CDIC).

• Reliable combustion of fuel-air mixture
during starting.
• The air gap must be maintained exactly.

If it is too wide, proper ignition timing will not be P
reached.
B

In the event of a repair, the flywheel must be fitted
in slot "B" =for ignition modules without speed
cut-off, or slot "P"=for ignition modules with
electronic speed governor (CDIC).

P B
129TI001
)Technical Information 18.95 - Page 2

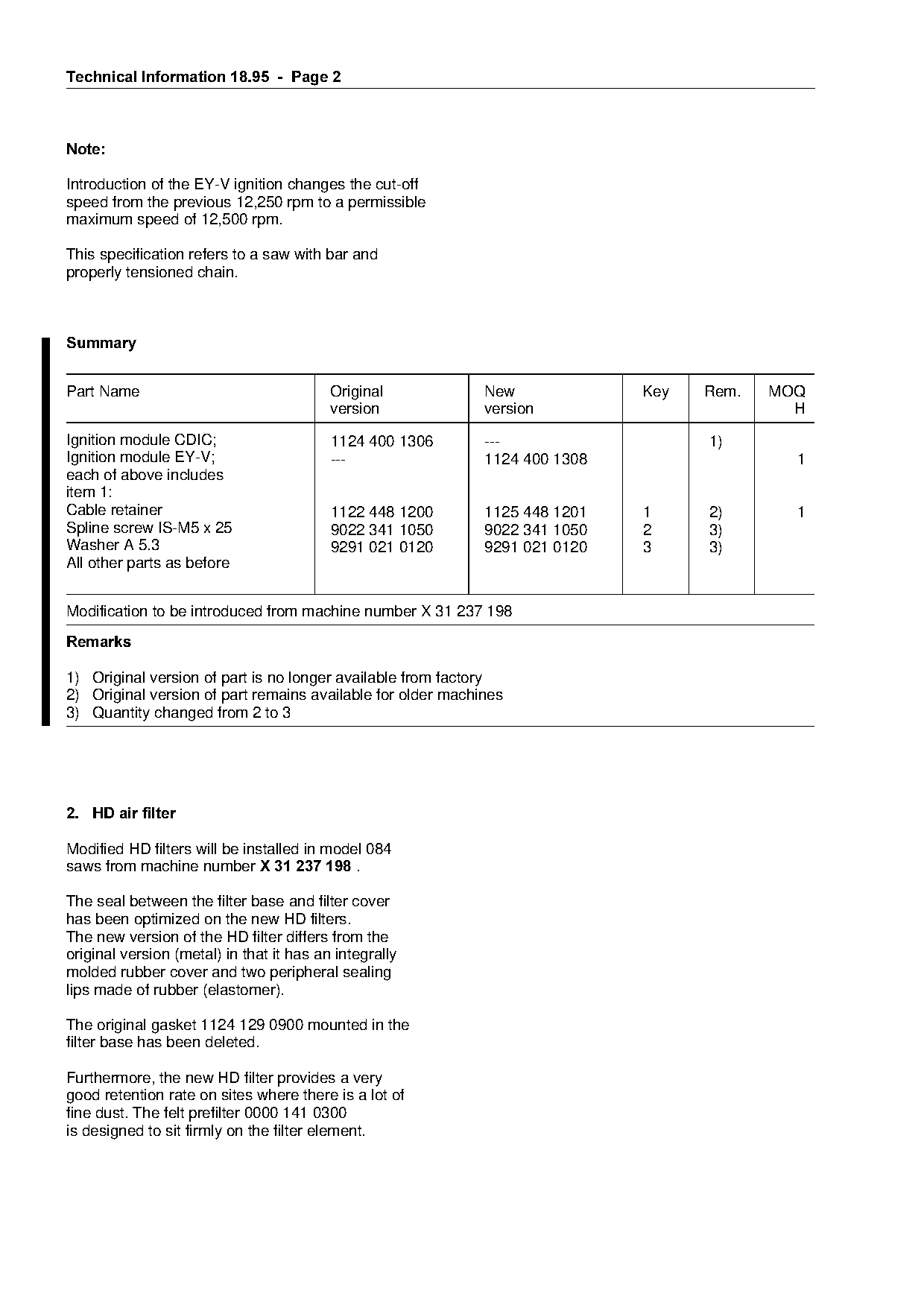

1RWH

Introduction of the EY-V ignition changes the cut-off
speed from the previous 12,250 rpm to a permissible
maximum speed of 12,500 rpm.

This specification refers to a saw with bar and
properly tensioned chain.

6XPPDU\

Part Name Original New Key Rem. MOQ
version version H

Ignition module CDIC; 1124 400 1306 --- 1)
Ignition module EY-V; --- 1124 400 1308 1
each of above includes
item 1:

Cable retainer 1122 448 1200 1125 448 1201 1 2) 1
Spline screw IS-M5 x 25 9022 341 1050 9022 341 1050 2 3)
Washer A 5.3
All other parts as before
9291 021 0120 fo
9291 021 0120 3 3)
Modification to be introduced from machine number X 31 237 198

5HPDUNV

1) Original version of part is no longer available from factory
2) Original version of part remains available for older machines

3) Quantity changed from 2 to 3

2.=HD air filter

Modified HD filters will be installed in model 084
saws from machine number X 31 237 198 .

The seal between the filter base and filter cover

has been optimized on the new HD filters.
The new version of the HD filter differs from the
original version (metal) in that it has an integrally

molded rubber cover and two peripheral sealing
lips made of rubber (elastomer).

The original gasket 1124 129 0900 mounted in the
filter base has been deleted.

Furthermore, the new HD filter provides a very
good retention rate on sites where there is a lot of
fine dust. The felt prefilter 0000 141 0300
is designed to sit firmly on the filter element.
)Technical Information 18.95 - Page 3

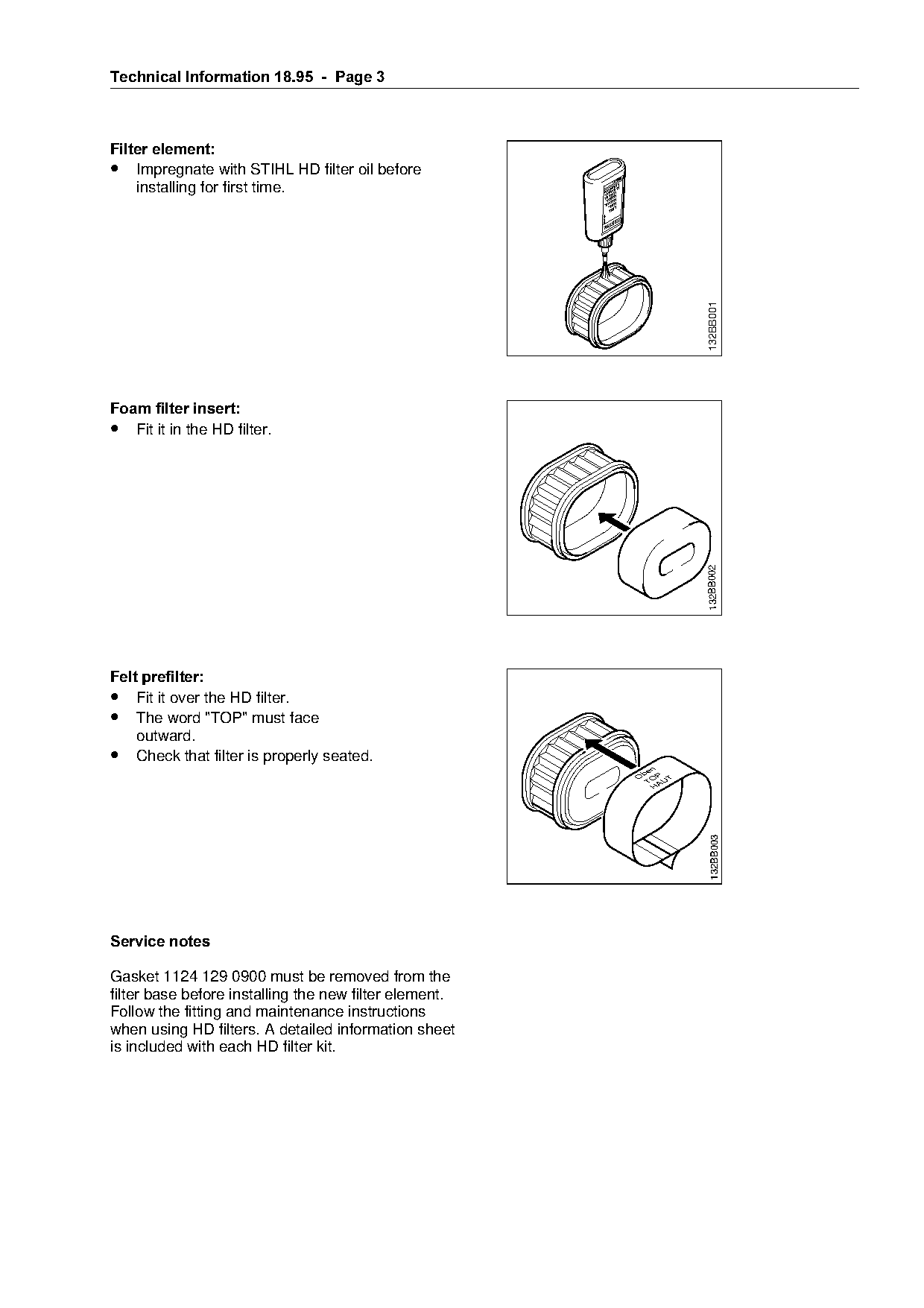

Filter element
• Impregnate with STIHL HD filter oil before
installing for first time.

132BB001
Foam filter insert
• Fit it in the HD filter.

132BB002

Felt prefilter
• Fit it over the HD filter.

• The word "TOP" must face
outward.

• Check that filter is properly seated.
en
Ob OP T
T AU
H

132BB003

Service notes

Gasket 1124 129 0900 must be removed from the
filter base before installing the new filter element.
Follow the fitting and maintenance instructions
when using HD filters. A detailed information sheet
is included with each HD filter kit.
)Technical Information 18.95 - Page 4

1RWH

The HD filter assembly must be fitted on the filter
base so that the word "TOP" is visible.

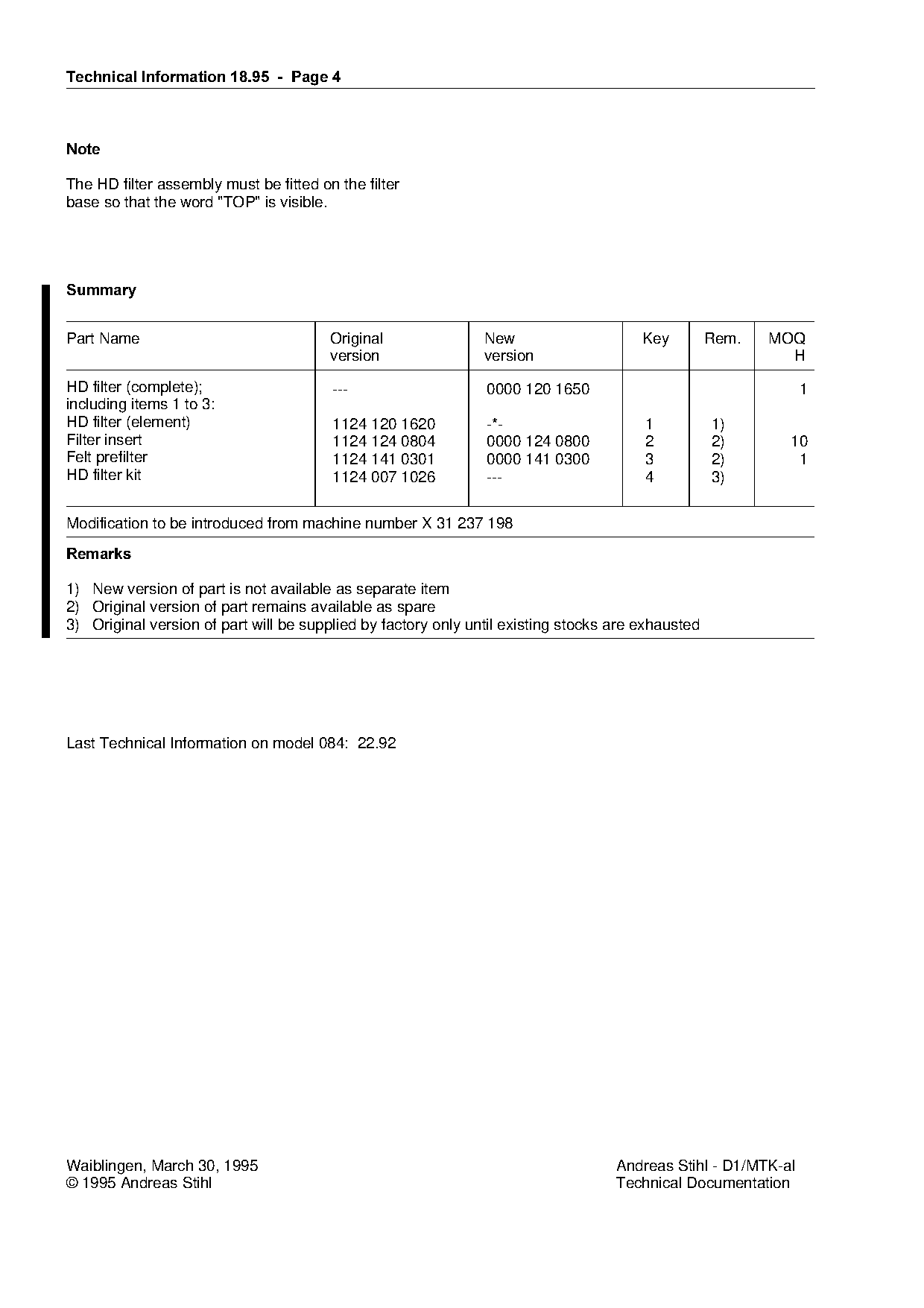

6XPPDU\

Part Name Original New Key Rem. MOQ
version version H

HD filter (complete); --- 0000 120 1650 1
including items 1 to 3:
HD filter (element) 1124 120 1620 -*- 1 1)

Filter insert 1124 124 0804 0000 124 0800 2 2) 10
Felt prefilter 1124 141 0301 0000 141 0300 3 2) 1
HD filter kit 1124 007 1026 --- 4 3)

Modification to be introduced from machine number X 31 237 198
5HPDUNV fo
1) New version of part is not available as separate item
2) Original version of part remains available as spare
3) Original version of part will be supplied by factory only until existing stocks are exhausted

Last Technical Information on model 084: 22.92

Page 2 of 4

Page 3 of 4

Page 4 of 4
