Technical Information · issue 19 of 1995

066 M: OSHA

Model 066 Magnum Chain Saws =for USA only= - Series 1122

IssueTI 19/1995
Engine family 1122
Serial references — see context below 3 198 050, 31 980 509

Part changes (2)

WasBecomesWhat the bulletin says
1122 140 0603 1122 140 0609 The original muffler 1122 140 0603 (Magnum version) will be replaced by muffler 1122 140 0609.
1122 140 1000 1122 140 1001 The filter cover 1122 140 1000 (A) will be replaced by version 1122 140 1001 (B).

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · 066 Magnum

USA 066 Magnum muffler: 0603 to 0609 with different casing

Retain nested inclusions, the shared screen, and the TI/later-IPL screen-number disagreement.

No exact-model IPL link: Exact 066 Magnum is absent from structured IPL used_by labels; source-only USA variant reference avoids widening the change to every 066 or MS 660.

X 31 980 509 — USA 066 Magnum muffler, carburetor and filter-cover modification from this machine number; both original pages confirm final digit 9, missing from page 1 extracted text.

  • Original Magnum muffler 1122 140 0603 is replaced by 1122 140 0609, described as already installed in non-Magnum saws. The bulletin is headed MODEL 066 MAGNUM, USA ONLY: “all Magnums” and “all non-Magnum saws” are read in that model context, not as every STIHL model.
  • Old 0603 includes table items 1 and 4: exhaust casing 1122 140 0800 and screen 1122 141 9001. Old casing item 1 itself includes items 2 and 3: screen 1122 141 9005 and self-tapping screw B 4.2 x 9.5 number 9099 021 0810. These nested inclusions do not mean every old part is reused in the new muffler.
  • New 0609 includes items 4 and 5: the UNCHANGED screen 1122 141 9001 and NEW exhaust casing 1122 145 0807. Dashes on old casing/screen/screw rows mean no new counterpart is listed; they do not override remark 1, which retains the original complete Magnum muffler as a spare.
  • Original scan table item 2 reads 1122 141 9005, whereas later 066 C muffler sheet key 6 reads 1118 141 9005. The number conflict remains unresolved; do not silently substitute 1118 or invent a supersession. Later keys 3/19 corroborate complete mufflers 0603/0609, key 5 old casing 0800 and key 9 new casing 0807. Later adjacent muffler numbers do not widen this TI’s change.
  • Both original pages show X 31 980 509; page 1 extracted body drops the final 9. The reviewed changeover keeps the complete printed number without rewriting the retained body or interpreting it as a model-identification interval. MOQ H cells are blank throughout this table; no ordering quantity is supplied.
  • Historical TI guidance for USA 066 Magnum only. The TI attributes the combined change to new OSHA noise limits and states resulting engine power 5.4 kW (7.2 BHP); these are historical source claims, not current regulatory verification or measured output. No present supply guarantee, all-model serial range or unrestricted interchange is inferred. No hardware operation was performed.

Source: TI 19/1995, p. 1 · TI 19/1995, p. 2 — Muffler text and exploded drawing; complete muffler table rows and remark 1.

Part numbers (7)
  • 1122 140 0603 — Original Magnum mufflerincludes items 1 and 4; remains available as spare in 1995 · USA 066 Magnum; TI19/1995 configuration
  • 1122 140 0609 — New mufflerincludes items 4 and 5 · USA 066 Magnum; TI19/1995 configuration
  • 1122 140 0800 — Original exhaust casingitem 1; includes items 2 and 3 · USA 066 Magnum; TI19/1995 configuration
  • 1122 141 9005 — Original casing screenitem 2; TI number conflicts with later IPL 1118 prefix · USA 066 Magnum; TI19/1995 configuration
  • 9099 021 0810 — Self-tapping screw B4.2 x 9.5item 3; old casing · USA 066 Magnum; TI19/1995 configuration
  • 1122 141 9001 — Screenitem 4; unchanged in both muffler assemblies · USA 066 Magnum; TI19/1995 configuration
  • 1122 145 0807 — New exhaust casingitem 5 · USA 066 Magnum; TI19/1995 configuration

Service note · 066 Magnum

USA 066 Magnum carburetor: WJ 51 to WJ 48, 0.64 to 0.62 mm

Historical WJ 48 number 0616 is not silently renamed WJ-65A from a later IPL.

No exact-model IPL link: Exact 066 Magnum is absent from structured IPL used_by labels; source-only USA variant reference avoids widening the change to every 066 or MS 660.

X 31 980 509 — USA 066 Magnum muffler, carburetor and filter-cover modification from this machine number; both original pages confirm final digit 9, missing from page 1 extracted text.

  • WJ 51 carburetor 1122 120 0614 (item 6) is replaced by WJ 48 number 1122 120 0616 (item 7), described as already used on non-Magnum 066. Original WJ 51 remains available as a spare under remark 1; the later introduction does not mean the old complete carburetor disappeared.
  • High-speed screw item 8 changes 1122 122 6704 to 1122 122 6705. Original fixed jet item 9 is 0.64 mm, 1122 121 5604; new item 10 is 0.62 mm, 1122 121 5603. The drawing magnifies markings 604 for WJ 51 and 602 for WJ 48. Those marks are neither the complete order number nor substitutes for the explicitly printed jet diameters.
  • Table says each complete carburetor includes items 8–10, but the ORIGINAL/NEW columns distinguish the two alternative jets: no claim that both jets are simultaneously installed. All other parts are as before. No high-speed screw turn count, rpm target or carburetor-conversion procedure is given.
  • Later 066 O sheet calls the same complete number 1122 120 0616 WJ-65A, not this TI’s WJ 48. Preserve the version/name difference without selecting a winner or applying later WJ-65A/WJ-67A/WJ-76A settings to WJ 48. Later keys 1/36/38 list jet 5604, jet 5603 and screw 6705, but those shared numbers do not prove unrestricted carburetor interchange.
  • Historical TI guidance for USA 066 Magnum only. The TI attributes the combined change to new OSHA noise limits and states resulting engine power 5.4 kW (7.2 BHP); these are historical source claims, not current regulatory verification or measured output. No present supply guarantee, all-model serial range or unrestricted interchange is inferred. No hardware operation was performed.

Source: TI 19/1995, p. 1 · TI 19/1995, p. 2 — Carburetor text, figure 137TI003 and table items 6–10 with remark 1.

Part numbers (6)
  • 1122 120 0614 — Carburetor WJ 51original item 6; remains spare · USA 066 Magnum; TI19/1995 configuration
  • 1122 120 0616 — Carburetor WJ 48new item 7; later catalog names same number WJ-65A · USA 066 Magnum; TI19/1995 configuration
  • 1122 122 6704 — Original high-speed screwitem 8 · USA 066 Magnum; TI19/1995 configuration
  • 1122 122 6705 — New high-speed screwitem 8 · USA 066 Magnum; TI19/1995 configuration
  • 1122 121 5604 — Fixed jet 0.64 mmoriginal item 9 · USA 066 Magnum; TI19/1995 configuration
  • 1122 121 5603 — Fixed jet 0.62 mmnew item 10 · USA 066 Magnum; TI19/1995 configuration

Service note · 066 Magnum

USA 066 Magnum filter cover: locating edge changes from A to B

Cover1001 locates against the carburetor box; later1002 is not the same documented change.

No exact-model IPL link: Exact 066 Magnum is absent from structured IPL used_by labels; source-only USA variant reference avoids widening the change to every 066 or MS 660.

X 31 980 509 — USA 066 Magnum muffler, carburetor and filter-cover modification from this machine number; both original pages confirm final digit 9, missing from page 1 extracted text.

  • Original filter cover 1122 140 1000 (A) is replaced by 1122 140 1001 (B), modified to locate AGAINST THE CARBURETOR BOX. The drawing explicitly labels A=original and B=new and shows their different lower-edge shapes. No cutting, reshaping or clearance dimension is specified.
  • Table item 11 carries remark 2: the ORIGINAL cover is NO LONGER AVAILABLE FROM THE FACTORY. This differs from retained old muffler/WJ 51 availability under remark 1. No MOQ is printed.
  • Later 066 Q shroud/air-filter sheet key 17 lists 1122 140 1002, not either 1000 or 1001. This later number does not rewrite the TI’s 1000-to-1001 change or establish a direct 1001-to-1002 replacement. Source-only Magnum binding prevents this note applying automatically to all 066 or MS 660 variants.
  • Footer date is March 1, 1995, last model 066 TI 10.95. This bibliographic pointer is not a missing prerequisite for these explicit changes. Together with muffler and carburetor, this is the stated USA Magnum noise-related modification, not a standalone claim that a cover produces 5.4 kW.
  • Historical TI guidance for USA 066 Magnum only. The TI attributes the combined change to new OSHA noise limits and states resulting engine power 5.4 kW (7.2 BHP); these are historical source claims, not current regulatory verification or measured output. No present supply guarantee, all-model serial range or unrestricted interchange is inferred. No hardware operation was performed.

Source: TI 19/1995, p. 1 · TI 19/1995, p. 2 — Filter-cover paragraph, figure 137TI005, table item 11, remark 2 and footer.

Part numbers (2)
  • 1122 140 1000 — Original filter cover Aitem 11; factory supply ended · USA 066 Magnum; TI19/1995 configuration
  • 1122 140 1001 — New filter cover Bitem 11; locates against carburetor box · USA 066 Magnum; TI19/1995 configuration

Full text

Page 1 of 2

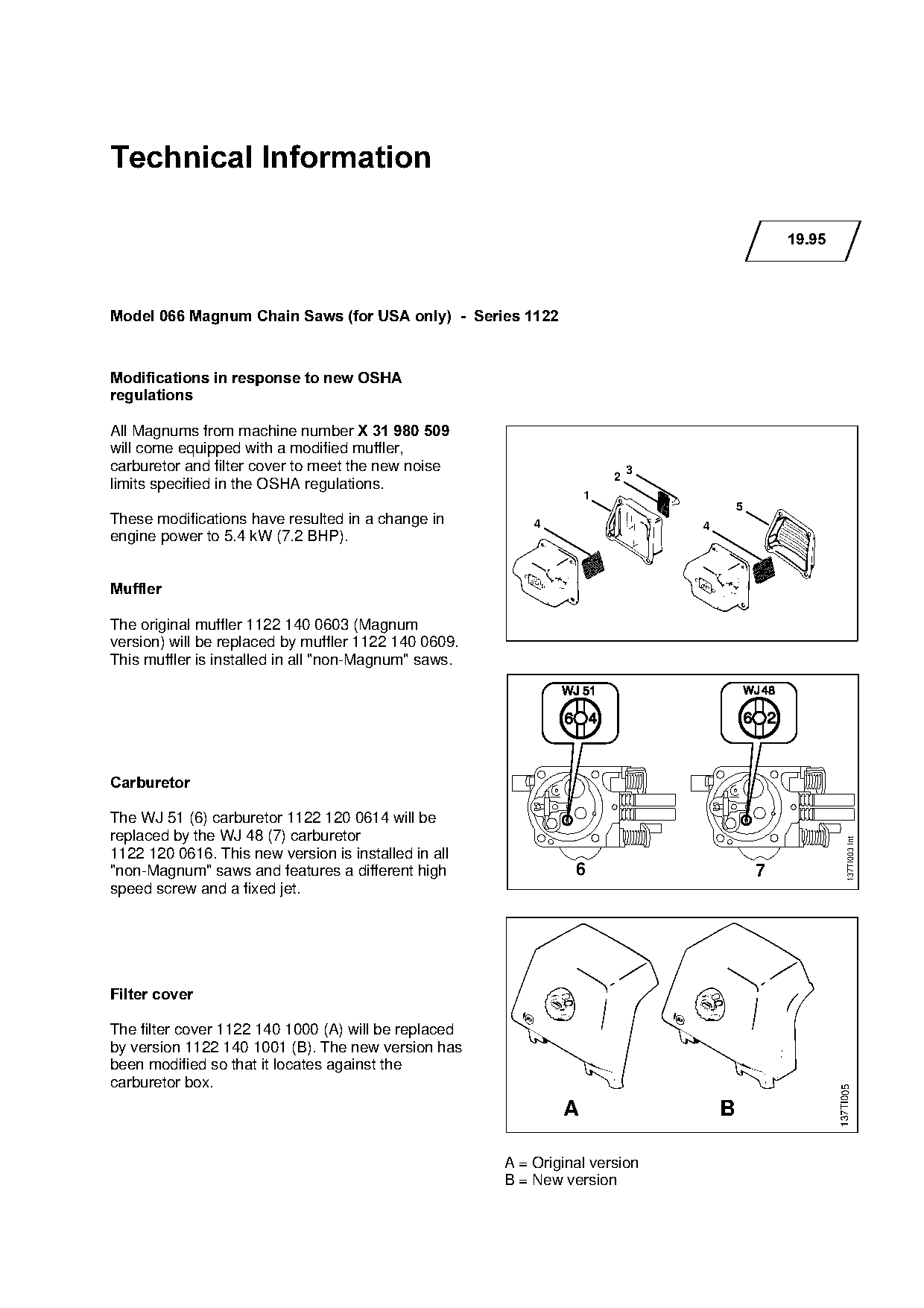

TI 19/1995 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                              19.95

Model 066 Magnum Chain Saws =for USA only=  -  Series 1122

Modifications in response to new OSHA

regulations

All Magnums from machine number X 31 980 50

will come equipped with a modified muffler,
carburetor and filter cover to meet the new noise                         3
                                                                      2
limits specified in the OSHA regulations.

                                                                  1
                                                                                      5
These modifications have resulted in a change in          4                   4
engine power to 5.4 kW (7.2 BHP).
0XIIOHU

The original muffler 1122 140 0603 (Magnum

version) will be replaced by muffler 1122 140 0609.
This muffler is installed in all "non-Magnum" saws.

&DUEXUHWRU

The WJ 51 (6) carburetor 1122 120 0614 will be
replaced by the WJ 48 (7) carburetor
                                                                                                           137TI003 Int

1122 120 0616. This new version is installed in all
"non-Magnum" saws and features a different high                 6                         7
speed screw and a fixed jet.

Filter cover

The filter cover 1122 140 1000 (A) will be replaced
by version 1122 140 1001 (B). The new version has
been modified so that it locates against the
carburetor box.
                                                                                                      137TI005

                                                              A                   B

                                                      A = Original version
                                                      B = New version

Page 2 of 2

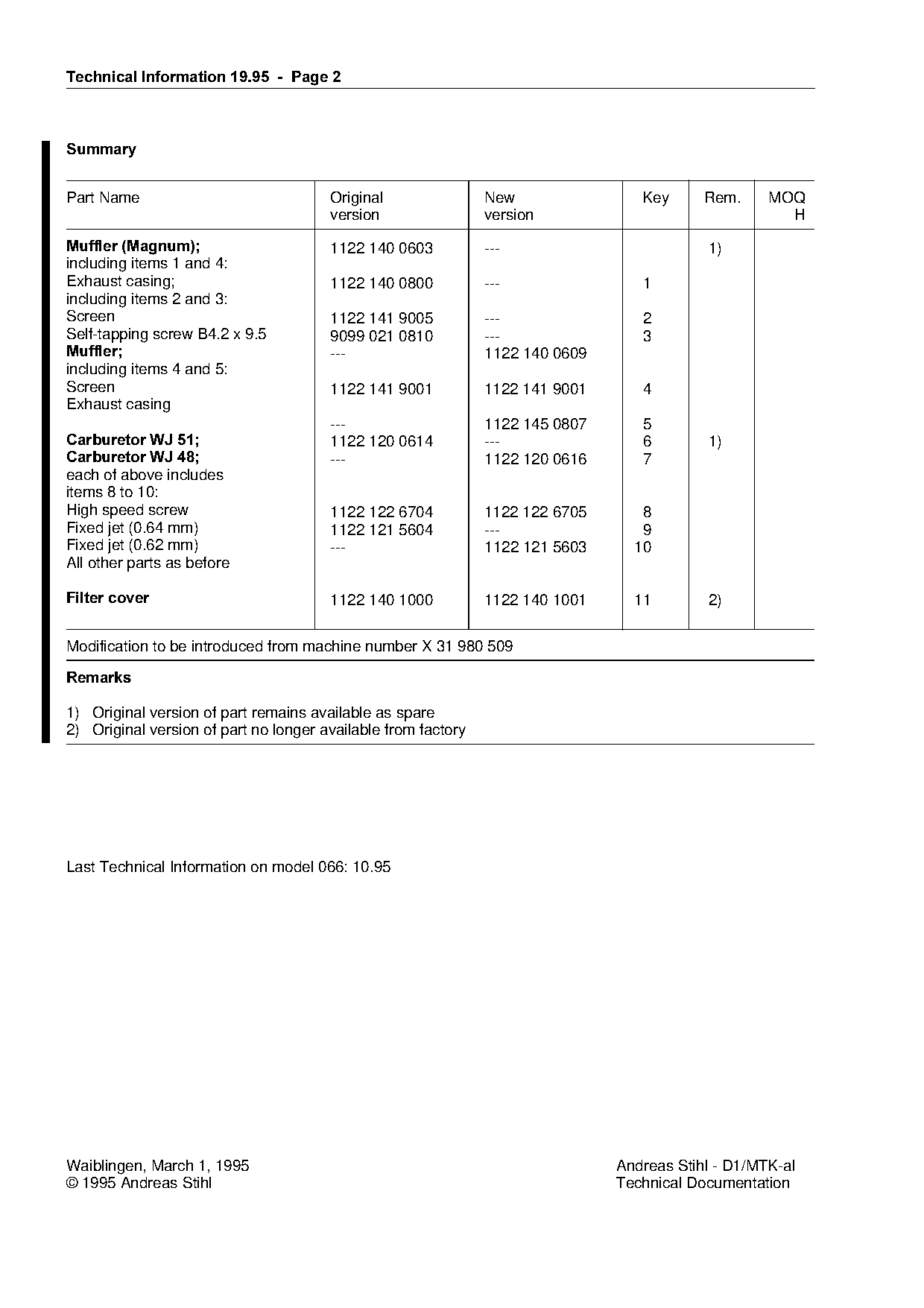

TI 19/1995 page 2
Text of page 2 — search, copy, screen readers
Technical Information 19.95  -  Page 2

6XPPDU\

Part Name                              Original                New                Key      Rem.     MOQ
                                       version                 version                                H
Muffler =Magnum=;======================NNOO=NQM=MSMP===========JJJ=========================NF
including items 1 and 4:
Exhaust casing;                        1122 140 0800           ---                1
including items 2 and 3:
Screen                                 1122 141 9005           ---                2
Self-tapping screw B4.2 x 9.5          9099 021 0810           ---                3
Muffler;===============================JJJ=====================NNOO=NQM=MSMV

including items 4 and 5:

Screen                                 1122 141 9001           1122 141 9001      4
Exhaust casing
                                       ---                     1122 145 0807      5
Carburetor WJ 51

                                       1122 120 0614           ---                6        1)
Carburetor WJ 48;======================JJJ=====================NNOO=NOM=MSNS======T
each of above includes
items 8 to 10:

High speed screw                       1122 122 6704           1122 122 6705      8
Fixed jet (0.64 mm)                    1122 121 5604           ---                9
Fixed jet (0.62 mm)
All other parts as before
                                       ---                           fo
                                                               1122 121 5603     10

Filter cover
                                       1122 140 1000           1122 140 1001     11        2)

Modification to be introduced from machine number X 31 980 509

5HPDUNV

1) Original version of part remains available as spare
2) Original version of part no longer available from factory

Last Technical Information on model 066: 10.95

Waiblingen, March 1, 1995                                                      Andreas Stihl - D1/MTK-al
© 1995 Andreas Stihl                                                           Technical Documentation
