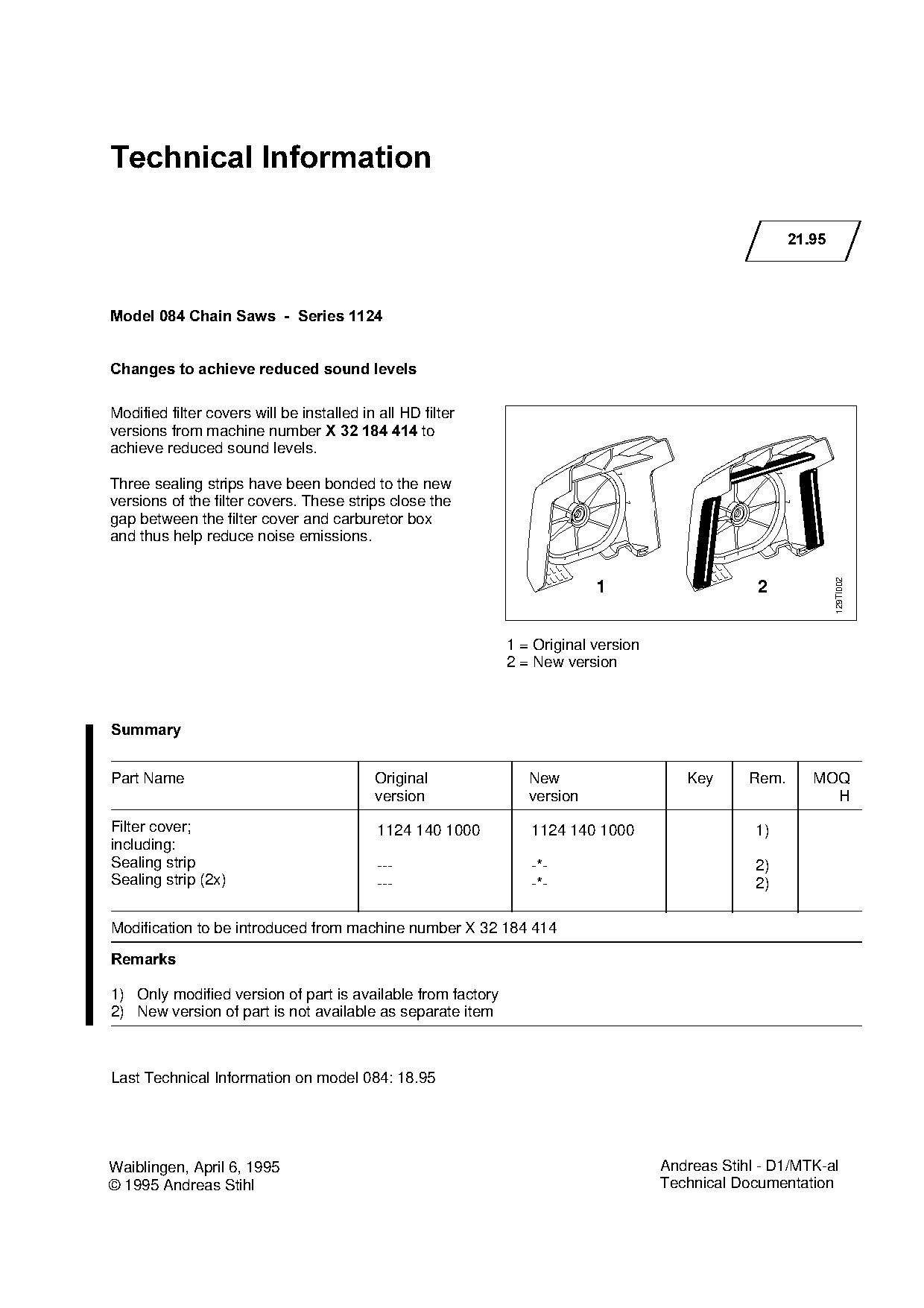

Technical Information
21.95
Model 084 Chain Saws - Series 1124
Changes to achieve reduced sound levels
Modified filter covers will be installed in all HD filter
versions from machine number X 32 184 414 to
achieve reduced sound levels.
Three sealing strips have been bonded to the new
versions of the filter covers. These strips close the
gap between the filter cover and carburetor box
and thus help reduce noise emissions.
129TI002
1 2
1 = Original version
2 = New version
6XPPDU\
Part Name Original New Key Rem. MOQ
version version H
Filter cover; 1124 140 1000 1124 140 1000 1)
including:
Sealing strip --- -*- 2)
Sealing strip (2x) --- -*- 2)
Modification to be introduced from machine number X 32 184 414
5HPDUNV
1) Only modified version of part is available from factory
2) New version of part is not available as separate item
Last Technical Information on model 084: 18.95
Waiblingen, April 6, 1995 Andreas Stihl - D1/MTK-al
