Technical Information · issue 26 of 1995
Repairing oil line
Model 070, 090 Chain Saws - Series 1106
IssueTI 26/1995
Engine family 1106
Full text
Page 1 of 1

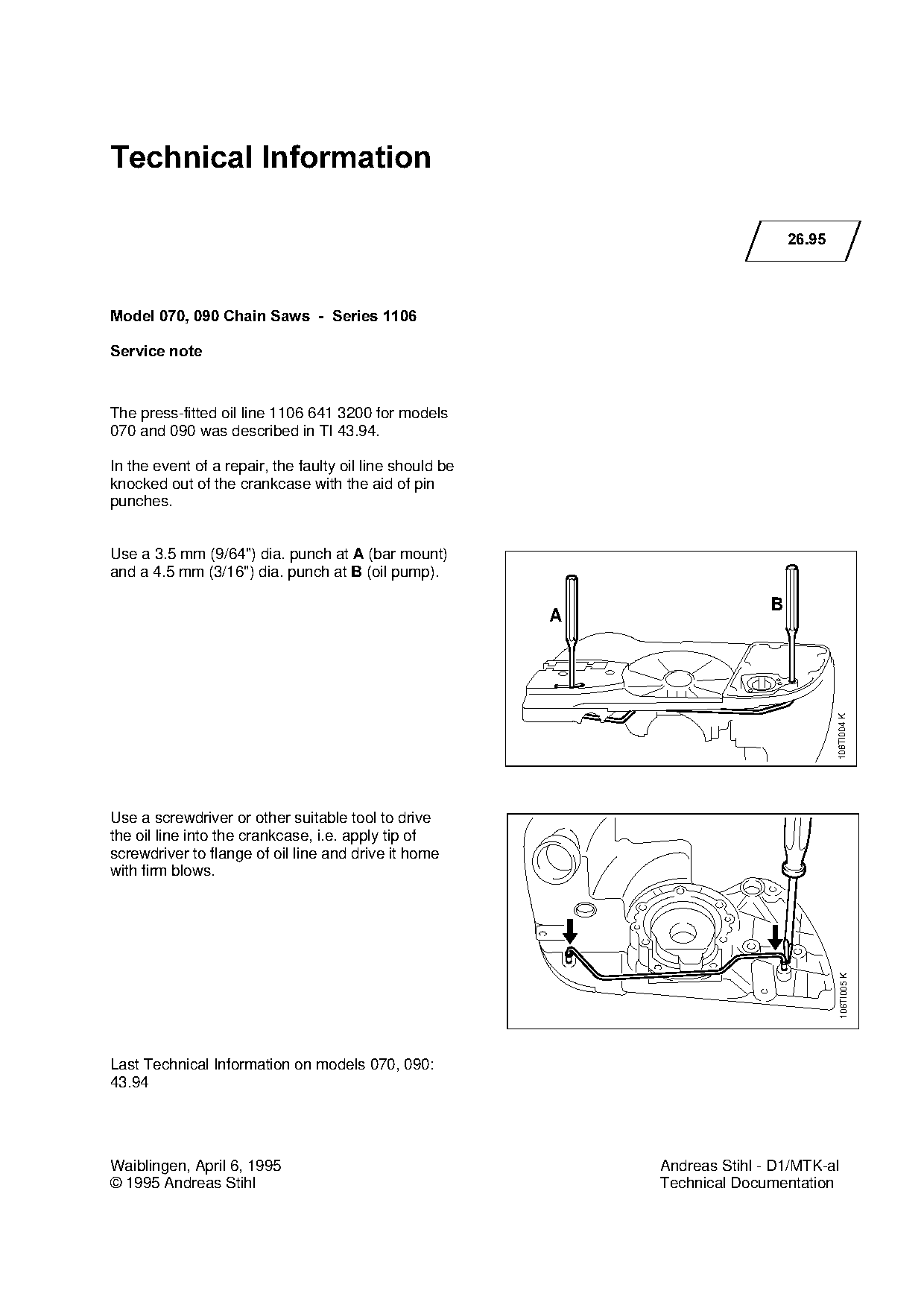

Technical Information
26.95
Model 070, 090 Chain Saws - Series 1106
Service note
The press-fitted oil line 1106 641 3200 for models
070 and 090 was described in TI 43.94.
In the event of a repair, the faulty oil line should be
knocked out of the crankcase with the aid of pin
punches.
Use a 3.5 mm (9/64") dia. punch at $ (bar mount)
and a 4.5 mm (3/16") dia. punch at % (oil pump).
B
A
106TI004 K
Use a screwdriver or other suitable tool to drive
the oil line into the crankcase, i.e. apply tip of
screwdriver to flange of oil line and drive it home
with firm blows.
106TI005 K
Last Technical Information on models 070, 090:
43.94
Waiblingen, April 6, 1995 Andreas Stihl - D1/MTK-al
