Technical Information · issue 27 of 1995

Crankcase/cover; chain brake

Model 064, 066 Chain Saws - Series 1122

IssueTI 27/1995

Engine family 1122

From serial 31 815 798

Part changes (1)

Was	Becomes	What the bulletin says
1122 021 1101	1122 021 1105	Cover 1122 021 1101 has been replaced by the version 1122 021 1105 which will be secured to the crankcase with four IS-M4 x 12 spline screws in future.

Full text

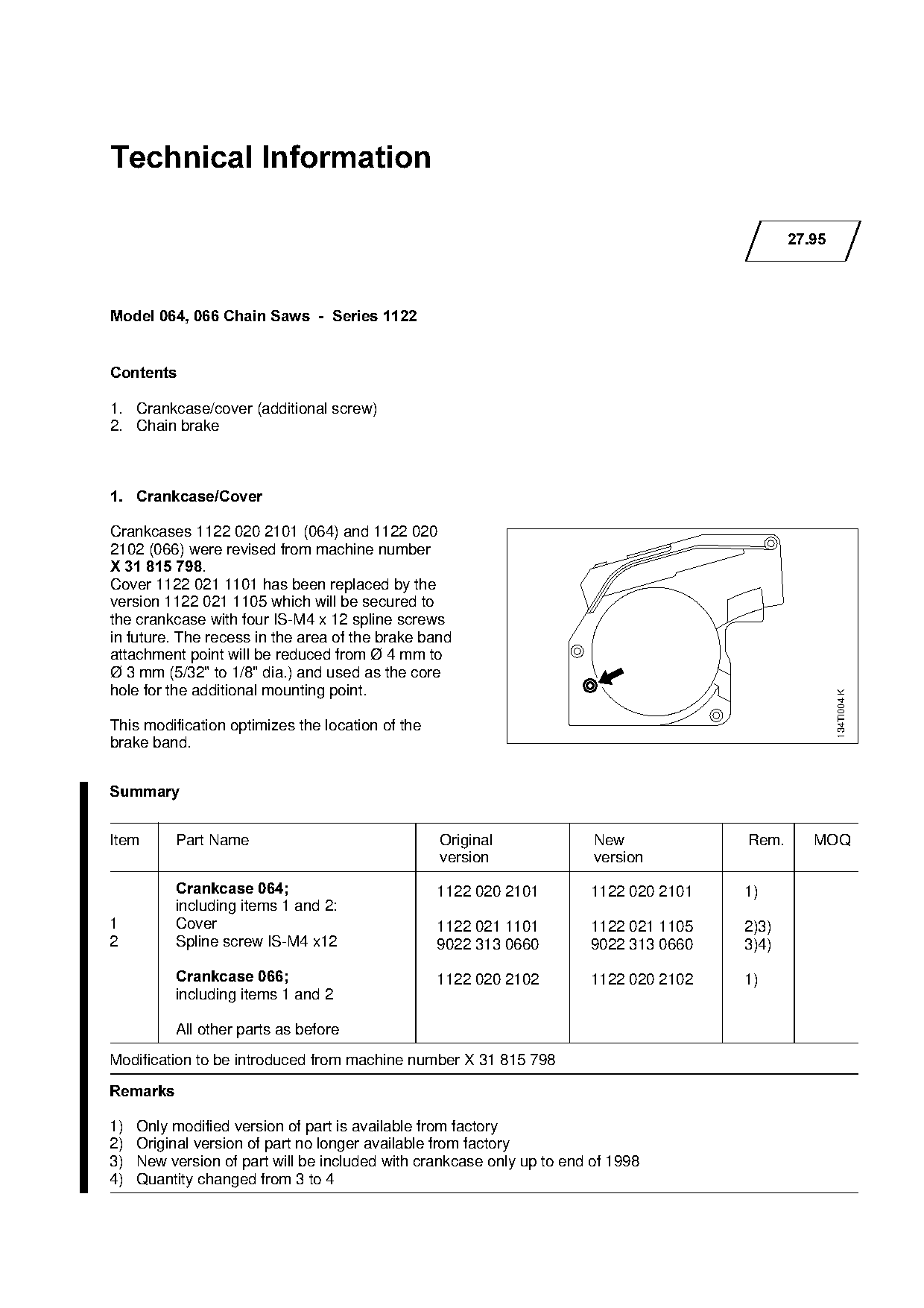

Page 1 of 2

Text of page 1 — search, copy, screen readers

Technical Information

                                                                                              27.95

Model 064, 066 Chain Saws  -  Series 1122

&RQWHQWV

1. Crankcase/cover (additional screw)
2. Chain brake

1.=Crankcase/Cover

Crankcases 1122 020 2101 (064) and 1122 020
2102 (066) were revised from machine number
X 31 815 798.
Cover 1122 021 1101 has been replaced by the
version 1122 021 1105 which will be secured to
the crankcase with four IS-M4 x 12 spline screws
in future. The recess in the area of the brake band

attachment point will be reduced from Ø 4 mm to
Ø 3 mm (5/32" to 1/8" dia.) and used as the core
hole for the additional mounting point.

                                                                                                      134TI004 K

This modification optimizes the location of the

brake band.

6XPPDU\

Item      Part Name                               Original              New            Rem.      MOQ

                                                  version               version

          Crankcase 064;==========================NNOO=MOM=ONMN========NNOO=MOM=ONMN===NF
          including items 1 and 2:

1         Cover                                   1122 021 1101        1122 021 1105   2)3)
2         Spline screw IS-M4 x12                  9022 313 0660        9022 313 0660   3)4)

          Crankcase 066;==========================NNOO=MOM=ONMO========NNOO=MOM=ONMO===NF
          including items 1 and 2

          All other parts as before
Modification to be introduced from machine number X 31 815 798
5HPDUNV

1)   Only modified version of part is available from factory
2)   Original version of part no longer available from factory
3)   New version of part will be included with crankcase only up to end of 1998
4)   Quantity changed from 3 to 4

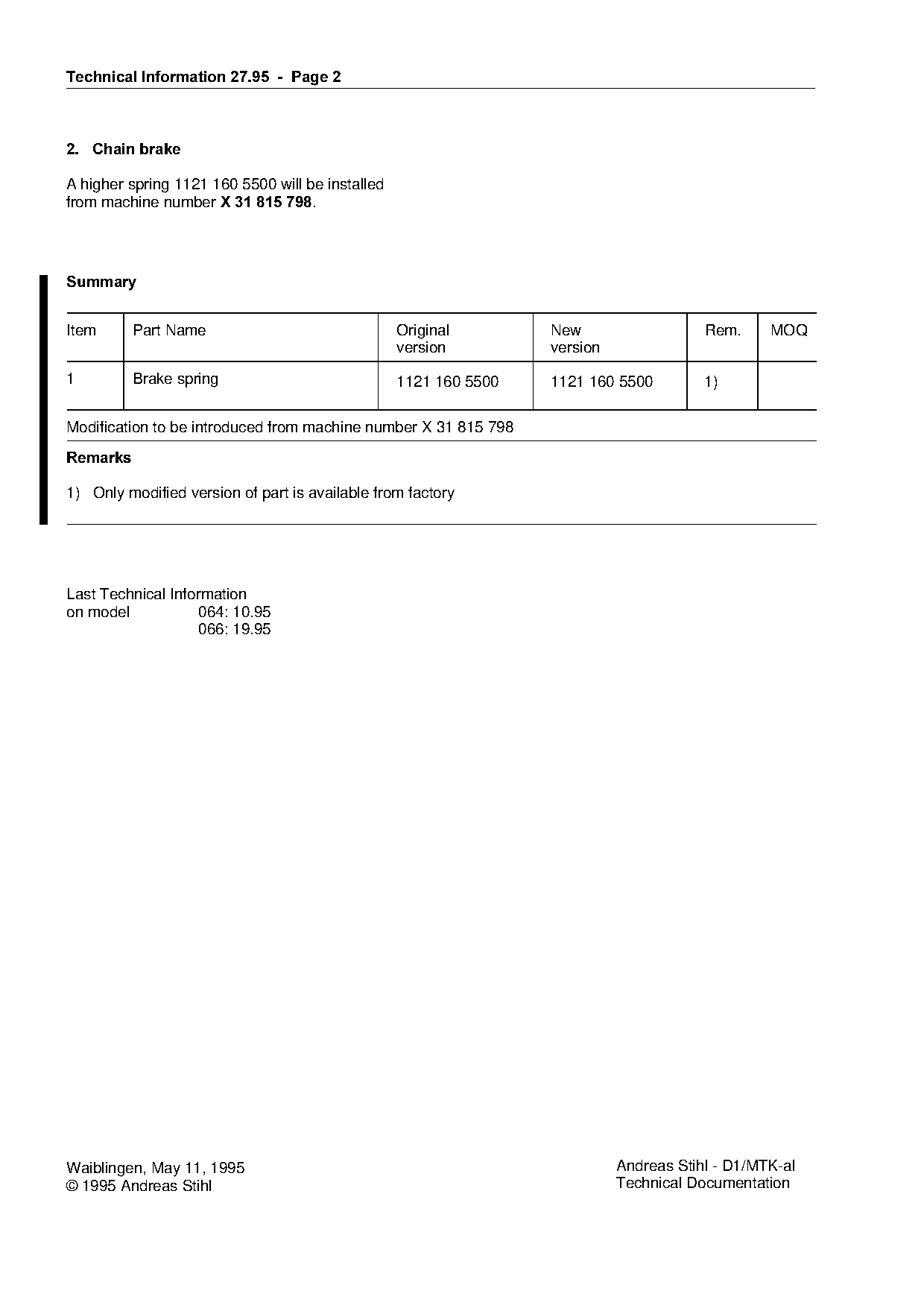

Page 2 of 2

Text of page 2 — search, copy, screen readers

Technical Information 27.95  -  Page 2

2.=Chain brake

A higher spring 1121 160 5500 will be installed
from machine number X 31 815 798.

6XPPDU\

Item      Part Name                               Original         New                   Rem.     MOQ
                                                  version          version

1         Brake spring

                                                  1121 160 5500    1121 160 5500         1)

Modification to be introduced from machine number X 31 815 798

5HPDUNV

1) Only modified version of part is available from factory

Last Technical Information
on model            064: 10.95
                    066: 19.95

Waiblingen, May 11, 1995                                                     Andreas Stihl - D1/MTK-al
© 1995 Andreas Stihl                                                         Technical Documentation
