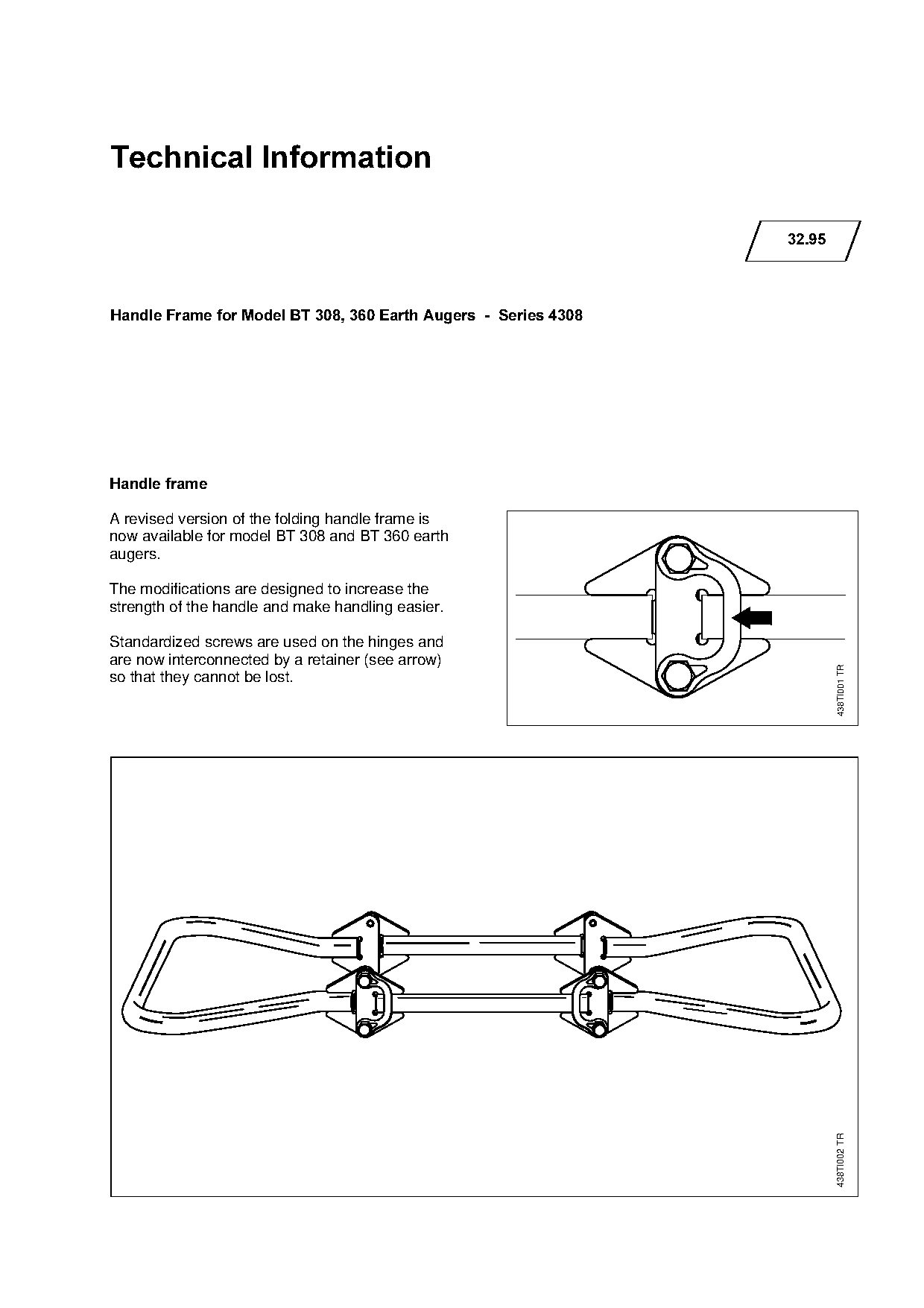

Technical Information
32.95
Handle Frame for Model BT 308, 360 Earth Augers - Series 4308
Handle frame
A revised version of the folding handle frame is
now available for model BT 308 and BT 360 earth
augers. fo
The modifications are designed to increase the
strength of the handle and make handling easier.
Standardized screws are used on the hinges and
are now interconnected by a retainer (see arrow)
438TI001 TR
so that they cannot be lost.
438TI002 TR

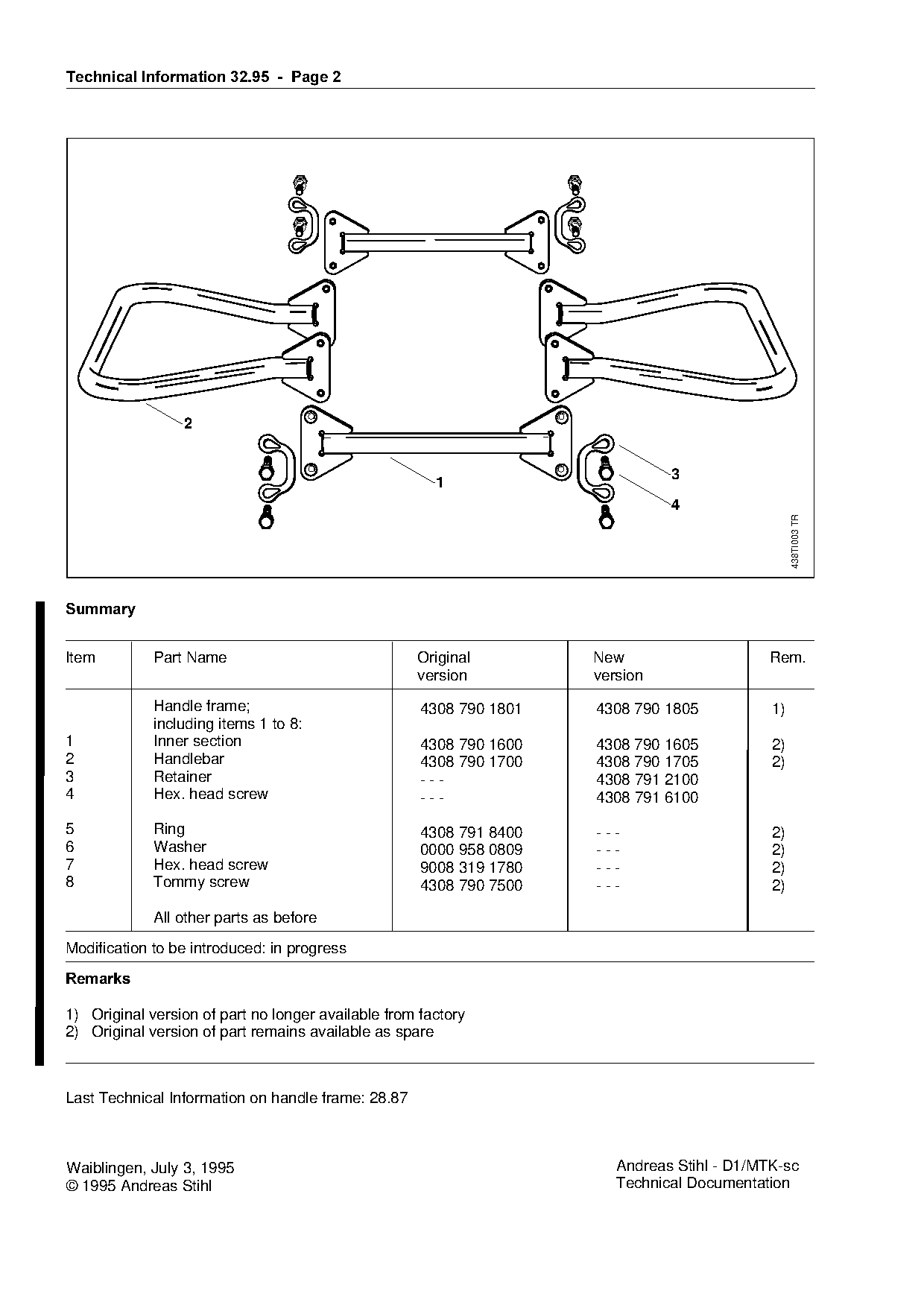

)Technical Information 32.95 - Page 2
3
1
438TI003 TR
6XPPDU\
Item Part Name Original New Rem.
version version
Handle frame;
4308 790 1801 4308 790 1805 1)
including items 1 to 8:
1 Inner section 4308 790 1600 4308 790 1605 2)
2 Handlebar 4308 790 1700 4308 790 1705 2)
3 Retainer --- 4308 791 2100
4 Hex. head screw --- 4308 791 6100
5 Ring 4308 791 8400 --- 2)
6 Washer 0000 958 0809 --- 2)
7 Hex. head screw 9008 319 1780 --- 2)
8 Tommy screw 4308 790 7500 --- 2)
All other parts as before
Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory
2) Original version of part remains available as spare
Last Technical Information on handle frame: 28.87
Waiblingen, July 3, 1995 Andreas Stihl - D1/MTK-sc
© 1995 Andreas Stihl Technical Documentation Page 2 of 2
