Technical Information · issue 48 of 1995
Filler cap; collar with loop on spark plug boot de
Model 029, 039 Chainsaws - Series 1127
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 0000 350 0520 | 1127 350 0500 | The original fuel tank filler cap 0000 350 0520 will be deleted on model 029 and 039 saws from machine number X 33 373 883=~nd replaced by the new version 1127 350 0500. |
Full text

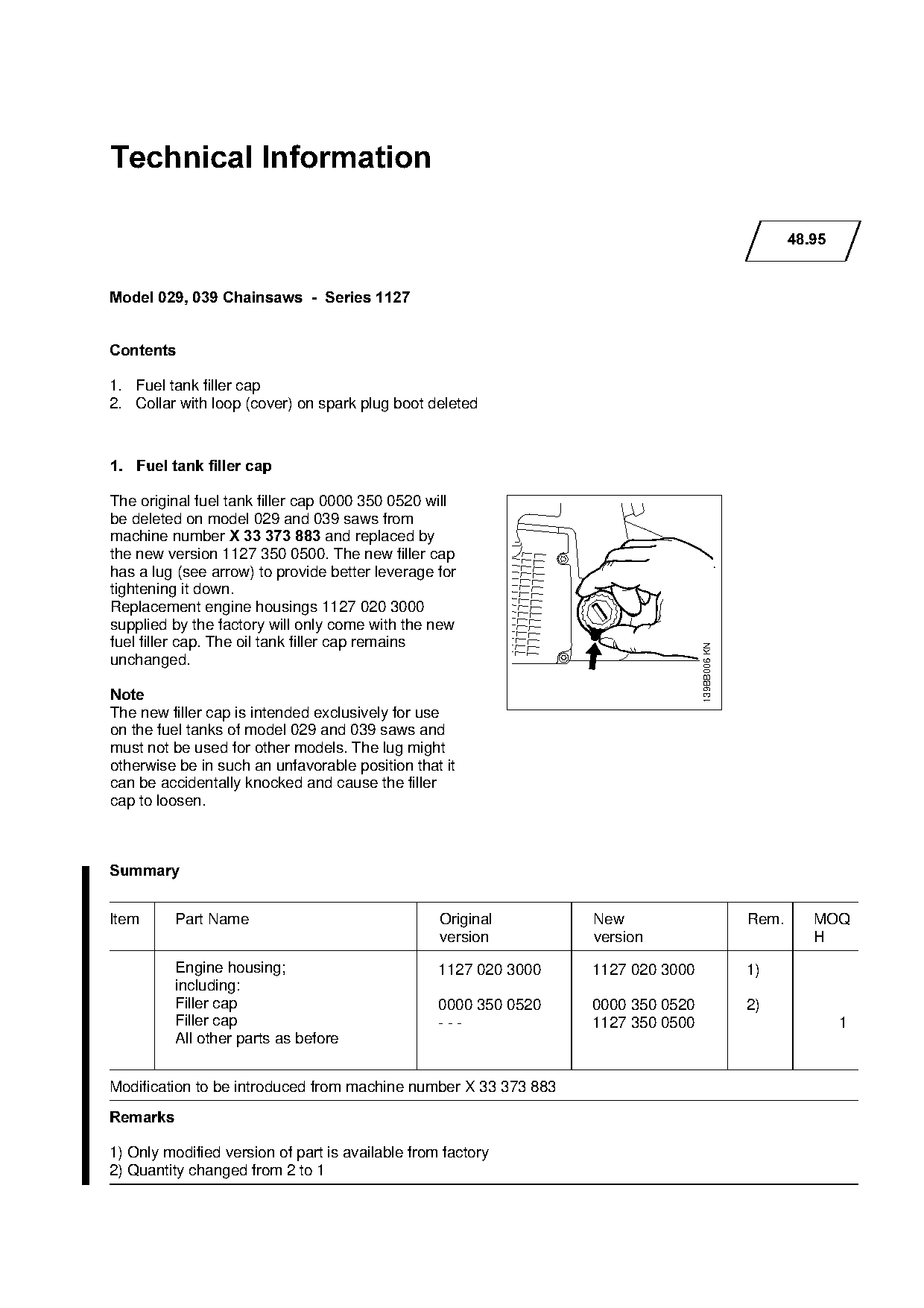

Page 1 of 2
Technical Information
48.95
Model 029, 039 Chainsaws - Series 1127
&RQWHQWV
1. Fuel tank filler cap
2. Collar with loop (cover) on spark plug boot deleted
1.=Fuel tank filler cap
The original fuel tank filler cap 0000 350 0520 will
be deleted on model 029 and 039 saws from
machine number X 33 373 883=~nd replaced by
the new version 1127 350 0500. The new filler cap
has a lug (see arrow) to provide better leverage for
tightening it down.
Replacement engine housings 1127 020 3000
supplied by the factory will only come with the new
fuel filler cap. The oil tank filler cap remains
139BB006 KN
unchanged.
1RWH
The new filler cap is intended exclusively for use
on the fuel tanks of model 029 and 039 saws and
must not be used for other models. The lug might
otherwise be in such an unfavorable position that it
can be accidentally knocked and cause the filler
cap to loosen.
6XPPDU\
Item Part Name Original New Rem. MOQ
version version H
Engine housing; 1127 020 3000 1127 020 3000 1)
including:
Filler cap 0000 350 0520 0000 350 0520 2)
Filler cap --- 1127 350 0500 1
All other parts as before
Modification to be introduced from machine number X 33 373 883
5HPDUNV
1) Only modified version of part is available from factory
2) Quantity changed from 2 to 1

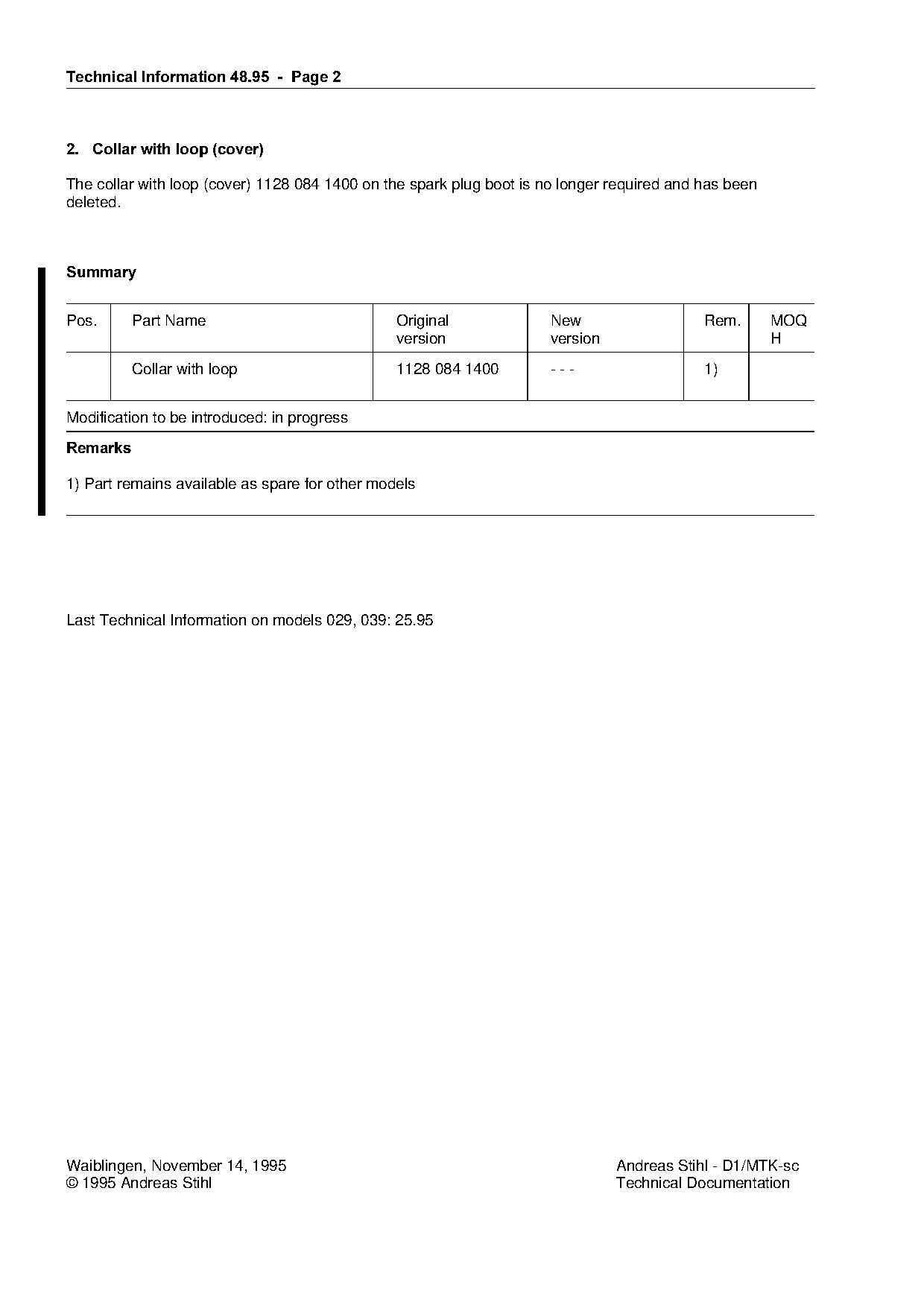

)Technical Information 48.95 - Page 2
2.=Collar with loop =cover
The collar with loop (cover) 1128 084 1400 on the spark plug boot is no longer required and has been
deleted.
6XPPDU\
Pos. Part Name Original New Rem. MOQ
version version H
Collar with loop 1128 084 1400 --- 1)
Modification to be introduced: in progress
5HPDUNV
1) Part remains available as spare for other models
Last Technical Information on models 029, 039: 25.95
Waiblingen, November 14, 1995 Andreas Stihl - D1/MTK-sc
© 1995 Andreas Stihl Technical Documentation Page 2 of 2
