Technical Information · issue 3 of 1996
Carburetor (Walbro replaces Zama)
Model 044 Chainsaws - Series 1128
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 120 0617 | 1128 120 0619 | 1.=044=qhe original C3M-S5G carburetor 1128 120 0617 has been replaced by the HD-10 A carburetor 1128 120 0619. |
| 1128 120 0618 | 1128 120 0620 | The original C3M-S24 carburetor 1128 120 0618 has been replaced by the HD-11 carburetor 1128 120 0620. |
Full text

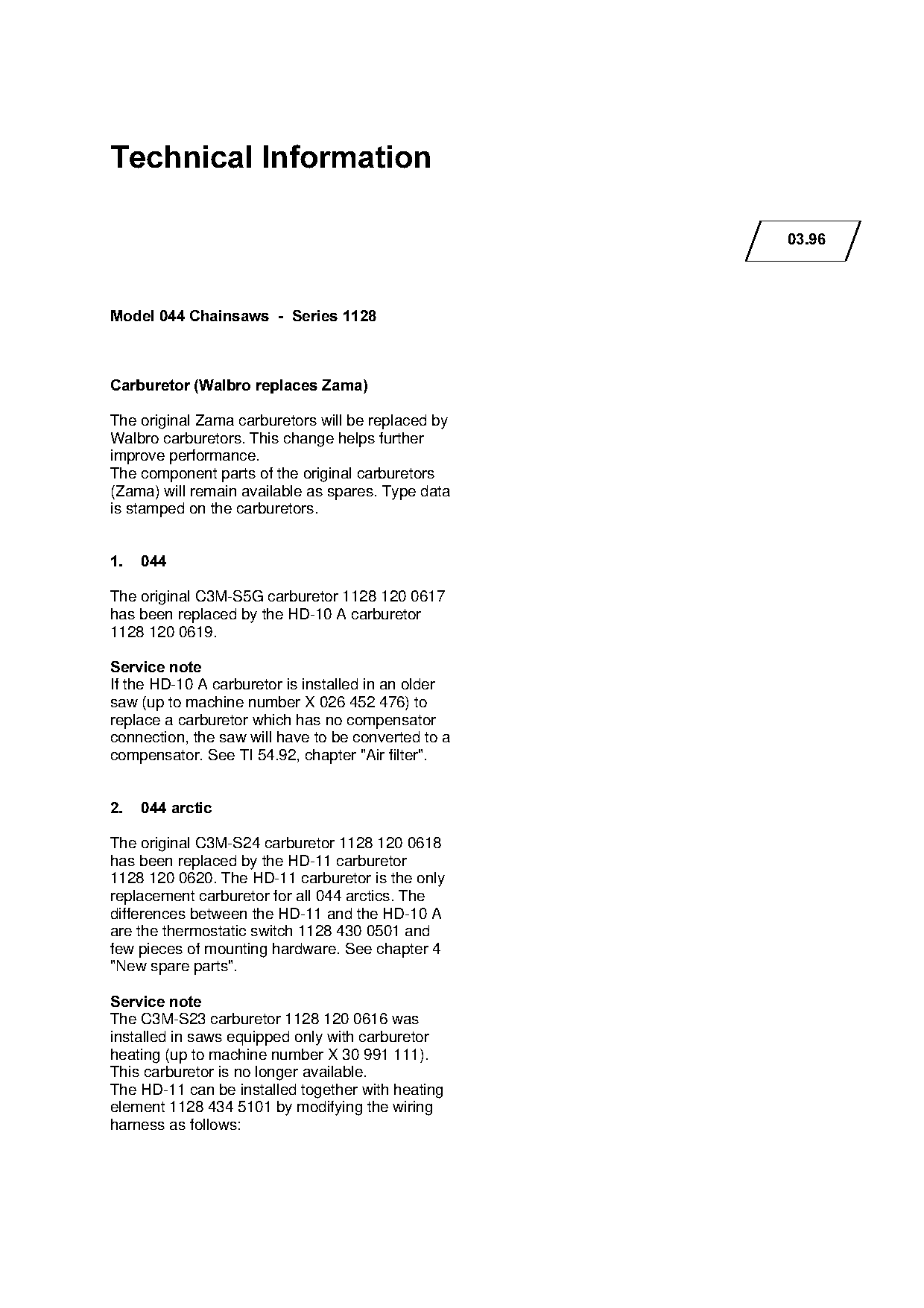

Page 1 of 4
Technical Information
03.96
Model 044 Chainsaws - Series 1128
Carburetor =Walbro replaces Zama
The original Zama carburetors will be replaced by
Walbro carburetors. This change helps further
improve performance.
The component parts of the original carburetors
(Zama) will remain available as spares. Type data
is stamped on the carburetors.
1.===044
The original C3M-S5G carburetor 1128 120 0617
has been replaced by the HD-10 A carburetor
1128 120 0619.
Service note
If the HD-10 A carburetor is installed in an older
saw (up to machine number X 026 452 476) to
replace a carburetor which has no compensator
connection, the saw will have to be converted to a
compensator. See TI 54.92, chapter "Air filter".
2.===044 arctic
The original C3M-S24 carburetor 1128 120 0618
has been replaced by the HD-11 carburetor
1128 120 0620. The HD-11 carburetor is the only
replacement carburetor for all 044 arctics. The
differences between the HD-11 and the HD-10 A
are the thermostatic switch 1128 430 0501 and
few pieces of mounting hardware. See chapter 4
"New spare parts".
Service note
The C3M-S23 carburetor 1128 120 0616 was
installed in saws equipped only with carburetor
heating (up to machine number X 30 991 111).
This carburetor is no longer available.
The HD-11 can be installed together with heating
element 1128 434 5101 by modifying the wiring
harness as follows:

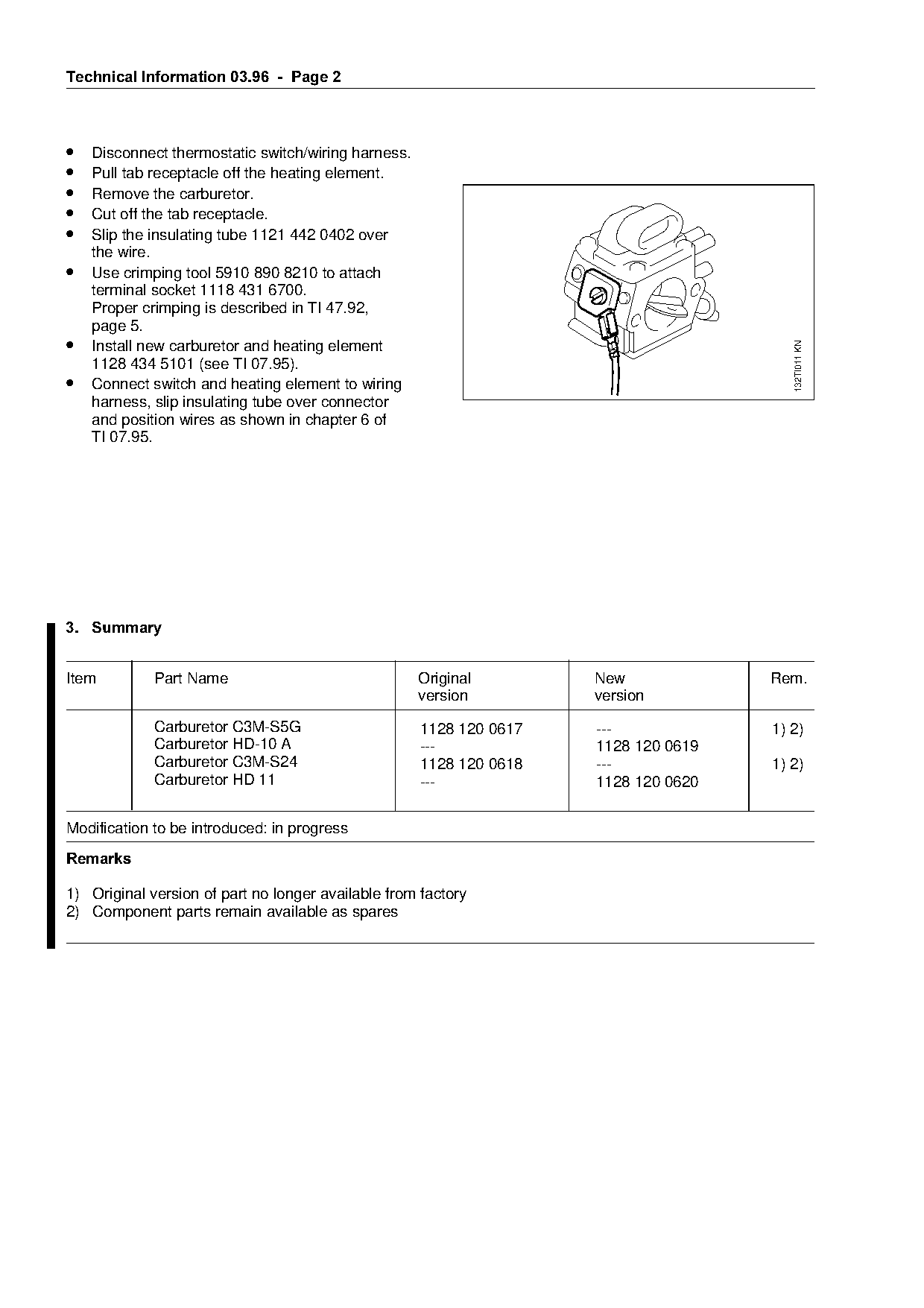

)Technical Information 03.96 - Page 2
• Disconnect thermostatic switch/wiring harness.
• Pull tab receptacle off the heating element.
• Remove the carburetor.
• Cut off the tab receptacle.
• Slip the insulating tube 1121 442 0402 over
the wire.
• Use crimping tool 5910 890 8210 to attach
terminal socket 1118 431 6700.
Proper crimping is described in TI 47.92,
page 5.
• Install new carburetor and heating element
132TI011 KN
1128 434 5101 (see TI 07.95).
•
Connect switch and heating element to wiring
harness, slip insulating tube over connector
and position wires as shown in chapter 6 of
TI 07.95.
3.=Summary
Item Part Name Original New Rem.
version version
Carburetor C3M-S5G 1128 120 0617 --- 1) 2)
Carburetor HD-10 A --- 1128 120 0619
Carburetor C3M-S24 1128 120 0618 --- 1) 2)
Carburetor HD 11 --- 1128 120 0620
Modification to be introduced: in progress
5HPDUNV
1) Original version of part no longer available from factory
2) Component parts remain available as spares

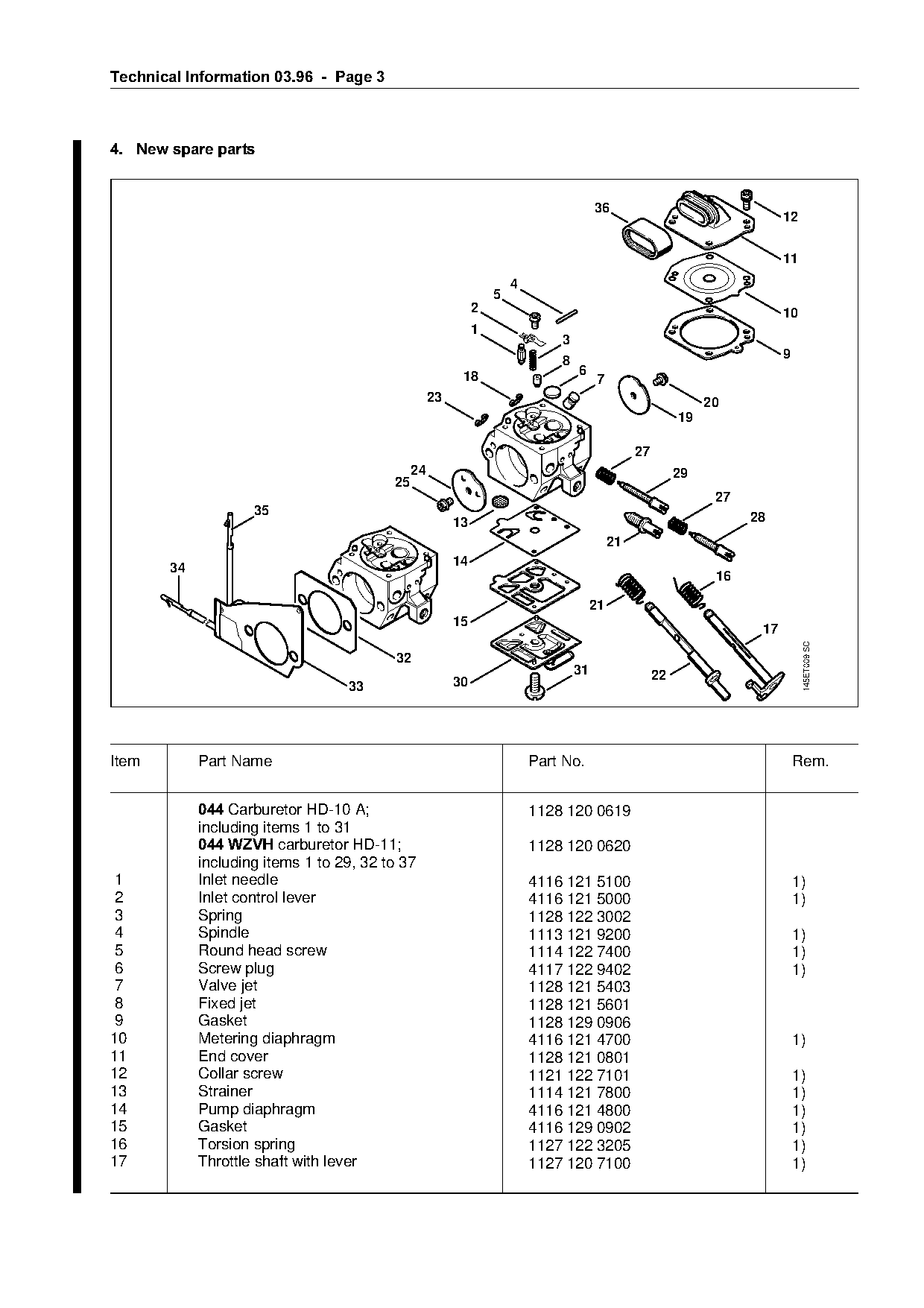

)Technical Information 03.96 - Page 3
4.=New spare parts
36
12
11
4
5
2 10
1
3
8 9
18 6
7
23 20
19
27
24 29
25
27
35 28
13
34
14
fo 21
16
21
15
17
145ET009 SC
32
31 22
33 30
Item Part Name Part No. Rem.
044 `~rburetor HD-10 A; 1128 120 0619
including items 1 to 31
044 WZVH=carburetor HD-11;
1128 120 0620
including items 1 to 29, 32 to 37
1 Inlet needle 4116 121 5100 1)
2 Inlet control lever 4116 121 5000 1)
3 Spring 1128 122 3002
4 Spindle 1113 121 9200 1)
5 Round head screw 1114 122 7400 1)
6 Screw plug 4117 122 9402 1)
7 Valve jet 1128 121 5403
8 Fixed jet 1128 121 5601
9 Gasket 1128 129 0906
10 Metering diaphragm 4116 121 4700 1)
11 End cover 1128 121 0801
12 Collar screw 1121 122 7101 1)
13 Strainer 1114 121 7800 1)
14 Pump diaphragm 4116 121 4800 1)
15 Gasket 4116 129 0902 1)
16 Torsion spring 1127 122 3205 1)
17 Throttle shaft with lever 1127 120 7100 1)

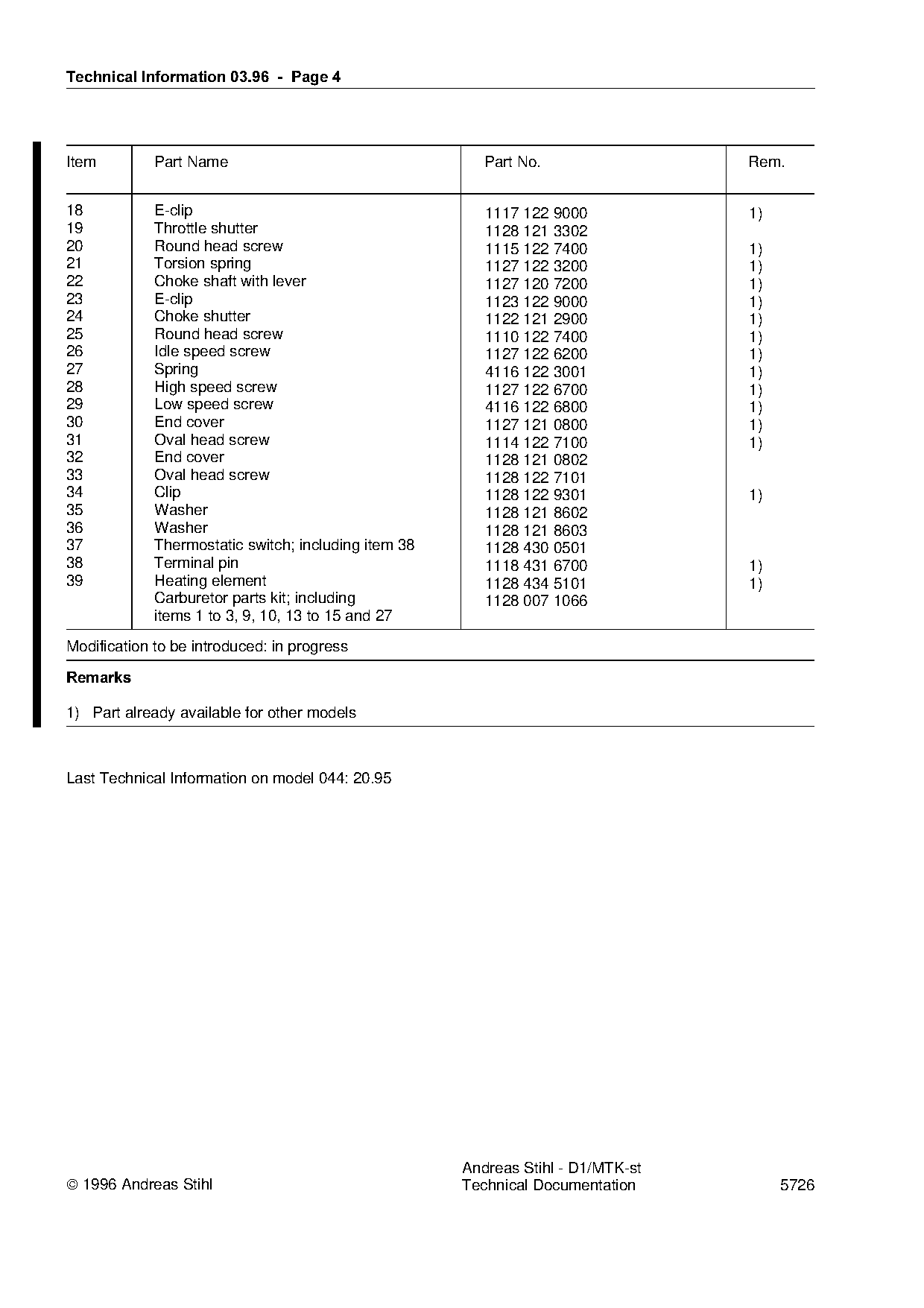

)Technical Information 03.96 - Page 4
Item Part Name Part No. Rem.
18 E-clip 1117 122 9000 1)
19 Throttle shutter 1128 121 3302
20 Round head screw 1115 122 7400 1)
21 Torsion spring 1127 122 3200 1)
22 Choke shaft with lever 1127 120 7200 1)
23 E-clip 1123 122 9000 1)
24 Choke shutter 1122 121 2900 1)
25 Round head screw 1110 122 7400 1)
26 Idle speed screw 1127 122 6200 1)
27 Spring 4116 122 3001 1)
28 High speed screw 1127 122 6700 1)
29 Low speed screw 4116 122 6800 1)
30 End cover 1127 121 0800 1)
31 Oval head screw 1114 122 7100 1)
32 End cover 1128 121 0802
33 Oval head screw 1128 122 7101
34 Clip
1128 122 9301 1)
35 Washer 1128 121 8602
36 Washer 1128 121 8603
37
38
Thermostatic switch; including item 38
Terminal pin
1128 430 0501
1118 431 6700 1)
39 Heating element 1128 434 5101 1)
Carburetor parts kit; including 1128 007 1066
items 1 to 3, 9, 10, 13 to 15 and 27
Modification to be introduced: in progress
5HPDUNV
1) Part already available for other models
Last Technical Information on model 044: 20.95
Andreas Stihl - D1/MTK-st
