Technical Information · issue 5 of 1996
Switch shaft
Model 044, 046 Chainsaws - Series 1128
IssueTI 5/1996
Engine family 1128
Full text
Page 1 of 2

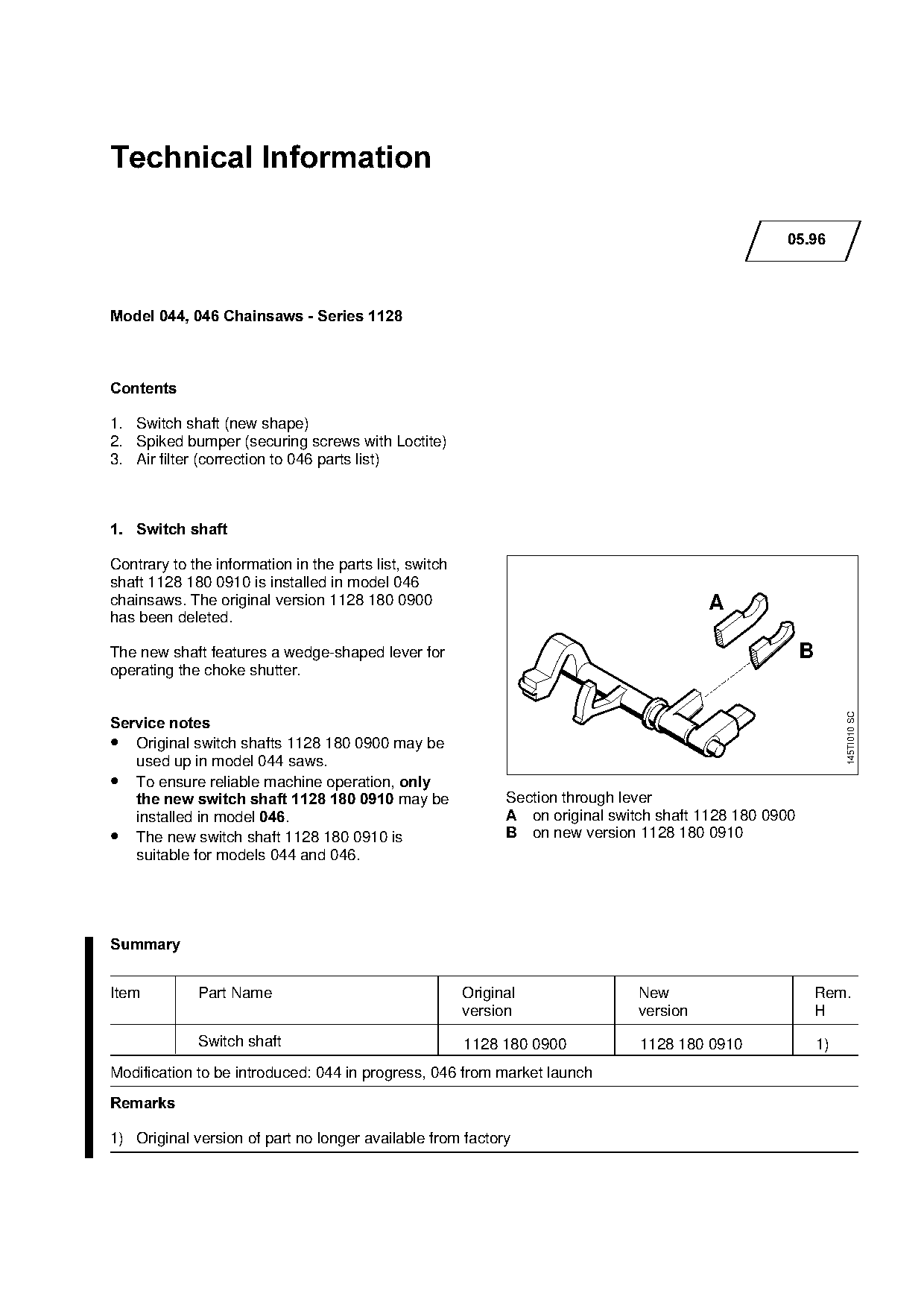

Technical Information
05.96
Model 044, 046 Chainsaws - Series 1128
&RQWHQWV
1. Switch shaft (new shape)
2. Spiked bumper (securing screws with Loctite)
3. Air filter (correction to 046 parts list)
1.=Switch shaft
Contrary to the information in the parts list, switch
shaft 1128 180 0910 is installed in model 046
chainsaws. The original version 1128 180 0900 A
has been deleted.
The new shaft features a wedge-shaped lever for B
operating the choke shutter.
145TI010 SC
Service notes
• Original switch shafts 1128 180 0900 may be
used up in model 044 saws.
• To ensure reliable machine operationI=only
===the new switch shaft 1128 180 0910=m~y=be==================pection=through=lever
installed in model 046K====================================A=on original switch shaft 1128 180 0900
• The new switch shaft 1128 180 0910 is % on new version 1128 180 0910
suitable for models 044 and 046.
6XPPDU\
Item Part Name Original New Rem.
version version H
Switch shaft 1128 180 0900 1128 180 0910 1)
Modification to be introduced: 044 in progress, 046 from market launch
5HPDUNV
1) Original version of part no longer available from factory

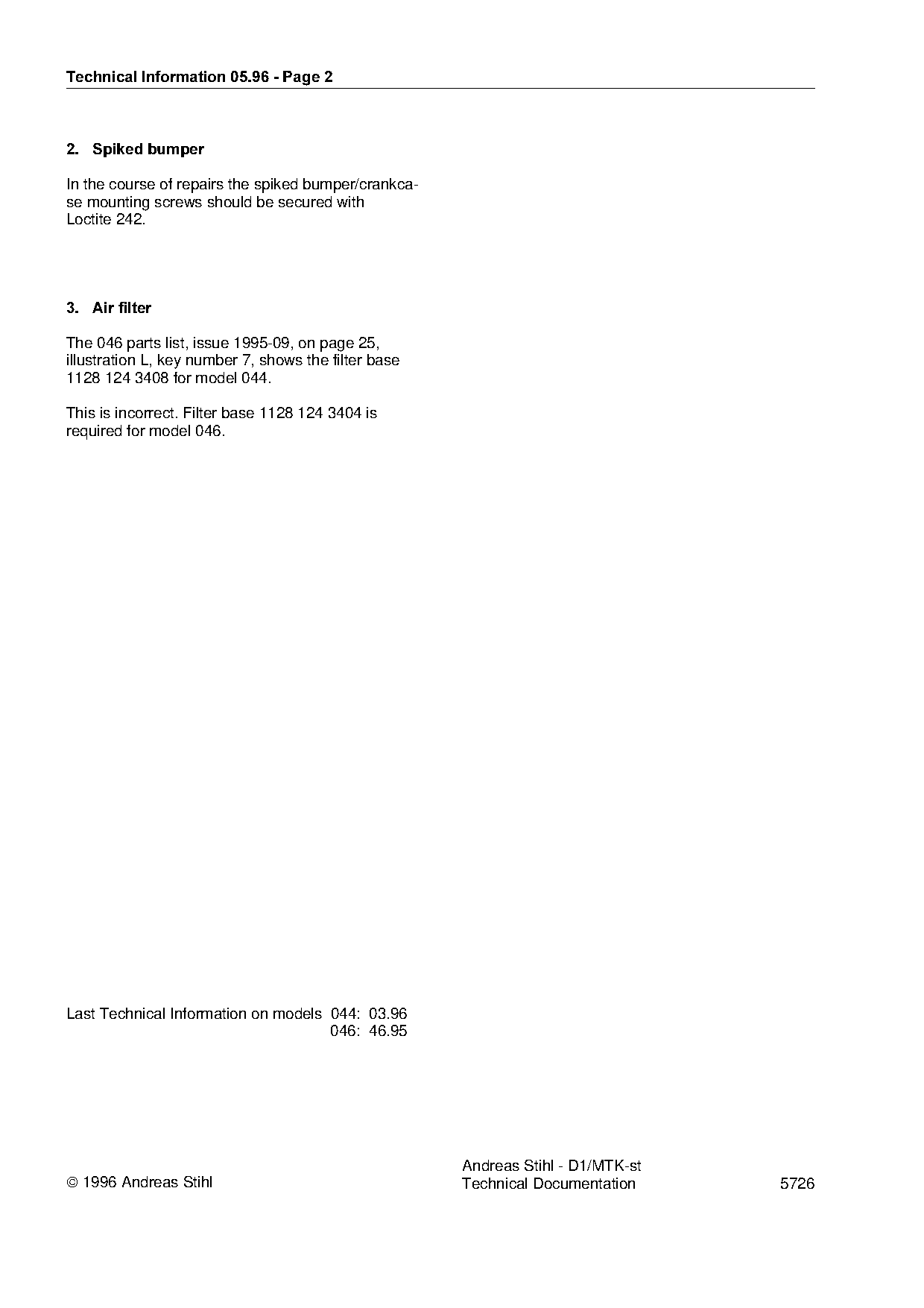

)Technical Information 05.96 - Page 2
2.=Spiked bumper
In the course of repairs the spiked bumper/crankca-
se mounting screws should be secured with
Loctite 242.
3.=Air filter
The 046 parts list, issue 1995-09, on page 25,
illustration L, key number 7, shows the filter base
1128 124 3408 for model 044.
This is incorrect. Filter base 1128 124 3404 is
required for model 046.
Last Technical Information on models 044: 03.96
046: 46.95
Andreas Stihl - D1/MTK-st
1996 Andreas Stihl Technical Documentation 5726 Page 2 of 2
