Technical Information · issue 7 of 1996
New ElastoStart
IssueTI 7/1996
Full text
Page 1 of 3

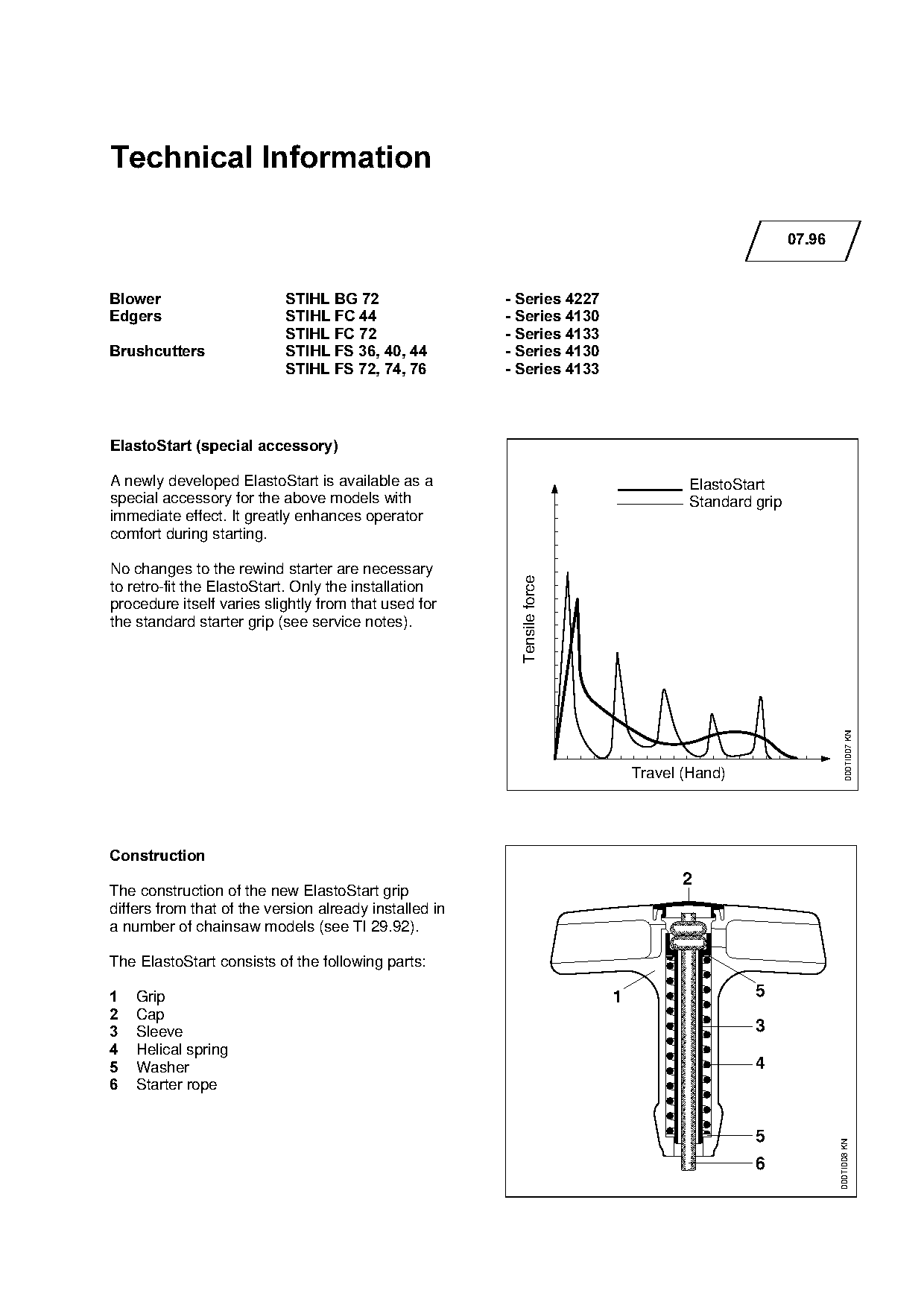

Technical Information
07.96
Blower=====================STIHL BG 72==================- Series 4227
Edgers=====================STIHL FC 44==================- Series 4130
STIHL FC 72==================- Series 4133
Brushcutters===============STIHL FS 36, 40, 44==========- Series 4130
STIHL FS 72, 74, 76==========- Series 4133
ElastoStart =special accessory
A newly developed ElastoStart is available as a ElastoStart
special accessory for the above models with Standard grip
immediate effect. It greatly enhances operator
comfort during starting.
No changes to the rewind starter are necessary
Tensile force
to retro-fit the ElastoStart. Only the installation
procedure itself varies slightly from that used for
the standard starter grip (see service notes).
000TI007 KN
Travel (Hand)
&RQVWUXFWLRQ
2
The construction of the new ElastoStart grip
differs from that of the version already installed in
a number of chainsaw models (see TI 29.92).
The ElastoStart consists of the following parts:
1===drip 1 5
2===`~p
3===pleeve 3
4===eelical spring
5===t~sher 4
6===ptarter rope
5
000TI008 KN
6

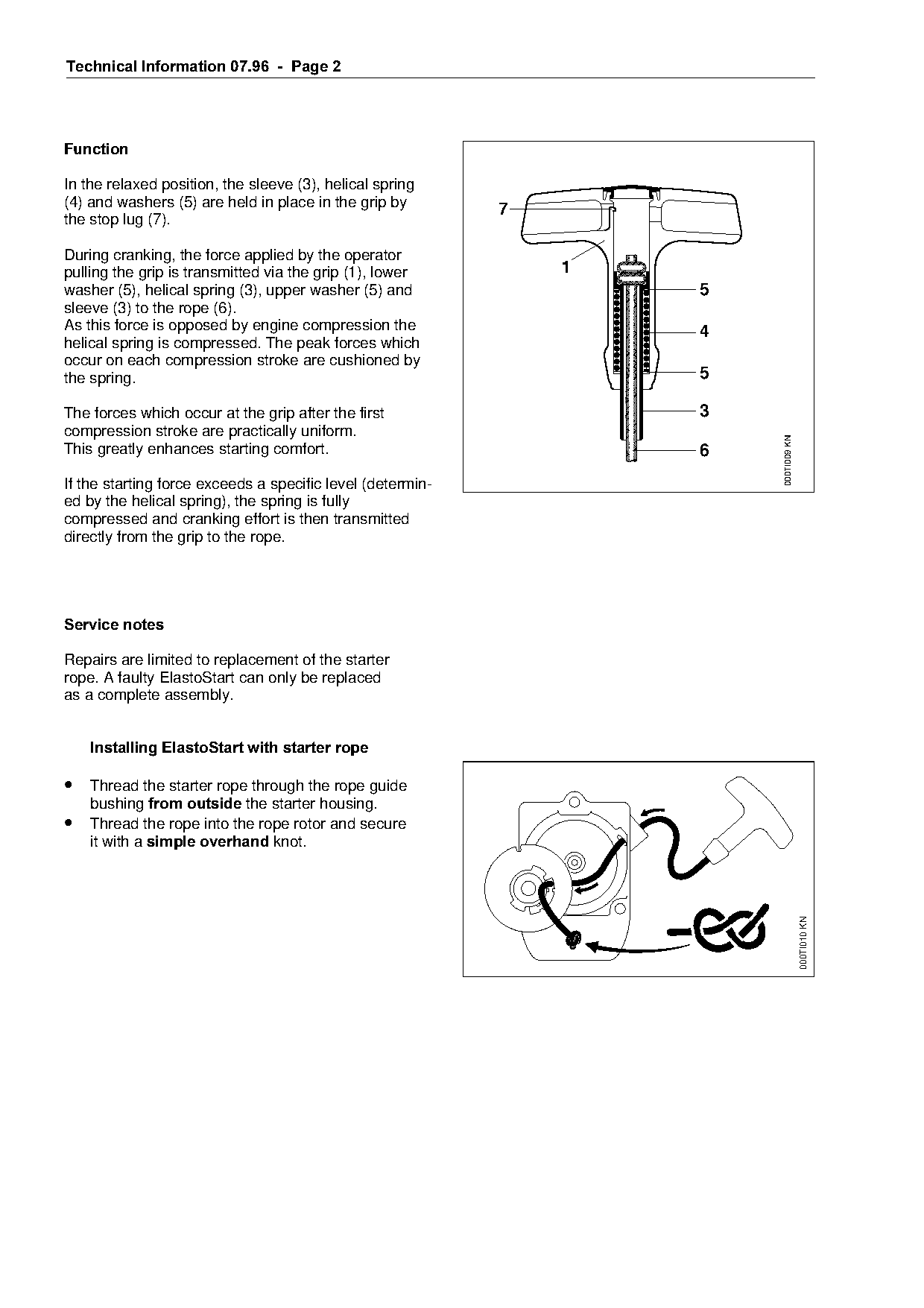

)Technical Information 07.96 - Page 2
)XQFWLRQ
In the relaxed position, the sleeve (3), helical spring
(4) and washers (5) are held in place in the grip by 7
the stop lug (7).
During cranking, the force applied by the operator
pulling the grip is transmitted via the grip (1), lower 1
washer (5), helical spring (3), upper washer (5) and 5
sleeve (3) to the rope (6).
As this force is opposed by engine compression the 4
helical spring is compressed. The peak forces which
occur on each compression stroke are cushioned by
the spring. 5
The forces which occur at the grip after the first 3
compression stroke are practically uniform.
000TI009 KN
This greatly enhances starting comfort. 6
If the starting force exceeds a specific level (determin-
ed by the helical spring), the spring is fully
compressed and cranking effort is then transmitted
directly from the grip to the rope.
Service notes
Repairs are limited to replacement of the starter
rope. A faulty ElastoStart can only be replaced
as a complete assembly.
====Installing ElastoStart with starter rope
• Thread the starter rope through the rope guide
====bushing=from outside=the=st~rter=housingK
• Thread the rope into the rope rotor and secure
it with ~=simple overhand=knot.
000TI010 KN

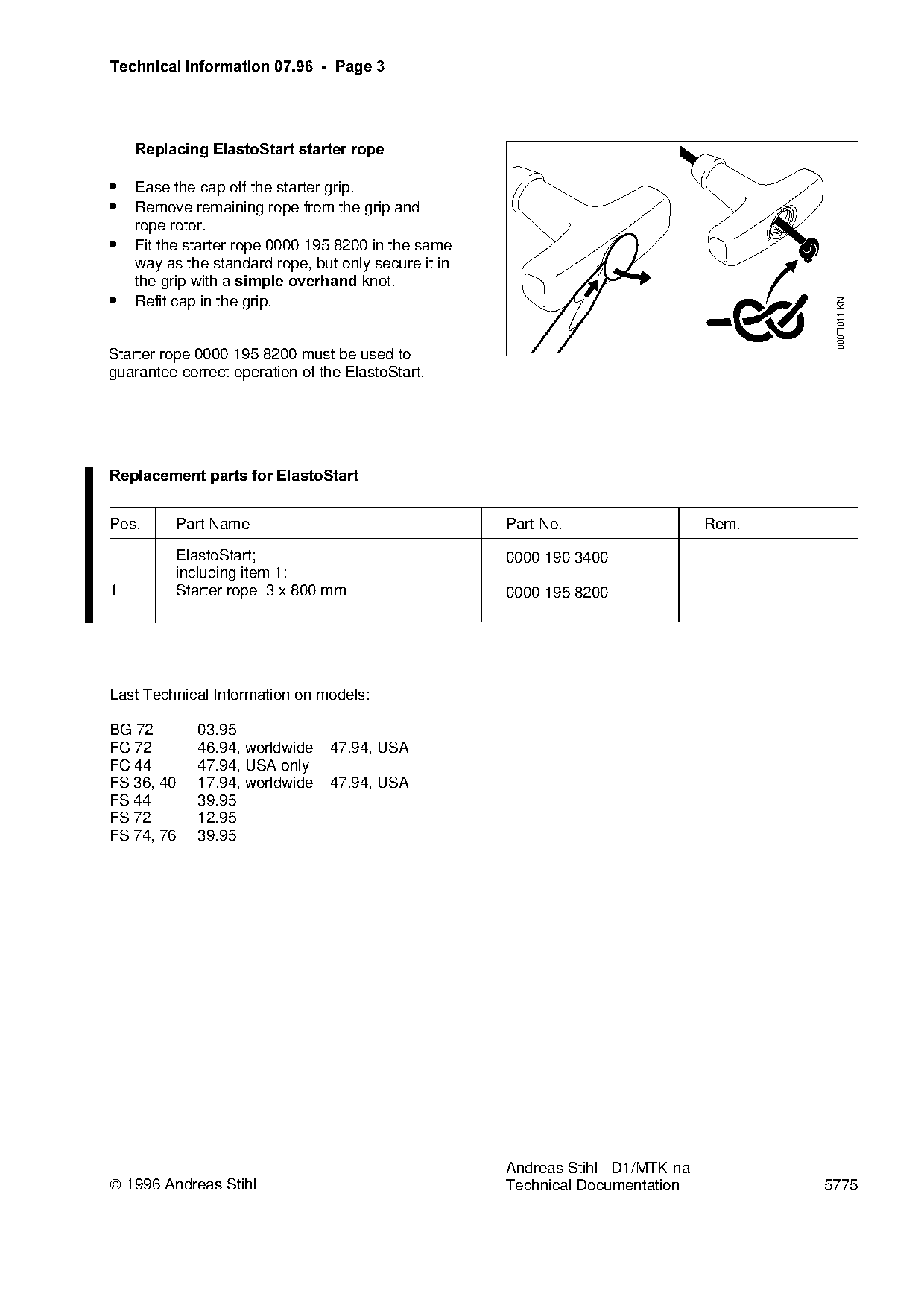

)Technical Information 07.96 - Page 3
Replacing ElastoStart starter rope
• Ease the cap off the starter grip.
• Remove remaining rope from the grip and
rope rotor.
• Fit the starter rope 0000 195 8200 in the same
way as the standard rope, but only secure it in
the grip with ~=simple overhand=knot.
• Refit cap in the grip.
000TI011 KN
Starter rope 0000 195 8200 must be used to
guarantee correct operation of the ElastoStart.
Replacement parts for ElastoStart
Pos. Part Name Part No. Rem.
ElastoStart;
including item 1:
0000 190 3400
1 Starter rope 3 x 800 mm 0000 195 8200
Last Technical Information on models:
BG 72 03.95
FC 72 46.94, worldwide 47.94, USA
FC 44 47.94, USA only
FS 36, 40 17.94, worldwide 47.94, USA
FS 44 39.95
FS 72 12.95
FS 74, 76 39.95
Andreas Stihl - D1/MTK-na
1996 Andreas Stihl Technical Documentation 5775 Page 2 of 3
Page 3 of 3
