Technical Information · issue 8 of 1996
ElastoStart; fuel filler cap
Model FS 160, 180, 220, 280 Clearing Saws - Series 411
IssueTI 8/1996
From serial 32 014 559, 32 735 494
Full text
Page 1 of 2

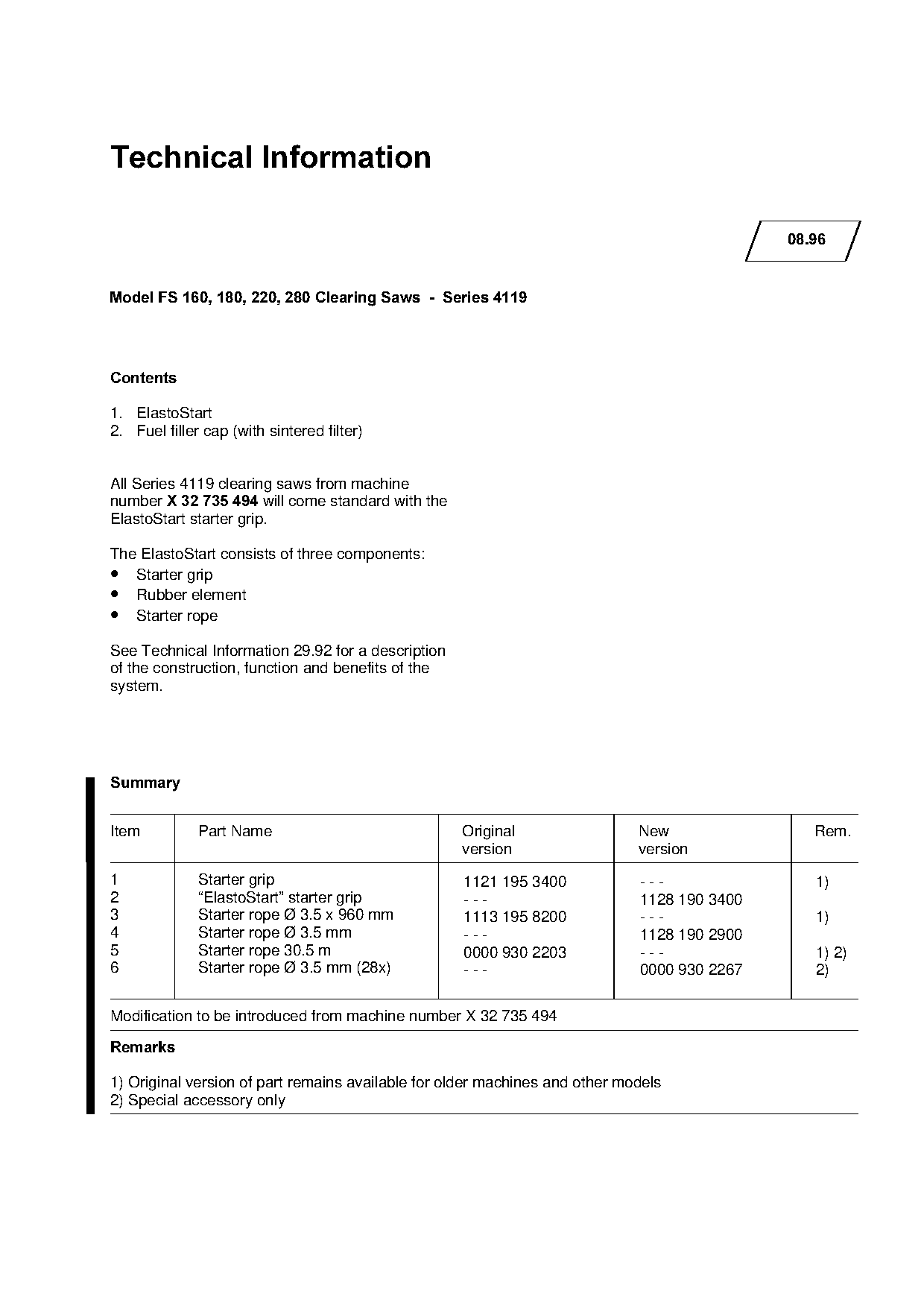

Technical Information
08.96
Model FS 160, 180, 220, 280 Clearing Saws - Series 411
&RQWHQWV
1. ElastoStart
2. Fuel filler cap (with sintered filter)
All Series 4119 clearing saws from machine
number X 32 735 494=will come standard with the
ElastoStart starter grip.
The ElastoStart consists of three components:
• Starter grip
• Rubber element
• Starter rope
See Technical Information 29.92 for a description
of the construction, function and benefits of the
system.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Starter grip 1121 195 3400 --- 1)
2 “ElastoStart” starter grip --- 1128 190 3400
3 Starter rope Ø 3.5 x 960 mm 1113 195 8200 --- 1)
4 Starter rope Ø 3.5 mm --- 1128 190 2900
5 Starter rope 30.5 m 0000 930 2203 --- 1) 2)
6 Starter rope Ø 3.5 mm (28x) --- 0000 930 2267 2)
Modification to be introduced from machine number X 32 735 494
5HPDUNV
1) Original version of part remains available for older machines and other models
2) Special accessory only

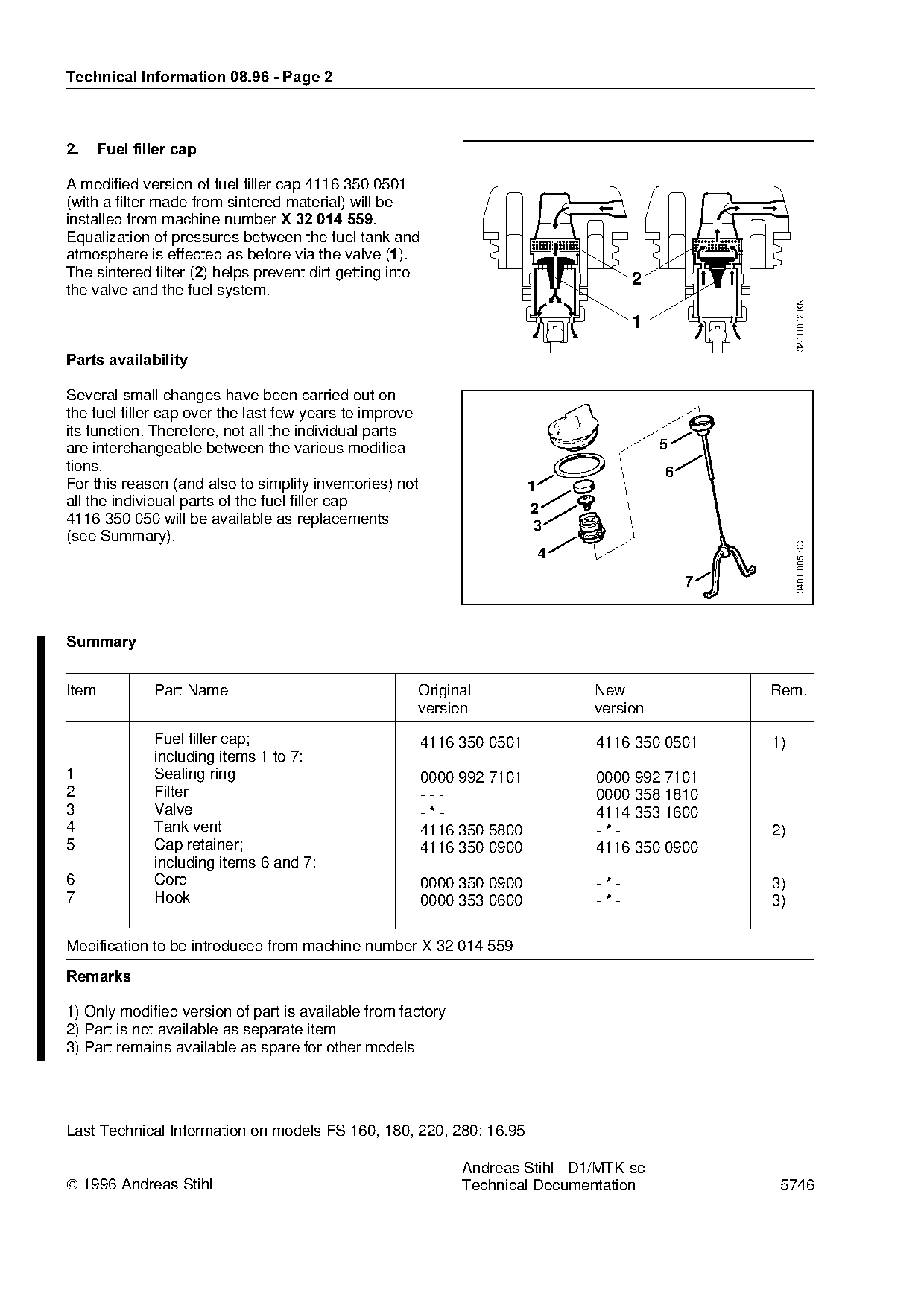

)Technical Information 08.96 - Page 2
2.=====Fuel filler cap
A modified version of fuel filler cap 4116 350 0501
(with a filter made from sintered material) will be
installed from machine number X 32 014 559.
Equalization of pressures between the fuel tank and
atmosphere is effected as before via the valve E1F.
The sintered filter E2F=helps prevent dirt getting into 2
the valve and the fuel system.
323TI002 KN
1
Parts availability
Several small changes have been carried out on
the fuel filler cap over the last few years to improve
its function. Therefore, not all the individual parts
are interchangeable between the various modifica- 5
tions. 6
For this reason (and also to simplify inventories) not 1
all the individual parts of the fuel filler cap 2
4116 350 050 will be available as replacements 3
(see Summary).
340TI005 SC
4
7
6XPPDU\
Item Part Name Original New Rem.
version version
Fuel filler cap; 4116 350 0501 4116 350 0501 1)
including items 1 to 7:
1 Sealing ring 0000 992 7101 0000 992 7101
2 Filter --- 0000 358 1810
3 Valve -*- 4114 353 1600
4 Tank vent 4116 350 5800 -*- 2)
5 Cap retainer;
4116 350 0900 4116 350 0900
including items 6 and 7:
6 Cord 0000 350 0900 -*- 3)
7 Hook 0000 353 0600 -*- 3)
Modification to be introduced from machine number X 32 014 559
5HPDUNV
1) Only modified version of part is available from factory
2) Part is not available as separate item
3) Part remains available as spare for other models
Last Technical Information on models FS 160, 180, 220, 280: 16.95
Andreas Stihl - D1/MTK-sc
1996 Andreas Stihl Technical Documentation 5746 Page 2 of 2
