Technical Information · issue 9 of 1996
ElastoStart; fuel filler cap; plastic nameplate
Model FS 360 clearing saw from machine number
IssueTI 9/1996
From serial 32 195 173, 32 196 669
Full text

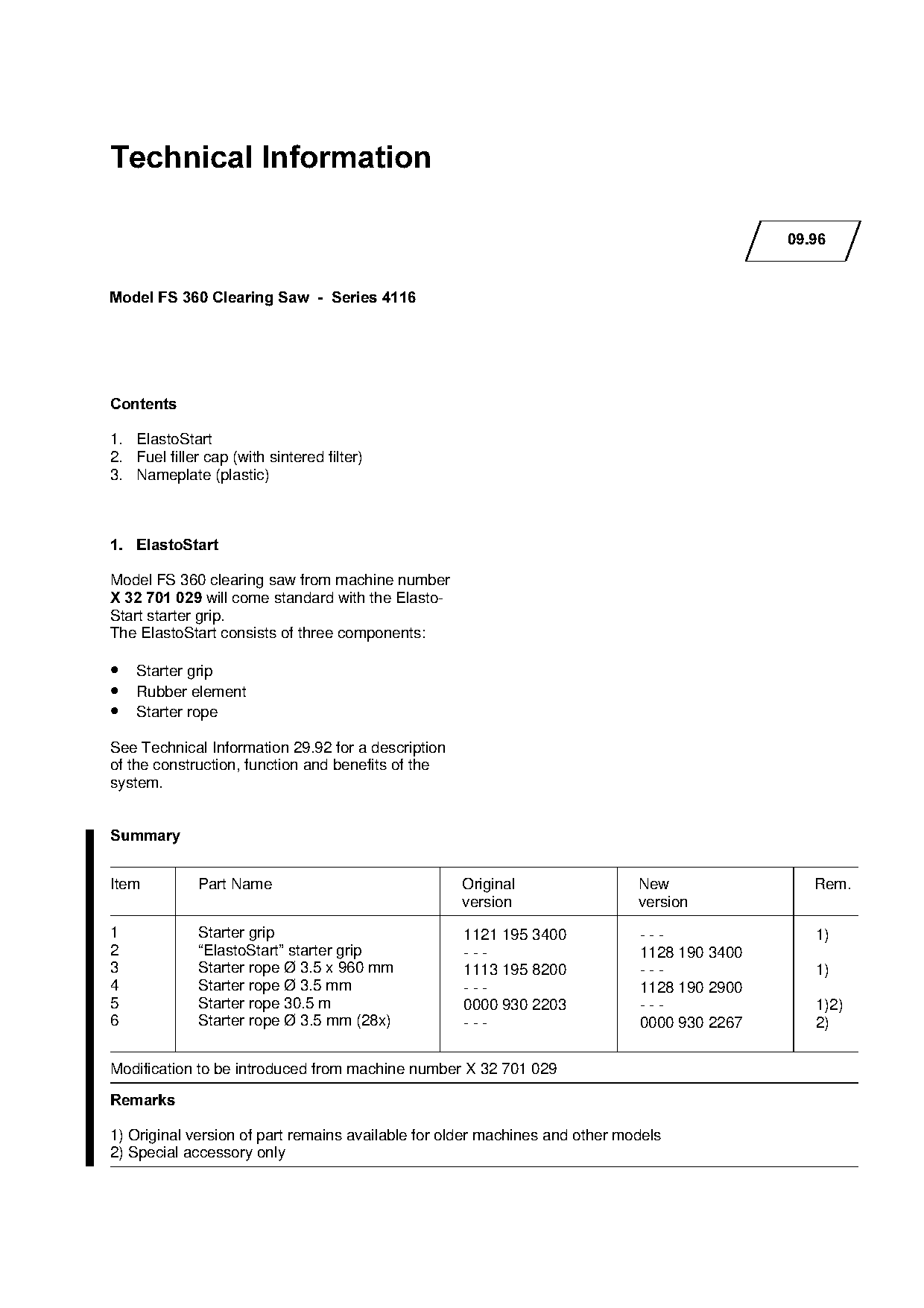

Page 1 of 3
Technical Information
09.96
Model FS 360 Clearing Saw - Series 4116
&RQWHQWV
1. ElastoStart
2. Fuel filler cap (with sintered filter)
3. Nameplate (plastic)
1.=ElastoStart=================================================fo
Model FS 360 clearing saw from machine number
X 32 701 029=will come standard with the Elasto-
Start starter grip.
The ElastoStart consists of three components:
• Starter grip
• Rubber element
• Starter rope
See Technical Information 29.92 for a description
of the construction, function and benefits of the
system.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Starter grip 1121 195 3400 --- 1)
2 “ElastoStart” starter grip --- 1128 190 3400
3 Starter rope Ø 3.5 x 960 mm 1113 195 8200 --- 1)
4 Starter rope Ø 3.5 mm --- 1128 190 2900
5 Starter rope 30.5 m 0000 930 2203 --- 1)2)
6 Starter rope Ø 3.5 mm (28x) --- 0000 930 2267 2)
Modification to be introduced from machine number X 32 701 029
5HPDUNV
1) Original version of part remains available for older machines and other models
2) Special accessory only

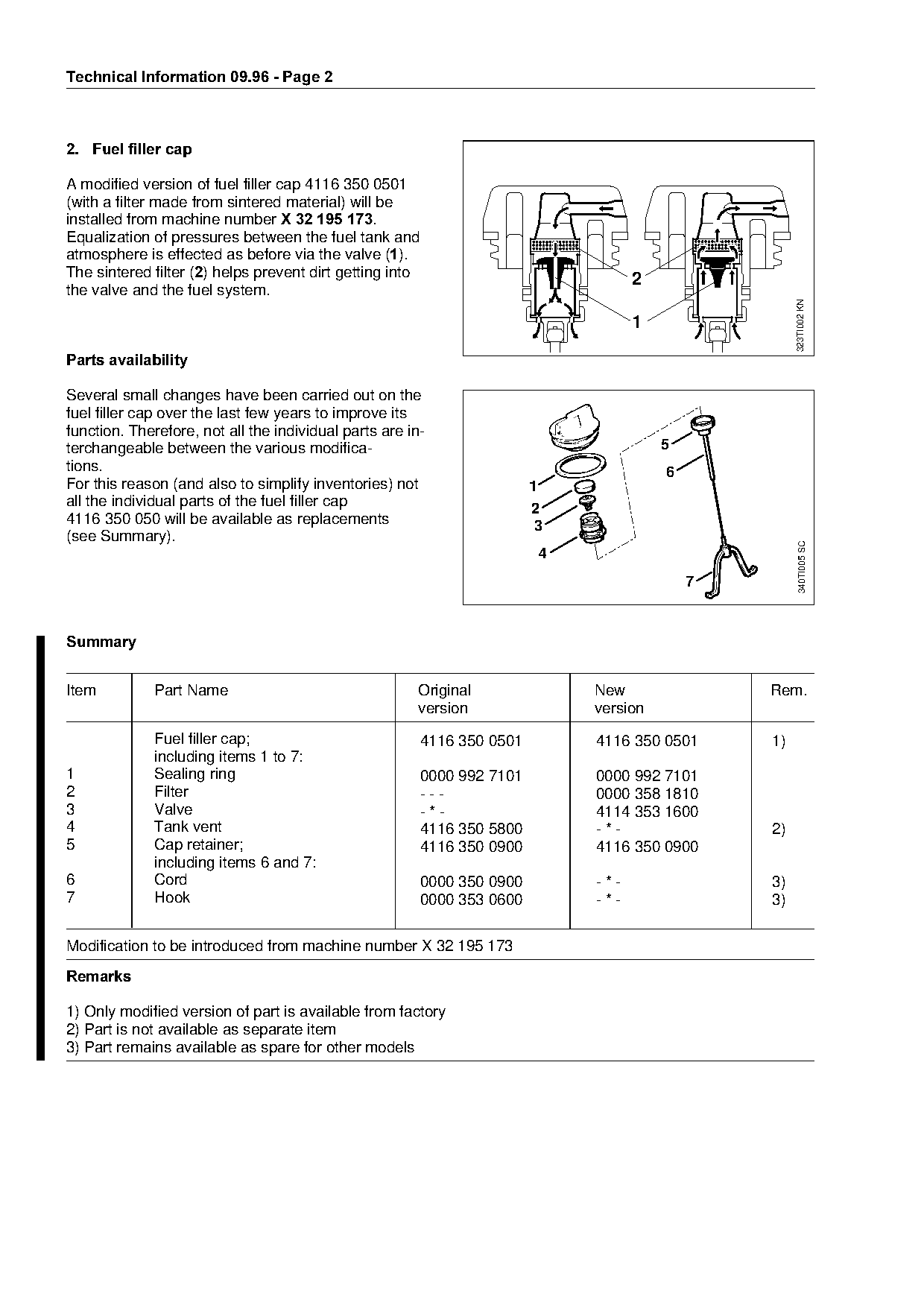

)Technical Information 09.96 - Page 2
2.=Fuel filler cap
A modified version of fuel filler cap 4116 350 0501
(with a filter made from sintered material) will be
installed from machine number X 32 195 173.
Equalization of pressures between the fuel tank and
atmosphere is effected as before via the valve E1F.
The sintered filter E2F=helps prevent dirt getting into 2
the valve and the fuel system.
323TI002 KN
1
Parts availability
Several small changes have been carried out on the
fuel filler cap over the last few years to improve its
function. Therefore, not all the individual parts are in-
terchangeable between the various modifica- 5
tions. 6
For this reason (and also to simplify inventories) not 1
all the individual parts of the fuel filler cap 2
4116 350 050 will be available as replacements 3
(see Summary).
340TI005 SC
4
7
6XPPDU\
Item Part Name Original New Rem.
version version
Fuel filler cap; 4116 350 0501 4116 350 0501 1)
including items 1 to 7:
1 Sealing ring 0000 992 7101 0000 992 7101
2 Filter --- 0000 358 1810
3 Valve -*- 4114 353 1600
4 Tank vent 4116 350 5800 -*- 2)
5 Cap retainer;
4116 350 0900 4116 350 0900
including items 6 and 7:
6 Cord 0000 350 0900 -*- 3)
7 Hook 0000 353 0600 -*- 3)
Modification to be introduced from machine number X 32 195 173
5HPDUNV
1) Only modified version of part is available from factory
2) Part is not available as separate item
3) Part remains available as spare for other models

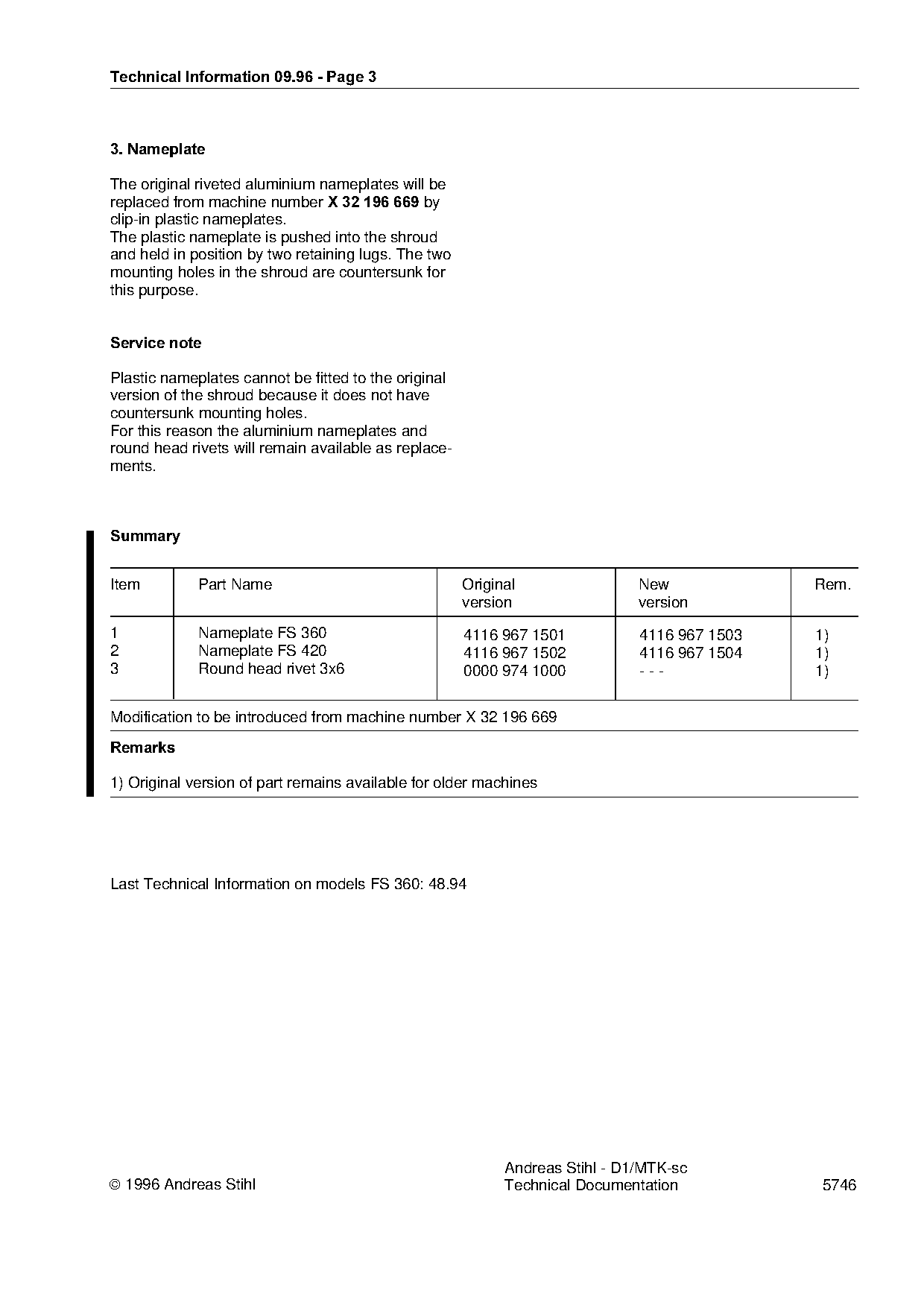

)Technical Information 09.96 - Page 3
3. Nameplate
The original riveted aluminium nameplates will be
replaced from machine number X 32 196 669=by
clip-in plastic nameplates.
The plastic nameplate is pushed into the shroud
and held in position by two retaining lugs. The two
mounting holes in the shroud are countersunk for
this purpose.
Service note
Plastic nameplates cannot be fitted to the original
version of the shroud because it does not have
countersunk mounting holes.
For this reason the aluminium nameplates and
round head rivets will remain available as replace-
ments.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Nameplate FS 360 4116 967 1501 4116 967 1503 1)
2 Nameplate FS 420 4116 967 1502 4116 967 1504 1)
3 Round head rivet 3x6 0000 974 1000 --- 1)
Modification to be introduced from machine number X 32 196 669
5HPDUNV
1) Original version of part remains available for older machines
Last Technical Information on models FS 360: 48.94
Andreas Stihl - D1/MTK-sc
1996 Andreas Stihl Technical Documentation 5746 Page 2 of 3
Page 3 of 3
