Technical Information · issue 10 of 1996
ElastoStart; plastic nameplate
Model TS 350 and TS 360 cut-off machines from machine number ;
IssueTI 10/1996
From serial 32 180 714, 33 746 578
Full text
Page 1 of 2

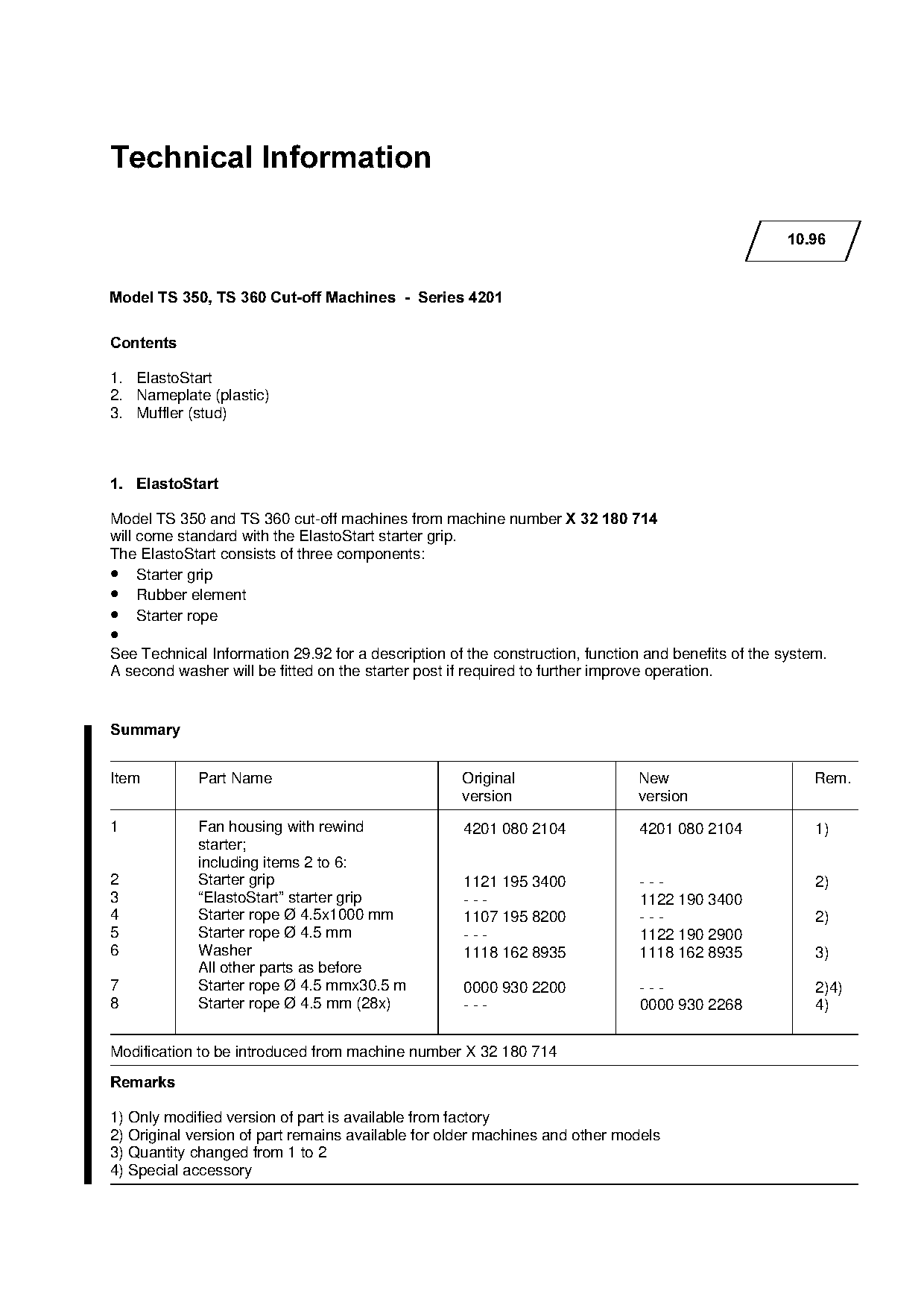

Technical Information
10.96
Model TS 350, TS 360 Cut-off Machines - Series 4201
&RQWHQWV
1. ElastoStart
2. Nameplate (plastic)
3. Muffler (stud)
1.=ElastoStart
Model TS 350 and TS 360 cut-off machines from machine number X 32 180 714
will come standard with the ElastoStart starter grip.
The ElastoStart consists of three components:
• Starter grip
• Rubber element
• Starter rope
•
See Technical Information 29.92 for a description of the construction, function and benefits of the system.
A second washer will be fitted on the starter post if required to further improve operation.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Fan housing with rewind 4201 080 2104 4201 080 2104 1)
starter;
including items 2 to 6:
2 Starter grip 1121 195 3400 --- 2)
3 “ElastoStart” starter grip --- 1122 190 3400
4 Starter rope Ø 4.5x1000 mm 1107 195 8200 --- 2)
5 Starter rope Ø 4.5 mm --- 1122 190 2900
6 Washer 1118 162 8935 1118 162 8935 3)
All other parts as before
7 Starter rope Ø 4.5 mmx30.5 m 0000 930 2200 --- 2)4)
8 Starter rope Ø 4.5 mm (28x) --- 0000 930 2268 4)
Modification to be introduced from machine number X 32 180 714
5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part remains available for older machines and other models
3) Quantity changed from 1 to 2
4) Special accessory

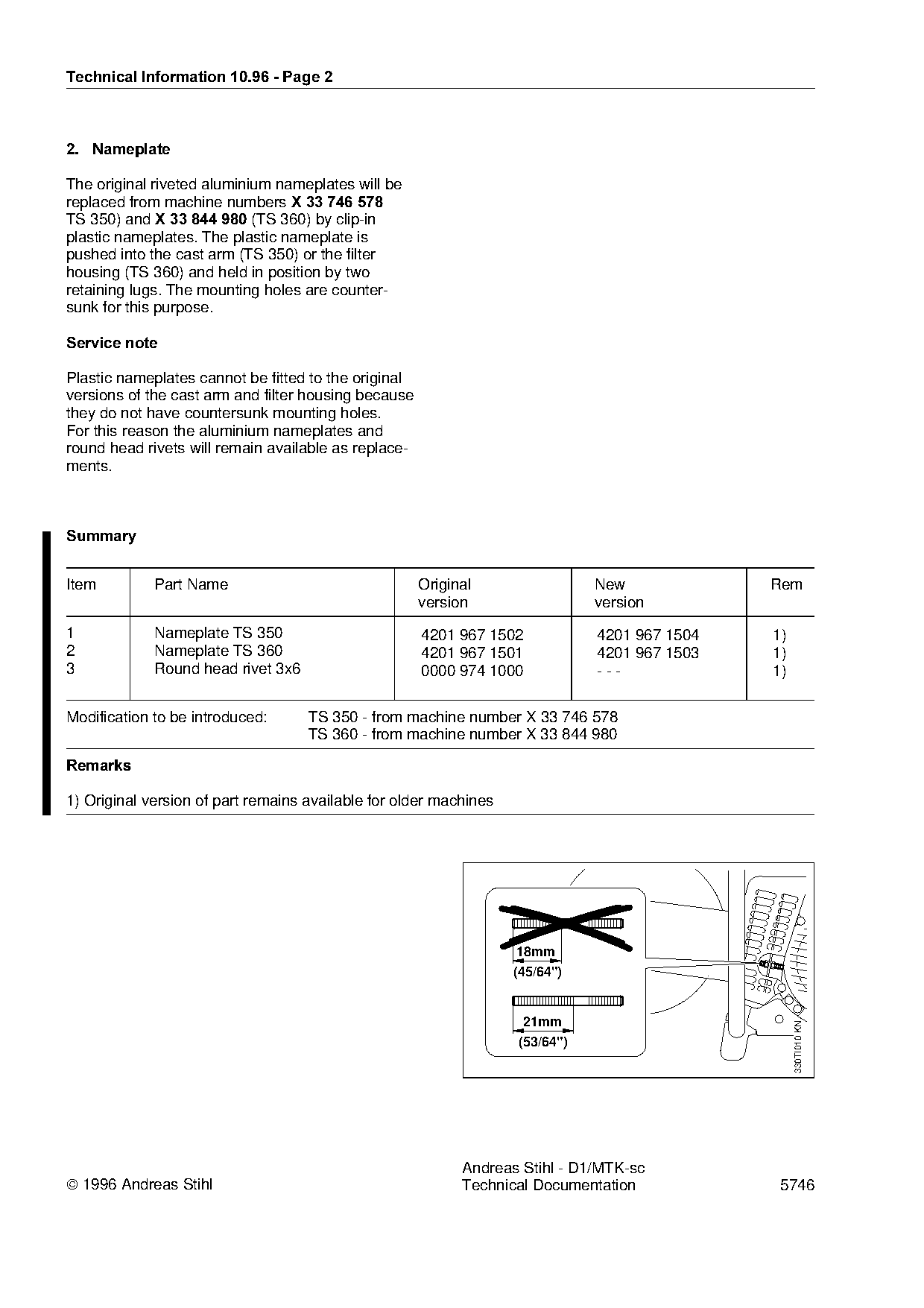

)Technical Information 10.96 - Page 2
2.=Nameplate
The original riveted aluminium nameplates will be
replaced from machine numbers X 33 746 578
TS 350) and X 33 844 980=Eqp=PSMF=by clip-in
plastic nameplates. The plastic nameplate is
pushed into the cast arm (TS 350) or the filter
housing (TS 360) and held in position by two
retaining lugs. The mounting holes are counter-
sunk for this purpose.
Service note
Plastic nameplates cannot be fitted to the original
versions of the cast arm and filter housing because
they do not have countersunk mounting holes.
For this reason the aluminium nameplates and
round head rivets will remain available as replace-
ments.
6XPPDU\
Item Part Name Original New Rem
version version
1 Nameplate TS 350 4201 967 1502 4201 967 1504 1)
2 Nameplate TS 360 4201 967 1501 4201 967 1503 1)
3 Round head rivet 3x6 0000 974 1000 --- 1)
Modification to be introduced: TS 350 - from machine number X 33 746 578
TS 360 - from machine number X 33 844 980
5HPDUNV
1) Original version of part remains available for older machines
18mm
(45/64")
21mm
330TI010 KN
(53/64")
Andreas Stihl - D1/MTK-sc
1996 Andreas Stihl Technical Documentation 5746 Page 2 of 2
