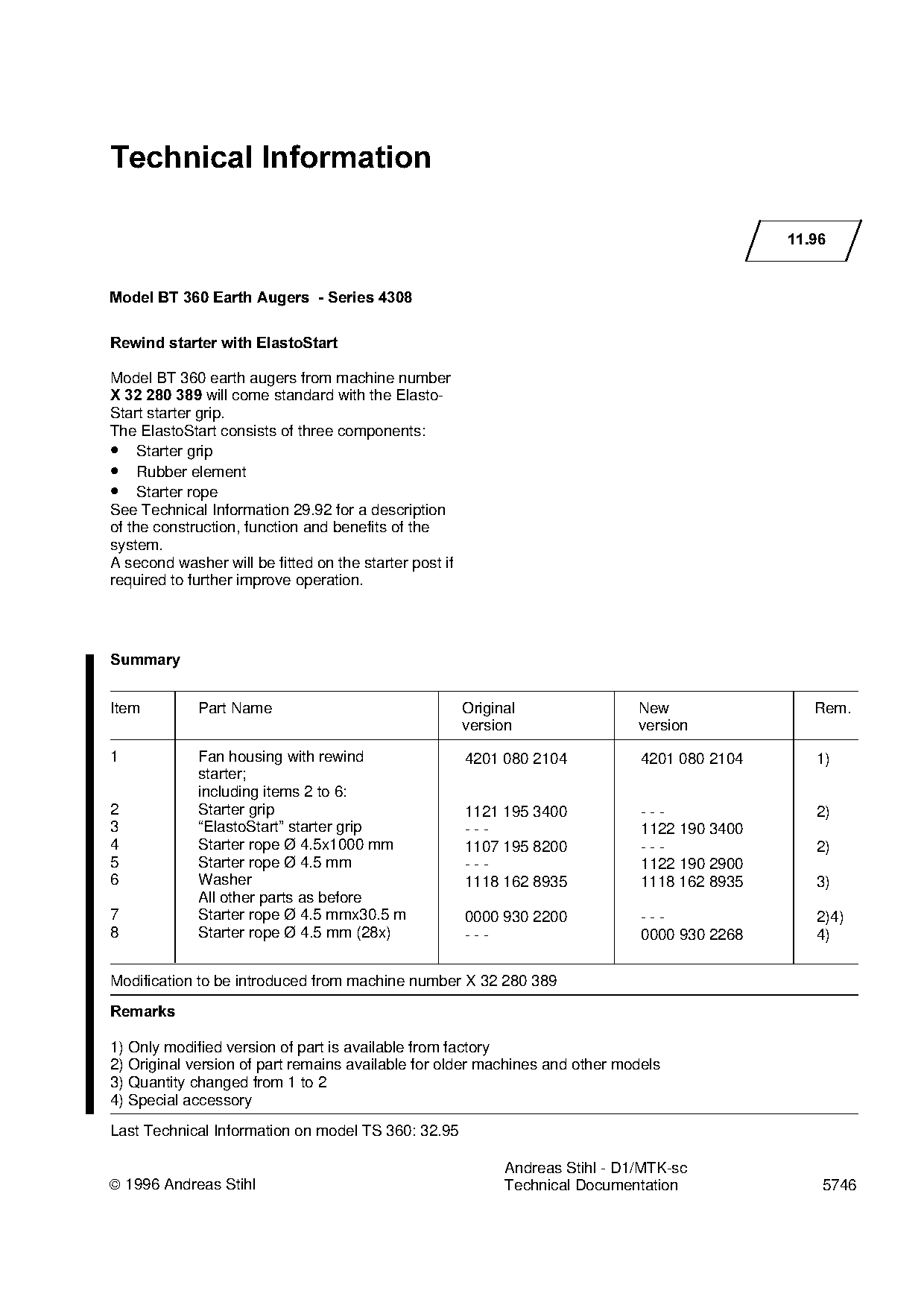

Technical Information
11.96
Model BT 360 Earth Augers - Series 4308
Rewind starter with ElastoStart
Model BT 360 earth augers from machine number
X 32 280 389=will come standard with the Elasto-
Start starter grip.
The ElastoStart consists of three components:
• Starter grip
• Rubber element
• Starter rope
See Technical Information 29.92 for a description
of the construction, function and benefits of the
system.
A second washer will be fitted on the starter post if
required to further improve operation.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Fan housing with rewind 4201 080 2104 4201 080 2104 1)
starter;
including items 2 to 6:
2 Starter grip 1121 195 3400 --- 2)
3 “ElastoStart” starter grip --- 1122 190 3400
4 Starter rope Ø 4.5x1000 mm
1107 195 8200 --- 2)
5 Starter rope Ø 4.5 mm --- 1122 190 2900
6 Washer 1118 162 8935 1118 162 8935 3)
All other parts as before
7 Starter rope Ø 4.5 mmx30.5 m 0000 930 2200 --- 2)4)
8 Starter rope Ø 4.5 mm (28x) --- 0000 930 2268 4)
Modification to be introduced from machine number X 32 280 389
5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part remains available for older machines and other models
3) Quantity changed from 1 to 2
4) Special accessory
Last Technical Information on model TS 360: 32.95
Andreas Stihl - D1/MTK-sc
