Technical Information · issue 19 of 1996
Fuel tank; fan housing; gearhead
Model FS 36, 40, 44 Brushcutters - Series 4130
IssueTI 19/1996
Full text
Page 1 of 5

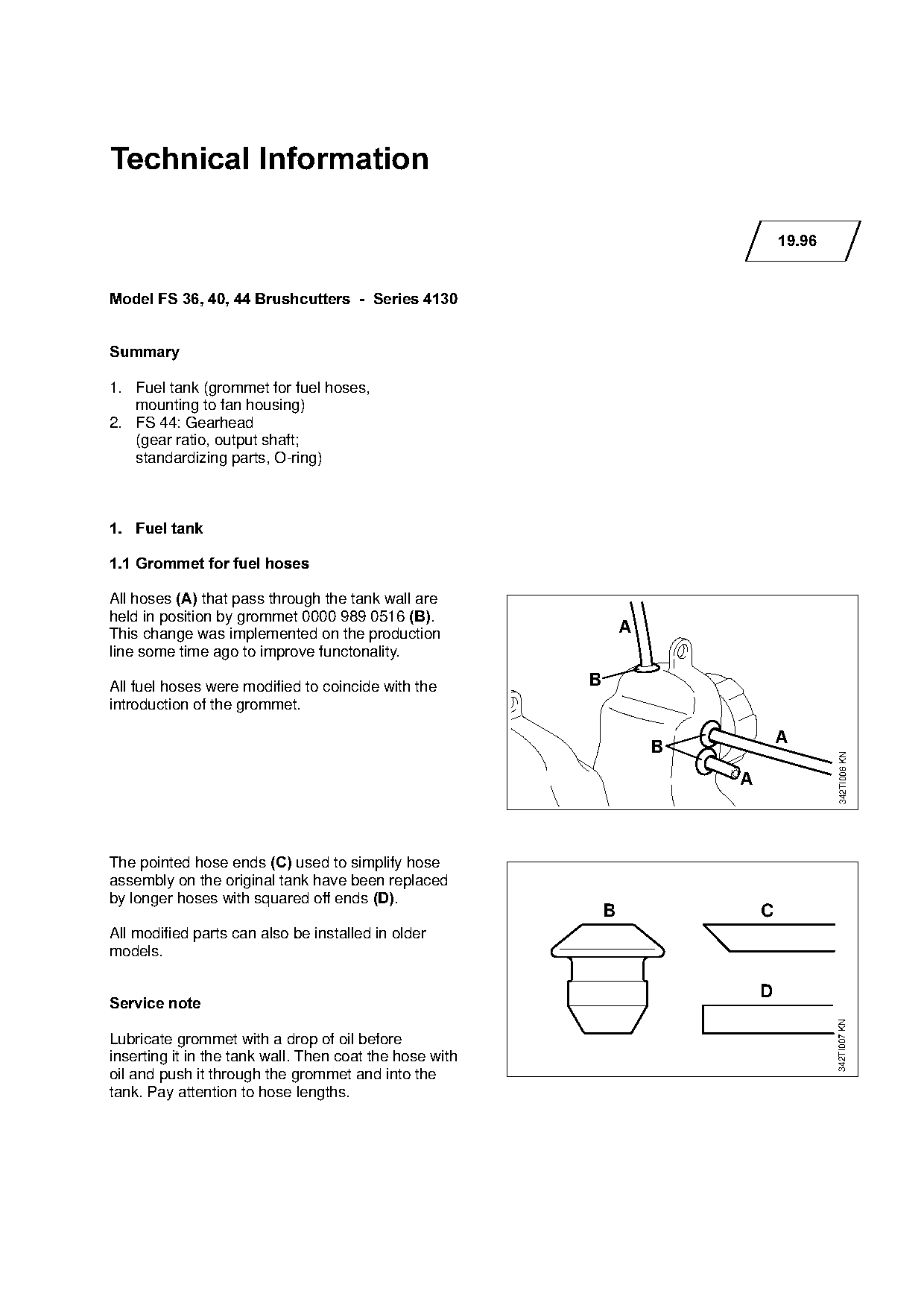

Technical Information
19.96
Model FS 36, 40, 44 Brushcutters - Series 4130
6XPPDU\
1. Fuel tank (grommet for fuel hoses,
mounting to fan housing)
2. FS 44: Gearhead
(gear ratio, output shaft;
standardizing parts, O-ring)
1.=Fuel tank
1.1=Grommet for fuel hoses
All hoses $ that pass through the tank wall are
held in position by grommet 0000 989 0516 % .
This change was implemented on the production A
line some time ago to improve functonality.
All fuel hoses were modified to coincide with the B
introduction of the grommet.
A
B
342TI006 KN
A
The pointed hose ends & used to simplify hose
assembly on the original tank have been replaced
by longer hoses with squared off ends ' .
B C
All modified parts can also be installed in older
models.
D
Service note
342TI007 KN
Lubricate grommet with a drop of oil before
inserting it in the tank wall. Then coat the hose with
oil and push it through the grommet and into the
tank. Pay attention to hose lengths.

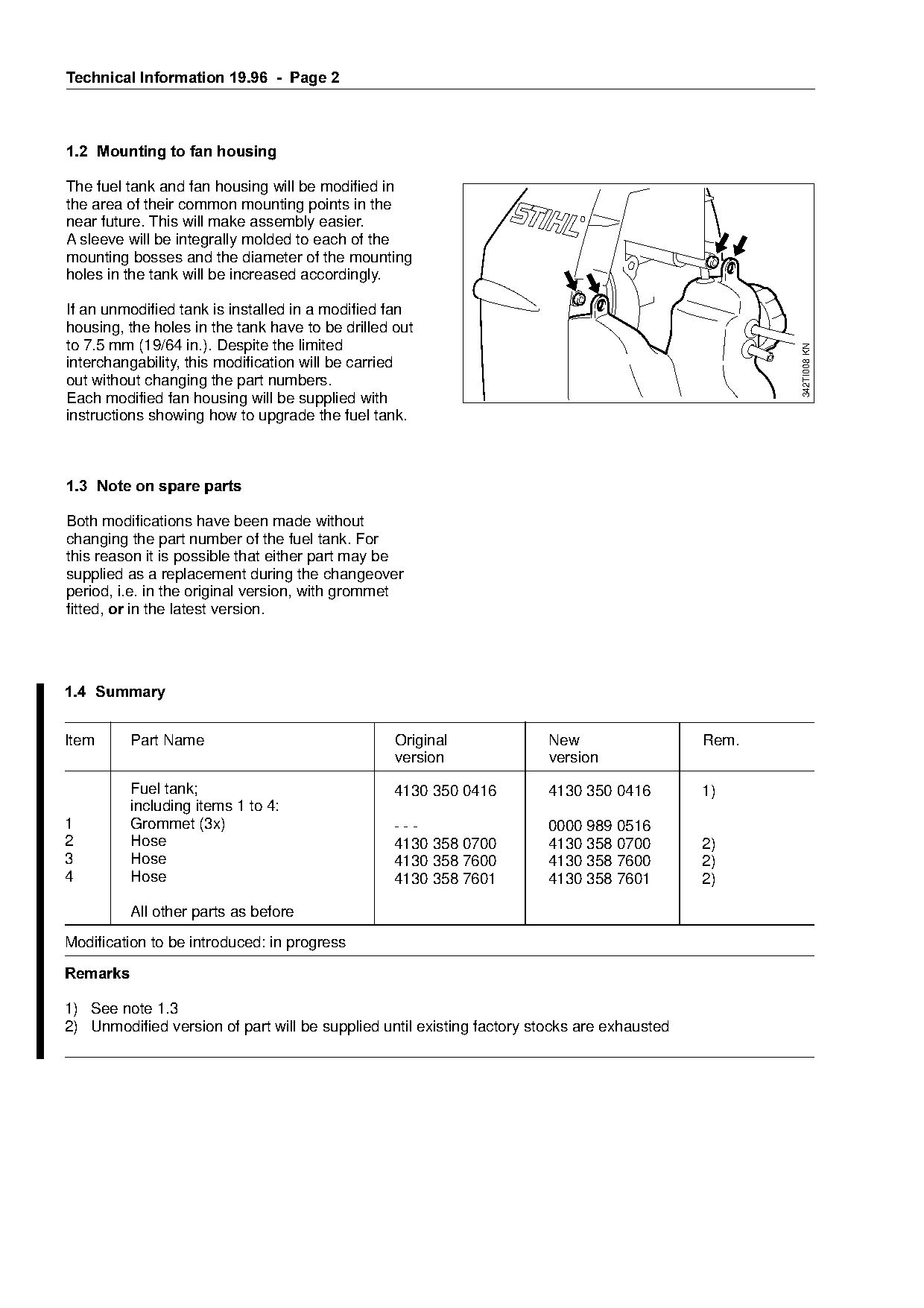

)Technical Information 19.96 - Page 2
1.2=Mounting to fan housing
The fuel tank and fan housing will be modified in
the area of their common mounting points in the
near future. This will make assembly easier.
A sleeve will be integrally molded to each of the
mounting bosses and the diameter of the mounting
holes in the tank will be increased accordingly.
If an unmodified tank is installed in a modified fan
housing, the holes in the tank have to be drilled out
to 7.5 mm (19/64 in.). Despite the limited
342TI008 KN
interchangability, this modification will be carried
out without changing the part numbers.
Each modified fan housing will be supplied with
instructions showing how to upgrade the fuel tank.
1.3=Note on spare parts
Both modifications have been made without
changing the part number of the fuel tank. For
this reason it is possible that either part may be
supplied as a replacement during the changeover
period, i.e. in the original version, with grommet
fitted, RU in the latest version.
1.4=Summary
Item Part Name Original New Rem.
version version
Fuel tank; 4130 350 0416 4130 350 0416 1)
including items 1 to 4:
1 Grommet (3x) --- 0000 989 0516
2 Hose 4130 358 0700 4130 358 0700 2)
3 Hose 4130 358 7600 4130 358 7600 2)
4 Hose 4130 358 7601 4130 358 7601 2)
All other parts as before
Modification to be introduced: in progress
5HPDUNV
1) See note 1.3
2) Unmodified version of part will be supplied until existing factory stocks are exhausted

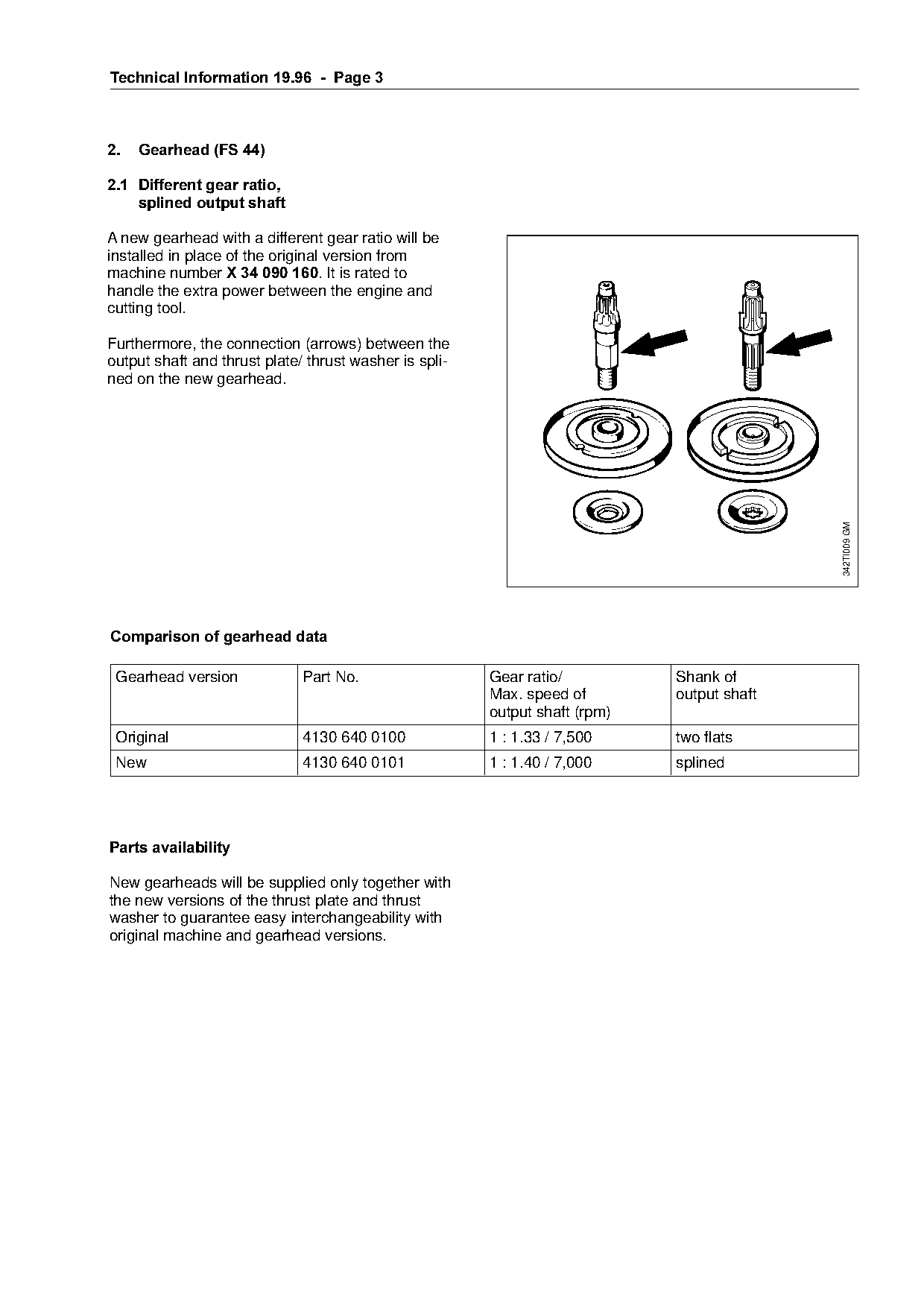

)Technical Information 19.96 - Page 3
2.===Gearhead =FS 44
2.1=Different gear ratio,
splined output shaft
A new gearhead with a different gear ratio will be
installed in place of the original version from
machine number X 34 090 160K=ft is rated to
handle the extra power between the engine and
cutting tool.
Furthermore, the connection (arrows) between the
output shaft and thrust plate/ thrust washer is spli-
ned on the new gearhead.
342TI009 GM
Comparison of gearhead data
Gearhead version Part No. Gear ratio/ Shank of
Max. speed of output shaft
output shaft (rpm)
Original 4130 640 0100 1 : 1.33 / 7,500 two flats
New 4130 640 0101 1 : 1.40 / 7,000 splined
Parts availability
New gearheads will be supplied only together with
the new versions of the thrust plate and thrust
washer to guarantee easy interchangeability with
original machine and gearhead versions.

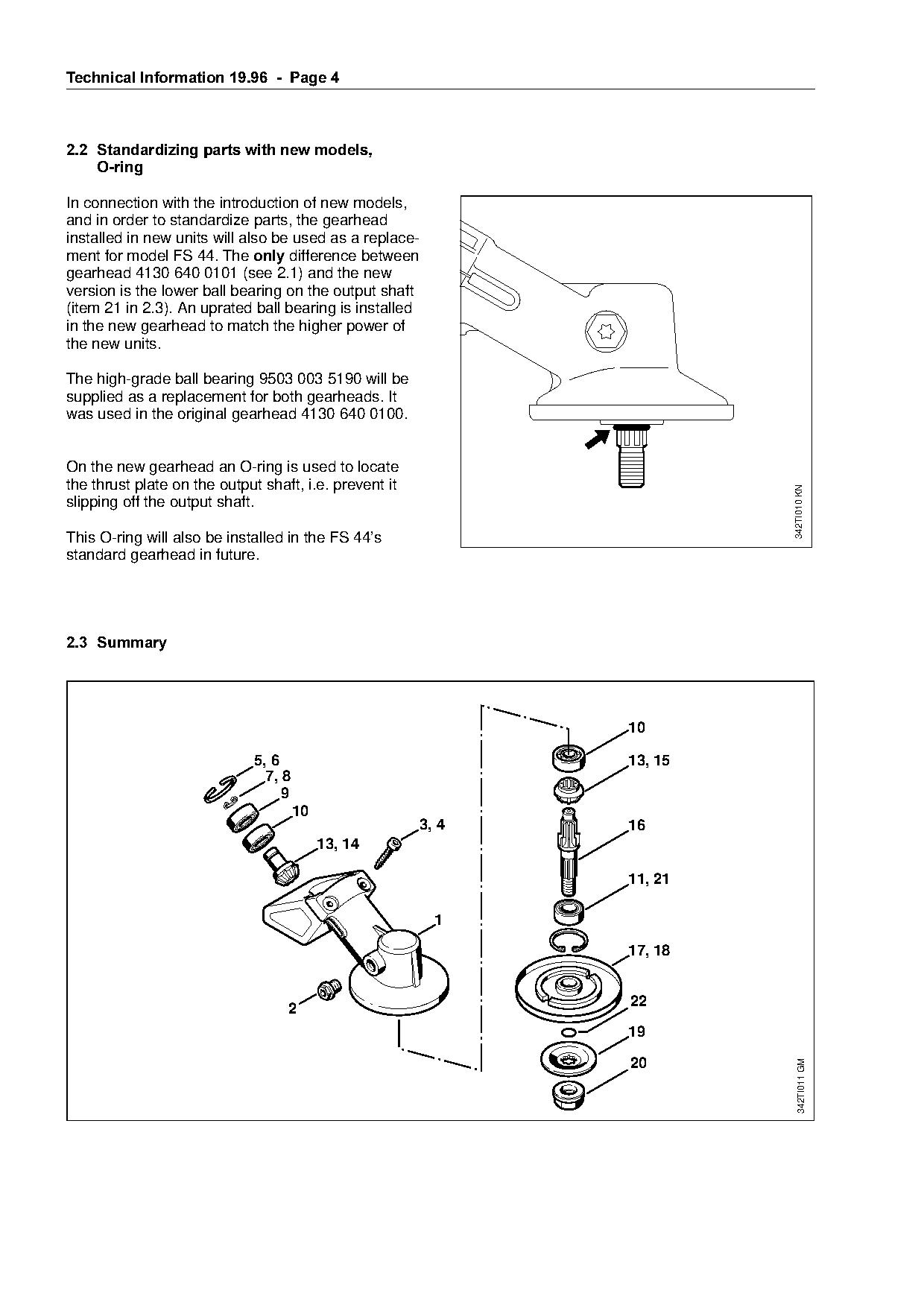

)Technical Information 19.96 - Page 4
2.2=Standardizing parts with new models,
O-ring
In connection with the introduction of new models,
and in order to standardize parts, the gearhead
installed in new units will also be used as a replace-
ment for model FS 44. The RQO\ difference between
gearhead 4130 640 0101 (see 2.1) and the new
version is the lower ball bearing on the output shaft
(item 21 in 2.3). An uprated ball bearing is installed
in the new gearhead to match the higher power of
the new units.
The high-grade ball bearing 9503 003 5190 will be
supplied as a replacement for both gearheads. It
was used in the original gearhead 4130 640 0100.
On the new gearhead an O-ring is used to locate
the thrust plate on the output shaft, i.e. prevent it
342TI010 KN
slipping off the output shaft.
This O-ring will also be installed in the FS 44’s
standard gearhead in future. fo
2.3=Summary
5, 6 13, 15
7, 8
9
10
3, 4 16
13, 14
11, 21
17, 18
2 22
19
20
342TI011 GM

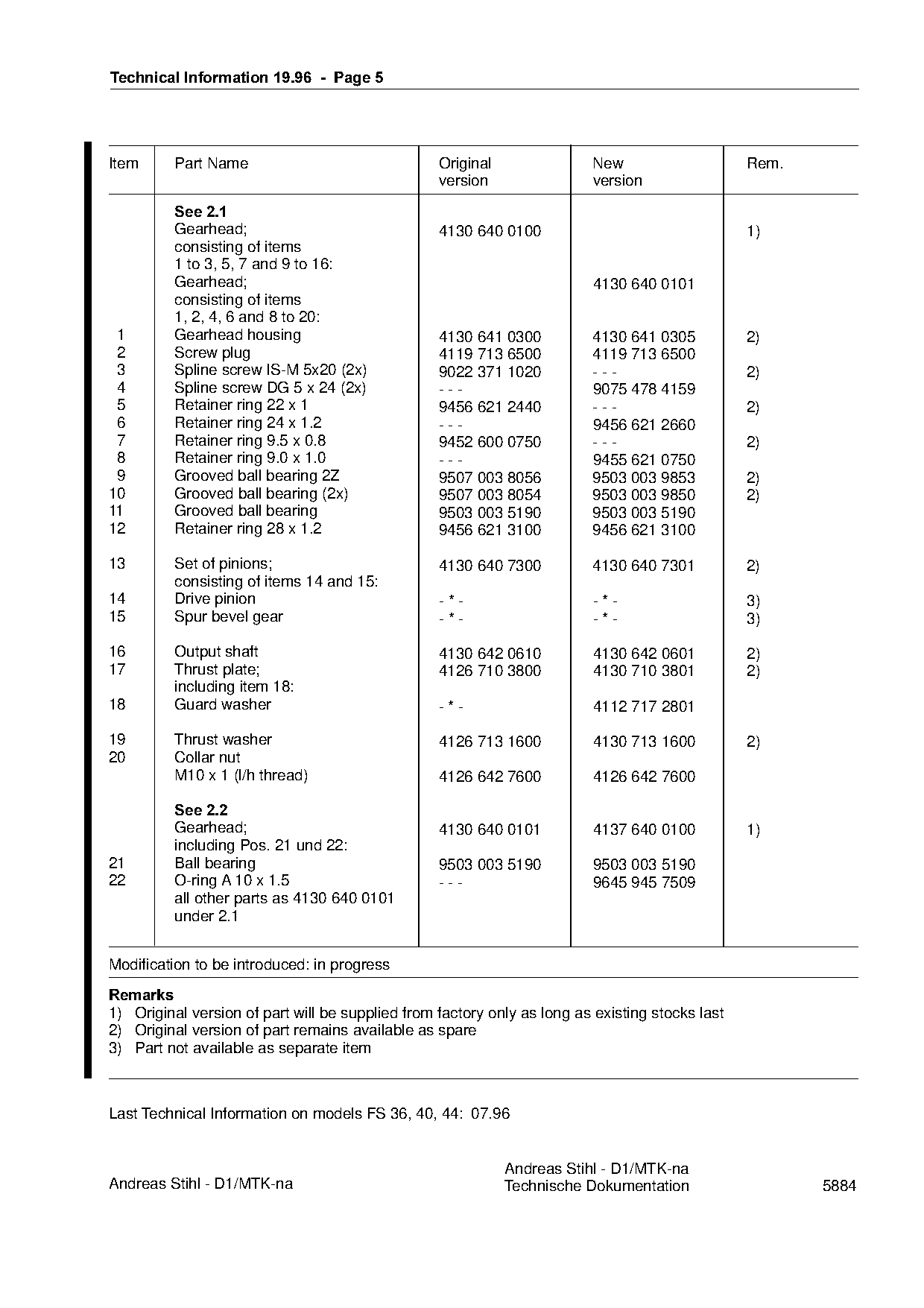

)Technical Information 19.96 - Page 5
Item Part Name Original New Rem.
version version
See 2.1
Gearhead; 4130 640 0100 1)
consisting of items
1 to 3, 5, 7 and 9 to 16:
Gearhead; 4130 640 0101
consisting of items
1, 2, 4, 6 and 8 to 20:
1 Gearhead housing 4130 641 0300 4130 641 0305 2)
2 Screw plug 4119 713 6500 4119 713 6500
3 Spline screw IS-M 5x20 (2x) 9022 371 1020 --- 2)
4 Spline screw DG 5 x 24 (2x) --- 9075 478 4159
5 Retainer ring 22 x 1 9456 621 2440 --- 2)
6 Retainer ring 24 x 1.2 --- 9456 621 2660
7 Retainer ring 9.5 x 0.8 9452 600 0750 --- 2)
8 Retainer ring 9.0 x 1.0 --- 9455 621 0750
9 Grooved ball bearing 2Z 9507 003 8056 9503 003 9853 2)
10 Grooved ball bearing (2x) 9507 003 8054 9503 003 9850 2)
11 Grooved ball bearing 9503 003 5190 9503 003 5190
12 Retainer ring 28 x 1.2 9456 621 3100 9456 621 3100
13 Set of pinions;
4130 640 7300 4130 640 7301 2)
consisting of items 14 and 15:
14 Drive pinion -*- -*- 3)
15 Spur bevel gear -*- -*- 3)
16 Output shaft 4130 642 0610 4130 642 0601 2)
17 Thrust plate; 4126 710 3800 4130 710 3801 2)
including item 18:
18 Guard washer -*- 4112 717 2801
19 Thrust washer 4126 713 1600 4130 713 1600 2)
20 Collar nut
M10 x 1 (l/h thread) 4126 642 7600 4126 642 7600
See 2.2
Gearhead; 4130 640 0101 4137 640 0100 1)
including Pos. 21 und 22:
21 Ball bearing 9503 003 5190 9503 003 5190
22 O-ring A 10 x 1.5 --- 9645 945 7509
all other parts as 4130 640 0101
under 2.1
Modification to be introduced: in progress
5HPDUNV
1) Original version of part will be supplied from factory only as long as existing stocks last
2) Original version of part remains available as spare
3) Part not available as separate item
Last Technical Information on models FS 36, 40, 44: 07.96
Andreas Stihl - D1/MTK-na
