Technical Information · issue 21 of 1996
New versions; shroud; prefilter (only 034 and 036
Model 034, 036 Chainsaws - Series 1125
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1121 442 1600 | 1125 442 1600 | The original contact spring 1121 442 1600 will be replaced by the version 1125 442 1600 to coincide with the introduction of the new carburetor heating system. |
| 1125 120 1500 | 1125 120 1501 | Prefilter 1125 120 1500 will be replaced by prefilter 1125 120 1501 in all 034 saws from machine number X 33 781 153=~nd in 036 saws without compensator. |
Full text
Page 1 of 5

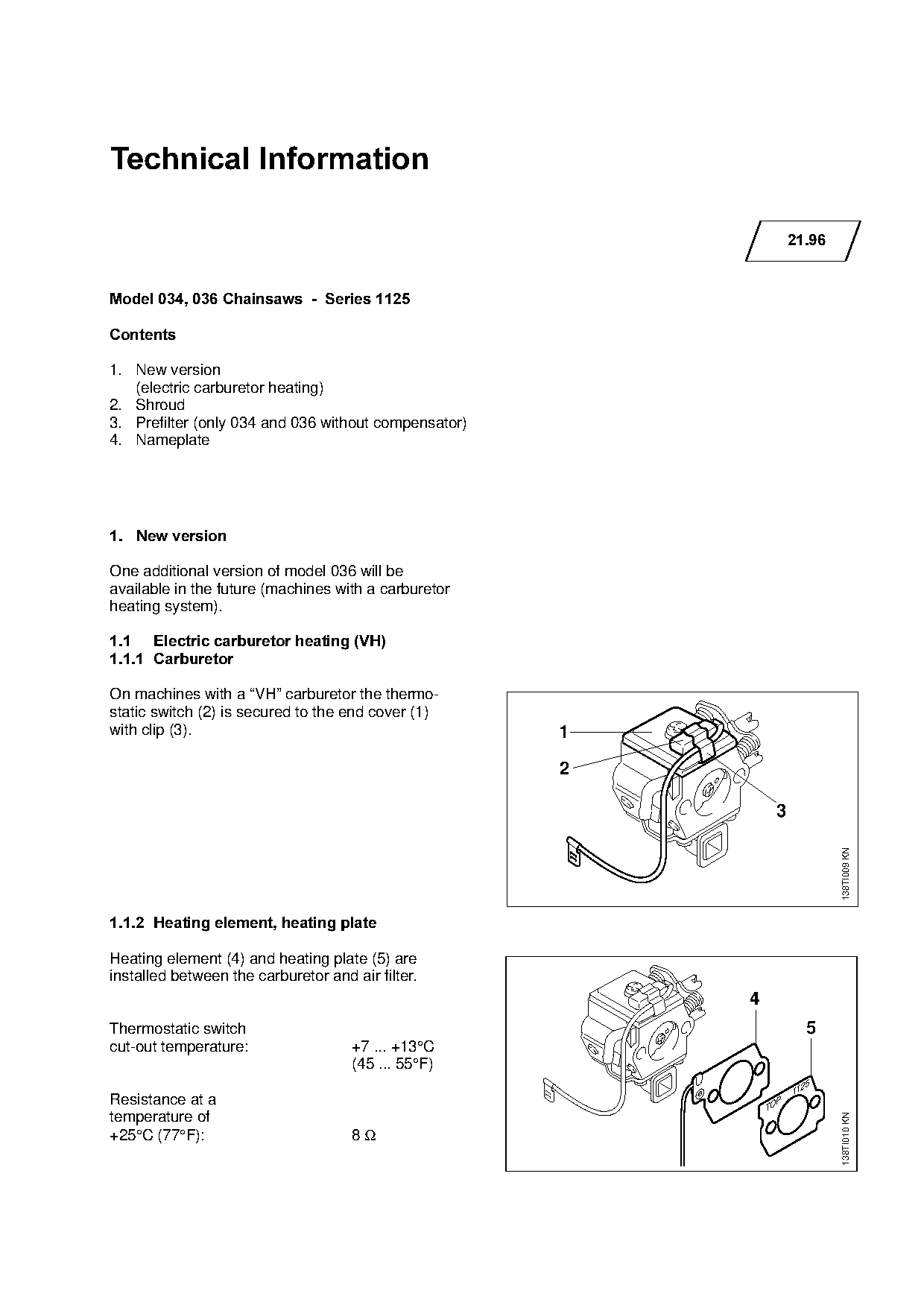

Technical Information
21.96
Model 034, 036 Chainsaws - Series 1125
&RQWHQWV
1. New version
(electric carburetor heating)
2. Shroud
3. Prefilter (only 034 and 036 without compensator)
4. Nameplate
1.=New version
One additional version of model 036 will be
available in the future (machines with a carburetor
heating system).
1.1=Electric carburetor heating =VH
1.1.1=Carburetor
On machines with a “VH” carburetor the thermo-
static switch (2) is secured to the end cover (1)
with clip (3). 1
138TI009 KN
1.1.2=Heating element, heating plate
Heating element (4) and heating plate (5) are
installed between the carburetor and air filter.
4
Thermostatic switch 5
cut-out temperature: +7 ... +13°C
(45 ... 55°F)
5
112
Resistance at a TO
temperature of
138TI010 KN
+25°C (77°F): 8Ω
)Technical Information 21.96 - Page 2

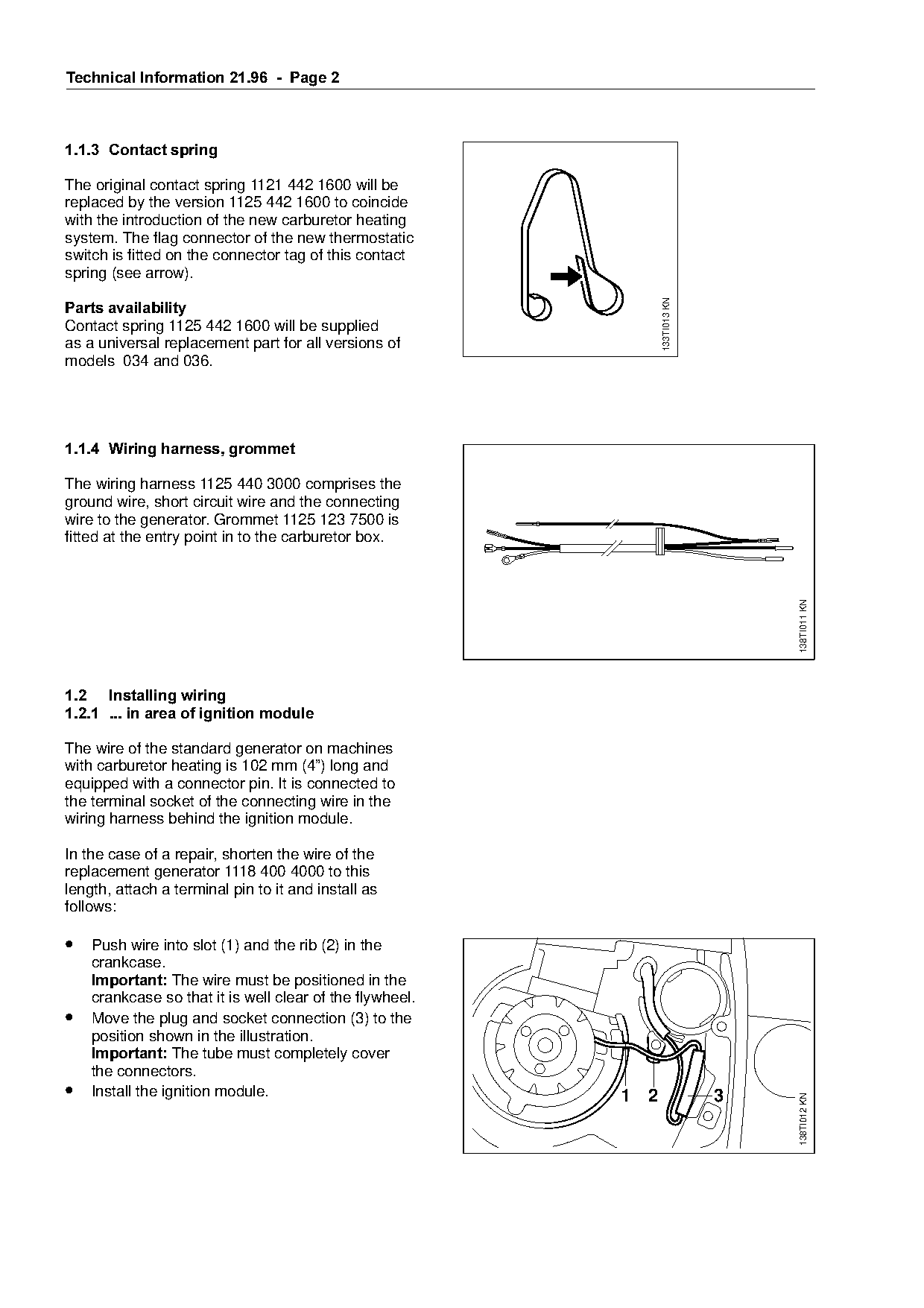

1.1.3=Contact spring
The original contact spring 1121 442 1600 will be
replaced by the version 1125 442 1600 to coincide
with the introduction of the new carburetor heating
system. The flag connector of the new thermostatic
switch is fitted on the connector tag of this contact
spring (see arrow).
133TI013 KN
Parts availability
Contact spring 1125 442 1600 will be supplied
as a universal replacement part for all versions of
models 034 and 036.
1.1.4=Wiring harness, grommet
The wiring harness 1125 440 3000 comprises the
ground wire, short circuit wire and the connecting
wire to the generator. Grommet 1125 123 7500 is
fitted at the entry point in to the carburetor box.
138TI011 KN
1.2=Installing wiring
1.2.1=... in area of ignition module
The wire of the standard generator on machines
with carburetor heating is 102 mm (4”) long and
equipped with a connector pin. It is connected to
the terminal socket of the connecting wire in the
wiring harness behind the ignition module.
In the case of a repair, shorten the wire of the
replacement generator 1118 400 4000 to this
length, attach a terminal pin to it and install as
follows:
• Push wire into slot (1) and the rib (2) in the
crankcase.
Important:=qhe wire must be positioned in the
crankcase so that it is well clear of the flywheel.
• Move the plug and socket connection (3) to the
position shown in the illustration.
Important:=qhe tube must completely cover
the connectors.
• Install the ignition module. 1 2 3
138TI012 KN
)Technical Information 21.96 - Page 3

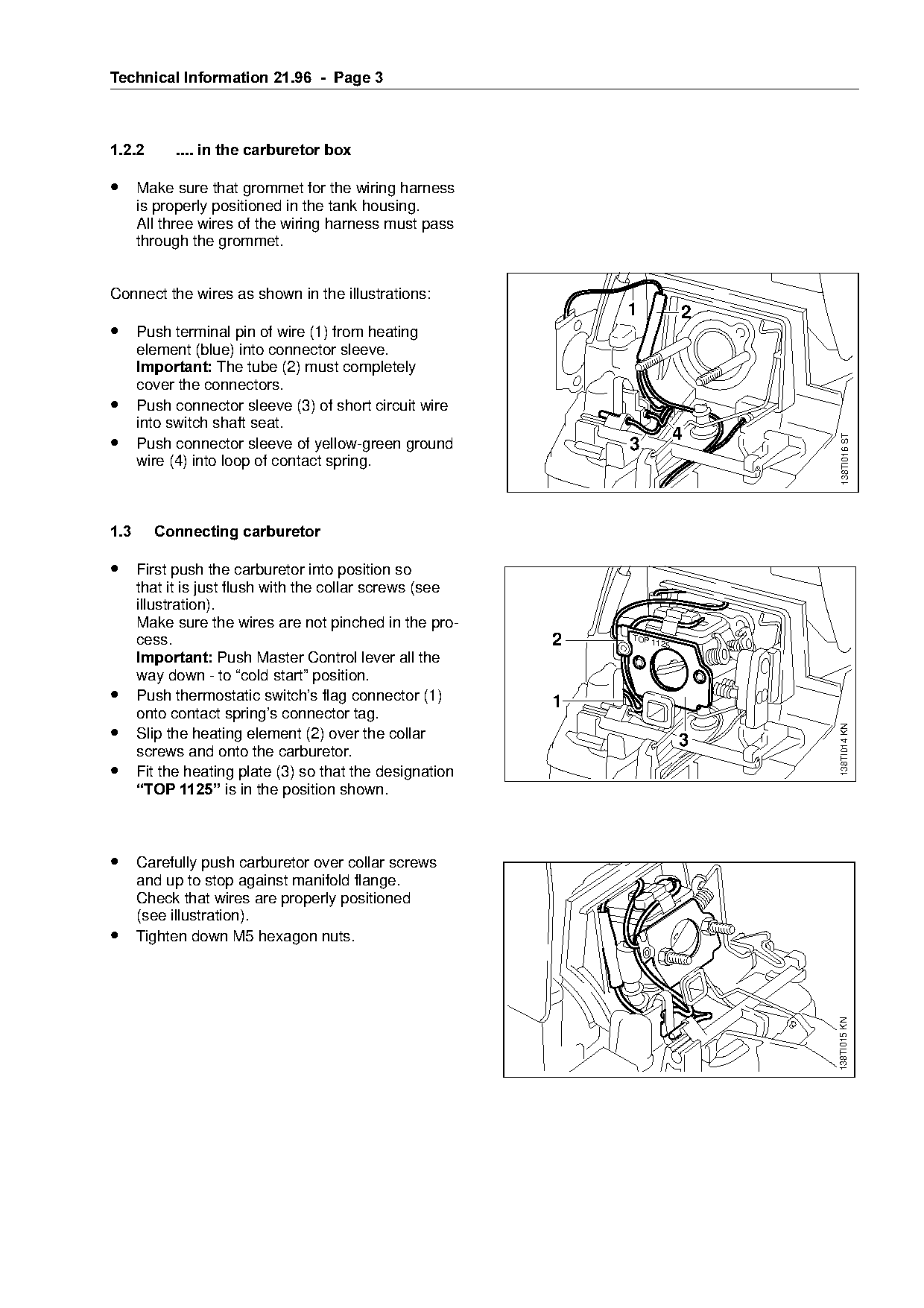

1.2.2=======.... in the carburetor box
• Make sure that grommet for the wiring harness
is properly positioned in the tank housing.
All three wires of the wiring harness must pass
through the grommet.
Connect the wires as shown in the illustrations:
1 2
• Push terminal pin of wire (1) from heating
element (blue) into connector sleeve.
Important: qhe tube (2) must completely
cover the connectors.
• Push connector sleeve (3) of short circuit wire
into switch shaft seat.
• 4
138TI016 ST
Push connector sleeve of yellow-green ground 3
wire (4) into loop of contact spring.
1.3=====Connecting carburetor
• First push the carburetor into position so
that it is just flush with the collar screws (see
illustration).
Make sure the wires are not pinched in the pro-
2
cess. TOP
1125
Important:=mush Master Control lever all the
way down - to “cold start” position.
• Push thermostatic switch’s flag connector (1) 1
onto contact spring’s connector tag.
•
138TI014 KN
Slip the heating element (2) over the collar
3
screws and onto the carburetor.
• Fit the heating plate (3) so that the designation
³TOP 1125´ is in the position shown.
• Carefully push carburetor over collar screws
and up to stop against manifold flange.
Check that wires are properly positioned
(see illustration).
• Tighten down M5 hexagon nuts.
138TI015 KN
)Technical Information 21.96 - Page 4

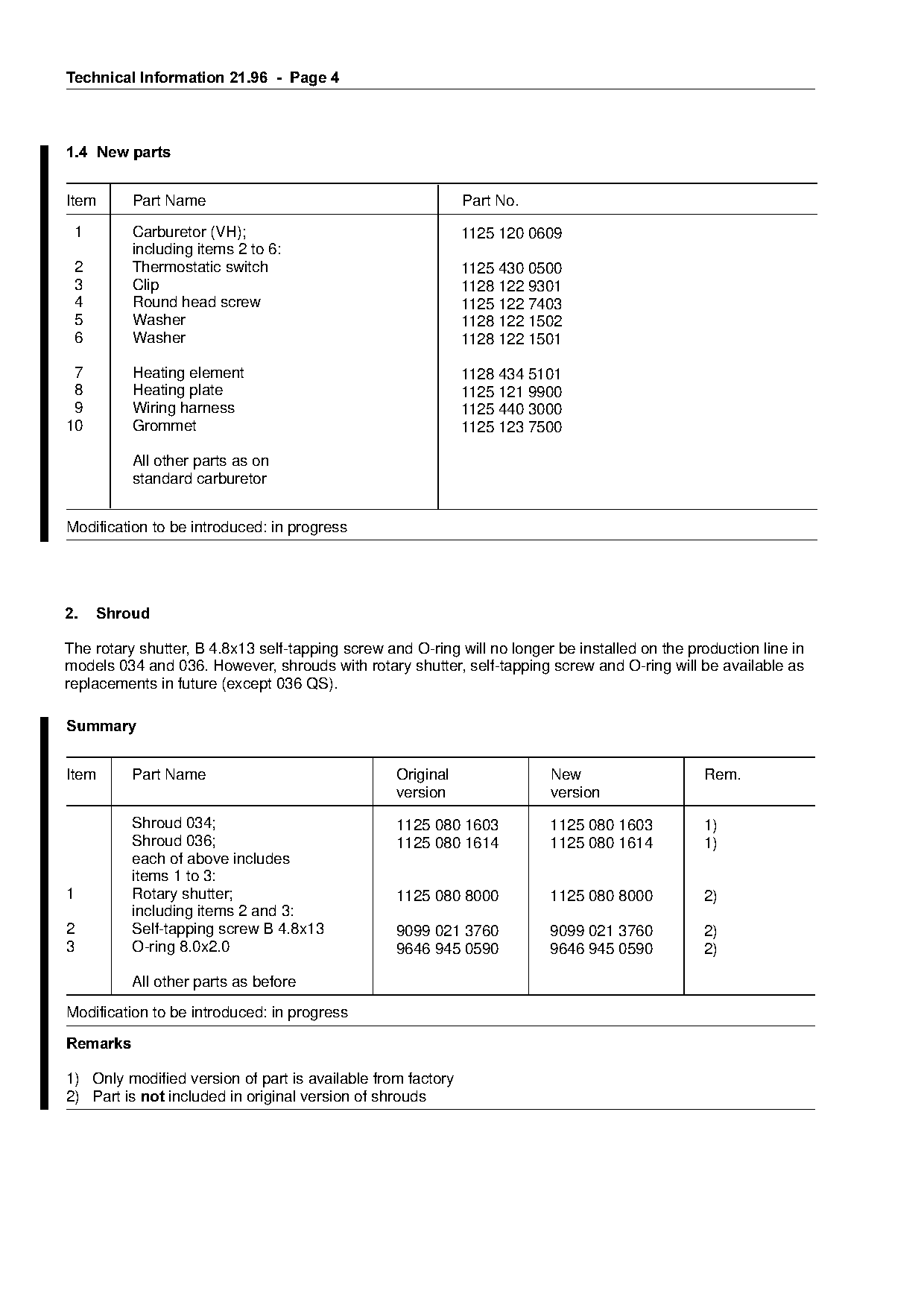

1.4=New parts
Item Part Name Part No.
1 Carburetor (VH); 1125 120 0609
including items 2 to 6:
2 Thermostatic switch 1125 430 0500
3 Clip 1128 122 9301
4 Round head screw 1125 122 7403
5 Washer 1128 122 1502
6 Washer 1128 122 1501
7 Heating element 1128 434 5101
8 Heating plate 1125 121 9900
9 Wiring harness 1125 440 3000
10 Grommet 1125 123 7500
All other parts as on
standard carburetor
Modification to be introduced: in progress
2.===Shroud
The rotary shutter, B 4.8x13 self-tapping screw and O-ring will no longer be installed on the production line in
models 034 and 036. However, shrouds with rotary shutter, self-tapping screw and O-ring will be available as
replacements in future (except 036 QS).
6XPPDU\
Item Part Name Original New Rem.
version version
Shroud 034; 1125 080 1603 1125 080 1603 1)
Shroud 036; 1125 080 1614 1125 080 1614 1)
each of above includes
items 1 to 3:
1 Rotary shutter; 1125 080 8000 1125 080 8000 2)
including items 2 and 3:
2 Self-tapping screw B 4.8x13 9099 021 3760 9099 021 3760 2)
3 O-ring 8.0x2.0 9646 945 0590 9646 945 0590 2)
All other parts as before
Modification to be introduced: in progress
5HPDUNV
1) Only modified version of part is available from factory
2) Part is QRW included in original version of shrouds
)Technical Information 21.96 - Page 5

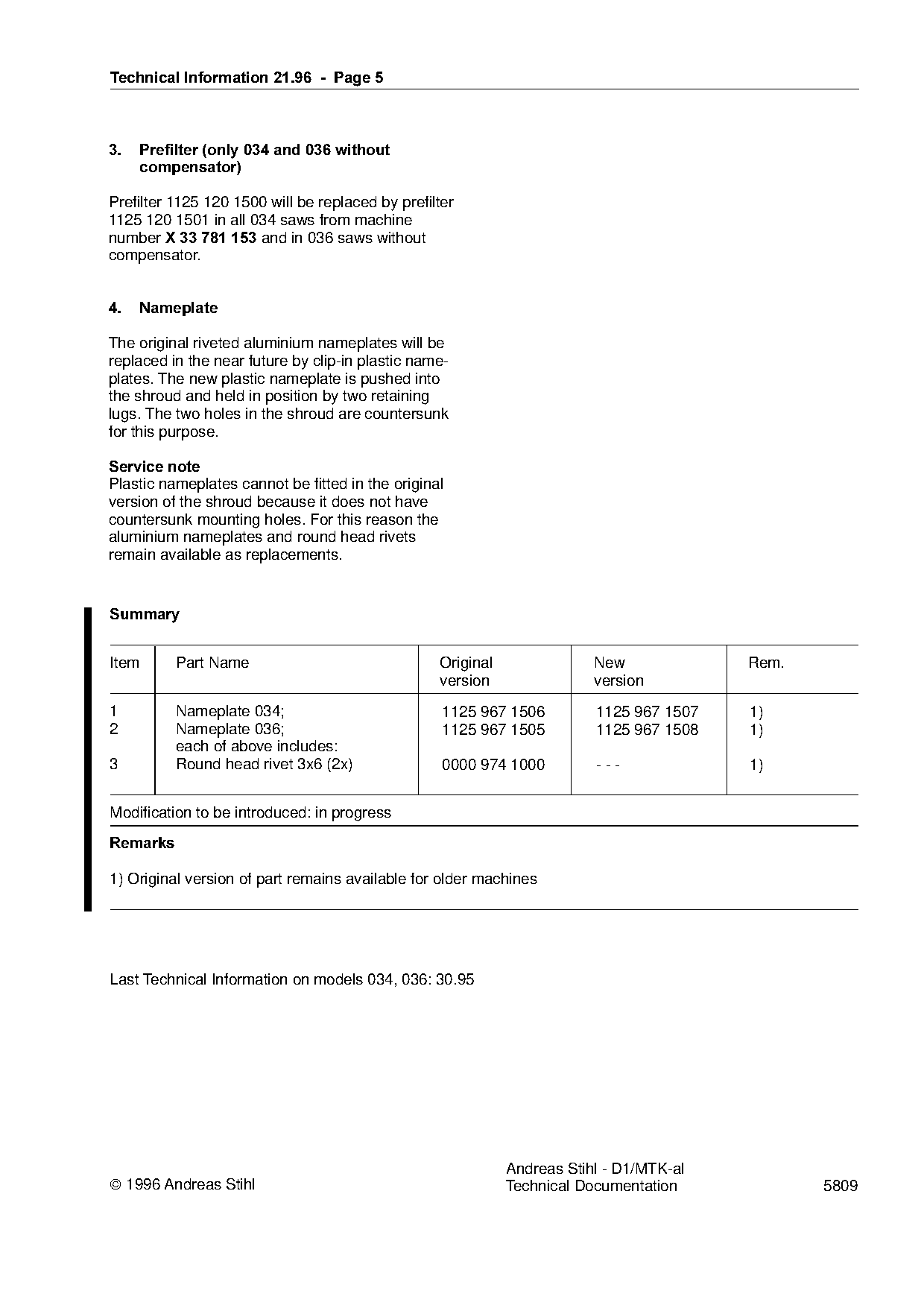

3.===Prefilter =only 034 and 036 without
FRPSHQVDWRU
Prefilter 1125 120 1500 will be replaced by prefilter
1125 120 1501 in all 034 saws from machine
number X 33 781 153=~nd in 036 saws without
compensator.
4.===Nameplate
The original riveted aluminium nameplates will be
replaced in the near future by clip-in plastic name-
plates. The new plastic nameplate is pushed into
the shroud and held in position by two retaining
lugs. The two holes in the shroud are countersunk
for this purpose.
Service note
Plastic nameplates cannot be fitted in the original
version of the shroud because it does not have
countersunk mounting holes. For this reason the
aluminium nameplates and round head rivets
remain available as replacements. fo
6XPPDU\
Item Part Name Original New Rem.
version version
1 Nameplate 034; 1125 967 1506 1125 967 1507 1)
2 Nameplate 036; 1125 967 1505 1125 967 1508 1)
each of above includes:
3 Round head rivet 3x6 (2x) 0000 974 1000 --- 1)
Modification to be introduced: in progress
5HPDUNV
1) Original version of part remains available for older machines
Last Technical Information on models 034, 036: 30.95
Andreas Stihl - D1/MTK-al
1996 Andreas Stihl Technical Documentation 5809 Page 2 of 5
