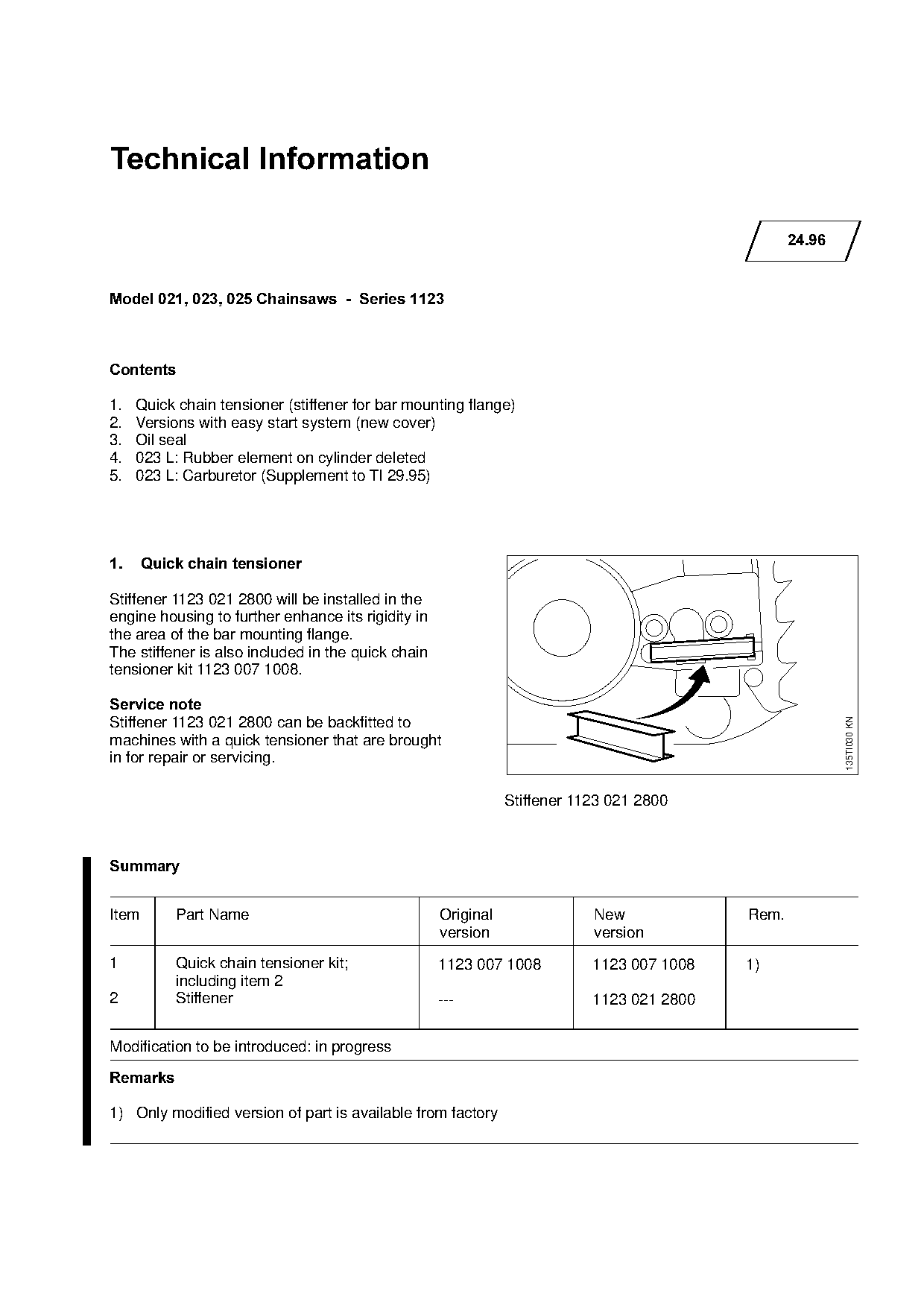

Technical Information
24.96
Model 021, 023, 025 Chainsaws - Series 1123
&RQWHQWV
1. Quick chain tensioner (stiffener for bar mounting flange)
2. Versions with easy start system (new cover)
3. Oil seal
4. 023 L: Rubber element on cylinder deleted
5. 023 L: Carburetor (Supplement to TI 29.95)
1.=====Quick chain tensioner
Stiffener 1123 021 2800 will be installed in the
engine housing to further enhance its rigidity in
the area of the bar mounting flange.
The stiffener is also included in the quick chain
tensioner kit 1123 007 1008.
Service note
Stiffener 1123 021 2800 can be backfitted to
135TI030 KN
machines with a quick tensioner that are brought
in for repair or servicing.
Stiffener 1123 021 2800
6XPPDU\
Item Part Name Original New Rem.
version version
1 Quick chain tensioner kit; 1123 007 1008 1123 007 1008 1)
including item 2
2 Stiffener --- 1123 021 2800
Modification to be introduced: in progress
5HPDUNV
1) Only modified version of part is available from factory
)Technical Information 24.96 - Page 2

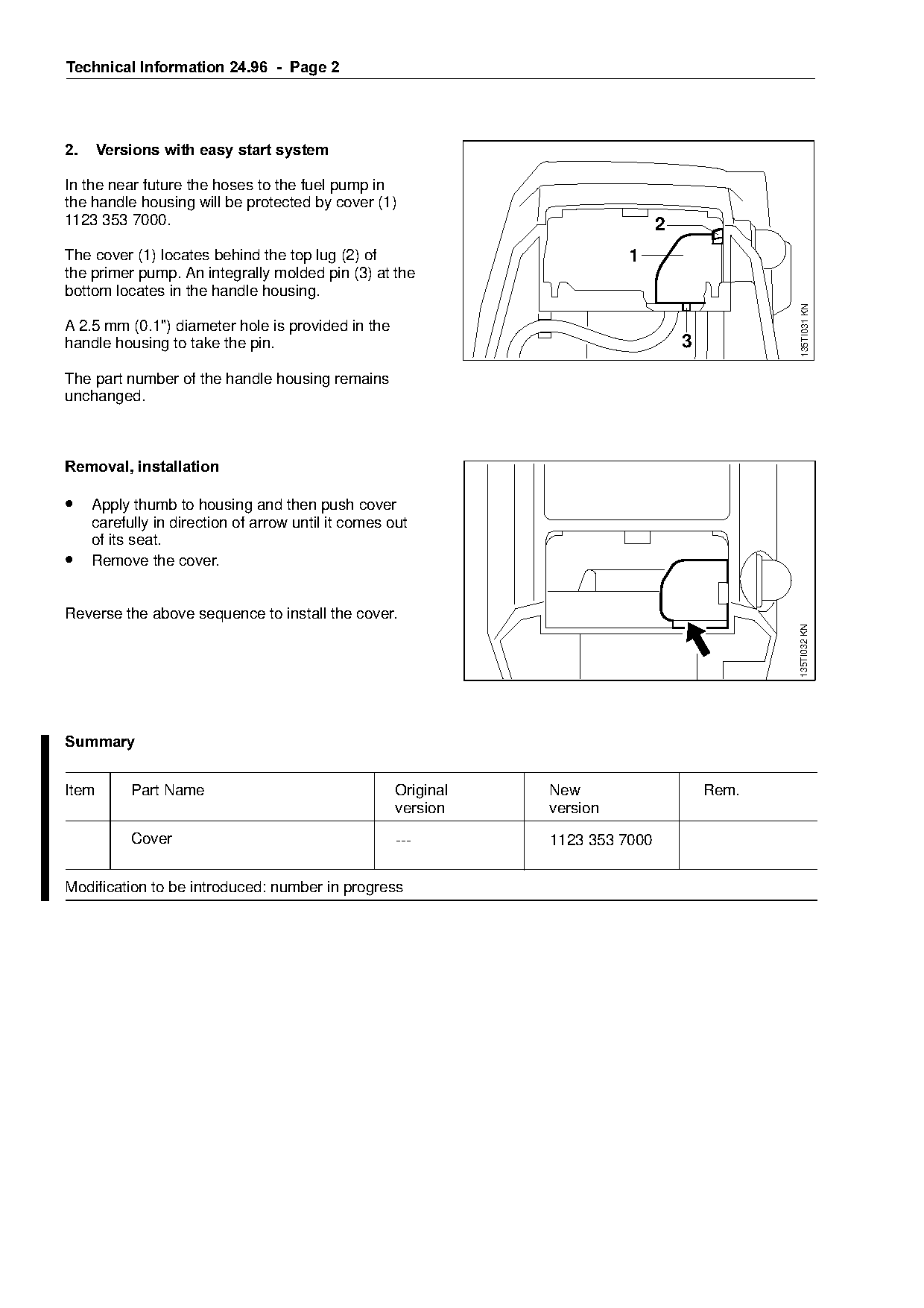

2.=====Versions with easy start system
In the near future the hoses to the fuel pump in
the handle housing will be protected by cover (1)
1123 353 7000. 2
The cover (1) locates behind the top lug (2) of 1
the primer pump. An integrally molded pin (3) at the
bottom locates in the handle housing.
135TI031 KN
A 2.5 mm (0.1") diameter hole is provided in the
handle housing to take the pin. 3
The part number of the handle housing remains
unchanged.
Removal, installation
• Apply thumb to housing and then push cover
carefully in direction of arrow until it comes out
of its seat.
• Remove the cover.
Reverse the above sequence to install the cover.
135TI032 KN
6XPPDU\
Item Part Name Original New Rem.
version version
Cover --- 1123 353 7000
Modification to be introduced: number in progress
)Technical Information 24.96 - Page 3

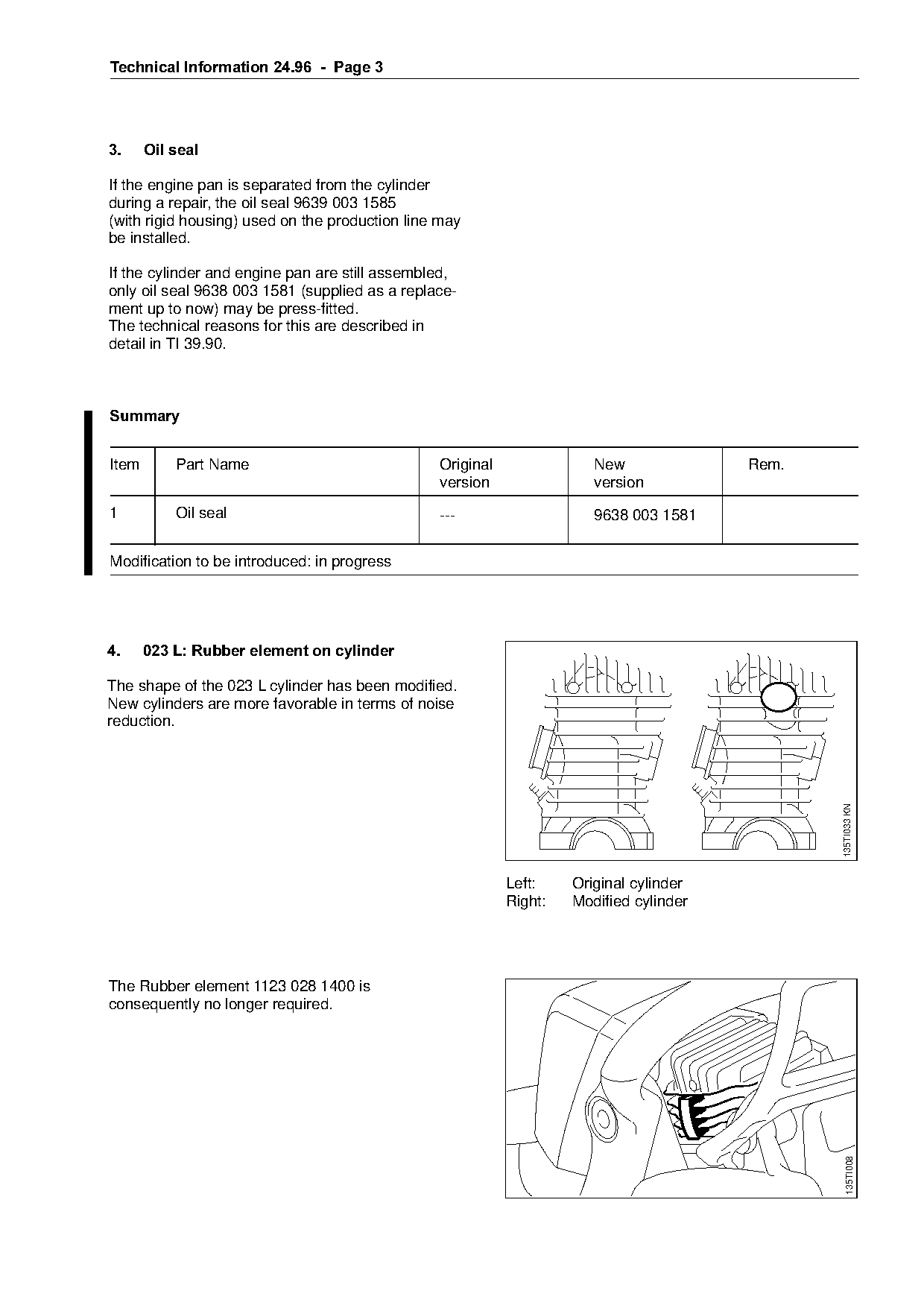

3.=== Oil seal
If the engine pan is separated from the cylinder
during a repair, the oil seal 9639 003 1585
(with rigid housing) used on the production line may
be installed.
If the cylinder and engine pan are still assembled,
only oil seal 9638 003 1581 (supplied as a replace-
ment up to now) may be press-fitted.
The technical reasons for this are described in
detail in TI 39.90.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Oil seal --- 9638 003 1581
Modification to be introduced: in progress
4.=== 023 L: Rubber element on cylinder
The shape of the 023 L cylinder has been modified.
New cylinders are more favorable in terms of noise
reduction.
135TI033 KN
Left: Original cylinder
Right: Modified cylinder
The Rubber element 1123 028 1400 is
consequently no longer required.
135TI008
)Technical Information 24.96 - Page 4

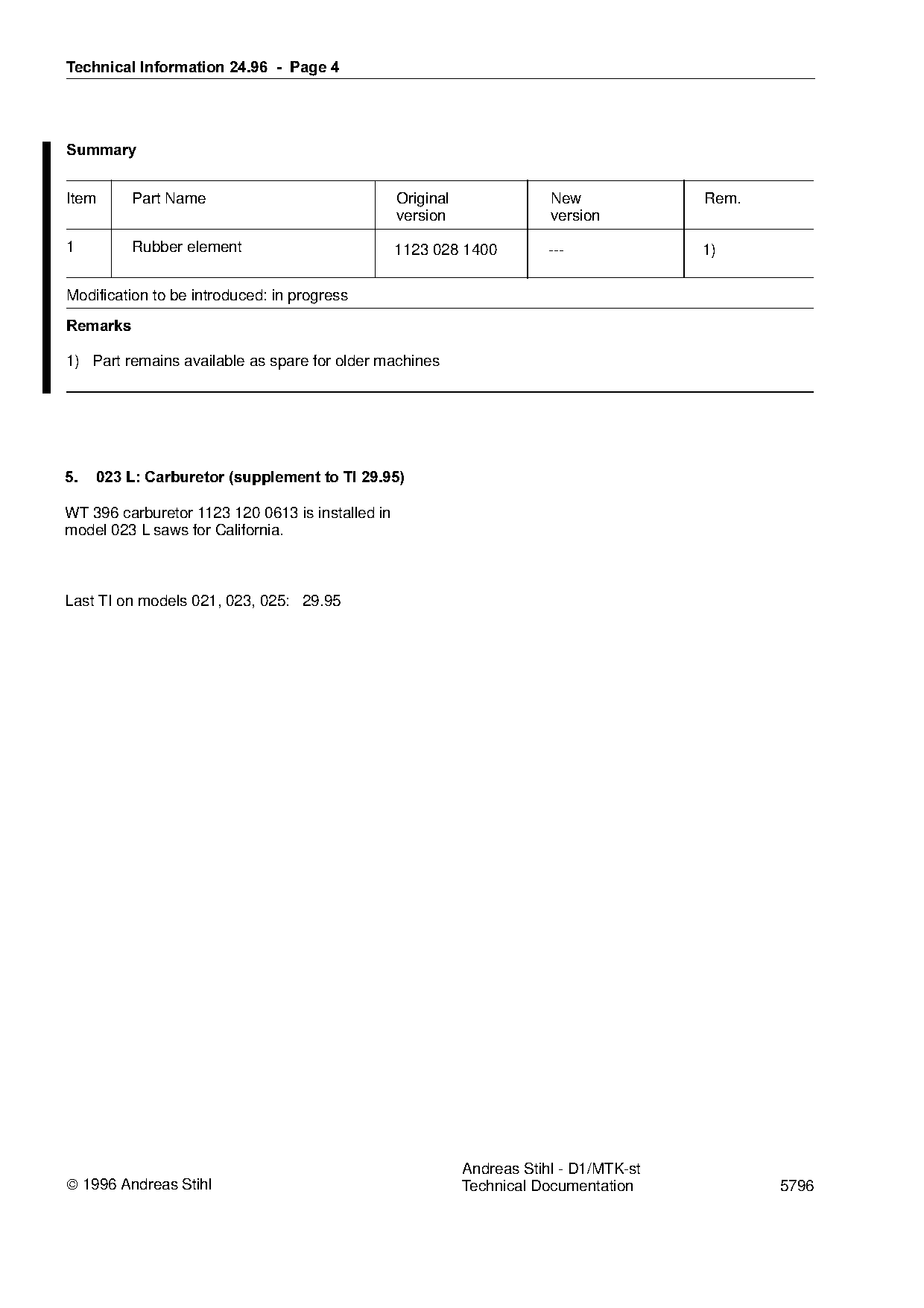

6XPPDU\
Item Part Name Original New Rem.
version version
1 Rubber element 1123 028 1400 --- 1)
Modification to be introduced: in progress
5HPDUNV
1) Part remains available as spare for older machines
5.===023 L: Carburetor =supplement to TI 29.95
WT 396 carburetor 1123 120 0613 is installed in
model 023 L saws for California.
Last TI on models 021, 023, 025: 29.95
Andreas Stihl - D1/MTK-st
