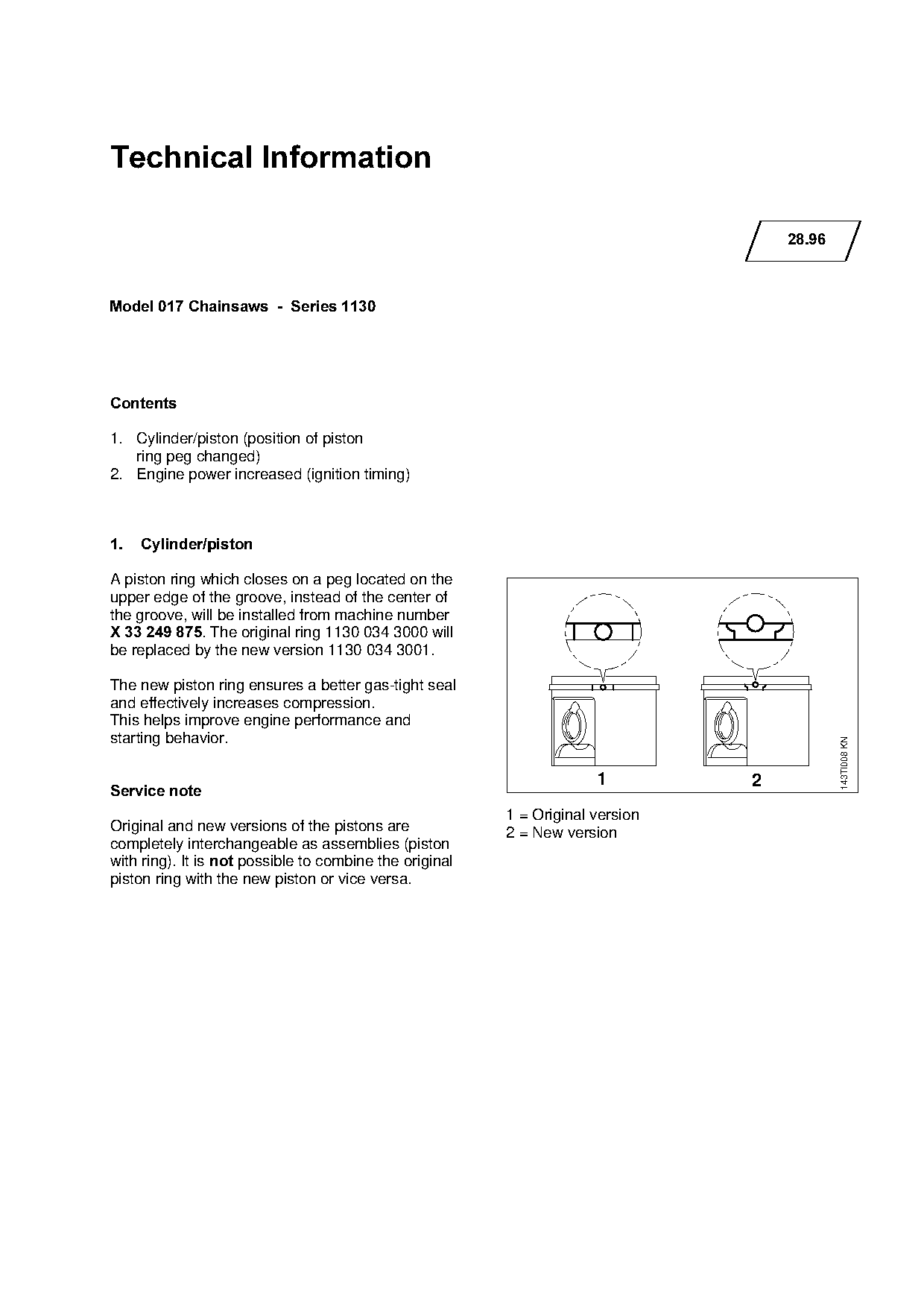

Technical Information

                                                                                     28.96

Model 017 Chainsaws  -  Series 1130

&RQWHQWV

1. Cylinder/piston (position of piston

   ring peg changed)
2. Engine power increased (ignition timing)

1.===Cylinder/piston======================================fo
A piston ring which closes on a peg located on the
upper edge of the groove, instead of the center of
the groove, will be installed from machine number
X 33 249 875K=qhe original ring 1130 034 3000 will

be replaced by the new version 1130 034 3001.

The new piston ring ensures a better gas-tight seal
and effectively increases compression.

This helps improve engine performance and

starting behavior.

                                                                                             143TI008 KN
                                                                      1          2
Service note

                                                         1 = Original version
Original and new versions of the pistons are             2 = New version
completely interchangeable as assemblies (piston

with=ringFK=ft=is=not possible=to=combine=the=origin~l
piston ring with the new piston or vice versa.

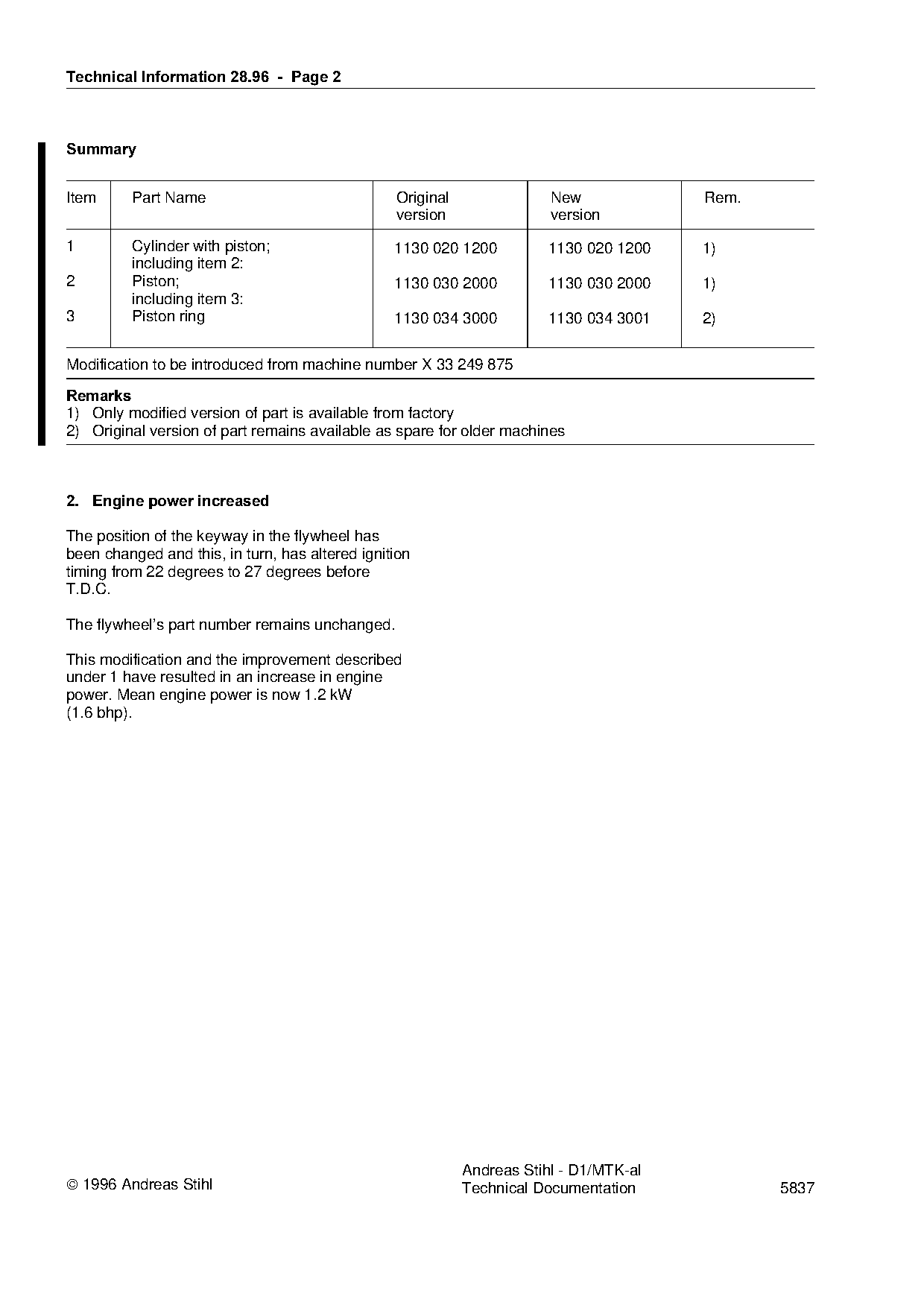

)Technical Information 28.96  -  Page 2

6XPPDU\

Item     Part Name                               Original               New             Rem.
                                                 version                version
1        Cylinder with piston;                   1130 020 1200          1130 020 1200   1)
         including item 2:
2        Piston;                                 1130 030 2000          1130 030 2000   1)
         including item 3:
3        Piston ring                             1130 034 3000          1130 034 3001   2)

Modification to be introduced from machine number X 33 249 875

5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part remains available as spare for older machines

2.=Engine power increased

The position of the keyway in the flywheel has
been changed and this, in turn, has altered ignition
timing from 22 degrees to 27 degrees before
T.D.C.

The flywheel’s part number remains unchanged.

This modification and the improvement described
under 1 have resulted in an increase in engine
power. Mean engine power is now 1.2 kW

(1.6 bhp).

                                                            Andreas Stihl - D1/MTK-al
 1996 Andreas Stihl                                        Technical Documentation            5837

Page 2 of 2
