Model FS 360 Clearing Saws - Series 4116
Contents
1. New version (gearhead with M14 thread on output shaft)
2. New "Autocut 40-4" cutting head (M14 mounting thread)
3. Limit stops for circular saw blades (modified to fit
65 mm, 2.6 in. diam. thrust plate)

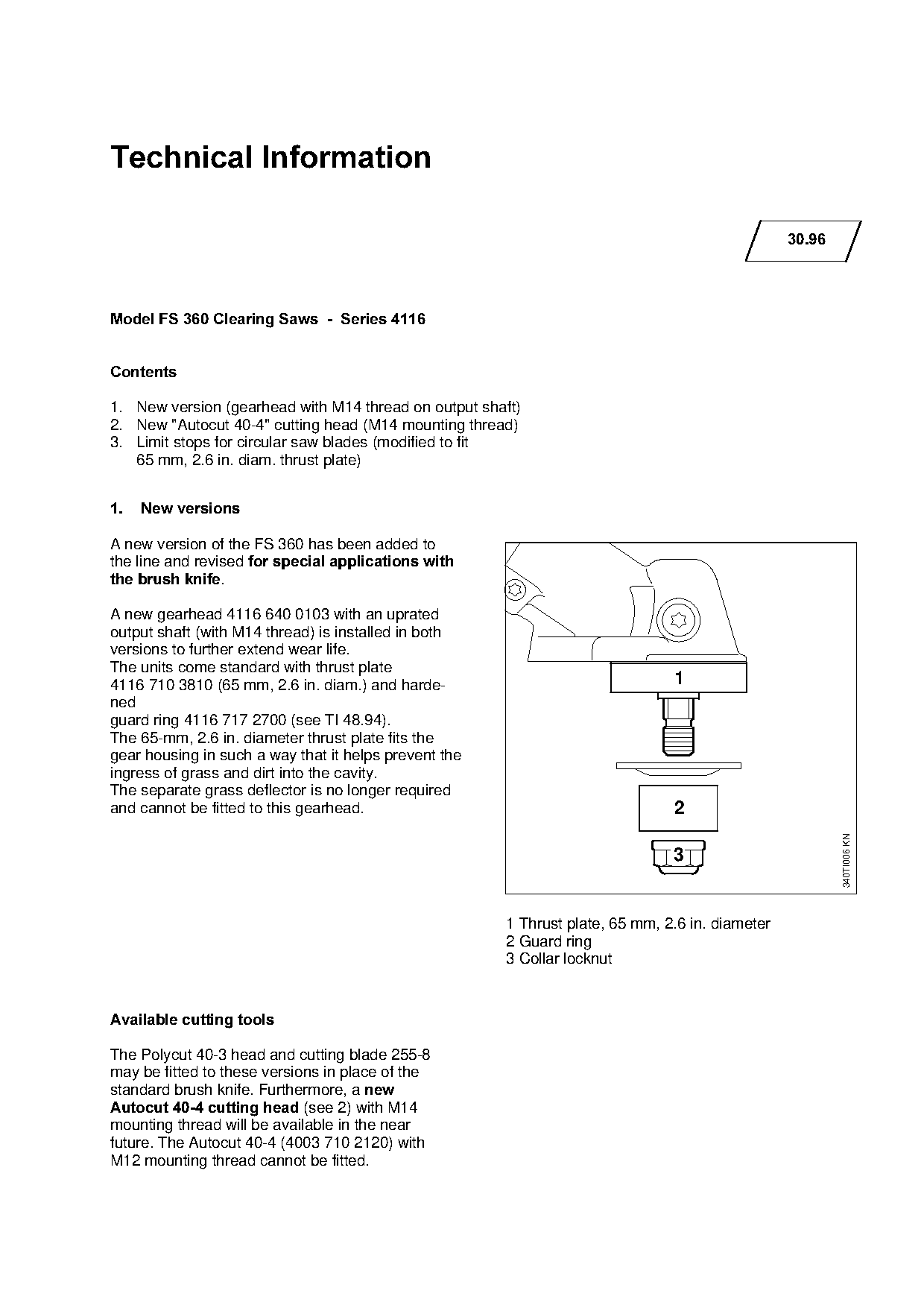

1.===New versions
A new version of the FS 360 has been added to
the=line=~nd=revised=for special applications with
the brush knifeK
A new gearhead 4116 640 0103 with an uprated
output shaft (with M14 thread) is installed in both
versions to further extend wear life.
The units come standard with thrust plate
4116 710 3810 (65 mm, 2.6 in. diam.) and harde- 1
ned
guard ring 4116 717 2700 (see TI 48.94).
The 65-mm, 2.6 in. diameter thrust plate fits the
gear housing in such a way that it helps prevent the
ingress of grass and dirt into the cavity.
The separate grass deflector is no longer required
and cannot be fitted to this gearhead. 2
340TI006 KN
1 Thrust plate, 65 mm, 2.6 in. diameter
2 Guard ring
3 Collar locknut
Available cutting tools
The Polycut 40-3 head and cutting blade 255-8
may be fitted to these versions in place of the
st~nd~rd=brush=knifeK=curthermoreI=~=new
Autocut 40-4 cutting head=Esee=OF=with=jNQ
mounting thread will be available in the near
future. The Autocut 40-4 (4003 710 2120) with
M12 mounting thread cannot be fitted.
)Technical Information 30.96 - Page 2
New, modified limit stops (see 3) must be used for
mounting=the=circular saw blades=EOORJQUI
250-50 and 225-24) together with the 65-mm,
2.6 in. diameter thrust plate.
Note:=ft is also possible to fit the original version of
the limit stop (to use up existing stocks). To do
this, simply remove the 65-mm, 2.6 in. diam. thrust
plate and replace it with the 60-mm, 2.4 in. diam.
thrust plate (4116 710 3800).

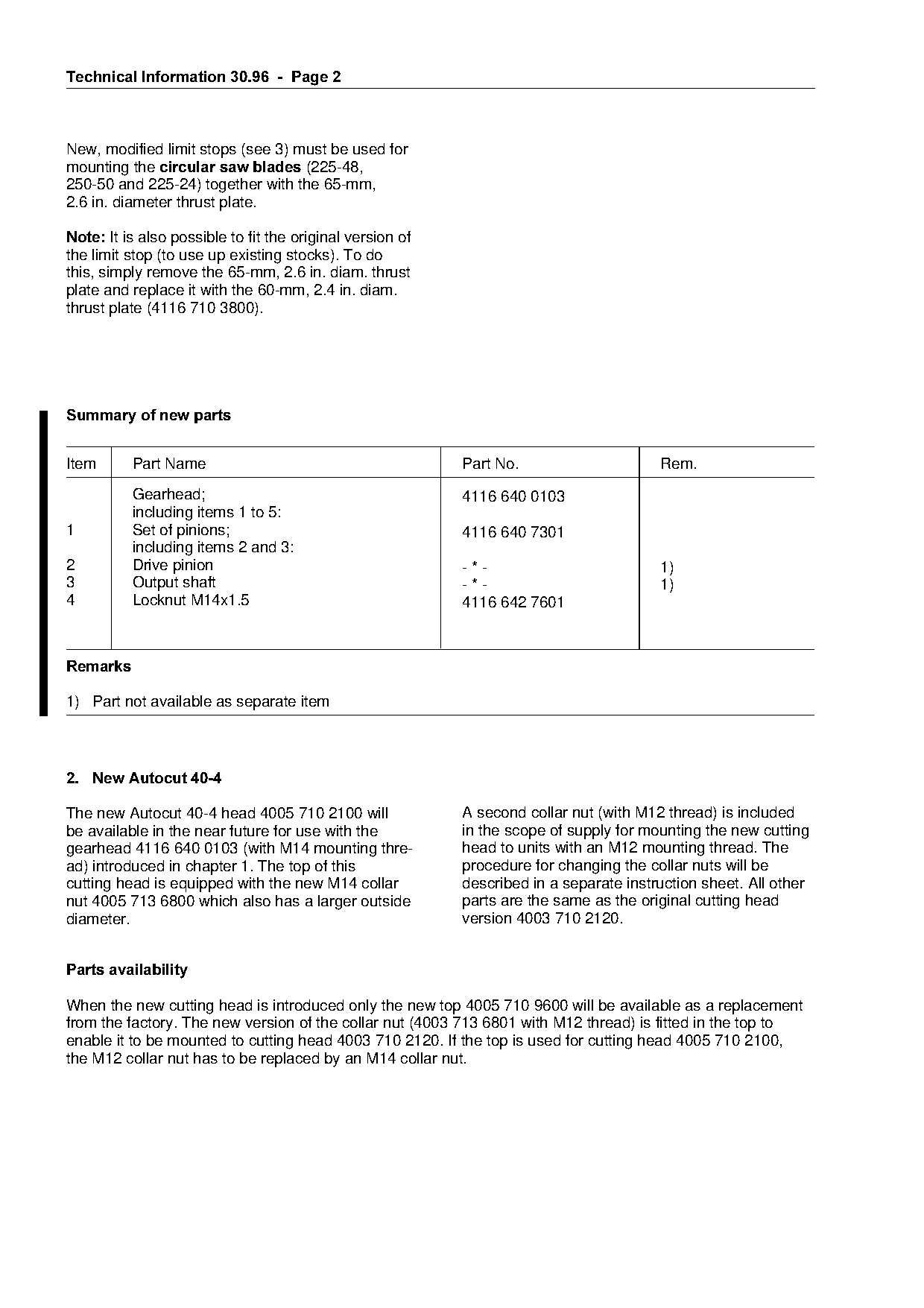

Summary of new parts
Item Part Name Part No. Rem.
Gearhead; 4116 640 0103
including items 1 to 5:
1 Set of pinions; 4116 640 7301
2
including items 2 and 3:
Drive pinion -*-
fo 1)
3 Output shaft -*- 1)
4 Locknut M14x1.5 4116 642 7601
5HPDUNV
1) Part not available as separate item
2.=New Autocut 40-4
The new Autocut 40-4 head 4005 710 2100 will A second collar nut (with M12 thread) is included
be available in the near future for use with the in the scope of supply for mounting the new cutting
gearhead 4116 640 0103 (with M14 mounting thre- head to units with an M12 mounting thread. The
ad) introduced in chapter 1. The top of this procedure for changing the collar nuts will be
cutting head is equipped with the new M14 collar described in a separate instruction sheet. All other
nut 4005 713 6800 which also has a larger outside parts are the same as the original cutting head
diameter. version 4003 710 2120.
Parts availability
When the new cutting head is introduced only the new top 4005 710 9600 will be available as a replacement
from the factory. The new version of the collar nut (4003 713 6801 with M12 thread) is fitted in the top to
enable it to be mounted to cutting head 4003 710 2120. If the top is used for cutting head 4005 710 2100,
the M12 collar nut has to be replaced by an M14 collar nut.
)Technical Information 30.96 - Page 3

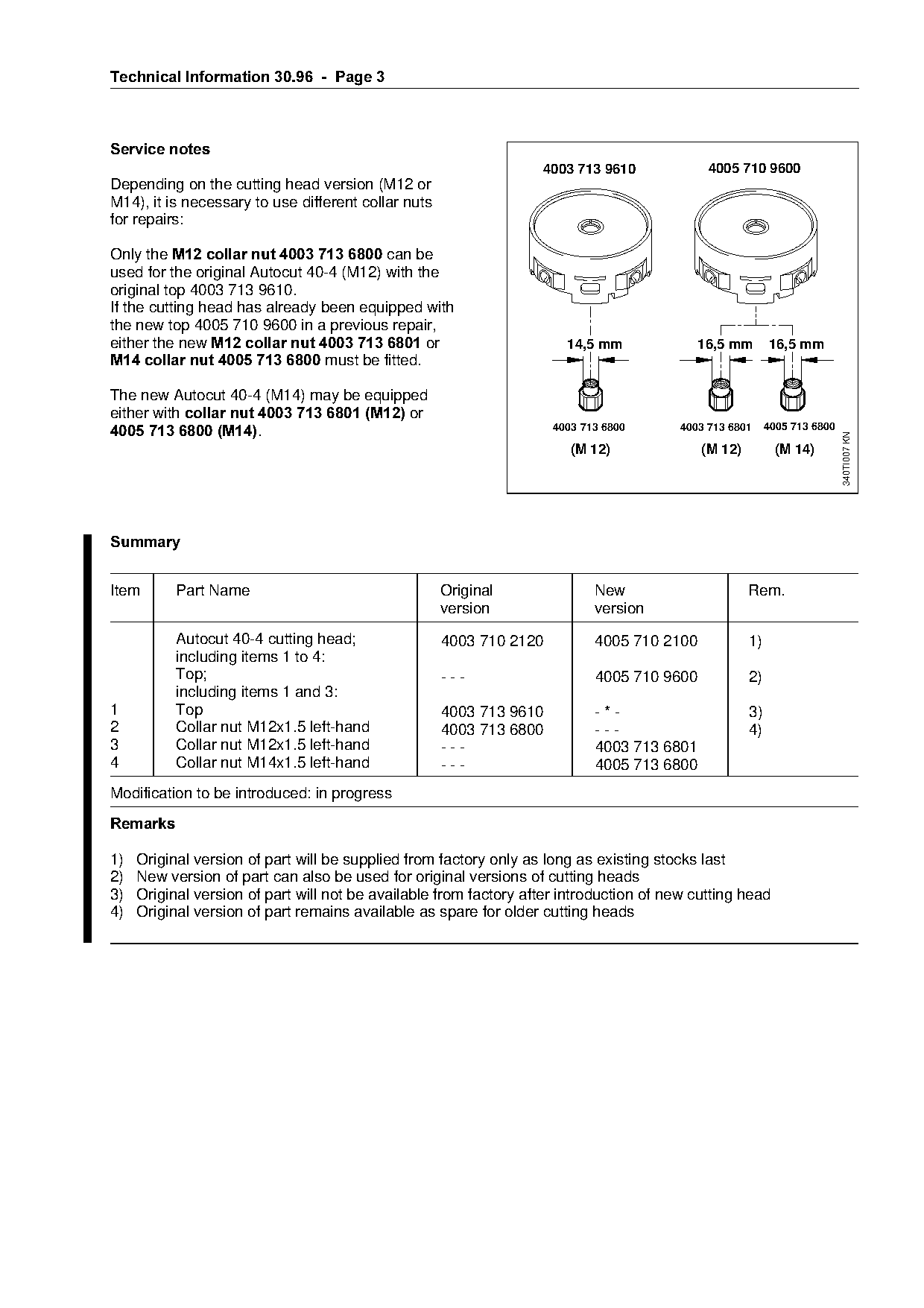

Service notes
4003 713 9610 4005 710 9600
Depending on the cutting head version (M12 or
M14), it is necessary to use different collar nuts
for repairs:
Only the M12 collar nut 4003 713 6800=can be
used for the original Autocut 40-4 (M12) with the
original top 4003 713 9610.
If the cutting head has already been equipped with
the new top 4005 710 9600 in a previous repair,
either the new M12 collar nut 4003 713 6801=or 14,5 mm 16,5 mm 16,5 mm
M14 collar nut 4005 713 6800 must be fitted.
The new Autocut 40-4 (M14) may be equipped
either with collar nut 4003 713 6801 =M12=or
4005 713 6800 =M14=K=================================================QMMP=TNP=SUMM======QMMP=TNP=SUMN=====QMMR=TNP=SUMM
340TI007 KN
(M 12) (M 12) (M 14)
6XPPDU\
Item Part Name Original New Rem.
version version
Autocut 40-4 cutting head;
4003 710 2120 4005 710 2100 1)
including items 1 to 4:
Top; --- 4005 710 9600 2)
including items 1 and 3:
1 Top 4003 713 9610 -*- 3)
2 Collar nut M12x1.5 left-hand 4003 713 6800 --- 4)
3 Collar nut M12x1.5 left-hand --- 4003 713 6801
4 Collar nut M14x1.5 left-hand --- 4005 713 6800
Modification to be introduced: in progress
5HPDUNV
1) Original version of part will be supplied from factory only as long as existing stocks last
2) New version of part can also be used for original versions of cutting heads
3) Original version of part will not be available from factory after introduction of new cutting head
4) Original version of part remains available as spare for older cutting heads
)Technical Information 30.96 - Page 4

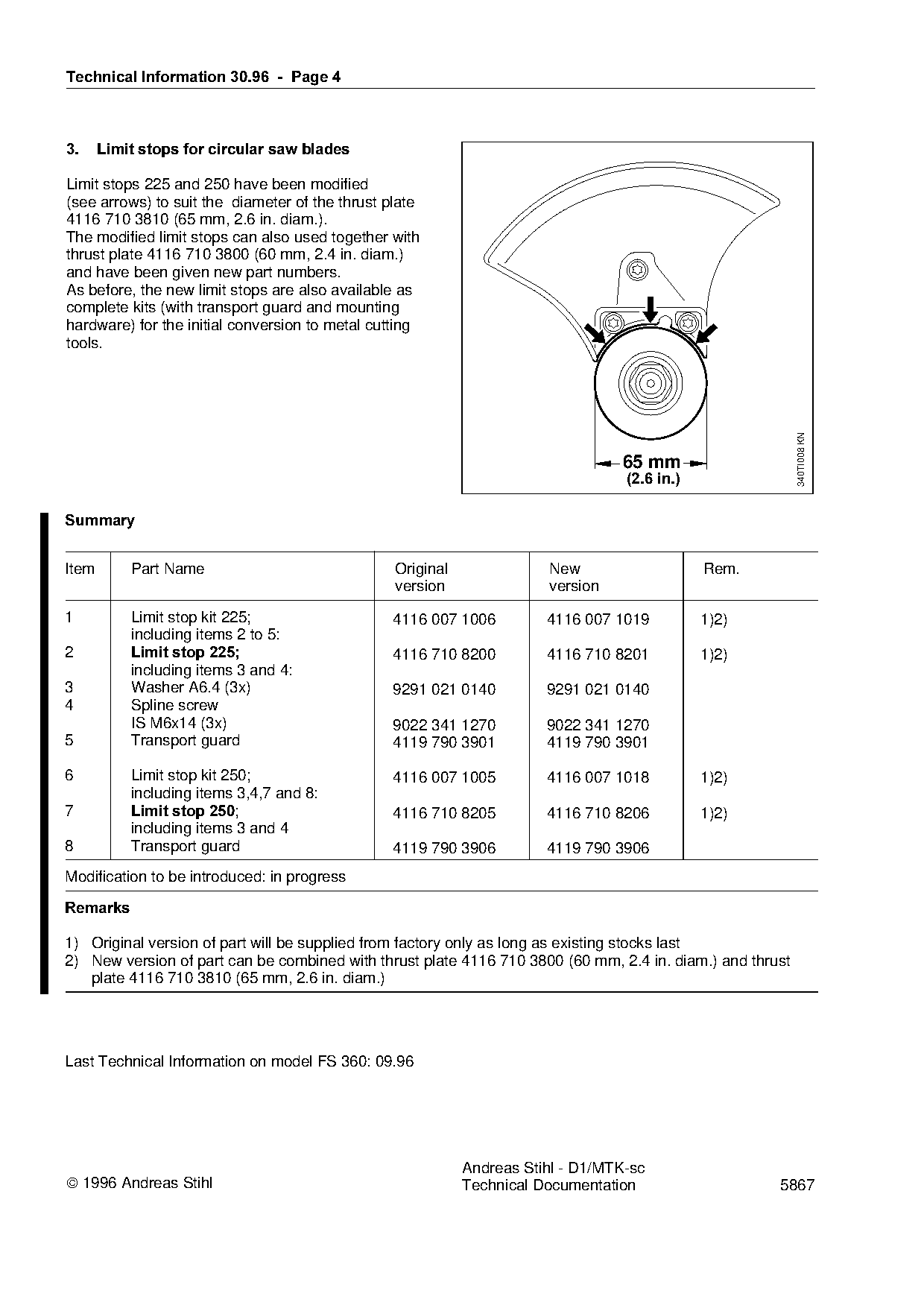

3.=====Limit stops for circular saw blades
Limit stops 225 and 250 have been modified
(see arrows) to suit the diameter of the thrust plate
4116 710 3810 (65 mm, 2.6 in. diam.).
The modified limit stops can also used together with
thrust plate 4116 710 3800 (60 mm, 2.4 in. diam.)
and have been given new part numbers.
As before, the new limit stops are also available as
complete kits (with transport guard and mounting
hardware) for the initial conversion to metal cutting
tools.
340TI008 KN
65 mm
2.6 in.
6XPPDU\
Item Part Name Original
fo New Rem.
version version
1 Limit stop kit 225; 4116 007 1006 4116 007 1019 1)2)
including items 2 to 5:
O==========Limit stop 225;======================QNNS=TNM=UOMM==========QNNS=TNM=UOMN=========NFOF
including items 3 and 4:
3 Washer A6.4 (3x) 9291 021 0140 9291 021 0140
4 Spline screw
IS M6x14 (3x) 9022 341 1270 9022 341 1270
5 Transport guard 4119 790 3901 4119 790 3901
6 Limit stop kit 250; 4116 007 1005 4116 007 1018 1)2)
including items 3,4,7 and 8:
T==========Limit stop 250X======================QNNS=TNM=UOMR==========QNNS=TNM=UOMS=========NFOF
including items 3 and 4
8 Transport guard 4119 790 3906 4119 790 3906
Modification to be introduced: in progress
5HPDUNV
1) Original version of part will be supplied from factory only as long as existing stocks last
2) New version of part can be combined with thrust plate 4116 710 3800 (60 mm, 2.4 in. diam.) and thrust
plate 4116 710 3810 (65 mm, 2.6 in. diam.)
Last Technical Information on model FS 360: 09.96
