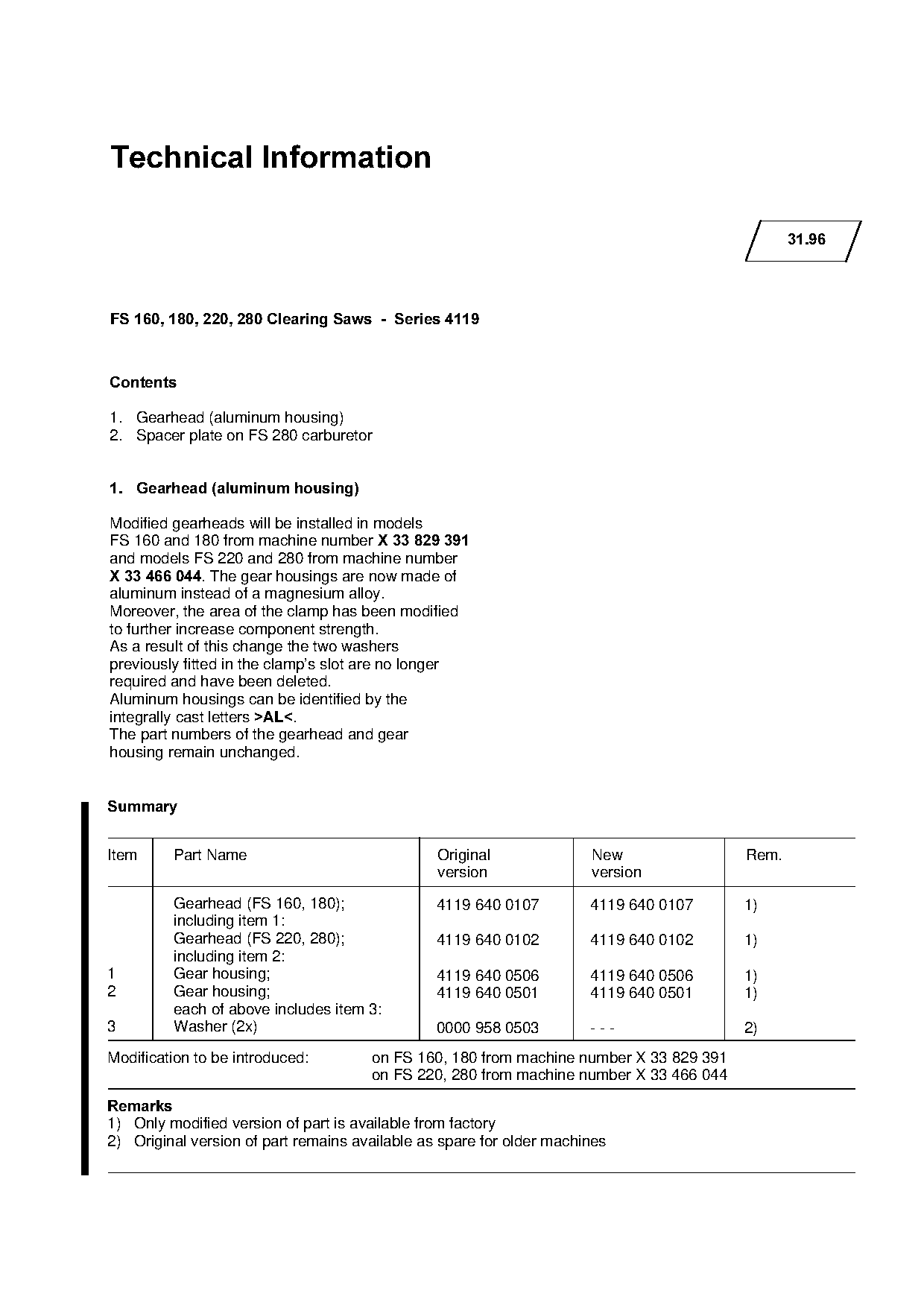

Technical Information

                                                                                               31.96

FS 160, 180, 220, 280 Clearing Saws  -  Series 411

&RQWHQWV

1. Gearhead (aluminum housing)
2. Spacer plate on FS 280 carburetor

1.=Gearhead =aluminum housing

Modified gearheads will be installed in models
FS 160 and 180 from machine number X 33 829 391
and models FS 220 and 280 from machine number
X 33 466 044K=qhe gear housings are now made of
aluminum instead of a magnesium alloy.
Moreover, the area of the clamp has been modified
to further increase component strength.

As a result of this change the two washers
previously fitted in the clamp’s slot are no longer
required and have been deleted.
Aluminum housings can be identified by the

integrally cast letters >AL<.
The part numbers of the gearhead and gear

housing remain unchanged.

6XPPDU\

Item     Part Name                              Original              New               Rem.
                                                version               version

         Gearhead (FS 160, 180);                4119 640 0107         4119 640 0107     1)

         including item 1:
         Gearhead (FS 220, 280);                4119 640 0102         4119 640 0102     1)
         including item 2:

1        Gear housing;                          4119 640 0506         4119 640 0506     1)
2        Gear housing;                          4119 640 0501         4119 640 0501     1)
         each of above includes item 3:
3        Washer (2x)                            0000 958 0503         ---               2)
Modification to be introduced:        on FS 160, 180 from machine number X 33 829 391
                                      on FS 220, 280 from machine number X 33 466 044

5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part remains available as spare for older machines

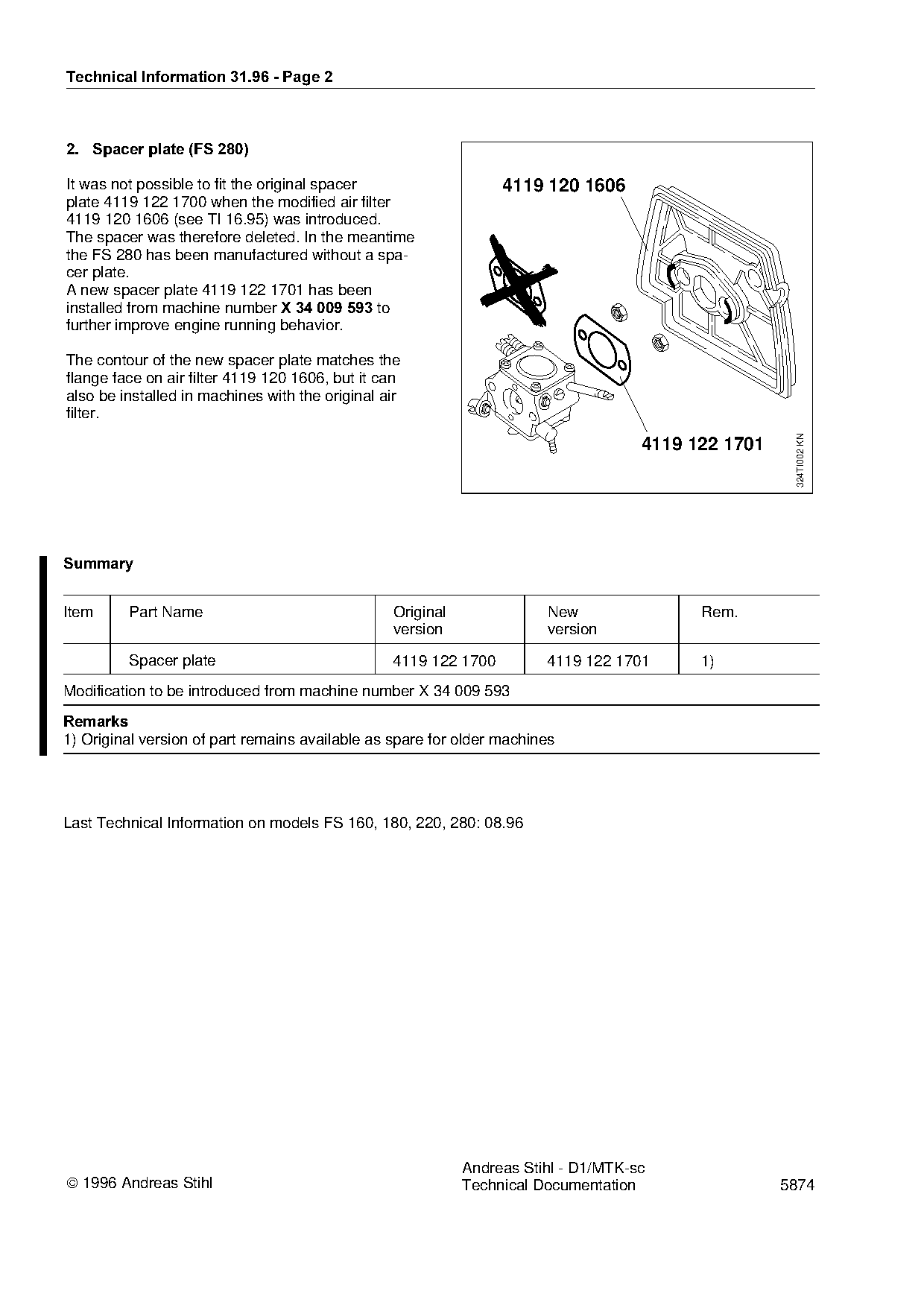

)Technical Information 31.96 - Page 2

2.=Spacer plate =FS 280

It was not possible to fit the original spacer                   4119 120 1606
plate 4119 122 1700 when the modified air filter
4119 120 1606 (see TI 16.95) was introduced.
The spacer was therefore deleted. In the meantime
the FS 280 has been manufactured without a spa-
cer plate.
A new spacer plate 4119 122 1701 has been
installed from machine number X 34 009 593 to
further improve engine running behavior.

The contour of the new spacer plate matches the

flange face on air filter 4119 120 1606, but it can

also be installed in machines with the original air
filter.

                                                                                                     324TI002 KN
                                                                                    4119 122 1701

6XPPDU\
Item     Part Name                               Original              New                Rem.
                                                 version               version

         Spacer plate                            4119 122 1700         4119 122 1701      1)
Modification to be introduced from machine number X 34 009 593

5HPDUNV

1) Original version of part remains available as spare for older machines

Last Technical Information on models FS 160, 180, 220, 280: 08.96

                                                            Andreas Stihl - D1/MTK-sc
 1996 Andreas Stihl                                        Technical Documentation                 5874

Page 2 of 2
