Technical Information · issue 34 of 1996
Switch; Left half of housing; Wiring;Summary
Model BE 55 Electric Blower - Series 4804
IssueTI 34/1996
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4804 430 0505 | 4804 430 0502 | Switch 4804 430 0505 will be replaced by switch 4804 430 0502. |
| 4804 791 1106 | 4804 791 1107 | The original version 4804 791 1106 will be replaced by version 4804 791 1107. |
Full text

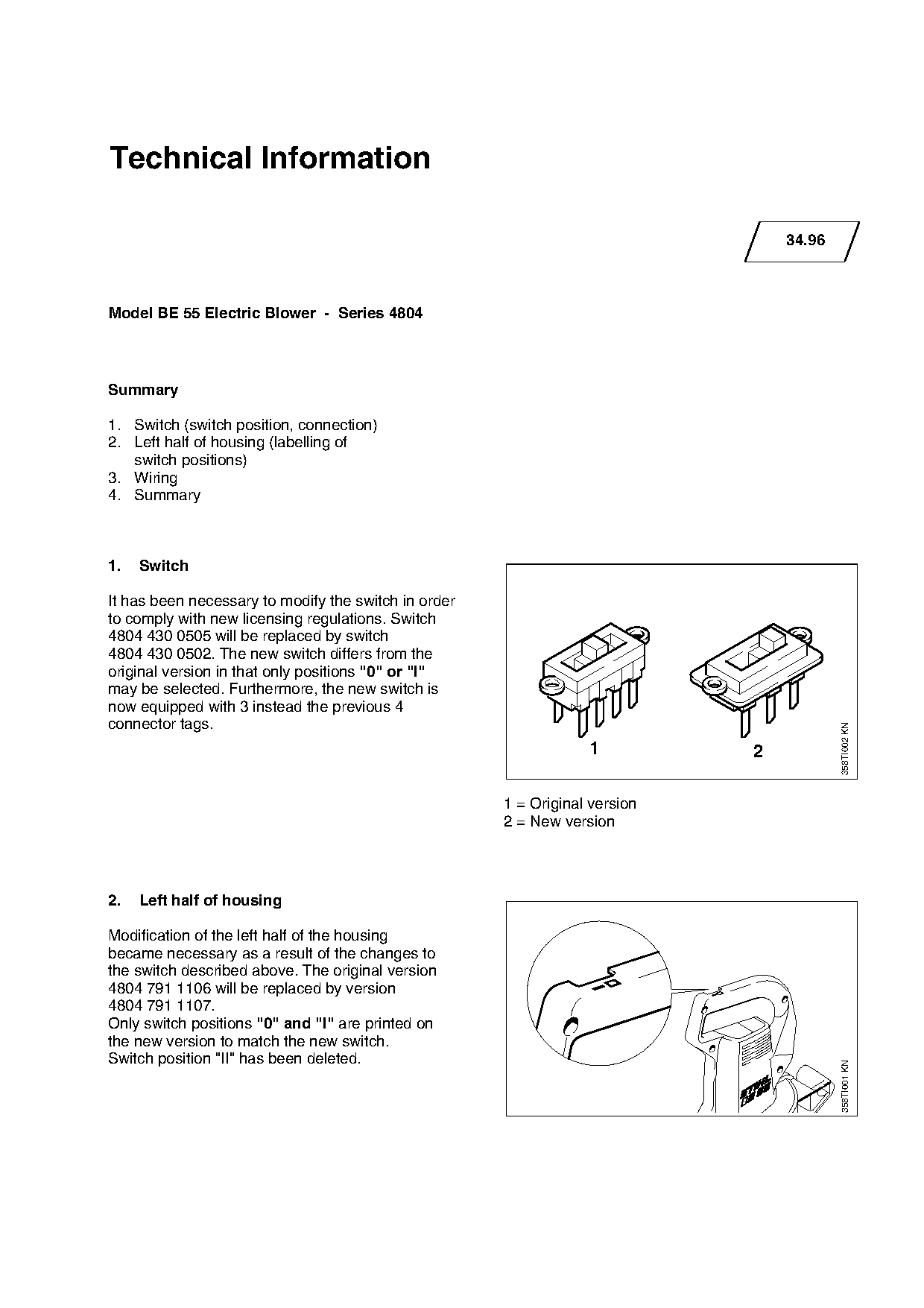

Page 1 of 2
Technical Information
34.96
Model BE 55 Electric Blower - Series 4804
Summary
1. Switch (switch position, connection)
2. Left half of housing (labelling of
switch positions)
3. Wiring
4. Summary
1. Switch
It has been necessary to modify the switch in order
to comply with new licensing regulations. Switch
4804 430 0505 will be replaced by switch
4804 430 0502. The new switch differs from the
original version in that only positions "0" or "I"
may be selected. Furthermore, the new switch is
now equipped with 3 instead the previous 4
connector tags.
358TI002 KN
1 2
1 = Original version
2 = New version
2. Left half of housing
Modification of the left half of the housing
became necessary as a result of the changes to
the switch described above. The original version
4804 791 1106 will be replaced by version
4804 791 1107.
Only switch positions "0" and "I" are printed on
the new version to match the new switch.
Switch position "II" has been deleted.
358TI001 KN Page 2 of 2

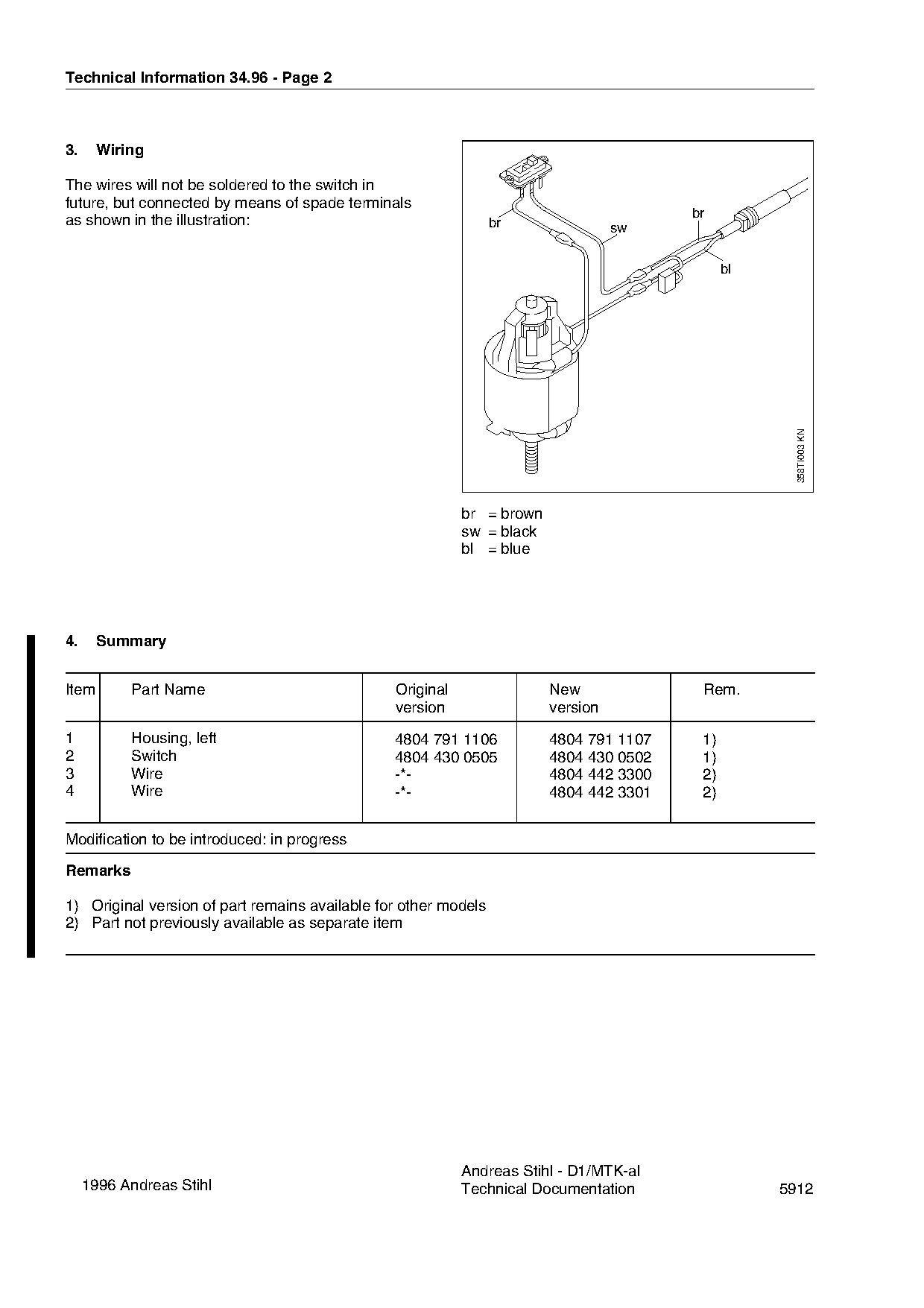

Technical Information 34.96 - Page 2
3. Wiring
The wires will not be soldered to the switch in
future, but connected by means of spade terminals
br
as shown in the illustration: br sw
358TI003 KN
br = brown
sw = black
bl = blue fo
4. Summary
Item Part Name Original New Rem.
version version
1 Housing, left 4804 791 1106 4804 791 1107 1)
2 Switch 4804 430 0505 4804 430 0502 1)
3 Wire -*- 4804 442 3300 2)
4 Wire -*- 4804 442 3301 2)
Modification to be introduced: in progress
Remarks
1) Original version of part remains available for other models
2) Part not previously available as separate item
Andreas Stihl - D1/MTK-al
