Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · FC 75
FC 75: 1996 edger introduction and powerhead scope
25.4 cm³ / 0.9 kW; developed from FC 72, with the FS 75/80/85 powerhead—not interchangeable complete machines.
No exact-model IPL link: Whole-machine specifications or workshop references are not an exact installed-part assembly. No model applicability is inferred from a shared Series 4137 sheet.

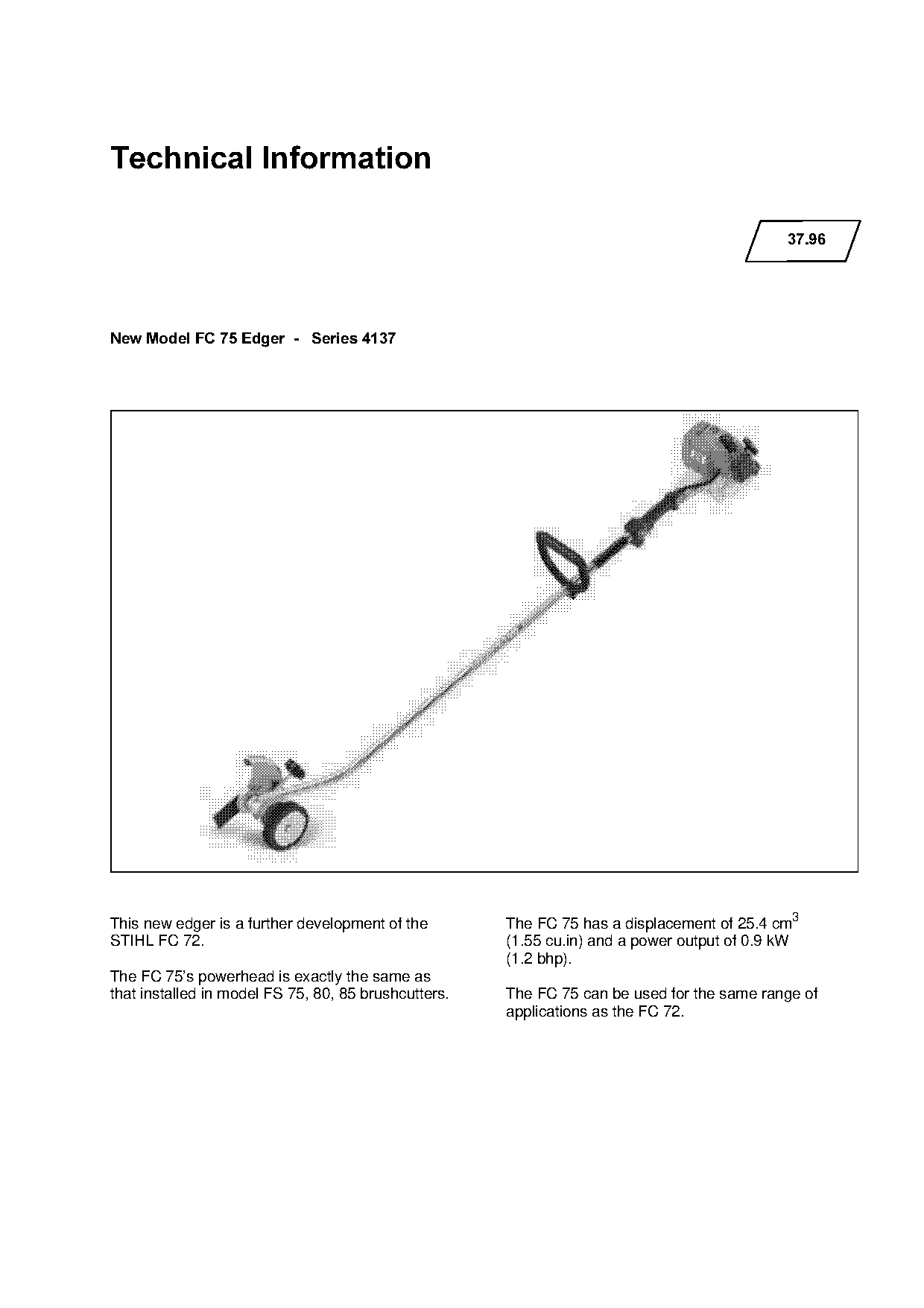

- Page 1 identifies the new FC 75 edger as Series 4137, a further development of FC 72, with the same range of applications. It prints displacement 25.4 cm³ (1.55 cu.in) and output 0.9 kW (1.2 bhp). No serial introduction boundary is printed.
- The bulletin explicitly says its powerhead is exactly the same as that installed in FS 75, 80 and 85 brushcutters, and page 2 delegates engine data to TI36/1996. This is a dated powerhead statement, not proof that complete edgers and brushcutters, drive trains, blades or guards interchange. The cover photograph is an overview, not an assembly drawing or source of unprinted dimensions.
- TI37 describes differences from FC72 and names TI50/1992 and TI34/1995 for further information. Neither base TI was identified in the retained690-TI index, STIHL service documentation document/PDF metadata,766resource-PDF filenames or41owner-pool filenames. These are two documented local-source gaps, not global absence; the underlying FC72 description is not reconstructed. Reopen on new applicable evidence. FC-specific engine/tool inheritance is reviewed separately; it does not transfer FS cutting-tool approvals.
- Historical 1996 FC 75 Series 4137 evidence only; not FC 85, later same-named equipment, current stock or verified physical interchange. No hardware operation was performed.
Source: TI 37/1996, p. 1 · TI 37/1996, p. 2 — 1996 edger introduction and powerhead scope.
No additional parts-table entry added.
Service note · FC 75
FC 75: C1Q-S28A settings and distinct speed limits

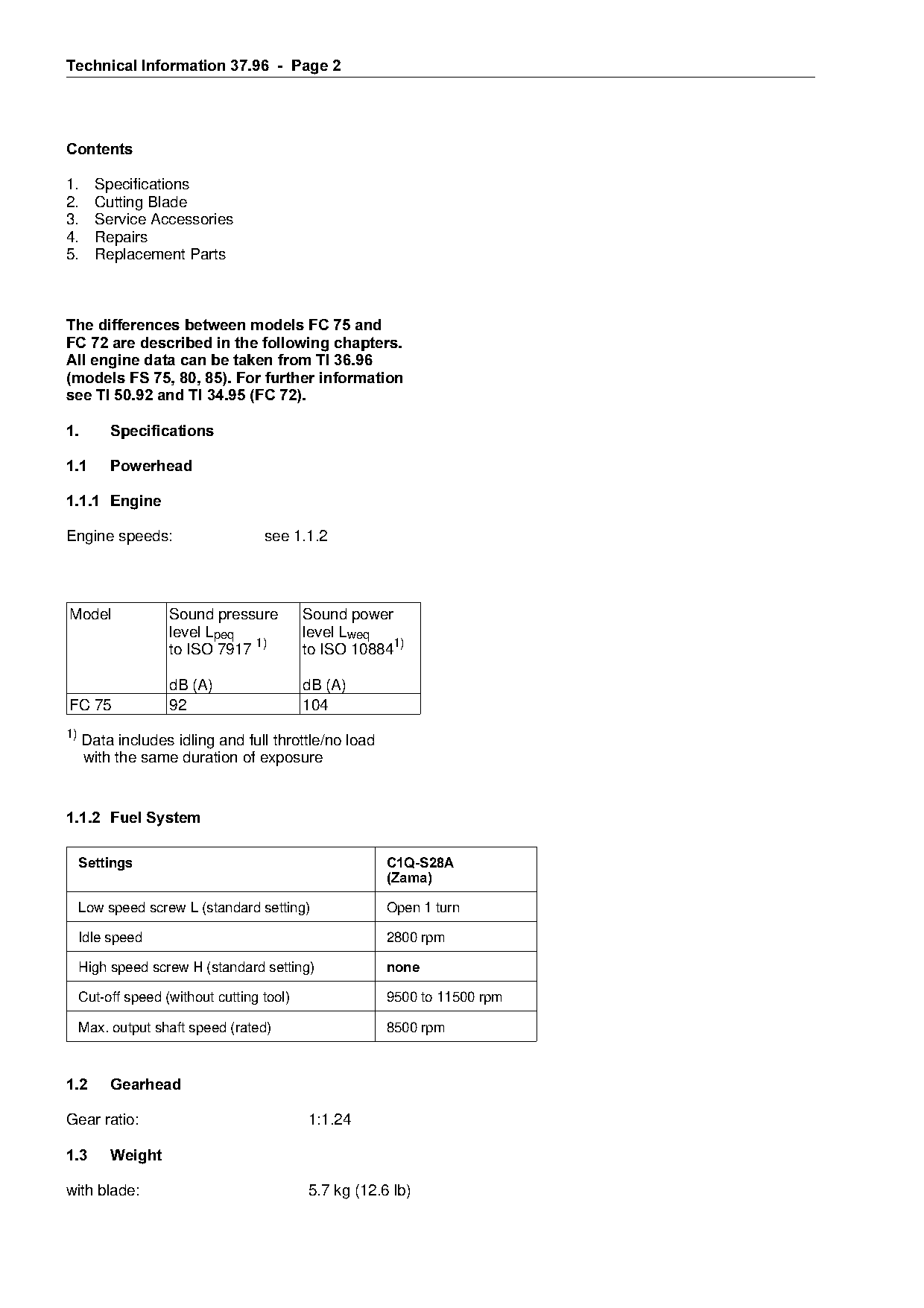

Zama C1Q-S28A: L open 1 turn; idle 2800 rpm; cut-off 9500–11500 rpm without cutting tool; output shaft rated maximum 8500 rpm.
No exact-model IPL link: Whole-machine specifications or workshop references are not an exact installed-part assembly. No model applicability is inferred from a shared Series 4137 sheet.
- Section 1.1.2 names Zama C1Q-S28A. The low-speed screw L standard setting is open 1 turn; idle speed is 2800 rpm. The high-speed screw H standard-setting cell reads “none”; do not turn that into an H-screw adjustment or a value for another carburetor.
- Cut-off speed is 9500 to 11500 rpm, expressly WITHOUT CUTTING TOOL. Maximum output-shaft speed (rated) is separately 8500 rpm. Engine idle, cut-off range and rated output-shaft maximum are different quantities; the 8500 value is not a replacement cut-off target.
- These are the printed 1996 settings, not a complete live-adjustment procedure. The no-cutting-tool qualification is not permission to run without the owner-manual precautions. Do not apply these values to C1Q-S28E, C1Q-S41C, WT-447 or later carburetors merely because they appear in FC75 parts sheets.
- Historical 1996 FC 75 Series 4137 evidence only; not FC 85, later same-named equipment, current stock or verified physical interchange. No hardware operation was performed.
Source: TI 37/1996, p. 2 — C1Q-S28A settings and distinct speed limits.
No additional parts-table entry added.
Service note · FC 75
FC 75: noise-test conditions, gear ratio and blade-included weight
92/104 dB(A) sound pressure/power; ratio 1:1.24; 5.7 kg (12.6 lb) with blade.
No exact-model IPL link: Whole-machine specifications or workshop references are not an exact installed-part assembly. No model applicability is inferred from a shared Series 4137 sheet.
- Section 1.1.1: FC75 sound-pressure level Lpeq is 92 dB(A), to ISO7917; sound-power level Lweq is 104 dB(A), to ISO10884. Footnote 1 includes idling and full throttle/no load with equal exposure duration. Pressure and power are not interchangeable measurements or an operator exposure limit.
- Section 1.2 prints gear ratio 1:1.24 without naming numerator/denominator shaft direction. Preserve that ratio rather than infer a speed or torque conversion from it. Section 1.3 prints weight WITH BLADE 5.7 kg (12.6 lb); the page does not identify this as a fueled or dry weight.
- Historical 1996 FC 75 Series 4137 evidence only; not FC 85, later same-named equipment, current stock or verified physical interchange. No hardware operation was performed.
Source: TI 37/1996, p. 2 — noise-test conditions, gear ratio and blade-included weight.
No additional parts-table entry added.
Service note · FC 75
FC 75: blade servicing aid
STIHL balancer 5910 850 2600 is listed for the blade; no blade dimensions or replacement part number are supplied.
No exact-model IPL link: Whole-machine specifications or workshop references are not an exact installed-part assembly. No model applicability is inferred from a shared Series 4137 sheet.

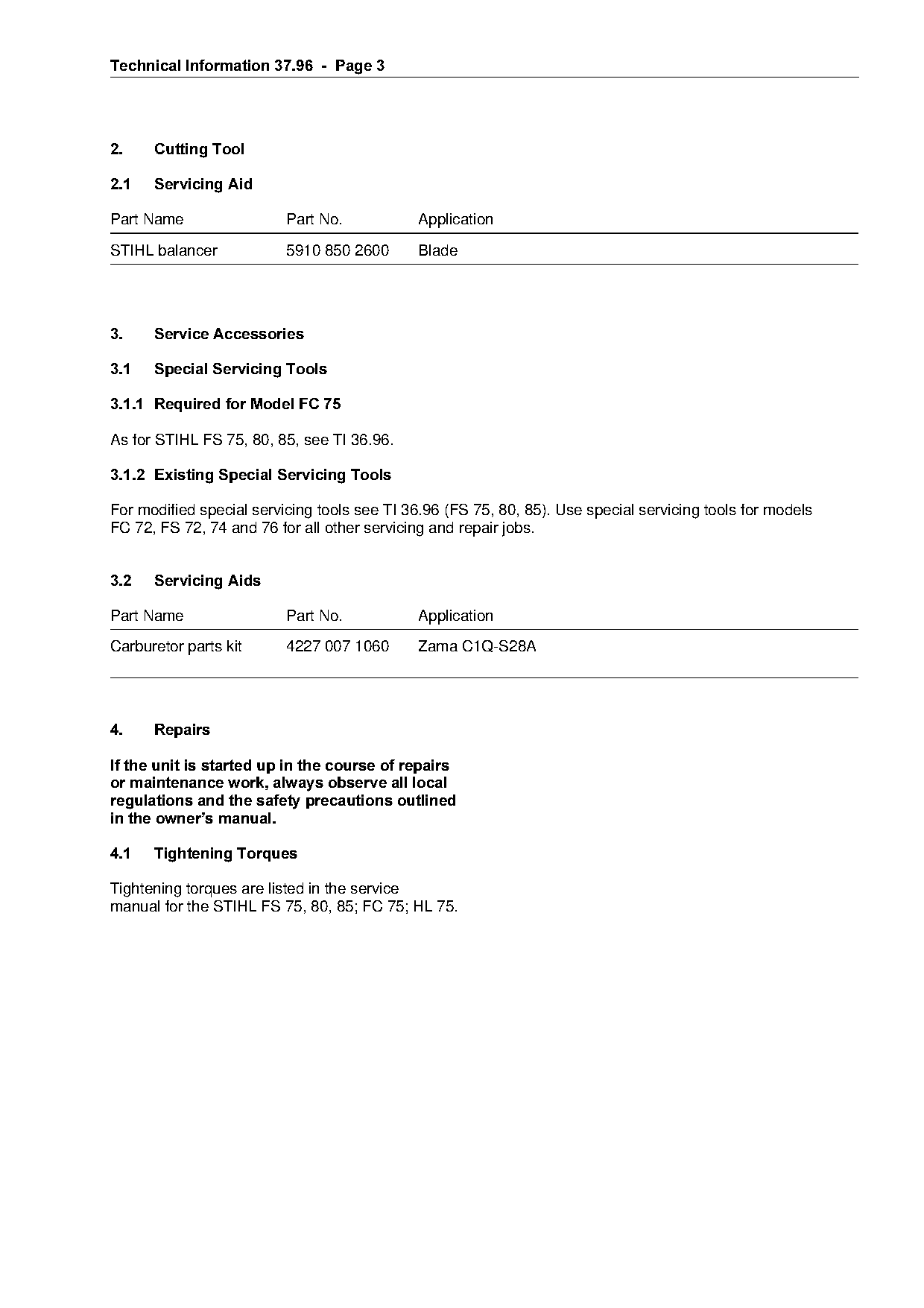

- Section 2 (Cutting Tool), subsection 2.1 (Servicing Aid), lists STIHL balancer 5910 850 2600 for application “Blade”. This is a workshop balancing aid, not the cutting blade itself or an installed edger component.
- The page does not give a balancing tolerance, blade dimensions, blade replacement number or a balancing procedure. The contents calls this chapter “Cutting Blade”; that label does not supply missing blade specifications.
- Historical 1996 FC 75 Series 4137 evidence only; not FC 85, later same-named equipment, current stock or verified physical interchange. No hardware operation was performed.
Source: TI 37/1996, p. 3 — blade servicing aid.
Part numbers (1)
- 5910 850 2600 — STIHL balancerBlade servicing aid · FC75 blade; TI37 section2.1
Service note · FC 75
FC 75: required and existing service-tool references
TI36 supplies required/modified tools; FC72 and FS72/74/76 tools remain the reference for other jobs.
No exact-model IPL link: Whole-machine specifications or workshop references are not an exact installed-part assembly. No model applicability is inferred from a shared Series 4137 sheet.
- Section 3.1.1 says the special tools required for FC75 are as for STIHL FS75/80/85, referring explicitly to TI36/1996. Section 3.1.2 likewise refers to TI36 for MODIFIED special tools, and specifies special tools for FC72, FS72, FS74 and FS76 for all other servicing and repair jobs.
- This is an explicit FC75 workshop-tool cross-reference, not a shared-sheet inference. Separate FC75 notes now retain TI36’s exact installation/removal functions, modified dimensions, oil-seal sides, 25.4 mm AV-tool condition and unresolved 2220/2208 flange-number conflict. The original earlier FC72/FS72/74/76 tool inventory is a documented local exact-source gap after bounded search; later2012 lists are reviewed separately and are not a completed original reconstruction.
- Historical 1996 FC 75 Series 4137 evidence only; not FC 85, later same-named equipment, current stock or verified physical interchange. No hardware operation was performed.
Source: TI 37/1996, p. 3 — required and existing service-tool references.
No additional parts-table entry added.
Service note · FC 75
FC 75: repair literature and FC72 labor-time reference
Torques and repair procedures are delegated to manuals; FC75 labor times refer to FC72, not to HL75.
No exact-model IPL link: Whole-machine specifications or workshop references are not an exact installed-part assembly. No model applicability is inferred from a shared Series 4137 sheet.

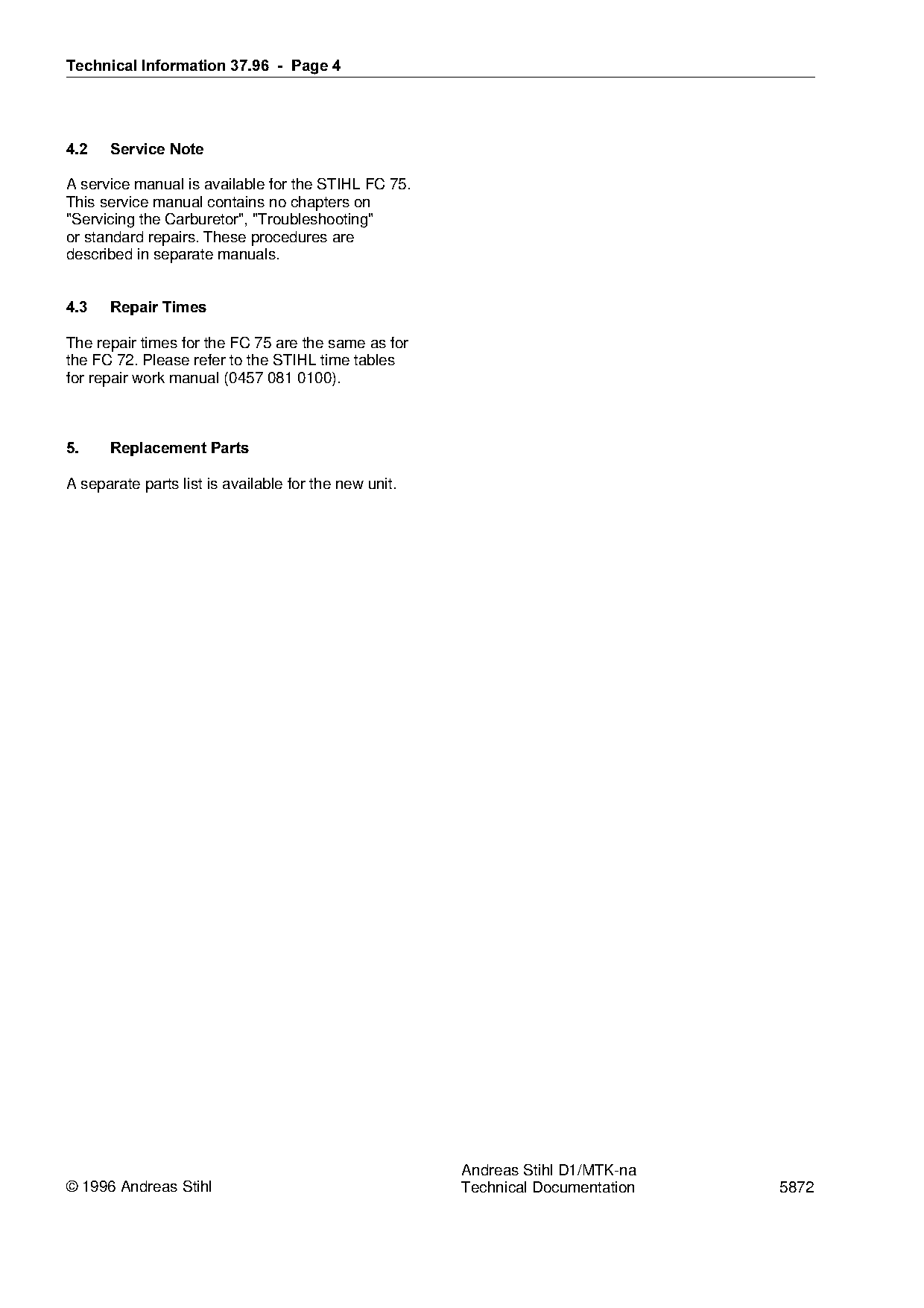

- Section 4.1 delegates tightening torques to the service manual named “STIHL FS75,80,85; FC75; HL75”. No numeric torque is printed here. Later 2004 Series4137 powerhead/components torque and leakage-test sections have now been reviewed for explicit FC75 applicability in separate edition-labeled notes. They are not the exact1996 torque edition; printed label and fixture-number conflicts remain unresolved.
- Section4.2 says the FC75 service manual omits carburetor servicing, troubleshooting and standard repairs. The recovered copyright1999 Carburetors handbook has now been checked: complete assignment pages3–7 have no FC75 row and no exact C1Q-S28A assignment. Separate boundary note prevents transfer of the FS75 or FC72 procedures; generic chapters are not a missing exact FC75 procedure.
- Section 4.3 expressly assigns FC75 the same repair times as FC72 and refers to STIHL repair-work time tables 0457 081 0100. That number identifies literature, not an edger repair component. No individual labor times are printed. This FC75/FC72 statement does not resolve or overwrite TI36 page11’s printed HL75 heading. The later2012-01 manual with the same literature number is now reviewed separately: complete FC75 column, minute units, dealer inclusions and four FC72 differences retained. It is not the original1996 edition.
- Section 5 says a separate parts list is available for the new unit. A later catalog is not proof of the original1996 edition or every original part assignment. Page4 footer identifies Technical Documentation5872 and copyright1996; blank areas contain no further assertions.
- TI37 page3 requires applicable local regulations and owner-manual safety precautions if the unit is started during repairs. The applicable owner manual, original earlier-tool inventory, original1996 service/timetable/parts-list editions and separate standard-repair/general-troubleshooting manuals are now seven named local source gaps after bounded metadata, exact-model-link and filename review. Two earlier FC72 base-TI gaps remain. Later2007/2013 CombiTools exact FC75 assignment, torques, fastener conditions and grease rows are admitted separately, not backdated. All four TI37 pages are dispositioned with these nine gaps; no whole later-manual import or universal source absence is claimed.
- Historical 1996 FC 75 Series 4137 evidence only; not FC 85, later same-named equipment, current stock or verified physical interchange. No hardware operation was performed.
Source: TI 37/1996, p. 3 · TI 37/1996, p. 4 — repair literature and FC72 labor-time reference.
No additional parts-table entry added.
Service note · FC 75
FC 75: engine dimensions, starter and clutch from TI36
34 mm bore, 28 mm stroke, 66.5 mm clutch and 3700 rpm engagement; engine inheritance does not include FS cutting equipment.
No exact-model IPL link: Explicit TI37 model reference to TI36 engine data or workshop tools; not an installed-part assembly. Both original bulletins are linked below.
- TI37 page2 explicitly says all engine data can be taken from TI36/1996 (FS75/80/85). TI36 sections1 and2.1.1, pages2–3, describe the machined crankshaft, four-port cylinder with enlarged cooling area, improved/larger air filter and two-chamber muffler with easier spark-screen removal. These qualitative source claims do not supply measured emissions or cooling improvements.
- TI36 page3: displacement 25.4 cm³ (1.55 cu.in), bore 34 mm (1.34 in), stroke 28 mm (1.10 in), engine power to ISO8893 0.9 kW (1.2 bhp). Starter is single-pawl with ElastoStart grip; clutch diameter 66.5 mm (2.62 in), engaging at 3700 rpm. Page2 specifies three clutch shoes WITHOUT linings. No dimensions have been measured on hardware.
- The engine-data bridge does NOT transfer the FS drive shafts, M12 right-hand or M10×1 left-hand cutting-tool mountings, FS gear ratios, brushcutter weights, cutting heads/blades or handle restrictions. FC75-specific noise, 1:1.24 ratio, blade-included weight and speeds remain in TI37. TI36’s anomalous acoustic-table columns are not substituted for the explicit FC75 92/104 dB(A) table.
- TI36 describes alternative control-handle wire arrangements but assigns neither to a specific FC75 configuration. No FC75 stop-circuit wiring, control-handle conversion or installed wire count is inferred from the powerhead statement. Earlier FC72 base-description references remain pending bounded disposition.
- Historical 1996 FC 75 Series 4137 evidence only, through the explicit TI37 engine/tool references to TI36. Not a shared-IPL inference, complete-machine interchange claim, current stock guarantee or verified repair procedure. No hardware operation was performed.
Source: TI 37/1996, p. 2 — engine dimensions, starter and clutch from TI36.
Referenced bulletin evidence: TI 36/1996, p. 2 · TI 36/1996, p. 3 — Sections1 and2.1.1; engine-only inheritance.
No additional parts-table entry added.
Service note · FC 75
FC 75: C1Q-S28A jets and ignition data from TI36
S28A jets B 0.32 mm / C 0.41 mm; fuel capacity 0.44 l; timing 1.55–2.25 mm before TDC at 8000 rpm.
No exact-model IPL link: Explicit TI37 model reference to TI36 engine data or workshop tools; not an installed-part assembly. Both original bulletins are linked below.
- TI37 page2’s explicit engine-data bridge and named Zama C1Q-S28A are read with TI36 page4 sections2.1.2–2.1.3. This is exact historical S28A evidence, not an assignment of later C1Q-S28E, S41C or WT-447 internals.
- TI36 calls this an all-position diaphragm carburetor with integral fuel pump. Figure366TI004: B is the idle fixed jet, diameter0.32 mm; C is the valve jet with integral fixed jet, diameter0.41 mm. These are printed dimensions, not instructions to drill jets. Section1 says fixed high-speed jet with one idle-mixture screw L; TI37’s own setting table remains authoritative for the FC75 speeds.
- Fuel capacity is0.44 l (0.9 US pt as printed). Ignition timing is1.55–2.25 mm (0.060–0.090 in) BEFORE TDC at8000 rpm; ignition lead length160 mm (6.3 in). Suppressed spark plugs: Bosch WSR6F, NGK BPMR7A or Champion RCJ6Y. No plug gap, module air gap or torque is supplied by these rows.
- Engine data are distinct from complete adjustment, leakage-testing and reassembly procedures. The TI37 engine-data cross-reference is not used here to transfer FS-specific cutting-tool setup or later-manual operating procedures. No carburetor equivalence or FC75 harness wiring is inferred.
- Historical 1996 FC 75 Series 4137 evidence only, through the explicit TI37 engine/tool references to TI36. Not a shared-IPL inference, complete-machine interchange claim, current stock guarantee or verified repair procedure. No hardware operation was performed.
Source: TI 37/1996, p. 2 — C1Q-S28A jets and ignition data from TI36.
Referenced bulletin evidence: TI 36/1996, p. 2 · TI 36/1996, p. 4 — Sections1,2.1.2–2.1.3; exact S28A fuel and ignition data.
No additional parts-table entry added.
Service note · FC 75
FC 75: crankshaft installing tool and included pieces
5910 890 2202 includes sleeve 1700 and spindle 8501; it is not the crankshaft-removal kit.
No exact-model IPL link: Explicit TI37 model reference to TI36 engine data or workshop tools; not an installed-part assembly. Both original bulletins are linked below.
- TI37 page3 sections3.1.1–3.1.2 explicitly refer FC75 required and modified servicing tools to TI36. The following functions and restrictions are inherited from TI36 FS 75 / 80 / 85: crankshaft installing tool and included pieces (pages 6); tool numbers are workshop equipment, not installed machine parts.
- Section 5.1.1 and drawing 392TI004: item 1 installing tool 5910 890 2202 is for INSTALLING the crankshaft and includes items 2 and 3: sleeve 5910 893 1700 and spindle 5910 893 8501. The drawing bracket distinguishes the assembly from the two included pieces.
- Do not confuse this installing assembly with service tool ZS 5910 007 2220 for REMOVING the crankshaft on page 7. Similar tool numbers do not establish the same function or interchangeable spindles.
- Historical 1996 FC 75 Series 4137 evidence only, through the explicit TI37 engine/tool references to TI36. Not a shared-IPL inference, complete-machine interchange claim, current stock guarantee or verified repair procedure. No hardware operation was performed.
Source: TI 37/1996, p. 3 — crankshaft installing tool and included pieces.
Referenced bulletin evidence: TI 36/1996, p. 6 — FS 75 / 80 / 85: crankshaft installing tool and included pieces.
Part numbers (3)
- 5910 890 2202 — Installing tool including items 2 and 3Crankshaft installation tooling · FC75 via TI37 section3.1; section 5.1.1
- 5910 893 1700 — Sleeve; item 2Crankshaft installation tooling · FC75 via TI37 section3.1; section 5.1.1
- 5910 893 8501 — Spindle; item 3Crankshaft installation tooling · FC75 via TI37 section3.1; section 5.1.1
Service note · FC 75
FC 75: oil-seal puller spindle conversion
A 20 mm longer 8400 spindle converts the original 0000 puller to the stated 5910 configuration.
No exact-model IPL link: Explicit TI37 model reference to TI36 engine data or workshop tools; not an installed-part assembly. Both original bulletins are linked below.
- TI37 page3 sections3.1.1–3.1.2 explicitly refer FC75 required and modified servicing tools to TI36. The following functions and restrictions are inherited from TI36 FS 75 / 80 / 85: oil-seal puller spindle conversion (pages 6); tool numbers are workshop equipment, not installed machine parts.
- Section 5.1.1 and drawing 392TI005: item 4 radial seal puller 5910 890 4400 is for OIL SEALS and includes item 5 spindle 5910 890 8400.
- Footnote 1 explicitly permits replacing the original spindle of puller 0000 890 4400 with spindle 5910 890 8400, which is 20 mm (0.80 in) LONGER. The source then calls the converted puller exactly the same as 5910 890 4400. This is a conditional tooling conversion, not proof that the unmodified old puller is already identical.
- The 20 mm is a LENGTH DIFFERENCE, not an absolute spindle length or extraction travel. No part number for the original spindle is printed and none is invented.
- Historical 1996 FC 75 Series 4137 evidence only, through the explicit TI37 engine/tool references to TI36. Not a shared-IPL inference, complete-machine interchange claim, current stock guarantee or verified repair procedure. No hardware operation was performed.
Source: TI 37/1996, p. 3 — oil-seal puller spindle conversion.
Referenced bulletin evidence: TI 36/1996, p. 6 — FS 75 / 80 / 85: oil-seal puller spindle conversion.
Part numbers (3)
- 5910 890 4400 — Radial seal puller including spindle 8400New listed puller · FC75 via TI37 section3.1 oil seals
- 5910 890 8400 — Spindle; 20 mm longer than originalReplacement spindle for conditional conversion · Original 0000 890 4400 puller
- 0000 890 4400 — Original radial seal pullerEarlier tool; conversion required for stated equivalence · Stated equivalence only after replacing original spindle with 5910 890 8400
Service note · FC 75
FC 75: seal sleeves, AV tool and snap-ring installer
Starter-side and clutch-side sleeves differ; snap-ring tool 2208 has a dimensioned modification.
No exact-model IPL link: Explicit TI37 model reference to TI36 engine data or workshop tools; not an installed-part assembly. Both original bulletins are linked below.
- TI37 page3 sections3.1.1–3.1.2 explicitly refer FC75 required and modified servicing tools to TI36. The following functions and restrictions are inherited from TI36 FS 75 / 80 / 85: seal sleeves, AV tool and snap-ring installer (pages 7); tool numbers are workshop equipment, not installed machine parts.
- Section 5.1.2: press sleeve 1115 893 4600 installs the STARTER-SIDE oil seal; assembly sleeve 4112 893 2400 PROTECTS that seal. Press sleeve 4112 893 2401 installs the CLUTCH-SIDE oil seal. Do not exchange the side or protection/pressing roles.
- Installing tool 4126 893 4900 removes the rubber AV element AND AV sleeve. Footnote 1 specifies DRIVE TUBE DIAMETER 25.4 mm (1 inch), not the tool bore or AV-sleeve length.
- Installing tool 5910 890 2208 fits HOOKLESS snap rings in the piston. Section 5.1.2.1 says the latest factory-supplied version is modified for FS 75/80/85; existing tools may be modified as in drawing 392TI006. The drawing labels 35.5 mm (1.398 inch) axially and 17.3 mm (0.681 inch) across the indicated end-view feature. These are final depicted geometry dimensions, NOT amounts of material to remove; use the original drawing rather than an inferred machining recipe. No serial/cutoff or changed order number is supplied.
- TI37 section3.1.2 names FC72 as well as FS72/74/76 for all other servicing jobs. The complete earlier inventory remains a dependency; the explicit cross-reference does not supply missing tools. The 25.4 mm drive-tube condition remains attached to AV tool4126 893 4900; it is not a universal AV-tool fit claim.
- Historical 1996 FC 75 Series 4137 evidence only, through the explicit TI37 engine/tool references to TI36. Not a shared-IPL inference, complete-machine interchange claim, current stock guarantee or verified repair procedure. No hardware operation was performed.
Source: TI 37/1996, p. 3 — seal sleeves, AV tool and snap-ring installer.
Referenced bulletin evidence: TI 36/1996, p. 7 — FS 75 / 80 / 85: seal sleeves, AV tool and snap-ring installer.
Part numbers (5)
- 1115 893 4600 — Starter-side oil-seal press sleeveTask-specific workshop tool · FC75 via TI37 section3.1; side, function and modification restrictions in this note
- 4112 893 2400 — Starter-side oil-seal protection sleeveTask-specific workshop tool · FC75 via TI37 section3.1; side, function and modification restrictions in this note
- 4112 893 2401 — Clutch-side oil-seal press sleeveTask-specific workshop tool · FC75 via TI37 section3.1; side, function and modification restrictions in this note
- 4126 893 4900 — Rubber AV element / AV sleeve removal toolTask-specific workshop tool · FC75 via TI37 section3.1; side, function and modification restrictions in this note
- 5910 890 2208 — Hookless piston snap-ring installer; modified versionTask-specific workshop tool · FC75 via TI37 section3.1; side, function and modification restrictions in this note
Service note · FC 75
FC 75: ZS crankshaft-removal kit and disputed flange number
Heading 2220 conflicts with paragraph 2208. The six-hole template is viewed from below; the flange illustration is from above.
No exact-model IPL link: Explicit TI37 model reference to TI36 engine data or workshop tools; not an installed-part assembly. Both original bulletins are linked below.
- TI37 page3 sections3.1.1–3.1.2 explicitly refer FC75 required and modified servicing tools to TI36. The following functions and restrictions are inherited from TI36 FS 75 / 80 / 85: ZS crankshaft-removal kit and disputed flange number (pages 7, 8, 12); tool numbers are workshop equipment, not installed machine parts.
- Section 5.1.2 lists service tool ZS 5910 007 2220 for REMOVING THE CRANKSHAFT, including installing tool 5910 890 2220. The latter number is printed in the application column rather than the part-number column. The rows also list ONE 30 mm sleeve 5910 893 1701 and TWO 35 mm sleeves 5910 893 1702; footnote 4 says these sleeves MUST BE ACQUIRED FOR THE NEW MODELS. Do not imply existing kit stock automatically contains the additional sleeves.
- UNRESOLVED PRINTED NUMBER CONFLICT: section 5.1.2.2 heading names installing tool 5910 890 2220, but its first paragraph says factory-supplied installing tool 5910 890 2208 will gain six additional 5.5 mm (7/32 inch) holes. Page 7 separately identifies 2208 as the hookless snap-ring installer. The flange illustration and ZS listing support a 2220 reading, but this is not an authoritative correction. Preserve both printed numbers; do not apply the drilling instruction to 2208 on the strength of the paragraph alone.
- For existing tools lacking the holes the source says copy the last-page scale template, cut it out and place it on the UNDERSIDE of the flange to mark the holes; stamp 14 and 15 by the holes on the TOP side, add peripheral notches and stamp 14 and 15 beside those too. Figure 392TI007 on page 8 shows the TOP SIDE, whereas page 12 figure 392TI008 is the underside-placement template. Their mirrored appearance is not permission to align them as the same face.
- Original page 12 contains the complete template: six hole centers, THREE marked 14 and THREE marked 15, centerlines, central opening and peripheral registration notches; otherwise blank page areas were inspected. 14 and 15 are indexing labels, NOT hole diameters. No coordinate table, absolute flange diameter or scale-calibration bar is printed. The web scan/display/print scale has NOT been verified as 1:1; no fabricated drilling coordinates or ready-to-machine template is supplied.
- Page 7 footnote 3 points to modification 5.1.2.2 but no clear row-level 3 marker is visible in the original table. Preserve the cross-reference without fabricating its position. Tool-number conflict remains unresolved, not a source-gap claim.
- Historical 1996 FC 75 Series 4137 evidence only, through the explicit TI37 engine/tool references to TI36. Not a shared-IPL inference, complete-machine interchange claim, current stock guarantee or verified repair procedure. No hardware operation was performed.
Source: TI 37/1996, p. 3 — ZS crankshaft-removal kit and disputed flange number.
Referenced bulletin evidence: TI 36/1996, p. 7 · TI 36/1996, p. 8 · TI 36/1996, p. 12 — FS 75 / 80 / 85: ZS crankshaft-removal kit and disputed flange number.
Part numbers (5)
- 5910 007 2220 — Service tool ZSCrankshaft removal kit · FC75 via TI37 section3.1
- 5910 890 2220 — Installing tool; section heading identityFlange modification heading; paragraph disagrees · Not silently interchangeable with 2208
- 5910 893 1701 — Sleeve, 30 mm; one requiredAdditional acquisition per footnote 4 · FC75 via TI37 section3.1 ZS setup
- 5910 893 1702 — Sleeve, 35 mm; two requiredAdditional acquisition per footnote 4 · FC75 via TI37 section3.1 ZS setup
- 5910 890 2208 — Number printed in flange paragraphUnresolved conflict with heading 2220 · Do not treat as verified drilling target
Service note · FC 75
FC 75: 2004 shared fastener torques
Later Components manual shared torque rows; FC75 inclusion verified from its own model remark and introduction, with label conflict retained.
No exact-model IPL link: Edition-specific manual follow-up, not an exact IPL assembly or proof of the 1996 manual edition. Manual identifiers, sections and original PDF hashes are retained separately from the TI dependency anchor.
- Later 2004 workshop-manual evidence, reviewed as a follow-up to TI37/1996 sections 4.1–4.2, NOT values printed in the 1996 bulletin or proof of its exact manual edition. Components manual cover/introduction explicitly names FC75 and permits shared procedures unless restricted; it cross-refers to the Series4137 Powerhead manual. Match the actual configuration. No hardware operation was performed.
- Components manual RA_394_00_01_02, 2004-06, section 3.2, printed pages 5–7 (PDF 6–8). Unmarked rows apply only where the specified component is fitted. Remark 3 explicitly identifies FC75 and includes the housing fan-side/starter-side row. No FS-only construction is inherited.
- M5 — Filter housing/carburetor/flange/screw: 4 Nm (3 lbf.ft as printed).
- IS-B4.2x9.5 — Spark arresting screen/muffler: 1 Nm (0.75 lbf.ft as printed).
- IS-M5x25 — Housing, fan side/starter side: 9.5 Nm (7 lbf.ft as printed).
- IS-M5x16 — Shroud/fan housing: 3.5 Nm (2.6 lbf.ft as printed).
- IS-M5x16 — Shroud/starter cover/crankcase: 3.5 Nm (2.6 lbf.ft as printed).
- IS-M5x20 — AV sleeve (clamp screw): 5.5 Nm (4 lbf.ft as printed).
- IS-DG5x12 — AV sleeve/drive tube, location: 0.5 Nm (0.37 lbf.ft as printed).
- M8 — Clutch carrier/flywheel/crankshaft: 26 Nm (19.2 lbf.ft as printed).
- IS-M5x16 — Fan housing/crankcase: 8 Nm (5.9 lbf.ft as printed).
- M8 — Carrier: 14 Nm (10.3 lbf.ft as printed).
- IS-P5.5x12 — Rope rotor/starter cover: 3.5 Nm (2.6 lbf.ft as printed).
- IS-5x16 — Muffler/crankcase: 9.5 Nm (7 lbf.ft as printed).
- IS-5x16 — Muffler/cylinder: 11.5 Nm (8.5 lbf.ft as printed).
- IS-M5x16 — Starter cover/crankcase: 5.5 Nm (4 lbf.ft as printed).
- IS-M5x25 — Spacer flange/cylinder (with washer): 5.5 Nm (4 lbf.ft as printed).
- IS-DG5x24 — Cylinder/crankcase: 9.5 Nm (7 lbf.ft as printed).
- M14x1.25 — Spark plug: 20 Nm (15 lbf.ft as printed).
- IS-M4x20 — Ignition module/cylinder (with washer): 4.5 Nm (3.3 lbf.ft as printed).
- IS-M5x25 — Spacer flange/cylinder (with washer): 5.5 Nm (4 lbf.ft as printed).
- The spacer-flange row appears twice in the original and is retained twice in the evidence table. M8 carrier 14 Nm is a separately labeled row from M8 clutch carrier/flywheel/crankshaft 26 Nm; these are not interchangeable values.
- Use a torque wrench. For DG or P screws in existing threads, turn counterclockwise until the screw drops slightly, then tighten clockwise to the specified torque so a new thread is not cut. Polymer power-driver limits: Plastoform 600 rpm maximum, DG 500 rpm maximum. Do not mix screws with and without binding head.
- The spark-plug and ignition rows above are the Components manual reading; the Powerhead manual prints conflicting component labels, retained in the separate torque-conflict note.
TI dependency: TI 37/1996, p. 3 — TI37 manual dependency follow-up; later manual edition and model scope explicitly identified.
Later manual evidence: RA_394_00_01_02 (2004-06), section 3.2, PDF pages 1, 3, 6, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2004 control and loop-handle torques
Four FC75 handle rows plus the separately shared housing row; FC85 deflector and FS75 bearing-housing values are excluded.
No exact-model IPL link: Edition-specific manual follow-up, not an exact IPL assembly or proof of the 1996 manual edition. Manual identifiers, sections and original PDF hashes are retained separately from the TI dependency anchor.
- Later 2004 workshop-manual evidence, reviewed as a follow-up to TI37/1996 sections 4.1–4.2, NOT values printed in the 1996 bulletin or proof of its exact manual edition. Components manual cover/introduction explicitly names FC75 and permits shared procedures unless restricted; it cross-refers to the Series4137 Powerhead manual. Match the actual configuration. No hardware operation was performed.
- Components manual RA_394_00_01_02, 2004-06, section 3.2, printed pages 5–7 (PDF 6–8). Remark 3 identifies FC75; remark 8 is FC85, not FC75. These exact remark-3 rows apply only to the specified fitted construction.
- IS-P4x16 — Control handle/handle molding (outer/inner): 1 Nm (0.75 lbf.ft as printed).
- IS-M5x12 — Control handle/clamp/drive tube: 5 Nm (3.6 lbf.ft as printed).
- IS-DG5x16 — Loop handle: 2.5 Nm (1.8 lbf.ft as printed).
- IS-M6x50 — Loop handle/drive tube/nut: 3.5 Nm (2.6 lbf.ft as printed).
- The fifth remark-3 row is housing fan-side/starter-side IS-M5x25, 9.5 Nm (7.0 lbf.ft), retained in the shared-torque note.
- Excluded from FC75: FC85-only IS-DG5x60 retainer/deflector/drive tube 2 Nm; FS75-only IS-5x33 clamp/deflector 4.5 Nm and IS-M5x18 clamp/bearing housing/locknut 6.5 Nm; FH75 gearbox/blade, HL75/FH75 drive-tube/carrying-ring, and FS80/85/KM85 bike-handle/split-boom rows. No blade fastening torque is established for FC75 by these other-model rows.
TI dependency: TI 37/1996, p. 3 — TI37 manual dependency follow-up; later manual edition and model scope explicitly identified.
Later manual evidence: RA_394_00_01_02 (2004-06), section 3.2, PDF pages 1, 3, 6, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2004 powerhead torque-label conflict
Powerhead and Components manuals disagree on spark-plug and ignition-module row labels; no silent correction.
No exact-model IPL link: Edition-specific manual follow-up, not an exact IPL assembly or proof of the 1996 manual edition. Manual identifiers, sections and original PDF hashes are retained separately from the TI dependency anchor.
- Later 2004 workshop-manual evidence, reviewed as a follow-up to TI37/1996 sections 4.1–4.2, NOT values printed in the 1996 bulletin or proof of its exact manual edition. Components manual cover/introduction explicitly names FC75 and permits shared procedures unless restricted; it cross-refers to the Series4137 Powerhead manual. Match the actual configuration. No hardware operation was performed.
- Series 4137 Powerhead RA_935_01_01_01, 2004-03, section 3.3, printed page 5 (PDF 6), prints all four rows as follows:
- IS-M5x25 — Crankcase: 9.5 Nm as printed.
- IS-DG5x24 — Cylinder/Crankcase: 9.5 Nm as printed.
- IS-M4x20 — Spark plug: 4.5 Nm as printed.
- M14x1.25 — Ignition module/Cylinder: 20 Nm as printed.
- Components manual RA_394_00_01_02, 2004-06, section 3.2, printed pages 5–7 (PDF 6–8). Its printed page 6 (PDF 7) instead labels M14x1.25 Spark plug 20.0 Nm (15.0 lbf.ft) and IS-M4x20 Ignition module/cylinder (with washer) 4.5 Nm (3.3 lbf.ft). The Powerhead table has the component labels reversed relative to this later table. This is visible on the original page, not merely a text-extraction error.
- UNRESOLVED PRINTED CONFLICT: preserve both source readings, do not silently swap labels or promote the anomalous Powerhead rows into a verified workshop instruction. No manufacturer erratum or exact 1996 table has been established.
- The Powerhead page requires a torque wrench and turning reused DG screws counterclockwise to find the existing thread before tightening clockwise; maximum DG driver speed in polymer is 500 rpm.
TI dependency: TI 37/1996, p. 3 — TI37 manual dependency follow-up; later manual edition and model scope explicitly identified.
Later manual evidence: RA_935_01_01_01 (2004-03), section 3.3, PDF pages 1, 3, 6 · RA_394_00_01_02 (2004-06), section 3.2, PDF pages 1, 3, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2004 engine leakage-test context
Later manual gives engine blanking setup, 0.5 bar pressure/vacuum and 20-second criteria; printed vacuum wording is retained.
No exact-model IPL link: Edition-specific manual follow-up, not an exact IPL assembly or proof of the 1996 manual edition. Manual identifiers, sections and original PDF hashes are retained separately from the TI dependency anchor.
- Later 2004 workshop-manual evidence, reviewed as a follow-up to TI37/1996 sections 4.1–4.2, NOT values printed in the 1996 bulletin or proof of its exact manual edition. Components manual cover/introduction explicitly names FC75 and permits shared procedures unless restricted; it cross-refers to the Series4137 Powerhead manual. Match the actual configuration. No hardware operation was performed.
- Series 4137 Powerhead RA_935_01_01_01, 2004-03, sections 5.4.1–5.4.3, printed pages 12–13 (PDF 13–14). This supplies later source context, not missing words in TI37.
- Preparation: remove carburetor per Components manual; place gasket before intermediate flange; move piston to top dead centre visible through inlet; check spark plug securely seated; fit test flange 1128 850 4200 and tighten its nuts. Remove lower crankcase screw from muffler, loosen two upper muffler screws halfway, insert sealing plate 0000 855 8106 between gasket and cylinder exhaust, lightly retighten upper screws. Plate must fill full width between screws.
- Pressure: connect tester 1106 850 2905 hose to flange nipple, close bulb vent, pump to approximately 50 kPa (0.5 bar). Manual calls engine housing airtight if pressure stays constant at least 20 seconds. If it drops, locate leak and replace defective part; wet suspected area with oil and repressurize to reveal bubbles. Then test under vacuum.
- Vacuum: same preparation; connect vacuum pump 0000 850 3501 to flange nipple. The printed instruction says "Connect vent screw (1) to the pump cylinder"; retain that wording rather than silently rewriting it. Operate lever to a negative-pressure magnitude of 50 kPa (0.5 bar).
- The exact acceptance wording is "vacuum remains constant or if the pressure does not rise to more than 30 kPa (0.3 bar) within 20 seconds"; it then says replace oil seals if crankcase vacuum decreases further. The gauge diagram uses a 0–1 scale without minus signs. This context indicates vacuum loss, but the sentence is not silently rewritten as a signed/absolute pressure threshold, a permitted 0.3-bar drop, or a positive-pressure test. No executable pass/fail threshold is inferred from that wording.
- After testing, open vent and remove hose/flange; loosen muffler screws, remove sealing plate, retighten muffler screws, replace removed lower crankcase screw, reinstall carburetor and remaining parts per Components manual. The pressure-test paragraph calls this the "outer screw"; preparation and vacuum-test restoration say "lower crankcase screw". Both locators retained; do not invent another removed fastener.
- This is a source-context summary, not bench readiness or an independently verified complete repair procedure. Applicable carburetor/muffler removal and reassembly chapters and the missing owner safety manual are still required for an actual operation.
TI dependency: TI 37/1996, p. 4 — TI37 manual dependency follow-up; later manual edition and model scope explicitly identified.
Later manual evidence: RA_935_01_01_01 (2004-03), section 5.4.1–5.4.3, PDF pages 1, 3, 13, 14 · RA_394_00_01_02 (2004-06), section cover and 1; explicit FC75 powerhead applicability, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2004 carburetor leakage-test context
Carburetor test uses approximately 0.8 bar; the later section specifies no hold duration or permissible decay.
No exact-model IPL link: Edition-specific manual follow-up, not an exact IPL assembly or proof of the 1996 manual edition. Manual identifiers, sections and original PDF hashes are retained separately from the TI dependency anchor.
- Later 2004 workshop-manual evidence, reviewed as a follow-up to TI37/1996 sections 4.1–4.2, NOT values printed in the 1996 bulletin or proof of its exact manual edition. Components manual cover/introduction explicitly names FC75 and permits shared procedures unless restricted; it cross-refers to the Series4137 Powerhead manual. Match the actual configuration. No hardware operation was performed.
- Components manual RA_394_00_01_02, 2004-06, section 9.2.1, printed pages 43–44 (PDF 44–45). Section 9.2.1 begins in the middle column of PDF 44 and continues in the left column of PDF 45; adjacent air-filter and carburetor-removal sections are not part of this test.
- The section refers suspected fuel-system faults to section 4.3 and instructs checking/cleaning or replacing the tank vent (9.5) for carburetor/fuel-supply problems. The test uses carburetor/crankcase tester 1106 850 2905.
- Remove shroud (5.1); disconnect fuel hose from carburetor elbow; fit fuel hose 1110 141 8600 to nipple 0000 855 9200, push it onto carburetor elbow, and connect tester pressure hose to nipple. Close bulb vent and pump to approximately 0.8 bar. This is not the 0.5-bar engine test or operating fuel pressure.
- If pressure remains constant the carburetor is described as airtight. If it drops, listed causes are inlet needle not sealing (foreign matter in valve seat, damaged needle sealing cone, or sticking inlet control lever) or damaged metering diaphragm. Carburetor servicing is delegated to section 9.3; a pressure drop alone does not identify which cause is present.
- No hold duration or allowable decay is printed in section 9.2.1; do not import the engine test’s 20 seconds. After the test, open vent, pull off test fuel hose, reconnect original fuel hose to elbow and fit shroud (5.1).
- Later Components manual does contain carburetor-service and troubleshooting sections. TI37’s chapter exclusions describe its 1996 manual, not this 2004 edition. This review covers leakage-test context only, not those full repair chapters or physical test validation.
TI dependency: TI 37/1996, p. 4 — TI37 manual dependency follow-up; later manual edition and model scope explicitly identified.
Later manual evidence: RA_394_00_01_02 (2004-06), section 9.2.1, PDF pages 1, 3, 44, 45
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2004 fixture-number conflict
Both manual introductions disagree on stand/fixture identifiers; preserve the printed assignments, not a verified purchase list.
No exact-model IPL link: Edition-specific manual follow-up, not an exact IPL assembly or proof of the 1996 manual edition. Manual identifiers, sections and original PDF hashes are retained separately from the TI dependency anchor.
- Later 2004 workshop-manual evidence, reviewed as a follow-up to TI37/1996 sections 4.1–4.2, NOT values printed in the 1996 bulletin or proof of its exact manual edition. Components manual cover/introduction explicitly names FC75 and permits shared procedures unless restricted; it cross-refers to the Series4137 Powerhead manual. Match the actual configuration. No hardware operation was performed.
- Components manual RA_394_00_01_02, 2004-06, printed page2 (PDF3), names assembly stand (2) 5910 893 3100 and clamping fixture (1) 5910 890 8800. Figure249RA163 depicts a drive-tube clamp.
- Powerhead manual RA_935_01_01_01, 2004-03, printed page2 (PDF3), instead names assembly stand (2) 5910 893 8800 and clamping plate (1) 5910 893 3100. Figure366RA265 depicts a powerhead mounting plate.
- UNRESOLVED PRINTED CONFLICT: 5910 893 3100 is assigned different functions, and 5910 890 8800 differs from 5910 893 8800. Both images and text were checked. Different clamp/plate constructions do not authorize silently correcting the identifiers or declaring them interchangeable. No manufacturer erratum or authoritative reconciliation was established.
- The introductions point to the special-tools manual for identification. These are disputed workshop-fixture references, not installed FC75 parts or a verified acquisition list. Existing TI37/TI36 tool-number conflicts remain unchanged.
TI dependency: TI 37/1996, p. 3 — TI37 manual dependency follow-up; later manual edition and model scope explicitly identified.
Later manual evidence: RA_935_01_01_01 (2004-03), section cover and 1, PDF pages 1, 3 · RA_394_00_01_02 (2004-06), section cover and 1, PDF pages 1, 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: recovered handbook does not assign FC75 or C1Q-S28A
The later Carburetors handbook cannot supply the missing exact FC75/S28A procedure by borrowing FS75 or FC72 rows.
No exact-model IPL link: Later literature follow-up, not the original1996 edition, an exact IPL assembly or authorization to transfer procedures between carburetor types.
- TI37 section4.2 delegates carburetor servicing to a separate manual. The recovered owner-pool file named “021 023 025 MS 210 230 250 - service manual.pdf” is actually Carburetors, copyright1999,65pages; its publication revision remains unestablished. It is not the exact1996 manual.
- The COMPLETE assignment table, PDF/printed pages3–7, was visually inspected. It contains no FC75 row. Page5 lists FC44 with WT-327, and FC72 with WT-227F or WT-329; page6 lists FS75/80/85 with C1Q-S41A or WT-447. None of those assignments names FC75 or its TI37 C1Q-S28A.
- Full extracted handbook text has no FC75 or C1Q-S28A match after whitespace normalization. This text search supports the visually checked assignment-table boundary; it is not a claim to have semantically reviewed every handbook illustration.
- Do not transfer FC72 carburetor settings because TI37 assigns the same REPAIR TIMES, or transfer later FS75 carburetor procedures because TI37 explicitly shares ENGINE DATA and TOOLS with TI36. Those references do not establish an S28A-to-S41A/WT-447 equivalence, serial changeover or replacement authorization.
- Generic handbook chapters remain available as general reference, but no exact FC75/S28A procedure is established by this candidate. Previously admitted TI37 S28A settings/parts-kit evidence and explicitly FC75-bound 2004 leakage-test evidence remain separate. This absence does not refute the original1996 specification or prove universal source absence.
- Page2 retains owner-manual safety prerequisites and advises consulting the applicable parts list and subsequent Technical Information. The handbook does not replace the missing applicable owner manual.
- This is a source-bound reference, not an installed-configuration finding, physical interchange proof or complete repair procedure. No hardware operation was performed.
TI dependency: TI 37/1996, p. 4 — TI37 page4 literature dependency; actual later-source edition identified separately.
Later manual evidence: Carburetors (publication revision unestablished; ©1999), section 1–3; complete assignment table, pages3–7, PDF pages 1, 2, 3, 4, 5, 6, 7
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2012 repair-time context and FC72 differences
The later FC75 column differs from FC72 in four rows; it does not rewrite TI37’s 1996 same-times statement.
No exact-model IPL link: Later2012 labor-reference evidence, not an exact IPL assembly, the original1996 allowance, a current warranty entitlement or an owner repair-time estimate.
- Later 2012-01 Repair Timetables Manual, 0457 081 0100, printed page21 (PDF22), not the original1996 timetable. The cover establishes edition2012-01; the table explicitly labels FC75 and says repair times are in MINUTES, not tenths of an hour. These are historical dealer warranty allowances, not promised owner repair durations or current reimbursement rules.
- Dealer Instructions, printed page2 (PDF3): diagnostic time, cleaning, repair and test running are included whenever applicable. Trained technicians using the proper tools and workshop procedures are assumed. Only one labor code is entered; the highest allowance generally covers combined repairs, with exceptions requiring the source’s dealer authorization process. Do not sum these rows or add diagnostic time again.
- The source explains that cylinder/piston replacement includes air-leak testing and causative repairs; ignition work includes stop-circuit checks; carburetor work includes fuel-line/tank-vent checks. A task name is not a complete repair procedure or proof that any particular fault is present.
- FC75 versus FC72, in minutes: code2 crankcase/gasket/reseal100 versus90; code3 main bearings100 versus90; code4 crankshaft seals55 versus50; code6 cylinder/piston55 versus50. All other FC75/FC72 cells on this page match, including their blanks. The dated2012 difference does not establish when any allowance changed.
- TI37 section4.3 assigns FC75 the same times as FC72 in1996 but prints no individual values. Keep that historical assertion and the2012 unequal columns together without silently choosing one edition. Neither resolves TI36’s separate HL75-heading conflict.
- Warranty claim submission, return addresses and reimbursement eligibility are outside this owner-reference review; no claim handling or current entitlement is inferred.
- This is a source-bound reference, not an installed-configuration finding, physical interchange proof or complete repair procedure. No hardware operation was performed.
TI dependency: TI 37/1996, p. 4 — TI37 page4 literature dependency; actual later-source edition identified separately.
Later manual evidence: Repair Timetables Manual (2012-01), section Dealer Instructions, printed2; Edger Repair Times, printed21, PDF pages 1, 3, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2012 engine and control labor rows
FC75 codes1–16 retain minute units, included tests and the unpopulated short-block cell.
No exact-model IPL link: Later2012 labor-reference evidence, not an exact IPL assembly, the original1996 allowance, a current warranty entitlement or an owner repair-time estimate.
- Later 2012-01 Repair Timetables Manual, 0457 081 0100, printed page21 (PDF22), not the original1996 timetable. The cover establishes edition2012-01; the table explicitly labels FC75 and says repair times are in MINUTES, not tenths of an hour. These are historical dealer warranty allowances, not promised owner repair durations or current reimbursement rules.
- Code1 Replace short block: BLANK for FC75, not zero and not an approved allowance. Codes2 Replace crankcase, crankcase gasket or re-seal crankcase =100min; 3 Replace crankshaft main bearing(s) =100min; 4 Replace crankshaft seal(s) =55min. Each of codes2–4 explicitly includes an air-leak test.
- Code5 Replace tank filler cap =3min; 6 Replace cylinder and/or piston =55min, including air-leak test and repair of components causing failure; 7 Replace ignition module or flywheel =25min, including stop-circuit test.
- Code8 Replace fuel tank line, tank vent or fuel pickup body =20min; 9 Replace intake manifold or intake flange =20min; 10 Repair or replace carburetor =30min, including fuel-system testing.
- Code11 Repair throttle control =25min; 12 Repair or replace rewind starter =15min; 13 Repair or replace clutch, clutch shoes or clutch springs =20min; 14 Replace muffler =15min; 15 Replace air filter or filter housing =15min; 16 Repair or replace stop switch =25min, including circuit testing.
- All entries retain the2012 dealer-instruction inclusions and non-additive treatment. The engine diagnosis-only code35 is not an automatic extra charge on these repairs. No numeric values are backdated into the1996 reference.
- This is a source-bound reference, not an installed-configuration finding, physical interchange proof or complete repair procedure. No hardware operation was performed.
TI dependency: TI 37/1996, p. 4 — TI37 page4 literature dependency; actual later-source edition identified separately.
Later manual evidence: Repair Timetables Manual (2012-01), section Dealer Instructions, printed2; Edger Repair Times, printed21, PDF pages 1, 3, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2012 chassis labor, blank cells and non-labor codes
FC75 codes17–50 distinguish unpopulated cells, a five-minute handling allowance and explicit zero labor.
No exact-model IPL link: Later2012 labor-reference evidence, not an exact IPL assembly, the original1996 allowance, a current warranty entitlement or an owner repair-time estimate.
- Later 2012-01 Repair Timetables Manual, 0457 081 0100, printed page21 (PDF22), not the original1996 timetable. The cover establishes edition2012-01; the table explicitly labels FC75 and says repair times are in MINUTES, not tenths of an hour. These are historical dealer warranty allowances, not promised owner repair durations or current reimbursement rules.
- Code17 Replace clutch housing =20min; 18 Replace drive shaft and/or drive tube =25min; 19 Replace bearing liner in drive tube: BLANK for FC75 (not the adjacent FC85 value20). A blank is neither zero nor a claim about whether a component exists.
- Code20 Replace deflector =15min; 21 Repair gearbox assembly =15min; 22 Replace fuel tank =20min. Code26 Replace gears and/or bearings in gearbox =30min. Codes21 and26 are distinct descriptions; do not add them as independent operations on the same repair.
- Codes23 Adjust valve clearance,24 Clean exhaust valve with STIHL de-carbonizing liquid including leak-down test, and25 Replace intake or exhaust valve including leak-down test: all BLANK for FC75. Do not borrow values from FC90/100 or FC95/110 columns.
- Code35 Engine diagnosis only to determine failures requiring unit replacement =25min; 40 Miscellaneous and other unlisted repairs =15min; 45 Handling allowance only—no labor =5min; 50 No labor =0. The explicit zero is different from an empty cell, and the handling allowance is not five minutes of repair labor.
- There are30 printed code rows on this page: FC75 has25 numeric cells (including code50 zero) and5 blanks (1,19,23,24,25). Codes27–34,36–39,41–44,46–49 are not printed rows; no missing value is synthesized. All values remain non-additive historical dealer allowances, not a repair estimate.
- This is a source-bound reference, not an installed-configuration finding, physical interchange proof or complete repair procedure. No hardware operation was performed.
TI dependency: TI 37/1996, p. 4 — TI37 page4 literature dependency; actual later-source edition identified separately.
Later manual evidence: Repair Timetables Manual (2012-01), section Dealer Instructions, printed2; Edger Repair Times, printed21, PDF pages 1, 3, 22
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: 2012 leakage and ignition equipment
Dated pump, sealing, fuel-system and ignition assignments; unspecified gauge/flange applications are not filled in.
No exact-model IPL link: Explicit later2012 FC75 workshop-tool list, not an IPL assembly, proof of1996 availability or physical interchange.
- The Special Tools Manual edition2012-01 explicitly lists FC75 (4137), pages113–114. These are dated workshop-tool assignments, not installed machine parts, original1996 inventory, present stock or a repair procedure. Part2 is a model/application index; generic tool names without an application stay unspecified.
- The parts below retain every testing/ignition row in the FC75 section. Pump0000 850 1300 checks engine and carburetor leakage; sealing plate0000 855 8106 seals the exhaust port; nipples0000 855 9200 and9201 test carburetor leakage. Listing both nipples does not establish that both are used together.
- Testing tool kit0000 890 1701, flange1128 850 4200 and setting gauge4118 890 6401 have no application printed in this FC75 list. Do not borrow an application from a neighboring model or infer a gauge dimension. Gauge4118 890 6400 explicitly sets ignition-module/flywheel air gap.
- Hose1110 141 8600 is printed135mm /5 5/16inch. Tachometers EDT7 and EDT8 and ignition testers ZAT4 and ZAT3 are listed; the index gives no target RPM, air-gap dimension, test pressure, duration or electrical connection. Those must come from the applicable procedure, not this equipment list.
- TI37’s required/modified tools and restrictions remain separately documented. The later list does not resolve the printed flange-number or fixture-number conflicts, establish a supersession, or authorize an operation on an unidentified machine. No hardware operation was performed.
TI dependency: TI 37/1996, p. 3 — Page3 section3.1 tool dependency; later2012 exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2: FC75 (4137), starts below preceding-model rows on113; ends before FC85 heading on114, PDF pages 1, 3, 113, 114
Part numbers (13)
- 0000 850 1300 — Pump - Checking engine and carburetor for leaksWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 0000 855 8106 — Sealing plate - Sealing exhaust portWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 0000 855 9200 — Nipple - Testing carburetor for leaksWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 0000 855 9201 — Nipple - Testing carburetor for leaksWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 0000 890 1701 — Testing tool kitWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 1110 141 8600 — Hose 135 mm / 5 5/16''Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 1128 850 4200 — FlangeWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 4118 890 6400 — Setting gauge - Setting air gap between ignition module and flywheelWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 4118 890 6401 — Setting gaugeWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 850 1008 — Tachometer EDT 7Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 850 1009 — Tachometer EDT 8Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 850 4503 — Ignition system tester, ZAT 4Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 850 4520 — Ignition system tester, ZAT 3Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
Service note · FC 75
FC 75: 2012 piston, crankshaft and clutch tools
Locking, circlip, drift and installing tools retain their distinct purposes.
No exact-model IPL link: Explicit later2012 FC75 workshop-tool list, not an IPL assembly, proof of1996 availability or physical interchange.
- The Special Tools Manual edition2012-01 explicitly lists FC75 (4137), pages113–114. These are dated workshop-tool assignments, not installed machine parts, original1996 inventory, present stock or a repair procedure. Part2 is a model/application index; generic tool names without an application stay unspecified.
- Clamping strap0000 893 2600 clamps piston rings; locking strip0000 893 5903 blocks the crankshaft; pliers0816 610 1495 are A10-flat for external circlips. None supplies a torque value or a generic permission to block the piston by another method.
- The list assigns drift1108 893 4700 to BOTH removing and installing the FC75 clutch drum; wooden block1108 893 4800 fits the piston; drift1114 893 4700 removes/installs the piston pin. Socket5910 893 5608 is13mm, for clutch AND carrier.
- Service tool ZS5910 007 2201 removes the crankshaft;5910 890 2202 installs it;5910 890 2208 installs hookless piston snap rings. The2012 index does not repeat TI36’s modification drawing or identify tool revision. Preserve the earlier modification restriction and disputed ZS flange number rather than replacing them with this short entry.
- TI37’s required/modified tools and restrictions remain separately documented. The later list does not resolve the printed flange-number or fixture-number conflicts, establish a supersession, or authorize an operation on an unidentified machine. No hardware operation was performed.
TI dependency: TI 37/1996, p. 3 — Page3 section3.1 tool dependency; later2012 exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2: FC75 (4137), starts below preceding-model rows on113; ends before FC85 heading on114, PDF pages 1, 3, 113, 114
Part numbers (10)
- 0000 893 2600 — Clamping strap - Clamping piston ringsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 0000 893 5903 — Locking strip - Blocking the crankshaftWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 0816 610 1495 — Pliers A10-flat - Removing/installing external circlipsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 1108 893 4700 — Assembly drift - Removing/installing clutch drumWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 1108 893 4800 — Wooden assembly block - Fitting pistonWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 1114 893 4700 — Assembly drift - Removing/installing piston pinWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 007 2201 — Service tool ZS - Removing crankshaftWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 2202 — Installing tool - Installing crankshaftWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 2208 — Installing tool, 8 - Installing hookless snap rings in pistonWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 893 5608 — Socket, 13 mm - Clutch and carrierWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
Service note · FC 75
FC 75: 2012 seal sides and bearing tools
Starter-side protection differs from pressing; unnamed sleeve/washer applications remain unknown.
No exact-model IPL link: Explicit later2012 FC75 workshop-tool list, not an IPL assembly, proof of1996 availability or physical interchange.
- The Special Tools Manual edition2012-01 explicitly lists FC75 (4137), pages113–114. These are dated workshop-tool assignments, not installed machine parts, original1996 inventory, present stock or a repair procedure. Part2 is a model/application index; generic tool names without an application stay unspecified.
- Jaw0000 893 3706 is profile No.3.1 and4 for removing oil seals. Press sleeve1115 893 4600 installs the STARTER-SIDE seal; sleeve4112 893 2400 PROTECTS the STARTER-SIDE seal; press sleeve4112 893 2401 installs the CLUTCH-SIDE seal. Do not exchange the side or protection/installation roles.
- Arbor1118 893 7200 removes/installs the ball bearing in the clutch housing. Arbor4119 893 7200 removes/installs ball bearings. Puller4133 893 0800 releases the flywheel; puller5910 890 4400 removes oil seals. This index supplies no force, depth, heating or spindle-conversion procedure.
- Sleeves5910 893 1701 and1702 are both assigned to removing ball bearings in the FC75 list. Sleeve5910 893 1708 and drilled washer5910 893 2102 have NO application printed here; do not invent one from a nearby model, a similar suffix or the generic name.
- TI37’s required/modified tools and restrictions remain separately documented. The later list does not resolve the printed flange-number or fixture-number conflicts, establish a supersession, or authorize an operation on an unidentified machine. No hardware operation was performed.
TI dependency: TI 37/1996, p. 3 — Page3 section3.1 tool dependency; later2012 exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2: FC75 (4137), starts below preceding-model rows on113; ends before FC85 heading on114, PDF pages 1, 3, 113, 114
Part numbers (12)
- 0000 893 3706 — Jaw (profile No. 3.1 and 4) - Removing oil seal(s)Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 1115 893 4600 — Press sleeve - Installing oil seal (starter side)Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 1118 893 7200 — Press arbor - Removing/installing ball bearing in clutch housingWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 4112 893 2400 — Installing sleeve - Protecting oil seal (starter side)Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 4112 893 2401 — Press sleeve - Installing oil seal (clutch side)Workshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 4119 893 7200 — Press arbor - Removing/installing ball bearingsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 4133 893 0800 — Puller - Releasing flywheelWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 4400 — Puller - Removing oil sealsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 893 1701 — Sleeve - Removing ball bearingsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 893 1702 — Sleeve - Removing ball bearingsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 893 1708 — SleeveWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 893 2102 — Drilled washerWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
Service note · FC 75
FC 75: 2012 bench, fastener and AV equipment
Torque-wrench ranges are equipment capacities, not tightening specifications.
No exact-model IPL link: Explicit later2012 FC75 workshop-tool list, not an IPL assembly, proof of1996 availability or physical interchange.
- The Special Tools Manual edition2012-01 explicitly lists FC75 (4137), pages113–114. These are dated workshop-tool assignments, not installed machine parts, original1996 inventory, present stock or a repair procedure. Part2 is a model/application index; generic tool names without an application stay unspecified.
- Socket0812 542 2104 is T27x125 for removing/installing spline socket head screws with electric or pneumatic screwdrivers; the source explicitly says to tighten down screws with a TORQUE WRENCH. Screwdriver5910 890 2400 is T27x150 for IS screws, while5910 890 2301 is T20 for separating handle moldings.
- Torque wrenches5910 890 0301 and0302 cover0.5–18Nm;5910 890 0311 and0312 cover6–80Nm. The0302 and0312 entries specify an optical/acoustic signal. These ranges are NOT joint tightening torques and do not resolve the previously retained spark-plug/ignition torque-label conflict.
- Clamping plate5910 890 2100 clamps powerheads to the assembly stand; stand5910 890 3101 holds the powerhead for repairs. Do not silently replace these printed numbers with5910 850 2100 or5910 893 3100 from other sources.
- Tool4126 893 4900 removes the rubber element from the AV sleeve; retain the earlier TI36/TI37 25.4mm drive-tube restriction separately. Hook5910 890 2800 removes the plug from the drive tube; hook5910 893 8800 removes the pickup body. Shared hook terminology does not make these the same tool.
- TI37’s required/modified tools and restrictions remain separately documented. The later list does not resolve the printed flange-number or fixture-number conflicts, establish a supersession, or authorize an operation on an unidentified machine. No hardware operation was performed.
TI dependency: TI 37/1996, p. 3 — Page3 section3.1 tool dependency; later2012 exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2: FC75 (4137), starts below preceding-model rows on113; ends before FC85 heading on114, PDF pages 1, 3, 113, 114
Part numbers (12)
- 0812 542 2104 — Socket, T27x125 - Removing and installing spline socket head screws with electric or pneumatic screwdrivers; tighten down screws with torque wrenchWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 4126 893 4900 — Installing tool - Removing rubber element from AV sleeveWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 0301 — Torque wrench - Screwed joints 0.5 to 18 NmWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 0302 — Torque wrench with optical/acousticsignal - Screwed joints 0.5 to 18 NmWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 0311 — Torque wrench - Screwed joints 6 to 80 NmWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 0312 — Torque wrench with optical/acousticsignal - Screwed joints 6 to 80 NmWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 2100 — Clamping plate - Clamping powerheads to assembly standWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 2301 — Screwdriver, T20 - Separating handle moldingsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 2400 — Screwdriver, T27x150 - For all IS screwsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 2800 — Assembly hook - Removing plug from drive tubeWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 890 3101 — Assembly stand - Holding powerhead for repairsWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
- 5910 893 8800 — Assembly hook - Removing pickup bodyWorkshop tool listed in2012 · FC75 (4137),2012 model index only; retain stated task/side and unspecified applications
Service note · FC 75
FC 75: 2012 FC75 versus earlier-model tool boundaries
Complete dated FC75 inventory reviewed; eight FS72/74/76-only numbers are not automatically FC75 tools.
No exact-model IPL link: Explicit later2012 FC75 workshop-tool list, not an IPL assembly, proof of1996 availability or physical interchange.
- The Special Tools Manual edition2012-01 explicitly lists FC75 (4137), pages113–114. These are dated workshop-tool assignments, not installed machine parts, original1996 inventory, present stock or a repair procedure. Part2 is a model/application index; generic tool names without an application stay unspecified.
- All47 FC75 rows are retained in the four grouped equipment notes. Page113 rows ABOVE the FC75 heading belong to the preceding model; page114 rows BELOW the FC85 heading are excluded. The visually reviewed FS72/74/76 (4133) section starts mid-page88 and ends at the FS75/80/85 heading on89; it has42 entries. No FS75/80/85 or FC85 inventory was imported here.
- The two2012 lists share34 numbers;13 appear only in FC75 and8 only in FS72/74/76. Eight earlier-model-only numbers are0000 890 2300,0000 890 3700,0811 611 8200,0811 641 8380,1110 893 4700,4119 890 4501,4119 893 4600 and5910 850 2100. They remain comparison evidence, NOT added as FC75 equipment or declared obsolete.
- Shared number1108 893 4700 is described as removing/installing the FC75 clutch drum versus removing it for FS72/74/76;4112 893 2401 names CLUTCH side versus FAN side;4119 893 7200 says ball bearings versus crankshaft bearings;4133 893 0800 says releasing versus removing the flywheel.
- Shared5910 890 2800 removes the FC75 drive-tube plug versus detaching FS clutch springs;5910 890 3101 specifies holding the FC75 powerhead versus no application in the FS list;5910 893 1702 removes FC75 ball bearings versus an FS add-on for test flanges1106 850 4201 and1119 850 4201;5910 893 5608 names FC75 clutch and carrier versus FS starter carrier. These are retained model-specific descriptions, not proof of incompatible tools or blanket procedure transfer.
- TI37 in1996 refers all other jobs to FC72 and FS72/74/76 tools. The2012 list is a useful dated cross-check, not the original1996 inventory; the FC72 list is not admitted by this FC75/FS comparison. Exact earlier-tool, owner-safety and1996 service-edition dependencies are now documented local source gaps after bounded disposition; the2012 list itself does not fill them.
- TI37’s required/modified tools and restrictions remain separately documented. The later list does not resolve the printed flange-number or fixture-number conflicts, establish a supersession, or authorize an operation on an unidentified machine. No hardware operation was performed.
TI dependency: TI 37/1996, p. 3 — Page3 section3.1 tool dependency; later2012 exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2 exact FC75 and FS72/74/76 section boundaries; adjacent models excluded, PDF pages 1, 3, 88, 89, 113, 114
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: two depth-wheel arrangements in later manuals
2007/2013: FC75 appears under both FC and FC/FCB angle gearboxes; wheel adjustment location distinguishes the rows.
No exact-model IPL link: Exact-model, edition-specific manual guidance, not an installed-part assembly, serial changeover or verified physical interchange.
- Later CombiTools2007-02 and KombiTools2013-08 evidence, not values printed in TI37/1996 or proof of its original service-manual edition. Both covers explicitly name FC75. Match the actual gearbox and fastener configuration. No hardware operation was performed.
- The2007 assignment table (printed4/PDF5) and2013 table (printed5/PDF6) each list FC75 in BOTH FC and FC/FCB rows. AG means angle gear. Remark1 assigns the FC row to depth-wheel height adjustment on the DEFLECTOR; remark2 assigns FC/FCB to adjustment on the SEGMENT.
- The FC row also names FC44,FC72 and EC70. The FC/FCB row includes other models, but no other-model procedure or part assignment is imported here. Neither table supplies a serial cutoff, changeover date or permission to interchange gearboxes. Both arrangements are retained; no one universal FC75 construction is inferred.
- Both introductions delegate engine-component repair to separate basic-engine/components manuals and require relevant parts lists and later TI changes. The catalog metadata link alone was not sufficient evidence; the actual cover, introduction and assignment rows were checked. Full disassembly chapters and other models are outside this TI dependency disposition, not claimed fully imported.
TI dependency: TI 37/1996, p. 3 · TI 37/1996, p. 4 — TI37 sections4.1–4.2 follow-up; gearbox assignment and manual scope.
Later manual evidence: CombiTools (2007-02), section TI37 sections4.1–4.2 follow-up; gearbox assignment and manual scope, PDF pages 1, 3, 5 · KombiTools (2013-08), section TI37 sections4.1–4.2 follow-up; gearbox assignment and manual scope, PDF pages 1, 4, 6
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: six gearbox and blade torques, 2007 and 2013
2007/2013: Six exact FC75 rows agree across editions; the remark number changes from1 to2.
No exact-model IPL link: Exact-model, edition-specific manual guidance, not an installed-part assembly, serial changeover or verified physical interchange.
- Later CombiTools2007-02 and KombiTools2013-08 evidence, not values printed in TI37/1996 or proof of its original service-manual edition. Both covers explicitly name FC75. Match the actual gearbox and fastener configuration. No hardware operation was performed.
- All six FC75-marked rows in2007 section4.1 (printed5–6/PDF6–7) and2013 section3.1 (printed6–8/PDF7–9) agree numerically. FC75 is remark1 in2007 and remark2 in2013; a remark number is not a permanent model identifier.
- IS-M6x20 screw — gearbox housing/drive tube:9.0 Nm. IS-M6x25 screw — deflector/gearbox housing/clamp/locknut:5.0 Nm. IS-DG5x12 screw — skirt/deflector WITH WASHER:5.5 Nm.
- M10x18 hex-head screw — segment/deflector:15.0 Nm. IS-M11x10 screw — screw plug/gearbox:10.0 Nm. M8x25L screw — blade (2007) / blades (2013):25.0 Nm. Retain the printed L suffix and actual fitted joint; no fastener part number is inferred from thread size.
- Do not transfer the adjacent9.5 Nm FS80/85 screw-plug row, the10.0 Nm FH75/HL45 drive-tube row, FC85 M8x24 blade screw or FC85 deflector rows to FC75. A shared25.0 Nm value does not establish identical hardware. These later blade/gearbox values do not alter the earlier2004 engine/handle note or resolve its printed ignition/spark-plug and fixture-number conflicts.
TI dependency: TI 37/1996, p. 3 · TI 37/1996, p. 4 — TI37 section4.1 follow-up; all six explicitly marked FC75 torque rows.
Later manual evidence: CombiTools (2007-02), section TI37 section4.1 follow-up; all six explicitly marked FC75 torque rows, PDF pages 1, 6, 7 · KombiTools (2013-08), section TI37 section4.1 follow-up; all six explicitly marked FC75 torque rows, PDF pages 1, 7, 8, 9
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: gearbox grease quantities and wording by edition
2007/2013: FC and FC/FCB specify15 g initial fill and at most5 g re-lubrication in both editions.
No exact-model IPL link: Exact-model, edition-specific manual guidance, not an installed-part assembly, serial changeover or verified physical interchange.
- Later CombiTools2007-02 and KombiTools2013-08 evidence, not values printed in TI37/1996 or proof of its original service-manual edition. Both covers explicitly name FC75. Match the actual gearbox and fastener configuration. No hardware operation was performed.
- 2007 section4.3 (printed7/PDF8) and2013 section3.3 (printed9/PDF10) assign FC,FC/FCB grease typeA,15 g for INITIAL FILLING and max.5 g for RE-LUBRICATION. These are separate columns, not a20 g total, recurring interval, or instruction to add15 g at every service.
- TypeA is described as STIHL gear lubricant for brushcutters in2007, and STIHL gear lubricant in2013. Preserve that wording difference; no lubricant part number, formulation equivalence or product supersession is established.
- FCS is a separate row with28 g initial fill; it is not the FC75 row. FS4137 has9 g and is not inherited merely because the FC75 powerhead is Series4137. The HT and KW dashes and lifetime/replacement remarks do not apply to FC/FCB.
TI dependency: TI 37/1996, p. 3 · TI 37/1996, p. 4 — TI37 manual dependency follow-up; FC/FCB grease row and definitions.
Later manual evidence: CombiTools (2007-02), section TI37 manual dependency follow-up; FC/FCB grease row and definitions, PDF pages 1, 5, 8 · KombiTools (2013-08), section TI37 manual dependency follow-up; FC/FCB grease row and definitions, PDF pages 1, 6, 10
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · FC 75
FC 75: later manual fastener conditions
2007/2013: Shared torque-table instructions are edition-specific; adhesive rules are not blanket FC75 assignments.
No exact-model IPL link: Exact-model, edition-specific manual guidance, not an installed-part assembly, serial changeover or verified physical interchange.
- Later CombiTools2007-02 and KombiTools2013-08 evidence, not values printed in TI37/1996 or proof of its original service-manual edition. Both covers explicitly name FC75. Match the actual gearbox and fastener configuration. No hardware operation was performed.
- Both editions require a torque wrench and correct re-engagement of an existing DG/P formed thread: rotate counterclockwise until the screw drops into the thread, then tighten clockwise to the specified torque. This is not permission to form a second thread.
- The2007 table notes specify max.500 rpm for P screws in polymer. The2013 introduction to the torque table explicitly extends max.500 rpm to P AND DG screws in polymer, prohibits impact wrenches for release/tightening, and says not to mix screws with and without binding heads.
- Both discuss heating adhesive-secured screws with a hot-air blower before release, taking care with polymer components. The2013 text additionally requires cleaning female threads with a screw tap by hand then compressed air, and male threads with a brush; it specifies medium-strength Loctite242 or243 for micro-encapsulated screws, and the table-specified Loctite for previously adhesive-coated screws. These are conditional source instructions, not a claim that every FC75 fastener is coated or should receive adhesive.
- High-strength Loctite272 is attached to the HT friction-clutch row (2007 remarks11/13;2013 remarks14/18), NOT the six FC75 torque rows.2013 binding-head, waxed and micro-encapsulated table remarks are not automatically FC75 conditions. TI37 page3 separately requires applicable local rules and the owner-manual safety precautions if the unit is started; the exact owner manual remains unavailable in the bounded local inventory.
TI dependency: TI 37/1996, p. 3 · TI 37/1996, p. 4 — TI37 section4.1 follow-up; torque-table general and conditional instructions.
Later manual evidence: CombiTools (2007-02), section TI37 section4.1 follow-up; torque-table general and conditional instructions, PDF pages 1, 6, 7 · KombiTools (2013-08), section TI37 section4.1 follow-up; torque-table general and conditional instructions, PDF pages 1, 7, 8, 9
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Full text
Page 1 of 4
Text of page 1 — search, copy, screen readers
Technical Information
37.96
New Model FC 75 Edger - Series 4137
This new edger is a further development of the The FC 75 has a displacement of 25.4 cm3
STIHL FC 72. (1.55 cu.in) and a power output of 0.9 kW
(1.2 bhp).
The FC 75’s powerhead is exactly the same as
that installed in model FS 75, 80, 85 brushcutters. The FC 75 can be used for the same range of
applications as the FC 72. Page 2 of 4
Text of page 2 — search, copy, screen readers
Technical Information 37.96 - Page 2
&RQWHQWV
1. Specifications
2. Cutting Blade
3. Service Accessories
4. Repairs
5. Replacement Parts
The differences between models FC 75 and
FC 72 are described in the following chapters.
All engine data can be taken from TI 36.96
=models FS 75, 80, 85=. For further information
see TI 50.92 and TI 34.95 =FC 72=.
1.========Specifications
1.1=======Powerhead
1.1.1=Engine
Engine speeds: see 1.1.2
Model Sound pressure Sound power
level Lpeq level Lweq
to ISO 7917 1) to ISO 108841)
dB (A) dB (A)
FC 75 92 104
1)
Data includes idling and full throttle/no load
with the same duration of exposure
1.1.2=Fuel System
Settings===========================================C1Q-S28A
=DPD
Low speed screw / (standard setting)
Open 1 turn
Idle speed 2800 rpm
High speed screw + (standard setting) QRQH
Cut-off speed (without cutting tool) 9500 to 11500 rpm
Max. output shaft speed (rated) 8500 rpm
1.2=======Gearhead
Gear ratio: 1:1.24
1.3=======Weight
with blade: 5.7 kg (12.6 lb) Page 3 of 4
Text of page 3 — search, copy, screen readers
Technical Information 37.96 - Page 3 2.====Cutting Tool 2.1===Servicing Aid Part Name Part No. Application STIHL balancer 5910 850 2600 Blade 3.====Service Accessories 3.1===Special Servicing Tools 3.1.1=Required for Model FC 75 As for STIHL FS 75, 80, 85, see TI 36.96. 3.1.2=Existing Special Servicing Tools For modified special servicing tools see TI 36.96 (FS 75, 80, 85). Use special servicing tools for models FC 72, FS 72, 74 and 76 for all other servicing and repair jobs. 3.2===Servicing Aids Part Name Part No. Application Carburetor parts kit 4227 007 1060 Zama C1Q-S28A 4.====Repairs If the unit is started up in the course of repairs or maintenance work, always observe all local regulations and the safety precautions outlined in the owner¶s manual. 4.1===Tightening Torques Tightening torques are listed in the service manual for the STIHL FS 75, 80, 85; FC 75; HL 75.
Page 4 of 4
Text of page 4 — search, copy, screen readers
Technical Information 37.96 - Page 4
4.2===Service Note
A service manual is available for the STIHL FC 75.
This service manual contains no chapters on
"Servicing the Carburetor", "Troubleshooting"
or standard repairs. These procedures are
described in separate manuals.
4.3===Repair Times
The repair times for the FC 75 are the same as for
the FC 72. Please refer to the STIHL time tables
for repair work manual (0457 081 0100).
5.====Replacement Parts
A separate parts list is available for the new unit.
Andreas Stihl D1/MTK-na
© 1996 Andreas Stihl Technical Documentation 5872 Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
