Technical Information · issue 40 of 1996
New chainsaw
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · 019 T
019 T: 2012 leakage-test and ignition equipment
Eight exact-model testing and ignition assignments; no invented pressure, gauge dimension or connection.
No exact-model IPL link: Later dated handbook evidence related to TI40 service-tool dependency; not an installed-part assembly or original1996 inventory.
- The Special Tools Manual edition2012-01 explicitly lists 019 T (1132), pages17–18. These are dated workshop-tool assignments, not installed saw parts, original1996 inventory, current stock or a complete service procedure.
- Pump0000 850 1300 checks engine and carburetor for leaks. Sealing plate0000 855 8106, nipples0000 855 9200 and9201, testing kit0000 890 1701, setting gauge1111 890 6400 and flange1128 850 4200 have NO task or dimension printed in this exact019 T entry. The preceding model’s air-gap explanation is not copied onto this setting gauge.
- Hose1110 141 8600 is135mm /5 5/16inch as printed. Listing two nipples does not establish simultaneous use. This index gives no test pressure, duration, acceptable leakage or electrical connection; TI40 test magnitudes and missing exact manual remain separately documented.
- No extension to adjacent models or successor machines, supersession, serial cutoff or physical interchange is inferred. No hardware operation was performed.
TI dependency: TI 40/1996, p. 5 — Page5 section4 tool dependency; later exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2 exact019 T (1132); below heading on17 through before020 (1114) on18, PDF pages 1, 3, 17, 18
Part numbers (8)
- 0000 850 1300 — Pump - Checking engine and carburetor for leaksWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 0000 855 8106 — Sealing plateWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 0000 855 9200 — NippleWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 0000 855 9201 — NippleWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 0000 890 1701 — Testing tool kitWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1110 141 8600 — Hose 135 mm / 5 5/16''Workshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1111 890 6400 — Setting gaugeWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1128 850 4200 — FlangeWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
Service note · 019 T
019 T: 2012 engine, brake and seal tools
Seven assignments preserve brief source descriptions without borrowing adjacent-model applications.
No exact-model IPL link: Later dated handbook evidence related to TI40 service-tool dependency; not an installed-part assembly or original1996 inventory.
- The Special Tools Manual edition2012-01 explicitly lists 019 T (1132), pages17–18. These are dated workshop-tool assignments, not installed saw parts, original1996 inventory, current stock or a complete service procedure.
- Jaw0000 893 3706 is profile No.3.1 and4; locking strip0000 893 5903, installing tool1116 893 4800, press sleeve1123 893 2400 and assembly drift1130 893 4700 have no application printed in the019 T list. Do not borrow seal side, piston-pin or spring-rewinding procedures from the preceding model.
- Assembly tube1117 890 0900 is explicitly for DETACHING/ATTACHING brake spring. Puller4133 893 0800 is for RELEASING FLYWHEEL. Neither line supplies a force, direction, fixture setup or safety-complete procedure.
- No extension to adjacent models or successor machines, supersession, serial cutoff or physical interchange is inferred. No hardware operation was performed.
TI dependency: TI 40/1996, p. 5 — Page5 section4 tool dependency; later exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2 exact019 T (1132); below heading on17 through before020 (1114) on18, PDF pages 1, 3, 17, 18
Part numbers (7)
- 0000 893 3706 — Jaw (profile No. 3.1 and 4)Workshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 0000 893 5903 — Locking stripWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1116 893 4800 — Installing toolWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1117 890 0900 — Assembly tube - Detaching/attaching brake springWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1123 893 2400 — Press sleeveWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1130 893 4700 — Assembly driftWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 4133 893 0800 — Puller - Releasing flywheelWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
Service note · 019 T
019 T: 2012 oil-pump tool components and distinct callouts
Same six order numbers as TI40; a fourth, source-specific numbering map and explicit quantities.
No exact-model IPL link: Later dated handbook evidence related to TI40 service-tool dependency; not an installed-part assembly or original1996 inventory.
- The Special Tools Manual edition2012-01 explicitly lists 019 T (1132), pages17–18. These are dated workshop-tool assignments, not installed saw parts, original1996 inventory, current stock or a complete service procedure.
- Exact-model index lists parent installing tool1132 890 1700 for removing/installing oil pump, press arbor1132 893 7200, screw rod1132 893 8200, thrust piece1132 893 8700 and hexagon head screw M6x60 9008 319 1450. The M5 nut is absent from that index section, but explicitly included in the parent-tool detail on page188; index absence does not mean it is excluded from the kit.
- Part3 page188, drawing901SW378 GM: item1 screw rod1132 893 8200 (1); item2 press arbor1132 893 7200 (1); item3 thrust piece1132 893 8700 (1); item4 hexagon head screw M6x60 9008 319 1450 (1); item5 hexagon nut M5 9210 260 0700 (1). Each parenthesized1 is quantity, not an additional figure callout. Parent tool and three separately illustrated arbor/rod/thrust-piece entries are assigned to series1132.
- This2012 inventory map differs from TI40 inventory (1 thrust piece,2 rod,3 nut,4 screw,5 arbor), and both differ from TI40 removal and installation figures. Preserve all four maps; matching order numbers are corroboration, not a new component revision or supersession. No numerical dimension is inferred from the drawings.
- Page188 also assigns assembly drift1130 893 4700 to1132 among other series, but gives no procedure; pullers1130 893 1400 and1500 above it list only1130/1139 and are excluded from019 T admission.
- No extension to adjacent models or successor machines, supersession, serial cutoff or physical interchange is inferred. No hardware operation was performed.
TI dependency: TI 40/1996, p. 5 — Page5 section4 tool dependency; later exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2 exact019 T (1132); below heading on17 through before020 (1114) on18, PDF pages 1, 3, 17, 18, 188
Part numbers (6)
- 1132 890 1700 — Installing tool - Removing/installing oil pumpWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1132 893 7200 — Press arborWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1132 893 8200 — Screw rodWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 1132 893 8700 — Thrust pieceWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 9008 319 1450 — Hexagon head screw M6x60Workshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 9210 260 0700 — Hexagon nut M5, quantity1Parent-tool detail item5, not in model index · 1132 890 1700 installing tool,2012 Part3 page188
Service note · 019 T
019 T: 2012 bench, tachometer and fastener tools
Fourteen assignments; torque-wrench capacities are not machine tightening torques.
No exact-model IPL link: Later dated handbook evidence related to TI40 service-tool dependency; not an installed-part assembly or original1996 inventory.
- The Special Tools Manual edition2012-01 explicitly lists 019 T (1132), pages17–18. These are dated workshop-tool assignments, not installed saw parts, original1996 inventory, current stock or a complete service procedure.
- Socket0812 542 2104 is T27x125; screwdriver5910 890 2400 is T27x150. Socket5910 893 5608 is13mm for CLUTCH AND FLYWHEEL NUT; stud puller5910 893 0501 is M8. The index gives no joint tightening torque.
- Tachometers5910 850 1008 EDT7 and5910 850 1009 EDT8 supply no model RPM in this list. Clamping plate is5910 850 2100, not5910 890 2100. Assembly stand5910 890 3101 explicitly holds CHAINSAW FOR REPAIRS; puller5910 890 4400 and assembly hook5910 893 8800 have no application printed here.
- Torque wrenches5910 890 0301 and0302 cover0.5–18Nm;5910 890 0311 and0312 cover6–80Nm. The0302 and0312 entries specify optical/acoustic signal. These are equipment ranges, NOT tightening specifications, and do not fill the missing019 T torque-manual gap.
- All34 model-index rows are retained across the four grouped tool notes; the additional M5 nut comes only from page188 parent-tool detail. Page17 ABOVE019 T and page18 BELOW020 (1114) are outside this model assignment; no neighboring tools or task descriptions are imported.
- No extension to adjacent models or successor machines, supersession, serial cutoff or physical interchange is inferred. No hardware operation was performed.
TI dependency: TI 40/1996, p. 5 — Page5 section4 tool dependency; later exact-model follow-up.
Later manual evidence: Special Tools Manual (2012-01), section Part2 exact019 T (1132); below heading on17 through before020 (1114) on18, PDF pages 1, 3, 17, 18
Part numbers (14)
- 0812 542 2104 — Socket, T27x125Workshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 850 1008 — Tachometer EDT 7Workshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 850 1009 — Tachometer EDT 8Workshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 850 2100 — Clamping plateWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 890 0301 — Torque wrench - Screwed joints 0.5 to 18 NmWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 890 0302 — Torque wrench with optical/acousticsignal - Screwed joints 0.5 to 18 NmWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 890 0311 — Torque wrench - Screwed joints 6 to 80 NmWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 890 0312 — Torque wrench with optical/acousticsignal - Screwed joints 6 to 80 NmWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 890 2400 — Screwdriver, T27x150Workshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 890 3101 — Assembly stand - Holding chainsaw for repairsWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 890 4400 — PullerWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 893 0501 — Stud puller, M8Workshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 893 5608 — Socket, 13 mm - Clutch and flywheel nutWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
- 5910 893 8800 — Assembly hookWorkshop tool listed in2012 · 019 T (1132),2012 model index; unspecified applications remain unspecified
Service note · 019 T
019 T: later timetable model-name discrepancy
The2012 source prints MS019T / MS191T, not an unqualified019 T column;1996 values remain unchanged.
No exact-model IPL link: Later timetable candidate has unresolved printed MS019T / MS191T label; not an exact019 T labor assignment.
- Later repair-timetable dependency review for TI40 section5.4; no corrected model identity or exact019 T applicability is inferred.
- The2012-01 Repair Timetables Manual0457 081 0100, printed page12 (PDF13), labels the first column MS019T / MS191T. This is a literal source label, not an OCR repair or verified alias for019 T. No exact019 T column is established by this candidate. Do not silently drop MS, rename it MS190T, or assign the shared column to1996 019 T.
- The complete candidate column and all24 repair rows were inspected. Units are MINUTES, unlike TI40’s decimal hours; code meanings and numbering also differ. For example the candidate code1 is110minutes, while TI40 code1 is1.8hours; the candidate’s bearing-only code3 is not TI40 code2 crankshaft AND/OR bearings. These are source comparisons only, not revised019 T allowances or like-for-like conversion claims.
- The later manual’s dealer instructions (printed2/PDF3) concern historical warranty labor reimbursement, include diagnostic/cleaning/repair/test-running time where applicable, and generally use one highest applicable labor code rather than adding codes. Their administrative claim/return rules are outside model-fitment scope and not current owner advice. No new019 T labor table is imported from this ambiguously labeled candidate.
- TI40’s original parent repair-times table has no printed edition/order number; it was not identified in the bounded local inventory. The2012 candidate does not recover that original. This named source gap and the unresolved MS019T label remain explicit; all20 TI40 repair-time rows and diagnostic-time rule remain unchanged.
- No extension to adjacent models or successor machines, supersession, serial cutoff or physical interchange is inferred. No hardware operation was performed.
TI dependency: TI 40/1996, p. 7 — Page7 section5.4 original repair-table dependency;2012 candidate boundary.
Later manual evidence: Repair Timetables Manual (2012-01), section Printed12 candidate MS019T/MS191T column; printed2 dealer-time context; no exact019 T assignment, PDF pages 1, 3, 13
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Full text
Page 1 of 7
Text of page 1 — search, copy, screen readers

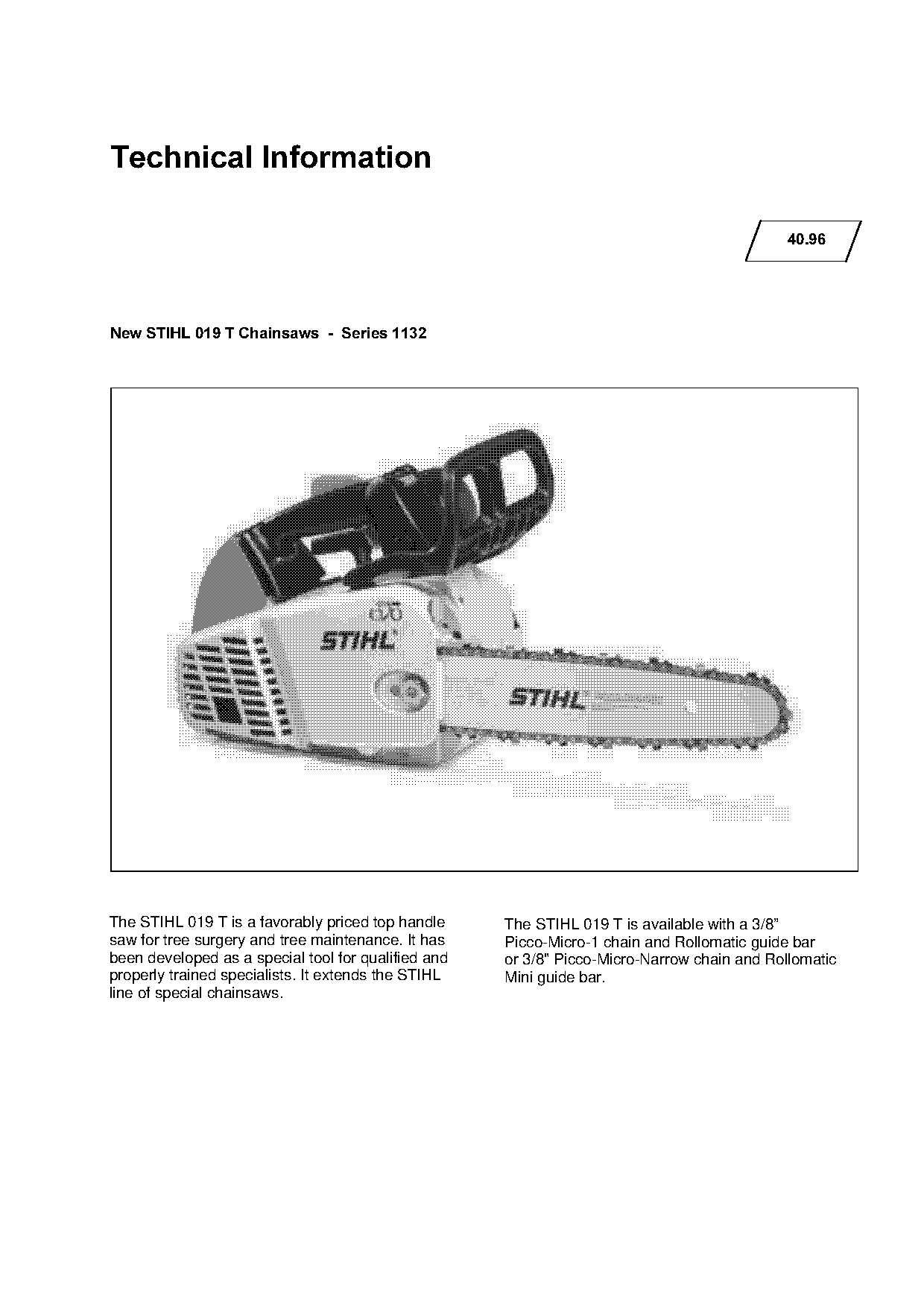

Technical Information
40.96
New STIHL 019 T Chainsaws - Series 1132
The STIHL 019 T is a favorably priced top handle The STIHL 019 T is available with a 3/8”
saw for tree surgery and tree maintenance. It has Picco-Micro-1 chain and Rollomatic guide bar
been developed as a special tool for qualified and or 3/8" Picco-Micro-Narrow chain and Rollomatic
properly trained specialists. It extends the STIHL Mini guide bar.
line of special chainsaws. Page 2 of 7
Text of page 2 — search, copy, screen readers

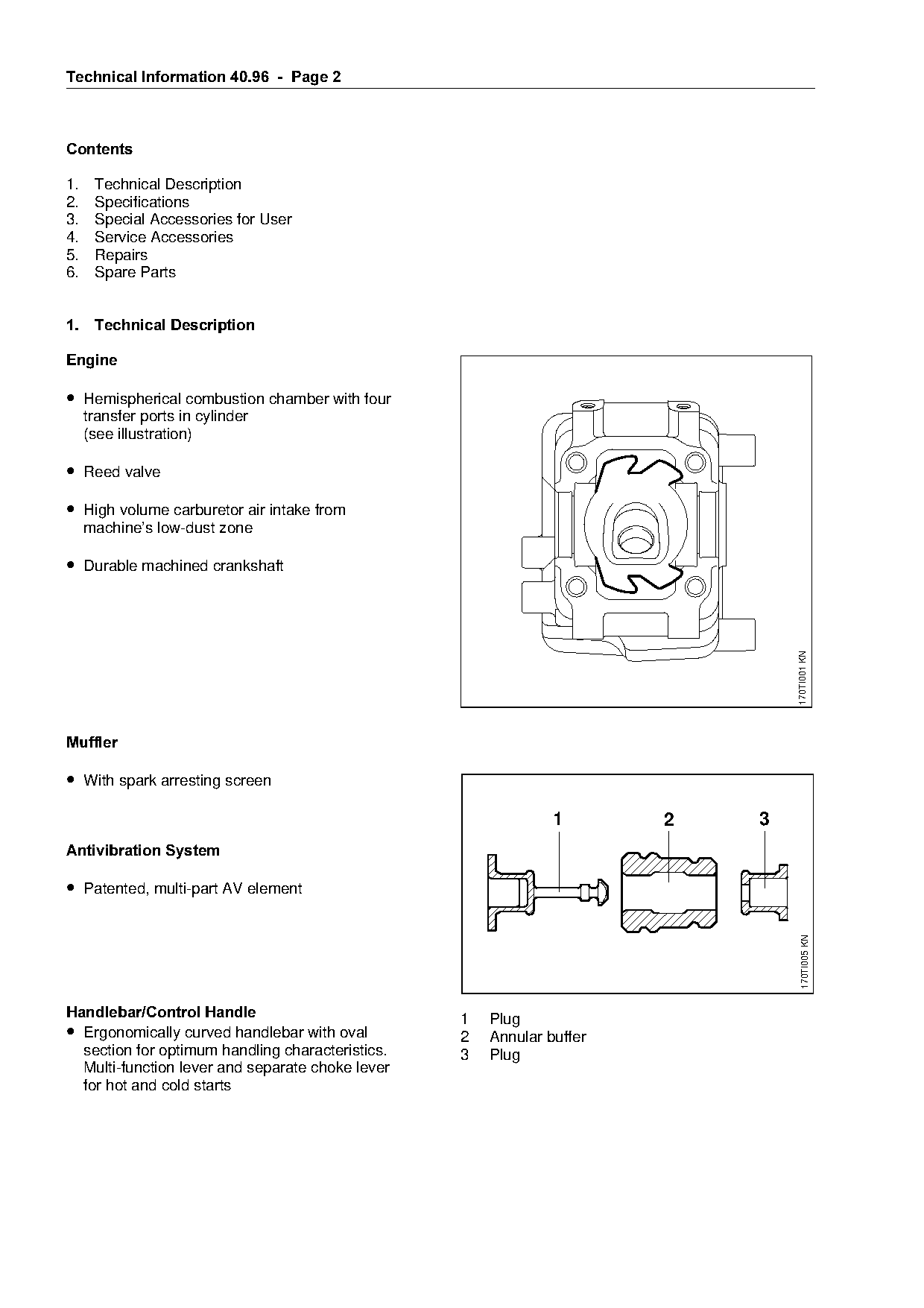

Technical Information 40.96 - Page 2
&RQWHQWV
1. Technical Description
2. Specifications
3. Special Accessories for User
4. Service Accessories
5. Repairs
6. Spare Parts
1.====Technical Description
(QJLQH
• Hemispherical combustion chamber with four
transfer ports in cylinder
(see illustration)
• Reed valve
• High volume carburetor air intake from
machine’s low-dust zone
• Durable machined crankshaft
170TI001 KN
Muffler
• With spark arresting screen
1 2 3
Antivibration System
• Patented, multi-part AV element
170TI005 KN
Handlebar/Control Handle==============================N===mlug
• Ergonomically curved handlebar with oval 2 Annular buffer
section for optimum handling characteristics. 3 Plug
Multi-function lever and separate choke lever
for hot and cold starts Page 3 of 7
Text of page 3 — search, copy, screen readers

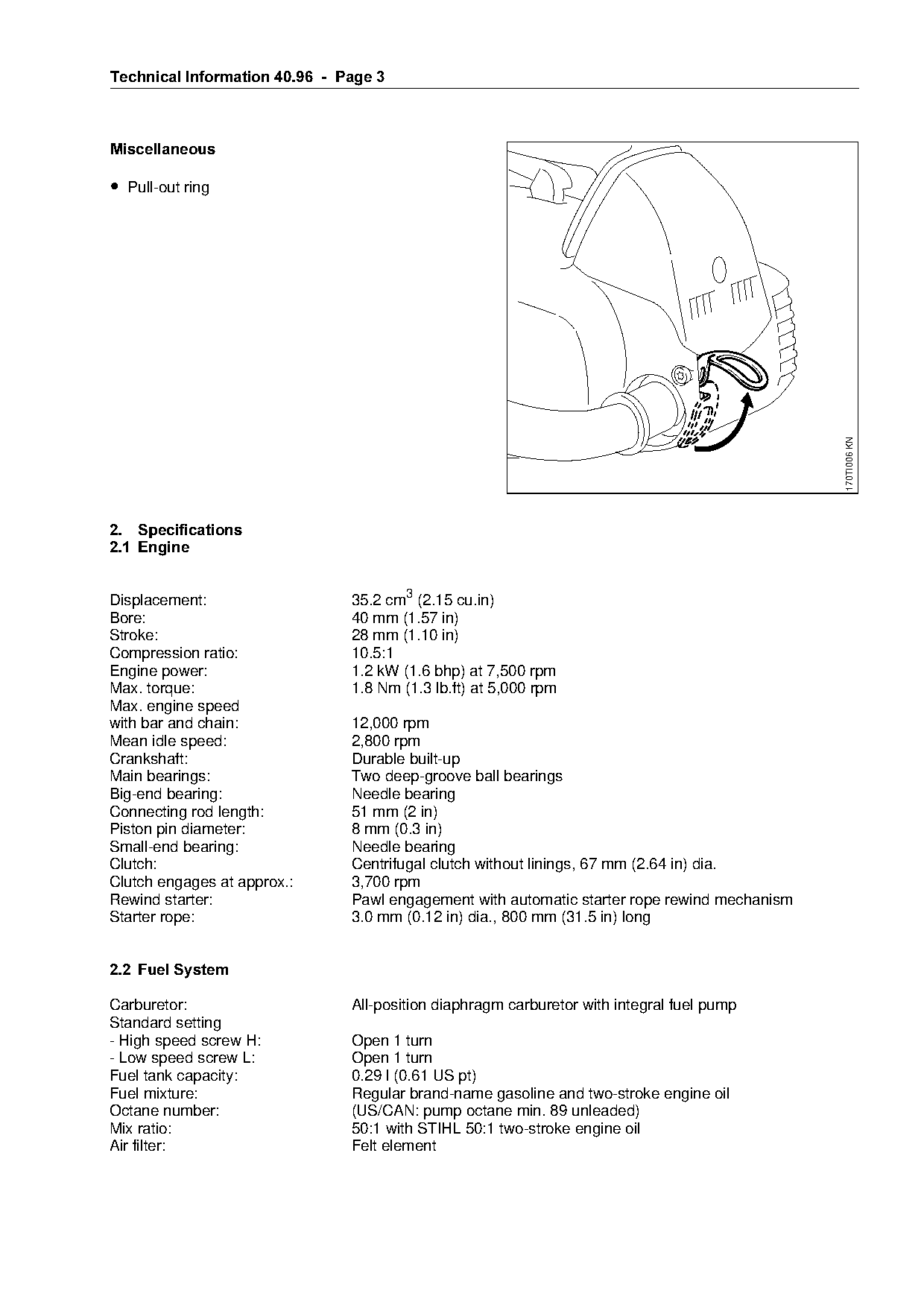

Technical Information 40.96 - Page 3
0LVFHOODQHRXV
• Pull-out ring
170TI006 KN
2.=Specifications
2.1=Engine===============================================fo
35.2 cm3 (2.15 cu.in)
Displacement:
Bore: 40 mm (1.57 in)
Stroke: 28 mm (1.10 in)
Compression ratio: 10.5:1
Engine power: 1.2 kW (1.6 bhp) at 7,500 rpm
Max. torque: 1.8 Nm (1.3 lb.ft) at 5,000 rpm
Max. engine speed
with bar and chain: 12,000 rpm
Mean idle speed: 2,800 rpm
Crankshaft: Durable built-up
Main bearings: Two deep-groove ball bearings
Big-end bearing: Needle bearing
Connecting rod length: 51 mm (2 in)
Piston pin diameter: 8 mm (0.3 in)
Small-end bearing: Needle bearing
Clutch: Centrifugal clutch without linings, 67 mm (2.64 in) dia.
Clutch engages at approx.: 3,700 rpm
Rewind starter: Pawl engagement with automatic starter rope rewind mechanism
Starter rope: 3.0 mm (0.12 in) dia., 800 mm (31.5 in) long
2.2=Fuel System
Carburetor: All-position diaphragm carburetor with integral fuel pump
Standard setting
- High speed screw H: Open 1 turn
- Low speed screw L: Open 1 turn
Fuel tank capacity: 0.29 l (0.61 US pt)
Fuel mixture: Regular brand-name gasoline and two-stroke engine oil
Octane number: (US/CAN: pump octane min. 89 unleaded)
Mix ratioW=======================RMWN with STIHL 50:1 two-stroke engine oil
Air filter: Felt element Page 4 of 7
Text of page 4 — search, copy, screen readers

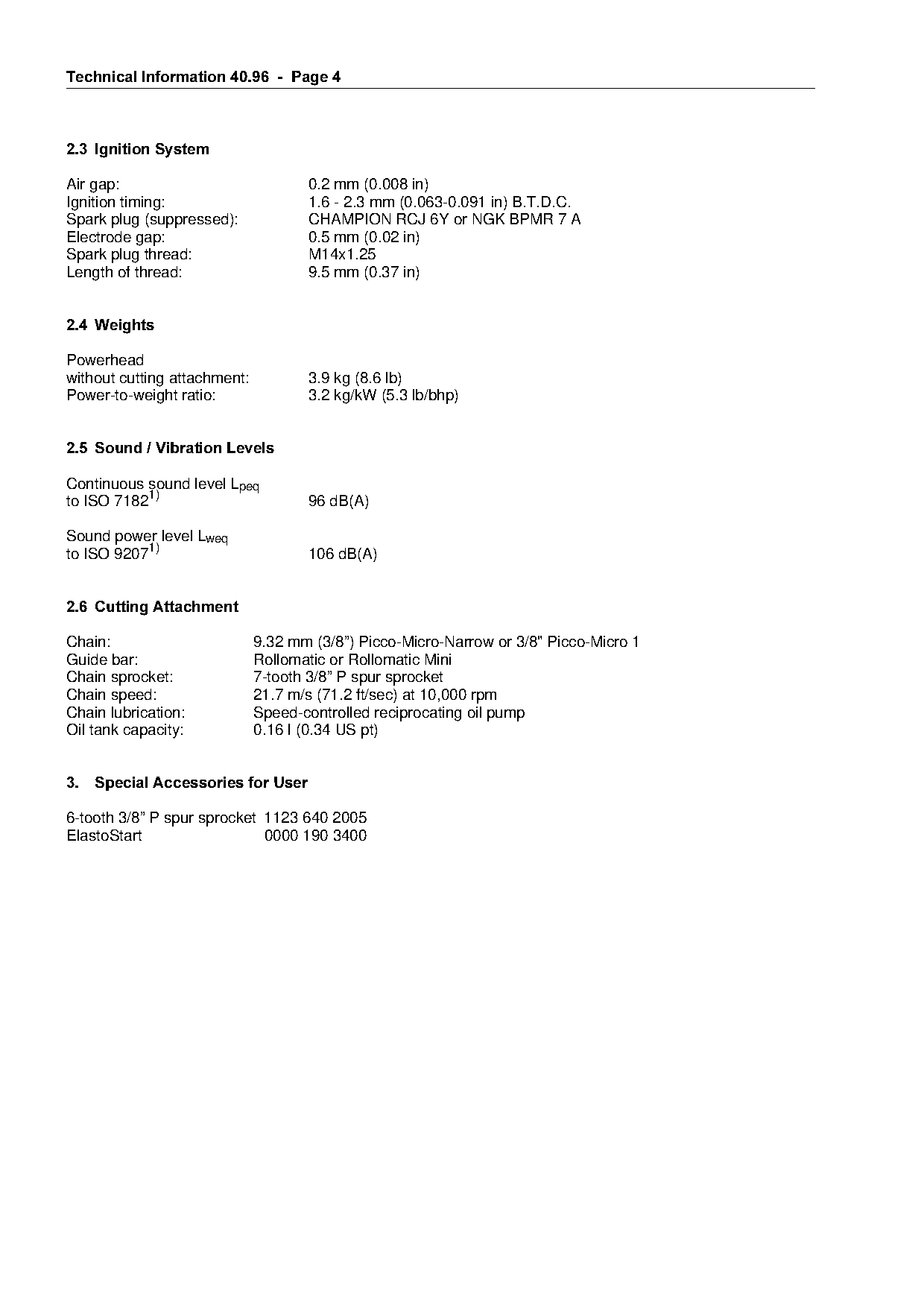

Technical Information 40.96 - Page 4 2.3=Ignition System Air gap: 0.2 mm (0.008 in) Ignition timing: 1.6 - 2.3 mm (0.063-0.091 in) B.T.D.C. Spark plug (suppressed): CHAMPION RCJ 6Y or NGK BPMR 7 A Electrode gap: 0.5 mm (0.02 in) Spark plug thread: M14x1.25 Length of thread: 9.5 mm (0.37 in) 2.4=Weights Powerhead without cutting attachment: 3.9 kg (8.6 lb) Power-to-weight ratio: 3.2 kg/kW (5.3 lb/bhp) 2.5=Sound / Vibration Levels Continuous sound levelLpeq to ISO 71821) 96 dB(A) Sound power level Lweq to ISO 92071) 106 dB(A) fo 2.6=Cutting Attachment Chain: 9.32 mm (3/8”) Picco-Micro-Narrow or 3/8" Picco-Micro 1 Guide bar: Rollomatic or Rollomatic Mini Chain sprocket: 7-tooth 3/8” P spur sprocket Chain speed: 21.7 m/s (71.2 ft/sec) at 10,000 rpm Chain lubrication: Speed-controlled reciprocating oil pump Oil tank capacity: 0.16 l (0.34 US pt) 3.===Special Accessories for User 6-tooth 3/8” P spur sprocket 1123 640 2005 ElastoStart 0000 190 3400
Page 5 of 7
Text of page 5 — search, copy, screen readers

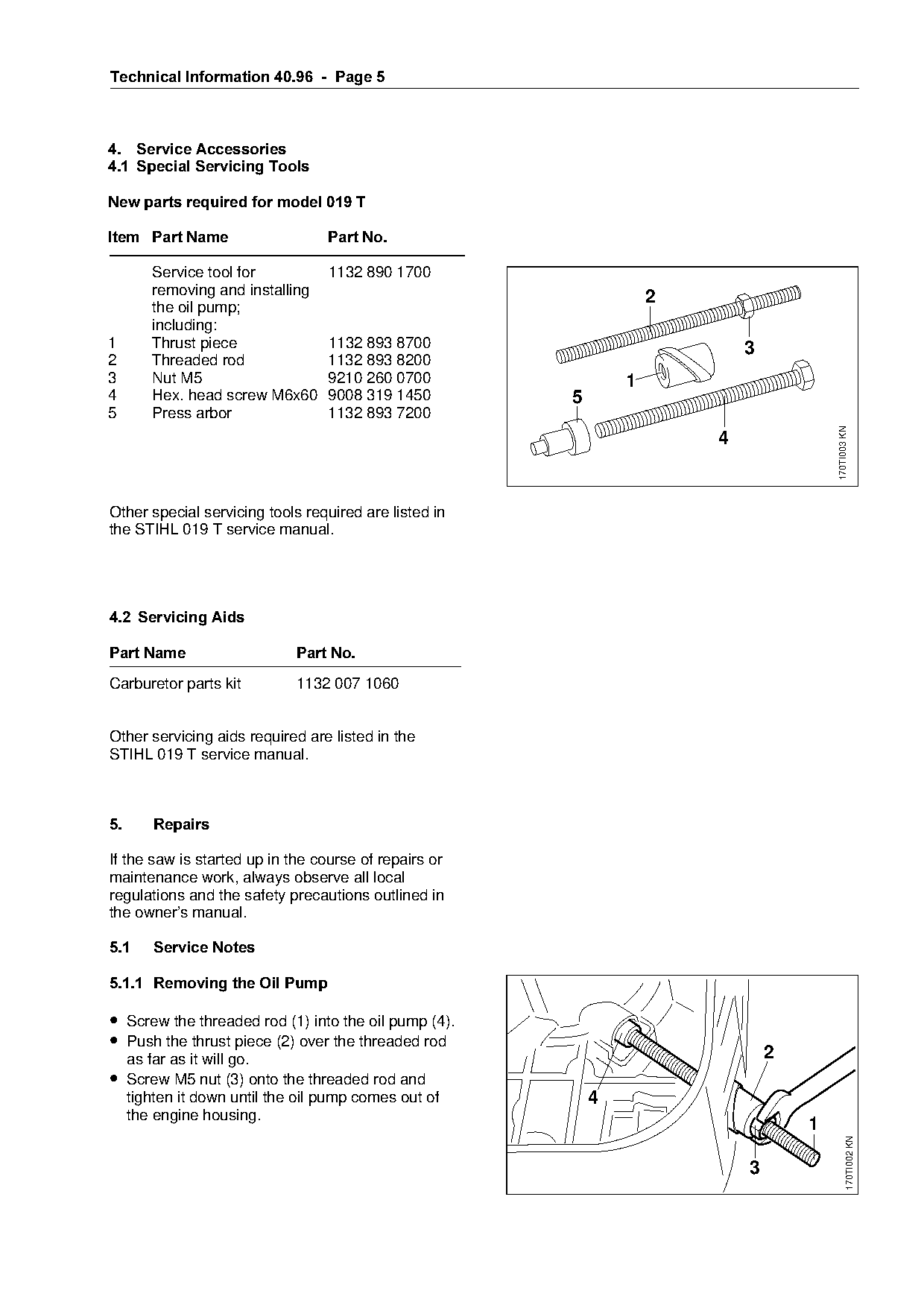

Technical Information 40.96 - Page 5
4.=Service Accessories
4.1=Special Servicing Tools
New parts required for model 019 T
Item=Part Name===================Part No.
Service tool for 1132 890 1700
removing and installing
2
the oil pump;
including:
1 Thrust piece 1132 893 8700 3
2 Threaded rod 1132 893 8200
3 Nut M5 9210 260 0700 1
4 Hex. head screw M6x60 9008 319 1450 5
5 Press arbor 1132 893 7200
170TI003 KN
4
Other special servicing tools required are listed in
the STIHL 019 T service manual.
4.2=Servicing Aids
Part Name====================Part No.
Carburetor parts kit 1132 007 1060
Other servicing aids required are listed in the
STIHL 019 T service manual.
5.====Repairs
If the saw is started up in the course of repairs or
maintenance work, always observe all local
regulations and the safety precautions outlined in
the owner’s manual.
5.1===Service Notes
5.1.1=Removing the Oil Pump
• Screw the threaded rod (1) into the oil pump (4).
• Push the thrust piece (2) over the threaded rod
as far as it will go. 2
• Screw M5 nut (3) onto the threaded rod and
tighten it down until the oil pump comes out of 4
the engine housing.
1
170TI002 KN
3 Page 6 of 7
Text of page 6 — search, copy, screen readers

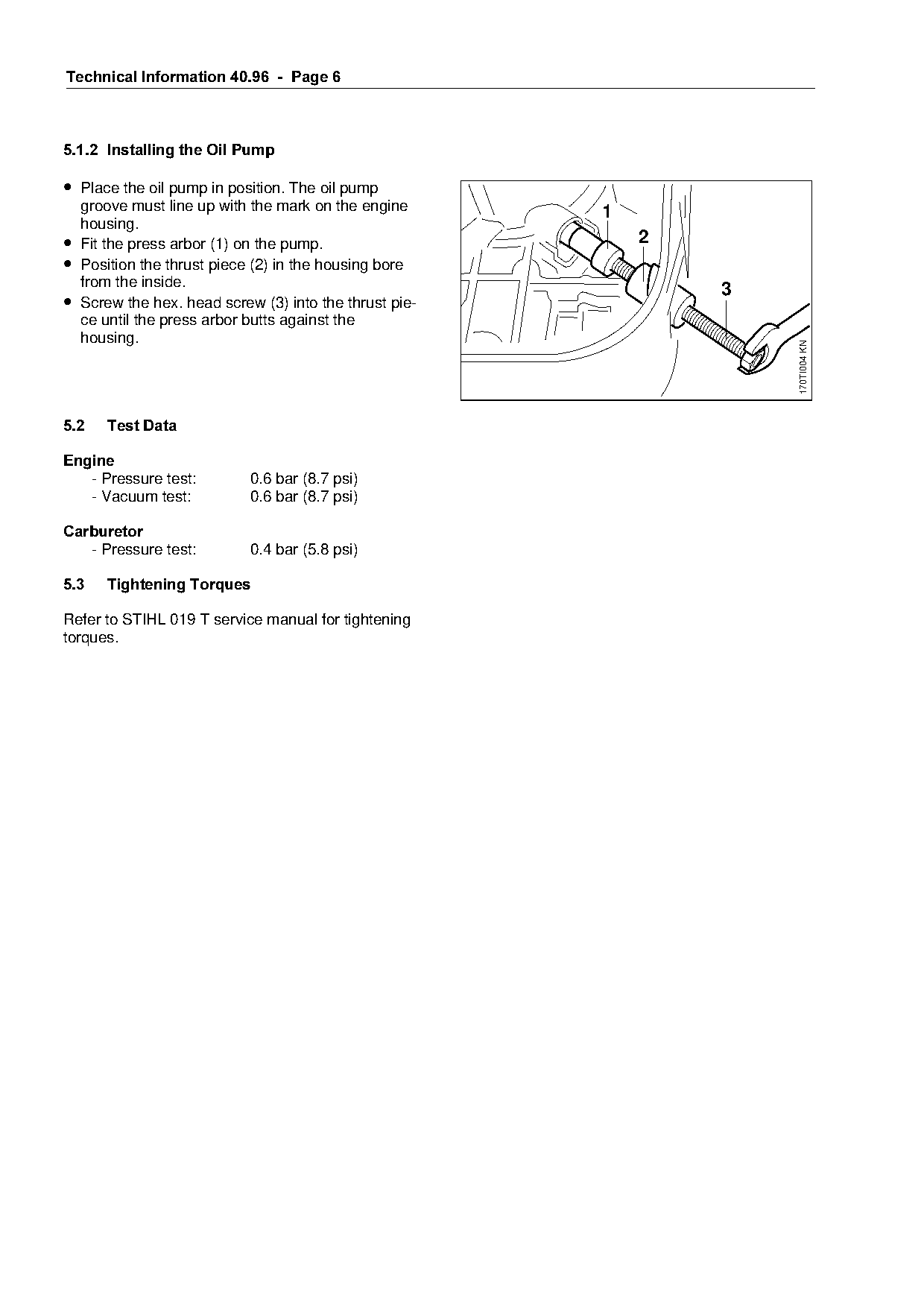

Technical Information 40.96 - Page 6
5.1.2=Installing the Oil Pump
• Place the oil pump in position. The oil pump
groove must line up with the mark on the engine 1
housing.
• Fit the press arbor (1) on the pump. 2
• Position the thrust piece (2) in the housing bore
from the inside.
3
• Screw the hex. head screw (3) into the thrust pie-
ce until the press arbor butts against the
housing.
170TI004 KN
5.2===Test Data
(QJLQH
- Pressure test: 0.6 bar (8.7 psi)
- Vacuum test: 0.6 bar (8.7 psi)
&DUEXUHWRU
- Pressure test: 0.4 bar (5.8 psi) fo
5.3===Tightening Torques
Refer to STIHL 019 T service manual for tightening
torques. Page 7 of 7
Text of page 7 — search, copy, screen readers

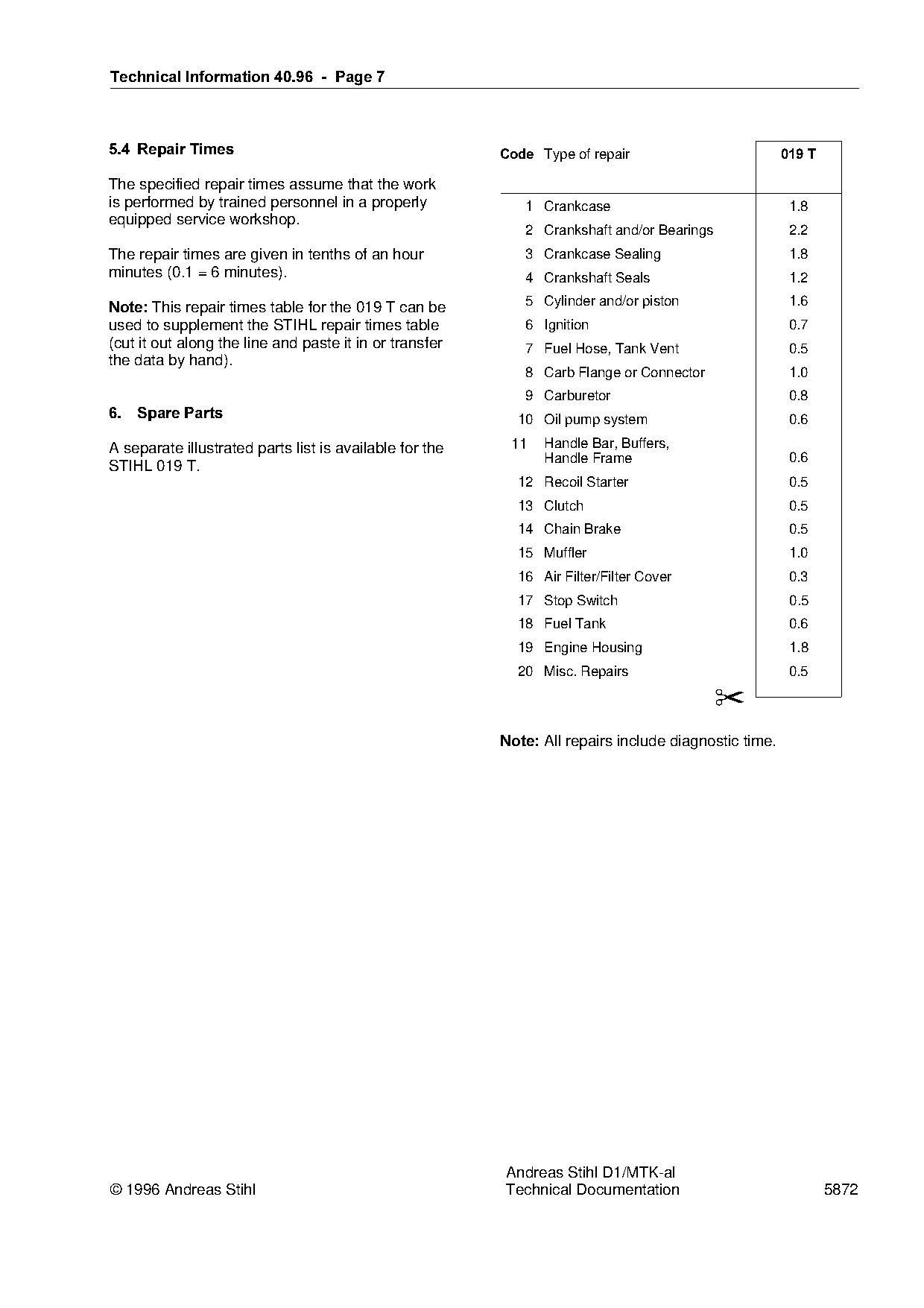

Technical Information 40.96 - Page 7
5.4=Repair Times=========================================Code=qype of repair 019 T
The specified repair times assume that the work
is performed by trained personnel in a properly 1 Crankcase 1.8
equipped service workshop.
2 Crankshaft and/or Bearings 2.2
The repair times are given in tenths of an hour 3 Crankcase Sealing 1.8
minutes (0.1 = 6 minutes). 4 Crankshaft Seals 1.2
Note:=qhis repair times table for the 019 T can be 5 Cylinder and/or piston 1.6
used to supplement the STIHL repair times table 6 Ignition 0.7
(cut it out along the line and paste it in or transfer 7 Fuel Hose, Tank Vent 0.5
the data by hand).
8 Carb Flange or Connector 1.0
9 Carburetor 0.8
6.===Spare Parts===========================================NM=lil pump system 0.6
A separate illustrated parts list is available for the 11 Handle Bar, Buffers,
Handle Frame 0.6
STIHL 019 T.
12 Recoil Starter 0.5
13 Clutch 0.5
14 Chain Brake 0.5
15 Muffler
16 Air Filter/Filter Cover
1.0
0.3
17 Stop Switch 0.5
18 Fuel Tank 0.6
19 Engine Housing 1.8
20 Misc. Repairs 0.5
✂
Note:=^ll repairs include diagnostic time.
Andreas Stihl D1/MTK-al
© 1996 Andreas Stihl Technical Documentation 5872 Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
