Technical Information · issue 41 of 1996

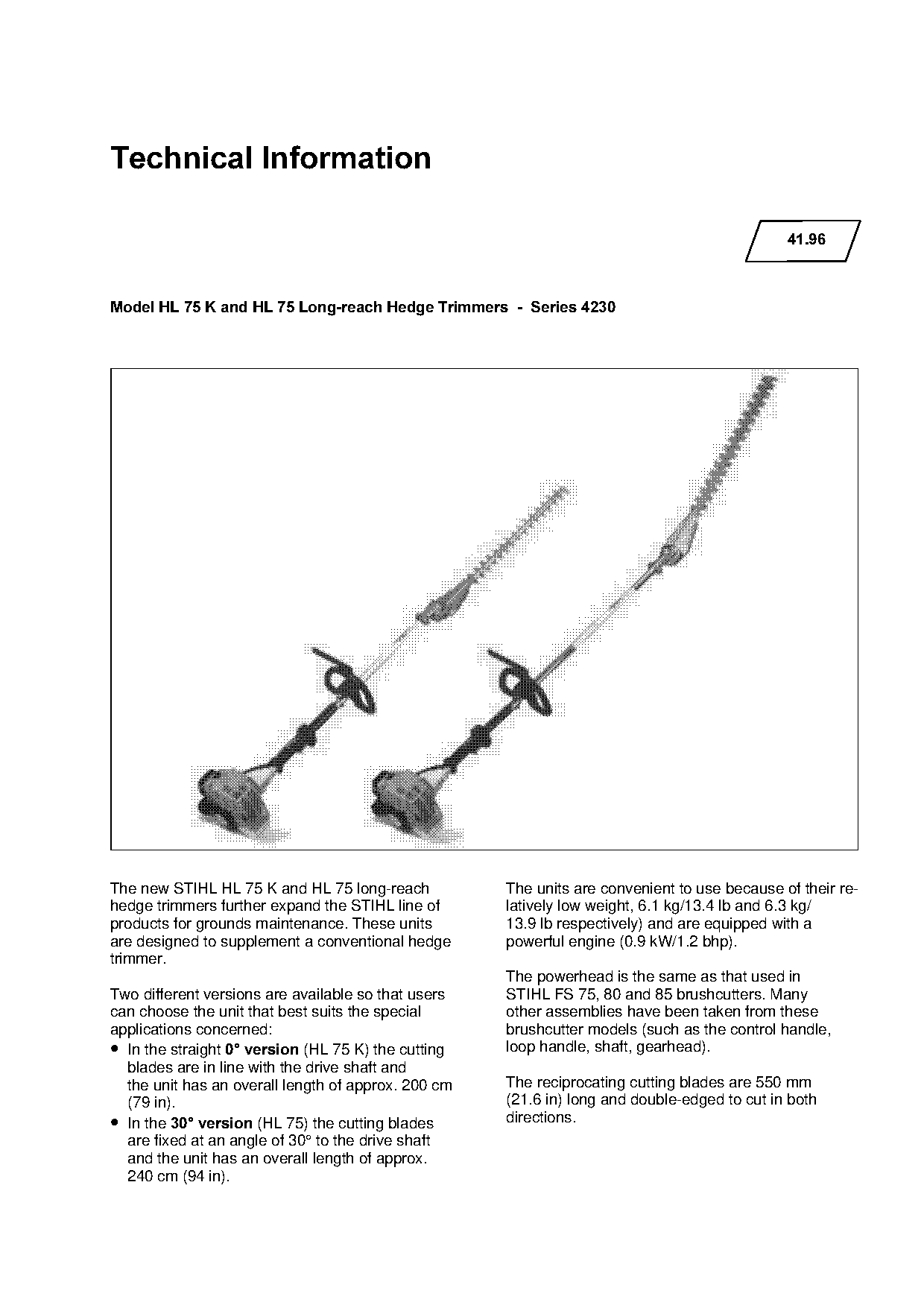

New long-reach hedge trimmers

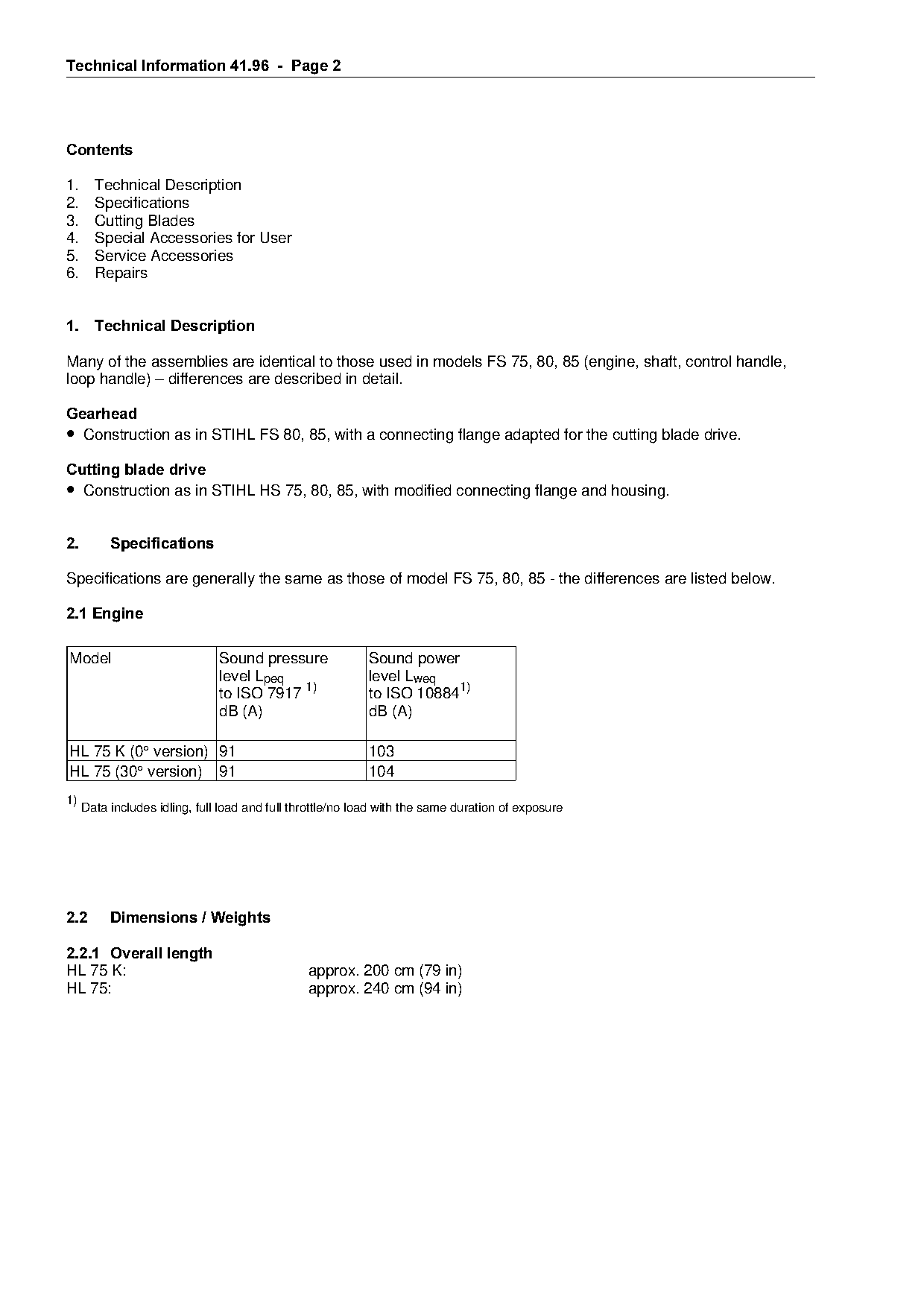

Model Sound pressure Sound power
Historical fitment & changes
Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.
Service note · HL 75 K / HL 75

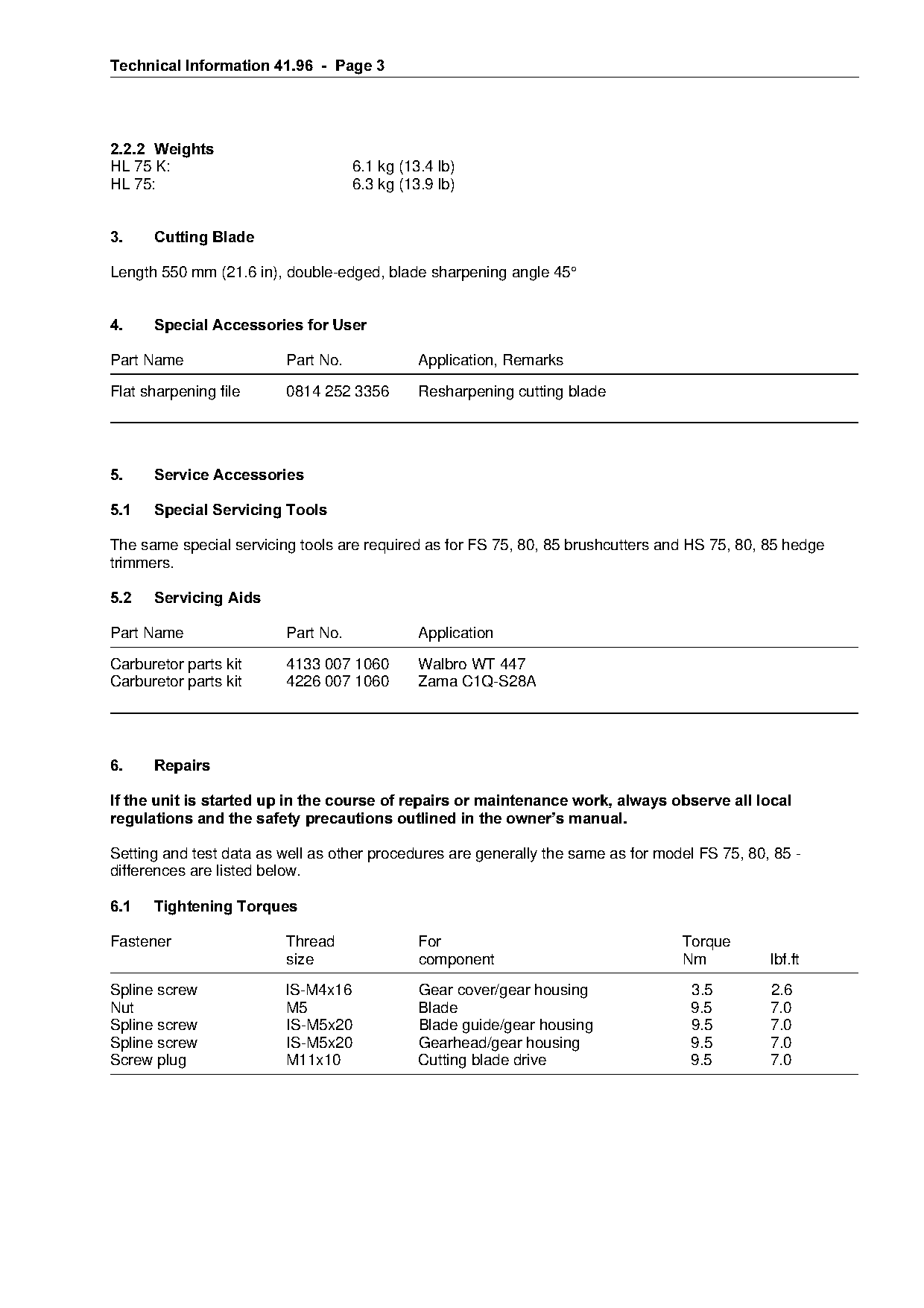

HL 75 K / HL 75: historical carburetor parts kits
4133 007 1060 for Walbro WT447;4226 007 1060 for Zama C1Q-S28A.
No exact-model IPL link: No exact historical assembly binding established for this specific 1996 assertion. Later exact-model sheets do not recover original carburetor configurations or labor/manual editions.
- Section5.2 explicitly pairs carburetor parts kit4133 007 1060 with WALBRO WT447, and kit4226 007 1060 with ZAMA C1Q-S28A. These are servicing kits, not complete carburetor numbers. The table gives no kit contents or model-specific maker split between HL75 and HL75K.
- No serial introduction, old-to-new supersession or cross-maker interchange is printed. Retained exact-model catalog carburetor sheets name later C1Q-S157A/S69A, S63A, S56A, S45 and S28E/S41C; they are NOT the printed WT447 or C1Q-S28A. A shared C1Q prefix is insufficient to attach these kits to those later sheets.
- Historical TI41/1996 applies to the introduced HL 75 K straight 0° and HL 75 fixed 30° versions, printed series4230. Exact-model navigation is under later catalog series4137; this is not proof that series identifiers or later adjustable versions are equivalent. No serial cutoff or current availability is established. No hardware operation was performed.
Source: TI 41/1996, p. 3 — HL 75 K / HL 75: historical carburetor parts kits.
Part numbers (2)
- 4133 007 1060 — Carburetor parts kit for Walbro WT447Historical servicing aid · TI41/1996 Walbro WT447 carburetor; no later-suffix extension
- 4226 007 1060 — Carburetor parts kit for Zama C1Q-S28AHistorical servicing aid · TI41/1996 Zama C1Q-S28A carburetor; no later-suffix extension
Service note · HL 75

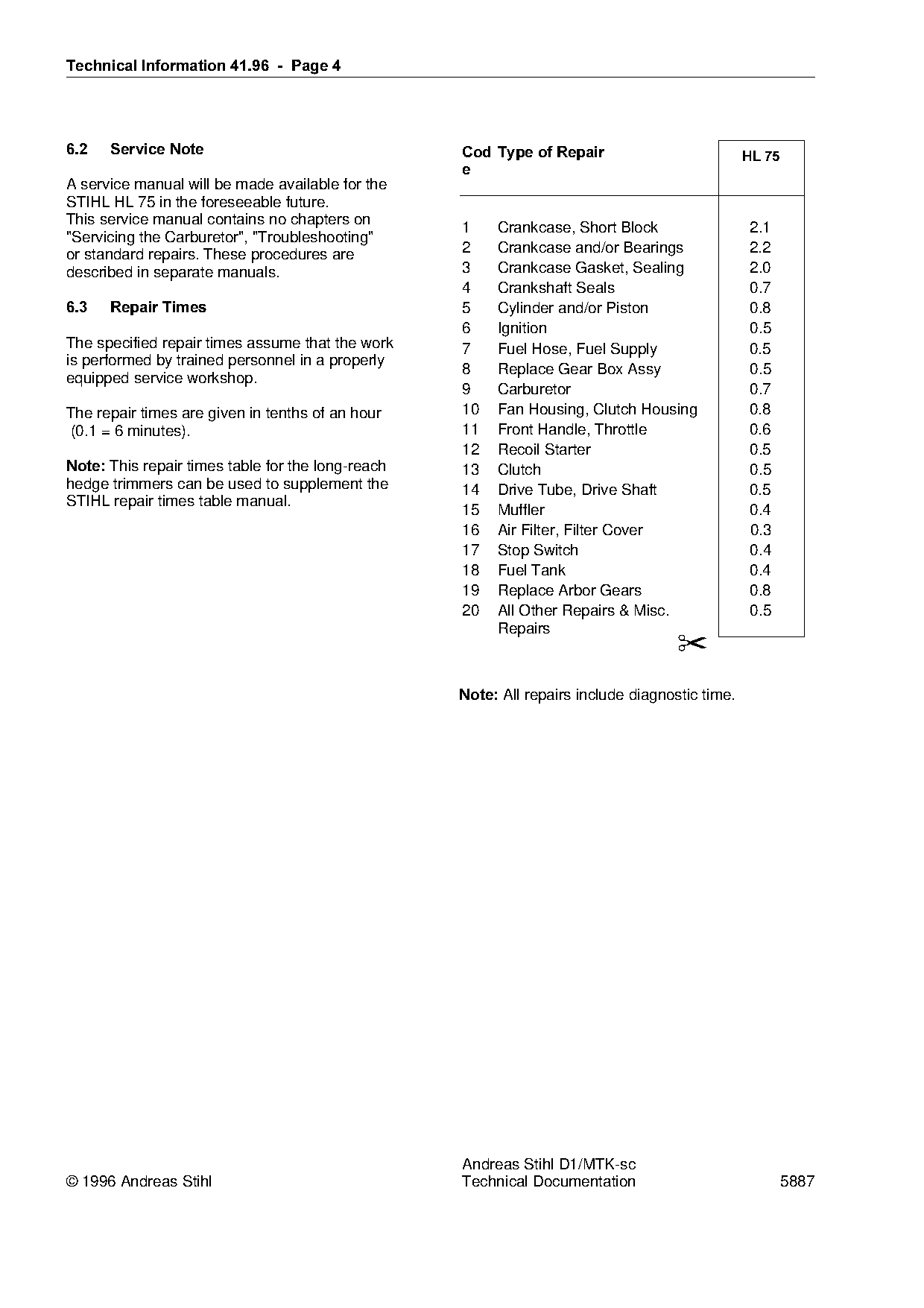

HL 75: twenty historical repair-time allowances

Printed HL75 column; tenths of an hour, including diagnostic time.
No exact-model IPL link: No exact historical assembly binding established for this specific 1996 assertion. Later exact-model sheets do not recover original carburetor configurations or labor/manual editions.
- Section6.3 assumes TRAINED personnel in a PROPERLY EQUIPPED service workshop. Times are HOURS expressed in tenths:0.1hour=6minutes. ALL repairs include diagnostic time. Values are historical labor allowances, not elapsed-time guarantees for an owner or present warranty policy.
- Codes1–10: 1 Crankcase, Short Block: 2.1h; 2 Crankcase and/or Bearings: 2.2h; 3 Crankcase Gasket, Sealing: 2.0h; 4 Crankshaft Seals: 0.7h; 5 Cylinder and/or Piston: 0.8h; 6 Ignition: 0.5h; 7 Fuel Hose, Fuel Supply: 0.5h; 8 Replace Gear Box Assy: 0.5h; 9 Carburetor: 0.7h; 10 Fan Housing, Clutch Housing: 0.8h.
- Codes11–20: 11 Front Handle, Throttle: 0.6h; 12 Recoil Starter: 0.5h; 13 Clutch: 0.5h; 14 Drive Tube, Drive Shaft: 0.5h; 15 Muffler: 0.4h; 16 Air Filter, Filter Cover: 0.3h; 17 Stop Switch: 0.4h; 18 Fuel Tank: 0.4h; 19 Replace Arbor Gears: 0.8h; 20 All Other Repairs & Misc. Repairs: 0.5h.
- The note says the table for the long-reach hedge trimmers can supplement the STIHL repair-times table manual; a scissors symbol marks the cut-out convention. The only printed model COLUMN is HL75, not a separate HL75K column. Preserve the broader narrative and narrower heading without inventing an independent HL75K allowance table. The later 2012 parent-timetable preamble and exact shared model column are now separately reviewed; the original 1996 parent timetable was not identified in the bounded retained inventory.
- Historical TI41/1996 applies to the introduced HL 75 K straight 0° and HL 75 fixed 30° versions, printed series4230. Exact-model navigation is under later catalog series4137; this is not proof that series identifiers or later adjustable versions are equivalent. No serial cutoff or current availability is established. No hardware operation was performed.
Source: TI 41/1996, p. 4 — HL 75: twenty historical repair-time allowances.
No additional parts-table entry added.
Service note · HL 75 K / HL 75
HL 75 K / HL 75: service tools and manual dependencies
Later references reviewed; exact 1996 manuals and operator instructions remain documented source gaps.
No exact-model IPL link: No exact historical assembly binding established for this specific 1996 assertion. Later exact-model sheets do not recover original carburetor configurations or labor/manual editions.
- Section5.1 says the SAME special servicing tools are required as for FS75,80,85 brushcutters AND HS75,80,85 hedge trimmers. It prints no tool inventory or ordering numbers. Later 2004 shared-tool tables and 2012 exact-model tool index/fixture details are reviewed in separate notes; the original 1996 inventory is not established. This is not permission to use any tool sold for those families.
- Section6 requires all LOCAL REGULATIONS and the OWNER MANUAL safety precautions whenever a unit is started during repair or maintenance. The exact HL75/HL75K operator manual was not identified in the retained inventory. The 2007 CombiTools and 2013 KombiTools service manuals are not operator instructions; no energized test or operating procedure is authorized here.
- Setting/test data and other procedures are GENERALLY the same as FS75,80,85, with differences below. No pressure/vacuum limits, carburetor adjustments or acceptance criteria are supplied by that cross-reference alone.
- Section6.2 says an HL75 service manual WILL BE MADE AVAILABLE in the foreseeable future. That is a dated 1996 publication announcement, not present unavailability. The described manual EXCLUDES Servicing the Carburetor, Troubleshooting and standard repairs: these are in SEPARATE MANUALS. Relevant later 2004 service sections and 2007/2013 attachment sections have been reviewed separately. Their edition, configuration and printed conflicts remain visible; no original 1996 manual or complete repair procedure is reconstructed.
- Bounded source reconciliation checked 766 resource PDFs, 41 owner-collection PDFs and retained document metadata/product links. No exact original 1996 parent manuals, separate operator manual or original repair timetable were identified. The 2012 timetable is a separately reviewed later comparison. This is not a whole-archive text search or proof that the sources do not exist elsewhere; unrelated FR/HLR/HTR instructions are not transferred to HL75.
- Historical TI41/1996 applies to the introduced HL 75 K straight 0° and HL 75 fixed 30° versions, printed series4230. Exact-model navigation is under later catalog series4137; this is not proof that series identifiers or later adjustable versions are equivalent. No serial cutoff or current availability is established. No hardware operation was performed.
Source: TI 41/1996, p. 3 · TI 41/1996, p. 4 — HL 75 K / HL 75: service tools and manual dependencies.
No additional parts-table entry added.
Service note · HL 75 / HL 75 K
HL 75 / HL 75 K: five exact-model tool-index entries
2012-01 index names series4230; neighboring-model tools are excluded.
No exact-model IPL link: Later reference edition only; no exact1996 assembly or configuration binding established.
- Special Tools Manual2012-01 printed/PDF page123 has an exact heading HL75, HL75K (4230) and FIVE rows: pliers A10 0811 611 8200 for removing/installing EXTERNAL circlips; tachometers EDT7 5910 850 1008 and EDT8 5910 850 1009; torque wrenches5910 890 0301 for0.5–18Nm and5910 890 0311 for6–80Nm.
- The torque ranges are equipment capacities, NOT machine tightening specifications. No tachometer adjustment target, calibration instruction, circlip size or complete workshop inventory is supplied here.
- Rows ABOVE the HL75 heading and BELOW the HL90K/HL95/HL95K heading are excluded. In particular, optical/acoustic torque-wrench variants0302/0312 in the preceding block are not exact HL75 assignments. Five rows do not exhaust TI41 section5.1, which also references the FS75/80/85 and HS75/80/85 tools; those complete later index blocks and shared-tool tables have since been separately reviewed. No original 1996 tool inventory is established.
- The2012 index agrees with TI41 on the MODEL heading4230. The later components manual calls its shared POWERHEAD series4137, while retained catalog navigation groups the exact HL models under4137. These different labeling contexts are retained; no silent series renumbering or identity equivalence is asserted.
- Later-source comparison for TI41/1996, not a recovered original1996 manual or a verified configuration match. No serial cutoff, supersession, current availability or universal interchange is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 / HL 75 K: five exact-model tool-index entries.
Later manual evidence: STIHL Special Tools Manual (2012-01), section Exact HL75/HL75K block only; neighboring rows excluded, PDF pages 123
Part numbers (5)
- 0811 611 8200 — Pliers A10Later exact-model tool index · Removing/installing external circlips; HL75/HL75K index2012-01
- 5910 850 1008 — Tachometer EDT 7Later exact-model tool index · No specific speed target or test procedure printed in this index; HL75/HL75K index2012-01
- 5910 850 1009 — Tachometer EDT 8Later exact-model tool index · No specific speed target or test procedure printed in this index; HL75/HL75K index2012-01
- 5910 890 0301 — Torque wrenchLater exact-model tool index · Equipment range0.5–18Nm, not a joint torque; HL75/HL75K index2012-01
- 5910 890 0311 — Torque wrenchLater exact-model tool index · Equipment range6–80Nm, not a joint torque; HL75/HL75K index2012-01
Service note · HL 75 / HL 75 K
HL 75 reference: later 4137 engine and ignition specifications
2004-03 gives0.95kW, distinct from TI41’s0.9kW; exact1996 applicability remains unverified.
No exact-model IPL link: Later reference edition only; no exact1996 assembly or configuration binding established.
- Series4137 Powerhead2004-03 printed4/PDF5 lists25.4cm³ displacement,34mm bore and28mm stroke. Power is0.95kW (1.3HP) to ISO8893, whereas TI41 gives0.9kW (1.2bhp). This mismatch is retained; it does not prove an upgrade, rounding rule, original1996 setting or interchange.
- The later table gives maximum permissible engine speed WITHOUT CUTTING ATTACHMENT (cut-off speed)10,500±800rpm; idle2,800rpm; unlined centrifugal clutch engaging at3,700rpm. These distinct conditions are not a maximum blade speed or an authorized no-attachment running test.
- Crankshaft support: heavy-duty deep-groove ball bearings; needle cages at the small and big ends, piston pin and crankpin. Crankcase leakage table gives50kPa (0.5bar) EXCESS pressure and50kPa (0.5bar) NEGATIVE pressure magnitude. These are not both positive pressures, and this table alone supplies no hold time or pass/fail decay criterion.
- Electronic magneto ignition with integrated switch gear; ignition air gap0.2–0.5mm. Suppressed spark plugs listed: Bosch WSR6F, NGK BPMR7A and Champion RCJ6Y; electrode gap0.5mm. Electrode and ignition air gaps are different measurements. No spark-plug ordering numbers or original1996 suffix assignment are inferred.
- The2004-06 components introduction explicitly names HL75 among machines based on4137. HL75K is not separately named there; this comparison remains a reference lead for the historical family, not a retroactive specification assignment to either1996 variant. Later test procedures have since been separately reviewed. Original 1996 configuration matching remains unestablished after bounded source reconciliation.
- Later-source comparison for TI41/1996, not a recovered original1996 manual or a verified configuration match. No serial cutoff, supersession, current availability or universal interchange is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 2 · TI 41/1996, p. 3 — HL 75 reference: later 4137 engine and ignition specifications.
Later manual evidence: Series 4137 Powerhead (2004-03), section Printed2 scope; printed4 complete engine/ignition table, PDF pages 3, 5 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Printed2 explicit HL75 scope; HL75K not separately named, PDF pages 3
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later fuel-system test values
Keep carburetor, tank-vent and crankcase test quantities distinct.
No exact-model IPL link: Later reference edition only; no exact1996 assembly or configuration binding established.
- Components4137 FC–KW2004-06 printed4/PDF5 describes a DIAPHRAGM carburetor. Carburetor leakage-test GAUGE pressure is80kPa (0.8bar). No carburetor maker/suffix, test duration or allowable leak rate is supplied on this page; it does not assign the value to TI41’s WT447 or C1Q-S28A.
- Tank-vent operation: GAUGE pressure50kPa (0.5bar), VACUUM20kPa (0.2bar). These are vent-operation values, not the carburetor test pressure or crankcase leakage limits. Preserve positive-pressure versus vacuum conditions.
- Fuel mixture is regular brand-name gasoline, minimum90 RON, with STIHL50:1 two-stroke engine oil; the instruction manual supplies further details. RON is not an AKI pump-rating conversion. Rated idle2,800rpm and rated cut-off10,500rpm are printed without the powerhead table’s ±800rpm tolerance or no-cutting-attachment qualifier; neither is silently added to this source.
- This later source names HL75, but is not the original1996 service specification or an HL75K-specific table. Later procedure context has since been separately reviewed; the exact operator manual was not identified in the bounded retained inventory. These values remain reference data, not a stand-alone test sequence.
- Later-source comparison for TI41/1996, not a recovered original1996 manual or a verified configuration match. No serial cutoff, supersession, current availability or universal interchange is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 2 · TI 41/1996, p. 3 — HL 75 reference: later fuel-system test values.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Printed2 scope and printed4 complete fuel-system table, PDF pages 3, 5
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later powerhead torque-table conflict
Printed spark-plug and ignition-module rows are preserved, not silently swapped.
No exact-model IPL link: Later reference edition only; no exact1996 assembly or configuration binding established.
- Series4137 Powerhead2004-03 printed5/PDF6 has four rows. The first two read SCREW IS-M5x25 / CRANKCASE /9.5Nm and SCREW IS-DG5x24 / CYLINDER/CRANKCASE /9.5Nm. They remain later-source statements, not reconstructed1996 specifications.
- The next two rows VISIBLY pair SCREW IS-M4x20 / SPARK PLUG /4.5Nm and M14x1.25 / IGNITION MODULE/CYLINDER /20.0Nm (fastener-name cell blank in the last row). The component labels conflict with the expected thread/component pairing. This is present in the original page, not an OCR-only problem. Both printed rows are quarantined as unresolved source assertions, NOT usable joint-torque instructions; no guessed swap is applied.
- The page explains that DG/P screws form permanent threads in polymer/light metal and requires a torque wrench. For an existing DG thread it says turn counterclockwise until the screw drops slightly, then clockwise to the specified torque, to avoid cutting a second thread. Power screwdriver limit for DG screws in polymer is500rpm; that speed is not an engine speed or a torque.
- TI41’s five blade/gear-drive torque rows are unchanged. Components4137 FC–KW2004-06 printed6/PDF7 explicitly pairs M14x1.25 spark plug with20.0Nm and IS-M4x20 ignition module/cylinder WITH WASHER with4.5Nm, unlike the powerhead page. This is documented counterevidence, not an erratum or permission to silently rewrite the original. Original 1996 configuration and exact procedure matching remain unestablished after bounded source reconciliation; later procedure review does not resolve the printed torque conflict.
- Later-source comparison for TI41/1996, not a recovered original1996 manual or a verified configuration match. No serial cutoff, supersession, current availability or universal interchange is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later powerhead torque-table conflict.
Later manual evidence: Series 4137 Powerhead (2004-03), section Printed5: four rows, visibly inconsistent final two, and DG-thread context, PDF pages 6 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Printed2 scope and printed5–7 complete torque table/remarks; HL75 is footnote4, PDF pages 3, 6, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: manual scope and conflicting fixture numbers
2004 manual introductions disagree on stand/fixture identifiers.
No exact-model IPL link: Later reference edition only; no exact1996 assembly or configuration binding established.
- Powerhead2004-03 printed2/PDF3 routes other components and CombiTools to their corresponding manuals and says methods are shared unless otherwise specified. Components FC–KW2004-06 printed2/PDF3 explicitly covers FC75/85,FH75,FS75/80/85,HL75,KM85,KW85 on the4137 powerhead, with machine-specific exceptions. Shared methods do not establish historical parts interchange or review of every procedure.
- The POWERHEAD introduction prints assembly STAND item2 as5910 893 8800 and clamping PLATE item1 as5910 893 3100. The COMPONENTS introduction instead prints assembly STAND item2 as5910 893 3100 and clamping FIXTURE item1 as5910 890 8800. Both original diagrams and prose were inspected. These conflicting labels/numbers remain unresolved; no item is promoted as a verified purchase or mounting recommendation.
- The repeated number5910 893 3100 has different printed roles, and5910 893 8800 differs from5910 890 8800. All three numbers are searchable as disputed references, not corrected aliases. Tool lists and handbook detail remain the next cross-check.
- Both introductions require consulting the relevant IPL and later TIs for part numbers/changes and point to troubleshooting/service-training sources. Their proprietary dealer/workshop notices were observed and retained in originals; this private review grants no redistribution authority. The later manuals do not prove that the announced1996 HL75 manual or its separate manuals have been recovered.
- Later-source comparison for TI41/1996, not a recovered original1996 manual or a verified configuration match. No serial cutoff, supersession, current availability or universal interchange is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 · TI 41/1996, p. 4 — HL 75 reference: manual scope and conflicting fixture numbers.
Later manual evidence: Series 4137 Powerhead (2004-03), section Printed2 full introduction and figure366RA265, PDF pages 3 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Printed2 full introduction and fixture figure, PDF pages 3
Part numbers (3)
- 5910 893 8800 — Stand in powerhead introductionDisputed printed identifier; not a verified tool assignment · Later4137 manual introduction comparison only; unresolved
- 5910 893 3100 — Plate in powerhead introduction; stand in components introductionDisputed printed identifier; not a verified tool assignment · Later4137 manual introduction comparison only; unresolved
- 5910 890 8800 — Clamping fixture in components introductionDisputed printed identifier; not a verified tool assignment · Later4137 manual introduction comparison only; unresolved
Service note · HL 75
HL 75: five model-qualified later component torques
2004-06 footnote4 identifies HL75; other-model rows are excluded.
No exact-model IPL link: Later reference edition only; no exact1996 assembly or configuration binding established.
- Printed7/PDF8 defines footnote4 as HL75. Exactly five rows on printed5–6 include4; no HL75K label is supplied. These are later2004-06 component assignments, not replacements for TI41’s1996 cutting-drive table.
- Footnote key:1 FS75;2 FS80/85;3 FC75;4 HL75;5 KW85;6 FH75;7 KM85;8 FC85. Rows tagged only for other models are excluded, including FH75-only DS270mm blade/gearbox rows. A neighboring hedge/brushcutter row is not HL75 evidence.
- PDF6 row1: Screw IS-P4x16 / Control handle/handle molding (outer/inner) / 1.0Nm (0.75lbf.ft); model footnotes1,3,4,5,6,8.
- PDF6 row2: Screw IS-M5x12 / Control handle/clamp/drive tube / 5.0Nm (3.6lbf.ft); model footnotes1,3,4,5,6,8.
- PDF6 row13: Screw IS-M6x20 / Gearbox housing/drive tube / 10.0Nm (7.5lbf.ft); model footnotes4,6.
- PDF7 row8: Screw IS-M6x25 / Clamp/loop handle (loop handled machine) / 4.5Nm (3.3lbf.ft); model footnotes2,4,6,7.
- PDF7 row20: Screw IS-M5x22 / Carrying ring/clamp / 3.0Nm (2.2lbf.ft); model footnotes4,6.
- Printed7 instructs refitting DG/P screws into existing threads by turning counterclockwise until a slight drop, then tightening clockwise to the specified torque. Maximum power-screwdriver speeds for polymer: Plastoform600rpm, DG500rpm. It explicitly says not to mix screws with and without BINDING HEAD; spelling retained. These are not engine-speed limits.
- Later-source comparison only; no serial cutoffs, complete assembly binding or original1996 configuration match established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75: five model-qualified later component torques.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Printed2 scope and printed5–7 complete torque table/remarks; HL75 is footnote4, PDF pages 3, 6, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75
HL 75 reference: eighteen unqualified later torque rows
Common-source rows retain duplicate spacer-flange entries and blank fastener cells.
No exact-model IPL link: Later reference edition only; no exact1996 assembly or configuration binding established.
- The2004-06 introduction says procedures apply across listed models unless specifically restricted. These18 rows have NO model footnote; they are retained as common-source references, not proof that every listed component/configuration occurs on an original1996 HL75 or HL75K.
- The spacer-flange/cylinder IS-M5x25 row WITH WASHER is printed TWICE (PDF7 rows21 and25), each5.5Nm (4.0lbf.ft). Both occurrences are preserved, not counted as two different joints. The two M8 rows have BLANK fastener-name cells; the component labeled only Carrier is not silently renamed clutch carrier. The source’s German Mutter label and IS-5x16 spelling are retained.
- The components table pairs M14x1.25 SPARK PLUG with20.0Nm (15.0lbf.ft), and IS-M4x20 IGNITION MODULE/CYLINDER WITH WASHER with4.5Nm (3.3lbf.ft). This is explicit counterevidence to the2004-03 powerhead table’s component labels. The original conflict remains documented; this later source is not an erratum or proof of1996 applicability.
- PDF6 row9: Mutter M5 / Filter housing/carburetor/flange/screw / 4.0Nm (3.0lbf.ft); no model footnote.
- PDF6 row10: Screw IS-B4.2x9.5 / Spark arresting screen/muffler / 1.0Nm (0.75lbf.ft); no model footnote.
- PDF6 row18: Screw IS-M5x16 / Shroud/fan housing / 3.5Nm (2.6lbf.ft); no model footnote.
- PDF6 row19: Screw IS-M5x16 / Shroud/starter cover/crankcase / 3.5Nm (2.6lbf.ft); no model footnote.
- PDF6 row20: Screw IS-M5x20 / AV sleeve (clamp screw) / 5.5Nm (4.0lbf.ft); no model footnote.
- PDF7 row1: Screw IS-DG5x12 / AV sleeve/drive tube, location / 0.5Nm (0.37lbf.ft); no model footnote.
- PDF7 row6: [blank] M8 / Clutch carrier/flywheel/crankshaft / 26.0Nm (19.2lbf.ft); no model footnote.
- PDF7 row7: Screw IS-M5x16 / Fan housing/crankcase / 8.0Nm (5.9lbf.ft); no model footnote.
- PDF7 row10: [blank] M8 / Carrier / 14.0Nm (10.3lbf.ft); no model footnote.
- PDF7 row13: Screw IS-P5.5x12 / Rope rotor/starter cover / 3.5Nm (2.6lbf.ft); no model footnote.
- PDF7 row15: Screw IS-5x16 / Muffler/crankcase / 9.5Nm (7.0lbf.ft); no model footnote.
- PDF7 row16: Screw IS-5x16 / Muffler/cylinder / 11.5Nm (8.5lbf.ft); no model footnote.
- PDF7 row19: Screw IS-M5x16 / Starter cover/crankcase / 5.5Nm (4.0lbf.ft); no model footnote.
- PDF7 row21: Screw IS-M5x25 / Spacer flange/cylinder (with washer) / 5.5Nm (4.0lbf.ft); no model footnote.
- PDF7 row22: Screw IS-DG5x24 / Cylinder/crankcase / 9.5Nm (7.0lbf.ft); no model footnote.
- PDF7 row23: Spark plug M14x1.25 / Spark plug / 20.0Nm (15.0lbf.ft); no model footnote.
- PDF7 row24: Screw IS-M4x20 / Ignition module/cylinder (with washer) / 4.5Nm (3.3lbf.ft); no model footnote.
- PDF7 row25: Screw IS-M5x25 / Spacer flange/cylinder (with washer) / 5.5Nm (4.0lbf.ft); no model footnote.
- Printed7 instructs refitting DG/P screws into existing threads by turning counterclockwise until a slight drop, then tightening clockwise to the specified torque. Maximum power-screwdriver speeds for polymer: Plastoform600rpm, DG500rpm. It explicitly says not to mix screws with and without BINDING HEAD; spelling retained. These are not engine-speed limits.
- Later-source comparison only; no serial cutoffs, complete assembly binding or original1996 configuration match established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 · TI 41/1996, p. 4 — HL 75 reference: eighteen unqualified later torque rows.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Printed2 scope and printed5–7 complete torque table/remarks; HL75 is footnote4, PDF pages 3, 6, 7, 8
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later powerhead tools
28 tool rows with source-specific applications and restrictions.
No exact-model IPL link: Later shared reference; exact original1996 configuration not established.
- All28 printed tool rows reviewed. Stand row14 explicitly says FS/FR; clamp row15 refers to shaft tools. Neither is an unconditional HL mounting recommendation. Sleeves1701/1702 have blank application cells.
- DG/P screws must be tightened with a torque wrench; screwdriver2400 is only for unscrewing them. Wrench capacities are NOT joint torques. Footnotes allow0302/0312 optical/acoustic alternatives to0301/0311 respectively.
- Later-source dependency comparison for TI41/1996, NOT a recovered original1996 inventory or verified HL75/HL75K configuration. Shared references do not make every tool applicable to every machine. No supersession, interchange, current availability or hardware readiness is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later powerhead tools.
Later manual evidence: Series 4137 Powerhead (2004-03), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 29, 30
Part numbers (30)
- 5910 890 4400 — PullerLater reference only; preserve source-specific application · Removing oil seals
- 0000 893 3706 — Jaws, profile3.1+4Later reference only; preserve source-specific application · Extracting oil seals
- 1106 850 2905 — Carburetor and crankcase testerLater reference only; preserve source-specific application · Testing crankcase and carburetor for leaks
- 0000 850 3501 — Vacuum pumpLater reference only; preserve source-specific application · Testing crankcase for leaks and tank vent
- 0000 850 8106 — Sealing plateLater reference only; preserve source-specific application · Sealing exhaust port
- 1128 850 4200 — FlangeLater reference only; preserve source-specific application · Leakage test
- 4112 893 2400 — Installing sleeveLater reference only; preserve source-specific application · Protecting oil seal, starter side
- 1115 893 4600 — Installing sleeveLater reference only; preserve source-specific application · Installing oil seal, starter side
- 4112 893 2401 — Press sleeveLater reference only; preserve source-specific application · Installing oil seal, clutch side
- 4118 890 6401 — Setting gaugeLater reference only; preserve source-specific application · Ignition module/flywheel air gap
- 5910 890 2400 — Screwdriver Q-T27x150Later reference only; preserve source-specific application · IS screws; DG/P screws removal only
- 5910 890 0301 — Torque wrenchLater reference only; preserve source-specific application · 0.5–18Nm equipment capacity
- 5910 890 0311 — Torque wrenchLater reference only; preserve source-specific application · 6–80Nm equipment capacity
- 5910 890 3100 — Assembly standLater reference only; preserve source-specific application · Mounting FS and FR models
- 5910 890 8800 — ClampLater reference only; preserve source-specific application · Power tools with shaft; on chainsaw assembly block5910 890 3100
- 1114 893 4700 — Assembly driftLater reference only; preserve source-specific application · Installing piston pin
- 1108 893 4800 — Wooden assembly blockLater reference only; preserve source-specific application · Mounting piston
- 0000 893 2600 — Collar clampLater reference only; preserve source-specific application · Tensioning piston rings
- 5910 890 2208 — Installing tool8Later reference only; preserve source-specific application · Hookless piston snap rings
- 0812 542 2104 — Bit T27x125Later reference only; preserve source-specific application · Powered removal/installation of internal-star screws; tighten with torque wrench
- 5910 893 1701 — SleeveLater reference only; preserve source-specific application · Application cell blank; no assignment inferred
- 5910 893 1702 — SleeveLater reference only; preserve source-specific application · Application cell blank; no assignment inferred
- 4119 893 7200 — Press arborLater reference only; preserve source-specific application · Pressing deep-groove ball bearings in/out
- 5910 890 2202 — Installing toolLater reference only; preserve source-specific application · Installing crankshaft
- 5910 007 2220 — Set of ZS installing toolsLater reference only; preserve source-specific application · Separating crankcase halves
- 5910 850 4503 — ZAT4 ignition testerLater reference only; preserve source-specific application · Testing ignition system
- 5910 850 4520 — ZAT3 ignition testerLater reference only; preserve source-specific application · Testing series spark gap
- 4133 893 0800 — PullerLater reference only; preserve source-specific application · Removing flywheel
- 5910 890 0302 — Torque wrench with optical/acoustic signalLater reference only; preserve source-specific application · Alternative to0301;0.5–18Nm capacity
- 5910 890 0312 — Torque wrench with optical/acoustic signalLater reference only; preserve source-specific application · Alternative to0311;6–80Nm capacity
Service note · HL 75 / HL 75 K
HL 75 reference: later FC–KW component tools
21 tool rows with source-specific applications and restrictions.
No exact-model IPL link: Later shared reference; exact original1996 configuration not established.
- All21 rows reviewed, under a multi-model footer including HL75. Clamp row14 explicitly says FS units, not HL75. The two clutch-drum drifts and the bearing arbor have different printed applications; no universal substitute is inferred.
- DG/P tightening requires a torque wrench; screwdriver2400 is for release/removal only. Footnotes permit0302/0312 optical/acoustic alternatives. Wrench ranges are capacities, NOT joint torques.
- Later-source dependency comparison for TI41/1996, NOT a recovered original1996 inventory or verified HL75/HL75K configuration. Shared references do not make every tool applicable to every machine. No supersession, interchange, current availability or hardware readiness is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later FC–KW component tools.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 67
Part numbers (23)
- 0000 893 5903 — Locking stripLater reference only; preserve source-specific application · Blocking crankshaft
- 5910 890 4500 — PullerLater reference only; preserve source-specific application · Removing carburetor limiter cap
- 5910 890 0301 — Torque wrenchLater reference only; preserve source-specific application · 0.5–18Nm equipment capacity
- 5910 890 0311 — Torque wrenchLater reference only; preserve source-specific application · 6–80Nm equipment capacity
- 5910 893 5608 — Socket DIN3124 SW13Later reference only; preserve source-specific application · Flywheel nut
- 5910 893 5613 — Socket DIN3124-S19x12.5LLater reference only; preserve source-specific application · Clutch
- 0812 542 2104 — Socket T27x125Later reference only; preserve source-specific application · Powered removal/installation of spline socket screws; tighten with torque wrench
- 1110 141 8600 — Fuel hoseLater reference only; preserve source-specific application · Carburetor leakage test
- 4180 893 4400 — DriftLater reference only; preserve source-specific application · Removing clutch drum
- 1108 893 4700 — DriftLater reference only; preserve source-specific application · Removing/installing clutch drum
- 5910 890 2800 — HookLater reference only; preserve source-specific application · Detaching springs from clutch shoes
- 5910 893 8800 — HookLater reference only; preserve source-specific application · Removing pickup body; pulling plug from drive tube
- 5910 890 3100 — Assembly standLater reference only; preserve source-specific application · Mounting machine to workbench
- 5910 890 8800 — ClampLater reference only; preserve source-specific application · Holding FS units by drive tube with assembly stand
- 0000 855 9200 — NippleLater reference only; preserve source-specific application · Carburetor leakage test
- 5910 890 2400 — T-handle screwdriver T27x150Later reference only; preserve source-specific application · IS screws; DG/P screws removal only
- 0000 850 3501 — Vacuum pumpLater reference only; preserve source-specific application · Testing crankcase for leaks and tank vent
- 1106 850 2905 — Carburetor and crankcase testerLater reference only; preserve source-specific application · Testing crankcase and carburetor for leaks
- 0816 610 1495 — Pliers DIN5254-A10Later reference only; preserve source-specific application · External circlips
- 4119 893 7200 — Press arborLater reference only; preserve source-specific application · Plain or needle bearing in bearing housing
- 4126 893 4900 — Service toolLater reference only; preserve source-specific application · Installing rubber element in AV sleeve
- 5910 890 0302 — Torque wrench with optical/acoustic signalLater reference only; preserve source-specific application · Alternative to0301;0.5–18Nm capacity
- 5910 890 0312 — Torque wrench with optical/acoustic signalLater reference only; preserve source-specific application · Alternative to0311;6–80Nm capacity
Service note · HL 75 / HL 75 K
HL 75 reference: shared HS component-tool dependency
11 tool rows with source-specific applications and restrictions.
No exact-model IPL link: Later shared reference; exact original1996 configuration not established.
- All11 rows reviewed under BG75/HS75/HS80/HS85. This is a source named by the shared-tool dependency, NOT proof that the HS brake-band wrench or other HS-specific tool is required on HL75.
- Footnotes permit0302/0312 optical/acoustic wrench alternatives. The internal-circlip pliers are printed C10 here, but the2012 HS index calls the same number C19; retain the naming conflict.
- Later-source dependency comparison for TI41/1996, NOT a recovered original1996 inventory or verified HL75/HL75K configuration. Shared references do not make every tool applicable to every machine. No supersession, interchange, current availability or hardware readiness is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: shared HS component-tool dependency.
Later manual evidence: Series 4137 Components BG, HS (2004-07), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 65
Part numbers (13)
- 0000 893 5903 — Locking stripLater reference only; preserve source-specific application · Blocking crankshaft
- 4133 893 1301 — WrenchLater reference only; preserve source-specific application · Unscrewing/tightening clutch
- 5910 890 2800 — HookLater reference only; preserve source-specific application · Detaching springs from clutch shoes
- 0811 611 8200 — Pliers DIN5254-A10Later reference only; preserve source-specific application · External circlips
- 0811 641 8380 — Pliers DIN5256-C10Later reference only; preserve source-specific application · Internal circlips
- 1118 893 7200 — Press arborLater reference only; preserve source-specific application · Installing/removing ball bearings
- 4226 890 3600 — WrenchLater reference only; preserve source-specific application · Adjusting brake band
- 0812 542 2104 — Socket T27x125Later reference only; preserve source-specific application · Powered removal/installation of spline socket screws; tighten with torque wrench
- 5910 893 8800 — HookLater reference only; preserve source-specific application · Removing pickup body
- 5910 890 0301 — Torque wrenchLater reference only; preserve source-specific application · 0.5–18Nm equipment capacity
- 5910 890 0311 — Torque wrenchLater reference only; preserve source-specific application · 6–80Nm equipment capacity
- 5910 890 0302 — Torque wrench with optical/acoustic signalLater reference only; preserve source-specific application · Alternative to0301;0.5–18Nm capacity
- 5910 890 0312 — Torque wrench with optical/acoustic signalLater reference only; preserve source-specific application · Alternative to0311;6–80Nm capacity
Service note · HL 75 / HL 75 K
HL 75 reference: later shared FS tool index
48 exact-block entries; later edition and model limits retained.
No exact-model IPL link: Later shared reference; exact original1996 configuration not established.
- Exact FS75/80/80R/85/85R/85T/85RX block only. The five rows above its heading and all FS87/88 rows are excluded. This is a shared dependency, not a direct HL75 tool assignment.
- Wrench ranges0.5–18Nm and6–80Nm are equipment capacities, NOT joint torques. Blank application entries do not acquire uses from neighboring rows. Optical/acoustic variants are explicitly present in these FS/HS blocks, unlike the five-row direct HL index.
- Differences from2004 tables are not supersessions:2012 sealing plate0000 855 8106 versus powerhead0000 850 8106; stand3101 versus3100; FS ZS tool5910 007 2201 versus powerhead set5910 007 2220. Exact procedures and configurations still govern.
- FS and HS index oil-seal side labels differ for1115 893 4600,4112 893 2400 and4112 893 2401. Preserve each model context; no silent starter/clutch-side transfer.
- Later-source dependency comparison for TI41/1996, NOT a recovered original1996 inventory or verified HL75/HL75K configuration. Shared references do not make every tool applicable to every machine. No supersession, interchange, current availability or hardware readiness is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later shared FS tool index.
Later manual evidence: STIHL Special Tools Manual (2012-01), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 89, 90
Part numbers (48)
- 0000 850 1300 — PumpLater reference only; preserve source-specific application · Checking engine and carburetor for leaks
- 0000 855 8106 — Sealing plateLater reference only; preserve source-specific application · Sealing exhaust port
- 0000 855 9200 — NippleLater reference only; preserve source-specific application · Testing carburetor for leaks
- 0000 855 9201 — NippleLater reference only; preserve source-specific application · Testing carburetor for leaks
- 0000 890 1701 — Testing tool kitLater reference only; preserve source-specific application · No application printed
- 0000 893 2600 — Clamping strapLater reference only; preserve source-specific application · Clamping piston rings
- 0000 893 3706 — Jaw (profile No. 3.1 and 4)Later reference only; preserve source-specific application · Removing oil seal(s)
- 0000 893 5903 — Locking stripLater reference only; preserve source-specific application · Blocking the crankshaft
- 0812 542 2104 — Socket, T27x125Later reference only; preserve source-specific application · Removing and installing spline socket head screws with electric or pneumatic screwdrivers; tighten down screws with torque wrench
- 0816 610 1495 — Pliers A10-flatLater reference only; preserve source-specific application · Removing/installing external circlips
- 1108 893 4700 — Assembly driftLater reference only; preserve source-specific application · Removing/installing clutch drum
- 1108 893 4800 — Wooden assembly blockLater reference only; preserve source-specific application · Fitting piston
- 1110 141 8600 — Hose 135 mm / 5 5/16''Later reference only; preserve source-specific application · No application printed
- 1114 893 4700 — Assembly driftLater reference only; preserve source-specific application · Removing/installing piston pin
- 1115 893 4600 — Press sleeveLater reference only; preserve source-specific application · Installing oil seal (starter side)
- 1118 893 7200 — Press arborLater reference only; preserve source-specific application · Removing/installing ball bearing in clutch housing
- 1128 850 4200 — FlangeLater reference only; preserve source-specific application · No application printed
- 4112 893 2400 — Installing sleeveLater reference only; preserve source-specific application · Protecting oil seal (starter side)
- 4112 893 2401 — Press sleeveLater reference only; preserve source-specific application · Installing oil seal (clutch side)
- 4118 890 6400 — Setting gaugeLater reference only; preserve source-specific application · Setting air gap between ignition module and flywheel
- 4118 890 6401 — Setting gaugeLater reference only; preserve source-specific application · No application printed
- 4119 893 7200 — Press arborLater reference only; preserve source-specific application · Removing/installing ball bearings
- 4126 893 4900 — Installing toolLater reference only; preserve source-specific application · Removing rubber element from AV sleeve
- 4133 893 0800 — PullerLater reference only; preserve source-specific application · Releasing flywheel
- 5910 007 2201 — Service tool ZSLater reference only; preserve source-specific application · Removing crankshaft
- 5910 850 1008 — Tachometer EDT 7Later reference only; preserve source-specific application · No application printed
- 5910 850 1009 — Tachometer EDT 8Later reference only; preserve source-specific application · No application printed
- 5910 850 2100 — Clamping plateLater reference only; preserve source-specific application · No application printed
- 5910 850 4503 — Ignition system tester, ZAT 4Later reference only; preserve source-specific application · No application printed
- 5910 850 4520 — Ignition system tester, ZAT 3Later reference only; preserve source-specific application · No application printed
- 5910 890 0301 — Torque wrenchLater reference only; preserve source-specific application · Screwed joints 0.5 to 18 Nm
- 5910 890 0302 — Torque wrench with optical/acousticsignalLater reference only; preserve source-specific application · Screwed joints 0.5 to 18 Nm
- 5910 890 0311 — Torque wrenchLater reference only; preserve source-specific application · Screwed joints 6 to 80 Nm
- 5910 890 0312 — Torque wrench with optical/acousticsignalLater reference only; preserve source-specific application · Screwed joints 6 to 80 Nm
- 5910 890 2100 — Clamping plateLater reference only; preserve source-specific application · Clamping powerheads to assembly stand
- 5910 890 2202 — Installing toolLater reference only; preserve source-specific application · Installing crankshaft
- 5910 890 2208 — Installing tool, 8Later reference only; preserve source-specific application · Installing hookless snap rings in piston
- 5910 890 2301 — Screwdriver, T20Later reference only; preserve source-specific application · Separating handle moldings
- 5910 890 2400 — Screwdriver, T27x150Later reference only; preserve source-specific application · For all IS screws
- 5910 890 2800 — Assembly hookLater reference only; preserve source-specific application · Removing plug from drive tube
- 5910 890 3101 — Assembly standLater reference only; preserve source-specific application · Holding powerhead for repairs
- 5910 890 4400 — PullerLater reference only; preserve source-specific application · Removing oil seals
- 5910 893 1701 — SleeveLater reference only; preserve source-specific application · Removing ball bearings
- 5910 893 1702 — SleeveLater reference only; preserve source-specific application · Removing ball bearings
- 5910 893 1708 — SleeveLater reference only; preserve source-specific application · No application printed
- 5910 893 2102 — Drilled washerLater reference only; preserve source-specific application · No application printed
- 5910 893 5608 — Socket, 13 mmLater reference only; preserve source-specific application · Clutch and carrier
- 5910 893 8800 — Assembly hookLater reference only; preserve source-specific application · Removing pickup body
Service note · HL 75 / HL 75 K
HL 75 reference: later shared HS tool index
41 exact-block entries; later edition and model limits retained.
No exact-model IPL link: Later shared reference; exact original1996 configuration not established.
- Exact HS75/80/85 block only: four rows at the bottom of PDF119 continue on PDF120. The preceding HS72/74/76 and following HS81/86 blocks are excluded. No HS-specific hardware is assigned to HL75.
- Wrench ranges0.5–18Nm and6–80Nm are equipment capacities, NOT joint torques. Blank application entries do not acquire uses from neighboring rows. Optical/acoustic variants are explicitly present in these FS/HS blocks, unlike the five-row direct HL index.
- Differences from2004 tables are not supersessions:2012 sealing plate0000 855 8106 versus powerhead0000 850 8106; stand3101 versus3100; FS ZS tool5910 007 2201 versus powerhead set5910 007 2220. Exact procedures and configurations still govern.
- FS and HS index oil-seal side labels differ for1115 893 4600,4112 893 2400 and4112 893 2401. Preserve each model context; no silent starter/clutch-side transfer.
- Later-source dependency comparison for TI41/1996, NOT a recovered original1996 inventory or verified HL75/HL75K configuration. Shared references do not make every tool applicable to every machine. No supersession, interchange, current availability or hardware readiness is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later shared HS tool index.
Later manual evidence: STIHL Special Tools Manual (2012-01), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 119, 120
Part numbers (41)
- 0000 850 1300 — PumpLater reference only; preserve source-specific application · Checking engine and carburetor for leaks
- 0000 855 8106 — Sealing plateLater reference only; preserve source-specific application · Sealing exhaust port
- 0000 855 9200 — NippleLater reference only; preserve source-specific application · Testing carburetor for leaks
- 0000 855 9201 — NippleLater reference only; preserve source-specific application · Testing carburetor for leaks
- 0000 890 1701 — Testing tool kitLater reference only; preserve source-specific application · No application printed
- 0000 893 2600 — Clamping strapLater reference only; preserve source-specific application · Clamping piston rings
- 0000 893 3706 — Jaw (profile No. 3.1 and 4)Later reference only; preserve source-specific application · Removing oil seal(s)
- 0000 893 5903 — Locking stripLater reference only; preserve source-specific application · Blocking the crankshaft
- 0811 611 8200 — Pliers A10Later reference only; preserve source-specific application · Removing/installing external circlips
- 0811 641 8380 — Pliers C19Later reference only; preserve source-specific application · Removing/installing internal circlips
- 0812 542 2104 — Socket, T27x125Later reference only; preserve source-specific application · Removing and installing spline socket head screws with electric or pneumatic screwdrivers; tighten down screws with torque wrench
- 1110 141 8600 — Hose 135 mm / 5 5/16''Later reference only; preserve source-specific application · No application printed
- 1114 893 4700 — Assembly driftLater reference only; preserve source-specific application · Removing/installing piston pin
- 1115 893 4600 — Press sleeveLater reference only; preserve source-specific application · Installing oil seal (clutch side)
- 1118 893 7200 — Press arborLater reference only; preserve source-specific application · Removing/installing ball bearing in clutch housing
- 1128 850 4200 — FlangeLater reference only; preserve source-specific application · No application printed
- 4112 893 2400 — Installing sleeveLater reference only; preserve source-specific application · Protecting oil seal (clutch side)
- 4112 893 2401 — Press sleeveLater reference only; preserve source-specific application · Installing oil seal (starter side)
- 4118 890 6400 — Setting gaugeLater reference only; preserve source-specific application · Setting air gap between ignition module and flywheel
- 4119 890 4501 — PullerLater reference only; preserve source-specific application · Removing crankshaft (starter side only)
- 4133 893 0800 — PullerLater reference only; preserve source-specific application · Releasing flywheel
- 4133 893 1301 — WrenchLater reference only; preserve source-specific application · Releasing and tightening clutch
- 4226 890 3600 — WrenchLater reference only; preserve source-specific application · Adjusting brake band
- 5910 850 1008 — Tachometer EDT 7Later reference only; preserve source-specific application · No application printed
- 5910 850 1009 — Tachometer EDT 8Later reference only; preserve source-specific application · No application printed
- 5910 850 2100 — Clamping plateLater reference only; preserve source-specific application · No application printed
- 5910 890 0301 — Torque wrenchLater reference only; preserve source-specific application · Screwed joints 0.5 to 18 Nm
- 5910 890 0302 — Torque wrench with optical/acousticsignalLater reference only; preserve source-specific application · Screwed joints 0.5 to 18 Nm
- 5910 890 0311 — Torque wrenchLater reference only; preserve source-specific application · Screwed joints 6 to 80 Nm
- 5910 890 0312 — Torque wrench with optical/acousticsignalLater reference only; preserve source-specific application · Screwed joints 6 to 80 Nm
- 5910 890 2100 — Clamping plateLater reference only; preserve source-specific application · Clamping powerheads to assembly stand
- 5910 890 2208 — Installing tool, 8Later reference only; preserve source-specific application · Installing hookless snap rings in piston
- 5910 890 2400 — Screwdriver, T27x150Later reference only; preserve source-specific application · For all IS screws
- 5910 890 2800 — Assembly hookLater reference only; preserve source-specific application · Detaching clutch springs
- 5910 890 3101 — Assembly standLater reference only; preserve source-specific application · Holding hedge trimmers for repairs
- 5910 890 4400 — PullerLater reference only; preserve source-specific application · Removing oil seals
- 5910 893 1702 — SleeveLater reference only; preserve source-specific application · Add-on for test flange 1106 850 4201 and 1119 850 4201
- 5910 893 1708 — SleeveLater reference only; preserve source-specific application · No application printed
- 5910 893 2102 — Drilled washerLater reference only; preserve source-specific application · No application printed
- 5910 893 5608 — Socket, 13 mmLater reference only; preserve source-specific application · Flywheel nut
- 5910 893 8800 — Assembly hookLater reference only; preserve source-specific application · Removing pickup body
Service note · HL 75 / HL 75 K
HL 75 reference: tool-table counterevidence to fixture labels
The tables identify a stand, a clamp and a hook; disputed introductions remain intact.
No exact-model IPL link: Later shared reference; exact original1996 configuration not established.
- Powerhead2004-03 printed28 rows14/15 and FC–KW2004-06 printed66 rows13/14 agree on assembly stand5910 890 3100 and clamp5910 890 8800. The latter table row12 calls5910 893 8800 a HOOK for pickup body/drive-tube plug, corroborated by BG/HS printed64 row9 and both2012 shared indexes.
- This is counterevidence to the introductions that label5910 893 8800 as a stand or5910 893 3100 as plate/stand. It does NOT silently correct those originals or prove that5910 893 3100 is an alias. The original disputed note remains unchanged.
- The2012 FS/HS indexes name stand5910 890 3101, not3100. No date, supersession or interchange statement is printed in these blocks; later numbering is not proof of replacement. Exact later tool-handbook illustration/detail pages have since been separately reviewed. They do not resolve the stand-number conflict or verify an original 1996 setup.
- Later-source dependency comparison for TI41/1996, NOT a recovered original1996 inventory or verified HL75/HL75K configuration. Shared references do not make every tool applicable to every machine. No supersession, interchange, current availability or hardware readiness is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: tool-table counterevidence to fixture labels.
Later manual evidence: Series 4137 Powerhead (2004-03), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 29 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 67 · Series 4137 Components BG, HS (2004-07), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 65 · STIHL Special Tools Manual (2012-01), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 89, 90, 120
Part numbers (4)
- 5910 890 3100 — Assembly standLater reference only; preserve source-specific application · Mounting FS and FR models
- 5910 890 8800 — ClampLater reference only; preserve source-specific application · Power tools with shaft; on chainsaw assembly block5910 890 3100
- 5910 893 8800 — HookLater reference only; preserve source-specific application · Removing pickup body; pulling plug from drive tube
- 5910 890 3101 — Assembly standLater reference only; preserve source-specific application · Holding powerhead for repairs
Service note · HL 75 / HL 75 K
HL 75 reference: later servicing-aid differences
Three complete aid tables retain sealant, quantity and application discrepancies.
No exact-model IPL link: Later shared reference; exact original1996 configuration not established.
- Powerhead2004-03 lists three rows numbered1,2,4; no invented row3. Components FC–KW has11 rows; BG/HS has9. These are later multi-model references, NOT a consolidated purchase or lubrication instruction.
- Sealant numbers differ: powerhead0783 830 2120; FC–KW0783 830 2000; BG/HS0783 830 3000. No equivalence, correction or supersession is established. The same grease0781 120 1111 is labeled370g in powerhead and225g in both component tables; preserve the package discrepancy.
- FC–KW row3 visibly associates hedge-trimmer gear lubricant0781 120 1109 with IGNITION MODULE and drive shaft in flexible liner. That unusual ignition-module assignment remains an unresolved printed claim, NOT an instruction to grease an ignition module. BG/HS calls the same number multipurpose grease and leaves the application blank. Do not fill blanks from another source.
- FC–KW brushcutter lubricant row4 explicitly says FS75: excluded as an HL75 application while retained for the shared-reference comparison. No joint/application is invented for blank threadlocker cells. Degreasant and graphite-grease rows without numbers remain unnumbered.
- 2004-03 PDF31 row1: Grease,370g tube; 0781 120 1111; Oil seals.
- 2004-03 PDF31 row2: STIHL degreasant; no number printed; Cleaning crankshaft stub and flywheel hub.
- 2004-03 PDF31 row4: Dirko sealant; 0783 830 2120; Sealing engine pan/cylinder.
- 2004-06 PDF68 row1: Lubricating grease,225g tube; 0781 120 1111; Oil seals.
- 2004-06 PDF68 row2: STIHL special lubricating oil,100ml; 0781 417 1315; Rope-rotor bearing bore and rewind spring.
- 2004-06 PDF68 row3: STIHL gear lubricant for hedge trimmers; 0781 120 1109; Ignition module; drive shaft in flexible liner — printed claim, unresolved.
- 2004-06 PDF68 row4: STIHL gear lubricant for brushcutters; 0781 120 1117; Drive shaft in flexible liner, FS75 only.
- 2004-06 PDF68 row5: Dirko HT rot sealant,90g; 0783 830 2000; Crankcase; outside of oil seals.
- 2004-06 PDF68 row6: Solvent-based degreasant without chlorinated/halogenated hydrocarbons; no number printed; Cleaning sealing faces.
- 2004-06 PDF68 row7: STIHL OH723 press fluid,100ml; 0781 957 9000; Handle hose on drive tube; AV rubber in fan housing.
- 2004-06 PDF68 row8: Graphite grease; no number printed; Peg on pawl.
- 2004-06 PDF68 row9: Medium-strength threadlocking adhesive,Loctite242; 0786 111 1101; Application cell blank; no assignment inferred.
- 2004-06 PDF68 row10: High-strength threadlocking adhesive,Loctite270; 0786 111 1109; Application cell blank; no assignment inferred.
- 2004-06 PDF68 row11: High-strength threadlocking adhesive,Loctite649; 0786 110 0126; Application cell blank; no assignment inferred.
- 2004-07 PDF66 row1: Lubricating grease,225g tube; 0781 120 1111; Oil seals.
- 2004-07 PDF66 row2: STIHL special lubricating oil; 0781 417 1315; Rope-rotor bearing bore and rewind spring.
- 2004-07 PDF66 row3: Dirko HT red sealant,90g; 0783 830 3000; Crankcase; outboard oil seals.
- 2004-07 PDF66 row4: Solvent-based degreasant without chlorinated/halogenated hydrocarbons; no number printed; Cleaning sealing faces.
- 2004-07 PDF66 row5: STIHL multipurpose grease; 0781 120 1109; Application cell blank; no assignment inferred.
- 2004-07 PDF66 row6: Schraubensicherung,fest;Loctite270; 0786 111 1109; Application cell blank; no assignment inferred.
- 2004-07 PDF66 row7: Schraubensicherung,hochfest;Loctite649; 0786 110 0126; Application cell blank; no assignment inferred.
- 2004-07 PDF66 row8: Schraubensicherung,mittelfest;Loctite242; 0786 111 1101; Application cell blank; no assignment inferred.
- 2004-07 PDF66 row9: STIHL OH723 press fluid; 0781 957 9000; AV rubber element in fan housing.
- Later-source dependency comparison for TI41/1996, NOT a recovered original1996 inventory or verified HL75/HL75K configuration. Shared references do not make every tool applicable to every machine. No supersession, interchange, current availability or hardware readiness is established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later servicing-aid differences.
Later manual evidence: Series 4137 Powerhead (2004-03), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 31 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 68 · Series 4137 Components BG, HS (2004-07), section Visually reviewed shared-tool or servicing-aid table; printed page is PDF minus1 except2012 handbook, PDF pages 66
Part numbers (11)
- 0781 120 1111 — Grease,370g tubeLater reference only; preserve source-specific application · Oil seals
- 0783 830 2120 — Dirko sealantLater reference only; preserve source-specific application · Sealing engine pan/cylinder
- 0781 417 1315 — STIHL special lubricating oil,100mlLater reference only; preserve source-specific application · Rope-rotor bearing bore and rewind spring
- 0781 120 1109 — STIHL gear lubricant for hedge trimmersLater reference only; preserve source-specific application · Ignition module; drive shaft in flexible liner — printed claim, unresolved
- 0781 120 1117 — STIHL gear lubricant for brushcuttersLater reference only; preserve source-specific application · Drive shaft in flexible liner, FS75 only
- 0783 830 2000 — Dirko HT rot sealant,90gLater reference only; preserve source-specific application · Crankcase; outside of oil seals
- 0781 957 9000 — STIHL OH723 press fluid,100mlLater reference only; preserve source-specific application · Handle hose on drive tube; AV rubber in fan housing
- 0786 111 1101 — Medium-strength threadlocking adhesive,Loctite242Later reference only; preserve source-specific application · Application cell blank; no assignment inferred
- 0786 111 1109 — High-strength threadlocking adhesive,Loctite270Later reference only; preserve source-specific application · Application cell blank; no assignment inferred
- 0786 110 0126 — High-strength threadlocking adhesive,Loctite649Later reference only; preserve source-specific application · Application cell blank; no assignment inferred
- 0783 830 3000 — Dirko HT red sealant,90gLater reference only; preserve source-specific application · Crankcase; outboard oil seals
Service note · HL 75 / HL 75 K
HL 75 reference: later stand illustration and six components
The2012 stand3101 exploded drawing identifies six component rows and seven listed units; no3100 supersession is claimed.
No exact-model IPL link: Later fixture comparison; exact original1996 configuration and mounting procedure not established.
- PDF/printed220 shows5910 890 3101 as an assembly stand, drawing901SW363 SC. Its series list includes4137 (twice), with other repeated codes retained in the source; repetition is not extra compatibility evidence.
- Component quantities are printed in parentheses: support(1), socket head screw M10x25(2), clamping plate(1), hexagon head screw M12x20(1), clamp lever(1), circlip10x1(1). Drawing callouts1–6 match those six rows. Screw2 is illustrated once but the row quantity is2; do not derive quantities by counting drawn occurrences.
- Clamping plate5910 850 2100 is a component of this stand. It is NOT silently substituted for the separately listed powerhead clamping plate5910 890 2100 in the prior FS index. The850/890 identifiers must remain distinct.
- The2004 tool tables name stand5910 890 3100; this2012 illustration is3101. Neither an upgrade path nor interchangeable subcomponents are established. This drawing is an identification reference, not a complete HL75 mounting procedure.
- Later 2012-01 handbook evidence, NOT a recovered original1996 inventory, verified HL75/HL75K mounting setup or current purchasing recommendation. A series code is not an exact-model/variant assignment. No supersession, interchange or bench readiness established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later stand illustration and six components.
Later manual evidence: STIHL Special Tools Manual (2012-01), section Part3 numerical tool illustrations; Part2 exact-model index where specified. Printed and PDF page numbers agree., PDF pages 220
Part numbers (7)
- 5910 890 3101 — Assembly standLater fixture identification reference only · 2012 tool entry; printed series list includes4137
- 5910 850 1650 — SupportLater fixture identification reference only · 2012 stand3101 component; position1; quantity1
- 9045 319 2390 — Socket head screw M10x25Later fixture identification reference only · 2012 stand3101 component; position2; quantity2
- 5910 850 2100 — Clamping plateLater fixture identification reference only · 2012 stand3101 component; position3; quantity1
- 9008 319 2930 — Hexagon head screw M12x20Later fixture identification reference only · 2012 stand3101 component; position4; quantity1
- 5910 890 1901 — Clamp leverLater fixture identification reference only · 2012 stand3101 component; position5; quantity1
- 9455 621 0850 — Circlip10x1Later fixture identification reference only · 2012 stand3101 component; position6; quantity1
Service note · HL 75 / HL 75 K
HL 75 reference: later tensioner illustration boundary
Tool5910 890 8800 is illustrated as a tensioner; its printed2012 series list does not include4137.
No exact-model IPL link: Later fixture comparison; exact original1996 configuration and mounting procedure not established.
- PDF/printed225 calls5910 890 8800 Tensioner and shows a screw-operated clamping fixture (drawing901SW225 GM), not the long assembly hook. The complete printed list is4116,4128,4134,4134,4128,4140,4146,4147,4148,4170,4180,4232,4601. Duplicates are retained.
- Series4137 is absent from this entry. This is a bounded observation about the2012 list, NOT disproof of HL75 applicability and NOT permission to resolve conflicting2004 labels by substitution.
- The2004 tool tables call8908800 a clamp for shaft/FS units, while an introduction uses8938800 for a clamp. The2012 illustration supports the8908800 fixture identity but does not silently correct either earlier source. No fixture dimensions, mounting loads or complete installation sequence are supplied here.
- Later 2012-01 handbook evidence, NOT a recovered original1996 inventory, verified HL75/HL75K mounting setup or current purchasing recommendation. A series code is not an exact-model/variant assignment. No supersession, interchange or bench readiness established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later tensioner illustration boundary.
Later manual evidence: STIHL Special Tools Manual (2012-01), section Part3 numerical tool illustrations; Part2 exact-model index where specified. Printed and PDF page numbers agree., PDF pages 225
Part numbers (1)
- 5910 890 8800 — TensionerLater fixture identification reference only · Printed series list excludes4137; not an exact HL assignment
Service note · HL 75 / HL 75 K
HL 75 reference: stand-number conflict has a wrench counterpart
The2012 handbook identifies5910 893 3100 as an RE142/RE162 control-piston wrench, not an assembly stand.
No exact-model IPL link: Later fixture comparison; exact original1996 configuration and mounting procedure not established.
- PDF/printed229 labels5910 893 3100 Open-end wrench, series4743,4744; drawing901SW296 KN depicts two open-end wrench profiles. The drawing is not a stand and supplies no numbered component table or ordering quantity for the two profiles.
- The exact Part2 heading on PDF/printed163 is RE142, RE162 (4743,4744); its8933100 row says Control piston adjustment. Neighboring RE118/128,140K/160K,141K/161K and143/163 blocks are excluded from this application.
- This independent numerical/model-index agreement is counterevidence to the2004 BG/HS introduction calling5910 893 3100 a stand. Preserve the earlier printed statement; do NOT silently correct it to8903100 or assign this pressure-washer wrench to HL75. No control-piston setting or adjustment procedure is established.
- Later 2012-01 handbook evidence, NOT a recovered original1996 inventory, verified HL75/HL75K mounting setup or current purchasing recommendation. A series code is not an exact-model/variant assignment. No supersession, interchange or bench readiness established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: stand-number conflict has a wrench counterpart.
Later manual evidence: STIHL Special Tools Manual (2012-01), section Part3 numerical tool illustrations; Part2 exact-model index where specified. Printed and PDF page numbers agree., PDF pages 163, 229
Part numbers (1)
- 5910 893 3100 — Open-end wrenchLater fixture identification reference only · 2012 RE142/RE162 (4743/4744): control piston adjustment; not HL75
Service note · HL 75 / HL 75 K
HL 75 reference: later hook illustration distinguishes8800 numbers
The2012 assembly hook5910 893 8800 is a long hooked tool; the same suffix does not make it the8908800 tensioner.
No exact-model IPL link: Later fixture comparison; exact original1996 configuration and mounting procedure not established.
- PDF/printed231 labels5910 893 8800 Assembly hook and shows the long slender hooked tool901SW221 GM. Its multi-series list includes4137; that is not an exact HL75/HL75K application or recovered1996 tool requirement.
- Keep5910 893 8800 (hook) distinct from5910 890 8800 (tensioner/clamp). The2012 illustrations provide additional counterevidence for earlier conflicting fixture descriptions, not a license to rewrite the original documents.
- The2012 detail row has no specific application sentence. Pickup-body/drive-tube applications in the2004 tables remain attached to those source rows; they are not invented as captions on this illustration. Other ring, arbor, lever, spindle and collar-screw entries on this page are unrelated to this fixture-identity dependency.
- Later 2012-01 handbook evidence, NOT a recovered original1996 inventory, verified HL75/HL75K mounting setup or current purchasing recommendation. A series code is not an exact-model/variant assignment. No supersession, interchange or bench readiness established. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later hook illustration distinguishes8800 numbers.
Later manual evidence: STIHL Special Tools Manual (2012-01), section Part3 numerical tool illustrations; Part2 exact-model index where specified. Printed and PDF page numbers agree., PDF pages 231
Part numbers (1)
- 5910 893 8800 — Assembly hookLater fixture identification reference only · 2012 multi-series list includes4137; no exact-model use stated here
Service note · HL 75 / HL 75 K
HL 75 reference: later workshop fuel-safety requirements
Both2004 manuals require outdoor fuel work and immediate spill cleanup; owner-manual precautions remain a separate dependency.
No exact-model IPL link: Later workshop safety context only; original1996 owner instructions and exact variant matching remain unestablished.
- Series4137 Powerhead2004-03 printed3/PDF4 and Components4137 FC–KW2004-06 printed3/PDF4 warn that gasoline is extremely flammable and can be explosive in certain conditions. Improper handling can cause burns or other serious injury.
- Both require all work with fuel to be performed outdoors only and spilled fuel to be wiped away immediately. Both prohibit fire, flame and other heat sources near fuel; the powerhead wording explicitly prohibits smoking, while the components wording explicitly names sparks. These differences are retained, not treated as permission for an omitted hazard.
- If an engine is started during repairs or maintenance, both refer to local/country-specific safety regulations and the precautions/warnings in the owner’s or instruction manual. These pages do not replace that manual, establish operator attendance or authorize a running-engine test. No hardware operation was performed.
- Later2004 workshop-reference context, not recovered original1996 owner-safety coverage. Later relevant procedures have since been separately reviewed; exact historical HL75/HL75K operator instructions were not identified in the bounded retained inventory, and original variant matching remains unestablished.
TI dependency: TI 41/1996, p. 3 — HL 75 reference: later workshop fuel-safety requirements.
Later manual evidence: Series 4137 Powerhead (2004-03), section Complete Safety Precautions section, printed3/PDF4, PDF pages 4 · Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete Safety Precautions section, printed3/PDF4, PDF pages 4
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later crankcase pressure-test preparation
The 2004 powerhead manual specifies approximately 0.5 bar held for at least 20 seconds, with intake and exhaust sealed.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Section 5.4.1 printed 12/PDF 13 requires carburetor removal by the Components manual, gasket before the intermediate flange, piston at top dead centre visible through the inlet bore, and a securely seated spark plug. Test flange 1128 850 4200 is fitted and its nuts tightened; the diagram does not give a new torque.
- Remove the lower crankcase screw from the muffler and loosen the two upper screws half-way. Sealing plate 0000 855 8106 goes between gasket and cylinder exhaust; it must fill the full width between the screws. Lightly retighten the upper screws. Preserve 8558106 here; conflicting 8508106 elsewhere is not silently substituted.
- Section 5.4.2 connects tester 1106 850 2905 to the test-flange nipple, closes the bulb vent screw and calls for approximately 50 kPa (0.5 bar). The housing is described as airtight if this pressure remains constant for at least 20 seconds. This is a crankcase test, not the 0.8 bar carburetor or tank-vent test.
- If pressure drops, locate the leak and replace the defective part: wet the suspected area with oil and rebuild pressure; bubbles identify the leak. The text then requires the negative-pressure test, section 5.4.3; a positive-pressure result alone is not the complete seal test.
- After testing, vent and disconnect, remove flange and sealing plate, retighten muffler screws and reinstall carburetor by the Components manual. The pressure-test restoration calls the removed screw outer, whereas preparation and vacuum restoration call it lower crankcase screw. This wording discrepancy is retained, not treated as proof of distinct fasteners. Prerequisite Components sections 5.3 and 9.2.2 have since been separately reviewed as later-edition context; the screw-wording discrepancy remains unresolved.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements; these linked notes do not replace prerequisite removal, repair or reassembly sections. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Sections 5.4.1–5.4.2, printed 12–13/PDF 13–14.
Later manual evidence: Series 4137 Powerhead (2004-03), section Sections 5.4.1–5.4.2, printed 12–13/PDF 13–14, PDF pages 13, 14
Part numbers (3)
- 1128 850 4200 — Test flangeLater manual test-equipment reference · Sections 5.4.1–5.4.2, printed 12–13/PDF 13–14
- 0000 855 8106 — Sealing plateLater manual test-equipment reference · Sections 5.4.1–5.4.2, printed 12–13/PDF 13–14
- 1106 850 2905 — Pressure testerLater manual test-equipment reference · Sections 5.4.1–5.4.2, printed 12–13/PDF 13–14
Service note · HL 75 / HL 75 K
HL 75 reference: later crankcase vacuum test and wording ambiguity
The 2004 procedure starts at 0.5 bar vacuum; its 30 kPa/20 second acceptance wording is preserved without inventing a signed limit.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Section 5.4.3 explains that seal lips may lift off the crankshaft during the intake stroke without internal counterpressure; vacuum testing complements positive-pressure testing. Use the same sealed preparation as 5.4.2, not an open carburetor connection.
- Connect vacuum pump 0000 850 3501 to the flange nipple. The source says Connect vent screw(1) to the pump cylinder and operate lever(2) until gauge(3) shows negative pressure 50 kPa (0.5 bar). The figure labels the screw, lever and gauge but does not resolve that unusual Connect wording; do not silently replace it with a new instruction.
- Printed acceptance wording: the indicated vacuum remains constant or the pressure does not rise to more than 30 kPa (0.3 bar) within 20 seconds. It immediately adds that if vacuum decreases further, the oil seals must be replaced. Direction/sign wording is ambiguous when read as an unsigned vacuum magnitude. Preserve the statement as printed; no normalized signed threshold, allowable 20 kPa loss or machine-executable pass rule is inferred.
- Following the test, the text calls for venting and hose removal, removal of test flange and sealing plate, retightening the two upper muffler screws and inserting/tightening the lower crankcase screw, then carburetor installation and reverse reassembly. Full removal/installation context remains in the Components manual.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements; these linked notes do not replace prerequisite removal, repair or reassembly sections. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Section 5.4.3 with 5.4.1–5.4.2 preparation, printed 12–13/PDF 13–14.
Later manual evidence: Series 4137 Powerhead (2004-03), section Section 5.4.3 with 5.4.1–5.4.2 preparation, printed 12–13/PDF 13–14, PDF pages 13, 14
Part numbers (1)
- 0000 850 3501 — Vacuum pumpLater manual test-equipment reference · Section 5.4.3 with 5.4.1–5.4.2 preparation, printed 12–13/PDF 13–14
Service note · HL 75 / HL 75 K
HL 75 reference: later carburetor leakage test
Approximately 0.8 bar should remain constant at the carburetor; no 20 second hold time is printed in this section.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Section 9.2.1 directs fuel-system problems to troubleshooting 4.3 and checking/cleaning/replacing the tank vent under 9.5. Remove shroud by 5.1 and disconnect fuel hose from the carburetor elbow connector. Hose 1110 141 8600 on nipple 0000 855 9200 connects that elbow to tester 1106 850 2905.
- Close the bulb vent screw and pump until the gauge reads approximately 0.8 bar. Constant pressure indicates an airtight carburetor. This section gives no numerical hold duration; do not import the crankcase 20 seconds or confuse this with the tank vent, where pressure should fall.
- A pressure drop has two printed cause groups: inlet needle not sealing (foreign matter at seat, damaged sealing cone or sticking inlet control lever), or damaged metering diaphragm. Either requires servicing under 9.3; this is not a completed diagnosis of an actual machine.
- After testing open the vent screw, pull the test hose off the carburetor, reconnect the fuel hose to the elbow and refit shroud. The left column of printed 44/PDF 45 completes this test; the adjacent 9.2.2 removal procedure continues onto PDF 46 and is not closed by inspecting its first page.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements; these linked notes do not replace prerequisite removal, repair or reassembly sections. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.2.1 leakage test, printed 43–44/PDF 44–45.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.2.1 leakage test, printed 43–44/PDF 44–45, PDF pages 44, 45
Part numbers (3)
- 1106 850 2905 — Carburetor/crankcase testerLater manual test-equipment reference · Complete 9.2.1 leakage test, printed 43–44/PDF 44–45
- 1110 141 8600 — Fuel hoseLater manual test-equipment reference · Complete 9.2.1 leakage test, printed 43–44/PDF 44–45
- 0000 855 9200 — NippleLater manual test-equipment reference · Complete 9.2.1 leakage test, printed 43–44/PDF 44–45
Service note · HL 75 / HL 75 K
HL 75 reference: later tank-vent pressure and vacuum tests
Unlike a sealed carburetor, the tank vent should gradually relieve about 0.8 bar pressure and 0.4 bar vacuum.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Section 9.5 describes pressure equalization through filler-cap hole, sintered filter, valve and cap holes. Its inward-flow and outward-flow cross-sections show different paths through the valve body; this is the illustrated cap arrangement, not proof that all historical variants use it.
- Remove shroud by 5.1. Disconnect fuel hose(1) at the fuel-pump flange and fuel hose(2) at the carburetor; seal hose(1) with a suitable plug, and connect tester 1106 850 2905 to hose(2). Close bulb vent and pump to about 0.8 bar. Pressure must drop gradually; constant pressure means the tank vent is faulty or needs cleaning. Disconnect the tester after this test.
- The next illustration puts hose 1110 141 8600 on nipple 0000 855 9200. PDF 56 connects vacuum pump 0000 850 3501 suction hose(2) to fuel hose(1), closes vent screw(3) and operates lever(4) until gauge(5) shows 0.4 bar vacuum. These are local illustration callouts, not a reversal of the previous diagram’s tank-hose identities.
- The vacuum must gradually disappear. If it remains constant the source calls the vent faulty and requires replacement. It gives no numerical decay time for either test and no separate cap-cleaning method here. Do not transplant the crankcase 20 second rule, the 0.5 bar crankcase vacuum or the carburetor hold-pressure criterion.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements; these linked notes do not replace prerequisite removal, repair or reassembly sections. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.5 tank vent, printed 54–55/PDF 55–56.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.5 tank vent, printed 54–55/PDF 55–56, PDF pages 55, 56
Part numbers (4)
- 1106 850 2905 — Carburetor/crankcase testerLater manual test-equipment reference · Complete 9.5 tank vent, printed 54–55/PDF 55–56
- 1110 141 8600 — Fuel hoseLater manual test-equipment reference · Complete 9.5 tank vent, printed 54–55/PDF 55–56
- 0000 855 9200 — NippleLater manual test-equipment reference · Complete 9.5 tank vent, printed 54–55/PDF 55–56
- 0000 850 3501 — Vacuum pumpLater manual test-equipment reference · Complete 9.5 tank vent, printed 54–55/PDF 55–56
Service note · HL 75 / HL 75 K
HL 75 reference: later pickup-body fuel-starvation check
The 2004 pickup-body section explains clogging and directs inspection of the tank and pickup before further fuel-system diagnosis.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 9.6, printed 55/PDF 56: the diaphragm pump draws fuel through the pickup body and hose to the carburetor. Minute particles eventually clog the fine pores, restrict passage and cause fuel starvation.
- For fuel-supply trouble the text says to check the fuel tank and pickup body first, and clean the tank if necessary. This section prints no pickup-body ordering number, replacement interval, flow limit or removal procedure; none is invented.
- Adjacent 9.7 starts fuel-tank/hose service and cleaning, with continuation on PDF 57. That complete later section has since been separately reviewed in the fuel-tank/hose service note; this pickup-body note alone is not the complete fuel-tank procedure. Workshop fuel safety remains applicable.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements; these linked notes do not replace prerequisite removal, repair or reassembly sections. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.6 pickup body, printed 55/PDF 56.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.6 pickup body, printed 55/PDF 56, PDF pages 56
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later shroud removal and locating guides
The later manual requires the cylinder-side gaskets and ignition lead to sit in the shroud guides on reassembly.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 5.1, printed 13/PDF 14: remove the illustrated screw from the starter, then screw (1) from the fan housing and lift off shroud (2). The separate drawings identify these locations; they are not a statement that every visible housing screw is removed.
- Install in reverse sequence. Make sure the gaskets on either side of the cylinder and the ignition lead are located in the guides in the shroud (drawing 936RA304 VA). No new torque, gasket ordering number or variant changeover is printed in this section.
- This is the shroud prerequisite referenced by the leak tests and fuel-system procedures. Adjacent clutch section 5.2.1 is a separate procedure, not admitted by reviewing the shared page.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 5.1 shroud, printed 13/PDF 14.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 5.1 shroud, printed 13/PDF 14, PDF pages 14
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later muffler gasket and spark screen service
The later Components procedure distinguishes the side screw, inner screws, gasket retainer tab and removable spark arresting screen.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 5.3, printed 16/PDF 17: remove shroud by 5.1, remove the screw at the side of the muffler and the inner screws, then remove muffler with gasket. Bend up retainer tab (1) and pull out gasket (2). Install in reverse sequence and bend the tab down again after fitting the gasket.
- Tighten muffler mounting screws by section 3.2; this procedure prints no additional torque. The already reviewed later torque-table qualifications remain applicable, without resolving their source conflicts.
- For the spark arresting screen, remove screw (1), withdraw screen (2), clean or replace as necessary, and install in reverse sequence. No mesh size, ordering number or service interval is given here.
- This Components section describes side and inner screws. It does not prove that the Powerhead leak-test wording outer versus lower crankcase screw names the same fastener. The earlier wording discrepancy remains unresolved. Section 5.3 ends on PDF 17; the queued PDF 18 starts different sections, not a muffler continuation. The adjacent clutch-drum drift on PDF 17 is not a muffler tool.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 5.3 muffler/spark arresting screen, printed 16/PDF 17.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 5.3 muffler/spark arresting screen, printed 16/PDF 17, PDF pages 17
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later foam and felt air-filter care
The foam element is washed and dried; the felt element must not be washed and its INSIDE face points toward the engine.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 9.1, printed 42–43/PDF 43–44: dirty filters reduce power, increase fuel use and hinder starting. Clean when there is noticeable power loss. Close the choke shutter and remove loose dirt around the filter housing and cover before opening. Push back the housing tab, remove cover, then foam element (1) and felt element (2).
- Wash the foam element in a standard commercial solvent-based degreasant containing no chlorinated or halogenated hydrocarbons, and dry; section 12 supplies servicing-aid context. Replace the felt element. Knocking it on the palm or blowing it clear with compressed air is expressly a temporary measure; do not wash the felt. No compressed-air pressure is specified here.
- Replace damaged parts and assemble in reverse sequence. Fit foam in the cover and felt in the housing with INSIDE facing the engine. Engage the slot in the cover with the lug on the housing. These illustrated positions distinguish the elements, without inventing part numbers or claiming every historical variant has this filter.
- The adjacent throttle-adjustment section 8.8 on PDF 43 distinguishes up-to-2002 and from-2002 handles; it is not admitted as a universal adjustment by this filter review. The adjacent leakage-test section 9.2.1 was reviewed separately.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.1 air filter, printed 42–43/PDF 43–44.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.1 air filter, printed 42–43/PDF 43–44, PDF pages 43, 44
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later carburetor removal and new-gasket rule
The later removal sequence preserves heat-shield orientation and requires new gaskets on reassembly.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 9.2.2, printed 44–45/PDF 45–46: remove shroud; disconnect throttle cable nipple (1) from slotted pin (2) on the throttle lever. Disconnect fuel hose (1) at the fuel-pump flange and hose (2) at the carburetor. Callout numbers are local to each figure.
- Remove air filter, unscrew the illustrated nuts and remove filter housing. Remove heat shield while noting its installed position; drawing 936RA167 VA marks TOP with an upward arrow. Pull carburetor off the screws, remove gasket, then remove spacer flange with gasket by 9.2.3.
- Replace a damaged or cracked spacer flange. Always use new gaskets. Install in reverse sequence and tighten the nuts by section 3.2; no additional numerical torque or gasket ordering number is printed in this procedure.
- This supplies the removal context requested by the Powerhead crankcase test, but does not establish an original 1996 hardware configuration. Carburetor internal servicing 9.3 and fuel troubleshooting 4.3 have since been separately reviewed as later-edition reference sections.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.2.2 carburetor removal/install, printed 44–45/PDF 45–46.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.2.2 carburetor removal/install, printed 44–45/PDF 45–46, PDF pages 45, 46
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later spacer flange and tensioner variants
The later manual allows screw/bushing or push-nut/pin tensioner retention; a removed push nut must be renewed.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 9.2.3, printed 45/PDF 46: after carburetor removal by 9.2.2, take throttle cable out of tensioner, remove screws with washers, and remove spacer flange with gasket. If necessary pull the hex-head screws out of the flange.
- Remove the screw with bushing or the push nut with pin (1), then take tensioner (2) off the spacer flange. On the push-nut version always install a new push nut. These are alternative illustrated retention variants, not interchangeable fasteners or a dated changeover.
- Take the adjusting screw out of the tensioner and install in reverse sequence. The new-gasket and damaged-flange replacement requirements are in adjacent 9.2.2. The manual gives no push-nut ordering number here. Adjustment of the throttle cable under 8.8 is separately admitted as later reference with its handle-version distinctions; the automatic-adjuster basic-setting context has since been separately reviewed, retaining the up-to/from-2002 wording conflict.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.2.3 spacer flange, printed 45/PDF 46.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.2.3 spacer flange, printed 45/PDF 46, PDF pages 46
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later pickup replacement and fuel-hose service
The full later section continues onto PDF 58: avoid overstretching the pickup hose, engage tank lugs and cut only the vent-hose end at about 60°.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 9.7, printed 55–57/PDF 56–58: drain the tank, remove rewind starter by 6.2, and pull fuel hoses off the carburetor elbow connectors by 9.2.2. Fuel and lubricant disposal must use an approved disposal site. Workshop fuel-safety requirements apply; starter section 6.2 is separately admitted as later-reference removal context.
- For tank cleaning the printed method removes the filler cap and drains the tank, adds a small amount of clean gasoline, shakes the unit vigorously, then opens and drains it again. No numerical rinse volume is given. This is a source-reference description, not an unattended operation.
- For pickup replacement use hook 5910 893 8800 to pull the pickup body out without overstretching the hose; pull it off the hose and fit a new pickup body, then reverse reassembly. No pickup ordering number or periodic replacement interval is supplied. This is the removal procedure that section 9.6 itself did not contain.
- Remove the fuel tank and its hoses if necessary; reassemble in reverse sequence with lugs (1) engaging plugs (2), drawing 936RA183 VA. For hose service remove filler cap together with cap retainer, retrieve pickup with the same hook and disconnect it from the fuel hose.
- The PDF 58 continuation removes vent hose (1) with grommet (2) and fuel hose (3) with grommet (4), then installs in reverse sequence. To ease installation the source cuts the vent-hose end at approximately 60°. This angle does not specify the fuel hose, a hose length, a grommet size or a handle angle. Adjacent drive-tube/handle sections 10.1–10.2 are separate, unclosed contexts.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.7 fuel tank/fuel hoses, printed 55–57/PDF 56–58.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.7 fuel tank/fuel hoses, printed 55–57/PDF 56–58, PDF pages 56, 57, 58
Part numbers (1)
- 5910 893 8800 — Pickup-body hookLater manual service-tool reference · Complete 9.7 fuel tank/fuel hoses, printed 55–57/PDF 56–58
Service note · HL 75 / HL 75 K
HL 75 reference: later starter removal and single-wire cable lug
The later starter procedure retains the cable-lug step only for machines with one short-circuit wire.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 6.2, printed 18/PDF 19: remove shroud by 5.1 and the illustrated starter screws. On machines with one short-circuit wire, remove the throttle cable lug from the lower screw, then remove the rewind starter. This branch is not assigned to every HL 75 or to a guessed serial boundary.
- Install in reverse sequence. Check the plug in the rewind starter is correctly seated and replace it if damaged. Fit starter with lug (1) engaging plug (2), drawing 936RA038 VA. On one-short-circuit-wire machines secure the throttle cable lug with the lower screw.
- Tighten screws by 3.2 and assemble other parts in reverse sequence. No extra numerical torque or plug part number is given here. This completes the starter-removal prerequisite of fuel-tank section 9.7, not internal starter disassembly, rewind-spring service or an actual hardware procedure.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 6.2 rewind starter removal/install, printed 18/PDF 19.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 6.2 rewind starter removal/install, printed 18/PDF 19, PDF pages 19
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later throttle adjustment and 2002 handle branches
The later manual separates two control-handle adjustment methods; its overlapping 2002 labels are not a precise production cutoff.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete section 8.8, printed 42/PDF 43: the throttle lever must butt against the stop on the carburetor cover at full trigger depression, and against idle-speed screw LA when released. Remove shroud by 5.1. These are mechanical endpoint requirements, not an idle-speed setting or an instruction to run the engine.
- Under Version with Control Handle up to 2002 only, squeeze trigger fully and turn adjusting screw (1) clockwise until throttle lever (2) butts against cover stop (3). On release the lever must butt against idle-speed screw (4), drawing 932RA314 VA.
- Under Version with Control Handle from 2002 only, the source says the cable is no longer adjusted at the tensioner. If the automatic throttle cable adjuster basic setting is unsatisfactory, rotate the adjusting screw slightly. Before adjustment center screw (1) as illustrated in 936RA377 VA, then install in reverse sequence. This paragraph gives no numeric centering dimension, turn count or replacement part.
- The printed up to 2002 and from 2002 labels overlap at 2002. Preserve both; no inclusive/exclusive date, serial boundary or automatic identification of a 1996 machine is inferred. The paragraph presupposes the automatic adjuster basic setting; the separate control-handle/automatic-adjuster context has since been reviewed in its own later-reference notes, not reconstructed from this page.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 8.8 throttle cable adjustment, printed 42/PDF 43.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 8.8 throttle cable adjustment, printed 42/PDF 43, PDF pages 43
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later idle and low-power fault table
Thirteen cause/remedy rows distinguish idle faults from loss of power under load; they are diagnostic alternatives, not proof of a failed part.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Section 4.3, printed 10/PDF 11, three idle-stall rows: blocked idle jet bores or ports → clean and blow clear with compressed air; idle mixture too rich or lean → reset L correctly; incorrect idle-speed setting with throttle shutter completely closed → reset LA correctly. The printed first cause begins “dle”; it is retained as an apparent missing initial letter, not another component.
- Nine low-power/rapid speed-drop rows: plugged air filter → clean or replace; faulty tank vent → clean or replace; leak between tank and fuel pump → seal or renew connections and fuel line; damaged/fatigued pump diaphragm → new diaphragm; blocked main jet bores/ports → clean; dirty pickup → new pickup body; dirty fuel strainer → new strainer; H too rich → reset H correctly; throttle shutter not fully open → check linkage. The vent remedy prints “of replace”; interpreted as a typographic “or”, not a different operation.
- One high-idle row: throttle shutter opened too wide by idle-speed screw → reset LA correctly. No adjustment turn count, air pressure or engine-speed target is supplied by this table. H instructions do not apply to carburetors without H; the adjacent 9.4.1 heading explicitly identifies such a version. Complete later adjustment section 9.4 has since been separately reviewed with its screw/limiter variants; this table alone supplies no adjustment sequence.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 4.3 fuel-system table, first 13 cause/remedy rows, printed 10/PDF 11.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section 4.3 fuel-system table, first 13 cause/remedy rows, printed 10/PDF 11, PDF pages 11
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later acceleration and flooding fault table
Twelve further rows preserve the printed inlet-lever discrepancy: “too low” receives different remedies under acceleration and flooding.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Section 4.3, printed 11/PDF 12, seven poor-acceleration rows: lean idle jet → turn L counterclockwise richer, no further than stop; lean main jet → turn H counterclockwise richer, no further than stop; inlet lever too low relative to correct installed position → set flush with top of carburetor body; inlet needle sticks to seat → remove, clean and refit; atmospheric connecting bore blocked → clean; diaphragm gasket leaks → new gasket; metering diaphragm damaged/shrunk → new diaphragm.
- Five flooding/engine-stall rows: nonsealing inlet needle from foreign matter in seat or damaged cone → remove and clean or replace needle, cleaning tank/pickup/fuel line if necessary; lever sticks on spindle → free lever; helical spring not on lever nipple → remove and refit lever correctly; diaphragm perforated disc deformed and constantly presses lever → new metering diaphragm; inlet lever too low relative to correct installed position → new inlet control lever.
- The flooding row really prints too low, not too high. Its replacement remedy differs from the flush-setting remedy in the acceleration block. Preserve both as source statements; do not silently reverse the fault or infer a universal lever-height specification. H is not present on every carburetor. These rows are not a verified diagnosis or hardware procedure; the complete later variant-specific adjustment context has since been separately reviewed, without resolving these printed fault/remedy differences.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 4.3 fuel-system table, final 12 cause/remedy rows, printed 11/PDF 12.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section 4.3 fuel-system table, final 12 cause/remedy rows, printed 11/PDF 12, PDF pages 12
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later oval and square carburetor flange covers
The later manual recommends converting the oval cover to the square version, without supplying a conversion kit or historical changeover.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.3.1, printed 46/PDF 47: remove shroud by 5.1 and carry out leak test by 9.2.1. Remove M3x12 screws and oval end cover with cap, then M3x8 screws and flange. Remove cap from cover; inspect metering diaphragm/gasket under 9.3.3 and replace as necessary. Install in reverse sequence; any additional diaphragm/gasket holes must align with those in carburetor and flange.
- The M3x8 screws go in flange mounting holes without integrally cast spacers and into the carburetor. Do not swap their locations with M3x12 cover screws. No numerical tightening torque is stated here. The note recommends conversion to the later square-end-cover version under 9.3.2, but names no kit, part number, serial boundary or universal interchange.
- Complete 9.3.2, printed 47/PDF 48: after the same shroud and leakage prerequisites remove the illustrated screws, end cover with cap, cap and flange. Inspect diaphragm/gasket by 9.3.3 and replace as needed; reverse sequence for assembly. This square-cover section supplies no screw dimensions, so the oval dimensions are not transferred to it.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.3.1 oval and 9.3.2 square flange mounting, printed 46–47/PDF 47–48.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.3.1 oval and 9.3.2 square flange mounting, printed 46–47/PDF 47–48, PDF pages 47, 48
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later metering diaphragm order and alignment
The gasket sits on the carburetor body, then the metering diaphragm; both compensating holes must line up.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.3.3, printed 47–48/PDF 48–49: remove the applicable oval or square flange under 9.3.1/9.3.2, then remove metering diaphragm (1) and gasket (2) from body. If stuck together remove and separate very carefully. Inspect both and replace as necessary. The delicate diaphragm can fatigue, distort and swell under alternating stress and then requires replacement.
- On assembly fit gasket (1) on carburetor body and align gasket hole (2) with the carburetor compensating bore, drawing 936RA027 VA. Place metering diaphragm (1) on the gasket and align its hole with the same bore and gasket, drawing 936RA028 VA. Callout numbers are figure-local. Reassemble remaining parts under 9.2.2. No diaphragm ordering number or carburetor-maker kit equivalence is established.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.3.3 metering diaphragm, printed 47–48/PDF 48–49.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.3.3 metering diaphragm, printed 47–48/PDF 48–49, PDF pages 48, 49
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later inlet needle and spring seating
The inlet lever clevis engages the needle-head groove; the spring must locate on the lever nipple.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.3.4, printed 48/PDF 49: remove metering diaphragm by 9.3.3, remove the illustrated screw, and carefully lift inlet control lever with spindle. Reverse for assembly; engage the clevis in the annular groove on the inlet needle head and locate the spring in the control lever nipple. Check needle and spring are properly seated.
- This illustrated section provides seating context, but no lever-height measurement, needle part number or spring interchange. It does not resolve the different too-low lever remedies printed in the fuel troubleshooting table.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.3.4 inlet needle, printed 48/PDF 49.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.3.4 inlet needle, printed 48/PDF 49, PDF pages 49
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later fixed-jet removal is carburetor-specific
Fixed-jet removal is limited here to C1Q-S63, C1Q-S69, C1Q-S78, C1Q-S80, C1Q-S60, C1Q-S56 and C1Q-S45; other carburetors are expressly excluded.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.3.5, printed 48/PDF 49: remove metering diaphragm by 9.3.3 and avoid damaging the fixed jet with the screwdriver. One illustrated group is C1Q-S63, C1Q-S69, C1Q-S78 and C1Q-S80 (936RA031 VA); the second is C1Q-S60, C1Q-S56 and C1Q-S45 (936RA225 VA). For these listed versions use a suitable screwdriver to unscrew the fixed jet, then reverse sequence for assembly.
- The manual expressly says the fixed jet cannot be removed on carburetors not listed here; clean the jet or replace the carburetor if necessary. Do not infer that these seven variants all fit HL 75, that they interchange, or that every C1Q jet is removable. No jet size, jet ordering number or cross-model conversion is given.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.3.5 fixed jet and its seven-carburetor restriction, printed 48/PDF 49.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.3.5 fixed jet and its seven-carburetor restriction, printed 48/PDF 49, PDF pages 49
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later pump diaphragm and fuel strainer
Pump-side gasket and diaphragm have their own illustrated stack and cover locating pegs, distinct from the metering side.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.3.6, printed 49/PDF 50 first two columns: remove carburetor by 9.2.2, then screw, end cover, gasket and pump diaphragm. Separate stuck gasket/diaphragm very carefully. Inspect both and replace as necessary; alternating stress can fatigue the delicate diaphragm so it distorts/swells and needs renewal.
- Examine the fuel strainer for contamination and damage and replace as necessary; this section does not give its ordering number or removal technique. Reverse for assembly. Drawing 932RA259 VA identifies diaphragm (1), gasket (2) and end cover (3); the gasket is between cover and diaphragm and the locating pegs on the cover hold both in position. Do not transpose the metering-side gasket order onto this stack.
- Section 9.4.1 starts in the third column on the same page and continues later. Its adjustment procedure is not admitted or counted complete by this pump-section review.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.3.6 pump diaphragm, printed 49/PDF 50 columns 1–2.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.3.6 pump diaphragm, printed 49/PDF 50 columns 1–2, PDF pages 50
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: spacer-flange continuation corrects section boundary
The spacer-flange section continues onto PDF 47; the earlier PDF 46-only boundary was incomplete.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- The first column of printed 46/PDF 47 continues 9.2.3: use a new gasket (arrow in drawing 936RA363 VA), mount the spacer flange, tighten the screws firmly by torque section 3.2, and assemble remaining parts in reverse sequence. It prints no new numerical torque or gasket part number.
- This supplements the existing spacer-flange note and corrects the earlier dependency ledger: full 9.2.3 spans PDF 46–47, not PDF 46 alone. Earlier reviewed variant retention details remain unchanged. The adjacent 9.3.1 starts in the second column; this page must not be assigned wholesale to either section.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 9.2.3 spacer flange continuation, printed 46/PDF 47 column 1; corrects prior PDF 46-only boundary.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section 9.2.3 spacer flange continuation, printed 46/PDF 47 column 1; corrects prior PDF 46-only boundary, PDF pages 47
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later automatic throttle-cable slide
The from-2002 control handle takes up cable slack through its slide; this is not a retrofit or an exact production cutoff.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 8.3.1, printed 31–32/PDF 32–33: the handle has a slide for automatic throttle-cable adjustment. Insert a screwdriver in its slot, press the slide down and push toward the engine. Remove the illustrated handle-molding screws and molding, remove the trigger torsion spring, lift the trigger with attached cable from its pivot, then disconnect the cable from the trigger. Take the slide out of its guide and remove the cable.
- Lift the interlock lever slightly and turn it sideways until its torsion spring is relaxed, pull the lever off its pivot and remove the spring. Install in reverse sequence. The continuation on PDF 33 column 1 requires correct cable and protective-tube placement, firm tightening by torque section 3.2, then opening the throttle wide several times so the slide automatically takes up slack. It does not instruct starting the engine for this take-up operation.
- This supplies the automatic-adjuster context referenced by 8.8. The from-2002 heading is retained alongside the up-to-2002 wording in 8.8; no exact serial cutoff, retrofit authorization or spring/cable ordering number is inferred.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 8.3.1 from-2002 trigger/interlock and automatic slide, printed 31–32/PDF 32–33.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 8.3.1 from-2002 trigger/interlock and automatic slide, printed 31–32/PDF 32–33, PDF pages 32, 33
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later automatic-handle wiring and cable
Stop-switch wire routing and throttle-cable removal belong to the from-2002 handle branch, not the separately headed bike-handle sections.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 8.3.2, printed 32/PDF 33 columns 2–3: remove interlock under 8.3.1, pull slide control off molding, remove clamp screws and molding from drive tube, remove torsion spring from pivot, then take out stop switch. Reverse for assembly; place the switch wire in channel (2), drawing 936RA439 VA. The printed heading says Contact/Detent Spring while the body describes a torsion spring and stop switch; do not silently rename the components.
- Complete 8.3.3, printed 33/PDF 34 columns 1–2: remove shroud by 5.1; disconnect throttle-cable nipple (1) from slotted pin (2) at carburetor throttle lever, pull cable from tensioner and remove it from trigger by 8.3.1. Disconnect short-circuit-wire connector (1) from tag (2), and connector (3) from tag (4), drawing 936RA376 VA. Reverse for installation. These are figure-local callouts, not electrical pin numbers or wire-polarity assignments.
- No switch, spring or cable part number is given in these sections. Adjacent bike-handle procedures must be checked against their own model headings; the shared page footer is not universal applicability.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 8.3.2 contact/detent spring and 8.3.3 throttle cable, printed 32–33/PDF 33–34.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 8.3.2 contact/detent spring and 8.3.3 throttle cable, printed 32–33/PDF 33–34, PDF pages 33, 34
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later tensioner adjustment has a variant limit
Section 8.4 gives the tensioner method; section 8.8 separately limits routine tensioner adjustment for the from-2002 automatic handle.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 8.4, printed 33–34/PDF 34–35: at full trigger the carburetor lever must reach the carburetor-cover stop, and at released trigger it must reach LA. Remove shroud by 5.1 and center the adjusting screw as drawn in 936RA377 VA; the diagram supplies no millimeter dimension. Hold full trigger and turn the adjusting screw clockwise until the lever reaches the cover stop. Release and verify contact with the idle screw, then refit the shroud.
- Read with 8.8, printed 42/PDF 43: the from-2002 version is no longer adjusted routinely at the tensioner. Only if automatic-adjuster basic setting is unsatisfactory does it say to rotate the adjusting screw slightly; remove the shroud and center the screw as illustrated before adjustment. It gives neither a numeric slight-turn amount nor a new full-throttle tensioner instruction for that branch. Preserve this qualification instead of applying 8.4 indiscriminately.
- The adjacent 8.5 on PDF 35 starts a separately headed bike-handle up-to-1997 procedure, explicitly FS 75, 80, 85 only. It is not admitted as HL 75 handle fitment by reviewing 8.4. Earlier up-to/from-2002 overlap remains unresolved.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 8.4 and variant-limiting comparison with previously admitted 8.8, printed 33–34,42/PDF 34–35,43.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 8.4 and variant-limiting comparison with previously admitted 8.8, printed 33–34,42/PDF 34–35,43, PDF pages 34, 35, 43
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later L and LA carburetor adjustment
The two-screw carburetor has no H screw; its L/LA setting must not be mixed with the LD or limiter-cap branches.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.4.1, printed 49–50/PDF 50 column 3 through PDF 51 column 1: the manual describes no high-speed H screw and reduced idle/part-load emissions by limiting idle-mixture flow. From scratch, carefully seat L clockwise and open it one full turn. Properly mount cutting tool, attachment or CombiTool (KM); check/clean/replace air filter, adjust cable if possible, then warm the engine. These later shared-manual statements do not identify which carburetor was on a 1996 HL 75.
- For idle adjustment first perform the standard setting. If the engine stops at idle, turn LA clockwise until the cutting tool begins to run, then back half a turn. If the cutting tool runs at idle, turn LA counterclockwise until it stops, then another half turn in that direction. Preserve the distinct starting conditions. This subsection gives no numeric idle rpm, H setting or automatic diagnostic result.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.4.1 two-adjusting-screw carburetor, printed 49–50/PDF 50–51.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.4.1 two-adjusting-screw carburetor, printed 49–50/PDF 50–51, PDF pages 50, 51
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later LD carburetor adjustment
LD is a separate carburetor branch: the source prints counterclockwise seating and two full turns open, not the L/LA setting.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.4.2, printed 50/PDF 51 columns 2–3: factory tuning is described as optimum across operating conditions. Standard-setting prerequisites are properly mounted cutting tool/attachment/CombiTool (KM), air-filter service by 9.1 and spark-arresting-screen service by 5.3. The printed instruction is to carefully turn LD counterclockwise down onto its seat, then open two full turns. The opening direction is not explicitly stated; do not silently substitute clockwise seating from the L-screw branch.
- After standard setting and warm-up, if the engine stops while idling, turn LD slowly clockwise until smooth running; the cutting tool must not run. If the tool runs at idle, turn LD counterclockwise until it stops and then about one additional turn the same way. For erratic idle/poor acceleration turn LD slowly no more than half a turn counterclockwise. The about-one-turn and no-more-than-half-turn remedies address different symptoms; neither becomes a universal idle adjustment.
- No numeric idle rpm, carburetor identification, model-specific LD fitment or changeover is supplied in this subsection.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.4.2 LD-screw carburetor, printed 50/PDF 51 columns 2–3.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.4.2 LD-screw carburetor, printed 50/PDF 51 columns 2–3, PDF pages 51
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later limiter-cap user adjustment
User setting keeps the H limiter cap installed and allows no more than a three-quarter turn; rich and lean idle symptoms remain distinct.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.4.3, printed 51–52/PDF 52 through PDF 53 column 1: do not remove the H limiter cap for standard setting. Check air filter by 9.1, spark screen by 5.3, cable adjustment if fitted by 8.8, and proper cutting tool/attachment/CombiTool mounting. Set H counterclockwise to its stop, no more than 3/4 turn; carefully seat L clockwise and open it one full turn counterclockwise. Warm the engine and set LA so the tool does not run.
- The text mentions minor corrections at high altitude or sea level but supplies a specific high-altitude branch only: after standard setting and warm-up, open throttle wide and turn H clockwise, leaner, no further than stop, until no noticeable speed increase. Even slight H changes affect running; standard setting may already give highest rpm. Do not invent an opposite sea-level recipe or a numeric maximum rpm.
- Idle section: L one full turn open, engine warm. For stalling idle turn LA slowly clockwise until smooth. For erratic idle/poor acceleration attributed to too-lean idle, turn L about 1/4 turn counterclockwise until smooth running/acceleration. The PDF 53 continuation treats too-rich erratic idle with about 1/4 turn clockwise. Usually LA must be changed after each L correction. This user branch is distinct from the service basic-setting procedure in 9.4.4.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.4.3 limiter-cap user adjustment, printed 51–52/PDF 52–53.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.4.3 limiter-cap user adjustment, printed 51–52/PDF 52–53, PDF pages 52, 53
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later limiter-cap service adjustment
Puller 5910 890 4501, tachometer steps and new short/long caps belong to service adjustment; cap installation stops differ.
No exact-model IPL link: Later Series 4137 procedure reference; original 1996 configuration and exact variant applicability not established.
- Complete 9.4.4, printed 52–53/PDF 53 columns 2–3 through PDF 54: remove H limiter cap only to replace H, clean carburetor or adjust from scratch; cap removal requires basic setting. For the short cap, place puller 5910 890 4501 between cap and body with its open side toward the operator and pry off; if stuck, reverse the puller so the open side faces the body. For the long cap, use suitable pliers. Seat H and L clockwise; open H 1 1/2 turns and L one full turn counterclockwise.
- Use a tachometer; specified speeds have +/- 200 rpm tolerance. Step 1: use LA for 3,300 rpm. Step 2: turn L either way to maximum speed; if above 3,700 rpm abort and restart at step 1. Step 3: use LA to restore 3,300 rpm. Step 4: use L to obtain 2,800 rpm. The 3,700 rpm value is a stop/restart condition in this idle-setting sequence, not a maximum permissible working speed. Do not broaden that stop condition using the general tolerance.
- Always fit new limiter caps; removed caps may be damaged and must not be reused. Short cap: line up H cap against rich stop, press only to the second noticeable detent; do not press against carburetor body or it will be damaged. Long cap: align against rich stop so H has only 3/4 turn clockwise travel, then press to the carburetor body. Both figures show 270 degrees. Follow with user adjustment 9.4.3. No cap part number or proof that either cap fits every HL 75 is supplied.
- These are documented later workshop steps, not authorization or evidence of an engine run, adjustment or emissions outcome. Proper mounting and complete operator safety context remain separate dependencies.
- Later 2004 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual variant and consult the complete manual and workshop/owner safety requirements. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 9.4.4 limiter-cap service adjustment, printed 52–53/PDF 53–54.
Later manual evidence: Series 4137 Components FC, FH, FS, HL, KM, KW (2004-06), section Complete 9.4.4 limiter-cap service adjustment, printed 52–53/PDF 53–54, PDF pages 53, 54
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: CombiTools edition and gearbox scope
The 2007-02 manual lists HL 75 and separates blade-drive BG from angle-drive AG; its cover is not proof of a particular 1996 attachment.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Cover and introduction, PDF 1–3: engine components are handled by separate basic-engine/component manuals. Use the applicable illustrated parts list for component positions and replacement numbers; later TIs supplement the manual. Unqualified procedures apply across the stated series, but specifically named machine/assembly restrictions govern. The publisher describes properly equipped repair-shop use and forbids third-party distribution; this local review is not publication permission.
- Section 3, printed 4/PDF 5: the HL BG row includes HL 75 0°, 30°, 0–90° and 135°. Separate AG rows name HL 75 0°, 30°, 0–90° and 135° respectively. BG means blade drive gear; AG means angle gear. These later assignments do not extend the 1996 TI to adjustable heads or establish parts interchange. HL 75 K is not named in this table or cover; it remains a reference association only.
- Complete section 2, printed 3/PDF 4: engine running during repair requires local/country rules and operator-manual safety precautions. Gasoline is extremely flammable and can be explosive; improper handling can cause burns/serious injury. No smoking, fire, flame or heat near fuel; all fuel work outdoors, spills wiped immediately. Wear protective gloves when working on power-tool attachments. This does not replace the exact operator manual, which was not identified in the bounded retained inventory.
- Contents distinguish chapter 7 Gearbox from chapter 8 Gearbox (new versions). Neither this division nor the assignment table provides a serial/date cutoff; the same nominal angle does not identify the internal generation.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Cover, complete introduction/safety, contents and HL assignment rows; PDF 1–5.
Later manual evidence: STIHL CombiTools (2007-02), section Cover, complete introduction/safety, contents and HL assignment rows; PDF 1–5, PDF pages 1, 2, 3, 4, 5
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later gearbox mounting and square-drive engagement
Section 7.1.1 requires a degreased clamp and positive square-shaft engagement; FCS, HT and KW use separate branches.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Complete 7.1.1, printed 16/PDF 17 column 1, headed All Gearboxes (not FCS, HT, KW): remove tools/deflector as necessary, loosen illustrated screws and pull gearbox from drive tube. For installation degrease clamp mounting area, slide gearbox onto tube while turning output shaft back and forth so the square shaft end engages the square socket in the drive pinion. Push fully to the stop, align and tighten screws under 4.1.
- The final deflector and gearbox-wheel instructions are explicitly FC and FCB only. They are not HL 75 equipment. Adjacent FCS and KW sections are not silently included. Section 7.1.1 supplies no 50 mm insertion mark or specific HL 75 clamp torque; do not borrow either from another branch.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 7.1.1, printed 16/PDF 17 column 1.
Later manual evidence: STIHL CombiTools (2007-02), section Complete 7.1.1, printed 16/PDF 17 column 1, PDF pages 17
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: fixed 0° pinions and bearing orientation
Pliers 0811 611 8200, matched pinions and distinct input/output bearing orientations belong to the chapter-7 HL 0° procedure.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Complete 7.6.1, printed 28–30/PDF 29 column 3 through PDF 31 column 3 opening line: remove gearbox by 7.1.1, remove angle-drive screws and housing, remove circlip with pliers 0811 611 8200 and pull off pinion. Remove input/output housing circlips. Heat housing about 110–140°C and remove components from input end first by knocking housing against a wooden base. Remove hookless retaining ring and press both pinions from bearings. Clean/inspect all parts. Drive and output pinions are supplied only as a matching set.
- Input assembly: heat bearings about 50°C; open bearing against pinion, closed bearing at circlip-groove end; fit hookless retaining ring. Output assembly: heat bearings about 50°C and install with open sides facing each other. Heat housing about 140°C, insert preassembled output pinion to stop, then drive pinion to stop; ensure correct tooth mesh and fit both housing circlips.
- Fill through screw-plug hole with brushcutter gear lubricant under 4.3/11; maintenance top-up only if no grease is visible inside the plug. Refit plug to 4.1, fit external pinion and circlip, refit angle-drive housing and screws to 4.1; remaining parts reverse sequence. Temperatures are source workshop values, not operations performed. No pinion/bearing order numbers or cross-generation interchange are established.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 7.6.1, printed 28–30/PDF 29–31; excludes preceding BC and following adjustable-head text.
Later manual evidence: STIHL CombiTools (2007-02), section Complete 7.6.1, printed 28–30/PDF 29–31; excludes preceding BC and following adjustable-head text, PDF pages 29, 30, 31
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: fixed 30° strengthened bearing change
The HL 30° section records a 10x26x8 strengthened bearing with changed shaft and housing, but no serial cutoff or retrofit kit.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Complete intrinsic 7.6.2, printed 30/PDF 31 column 3: disassembly and reverse assembly refer to 7.2. A strengthened drive-shaft ball bearing (10x26x8) was introduced as a line modification; drive shaft and gearbox housing changed accordingly.
- Drawing 227RA101 VA shows left/right comparison dimensions 29 mm (1.14 in) versus 32 mm (1.26 in) across the illustrated housing feature, and 9 mm (0.35 in) versus 10 mm (0.39 in) at the illustrated shaft feature. These are the drawing callouts, not bearing outside diameters or new part numbers. No serial/date, replacement ordering numbers or mixed-version compatibility is given.
- Section 7.2 remains a locally available procedure dependency to review; this note does not claim the referenced teardown is complete. Adjacent 7.6.3 HL 0–90° is a separate branch, not the fixed 30° procedure.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 7.6.2 intrinsic change and figure 227RA101 VA; referenced 7.2 pending.
Later manual evidence: STIHL CombiTools (2007-02), section 7.6.2 intrinsic change and figure 227RA101 VA; referenced 7.2 pending, PDF pages 31
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: blade stack, guides and upper thrust plate
Chapter-7 blade service preserves spring-pocket orientation, new locknuts and the older-only guide stack; it is not a universal blade kit.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Complete 7.6.4, printed 35–37/PDF 36 column 2 through PDF 38 column 2: remove gearbox by 7.1.1, cover screws, FH-only wear guard, cover and needle sleeve if necessary. Remove gasket, shaft thrust plate and seal; lift connecting rod from spur gear and blade pin. Remove housing screws and cutting attachment. Remove blade nuts, guard, guides and flat spring if fitted, then sliders; separate blades.
- Assembly: guide with screw heads down; flat spring pockets up on screws; blades with cutting edges facing each other on pockets; sliders in pockets, second guide, then new locknuts tightened by 4.1. The extra guide (8), flat spring (9) and screws (10) in 227RA013 VA are only in older cutting attachments. FH blades assemble the same way, but the FH wear guard is not HL fitment. No date cutoff or ordering kit is supplied.
- Engage blade pin in connecting-rod bore and locating peg in its hole. Fit connecting rod with marking toward spur gear; upper thrust plate bent corners face connecting rod. Use a new gasket, press new cover needle sleeve fully to stop; replacement cover already contains the sleeve. Tighten cover screws by 4.1, fill via plug with hedge-trimmer gear lubricant under 4.3/11, top up only if no grease visible inside plug, refit plug and gearbox.
- The source calls this lubrication of the bevel gear drive although it is in the blade-drive section; preserve that wording with section 4.3 identifying lubricant B for blade drive, not brushcutter lubricant A for the separate angle drive. Do not confuse the upper thrust plate with the differently oriented housing plate in 7.6.5.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 7.6.4, printed 35–37/PDF 36–38.
Later manual evidence: STIHL CombiTools (2007-02), section Complete 7.6.4, printed 35–37/PDF 36–38, PDF pages 36, 37, 38
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: blade-drive gear and lower thrust plate
Section 7.6.5 orients the housing thrust plate toward the housing and the spur-gear chamfer toward the connecting rod.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Complete 7.6.5, printed 37–38/PDF 38 column 3 through PDF 39 column 2 opening: remove blades by 7.6.4; take out spur gear, connecting rod and thrust plate. Pull housing needle sleeve and press replacement fully to stop. A replacement housing already has the needle sleeve installed.
- Reverse assembly: housing thrust plate bent corners face the housing, connecting-rod marking faces up, and chamfered side of spur-gear teeth faces connecting rod. Other parts reverse sequence. This lower plate direction differs from the upper plate toward connecting rod in 7.6.4; both instructions remain, not an assumed contradiction or interchangeable plate orientation. Figure callouts are not parts-order numbers.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 7.6.5, printed 37–38/PDF 38–39.
Later manual evidence: STIHL CombiTools (2007-02), section Complete 7.6.5, printed 37–38/PDF 38–39, PDF pages 38, 39
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: separate 30° angle-drive assembly
Section 7.6.6 has matched bearing-equipped pinions, washer-specific screw locations and a 50 mm mounting mark; it is not the fixed-head bearing revision.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Complete 7.6.6, printed 38–39/PDF 39 column 2 through PDF 40: remove cutting head by 7.1.4 or HL gearhead by 7.1.1 if fitted, loosen clamp screws, remove angle drive from tube, then loosen screws and withdraw short tube. Separate housing halves and pry out pinions with bearings. Replacement pinions are supplied only as a matching pair with bearings preassembled.
- Clean housing halves and both vent channels. Fill recesses with brushcutter lubricant under 4.3; large pinion with shaft/bearings goes at the vent-channel side. Seat bearings correctly, coat mating faces with Dirko under 11, join halves. Housing joining screws have no washers and tighten crosswise under 4.1. Push short tube fully in; screws (2) have washers and tighten alternately; fit washer-equipped screws (3) but do not fully tighten yet.
- Mark powerhead drive tube at A = 50 mm from end. Push 30° angle drive fully on while turning it back/forth until square shaft engages. Housing edge must reach or cover mark. Tighten clamp screws moderately in alternation then firmly under 4.1. Final printed instruction says install cutting head by 7.1.4, whereas removal also names HL gearhead by 7.1.1. Preserve this cross-reference mismatch; no automatic HT-to-HL applicability or retrofit is inferred.
- This auxiliary angle-drive procedure is distinct from 7.6.2 strengthened-bearing fixed HL 30° text and chapter 8 new-version gearboxes. It supplies neither ordering kit nor proof of original 1996 equipment.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 7.6.6, printed 38–39/PDF 39–40; final 7.1.4 cross-reference retained.
Later manual evidence: STIHL CombiTools (2007-02), section Complete 7.6.6, printed 38–39/PDF 39–40; final 7.1.4 cross-reference retained, PDF pages 39, 40
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: model-qualified 2007 attachment torques
The torque table marks ten rows for HL 75; it does not mark its gearbox-to-drive-tube clamp rows for HL 75.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Section 4.1, printed 5–6/PDF 6–7, footnote 9 = HL 75: IS-M5x20 guide/blade/housing 9.5 Nm; IS-M4x16 cover/housing 3.5 Nm; IS-M5x20 FS gearbox housing/HS gearbox housing 7.0 Nm; M5 DS550 mm blade/screw nut 9.5 Nm; IS-M11x8 plug/cover 5.5 Nm; IS-M11x8 plug/gear housing 5.5 Nm; M5x12 quadrant/housing 8.0 Nm; M4x10 guard plate/cover 3.5 Nm; M6x8 grub screw/housing 4.5 Nm; M5x12 adjusting lever/housing 8.0 Nm. The source FS/HS housing wording is retained, not silently renamed.
- The two IS-M6x20 gearbox-housing/drive-tube rows are 9.0 Nm for FC 75 (footnote 1) and 10.0 Nm for FH 75/HL 45 (3/8); neither has footnote 9. Likewise IS-M5x84 housing screw 1.5 Nm and M5 housing locknut 6.0 Nm have 3/8, not HL 75. Do not use these as HL 75 clamp values merely because the procedure points to 4.1.
- General 4.1 notes require a torque wrench. For existing DG/P threads turn counterclockwise until screw drops slightly, then tighten clockwise to specified torque to avoid cutting a new thread. Heat adhesive-secured screws with hot air before release, taking special care near plastic. Polymer P-screw power-driver limit is 500 rpm. These later values do not silently replace the preserved TI41/1996 torque evidence; there is no changeover given.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 4.1 ten HL75-qualified rows, relevant negative bindings and general notes; other model rows outside this dependency scope.
Later manual evidence: STIHL CombiTools (2007-02), section 4.1 ten HL75-qualified rows, relevant negative bindings and general notes; other model rows outside this dependency scope, PDF pages 6, 7
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: blade-drive and angle-drive grease are different
The 2007 table specifies 27 g versus new-version 21 g blade-drive fill, and 11 g for fixed 0°/30° angle drives; top-up is not initial fill.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Section 4.3, printed 7/PDF 8: HL/FH blade drive uses B, STIHL hedge-trimmer gear lubricant: initial 27 g, or 21 g for footnote-3 new version; both maximum 5 g re-lubrication. Fixed HL 0° and HL 30° angle drives use A, STIHL brushcutter gear lubricant: initial 11 g each, maximum 5 g re-lubrication.
- Separate later branches: HL 0–90° angle drive A initial 20 g, maximum 5 g re-lubrication; HL 135° angle drive A initial 11 g, maximum 5 g re-lubrication, footnote 3 new version. These rows are comparison limits, not an extension of TI41/1996 to adjustable attachments or a retrofit instruction. No production cutoff defines new version here.
- The reviewed chapter-7 procedures say maintenance top-up only if no grease is visible inside the screw plug. Initial fill and top-up maxima are not additive routine charges. Do not use the HT lubricated-for-life row or KW replace-faulty-gearbox rule as an HL service rule. Exact lubricant order numbers remain in chapter 11, not invented from A/B.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 4.3 all HL/FH rows and maintenance trigger in 7.6.1/7.6.4; unrelated gearbox rows outside this dependency scope.
Later manual evidence: STIHL CombiTools (2007-02), section 4.3 all HL/FH rows and maintenance trigger in 7.6.1/7.6.4; unrelated gearbox rows outside this dependency scope, PDF pages 8, 31, 38
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: fixed 30° cross-referenced gearbox teardown
The HL 30° section explicitly refers to 7.2, whose heading is FC, FCB, FS; named exceptions remain restricted.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Section 7.6.2 points to 7.2 for disassembly and reverse assembly. Complete 7.2 spans printed 18–20/PDF 19–21, ending above 7.3 FCS on PDF 21 column 1. This is a cross-referenced later procedure, not a claim that all FC/FCB/FS equipment fits HL 75. The initial deflector and gearbox-wheel removal instructions are explicitly FC and FCB only; their 9.4.1/9.4.2/9.3.3 branches are outside this HL dependency.
- Disassembly, PDF 19: remove gearbox by 7.1.1; remove input and output housing circlips. Heat housing about 110–140°C and remove components from input end first, then output end, by knocking housing against a wooden base. Pull bearing and bevel gear off drive shaft; remove drive-pinion circlip and press pinion out of bearings. Clean all parts and inspect serviceability.
- Drive pinion and bevel gear are supplied only as a matching pinion set. The strengthened-bearing, drive-shaft and housing change documented in 7.6.2 still requires identification; 7.2 does not supply replacement ordering numbers, a production cutoff or permission to mix old and strengthened components. Adjacent 7.3 FCS is excluded.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 7.2 complete disassembly and cross-reference scope; assembly in companion note.
Later manual evidence: STIHL CombiTools (2007-02), section 7.2 complete disassembly and cross-reference scope; assembly in companion note, PDF pages 19, 20, 21
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: fixed 30° bearing assembly and grease trigger
Open/closed bearing orientation, matched gears and conditional top-up survive the 7.2 cross-reference; input/output shaft wording is inconsistent.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Assembly, PDF 19 column 3: heat ball bearings about 50°C and push onto drive pinion; open bearing against pinion, closed bearing at circlip-groove end; fit circlip. The single-bearing exception explicitly names FS 55, not HL 75.
- PDF 20 column 1 calls the shaft receiving the heated bearing and bevel gear the input shaft; PDF 19 calls the dismantled part drive shaft and PDF 20 column 2 calls the preassembled part output shaft. Preserve this naming discrepancy. Figures 227RA068/069 show bearing to stop and bevel gear teeth first; do not turn the inconsistent labels into a new shaft interchange claim.
- Heat that ball bearing about 50°C, push fully home; fit bevel gear teeth first. Heat housing about 140°C; press bearing into housing to stop, press preassembled output shaft home, then drive pinion home. Check tooth mesh and install input and output housing circlips.
- Remove screw plug, use STIHL brushcutter gear lubricant under 11 and fill under 4.3. Maintenance top-up only if no grease visible inside screw plug. The final steps are on PDF 21 before 7.3: unscrew grease tube, fit plug and tighten under 4.1, remaining parts reverse sequence. This does not adopt FC/FS fill quantities or invent the still-unqualified HL 75 drive-tube clamp torque.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 7.2 complete assembly through PDF21 column1 opening; naming discrepancy retained.
Later manual evidence: STIHL CombiTools (2007-02), section 7.2 complete assembly through PDF21 column1 opening; naming discrepancy retained, PDF pages 19, 20, 21
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: distinct gearbox lubricants and blade cleaner
The 2007 servicing-aids table identifies separate hedge-trimmer and brushcutter grease packages, plus blade resin solvent.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Section 11 rows 6–7, printed 73/PDF 74: STIHL hedge-trimmer gear lubricant 80 g tube 0781 120 1109 or 225 g tube 0781 120 1110; STIHL brushcutter gear lubricant 80 g tube 0781 120 1117 or 225 g tube 0781 120 1118. Both list gearbox and drive shaft applications, but this does not make the products interchangeable. Section 4.3 and the reviewed procedures distinguish blade-drive lubricant B from angle-drive lubricant A.
- Row 8: STIHL resin solvent 300 ml can 0782 420 1002, lubricating and cleaning cutting blades. It is not a gearbox grease or the solvent-based degreasant for sealing faces.
- Package capacities are not gearbox fill quantities; use the previously reviewed initial-fill and maximum top-up rows with the exact identified assembly. These are printed 2007 identifiers, not current availability, supersession or universal material-compatibility proof.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 11 rows6–8; package identifiers and applications.
Later manual evidence: STIHL CombiTools (2007-02), section 11 rows6–8; package identifiers and applications, PDF pages 74
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: gearbox sealant and sealing-face cleaner
Dirko red is identified separately from non-chlorinated/non-halogenated sealing-face degreasant.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Section 11 row 4: Dirko sealant, red, 90 g tube 0783 830 2000 for sealing faces and gearbox housing; temperature resistant -50°C to +250°C. The source states material temperature resistance, not gearbox operating temperature or a heating procedure.
- Row 5 specifies a standard commercial solvent-based degreasant containing no chlorinated or halogenated hydrocarbons for cleaning sealing faces. No order number is printed. Do not replace it with the blade resin solvent by inference.
- This identifies the chapter-11 aid referenced by the reviewed 7.6.6 housing-mating-face procedure. The table supplies no cure time, bead dimension or universal sealant substitution; these are not invented.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 11 rows4–5; complete sealant/cleaner entries.
Later manual evidence: STIHL CombiTools (2007-02), section 11 rows4–5; complete sealant/cleaner entries, PDF pages 74
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: other CombiTools servicing aids remain application-specific
Oil-seal grease, handle-hose press fluid and recoil lubricant are distinct table applications, not proof that every listed component exists on an HL attachment.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Section 11 row 1: lubricating grease, 225 g tube 0781 120 1111, for oil seals, oil pump drive and chain sprocket bearing. This shared-manual row is not evidence that an HL gearbox has an oil pump or chain sprocket; it is not the angle-drive grease selection.
- Row 2: STIHL Press Fluid OH 723, 0781 957 9000, handle hose on drive tube. Row 3: STIHL special lubricant 0781 417 1315, bearing bore in rope rotor, rewind spring in rope rotor and rewind spring in fan housing. These remain component-specific reference applications, not a new HL attachment repair procedure or interchange claim.
- Rows 1–8 complete section 11 on PDF 74; PDF 75 is blank apart from folio/footer. No later table continuation or unprinted ordering quantity is inferred.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 11 rows1–3 plus section-end boundary; non-HL component applications explicitly qualified.
Later manual evidence: STIHL CombiTools (2007-02), section 11 rows1–3 plus section-end boundary; non-HL component applications explicitly qualified, PDF pages 74, 75
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: later attachment tool table and unassigned remark
The shared CombiTools tool list preserves exact tool identifiers and torque-wrench ranges; remark 3 has no visible row marker.
No exact-model IPL link: Later CombiTools reference explicitly lists HL 75, not HL 75 K; exact attachment, generation and original 1996 applicability require identification.
- Complete section 10, printed 72/PDF 73: puller 5910 890 4400 with jaws 0000 893 3700 (No. 1 and 2) for gearbox-housing oil seal; press arbor 4119 893 7200 for removing/installing ball bearings; assembly drift 1111 893 4700 for removing/installing needle sleeves. These are listed applications, not blanket instructions to apply every tool to every HL bearing.
- Torque wrenches 5910 890 0301 and 5910 890 0302 each 0.5–18 Nm, remark 1: always use torque wrench to tighten DG and P screws. Wrenches 5910 890 0311 and 5910 890 0312 each 6–80 Nm, remark 2: optical/acoustic signal. The ranges describe tools, not fastener torque settings.
- Spline screw socket T27x125, 0812 542 2104, tightening IS screws; T-handle screwdriver QI-T27x150, 5910 890 2400, all IS screws. Remark 3 reads: On DG and P screws, use for releasing only. No row in the visible remark column is marked 3; preserve it as unassigned rather than silently binding it to either driver or overriding the torque-wrench rule.
- This 2007 shared attachment tool list is not an original 1996 tool inventory and does not establish current tool availability, a compulsory kit or parts fitment.
- Later 2007 reference, not recovered original 1996 instructions or verified HL 75/HL 75 K configuration. Match the actual attachment and consult the complete manual and owner safety instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 10 complete table and all three remarks; missing remark3 row assignment retained.
Later manual evidence: STIHL CombiTools (2007-02), section 10 complete table and all three remarks; missing remark3 row assignment retained, PDF pages 73
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 / HL 75 K: later timetable scope and inclusive labor rules
The 2012-01 manual uses minutes and inclusive dealer flat rates; repair codes are not additive owner estimates.
No exact-model IPL link: The 2012 timetable explicitly groups FH75, HL75 and HL75K. This is labor-reference coverage, not a physical assembly, original 1996 configuration or interchange binding.
- Cover PDF 1 establishes Repair Timetables Manual 2012-01, copyright 2012 STIHL Incorporated, printed in U.S.A., publication 0457 081 0100. Contents PDF 2 identifies dealer instructions on printed 2–3 and extended-reach hedge trimmers on printed 27/PDF 28.
- PDF 28 explicitly says Repair times are in minutes. Its first model column groups FH75, HL75 and HL75K; this note binds only HL 75 and HL 75 K. Other columns for HL45/HL45C, HL73, HL90/HL90K and HL100/HL100K are not transferred. Adjacent PDF 27 is HS hedge trimmers and PDF 29 is Kombi Tool attachments, not continuations of this column.
- Dealer instructions PDF 3: flat rates concern warranty labor reimbursement by Authorized STIHL Dealers. Diagnostic time, cleaning, completing the repair and test running are included whenever applicable. Technicians are assumed to have STIHL service training and to use proper tools and workshop procedures.
- Only one labor code is entered per claim. The highest allowance usually covers overlapping work: cylinder/piston work considers air-leak testing, seals or carburetor work; ignition module replacement generally includes stop-switch/wire tests; carburetor work includes checking/replacing fuel lines and tank vents. Separate diagnoses/access may require an authorized increase if the highest time is insufficient. Do not sum rows as an automatic quote.
- Historical claims submission, parts-retention/return and scrapping paragraphs on PDF 3–4 are reviewed as dealer administration, outside this owner repair-reference scope. No present reimbursement entitlement, current policy or instruction to contact anyone is inferred. The visible formatting annotation on PDF 3 is not service guidance.
- Later 2012-01 U.S. dealer timetable, not the original 1996 parent manual, present warranty policy or an owner elapsed-time guarantee. No hardware operation was performed.
TI dependency: TI 41/1996, p. 4 — 2012 cover, contents, complete dealer-instruction boundary and exact table scope.
Later manual evidence: STIHL Repair Timetables Manual (2012-01), section 2012 cover, contents, complete dealer-instruction boundary and exact table scope, PDF pages 1, 2, 3, 4, 27, 28, 29
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 / HL 75 K: 2012 powerhead repair allowances
The exact later column includes 16 powerhead/control allowances and a blank short-block cell.
No exact-model IPL link: The 2012 timetable explicitly groups FH75, HL75 and HL75K. This is labor-reference coverage, not a physical assembly, original 1996 configuration or interchange binding.
- code 1: Replace short block, blank (no allowance printed); code 2: Replace crankcase, crankcase gasket or re-seal crankcase. Includes air leak test, 50 minutes; code 3: Replace crankshaft main bearing(s). Includes air leak test, 50 minutes; code 4: Replace crankshaft seal(s). Includes air leak test, 50 minutes; code 5: Replace tank filler cap, 3 minutes; code 6: Replace cylinder and/or piston. Includes air leak test and repair of components causing failure, 50 minutes; code 7: Replace ignition module or flywheel. Includes stop circuit test, 25 minutes; code 8: Replace fuel tank line, tank vent, or fuel pick-up body, 20 minutes; code 9: Replace intake manifold or intake flange, 20 minutes.
- code 10: Repair or replace carburetor. Includes fuel system testing, 30 minutes; code 11: Repair throttle control, 30 minutes; code 12: Repair or replace rewind starter, 15 minutes; code 13: Repair or replace clutch, clutch shoes or clutch springs, 20 minutes; code 14: Replace muffler, 15 minutes; code 15: Replace air filter or filter housing, 15 minutes; code 16: Repair or replace stop switch. Includes circuit testing, 25 minutes; code 17: Replace fuel tank, 20 minutes.
- The blank code 1 cell is not zero, not the neighboring HL90/HL100 allowance, and not evidence that replacement is prohibited. Code 6 includes repair of components causing failure, not merely cylinder/piston replacement. Use the inclusive labor rules in the companion timetable scope note.
- Later 2012-01 U.S. dealer timetable, not the original 1996 parent manual, present warranty policy or an owner elapsed-time guarantee. No hardware operation was performed.
TI dependency: TI 41/1996, p. 4 — 2012 extended-reach table, codes1–17; all cells of the FH75/HL75/HL75K column.
Later manual evidence: STIHL Repair Timetables Manual (2012-01), section 2012 extended-reach table, codes1–17; all cells of the FH75/HL75/HL75K column, PDF pages 28
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 / HL 75 K: 2012 attachment and special labor rows
Drive, blade and gearbox allowances remain separate from blank valve rows and the explicitly printed no-labor zero.
No exact-model IPL link: The 2012 timetable explicitly groups FH75, HL75 and HL75K. This is labor-reference coverage, not a physical assembly, original 1996 configuration or interchange binding.
- code 18: Adjust valve clearance, blank (no allowance printed); code 19: Clean exhaust valve with STIHL de-carbonizing liquid. Includes leak-down test, blank (no allowance printed); code 20: Replace intake or exhaust valve. Includes leak-down test, blank (no allowance printed); code 21: Replace clutch housing, 20 minutes; code 22: Replace outer drive tube, 25 minutes; code 23: Replace drive shaft, 20 minutes; code 24: Replace gear box assembly, 15 minutes; code 25: Replace gear box cover, 15 minutes; code 26: Replace internal gear(s), 30 minutes.
- code 27: Replace connecting rod, 15 minutes; code 28: Replace blade guide screw(s), 15 minutes; code 29: Replace blade(s), 20 minutes; code 30: Replace blade guide piece, 20 minutes; code 31: Replace blade spring, 20 minutes; code 32: Replace gear box bearing(s), 30 minutes; code 35: Engine diagnosis only to determine failures requiring unit replacement, 25 minutes; code 40: Miscellaneous repairs, 15 minutes; code 45: Handling allowance only-no labor, 5 minutes; code 50: No Labor, 0 minutes.
- Codes 18–20 are blank for FH75/HL75/HL75K; the printed valve allowances belong to HL90/HL90K and HL100/HL100K. These blanks do not establish a valve mechanism, a zero-minute repair or permission to adopt another model column. Code 50, by contrast, explicitly prints 0. Code 45 is a handling allowance only, no labor; code 35 is diagnosis only for failures requiring unit replacement.
- The 36 printed rows are codes 1–32,35,40,45,50: codes 33–34,36–39,41–44 and46–49 are not rows on this page. No missing codes or implied zero cells are synthesized.
- Later 2012-01 U.S. dealer timetable, not the original 1996 parent manual, present warranty policy or an owner elapsed-time guarantee. No hardware operation was performed.
TI dependency: TI 41/1996, p. 4 — 2012 extended-reach table, codes18–32,35,40,45,50; blanks versus printed zero.
Later manual evidence: STIHL Repair Timetables Manual (2012-01), section 2012 extended-reach table, codes18–32,35,40,45,50; blanks versus printed zero, PDF pages 28
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75: 1996 and 2012 repair-time codes are not interchangeable
Keep the original 20-row tenths-of-hour table alongside the later 36-row minute table; descriptions and inclusions differ.
No exact-model IPL link: The 2012 timetable explicitly groups FH75, HL75 and HL75K. This is labor-reference coverage, not a physical assembly, original 1996 configuration or interchange binding.
- TI41/1996 page 4 has one printed HL75 column and 20 codes. It states tenths of an hour, 0.1 = 6 minutes, with diagnostic time included. The 2012 table names HL75K too, uses minutes and assigns different codes. This later explicit K heading does not retroactively alter the original TI column.
- Directly comparable descriptions still carry edition-specific values: TI code 4 crankshaft seals 0.7 h = 42 minutes versus 2012 code 4 seal(s) including air leak test 50 minutes; TI code 8 gearbox assembly 0.5 h = 30 minutes versus 2012 code 24 gearbox assembly 15 minutes; TI code 9 carburetor 0.7 h = 42 minutes versus 2012 code 10 carburetor including fuel-system testing 30 minutes.
- TI code 1 crankcase/short block 2.1 h = 126 minutes cannot be mapped to later code 1 as a numeric allowance: that cell is blank. TI code 2 crankcase and/or bearings and code 3 crankcase gasket/sealing differ from later codes 2 crankcase/gasket/reseal and 3 main bearings. TI code 14 combines drive tube and shaft at 0.5 h = 30 minutes; later codes 22 and23 split outer tube25 and shaft20. They are not additive or proof of a model changeover.
- These are observed differences between source editions, not a resolved rate correction, universal code crosswalk, supersession date or reconstructed 1996 parent timetable. Preserve the original TI note verbatim; its then-pending later-source dependency is now addressed by this companion review, while original-edition recovery remains unestablished.
- Later 2012-01 U.S. dealer timetable, not the original 1996 parent manual, present warranty policy or an owner elapsed-time guarantee. No hardware operation was performed.
TI dependency: TI 41/1996, p. 4 — TI41 section6.3 compared with later dealer instructions and exact2012 model column.
Later manual evidence: STIHL Repair Timetables Manual (2012-01), section TI41 section6.3 compared with later dealer instructions and exact2012 model column, PDF pages 3, 28
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: collection service manual is not operator instructions
The 2013-08 KombiTools manual names HL 75 and separately requires instruction-manual warnings; collection ownership does not establish operator-manual coverage.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- Cover PDF 1 reads STIHL KombiTools 2013-08; contents PDF 2 identifies RA_227_00_01_04 and copyright 2013. PDF 4 explicitly calls it a service manual for repair and servicing procedures, intended for properly equipped repair shops. It is the owner’s collected service-manual PDF, not an operator or instruction manual. Original notices remain preserved in the source; no publication permission is inferred.
- Cover and PDF 6 model key name HL 75, not HL 75 K. BG means blade drive gear, AG angle gear and WG worm gear. The HL BG row includes HL 75 among multiple models; AG rows separately list HL 75 0°, 30°, 0–90° and 135°. These later alternative configurations are not proof that the 1996 fixed 0°/30° machines are adjustable, interchangeable or covered by a K-specific procedure. Other equipment rows and depth-wheel remarks are outside this HL identity review.
- Introduction PDF 4 directs engine-component work to separate basic-engine/components manuals, replacement part numbers to the relevant latest IPL, and later engineering changes to TIs. Generic series headings omit individual models unless an exception is named. This is a reading convention, not permission to ignore model/assembly-specific exceptions or later-generation differences. The isolated printed word verwenden. is retained as a source artifact, not an extra instruction.
- Complete safety section 1.1, PDF 5: if starting during repair, observe local/country safety rules and the safety precautions and warnings in the instruction manual. Fuel is extremely flammable and can be explosive; no smoking, fire, flame or heat near fuel; fuel work outdoors only and spills wiped immediately. Always leakage-test after fuel-system and engine work. Wear suitable protective gloves when heating components; improper handling can cause burns or serious injury. Replace damaged parts, inspect disassembled parts for wear/damage, and maintain the specified torque and threadlocking requirements.
- Introduction also says collect fuel in a clean container and dispose of it under local environmental rules. The safety text does not supply a pressure/vacuum limit, a leak-test procedure or operator handling instructions. These cannot be invented from the general obligation. The separate exact instruction manual remains unestablished.
- Contents PDF 2–3 locate fixed-head sections 6.7.1–6.7.2 at printed 34–36 and cutting blades 6.7.4 at printed 42 onward; chapter 7 is explicitly new gearbox versions. These are future review leads, not body-page admissions. Full-manual import/eligibility remains phase two.
- Later 2013 reference, not recovered original 1996 instructions or verified HL 75 K configuration. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — 2013 collection-manual identity,complete introduction/safety and model-key restrictions.
Later manual evidence: STIHL KombiTools (2013-08), section 2013 collection-manual identity,complete introduction/safety and model-key restrictions, PDF pages 1, 2, 3, 4, 5, 6
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 mounting and square-shaft engagement
Section 6.1.1 excludes FCS, HT and KW; the clamp must be degreased and the square drive fully engaged.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- Remove mounted tools and deflector as necessary; loosen screws and pull gearbox off drive tube. Degrease the clamp mounting area. Slide gearbox onto tube while turning output shaft back and forth so the square drive-shaft end engages the drive-pinion square socket. Push fully to stop, align and tighten screws under 3.1.
- This branch explicitly says not FCS, HT, KW. Deflector and gearbox-wheel refitting instructions are FC/FCB-only; their 11.5.1/11.5.2/11.3.3 procedures are not HL dependencies. No borrowed FCS hole alignment or KW sleeve condition is added to HL.
- Same-edition torque table was reviewed: its drive-tube clamp rows do not carry remark 13 (HL 75). The generic 3.1 reference does not establish an HL 75 clamp torque. This remains a printed applicability gap, not permission to use an FH/HL 45 value.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 6.1.1, PDF 19 column 1; adjacent FCS/KW branches excluded.
Later manual evidence: STIHL KombiTools (2013-08), section Complete 6.1.1, PDF 19 column 1; adjacent FCS/KW branches excluded, PDF pages 19
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 fixed 0° pinion assembly and wording conflict
Matched pinions and bearing orientation are retained; the output-end caption calls its shaft a drive pinion.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- Remove gearbox by 6.1.1, angle-drive screws and housing; remove circlip with pliers 0811 611 8200 and pull off pinion. Remove input and output housing circlips. Heat housing about 110–140°C; knock against a wooden base to remove input components first, then output components. Remove hookless retaining ring, press drive and output pinions from bearings, clean and inspect. The drive and output pinions are available only as a matching pair.
- Heat input bearings about 50°C and push onto drive pinion: open bearing against pinion, closed bearing at retaining-ring groove end; fit hookless ring. The output-end paragraph also specifies about 50°C and opposing open bearing sides but calls the shaft drive pinion (2) in figure 227RA138 VA. The following page instead calls this preassembled output pinion. Preserve this internal naming discrepancy; do not silently relabel it or infer a parts-order identity.
- Heat housing about 140°C; seat preassembled output pinion to stop, then drive pinion to stop. Check tooth mesh and fit input/output housing circlips. Fill through plug using STIHL gear lubricant, 3.3/13; top up only when no grease is visible inside plug. Refit plug to 3.1, external pinion and circlip, angle-drive housing and screws to 3.1; other parts reverse sequence. Temperatures are printed workshop values, not operations performed.
- Preceding PDF 35 columns 1–2 are BC gearbox continuation, not HL instructions. Following 6.7.2 is the separate fixed 30° branch. No interchangeable pinion numbers or generation conversion is established.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 6.7.1, PDF 35 column 3 through PDF 37 column 3 opening.
Later manual evidence: STIHL KombiTools (2013-08), section Complete 6.7.1, PDF 35 column 3 through PDF 37 column 3 opening, PDF pages 35, 36, 37 · STIHL CombiTools (2007-02), section Complete 7.6.1, printed 28–30/PDF 29–31; excludes preceding BC and following adjustable-head text, PDF pages 29, 30, 31
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 fixed 30° bearing and housing revision
A 10x26x8 strengthened bearing requires changed shaft and housing; no serial cutoff or retrofit compatibility is supplied.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- Section 6.7.2 refers disassembly and reverse assembly to 6.2. It states a strengthened drive-shaft ball bearing (10x26x8) was introduced as a line modification and the drive shaft and gearbox housing were modified accordingly.
- Figure 227RA101 VA retains left/right housing-feature dimensions 29 mm (1.14 in) and 32 mm (1.26 in), and shaft-feature dimensions 9 mm (0.35 in) and 10 mm (0.39 in). These are drawing dimensions, not bearing outside diameters or ordering numbers. No date/serial changeover, retrofit kit or mixed-version compatibility is printed.
- This repeats the admitted 2007 intrinsic change with renumbered dependency 6.2 instead of 7.2. The exact 2013 dependency has now been reviewed separately, including its PDF 23 opening continuation. Adjustable 0–90° and chapter 7 new gearbox versions are not substituted for this fixed-head branch.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete intrinsic 6.7.2, PDF 37 column 3.
Later manual evidence: STIHL KombiTools (2013-08), section Complete intrinsic 6.7.2, PDF 37 column 3, PDF pages 37 · STIHL CombiTools (2007-02), section 7.6.2 intrinsic change and figure 227RA101 VA; referenced 7.2 pending, PDF pages 31
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 referenced 30° gearbox procedure
Section 6.2 is headed FC, FCB, FS but is explicitly referenced by HL 30°; model exceptions and inconsistent shaft names remain.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- FC/FCB-only deflector and wheel removal do not become HL prerequisites. Remove gearbox by 6.1.1, take out input/output housing circlips, heat housing about 110–140°C and knock against wooden base, input components before output. Pull ball bearing and bevel gear from the named drive shaft; remove drive-pinion circlip and press pinion out of bearings. Clean and inspect. Drive pinion and bevel gear are supplied only as a matching set.
- Heat bearings about 50°C; open bearing against drive pinion and closed bearing at circlip groove; install circlip. FS 55-only one-bearing exception is not HL fitment. Next page says heat bearings about 50°C and push onto input shaft to stop, then bevel gear teeth-first onto input shaft; its next column calls that assembly output shaft. These printed drive/input/output shaft names are inconsistent and remain unresolved.
- Heat housing about 140°C; press ball bearing fully home, seat preassembled output shaft then drive pinion fully, check tooth mesh and fit input/output circlips. Remove plug, fill through grease tube with STIHL gear lubricant under 3.3/13; maintenance top-up only if no grease visible inside plug. PDF 23 column 1 completes the section: remove tube, refit/tighten plug by 3.1 and assemble remaining parts in reverse order. Adjacent 6.3 FS 56/FS 70 is excluded.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 6.2, PDF 21–22 and PDF 23 column 1 opening.
Later manual evidence: STIHL KombiTools (2013-08), section Complete 6.2, PDF 21–22 and PDF 23 column 1 opening, PDF pages 21, 22, 23
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 blade stack and cover assembly
Older-only guide pieces, FH-only wear guard and new locknuts remain restricted; the upper thrust plate faces the connecting rod.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- Remove gearbox by 6.1.1, cover screws, FH-only wear guard, cover and needle sleeve if necessary. Remove gasket, shaft thrust plate and seal; lift connecting rod off spur gear and blade pin. Remove housing screws and cutting attachment, nuts and guard/guides/flat spring if fitted; remove sliders and separate blades.
- Assemble with guide screw heads down, flat-spring pockets up on screws, both blade cutting edges facing each other on pockets, sliders in pockets, second guide and new locknuts tightened under 3.1. Guide(8), flat spring(9) and screws(10) are only in older cutting attachments. FH blades assemble the same way; this does not establish an HL wear guard or universal older-style stack.
- Engage blade pin in connecting-rod bore and peg in hole. Connecting-rod marking faces spur gear. Upper thrust-plate bent corners face connecting rod; use new gasket, press new cover needle sleeve fully home. A replacement cover comes with the sleeve installed. Tighten cover screws by 3.1, fill through plug under 3.3/13; top up only if no grease is visible inside plug, refit plug and gearbox.
- The 2013 text calls for STIHL multipurpose grease for lubrication of the bevel gear gearbox within this blade-drive section. Section 3.3 independently assigns type B multipurpose grease to blade drive, distinct from type A gear lubricant for angle drive. The 2007 wording says hedge-trimmer gear lubricant; material numbers, not names alone, are compared in the separate aids note. No chemical equivalence or present-day substitution is inferred.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 6.7.4, PDF 43 column 2 through PDF 45 column 2.
Later manual evidence: STIHL KombiTools (2013-08), section Complete 6.7.4, PDF 43 column 2 through PDF 45 column 2, PDF pages 43, 44, 45 · STIHL CombiTools (2007-02), section Complete 7.6.4, printed 35–37/PDF 36–38, PDF pages 36, 37, 38
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 lower thrust-plate instruction conflicts with 2007
The 2013 housing plate faces the connecting rod; the admitted 2007 instruction faces the housing. Neither is silently corrected.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- Remove blades by 6.7.4; remove spur gear, connecting rod and housing thrust plate. Pull needle sleeve from gearbox housing and press replacement fully to stop. The 2013 paragraph then says a replacement gearbox cover already has the needle sleeve, although this subsection is removing the housing sleeve. The 2007 subsection says replacement housing. Preserve this cover/housing discrepancy; no supplied-part content is established from it.
- 2013 figure 227RA018 VA and its text instruct the lower thrust-plate bent corners to face the connecting rod. The admitted 2007 section 7.6.5 instead directs the housing plate corners toward the housing. This is a genuine cross-edition orientation conflict, not the ordinary distinction between upper and lower plates in 2007. The earlier note remains unchanged; no correction, interchange or physical orientation is verified.
- 2013 continues: connecting-rod marking faces up, chamfered side of spur-gear teeth faces connecting rod; other parts reverse sequence. Section 6.7.6 begins next in PDF 46 column 2 and concerns a special accessory angle drive, not this blade-drive housing. That accessory branch is outside this fixed-head comparison.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 6.7.5, PDF 45 column 3 through PDF 46 column 2 opening.
Later manual evidence: STIHL KombiTools (2013-08), section Complete 6.7.5, PDF 45 column 3 through PDF 46 column 2 opening, PDF pages 45, 46 · STIHL CombiTools (2007-02), section Complete 7.6.5, printed 37–38/PDF 38–39, PDF pages 38, 39
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 HL torque rows and unresolved clamp binding
Ten rows explicitly carry HL 75 remark 13; the table still does not bind a drive-tube clamp torque to HL 75.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- Torque preamble: DG/P screws form permanent threads; use a torque wrench and engage the existing thread by turning counterclockwise until the screw drops, then tighten clockwise. Clean both threads before reusing adhesive-coated screws: hand tap and compressed air for female thread, brush for male. Micro-encapsulated screws use medium-strength Loctite 242 or 243; previously adhesive-coated screws use the listed Loctite. Heat adhesive-secured screws with hot air to release, taking care around polymer. Polymer P/DG power-screwdriver maximum 500 rpm; no impact wrench for release or tightening; do not mix binding-head and other screws.
- Legend 13 means HL 75; 12 is HL 45 and 4 is FH 75. Exact 13-marked rows: IS-M5x20 guide/blade/gearbox housing 9.5 Nm; IS-M4x16 gearbox cover/housing 3.5 Nm; IS-M5x20 FS gearbox housing/HS gearbox housing 7.0 Nm; M5 DS 550 mm blade/screw nut 9.5 Nm; IS-M11x8 screw plug/gearbox cover 5.5 Nm; IS-M11x8 screw plug/gearbox housing 5.5 Nm; M5x12 quadrant/housing 8.0 Nm; M4x10 guard plate/cover 3.5 Nm; M6x8 stud/housing 4.5 Nm; M5x12 adjusting lever/housing 8.0 Nm.
- These values preserve the printed joint descriptions, including FS/HS wording; they are not universal torque values for every same-size fastener. Quadrant/adjusting-lever entries do not prove these assemblies exist on a fixed 1996 head. The 10 Nm IS-M6x20 housing/drive-tube row carries 4, 12 only, not 13; no exact HL 75 clamp torque is established. Unmarked other-model rows and blanks are excluded, not converted to zero. Loctite 272 remark 18 belongs to a separate HT friction-clutch row, not an HL default. Following 3.2 HT chain lubrication is outside HL scope.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 3.1 preamble/table/legend; only exact HL 75-marked rows admitted.
Later manual evidence: STIHL KombiTools (2013-08), section Complete 3.1 preamble/table/legend; only exact HL 75-marked rows admitted, PDF pages 7, 8, 9
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 initial fills, top-up limits and generation split
The same-edition table distinguishes 27 g versus new-version 21 g blade fill, fixed-angle 11 g fill and a conditional 5 g maximum top-up.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- TypeA is STIHL gear lubricant; type B is STIHL multipurpose grease. HL/FH blade drive uses B: initial 27 g, or 21 g with remark 3 new version. Both rows allow maximum 5 g re-lubrication. HL 0° and HL 30° angle drive use A: initial 11 g each, maximum 5 g re-lubrication.
- For scope comparison only, adjustable HL 0–90° angle drive usesA20 g initial/max5 g top-up; HL 135° usesA11 g initial/max5 g and remark 3 new version. These alternatives do not identify a 1996 machine or justify applying chapter 7 new-version procedures to chapter 6 fixed heads. Other equipment rows are excluded. No serial boundary for the new version is printed.
- The procedure adds a condition to these maxima: top up only if no grease is visible on the inside of the screw plug. Initial fill is not a routine top-up quantity and maximum 5 g is not an instruction to add 5 g regardless of existing fill. The 2013 key changes 2007 lubricant names but retains the compared HL quantities; no chemical substitution is established.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 3.3 boundary; HL/FH rows and grease key admitted.
Later manual evidence: STIHL KombiTools (2013-08), section Complete 3.3 boundary; HL/FH rows and grease key admitted, PDF pages 10 · STIHL CombiTools (2007-02), section 4.3 all HL/FH rows and maintenance trigger in 7.6.1/7.6.4; unrelated gearbox rows outside this dependency scope, PDF pages 8, 31, 38
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Service note · HL 75 / HL 75 K
HL 75 reference: 2013 material identifiers and changed grease names
The 2013 aids table retains the earlier grease identifiers under different names and adds gray Dirko alongside HT red.
No exact-model IPL link: 2013-08 cover and model key name HL 75, not HL 75 K. A generic HL heading or later angle listing does not establish the original 1996 configuration.
- Row 1: STIHL lubricating grease, 225 g tube 0781 120 1111: oil seals, oil-pump drive, chain-sprocket bearing. Row 2: Press Fluid OH 723, 0781 957 9000: handle hose on drive tube. Row 3: special lubricant 0781 417 1315: rope-rotor bearing bore and rewind spring in fan housing. These are distinct listed applications, not proof every component exists on an HL attachment.
- Row 4: Dirko gray, 100 g tube 0783 830 2120: gearbox-housing sealing faces. Row 5: Dirko HT red, 90 g tube 0783 830 2000: gearbox-housing sealing faces, temperature resistant −50°C to +250°C. Row 6: standard commercial solvent-based degreasant without chlorinated or halogenated hydrocarbons: cleaning sealing faces; no identifier supplied. Package capacity and sealant temperature resistance are not grease fill or housing assembly temperature. Gray and red are separate materials, not interchangeable by inference.
- Row 7: STIHL multipurpose grease: 40 g, 0781 120 1021; 80 g, 0781 120 1109; 225 g, 0781 120 1110; application gearbox/drive shaft. Row 8: STIHL gear lubricant: 40 g, 0781 120 1022; 80 g, 0781 120 1117; 225 g, 0781 120 1118; same generic application. Row 9: STIHL resin solvent, 300 ml can 0782 420 1002: lubricating/cleaning cutting blades.
- The admitted 2007 aids table calls the 1021/1109/1110 group hedge-trimmer gear lubricant and the 1022/1117/1118 group brushcutter gear lubricant. The 2013 edition preserves those package identifiers under multipurpose grease and gear lubricant respectively. This is an observed identifier/name correspondence, not verified unchanged formulation, modern availability or authorization to substitute another product. Section 3.3 selects the proper group by gearbox.
- Later 2013-08 reference, not recovered original 1996 instructions or verified HL 75 K configuration. Identify the actual attachment and generation; consult the complete manual and separate operator instructions. No hardware operation was performed.
TI dependency: TI 41/1996, p. 3 — Complete 13 nine-row servicing-aids table.
Later manual evidence: STIHL KombiTools (2013-08), section Complete 13 nine-row servicing-aids table, PDF pages 111 · STIHL CombiTools (2007-02), section 11 rows6–8; package identifiers and applications, PDF pages 74
No parts-table entry added. Tool references, where present, are retained in the manual notes above.
Full text
Page 1 of 4
Text of page 1 — search, copy, screen readers
Technical Information
41.96
Model HL 75 K and HL 75 Long-reach Hedge Trimmers - Series 4230
The new STIHL HL 75 K and HL 75 long-reach The units are convenient to use because of their re-
hedge trimmers further expand the STIHL line of latively low weight, 6.1 kg/13.4 lb and 6.3 kg/
products for grounds maintenance. These units 13.9 lb respectively) and are equipped with a
are designed to supplement a conventional hedge powerful engine (0.9 kW/1.2 bhp).
trimmer.
The powerhead is the same as that used in
Two different versions are available so that users STIHL FS 75, 80 and 85 brushcutters. Many
can choose the unit that best suits the special other assemblies have been taken from these
applications concerned: brushcutter models (such as the control handle,
•=fn=the=str~ight=0 version=Eei=TR=hF=the=cutting===loop=h~ndleI=sh~ftI=ge~rhe~dFK
blades are in line with the drive shaft and
the unit has an overall length of approx. 200 cm The reciprocating cutting blades are 550 mm
(79 in). (21.6 in) long and double-edged to cut in both
•=fn=the=30 version=Eei=TRF=the=cutting=bl~des======directionsK
are fixed at an angle of 30° to the drive shaft
and the unit has an overall length of approx.
240 cm (94 in). Page 2 of 4
Text of page 2 — search, copy, screen readers
Technical Information 41.96 - Page 2
&RQWHQWV
1. Technical Description
2. Specifications
3. Cutting Blades
4. Special Accessories for User
5. Service Accessories
6. Repairs
1.=====Technical Description
Many of the assemblies are identical to those used in models FS 75, 80, 85 (engine, shaft, control handle,
loop handle) – differences are described in detail.
*HDUKHDG
• Construction as in STIHL FS 80, 85, with a connecting flange adapted for the cutting blade drive.
Cutting blade drive
• Construction as in STIHL HS 75, 80, 85, with modified connecting flange and housing.
2.========Specifications===============================================================fo
Specifications are generally the same as those of model FS 75, 80, 85 - the differences are listed below.
2.1 Engine
Model Sound pressure Sound power
level Lpeq level Lweq
to ISO 7917 1) to ISO 108841)
dB (A) dB (A)
HL 75 K (0° version) 91 103
HL 75 (30° version) 91 104
1)
Data includes idling, full load and full throttle/no load with the same duration of exposure
2.2=======Dimensions / Weights
2.2.1=Overall length
HL 75 K: approx. 200 cm (79 in)
HL 75: approx. 240 cm (94 in) Page 3 of 4
Text of page 3 — search, copy, screen readers
Technical Information 41.96 - Page 3
2.2.2=Weights
HL 75 K: 6.1 kg (13.4 lb)
HL 75: 6.3 kg (13.9 lb)
3.====Cutting Blade
Length 550 mm (21.6 in), double-edged, blade sharpening angle 45°
4.====Special Accessories for User
Part Name Part No. Application, Remarks
Flat sharpening file 0814 252 3356 Resharpening cutting blade
5.====Service Accessories
5.1===Special Servicing Tools
The same special servicing tools are required as for FS 75, 80, 85 brushcutters and HS 75, 80, 85 hedge
trimmers.
5.2===Servicing Aids
Part Name Part No. Application
Carburetor parts kit 4133 007 1060 Walbro WT 447
Carburetor parts kit 4226 007 1060 Zama C1Q-S28A
6.====Repairs
If the unit is started up in the course of repairs or maintenance work, always observe all local
regulations and the safety precautions outlined in the owner¶s manual.
Setting and test data as well as other procedures are generally the same as for model FS 75, 80, 85 -
differences are listed below.
6.1===Tightening Torques
Fastener Thread For Torque
size component Nm lbf.ft
Spline screw lS-M4x16 Gear cover/gear housing 3.5 2.6
Nut M5 Blade 9.5 7.0
Spline screw IS-M5x20 Blade guide/gear housing 9.5 7.0
Spline screw IS-M5x20 Gearhead/gear housing 9.5 7.0
Screw plug M11x10 Cutting blade drive 9.5 7.0 Page 4 of 4
Text of page 4 — search, copy, screen readers
Technical Information 41.96 - Page 4
6.2===Service Note=====================================Cod=Type of Repair=======================HL 75
H
A service manual will be made available for the
STIHL HL 75 in the foreseeable future.
This service manual contains no chapters on
1 Crankcase, Short Block 2.1
"Servicing the Carburetor", "Troubleshooting"
or standard repairs. These procedures are 2 Crankcase and/or Bearings 2.2
described in separate manuals. 3 Crankcase Gasket, Sealing 2.0
4 Crankshaft Seals 0.7
6.3===Repair Times=====================================R====`ylinder and/or Piston 0.8
6 Ignition 0.5
The specified repair times assume that the work 7 Fuel Hose, Fuel Supply 0.5
is performed by trained personnel in a properly
8 Replace Gear Box Assy 0.5
equipped service workshop.
9 Carburetor 0.7
The repair times are given in tenths of an hour 10 Fan Housing, Clutch Housing 0.8
(0.1 = 6 minutes). 11 Front Handle, Throttle 0.6
12 Recoil Starter 0.5
Note:=qhis repair times table for the long-reach 13 Clutch 0.5
hedge trimmers can be used to supplement the 14 Drive Tube, Drive Shaft 0.5
STIHL repair times table manual.
15 Muffler 0.4
16 Air Filter, Filter Cover 0.3
17
18
Stop Switch
Fuel Tank
0.4
0.4
19 Replace Arbor Gears 0.8
20 All Other Repairs & Misc. 0.5
Repairs
✂
Note:=^ll repairs include diagnostic time.
Andreas Stihl D1/MTK-sc
© 1996 Andreas Stihl Technical Documentation 5887 Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
