Model 020 T Chain saw - Series 112
IssueTI 44/1996
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1113 140 9200 | 1129 148 9200 | 1 The original twist lock 1113 140 9200 (plastic) will be replaced by twist lock 1129 148 9200 (metal). |
Full text
Page 1 of 2

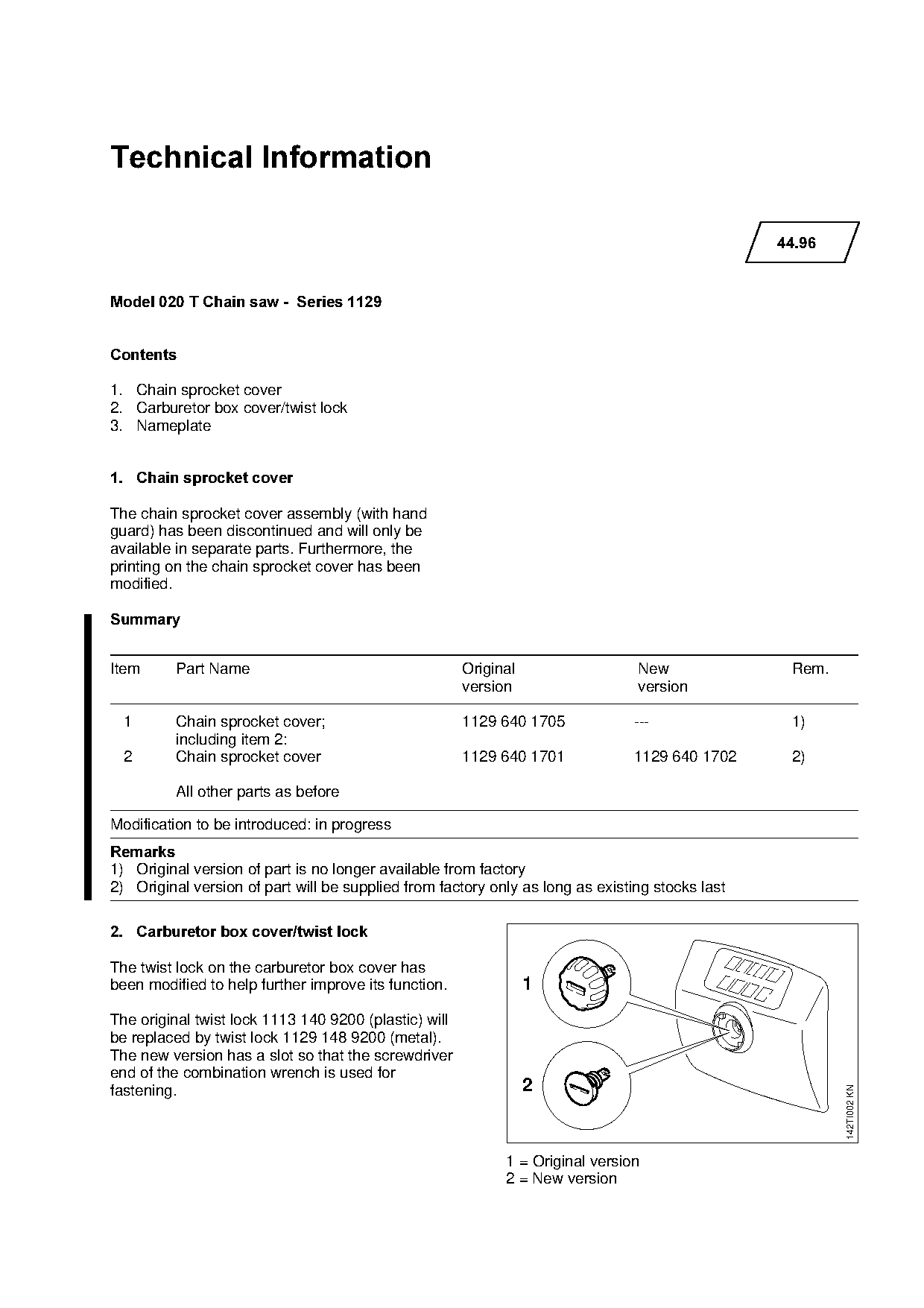

Technical Information
44.96
Model 020 T Chain saw - Series 112
&RQWHQWV
1. Chain sprocket cover
2. Carburetor box cover/twist lock
3. Nameplate
1.=Chain sprocket cover
The chain sprocket cover assembly (with hand
guard) has been discontinued and will only be
available in separate parts. Furthermore, the
printing on the chain sprocket cover has been
modified.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Chain sprocket cover; 1129 640 1705 --- 1)
including item 2:
2 Chain sprocket cover 1129 640 1701 1129 640 1702 2)
All other parts as before
Modification to be introduced: in progress
5HPDUNV
1) Original version of part is no longer available from factory
2) Original version of part will be supplied from factory only as long as existing stocks last
2.=Carburetor box cover/twist lock
The twist lock on the carburetor box cover has
been modified to help further improve its function. 1
The original twist lock 1113 140 9200 (plastic) will
be replaced by twist lock 1129 148 9200 (metal).
The new version has a slot so that the screwdriver
end of the combination wrench is used for
fastening. 2
142TI002 KN
1 = Original version
2 = New version Page 2 of 2

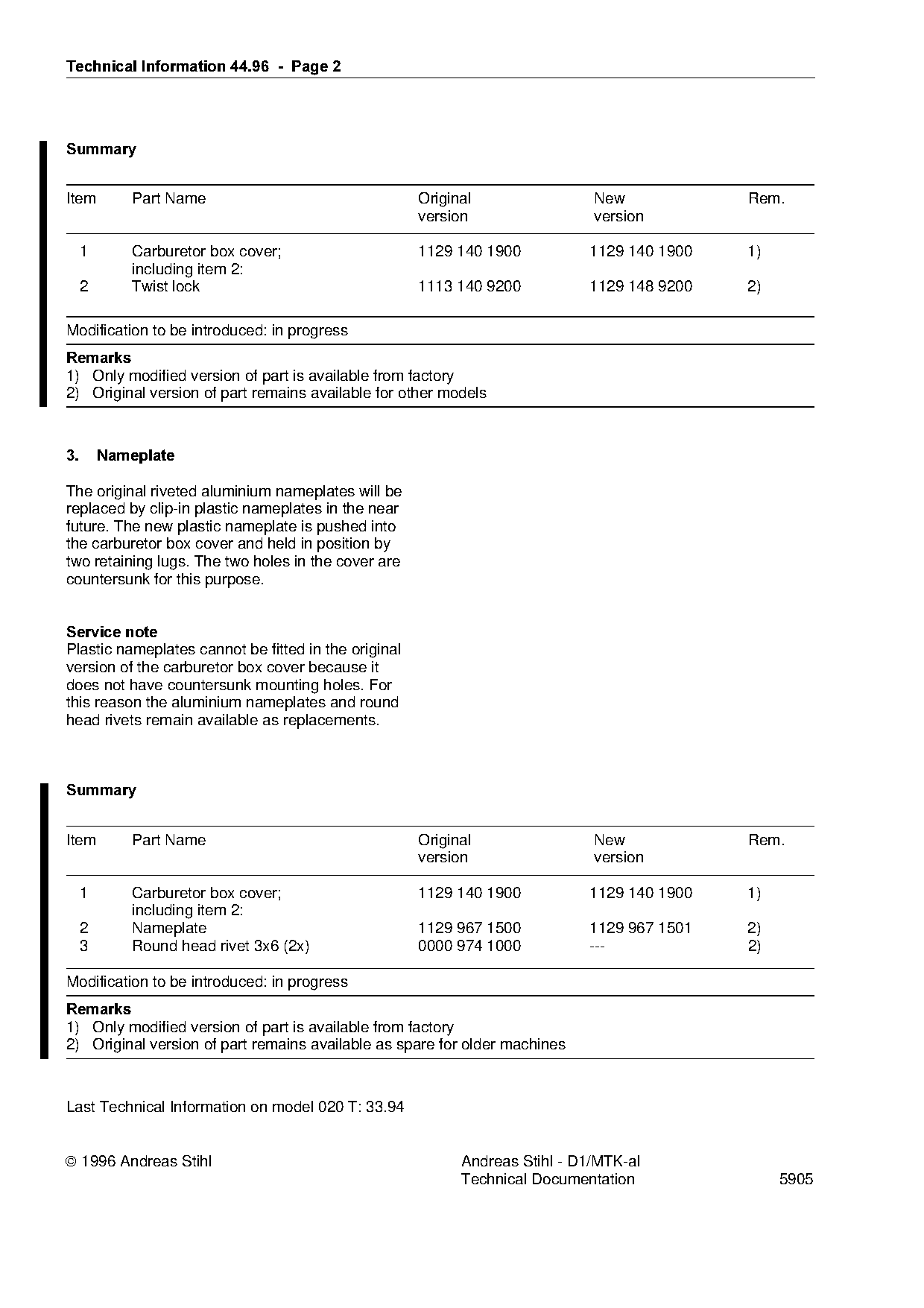

Technical Information 44.96 - Page 2
6XPPDU\
Item Part Name Original New Rem.
version version
1 Carburetor box cover; 1129 140 1900 1129 140 1900 1)
including item 2:
2 Twist lock 1113 140 9200 1129 148 9200 2)
Modification to be introduced: in progress
5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part remains available for other models
3.= Nameplate
The original riveted aluminium nameplates will be
replaced by clip-in plastic nameplates in the near
future. The new plastic nameplate is pushed into
the carburetor box cover and held in position by
two retaining lugs. The two holes in the cover are
countersunk for this purpose.
Service note
Plastic nameplates cannot be fitted in the original
version of the carburetor box cover because it
does not have countersunk mounting holes. For
this reason the aluminium nameplates and round
head rivets remain available as replacements.
6XPPDU\
Item Part Name Original New Rem.
version version
1 Carburetor box cover; 1129 140 1900 1129 140 1900 1)
including item 2:
2 Nameplate 1129 967 1500 1129 967 1501 2)
3 Round head rivet 3x6 (2x) 0000 974 1000 --- 2)
Modification to be introduced: in progress
5HPDUNV
1) Only modified version of part is available from factory
2) Original version of part remains available as spare for older machines
Last Technical Information on model 020 T: 33.94
