Technical Information · issue 45 of 1996
AV system; tank vent
IssueTI 45/1996
From serial 35 033 958
Full text
Page 1 of 2
Technical Information
45.96
STIHL TS 400 cut-off machine - type 4223
&RQWHQWV
1. AV system (harder rubber buffers, front handle mounting)
2. Tank vent (sintered filter)

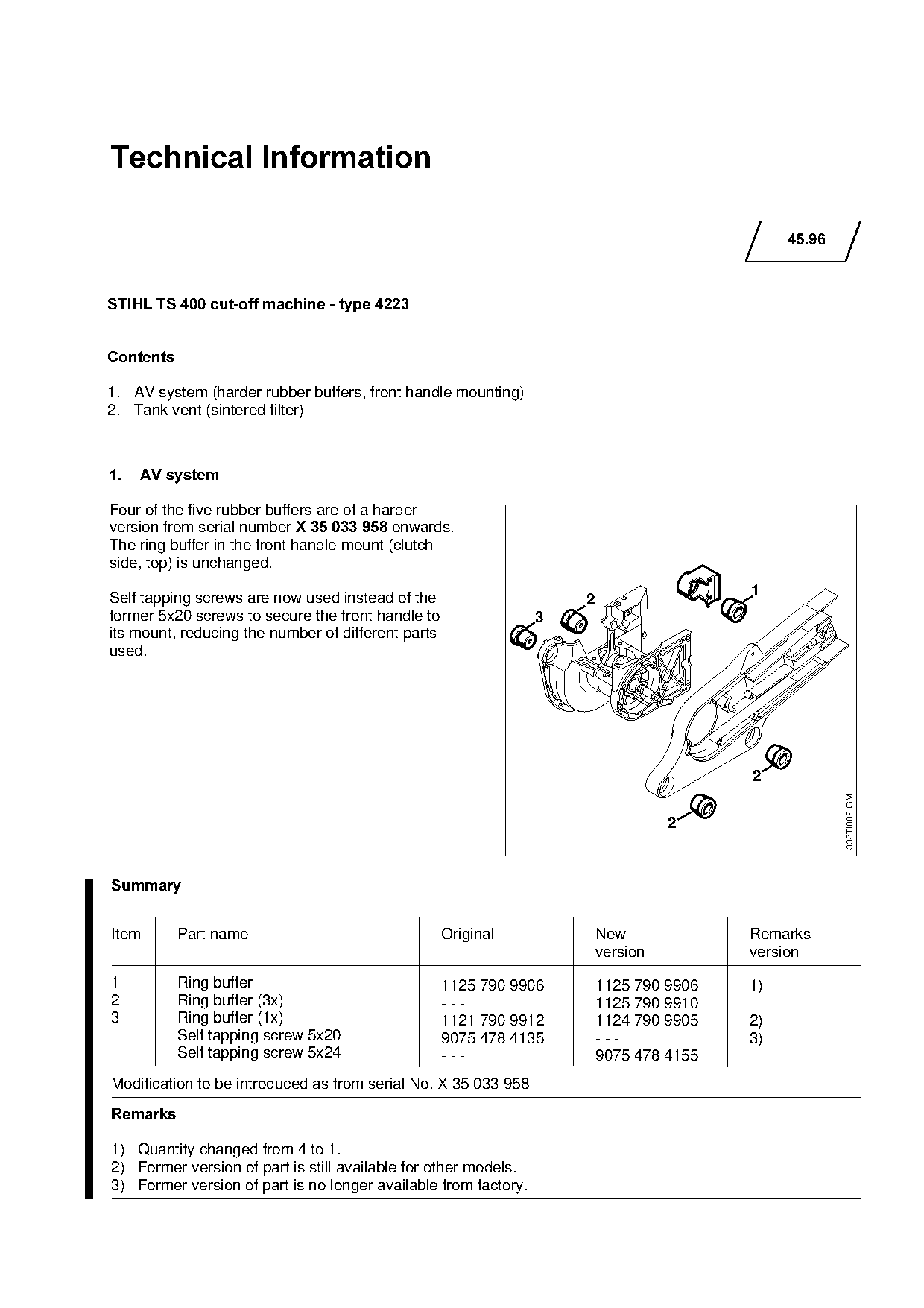

1.===AV system
Four of the five rubber buffers are of a harder
version from serial number X 35 033 958=onwards.
The ring buffer in the front handle mount (clutch
side, top) is unchanged.
1
Self tapping screws are now used instead of the 2
former 5x20 screws to secure the front handle to 3
its mount, reducing the number of different parts
used.
338TI009 GM
6XPPDU\
Item Part name Original New Remarks
version version
1 Ring buffer 1125 790 9906 1125 790 9906 1)
2 Ring buffer (3x) --- 1125 790 9910
3 Ring buffer (1x) 1121 790 9912 1124 790 9905 2)
Self tapping screw 5x20 9075 478 4135 --- 3)
Self tapping screw 5x24 --- 9075 478 4155
Modification to be introduced as from serial No. X 35 033 958
5HPDUNV
1) Quantity changed from 4 to 1.
2) Former version of part is still available for other models.
3) Former version of part is no longer available from factory.
)Technical Information 45.96 - Page 2

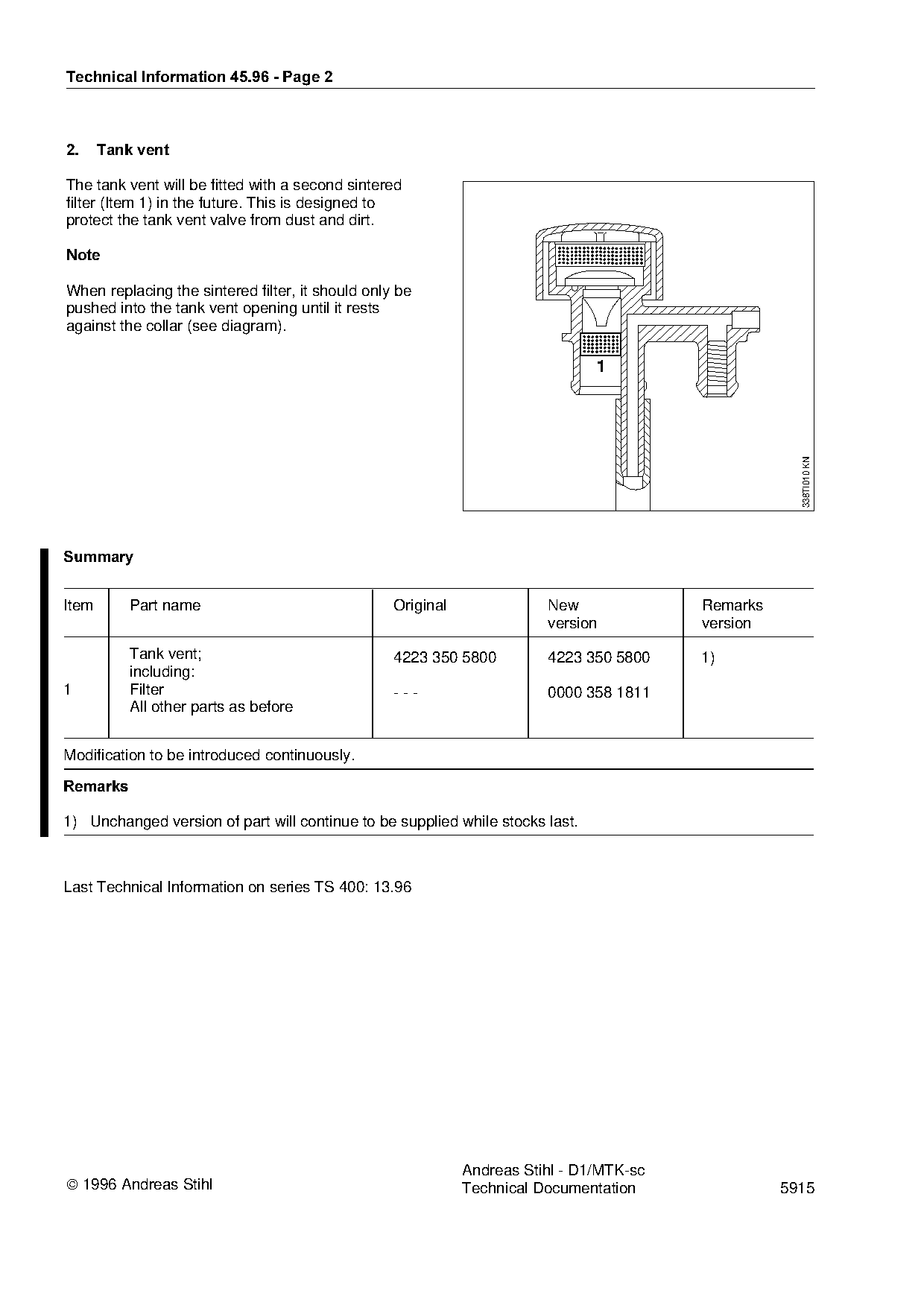

2.=====Tank vent
The tank vent will be fitted with a second sintered
filter (Item 1) in the future. This is designed to
protect the tank vent valve from dust and dirt.
1RWH
When replacing the sintered filter, it should only be
pushed into the tank vent opening until it rests
against the collar (see diagram).
338TI010 KN
6XPPDU\ fo
Item Part name Original New Remarks
version version
Tank vent; 4223 350 5800 4223 350 5800 1)
including:
1 Filter --- 0000 358 1811
All other parts as before
Modification to be introduced continuously.
5HPDUNV
1) Unchanged version of part will continue to be supplied while stocks last.
Last Technical Information on series TS 400: 13.96
Andreas Stihl - D1/MTK-sc
1996 Andreas Stihl Technical Documentation 5915 Page 2 of 2
