Technical Information · issue 46 of 1996

Carburetor; engine; support plate in manifold; tan

IssueTI 46/1996
Serial references — see context below 33 998 043

Part changes (1)

WasBecomesWhat the bulletin says
9640 003 1885 9640 003 1888 The crankshaft oil seal 9640 003 1885 on the clutch side will be replaced by version 9640 003 1888 in the near future.

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Historical fitment · TS 460

TS 460 HS 276 A to B: larger fixed jet, unchanged carburetor number

From X 33 998 043: jet 4221 121 5600 (0.77 mm) becomes 4221 121 5601 (0.83 mm).

No exact-model IPL link: No exact HS 276 A or HS 276 B assembly sheet in retained TS 460 IPL; HS 276 D and HS 275 B are not substituted. Source-bulletin and global search delivery retain exact model/type evidence.

X 33 998 043 — HS 276 A-to-B fixed-jet modification only; not the running changes in sections 2–4.

  • TI 46/1996 names TS 460 type 4221. Modified carburetor 4221 120 0602 is introduced FROM X 33 998 043. The fixed jet changes from0.77 mm to0.83 mm, and consequently the type designation changes from HS 276 A to HS 276 B. The original scan clearly prints A and B where extracted prose has encoded characters.
  • The summary uses separate HS 276 A and HS 276 B rows with the SAME 4221 120 0602 number in opposite columns; both descriptions include fixed jet item 1. Other parts remain as before. This is a changed internal calibration/type designation under an unchanged assembly number, not a new assembly part number or a universal instruction to enlarge any jet.
  • Remark 1:only the modified carburetor is now factory-available. Remark 2:the former fixed jet is no longer factory-available. These are1996 supply statements, no present-stock proof. No mixture-adjustment turns or numeric engine performance limits are supplied.
  • The retained TS 460 catalog has HS 276 D/HS 275 B sheets, but no exact HS 276 A/B assembly sheet. Even the same fixed-jet number on a later D sheet does not make that an original B diagram. This source-only note remains searchable on its own bulletin; the earlier HS 276 A note remains unchanged.
  • This is historical source guidance, not present stock or a verified physical interchange. Later IPL sheets are navigation, not a reconstruction of the 1996 configuration. No hardware operation was performed.

Source: TI 46/1996, p. 1 — TS 460 HS 276 A to B: larger fixed jet, unchanged carburetor number.

Part numbers (3)
  • 4221 120 0602 — Carburetor HS 276 A / HS 276 BUnchanged number; type changes A to B · TS 460; B introduced from X33 998 043
  • 4221 121 5600 — Fixed jet0.77 mmOriginal HS 276 A jet · TS 460; no longer factory-available in1996 notice
  • 4221 121 5601 — Fixed jet0.83 mmNew HS 276 B jet · TS 460; specified internal change only

Full text

Page 1 of 3

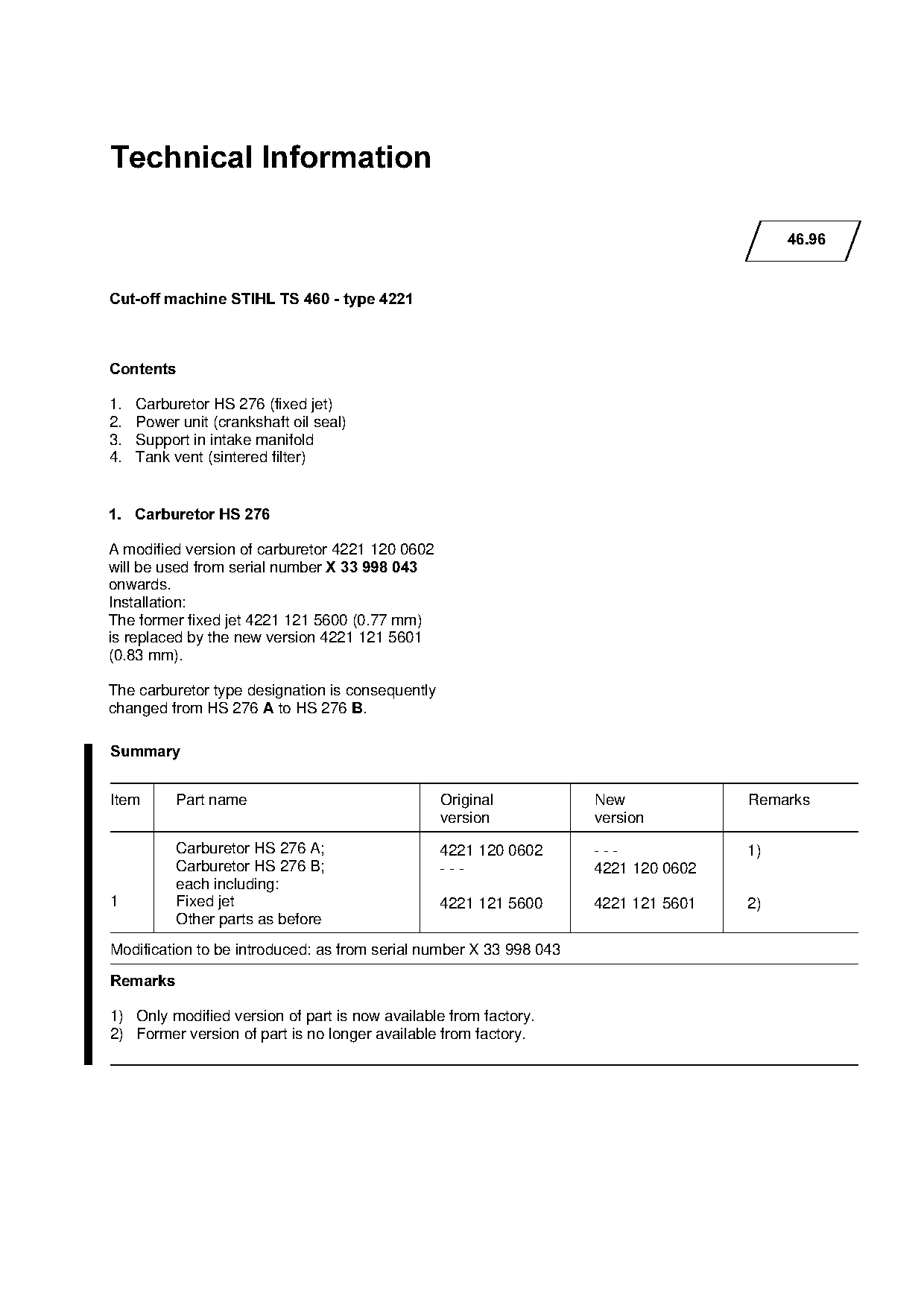

TI 46/1996 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                                         46.96

Cut-off machine STIHL TS 460 - type 4221

&RQWHQWV

1.   Carburetor HS 276 (fixed jet)
2.   Power unit (crankshaft oil seal)

3.   Support in intake manifold
4.   Tank vent (sintered filter)

1.=Carburetor HS 276

A modified version of carburetor 4221 120 0602
will be used from serial number X 33 998 043
onwards.
Installation:
The former fixed jet 4221 121 5600 (0.77 mm)
is replaced by the new version 4221 121 5601

(0.83 mm).

The carburetor type designation is consequently
changed from HS 276 $ to HS 276 %.

6XPPDU\

Item       Part name                              Original          New             Remarks

                                                  version           version

           Carburetor HS 276 A;                   4221 120 0602     ---             1)
           Carburetor HS 276 B;                   ---               4221 120 0602
           each including:
1          Fixed jet                              4221 121 5600     4221 121 5601   2)

           Other parts as before

Modification to be introduced: as from serial number X 33 998 043

5HPDUNV

1) Only modified version of part is now available from factory.
2) Former version of part is no longer available from factory.

Page 2 of 3

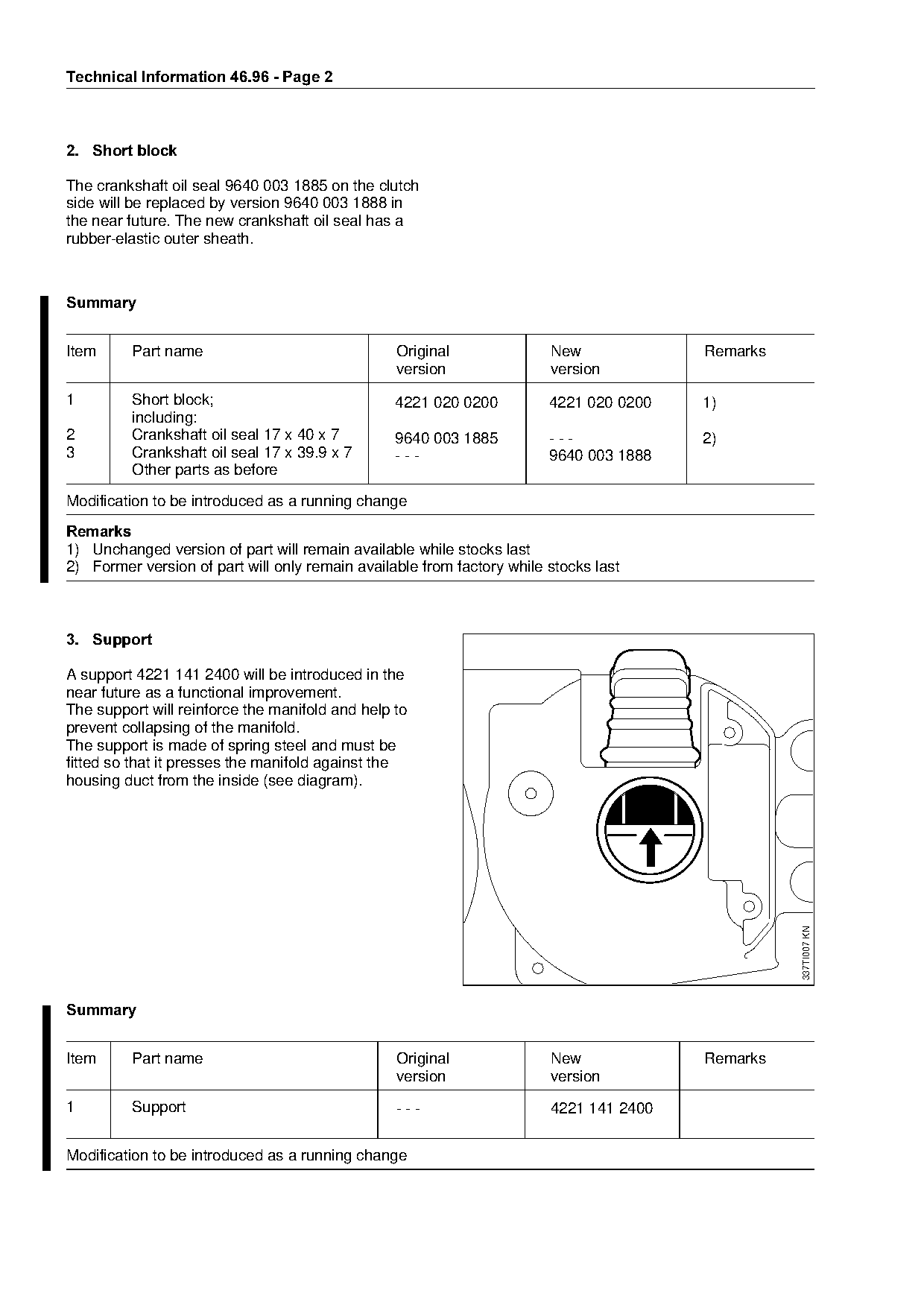

TI 46/1996 page 2
Text of page 2 — search, copy, screen readers
Technical Information 46.96 - Page 2

2.=Short block

The crankshaft oil seal 9640 003 1885 on the clutch
side will be replaced by version 9640 003 1888 in
the near future. The new crankshaft oil seal has a
rubber-elastic outer sheath.

6XPPDU\

Item     Part name                               Original               New             Remarks

                                                 version                version

1        Short block;                            4221 020 0200          4221 020 0200   1)
         including:
2        Crankshaft oil seal 17 x 40 x 7         9640 003 1885          ---             2)

3        Crankshaft oil seal 17 x 39.9 x 7       ---                    9640 003 1888
         Other parts as before

Modification to be introduced as a running change
5HPDUNV
1) Unchanged version of part will remain available while stocks last
2) Former version of part will only remain available from factory while stocks last

3.=Support

A support 4221 141 2400 will be introduced in the
near future as a functional improvement.

The support will reinforce the manifold and help to
prevent collapsing of the manifold.

The support is made of spring steel and must be
fitted so that it presses the manifold against the
housing duct from the inside (see diagram).

                                                                                                  337TI007 KN

6XPPDU\

Item     Part name                               Original               New             Remarks
                                                 version                version
1        Support                                 ---                    4221 141 2400

Modification to be introduced as a running change

Page 3 of 3

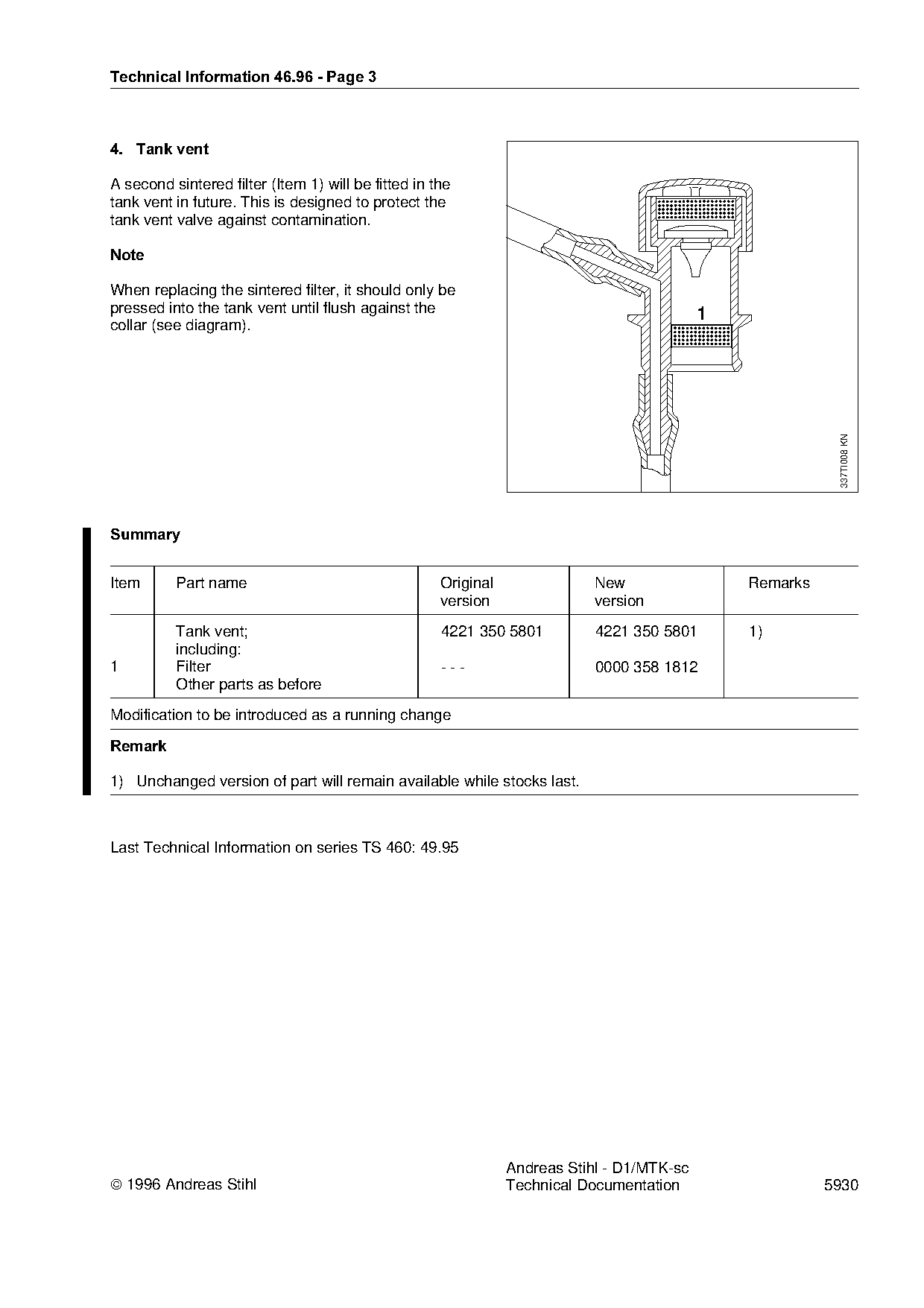

TI 46/1996 page 3
Text of page 3 — search, copy, screen readers
Technical Information 46.96 - Page 3

4.=Tank vent

A second sintered filter (Item 1) will be fitted in the
tank vent in future. This is designed to protect the
tank vent valve against contamination.

1RWH

When replacing the sintered filter, it should only be
pressed into the tank vent until flush against the                                          1
collar (see diagram).

                                                                                                           337TI008 KN
6XPPDU\
Item      Part name                                  Original               New                 Remarks
                                                     version                version

          Tank vent;                                 4221 350 5801          4221 350 5801       1)

          including:
1         Filter                                     ---                    0000 358 1812
          Other parts as before

Modification to be introduced as a running change

5HPDUN

1) Unchanged version of part will remain available while stocks last.

Last Technical Information on series TS 460: 49.95

                                                                Andreas Stihl - D1/MTK-sc
 1996 Andreas Stihl                                            Technical Documentation                   5930

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
