Technical Information · issue 47 of 1996

New telescopic pruner

IssueTI 47/1996

Historical fitment & changes

Source-reviewed model notes. An exact-model IPL link is unavailable where stated; no similar model is substituted. Availability statements belong to the bulletin’s date.

Service note · HT 75

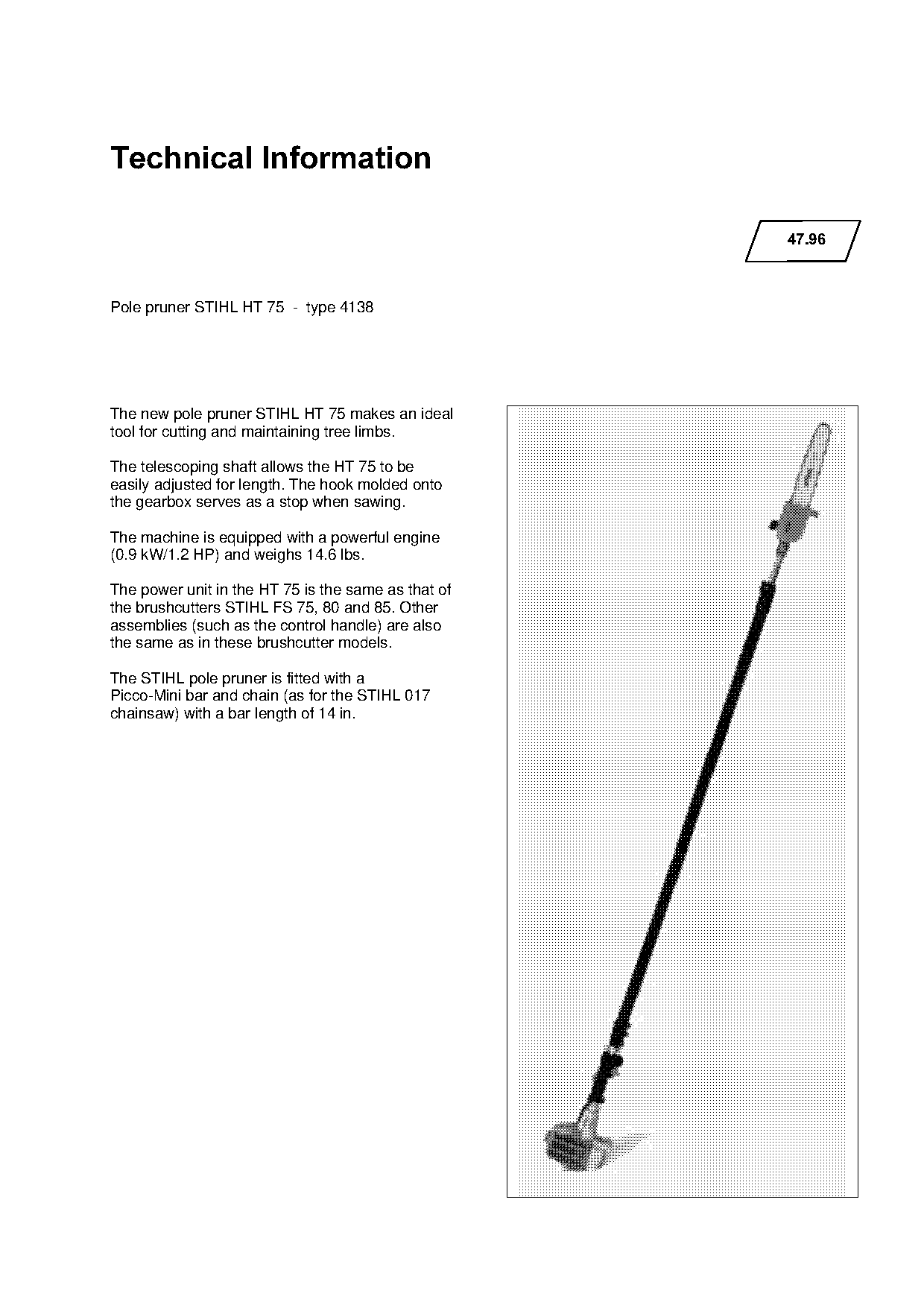

HT 75 introduction: shared powerhead is not universal interchange

Telescoping shaft, molded gearbox stop, 90° spiral-toothed gear and qualified FS/017/021-family references.

No exact-model IPL link: Historical model-level description; no exact original 1996 assembly or order-number mapping is established by this notice.

  • The machine is introduced for cutting and maintaining tree limbs. Its telescoping shaft adjusts length; the hook molded onto the gearbox serves as a stop when sawing. The complete-machine photograph is descriptive, not a dimensioned parts drawing.
  • The power unit and engine are described as the same as FS 75, FS 80 and FS 85; other assemblies, such as the control handle, are also said to be the same. The bulletin supplies no cross-model assembly order numbers or version limits, so this is not permission to swap every component across those models.
  • The profiled shaft is pre-lubricated and runs in supportive tubing and ball bearings. The gearbox is a spiral-toothed 90° pinion gear with a cutting-attachment mount.
  • The oil pump has the SAME MECHANICAL DESIGN as STIHL 021, 023 and 025. That wording does not establish identical complete pump assemblies or replacement numbers. The cutting attachment is compared with 017, with differences to be specified; retain the actual HT 75 cutting specification separately.
  • The original heading specifies HT 75, type 4138. Later exact-model IPL navigation is grouped under 4137 and also names HT 70; this does not establish series equivalence or HT 70 applicability. No introduction serial is printed. No hardware operation was performed.

Source: TI 47/1996, p. 1 · TI 47/1996, p. 2 — HT 75 introduction: shared powerhead is not universal interchange.

No additional parts-table entry added.

Service note · HT 75

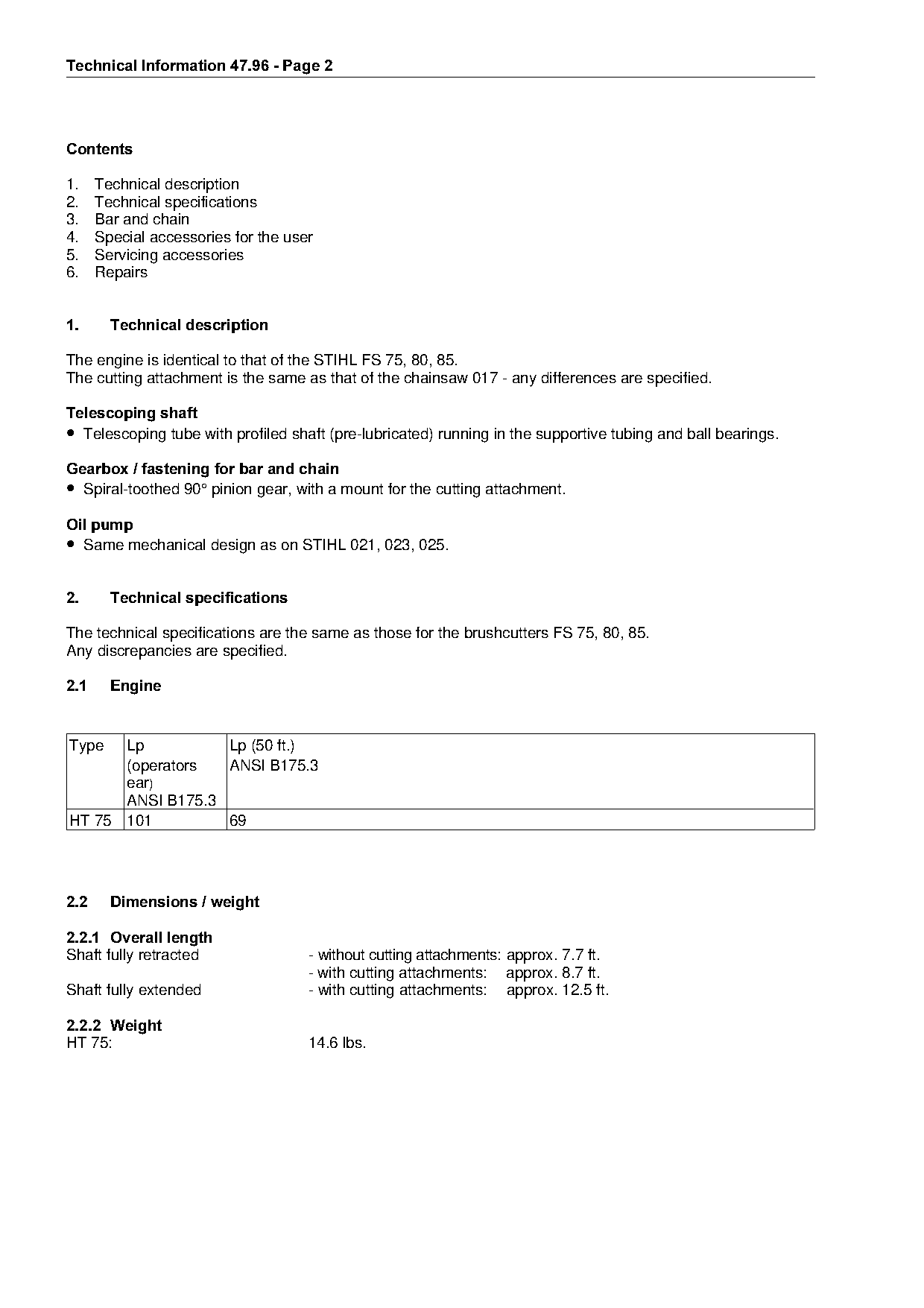

HT 75 introduction: printed power, sound and extended lengths

0.9 kW / 1.2 HP; 14.6 lb; approximate 7.7, 8.7 and 12.5 ft lengths retain their attachment conditions.

No exact-model IPL link: Historical model-level description; no exact original 1996 assembly or order-number mapping is established by this notice.

  • Page 1 prints 0.9 kW / 1.2 HP and weight 14.6 lbs; page 2 repeats 14.6 lbs without a fuel, lubricant or attachment-weight basis. Do not infer dry weight or a modern test standard.
  • Shaft fully retracted WITHOUT cutting attachment: approximately 7.7 ft. Fully retracted WITH cutting attachment: approximately 8.7 ft. Fully extended WITH cutting attachment: approximately 12.5 ft. No fully extended length without the cutting attachment is given.
  • The two sound columns are Lp at the operators ear, ANSI B175.3: 101; and Lp at 50 ft, ANSI B175.3: 69. The original table does not explicitly print a dB or dB(A) unit. Preserve the labels and numbers without inventing weighting, uncertainty, engine speed or exposure limits.
  • Other technical specifications are referred to FS 75 / 80 / 85, with discrepancies to be specified. Those absent base values are not reconstructed from a later engine or a nearby model; exact source/edition reconciliation remains pending.
  • The original heading specifies HT 75, type 4138. Later exact-model IPL navigation is grouped under 4137 and also names HT 70; this does not establish series equivalence or HT 70 applicability. No introduction serial is printed. No hardware operation was performed.

Source: TI 47/1996, p. 1 · TI 47/1996, p. 2 — HT 75 introduction: printed power, sound and extended lengths.

No additional parts-table entry added.

Service note · HT 75

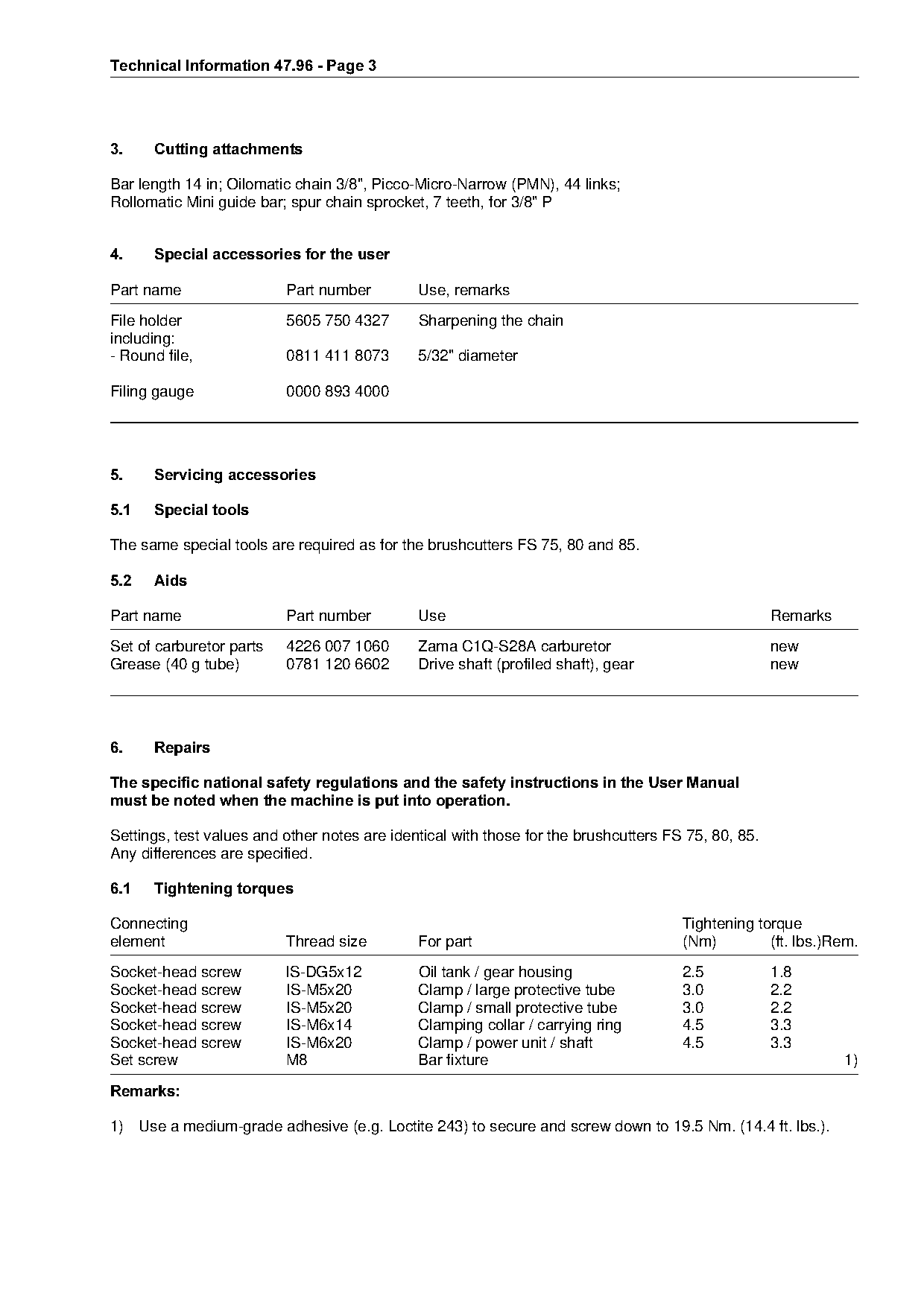

HT 75 introduction: file holder, 5/32-inch round file and gauge

5605 750 4327 includes round file 0811 411 8073; filing gauge 0000 893 4000 is listed separately.

No exact-model IPL link: Historical model-level description; no exact original 1996 assembly or order-number mapping is established by this notice.

  • Section 4 lists file holder 5605 750 4327 for sharpening the chain, including round file 0811 411 8073 of 5/32-inch diameter. Filing gauge 0000 893 4000 is a separate row, not an item explicitly included in the holder.
  • No filing angle, depth-gauge setting, replacement interval or modern product equivalence is supplied. These accessories relate to the historical HT 75 cutting equipment; this is not a universal file assignment for every current Picco chain.
  • The original heading specifies HT 75, type 4138. Later exact-model IPL navigation is grouped under 4137 and also names HT 70; this does not establish series equivalence or HT 70 applicability. No introduction serial is printed. No hardware operation was performed.

Source: TI 47/1996, p. 3 — HT 75 introduction: file holder, 5/32-inch round file and gauge.

Part numbers (3)
  • 5605 750 4327 — File holder including round fileHistorical sharpening accessory · HT 75 configuration described in TI47/1996 only
  • 0811 411 8073 — Round file, 5/32-inch diameterIncluded file · HT 75 configuration described in TI47/1996 only
  • 0000 893 4000 — Filing gaugeSeparately listed accessory · HT 75 configuration described in TI47/1996 only

Service note · HT 75

HT 75 introduction: C1Q-S28A carburetor parts set

4226 007 1060 is listed as new for Zama C1Q-S28A, not for every later C1Q-S28 variant.

No exact-model IPL link: No exact HT 75 C1Q-S28A IPL sheet; later C1Q-S28E / C1Q-S41C is not substituted.

  • Section 5.2 identifies set of carburetor parts 4226 007 1060 for Zama C1Q-S28A, with remark NEW. It gives neither complete carburetor number nor individual kit contents, adjustment settings or a numerical introduction boundary.
  • The retained exact HT 70 / HT 75 carburetor sheet identifies later C1Q-S28E / C1Q-S41C and a 1999 applicability boundary. It is not an exact C1Q-S28A sheet. Do not attach this note as unconditional kit fitment to those later variants.
  • The original heading specifies HT 75, type 4138. Later exact-model IPL navigation is grouped under 4137 and also names HT 70; this does not establish series equivalence or HT 70 applicability. No introduction serial is printed. No hardware operation was performed.

Source: TI 47/1996, p. 3 — HT 75 introduction: C1Q-S28A carburetor parts set.

Part numbers (1)
  • 4226 007 1060 — Set of carburetor partsZama C1Q-S28A servicing set · HT 75 configuration described in TI47/1996 only

Service note · HT 75

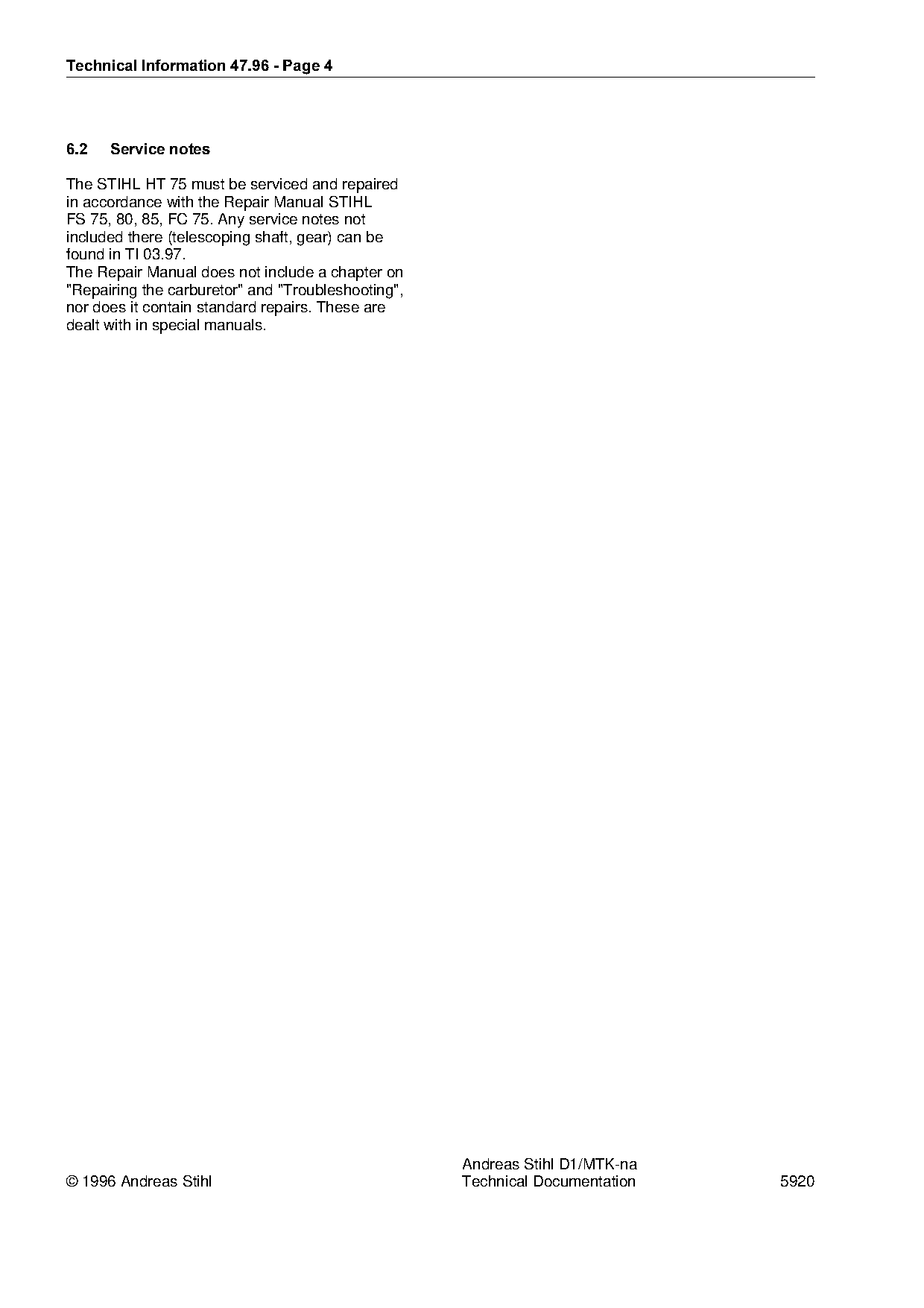

HT 75 introduction: base repair manual and supplemental service limits

FS 75 / 80 / 85 / FC 75 repair manual plus TI03/1997; carburetor, troubleshooting and standard repairs are separate references.

No exact-model IPL link: Historical model-level description; no exact original 1996 assembly or order-number mapping is established by this notice.

  • Section 5.1 refers special tools to FS 75, FS 80 and FS 85. Section 6 similarly refers settings, test values and other notes, with differences specified. The TI does not enumerate those missing tools or base settings.
  • Section 6.2 requires the STIHL FS 75, 80, 85, FC 75 Repair Manual for HT 75 service. Telescoping-shaft and gear notes absent there are directed to TI03/1997. That retained TI has already been reviewed; its explicitly superseding TI14/1999 and unresolved E14/E20 tensioner dependency remain distinct.
  • The base Repair Manual is said NOT to contain Repairing the carburetor, Troubleshooting or standard repairs; these are dealt with in special manuals. No titles, edition dates or order numbers for those special manuals are specified.
  • Section 6 requires national safety regulations and the User Manual safety instructions when the machine is put into operation. A service manual, a product photograph or this TI is not a substitute for the operator manual.
  • Relevant later 2004 Powerhead and 2005 HT component specifications, tools, procedures and access prerequisites are separately reviewed. Bounded reconciliation of 766 resource PDFs, 41 owner-pool PDFs and 79 retained non-TI/non-IPL document metadata rows did not identify the exact original FS 75 / 80 / 85 / FC 75 base edition, its unspecified separate repair manuals or an applicable HT 75 operator manual. The bulletin is dispositioned WITH DOCUMENTED SOURCE GAPS, not recovered original procedures or a complete manual. No whole-archive absence claim is made.
  • The original heading specifies HT 75, type 4138. Later exact-model IPL navigation is grouped under 4137 and also names HT 70; this does not establish series equivalence or HT 70 applicability. No introduction serial is printed. No hardware operation was performed.

Source: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 introduction: base repair manual and supplemental service limits.

No additional parts-table entry added.

Service note · HT 75

HT 75 later manual: 2005 scope, fixture and separate operator instructions

The collection HT75 PDF is a 2005-04 HT70/HT75 component service manual, not the original FS manual or operator instructions.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Cover: STIHL Series 4137 Components HT, 2005-04. Introduction explicitly names HT70 and HT75 based on the series4137 powerhead. Unqualified procedures are common within those two models; specific machine restrictions take precedence. Illustrative differences do not erase those restrictions.
  • Engine-component and CombiTool repairs are delegated to Series4137 Powerhead and CombiTools manuals. The latest relevant IPL establishes replacement numbers/installed positions; technical information supplements the manual and IPL for subsequent changes. Troubleshooting also refers to the STIHL Service Training System.
  • The contents distinguish control handles up to1997, up to2001 and from2002; drive-shaft/flexible-liner section10.1 explicitly says HT70, while telescopic section10.3 says HT75. Contents are navigation, not reviewed body procedures.
  • For fixture mounting, use assembly stand5910 893 3100 with clamp5910 890 8800; the illustrated machine can swivel into position. This is the later fixture pairing, not evidence of1996 fixture numbers. Source tells readers to use original STIHL parts and identifies number/logo/symbol markings.
  • The manual states it is for properly equipped repair shops and must not be passed to third parties. These notices are retained as source context; this local review makes no publication/license claim.
  • Safety chapter separately requires local/national regulations and instruction-manual precautions if the engine is started. Gasoline is extremely flammable and may explode; keep fire/flames/sparks/heat away, perform fuel work outdoors only and wipe spills immediately. This service-manual warning is not complete operator-instruction recovery.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 later manual: 2005 scope, fixture and separate operator instructions.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 later manual: 2005 scope, fixture and separate operator instructions, PDF pages 1, 2, 3, 4

Part numbers (2)
  • 5910 893 3100 — Assembly standLater manual service reference · Mounting machine to workbench with specified clamp; HT75 scope of 2005-04 manual only
  • 5910 890 8800 — ClampLater manual service reference · Holding drive tube in conjunction with assembly stand; HT75 scope of 2005-04 manual only

Service note · HT 75

HT 75 later fuel specifications: pressure and speed signs retained

2005 manual: carburetor leakage 80 kPa gauge; vent 50 kPa gauge / 20 kPa vacuum; idle 2800 and cut-off 10500 rpm.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Complete section3.1 identifies diaphragm carburetor, leakage test at GAUGE pressure80 kPa (0.8 bar), rated idle speed2,800 rpm and rated cut-off speed10,500 rpm. Cut-off is the source label,not a recommended idle or a tachometer test performed here.
  • Fuel mixture: regular brand-name gasoline minimum90 RON with STIHL50:1 two-stroke engine oil; the instruction manual supplies further details. Do not relabel90 RON as an AKI pump rating or omit the instruction-manual dependency.
  • Tank-vent operation is separately listed at gauge pressure50 kPa (0.5 bar) and UNDER VACUUM20 kPa (0.2 bar). Preserve the pressure direction and stated magnitudes; these are not three interchangeable leak-test thresholds.
  • This specifications page gives no exact carburetor suffix, test apparatus sequence, holding time or pass/fail leakage rate. It does not bind those values to the1996 C1Q-S28A or replace later body-section testing instructions.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 later fuel specifications: pressure and speed signs retained.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 later fuel specifications: pressure and speed signs retained, PDF pages 1, 3, 5

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 later torque table: all 21 rows and three HT 75-only clamps

2005 table keeps 0.5 Nm locking/5.5 Nm AV clamp separate from the 1996 values, and retains washer and existing-thread rules.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • All21 table rows are transcribed below as Nm followed by printed lbf.ft, preserving repeated fastener sizes and rows. General applicability follows the introduction; the three remark1 clamp rows explicitly say HT75 ONLY.
  • 1. IS-P4x16; Control handle molding outer/inner: 1 Nm (0.75 lbf.ft).
  • 2. IS-M5x12; Control handle clamp/drive tube: 5 Nm (3.7 lbf.ft).
  • 3. M5 nut; Filter housing/carburetor/flange/screw: 4 Nm (3 lbf.ft).
  • 4. IS-M5x16; Shroud/fan housing: 3.5 Nm (2.6 lbf.ft).
  • 5. IS-M5x16; Shroud/starter cover/crankcase: 3.5 Nm (2.6 lbf.ft).
  • 6. IS-M5x20; AV sleeve clamp screw: 5.5 Nm (4 lbf.ft).
  • 7. IS-DG5x12; AV sleeve/drive tube locking: 0.5 Nm (0.37 lbf.ft).
  • 8. IS-M5x20; Large clamp/drive tube/nut: 3 Nm (2.2 lbf.ft); remark1:HT75 only.
  • 9. IS-M5x20; Small clamp/drive tube/nut: 3 Nm (2.2 lbf.ft); remark1:HT75 only.
  • 10. IS-M6x25; Drive-tube clamp/powerhead/nut: 3 Nm (2.2 lbf.ft); remark1:HT75 only.
  • 11. M8; Clutch carrier/flywheel/crankshaft: 26 Nm (19.2 lbf.ft).
  • 12. IS-M5x16; Fan housing/crankcase: 8 Nm (5.9 lbf.ft).
  • 13. M8; Carrier: 14 Nm (10.3 lbf.ft).
  • 14. IS-5x16; Muffler/crankcase: 9.5 Nm (7 lbf.ft).
  • 15. IS-5x16; Muffler/cylinder: 11.5 Nm (8.5 lbf.ft).
  • 16. IS-M6x14; Clamp/drive tube/harness attachment point: 4.5 Nm (3.3 lbf.ft).
  • 17. IS-M5x16; Starter cover/crankcase: 5.5 Nm (4 lbf.ft).
  • 18. IS-M5x25; Spacer flange/cylinder(with washer): 5.5 Nm (4 lbf.ft).
  • 19. IS-M5x25; Spacer flange/cylinder: 5.5 Nm (4 lbf.ft); remark2:with washer.
  • 20. IS-P5.5x12; Rope rotor/starter cover: 2.5 Nm (1.8 lbf.ft).
  • 21. M14x1.25; Spark plug: 20 Nm (15 lbf.ft).
  • The two spacer-flange rows remain separate: one says with washer in the component text; the other refers to remark2,also with washer. They are not proof of a washerless option.
  • DG/P screws form permanent threads in polymer/light metal. Reinstallation requires the specified torque and a torque wrench. Turn counterclockwise until the screw drops into the existing thread,then tighten clockwise; do not cut a new thread. Polymer power-driver maximums: Plastoform600rpm,DG500rpm. Do not mix screws with and without binding head.
  • The2005 AV-sleeve locking0.5Nm/clamp5.5Nm and HT75-only M6x25 powerhead clamp3Nm differ from differently named1996/1997 rows. Preserve those editions and geometries rather than averaging or silently replacing them. This table has no1996 M8 bar-fixture adhesive row.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 later torque table: all 21 rows and three HT 75-only clamps.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 later torque table: all 21 rows and three HT 75-only clamps, PDF pages 1, 3, 6, 7

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 later service tools:20 rows plus two torque-wrench alternatives

Preserve both clutch-drum drifts, named fixture pair and the 0301/0311 wrench ranges and alternatives.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Complete section11 has20numbered rows and three remarks. The parts list below preserves every printed number/application,including the two differently described clutch-drum drifts. No geometric equivalence or universal substitute inferred.
  • Remark1 requires a torque wrench when tightening DG or P screws. Row15 permits electric/pneumatic use of the T27x125 socket for removal/installation but explicitly requires a torque wrench for tightening.
  • 5910 890 0301 covers0.5–18Nm; remark2 alternative is5910 890 0302 with optical/acoustic signal. 5910 890 0311 covers6–80Nm; remark3 alternative is5910 890 0312 with optical/acoustic signal. The alternatives do not establish current stock.
  • This later tool list supplies no test or limiter-cap service procedure by itself. The underlying chapter and exact carburetor/handle generation remain necessary; the1996 original FS75/80/85 tool assignment is not recovered merely by finding this table.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 later service tools:20 rows plus two torque-wrench alternatives.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 later service tools:20 rows plus two torque-wrench alternatives, PDF pages 1, 3, 55

Part numbers (22)
  • 0000 893 5903 — Locking stripLater manual service reference · Blocking crankshaft; HT75 scope of 2005-04 manual only
  • 5910 890 4500 — PullerLater manual service reference · Removing carburetor limiter cap; HT75 scope of 2005-04 manual only
  • 5910 893 8800 — HookLater manual service reference · Removing pickup body; HT75 scope of 2005-04 manual only
  • 1108 893 4700 — DriftLater manual service reference · Removing and installing clutch drum; HT75 scope of 2005-04 manual only
  • 5910 890 2800 — HookLater manual service reference · Detaching clutch-shoe springs; pulling drive-tube plug; HT75 scope of 2005-04 manual only
  • 4126 893 4900 — Installing toolLater manual service reference · Removing AV sleeve; HT75 scope of 2005-04 manual only
  • 1106 850 2905 — Carburetor and crankcase testerLater manual service reference · Testing crankcase/carburetor leaks; HT75 scope of 2005-04 manual only
  • 0000 850 3501 — Vacuum pumpLater manual service reference · Crankcase leaks and tank vent; HT75 scope of 2005-04 manual only
  • 0000 855 9200 — NippleLater manual service reference · Carburetor leak test; HT75 scope of 2005-04 manual only
  • 1110 141 8600 — Fuel hoseLater manual service reference · Carburetor leak test; HT75 scope of 2005-04 manual only
  • 5910 890 0301 — Torque wrenchLater manual service reference · 0.5 to18Nm; remarks1,2; HT75 scope of 2005-04 manual only
  • 5910 890 0311 — Torque wrenchLater manual service reference · 6 to80Nm; remarks1,3; HT75 scope of 2005-04 manual only
  • 5910 890 8210 — Crimping toolLater manual service reference · Attaching connectors to electrical wires; HT75 scope of 2005-04 manual only
  • 5910 893 5608 — Socket DIN3124 SW13Later manual service reference · Flywheel nut; HT75 scope of 2005-04 manual only
  • 0812 542 2104 — Socket T27x125Later manual service reference · Spline socket-head screws; torque wrench for tightening; HT75 scope of 2005-04 manual only
  • 5910 890 2400 — T-handle screwdriver Q-T27x150Later manual service reference · IS screws; HT75 scope of 2005-04 manual only
  • 4180 893 4400 — DriftLater manual service reference · Removing clutch drum; HT75 scope of 2005-04 manual only
  • 0816 610 1495 — Circlip pliersLater manual service reference · External circlips; HT75 scope of 2005-04 manual only
  • 5910 893 3100 — Assembly standLater manual service reference · Workbench mounting; HT75 scope of 2005-04 manual only
  • 5910 890 8800 — ClampLater manual service reference · Drive-tube holding together with assembly stand; HT75 scope of 2005-04 manual only
  • 5910 890 0302 — Alternative torque wrenchLater manual service reference · Optical/acoustic signal; remark2 alternative to0301; HT75 scope of 2005-04 manual only
  • 5910 890 0312 — Alternative torque wrenchLater manual service reference · Optical/acoustic signal; remark3 alternative to0311; HT75 scope of 2005-04 manual only

Service note · HT 75

HT 75 later servicing aids: OH 723 spline interface and blank adhesive applications

All 11 rows retain location-specific materials; hedge-trimmer lubricant is printed for ignition output,not a guessed gear fill.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Complete section12 has11rows;nine have order numbers shown below. Package quantities225g,40g,100ml and90g are supply sizes,not fill quantities or a maintenance interval.
  • Unnumbered-material row6 specifies a standard commercial solvent-based degreasant WITHOUT chlorinated or halogenated hydrocarbons for cleaning sealing faces. Row8 specifies graphite grease for the pawl peg; neither has a printed order number.
  • Row4 literally assigns STIHL gear lubricant for hedge trimmers0781 120 1109 to the HIGH VOLTAGE OUTPUT ON IGNITION MODULE. Do not correct this location to the HT gearhead or infer electrical/material equivalence.
  • Row7 assigns OH723 press fluid0781 957 9000 between internal/external splined shafts,handle hose on drive tube and AV rubber element in fan housing. This differs from previously admitted1997 spray wording and1999 two-stroke-oil spline guidance;retain edition-specific assignments,not a universal replacement claim.
  • Rows9–11 name Loctite242/270/649,with medium/high/high strength respectively,and have BLANK APPLICATION CELLS. They do not assign any of these adhesives to the1996 M8 bar fixture,which separately names Loctite243.
  • The40g shaft-grease row is specifically for drive shaft in flexible liner;this table supplies no complete telescopic-shaft or gear assembly procedure. Relevant body sections remain actionable.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 later servicing aids: OH 723 spline interface and blank adhesive applications.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 later servicing aids: OH 723 spline interface and blank adhesive applications, PDF pages 1, 3, 56

Part numbers (9)
  • 0781 120 1111 — Lubricating grease,225g tubeLater manual service reference · Oil seals,oil-pump drive,chain-sprocket bearing; HT75 scope of 2005-04 manual only
  • 0781 120 6602 — STIHL shaft grease,40g tubeLater manual service reference · Drive shaft in flexible liner; HT75 scope of 2005-04 manual only
  • 0781 417 1315 — STIHL special lubricating oil,100mlLater manual service reference · Rope-rotor bearing bore and rewind spring; HT75 scope of 2005-04 manual only
  • 0781 120 1109 — STIHL gear lubricant for hedge trimmersLater manual service reference · High-voltage output on ignition module; HT75 scope of 2005-04 manual only
  • 0783 830 2000 — Dirko HT red sealant,90g tubeLater manual service reference · Crankcase,oil-seal outside,angle drive; HT75 scope of 2005-04 manual only
  • 0781 957 9000 — STIHL OH723 press fluid,100mlLater manual service reference · Between internal/external splined shafts;handle hose;fan-housing AV rubber element; HT75 scope of 2005-04 manual only
  • 0786 111 1101 — Medium-strength adhesive,Loctite242Later manual service reference · Application cell blank; HT75 scope of 2005-04 manual only
  • 0786 111 1109 — High-strength adhesive,Loctite270Later manual service reference · Application cell blank; HT75 scope of 2005-04 manual only
  • 0786 110 0126 — High-strength adhesive,Loctite649Later manual service reference · Application cell blank; HT75 scope of 2005-04 manual only

Service note · HT 75

HT 75 later air filter: wash foam, never wash felt

The two filter elements require different cleaning; INSIDE on the felt faces the engine.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.1: dirty filters reduce power, increase fuel consumption and make starting harder. Clean on noticeable power loss; no calendar interval is stated. Close the choke shutter and clear loose dirt around the housing before releasing its tab and removing the cover, foam and felt elements.
  • Wash the foam in a commercial solvent-based degreasant WITHOUT chlorinated or halogenated hydrocarbons and dry. Replace the felt filter; tapping it on the palm or blowing it clear is only a temporary measure. DO NOT WASH the felt. Replace damaged parts.
  • Fit foam in the cover and felt in the housing with INSIDE facing the engine. Engage the housing lug in the cover slot; reassemble the remaining parts in reverse sequence. No filter part number is printed here.
  • Adjacent section 8.4 throttle-cable instructions have distinct up-to-2002/from-2002 headings and an idle-stop wording tension; they remain pending and are not generalized by this air-filter note.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 later air filter: wash foam, never wash felt.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 later air filter: wash foam, never wash felt, PDF pages 33, 34

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 later carburetor test: 0.8 bar must hold

The carburetor test differs from the tank vent: pressure should remain constant; no holding time is printed.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.2.1 directs suspected fuel faults to troubleshooting 4.3 and requires checking/cleaning/replacing the tank vent for carburetor or fuel-supply problems. This test does not identify an exact carburetor suffix or establish applicability to the original C1Q-S28A.
  • With shroud removed per 5.1, disconnect the fuel hose from the carburetor elbow. Fit hose 1110 141 8600 to nipple 0000 855 9200, fit that assembly on the carburetor elbow and connect tester 1106 850 2905. Close the bulb vent screw and pump to approximately 0.8 bar gauge (80 kPa).
  • Constant pressure means airtight in the source test. Falling pressure points to an inlet needle not sealing (foreign matter, damaged cone or sticking inlet control lever) or damaged metering diaphragm; the manual refers to carburetor servicing section 9.3. No holding duration, permissible decay rate or automatic diagnosis is supplied.
  • After testing, open the vent screw, remove the test hose, reconnect the fuel hose to the carburetor elbow and reinstall the shroud. This is unlike the tank-vent test, where gradual pressure disappearance is expected. No test was performed.
  • Only 9.2.1 is dispositioned here; adjacent removal/installation 9.2.2 and spacer-flange/servicing variants remain pending.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 later carburetor test: 0.8 bar must hold.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 later carburetor test: 0.8 bar must hold, PDF pages 34, 35

Part numbers (3)
  • 1106 850 2905 — Carburetor/crankcase testerLater manual service reference · Carburetor leakage test; 2005-04 HT75 scope only
  • 1110 141 8600 — Fuel test hoseLater manual service reference · Hose on nipple and carburetor elbow; 2005-04 HT75 scope only
  • 0000 855 9200 — Test nippleLater manual service reference · Tester connection; 2005-04 HT75 scope only

Service note · HT 75

HT 75 later tank vent: pressure and vacuum must decay

About 0.5 bar pressure and 0.2 bar vacuum should gradually disappear; a steady reading is not a pass.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.5 requires equalization between atmosphere and fuel tank, and checking/replacing the vent when carburetor/fuel-supply trouble occurs. Outside-to-inside flow traverses the filler-cap hole, sintered filter, valve and cap holes; inside-to-outside traverses the cap hole, valve-body holes, sintered filter and filler-cap hole. The two diagrams are directional, not a sealed-cap design.
  • Remove shroud; disconnect hose (1) from fuel-pump-flange elbow and hose (2) from carburetor elbow. Plug hose (1); connect tester 1106 850 2905 to hose (2). Close the tester vent screw and pump to about 0.5 bar gauge. Pressure must drop gradually; constant pressure means a faulty vent or a vent requiring cleaning.
  • Disconnect the pressure tester. The source then shows test hose 1110 141 8600 on nipple 0000 855 9200 and vacuum pump 0000 850 3501 connected to the fuel hose. Close the pump vent screw and operate its lever to 0.2 bar vacuum. Vacuum must gradually disappear; if constant, the manual says replace the faulty tank vent.
  • The source supplies no decay time or numerical leak-rate tolerance. Positive pressure and vacuum magnitudes must not be confused with the 0.8 bar carburetor holding test. Figure callouts restart on the vacuum figure; they are not a new instruction to connect the pump to the plugged fuel-pump-flange hose.
  • Adjacent pickup-body and tank/hose sections are not closed by this vent review; their continuation and restoration context remain actionable. No physical test or cap interchange claim is made.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 later tank vent: pressure and vacuum must decay.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 later tank vent: pressure and vacuum must decay, PDF pages 45, 46

Part numbers (4)
  • 1106 850 2905 — Carburetor/crankcase testerLater manual service reference · Tank pressure test; 2005-04 HT75 scope only
  • 1110 141 8600 — Fuel test hoseLater manual service reference · Tank vent test adapter; 2005-04 HT75 scope only
  • 0000 855 9200 — Test nippleLater manual service reference · Tank vent adapter; 2005-04 HT75 scope only
  • 0000 850 3501 — Vacuum pumpLater manual service reference · Tank vent vacuum test; 2005-04 HT75 scope only

Service note · HT 75

HT 75 telescopic shaft: matched splines and retained circlip

The later manual requires paired internal/external shafts, gentle removal and a correctly seated 15x1 circlip.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 10.3 explicitly applies to HT75. The rigid telescopic tube contains an externally splined shaft supported in ball bearings; the moving part contains an internally splined shaft supported in a flexible liner and ball bearing. Close tolerances require replacing internal and external splined shafts as a MATCHING PAIR, not independent substitutions.
  • For the inner/upper tube, loosen gearbox clamp screws and remove gearbox; loosen star nut, extend inner tube, loosen/remove the clamp, then withdraw the inner tube at the gearbox end. Pull liner and shaft with driver carefully; if stuck, rotate slowly and carefully, never use excessive force.
  • Inspect driver, internally splined shaft, circlip, ring and flexible liner. The 15x1 circlip must be properly seated in its groove. Inspect/clean/replace the inner bearing as needed; remove its blind rivet to detach it. Align bearing/tube holes and secure with original STIHL blind rivet 9438 003 3171.
  • For outer/lower tube, mark the engine end of the handle hose before removing the engine/fan housing (5.2) and carrying ring (10.2). Pull out shaft; loosen clamp screws, remove clamp, withdraw tube at engine end, then remove springs and bearings. Inspect bearings; the same aligned-hole/original-rivet rule applies. Inspect tubes for distortion/damage and square shaft ends for damage before installation.
  • This admission preserves the explicit disassembly restrictions; engine/fan-housing and carrying-ring prerequisite sections remain pending. Adjacent from-2002 carrying-ring instructions on PDF50 are not an HT75 spline-generation boundary.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 telescopic shaft: matched splines and retained circlip.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 telescopic shaft: matched splines and retained circlip, PDF pages 50, 51, 52

Part numbers (1)
  • 9438 003 3171 — Original STIHL blind rivetLater manual service reference · Securing aligned bearing and drive-tube holes; 2005-04 HT75 scope only

Service note · HT 75

HT 75 telescopic assembly: engine-end orientation and 11 mm

Rivet/guide orientation, bearing slot, clamp direction and the 11 mm shaft projection remain separate requirements.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • At the marked engine end, insert bearings BALL-BEARING END FIRST and springs into the outer tube. If new/unmarked, identify the engine end: viewed from that end, the rivet is at the top and both guides on the right (figure 936RA082). This view must not be mirrored.
  • The bearing housing has slot (a) and flutes (b,c), figure 936RA297. The slot must NOT face the tube rivet. The printed text then says the bearing must butt against the slot and not slip through. Retain that unusual wording with its diagram; do not silently rewrite slot as rivet or invent a measured angular position.
  • Fit the clamp onto the short tube from the engine end, insert clamp/tube into the engine end and tighten clamp screws. Extend the short tube fully to its stop and tighten its screw. Mate the complete assembly with the powerhead with ALL SCREWS FACING DOWNWARDS; correctly position the AV-sleeve fixing hole.
  • With the telescope fully compressed for installation, insert shaft, liner and ring to the stop. Rotate back and forth so the circlip does not catch on the stop or mounting rivet. Do not force it; only the square end should remain visible. Figure 936RA074 then specifies dimension a = 11 mm at the outer-tube shaft projection, not general telescopic extension or an invented tolerance.
  • Prevent shaft displacement while pushing the external spline home. Check both shafts are correctly positioned before fitting the inner-tube-end clamp; tighten its screws to section 3.2 and tighten the star nut. Remaining assembly is the reverse sequence. The later torque table is a separate reference, not an instruction to reuse 1996 torque rows.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 telescopic assembly: engine-end orientation and 11 mm.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 telescopic assembly: engine-end orientation and 11 mm, PDF pages 52, 53, 54

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 telescopic lubrication: shaft grease versus OH723

The body confirms two distinct contact surfaces, not interchangeable lubricant choices.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • PDF53/printed52: coat the OUTSIDE of the drive shaft with STIHL shaft grease before inserting it into the flexible liner. Section12 gives 0781 120 6602, 40g tube; 40g is package size, not a fill quantity.
  • If cleaning shafts before assembly, pull them completely apart. PDF54/printed53: coat the EXTERNALLY SPLINED shaft completely with STIHL Press Fluid OH723 before installation. Section12 gives 0781 957 9000, 100ml. Check the snap ring is sound and correctly seated before pushing this shaft home.
  • The drive shaft with circlip enters the inner tube from the engine end; the separate compressed-telescope/no-force/11mm positioning requirements remain applicable. Do not substitute the two material assignments for each other or infer a maintenance interval, mixture or quantitative coating thickness.
  • These are 2005-04 assignments. Earlier 1996 gear grease, 1997 spray and 1999 two-stroke-oil spline guidance remain separately preserved; this later manual is not proof of a universal supersession or that every earlier shaft has the same configuration.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 telescopic lubrication: shaft grease versus OH723.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 telescopic lubrication: shaft grease versus OH723, PDF pages 53, 54, 56

Part numbers (2)
  • 0781 120 6602 — STIHL shaft grease, 40g tubeLater manual service reference · Drive-shaft exterior in flexible liner; 2005-04 HT75 scope only
  • 0781 957 9000 — STIHL OH723 press fluid, 100mlLater manual service reference · Externally splined shaft; 2005-04 HT75 scope only

Service note · HT 75

HT 75 fuel troubleshooting: 25 rows and a retained lever ambiguity

All five symptom groups remain distinct; the source repeats “lever too low” under both acceleration and flooding.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Complete section4.3, printed pages9–10: 25 cause/remedy rows in five symptom groups (3 idle-stall,9 low-power,1 excessive-idle,7 acceleration,5 flooding). These are source diagnostic possibilities, not observed machine faults or proof that a symptom uniquely identifies a part.
  • 1. Engine stalls at idle: Idle jet bores or ports blocked → Clean bores/ports and blow clear with compressed air.
  • 2. Engine stalls at idle: Idle jet too rich → Screw low-speed screw home slightly; refer to carburetor adjustment.
  • 3. Engine stalls at idle: Incorrect idle-speed screw; throttle shutter completely closed → Set idle-speed screw correctly.
  • 4. Speed drops quickly under load / low power: Dirty air filter → Clean or replace filter.
  • 5. Speed drops quickly under load / low power: Faulty tank vent → Clean or replace vent as necessary.
  • 6. Speed drops quickly under load / low power: Leak between tank and fuel pump → Seal connections or replace fuel line.
  • 7. Speed drops quickly under load / low power: Pump diaphragm damaged or fatigued → Fit new pump diaphragm.
  • 8. Speed drops quickly under load / low power: Main jet bores or ports blocked → Clean bores/ports.
  • 9. Speed drops quickly under load / low power: Dirty pickup body → Fit new pickup body.
  • 10. Speed drops quickly under load / low power: Dirty fuel strainer → Replace strainer.
  • 11. Speed drops quickly under load / low power: High-speed screw H too rich → Set H correctly.
  • 12. Speed drops quickly under load / low power: Throttle shutter not fully opening → Check throttle control.
  • 13. Engine will not idle / idle too high: LA holds throttle shutter too far open → Set LA correctly.
  • 14. Poor acceleration: Idle jet too lean → Turn L counterclockwise (richer), no further than stop.
  • 15. Poor acceleration: Main jet too lean → Turn H counterclockwise (richer), no further than stop.
  • 16. Poor acceleration: Inlet control lever too low relative to correct position → Set lever flush with carburetor-body top face.
  • 17. Poor acceleration: Inlet needle sticking to valve seat → Remove, clean and refit needle.
  • 18. Poor acceleration: Atmosphere connecting bore blocked → Clean bore.
  • 19. Poor acceleration: Diaphragm gasket leaking → Fit new gasket.
  • 20. Poor acceleration: Metering diaphragm damaged or shrunk → Fit new metering diaphragm.
  • 21. Carburetor floods / engine stalls: Inlet needle not sealing: foreign matter or damaged cone → Clean or replace needle; clean tank, pickup body and fuel line if needed.
  • 22. Carburetor floods / engine stalls: Inlet control lever sticking on spindle → Free off lever.
  • 23. Carburetor floods / engine stalls: Helical spring not seated on control-lever nipple → Remove lever and refit correctly.
  • 24. Carburetor floods / engine stalls: Diaphragm perforated disc deformed, constantly pressing lever → Fit new metering diaphragm.
  • 25. Carburetor floods / engine stalls: Inlet control lever too low relative to correct position → Set lever flush with carburetor-body top face.
  • The source prints INLET CONTROL LEVER TOO LOW with the same flush-with-top-face remedy under BOTH poor acceleration and flooding. Preserve this duplication/possible source inconsistency; do not silently change the flooding row to too high.
  • The L/H richer directions stop at the existing limiter. This table is not authorization to remove limiter caps or evidence of the original C1Q-S28A settings. Exact carburetor-generation service and adjustment sections remain pending; no opening turns are invented.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 fuel troubleshooting: 25 rows and a retained lever ambiguity.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 fuel troubleshooting: 25 rows and a retained lever ambiguity, PDF pages 10, 11

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 shroud and shaft prerequisites: retain cross-reference limits

Shroud routing is explicit; engine/fan-housing and HT70 drive-shaft references cannot be silently treated as complete HT75 instructions.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Complete section5.1 (PDF13): remove the starter screw and fan-housing screw, then the shroud. Reverse to install. Locate the gaskets on BOTH sides of the cylinder and ignition lead in the guides in the shroud; do not omit the routing requirement. No screw size or torque is printed in this section.
  • HT75 telescopic section10.3 (PDF51) says remove the engine WITH FAN HOUSING from the drive tube and cites5.2. The cited section5.2 (PDF13) is titled Clutch and instructs removing the engine FROM the fan housing. Its reassembly context (PDF15) requires fan-housing plugs in position and engine lugs engaging those plugs, tightening housing screws per3.2 and removing the cylinder locking strip after clutch work. The with/from mismatch remains unresolved; it does not justify inventing a complete tube-removal procedure.
  • Telescopic section10.3 also cites10.2 for carrying-ring removal. PDF49 shows loosening the control-handle clamp (separate from-2002 illustration), removing AV-sleeve fixing screw, loosening its clamp screw, withdrawing tube from handle, removing throttle-cable retainer WHERE FITTED, and removing carrying-ring screw. PDF50 continues pulling the ring apart and reversing for assembly. Its FROM2002 branch removes a screw, bends the clamp open, aligns tube fixing holes on refit and tightens fixing/clamp screws per3.2.
  • Section10.2 starts by referring drive-shaft removal to10.1, whose contents explicitly mark HT70. That reference is not permission to apply an HT70 flexible-shaft procedure to HT75 telescopic shafts. Preserve the independently reviewed10.3 HT75 sequence and these cross-reference limits; AV/fan-housing context and handle-generation reconciliation remain pending.
  • Only5.1 and the stated prerequisite context are admitted here. This is not complete5.2 clutch,5.3 drum,7.1 AV or10.1 HT70 review. Do not infer that a clutch removal or cylinder locking operation is necessary merely to inspect a shaft. No hardware operation was performed.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 shroud and shaft prerequisites: retain cross-reference limits.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 shroud and shaft prerequisites: retain cross-reference limits, PDF pages 13, 15, 49, 50, 51

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 control handle up to 1997: rivet, washers and wiring

The early handle has a riveted interlock, separate detent spring and square washers on both sides of its clamps.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Sections 8.1.1–8.1.3 are explicitly headed Control Handle up to 1997. Do not start the engine with the control handle exposed: the source warns of electrocution. These are later-manual identification limits, not proof that every 1996 HT75 has this configuration. The next family is labeled up to 2001 without a printed start year; no 1998 changeover or serial is invented.
  • Remove outer-molding screws and molding; carefully remove the interlock rivet, then interlock lever and torsion spring from their pivots. Remove clamp screws and inner molding from tube, disconnect cable nipple from trigger, pull trigger from tube and remove its torsion spring. Reverse to install. The bent spring leg must engage the trigger slot; fit a square washer on BOTH sides of the clamps, initially securing screws finger-tight. Correctly position short circuit wires, cable and tube in the inner molding.
  • For the detent/torsion spring, first remove trigger; disconnect short circuit wires, remove collar screw and detent spring, and remove connector tags if needed. Pull slide control out, carefully remove its push nut, and remove torsion spring. Reverse for assembly. Unlike the spacer-flange section, this section does not explicitly say to renew that push nut; do not transfer the other section’s rule silently.
  • Throttle cable: remove shroud, disconnect nipple from carburetor throttle-lever slotted pin, and pull cable from tensioner. Disconnect short circuit AND ground wires from ignition-module tags, remove trigger and disconnect short circuit wires from handle tags. Reverse installation while preserving the illustrated wire/cable/tube routing. No replacement part numbers are supplied in these sections.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 control handle up to 1997: rivet, washers and wiring.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 control handle up to 1997: rivet, washers and wiring, PDF pages 25, 26, 27

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 control handle up to 2001: contact spring and insulator

The contact-spring design keeps its cable, protective tube and insulator together; its slide-control slot and spring have distinct seats.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Sections 8.2.1–8.2.3 are headed Control Handle up to 2001, with no printed lower year or serial boundary. This is not a universal replacement for the up-to-1997 handle. The exposed-handle electrocution warning remains explicit.
  • Remove handle screws/molding and torsion spring; lift trigger with attached cable off its pivot, disconnect cable, lift contact spring slightly and remove cable. Lift interlock with contact spring off pivot, then detach that spring. Reverse to install, correctly seating cable (1), contact spring (2), protective tube (3) and insulator (4), and tighten screws per 3.2.
  • Slide control: remove interlock, slide control, clamp screws, handle molding from tube, and torsion spring. Reverse to install; clamp screws use 3.2. The slide-control slot must engage OVER THE OUTER EDGE of the handle molding; its torsion spring must locate in the slide-control recess, not the cable channel.
  • Throttle cable: remove shroud, screw and extended throttle cable as illustrated; disconnect nipple from carburetor slotted pin and cable from tensioner. Disconnect the short circuit wire at ignition module, remove trigger, lift contact spring slightly and remove cable. Reverse to install with cable/contact spring/protective tube/insulator correctly seated. No universal wire-count conversion or part-number interchange is implied.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 control handle up to 2001: contact spring and insulator.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 control handle up to 2001: contact spring and insulator, PDF pages 28, 29, 30

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 control handle from 2002: automatic cable slack take-up

The later handle adds an adjustment slide; stop-switch wiring still requires its own molded channel.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Sections 8.3.1–8.3.3 explicitly apply to the control handle FROM 2002. The slide automatically adjusts the throttle cable. Before dismantling, insert a screwdriver in the slot, press the slide down and push it TOWARD THE ENGINE. This is not a direction to turn a carburetor mixture screw.
  • Remove handle screws/molding and torsion spring, lift trigger with cable from pivot, disconnect cable, then take adjustment slide out of its guide and remove cable. Lift interlock slightly and turn it sideways until its torsion spring is relaxed; pull interlock off pivot and remove spring. Reverse installation, correctly positioning cable and protective tube; tighten screws per 3.2. Open throttle wide several times so the slide takes up cable slack. The source does not require starting the engine for this mechanical action.
  • Contact/detent section: remove interlock and slide control, clamp screws and handle molding from tube, then torsion spring from pivot and stop switch. Reverse to install; the switch wire must occupy channel (2), shown in figure 936RA439, rather than lying beneath a clamp.
  • Throttle cable: remove shroud, disconnect nipple from carburetor slotted pin, remove cable from trigger and tensioner. Disconnect short circuit wire connector (1) from tag (2) and connector (3) from tag (4); reverse to install. The source labels only the first connector as short circuit here; do not invent a function for the second from a neighboring generation. No parts or serial changeover is printed.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 control handle from 2002: automatic cable slack take-up.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 control handle from 2002: automatic cable slack take-up, PDF pages 30, 31, 32

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 throttle adjustment: retain the 2002 and idle-stop conflicts

The same page says both up to 2002 and from 2002, and gives conflicting limits on the idle-stop requirement.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 8.4 says the carburetor throttle lever must touch the carburetor-cover stop at full trigger depression. Its opening paragraph says contact with idle-speed screw LA on trigger release applies ONLY WITH CONTROL HANDLE FROM 2002. Adjustment is at the tensioner, after shroud removal per 5.1.
  • The left procedure is headed Version with Control Handle UP TO 2002 ONLY, even though preceding section 8.2 is headed up to 2001. It instructs full trigger depression, then clockwise turning of adjusting screw (1) until lever (2) touches cover stop (3). On release it again requires the lever to touch idle-speed screw (4). That directly conflicts with the opening paragraph’s from-2002-only limitation; both statements are retained, not silently corrected.
  • The right procedure is headed FROM 2002 ONLY. It requires checking the idle-speed screw adjustment range and centering adjusting screw (1) as illustrated before adjustment, then reinstalling the shroud. It gives no number of turns or measured centering dimension. The separate automatic slack take-up mechanism remains documented under 8.3.
  • The up-to/from-2002 overlap and idle-stop contradiction prevent treating this page as one unambiguous universal setting. No serial boundary, carburetor suffix, opening turns or physical verification is supplied. These are source conflicts, not missing pages.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 throttle adjustment: retain the 2002 and idle-stop conflicts.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 throttle adjustment: retain the 2002 and idle-stop conflicts, PDF pages 33

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 carburetor mounting: heat shield and renewed gaskets

The heat shield’s TOP orientation, new gaskets and two tensioner-fastener designs remain separate requirements.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Sections 9.2.2–9.2.3: remove shroud, disconnect throttle nipple from the slotted pin, hose (1) from carburetor and hose (2) from fuel-pump flange. Remove air filter, mounting nuts and filter housing; remove heat shield while noting installed position. Figure 936RA167 visibly marks TOP with upward arrows; do not reverse its orientation. Pull carburetor off its screws and remove gasket.
  • Remove spacer flange with gasket. Replace a cracked or damaged spacer flange; ALWAYS USE NEW GASKETS. Reverse to assemble and tighten mounting nuts per 3.2. This instruction does not establish an exact C1Q-S28A body or kit compatibility.
  • To remove the spacer flange, first remove carburetor and cable from tensioner, then screws WITH WASHERS and flange with gasket. Pull the long screws out of the flange if necessary. Remove either screw WITH BUSHING or push nut WITH PIN, then the tensioner. On the PUSH-NUT VERSION always install a NEW PUSH NUT; the source does not make this a universal screw-renewal instruction. Remove adjusting screw from tensioner and reverse for assembly.
  • No flange, gasket, push-nut or carburetor order numbers or fastener-generation dates are printed in these sections. No mixing of washer/bushing/pin versions is authorized; servicing and mixture-adjustment variants in 9.3–9.4 remain separate review work.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 carburetor mounting: heat shield and renewed gaskets.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 carburetor mounting: heat shield and renewed gaskets, PDF pages 35, 36

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 pickup, tank and hoses: avoid stretching and retain grommets

The tank seats on its plugs; pickup replacement and the vent/fuel hose callouts are explicitly distinguished.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.6 explains that the diaphragm pump draws fuel through the pickup filter; accumulated fine dirt causes restriction and fuel starvation. For fuel-supply trouble check tank and pickup first; clean tank if necessary under 9.7. No replacement interval or reusable-filter cleaning procedure is supplied.
  • Section 9.7 begins by draining tank, removing rewind starter per 6.2 and pulling hoses from carburetor elbows per 9.2.2. Its cleaning paragraph says remove filler cap, drain, add a small amount of clean gasoline, shake the unit vigorously, then open and drain again. Dispose of fuel/lubricants at an approved disposal site. This is a source description, not an operation performed or a measured flush quantity.
  • Use hook 5910 893 8800 to retrieve pickup; DO NOT OVERSTRETCH THE FUEL HOSE. Pull old pickup from hose, fit a new pickup and reverse installation. Remove tank and hoses if necessary; on tank reassembly the LUGS MUST ENGAGE THE PLUGS (figure 936RA183). Do not omit this seating requirement.
  • For hose replacement, remove filler cap together with its retainer, retrieve pickup with the hook and detach pickup from hose. Figure 936RA186 labels VENT HOSE (1) WITH GROMMET (2), and FUEL HOSE (3) WITH GROMMET (4); withdraw and reverse to refit. The page does not identify hose order numbers, lengths, interchangeability or a different tank design.
  • Adjacent section 10.1 is explicitly HT70, with a 17 mm projection and its own gear-lubricant instruction. Those are not HT75 telescopic-shaft specifications and are not imported into this note. The HT75 11 mm and surface-specific lubrication remain unchanged.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 pickup, tank and hoses: avoid stretching and retain grommets.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 pickup, tank and hoses: avoid stretching and retain grommets, PDF pages 46, 47, 48

Part numbers (1)
  • 5910 893 8800 — Assembly hookLater manual service reference · Pickup retrieval without overstretching hose; 2005-04 HT75 scope only

Service note · HT 75

HT 75 starter removal: guard and one-wire branches

Tank access requires starter removal, not automatic spring disassembly; the cable lug returns to the lower screw on one-wire machines.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 6.2 is the explicit 9.7 tank-access prerequisite. Remove shroud. On machines WITH A GUARD remove M5x30 screws and guard. Remove starter screws, or ONLY THE UPPER SCREW on guarded machines after removing the guard screws. No guard changeover date or serial number is given.
  • On machines with ONE SHORT CIRCUIT WIRE, remove throttle-cable lug from LOWER SCREW before removing starter. Reverse installation; check the plug in the starter is correctly seated and replace if damaged. The starter LUG MUST ENGAGE THE PLUG. Secure the throttle-cable lug under the LOWER SCREW on the one-wire version.
  • This closes the removal/refit prerequisite only. It does not instruct opening the starter rotor, removing the spring or operating the machine merely to access the tank. Two-wire variants must not silently inherit the one-wire lower-screw rule. Full starter internals remain outside this scoped dependency.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 starter removal: guard and one-wire branches.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 starter removal: guard and one-wire branches, PDF pages 18

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 AV sleeve: ring orientation and reinforced housing

The rubber element, fan-housing ribs and retaining-ring gap are explicit; the shaft section’s with/from cross-reference mismatch remains.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 7.1 locates the vibration-damping rubber element in the fan housing between engine and drive shaft. Remove shroud, loosen handle clamp screws (separate early-machine illustration), remove AV-sleeve fixing screw, loosen sleeve clamp and withdraw tube. Remove housing screws and fan housing. The newer housing has strengthening ribs, shown right of the previous version; no date, serial or interchange claim is printed.
  • Pry retaining ring from housing and slip it over sleeve. Insert service tool 4126 893 4900 fully into sleeve, tighten clamp firmly and fixing screw moderately if necessary. Apply a few drops of OH723 between housing and rubber element. Clamp tool in a vise and pull housing off rubber. Loosen clamp/fixing screws as needed, remove sleeve from tool and rubber from sleeve.
  • Installation: push rubber element TAPERED END FIRST onto sleeve until its flange is behind sleeve. Coat rubber with OH723 and insert into housing with its SLOT ON THE ROUND SIDE of the housing. Fit retaining ring with GAP FACING CLAMP SCREW and engaging housing slots. Reverse remaining assembly, pushing tube home until fixing holes align; tighten fixing/clamp screws per 3.2. Rubber lubrication here is a separate contact surface from the HT75 splined shaft.
  • Section 5.5 separately describes ENGINE FROM FAN HOUSING: remove shroud and ignition-module short circuit connector(s); for two-wire machines disconnect both, for one-wire machines remove throttle-cable lug at lower screw. Disconnect carburetor cable nipple and cable from tensioner, remove housing screws and separate engine; reverse to refit. These source operations do not require clutch removal or a cylinder locking strip.
  • This supplies the missing AV/tube context but does NOT rewrite 10.3, which says engine WITH FAN HOUSING and cites 5.2 (Clutch), whose wording is FROM the fan housing. The original cross-reference mismatch stays unresolved. No physical disassembly, housing equivalence, universal wire conversion or full clutch/starter review is claimed.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 AV sleeve: ring orientation and reinforced housing.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 AV sleeve: ring orientation and reinforced housing, PDF pages 17, 23, 24, 25

Part numbers (1)
  • 4126 893 4900 — AV sleeve service toolLater manual service reference · Rubber-element removal fixture; 2005-04 HT75 scope only

Service note · HT 75

HT 75 carburetor covers: oval and square flange versions

The later manual recommends oval-to-square conversion but gives no kit number or exact carburetor suffix for that conversion.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.3.1 begins with shroud removal and leakage test. For the OVAL end cover remove M3x12 screws and cover with cap, then M3x8 screws and flange. Remove cap from cover; inspect metering diaphragm and gasket under 9.3.3. Reverse to install. Any additional holes in gasket and diaphragm must align with those in carburetor and flange. M3x8 screws go in flange mounting holes WITHOUT INTEGRALLY CAST SPACERS and into carburetor.
  • The manual recommends converting the oval end-cover flange to the later SQUARE end-cover version under 9.3.2. That version removes screws, cover with cap, cap and flange; inspect diaphragm/gasket and reverse to install. No square-cover screw length, conversion kit, serial boundary or C1Q-S28A compatibility is supplied. The recommendation is not proof that arbitrary covers interchange.
  • The adjacent conclusion of 9.2.3 on PDF37 explicitly requires a NEW spacer-flange gasket, firm screw tightening per 3.2 and reverse assembly. It confirms the earlier mounting note; this continuation is now reviewed rather than presumed from PDF36.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 carburetor covers: oval and square flange versions.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 carburetor covers: oval and square flange versions, PDF pages 37, 38

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 metering diaphragm and needle: bore and spring alignment

The gasket sits on the body before the metering diaphragm; both compensating holes must align.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.3.3 references the applicable oval or square flange-removal branch. Remove metering diaphragm (1) and gasket (2); separate stuck pieces very carefully. Inspect and replace if needed. The source identifies fatigue, distortion and swelling as diaphragm replacement reasons, not a fixed service interval.
  • On assembly place GASKET ON CARBURETOR BODY, aligning gasket hole (2) with the compensating bore. Then place METERING DIAPHRAGM ON GASKET, aligning its hole with the bore and gasket; reassemble under 9.2.2. Diagram callout (2) is the hole in PDF39 figure936RA027, not a second gasket.
  • Section 9.3.4: remove metering diaphragm, take out screw and carefully lift inlet control lever with spindle. On reverse assembly engage clevis in ANNULAR GROOVE on needle head; spring must seat on control-lever NIPPLE. Check both needle and spring seating. This section gives no lever height, gauge or needle-kit number; the separately retained troubleshooting wording is not silently rewritten.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 metering diaphragm and needle: bore and spring alignment.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 metering diaphragm and needle: bore and spring alignment, PDF pages 38, 39

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 pump diaphragm and fixed jets: removable models are named

Only C1Q-S63, C1Q-S56 and C1Q-S45 are listed for fixed-jet removal; no extension to S28A is established.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.3.5 requires metering-diaphragm removal and warns against screwdriver damage to the fixed jet. Removable fixed jets are specifically illustrated for C1Q-S63 and for C1Q-S56/C1Q-S45. Use a suitable screwdriver, unscrew and reverse to reinstall. For carburetors NOT LISTED, the source says the fixed jet cannot be removed: clean the jet or replace carburetor if needed. No jet size, order number, tightening torque or C1Q-S28A equivalence is printed.
  • Section 9.3.6: remove carburetor, screw and end cover; remove GASKET then PUMP DIAPHRAGM. Separate stuck pieces very carefully; inspect and replace damaged/fatigued/distorted/swollen diaphragm or gasket as needed. Inspect fuel strainer for contamination/damage and replace if necessary. Reverse to install.
  • Figure932RA259 explicitly shows pump diaphragm (1), gasket (2), end cover (3) and the cover locating pegs. The gasket is BETWEEN PUMP DIAPHRAGM AND END COVER, unlike the metering-side gasket against the carburetor body. Both pieces locate on the pegs; these two stack orders must not be conflated.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 pump diaphragm and fixed jets: removable models are named.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 pump diaphragm and fixed jets: removable models are named, PDF pages 39, 40

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 L/LA carburetor: no high-speed screw

The two-screw system uses an L standard setting and half-turn LA corrections, not an H adjustment.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.4.1 explicitly says this carburetor has NO HIGH SPEED SCREW H. Its explanation attributes reduced idle/part-load emissions to limited idle-mixture flow; this is a vendor description, not independently measured performance.
  • For standard setting carefully turn L clockwise to its seat, then open ONE FULL TURN. Mount bar/chain, tension correctly, check/clean/replace filter, adjust cable if possible, then start and warm the engine as the source describes. No exact carburetor suffix or measured target rpm is given in this branch.
  • Idle correction follows standard setting. If engine stops at idle, turn LA clockwise until chain begins to run, then back HALF A TURN. If chain runs at idle, turn LA counterclockwise until it stops, then ANOTHER HALF TURN in the same direction. This is a recorded source procedure, not an unattended instruction or permission to run hardware. Do not substitute the LD one-turn correction or limiter-cap service rpm sequence.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 L/LA carburetor: no high-speed screw.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 L/LA carburetor: no high-speed screw, PDF pages 40, 41

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 LD carburetor: opposite seating direction

LD seats counterclockwise and opens two turns clockwise; its limits differ from L/LA.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.4.2 describes factory mixture tuning without naming an exact carburetor suffix. Standard prerequisites: correct chain tension, clean/replace air filter and clean/replace spark-arresting screen under 5.4. Carefully turn LD COUNTERCLOCKWISE ONTO ITS SEAT, then open TWO FULL TURNS CLOCKWISE. The scan explicitly prints these directions; they are not normalized to the opposite L-screw convention.
  • The page repeats the Adjusting idle speed heading and carry-out-standard-setting instruction, then says start and warm the engine. If it stops at idle, slowly turn LD clockwise until smooth running; CHAIN MUST NOT ROTATE.
  • If chain rotates at idle, turn LD counterclockwise until it stops, then ABOUT ANOTHER ONE TURN in the same direction. Erratic idle/poor acceleration: turn LD slowly NO MORE THAN HALF A TURN counterclockwise. These are different corrections for different symptoms, not interchangeable base settings or a serial-based conversion.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 LD carburetor: opposite seating direction.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 LD carburetor: opposite seating direction, PDF pages 41

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 limiter-cap user setting: keep the cap and respect its stop

User setting leaves the H cap fitted; fine corrections remain within its three-quarter-turn range.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.4.3 says DO NOT REMOVE H LIMITER CAP for standard setting. Check air filter, spark screen, cable where fitted, mounted bar/chain and tension. Turn H counterclockwise to stop, NO MORE THAN 3/4 TURN. Carefully seat L clockwise and open ONE FULL TURN counterclockwise. Warm engine and set LA so chain does not rotate.
  • The source mentions possible small corrections at high altitude or sea level and warns that slight H changes noticeably affect running. Its explicit high-altitude procedure follows standard setting, warm-up and wide-open throttle: turn H clockwise (leaner), NO FURTHER THAN STOP, until no noticeable increase in speed. It notes standard setting may already produce highest rpm. No numeric high-speed target or separate sea-level turn prescription is provided; none is invented.
  • For idle adjustment use L one full turn open and warm engine. Stalling: slowly turn LA clockwise to smooth running. Lean erratic idle/poor acceleration: turn L counterclockwise ABOUT A QUARTER TURN until smooth running/acceleration. Rich erratic idle: turn L clockwise ABOUT A QUARTER TURN. Usually LA needs correction after each L correction. No claim that this limiter-cap branch fits the original S28A is made.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 limiter-cap user setting: keep the cap and respect its stop.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 limiter-cap user setting: keep the cap and respect its stop, PDF pages 42, 43

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 limiter-cap service setting: staged rpm and abort threshold

The basic setting is distinct from user adjustment and retains its 3,700 rpm restart condition.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 9.4.4 permits cap removal only for H replacement, carburetor cleaning or adjustment from scratch; after removal BASIC SETTING is necessary. The printed sequence seats H and L clockwise, lists filter, spark screen, chain tension, cable and bar/chain checks, then says allow engine to warm up before the next page gives H 1 1/2 turns and L one full turn COUNTERCLOCKWISE. This page-order inconsistency is retained, not offered as a validated start-up sequence with seated mixture screws.
  • Use a tachometer; specified speeds have a stated tolerance of ±200 rpm. Step1: set 3,300 rpm with LA. Step2: turn L either direction for maximum engine speed. If HIGHER THAN 3,700 rpm, ABORT and restart at step1. Step3: use LA to return to 3,300 rpm. Step4: use L to set 2,800 rpm. The general tolerance is not silently used to relax the explicit >3,700 abort threshold.
  • These figures are the later limiter-cap SERVICE branch, not maximum operating speed or universal idle values for every HT75 carburetor. No high-speed target is supplied here. New cap installation and the separate user adjustment follow; no hardware run or physical validation occurred.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 limiter-cap service setting: staged rpm and abort threshold.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 limiter-cap service setting: staged rpm and abort threshold, PDF pages 43, 44

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 limiter caps: short detent versus long body seating

Removed caps must be replaced; the short cap must not be pressed against the body, while the long cap must reach it.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Short-cap removal uses puller 5910 890 4501 between cap and body, OPEN SIDE FACING YOU. If stuck, reverse puller so its open side faces carburetor body, then pry off. Long-cap removal uses suitable pliers. These are separate geometries, not one universal pull-off method.
  • ALWAYS INSTALL NEW LIMITER CAPS. Once removed they may be damaged and MUST NOT BE REUSED. For SHORT cap align new H cap against RICH STOP and press carefully to SECOND NOTICEABLE DETENT. Adjustment range is 3/4 turn (270 degrees). DO NOT press against carburetor body: the source warns of damage.
  • For LONG cap align against RICH STOP so H can rotate only 3/4 turn CLOCKWISE, then push cap until it BUTTS AGAINST CARBURETOR BODY. Both branches then require user adjustment under 9.4.3. Cap order numbers, color, exact carburetor suffix and serial changeover are absent. These opposite seating limits are retained as version-specific requirements, not resolved by guessing.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 limiter caps: short detent versus long body seating.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 limiter caps: short detent versus long body seating, PDF pages 43, 44

Part numbers (1)
  • 5910 890 4501 — Limiter cap pullerLater manual service reference · Short-cap removal with reversible open-side orientation; 2005-04 HT75 scope only

Service note · HT 75

HT 75 spark screen and muffler: bounded adjustment prerequisite

Spark-screen inspection is separate from muffler removal and does not require clutch work.

No exact-model IPL link: Later 2005-04 Components HT service guidance, not a reconstruction of the 1996 type4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 Series 4137 Components HT explicitly names HT 70 and HT 75; this note is limited to HT 75. It does not recover the original 1996 configuration, establish series4138/4137 equivalence or authorize a repair.
  • Section 5.4 provides the spark-screen prerequisite cited by LD and limiter-cap adjustment. Remove screen screw (1), pull screen (2), clean or replace as needed and reverse to install. The source does not specify a cleaning interval, solvent, mesh size or screen order number.
  • The separate MUFFLER branch removes shroud, side screw, inner screws, muffler and gasket. Bend up retainer tab (1), pull gasket (2), reverse to install and BEND TAB DOWN AGAIN after gasket fitting. Tighten muffler mounting screws per 3.2. No instruction to remove the entire muffler merely to inspect the screen is added.
  • Adjacent 5.3 clutch-drum/bearing continuation on the same page is not a carburetor prerequisite and is not closed by this scoped review. No full clutch, starter or whole-manual review is claimed.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 spark screen and muffler: bounded adjustment prerequisite.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 spark screen and muffler: bounded adjustment prerequisite, PDF pages 16

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 powerhead manual: scope, fixture and parts-list dependencies

The exact-linked 2004 powerhead manual identifies a stand and clamping plate but does not reconstruct the 1996 machine.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 1 states that procedures are common unless specified otherwise; illustrations may differ by model. Component and CombiTool work belongs to the corresponding Series 4137 Components and CombiTools manuals. The catalog link establishes this later manual as an HT75 dependency, not equivalence of every illustrated component.
  • Use the relevant illustrated parts list for installed positions and its latest edition for replacement numbers. Technical Information bulletins document subsequent engineering changes and supplement the parts list until revised. The STIHL Service Training System and STIHL Tools manual are separate references, not recovered by this page.
  • Figure 366RA265 shows clamping plate (1) 5910 893 3100 and assembly stand (2) 5910 893 8800; together they allow the powerhead to swivel for access. No mounting bolt size, tightening torque or permission to run an engine on the stand is given.
  • The legend distinguishes illustrated actions from unillustrated actions, FROM versus UP TO serial symbols, pointer and movement direction. It supplies no numeric serial changeover. The manufacturer recommends original parts identified by number/logo/parts symbol; that is source advice, not proof of current availability. Dealer-use/distribution wording is retained as source context; no publication authorization or legal conclusion is inferred.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 powerhead manual: scope, fixture and parts-list dependencies.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 powerhead manual: scope, fixture and parts-list dependencies, PDF pages 3

Part numbers (2)
  • 5910 893 3100 — Clamping plateLater powerhead service reference · Figure 366RA265 callout1, with assembly stand; exact-linked 2004-03 HT75 scope only
  • 5910 893 8800 — Assembly standLater powerhead service reference · Figure 366RA265 callout2, with clamping plate; exact-linked 2004-03 HT75 scope only

Service note · HT 75

HT 75 powerhead servicing: fuel and ignition prerequisites

The powerhead manual requires the owner instructions and distinguishes fuel-fire hazards from ignition high voltage.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 2 says engine operation during repairs or maintenance must follow local/country-specific safety rules and the safety precautions and warnings in the owner manual. This page does not substitute for missing exact HT75 operator instructions; that dependency remains pending.
  • The source identifies gasoline as extremely flammable and potentially explosive, with serious burn/injury risk from improper handling. It prohibits smoking, fire, flame and other heat sources near fuel, requires ALL FUEL WORK OUTDOORS ONLY, and immediate cleanup of spilled fuel.
  • Section 4.2 separately warns that ignition-system high voltages can cause serious or fatal injury. These are source prerequisites, not an energized test procedure; no hardware was connected or run.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 powerhead servicing: fuel and ignition prerequisites.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 powerhead servicing: fuel and ignition prerequisites, PDF pages 4, 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 powerhead specifications: cut-off speed is not loaded cutting speed

The 2004 table gives 25.4 cm³ and a 10,500 ±800 rpm cut-off without a cutting attachment.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 3.1 lists displacement 25.4 cm³, bore 34 mm, stroke 28 mm and engine power to ISO8893 of 0.95 kW (1.3 HP). These are printed later-source specifications, not measurements of the owner machine or inferred original 1996 values.
  • Maximum permissible engine speed is explicitly WITHOUT CUTTING ATTACHMENT (CUT-OFF SPEED): 10,500 ±800 rpm. Idle is 2,800 rpm. The centrifugal clutch is WITHOUT LININGS and engages at 3,700 rpm. Do not relabel the cut-off as loaded cutting speed or transfer its ±800 tolerance to idle/clutch values.
  • The crankshaft is supported by heavy-duty deep-groove ball bearings; needle cages support the small and big ends at piston pin and crankpin. No bearing dimensions, clearance or order numbers are provided.
  • Crankcase leak-test table lists excess pressure pü=50 kPa (0.5 bar) and negative pressure pu=50 kPa (0.5 bar). The negative-pressure value is printed as a magnitude, not a second positive-pressure test. Preparations, hold times and acceptance wording belong to the separately reviewed section 5.4 notes; none is inferred from this table. The vacuum acceptance wording remains ambiguous.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 powerhead specifications: cut-off speed is not loaded cutting speed.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 powerhead specifications: cut-off speed is not loaded cutting speed, PDF pages 5

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 powerhead ignition: air gap and three printed plug alternatives

The 2004 table lists a 0.2–0.5 mm ignition air gap and 0.5 mm plug-electrode gap.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 3.2 describes electronic magneto ignition with integrated switch gear. Ignition air gap is 0.2–0.5 mm; plug electrode gap is 0.5 mm. These are separate measurements, not interchangeable specifications.
  • The interference-suppressed spark plug list is Bosch WSR 6F, NGK BPMR 7 A and Champion RCJ 6Y. These are printed designations, not STIHL order numbers; no fabricated part row or universal plug compatibility is added.
  • No ignition timing value, resistance threshold, exact module number, serial changeover or 1996 hardware equivalence is established by the specification table. Conflicting torque rows in section 3.3 are separately retained and must not be used to infer a safe plug/module tightening assignment.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 powerhead ignition: air gap and three printed plug alternatives.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 powerhead ignition: air gap and three printed plug alternatives, PDF pages 5

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 powerhead torque table: plug and module rows conflict

The original scan pairs M4 with spark plug and M14 with ignition module; those rows are not usable torque guidance.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 3.3 clearly prints IS-M5x25 — Crankcase — 9.5 Nm and IS-DG5x24 — Cylinder/Crankcase — 9.5 Nm. These apply only to the named later powerhead joints, not all M5 screws or the original 1996 engine.
  • THE NEXT TWO PRINTED ROWS ARE INCONSISTENT: IS-M4x20 — Spark plug — 4.5 Nm; M14x1.25 — Ignition module/Cylinder — 20.0 Nm. The original page image confirms the component/size alignment; this is not merely text-extraction column order. Preserve these as a source conflict, NOT USABLE TORQUE GUIDANCE. Do not silently swap component names or promote either row to a validated repair setting; reconcile against detailed procedures and exact hardware.
  • DG or P (Plastoform) screws form permanent threads in polymer/lightmetal on first installation; the source permits repeated removal/refitting only with specified torque and requires a torque wrench. For existing DG threads, rotate counterclockwise until the screw drops slightly, then tighten clockwise to specified torque so a new weakening thread is not cut.
  • Power screwdriver speed for DG screws IN POLYMER is MAXIMUM 500 rpm. This is a driver-speed limit, not engine speed or permission to use unverified torque rows. No threadlocker instruction or fastener order number is supplied on this page.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 powerhead torque table: plug and module rows conflict.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 powerhead torque table: plug and module rows conflict, PDF pages 6

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 engine diagnosis: nine source cause/remedy rows

Fuel, carburetor, filter and ignition checks precede internal-engine fault finding.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 4.1 requires checking and if needed repairing fuel system, carburetor, air filter and ignition BEFORE looking for engine faults. Air filter, fuel supply and carburetor details belong to Series 4137 Components. These are diagnostic alternatives, not a mandate to replace every listed part.
  • HARD STARTING / STALLS AT IDLE BUT NORMAL FULL THROTTLE: defective crank-gear oil seals → replace oil seals; leaking/cracked crankcase → seal or replace crankcase; leaking muffler → seal or replace muffler (Components reference). Three distinct cause/remedy rows.
  • LOW POWER / ERRATIC RUNNING: worn/broken piston rings → replace rings; carbonized muffler or spark screen → clean muffler inlet/exhaust openings and replace screen; dirty air filter element → replace element; kinked/cracked fuel line → fit new lines or route without kinks; cracked impulse opening in intermediate flange → replace intermediate flange. Five distinct rows; the scan prints “park arresting” in the cause but “spark arresting” in the remedy. This transcription defect does not establish a different component.
  • OVERHEATING: blocked fan-housing air inlets or very dirty cylinder fins impair cooling → thoroughly clean cooling-air passages and fins. One row. Footnote1 delegates muffler, screen, filter and fuel-line remedy details to Components; no numeric compression, leakage limit, part numbers or confirmed diagnosis is supplied.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 engine diagnosis: nine source cause/remedy rows.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 engine diagnosis: nine source cause/remedy rows, PDF pages 7

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 ignition diagnosis: seven source cause/remedy rows

Loose boot, fouled plug, lead faults, air gap, flywheel and control checks remain distinct alternatives.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 4.2 groups these seven rows under rough running, misfires and temporary loss of power (source prints “temporary low of power”). The high-voltage warning remains a prerequisite; this table is not proof of any actual fault.
  • LOOSE BOOT → press firmly onto spark plug, fit new leg spring if needed. SOOT/OIL-FOULED PLUG → clean, replace if needed (source cause says “Spark covered”). WEAK OR NO SPARK → faulty ignition-lead or short-circuit-wire insulation; check ignition lead with an ohmmeter, replacing it if broken or high resistance. No numeric resistance threshold is printed.
  • WRONG COIL/FLYWHEEL AIR GAP → reset gap. CRACKED/DAMAGED FLYWHEEL → install new flywheel. These are separate rows, with no flywheel or ignition-module order number and no timing adjustment given.
  • CHECK PLUG FUNCTION AND SLIDE CONTROL/COIL/WIRE INSULATION OR LEAKAGE CURRENT → clean/replace plug and replace damaged ignition parts. NO SPARK → check slide control, ignition module and ignition leads, replace as needed. The last no-spark row is distinct from the earlier weak/no-spark lead-insulation row; neither makes a module replacement automatically necessary.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 ignition diagnosis: seven source cause/remedy rows.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 ignition diagnosis: seven source cause/remedy rows, PDF pages 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 cylinder removal: matched piston and one-ring pin direction

A replacement cylinder requires its corresponding piston; a one-snap-ring piston has a restricted removal direction.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.1 repeats fuel/carburetor/filter and ignition checks before internal-engine fault finding. Remove carburetor, muffler and engine per Components; remove cylinder screws (two rear screws are not illustrated), draw cylinder off piston and inspect. A NEW CYLINDER REQUIRES THE CORRESPONDING NEW PISTON; the manual says new cylinders are supplied with piston. No kit number or current availability is established.
  • Before piston removal decide whether crankshaft removal is required. For clutch/carrier dismantling the source blocks the crankshaft with piston on a wooden assembly block. Remove cylinder gasket, ease hookless snap rings from grooves, and use drift 1114 893 4700 to push out pin. If stuck, only light hammer taps are described, andPISTON MUST BE STEADIED to avoid jolts to connecting rod.
  • IF PISTON HAS ONLY ONE SNAP RING, the pin may be forced out ONLY TOWARD THAT SNAP RING; do not damage the stop. No serial or piston number identifies that variant. Remove piston and needle cage from connecting-rod eye; inspect rings under 5.3. This restriction must not become a universal two-sided pin-removal instruction.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 cylinder removal: matched piston and one-ring pin direction.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 cylinder removal: matched piston and one-ring pin direction, PDF pages 9

Part numbers (1)
  • 1114 893 4700 — Assembly driftLater powerhead service reference · Piston-pin removal; one-snap-ring direction and rod support restrictions; exact-linked 2004-03 HT75 scope only

Service note · HT 75

HT 75 piston and cylinder assembly: orientation, new gasket and ring locating pins

The illustrated piston mark faces the flywheel; ring-gap bevels must locate the fixing pin.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.2 requires removing/refitting intermediate flange per Components when replacing piston/cylinder. Clean sealing surface, oil needle cage and insert in rod eye. Slightly warm piston to ease assembly; no temperature is given. Figure 935RA051 labels piston MARK(1) andFLYWHEEL(2), showing the mark toward the flywheel. No unsupported arrow-to-exhaust rule is substituted.
  • Align piston/rod eye/needle cage using stub end of 1114 893 4700; place piston pin on stub and push into piston. Hookless snap-ring installation follows the separately retained tool/sleeve procedure. Fit a NEW CYLINDER GASKET; oil piston/rings andsupport on wooden block 1108 893 4800. Ring-gap bevels must locate the fixing pin in the groove.
  • Fit collar clamp 0000 893 2600 around piston/rings, verify ring positions, oil cylinder bore and align cylinder for installed position. Slide cylinder over piston while pushing clamp down so rings enter bore; wrong ring position can break them. Remove clamp/block, align cylinder/gasket and tighten screws using bit 0812 542 2104 per 3.3. Reverse remaining Components steps; do not apply the conflicting plug/module rows to these cylinder screws.
  • Section 5.3: remove piston per 5.1 and old rings; clean ring grooves with a piece of old ring. Install NEW rings with BEVELLED EDGES TOWARD THE PISTON SHAFT (source wording/figure 935RA068), then reinstall per 5.2. This orientation and the ring-gap locating-pin alignment are separate requirements. No ring clearance, part numbers or automatic reuse is inferred.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 piston and cylinder assembly: orientation, new gasket and ring locating pins.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 piston and cylinder assembly: orientation, new gasket and ring locating pins, PDF pages 10, 11, 12

Part numbers (4)
  • 1114 893 4700 — Assembly driftLater powerhead service reference · Piston-pin alignment/installation; exact-linked 2004-03 HT75 scope only
  • 1108 893 4800 — Wooden assembly blockLater powerhead service reference · Support oiled piston while fitting cylinder; exact-linked 2004-03 HT75 scope only
  • 0000 893 2600 — Collar clampLater powerhead service reference · Compress correctly aligned piston rings; exact-linked 2004-03 HT75 scope only
  • 0812 542 2104 — BitLater powerhead service reference · Cylinder-screw installation; torque reference3.3; exact-linked 2004-03 HT75 scope only

Service note · HT 75

HT 75 hookless snap-ring tool: sleeve dimensions and pin alignment

The source modifies the sleeve of 5910 890 2208; dimensions are diagram labels, not inferred ring sizes.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.2 removes the sleeve from installing tool 5910 890 2208 andspecifies modifying it per figure 935RA055: a=35.5 mm, b=17.3 mm, c=21.0 mm. The diagram shows a as axial length andb/c as the smaller/larger concentric cross-section dimensions; no tolerance, material or machining procedure is supplied. These are SLEEVE dimensions, not piston-ring orsnap-ring dimensions.
  • Attach snap ring to end magnet with GAP ON FLAT SIDE OF TOOL SHANK. Push large slotted sleeve diameter over magnet/ring, inner pin toward shank flat. Stand tool sleeve-down on flat wooden surface andpress vertically until sleeve meets tool shoulder.
  • Remove sleeve andslip it onto opposite end of shank, again inner pin toward flat. Apply tool to piston boss, hold piston steady, CENTRE SHANK EXACTLY andpress until ring enters groove. No instruction to omit ring seating or use unmodified arbitrary sleeves is added; no tool was physically modified.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 hookless snap-ring tool: sleeve dimensions and pin alignment.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 hookless snap-ring tool: sleeve dimensions and pin alignment, PDF pages 10, 11

Part numbers (1)
  • 5910 890 2208 — Hookless snap-ring installing toolLater powerhead service reference · Modified sleeve dimensions and pin/flat alignment under 5.2; exact-linked 2004-03 HT75 scope only

Service note · HT 75

HT 75 crankcase testing: seal both ports and set top dead centre

Test flange 1128 850 4200 and full-width exhaust plate 0000 855 8106 are required source fixtures.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.4.1 removes carburetor per Components, places gasket before intermediate flange andmoves piston to TOP DEAD CENTRE, visible through inlet bore. Spark plug must be securely seated; this does not resolve the conflicting torque table. Fit test flange 1128 850 4200 and tighten its nuts; no nut torque is printed.
  • Remove lower crankcase screw from muffler per Components andloosen two upper muffler screws HALF-WAY. Put sealing plate 0000 855 8106 BETWEEN GASKET AND CYLINDER EXHAUST, then lightly retighten the two upper screws. Plate must cover FULL WIDTH BETWEEN SCREWS. These are bounded preparation steps for both pressure and vacuum tests, not permission to energize a connected machine.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 crankcase testing: seal both ports and set top dead centre.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 crankcase testing: seal both ports and set top dead centre, PDF pages 13

Part numbers (2)
  • 1128 850 4200 — Test flangeLater powerhead service reference · Intake-side sealing and tester connection under 5.4.1; exact-linked 2004-03 HT75 scope only
  • 0000 855 8106 — Sealing plateLater powerhead service reference · Full-width exhaust seal between gasket andcylinder; exact-linked 2004-03 HT75 scope only

Service note · HT 75

HT 75 crankcase pressure test: 0.5 bar must hold for 20 seconds

The positive-pressure acceptance is a constant reading, distinct from the vacuum paragraph.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.4.2 uses the 5.4.1 preparation; connect pressure hose of tester 1106 850 2905 to test-flange nipple andclose bulb vent screw. Pump to APPROXIMATELY 50 kPa(0.5 bar). Source calls housing airtight only if pressure remains CONSTANT FOR AT LEAST 20 SECONDS. No allowed positive-pressure decay or percentage tolerance is supplied.
  • If pressure drops, locate leak and replace defective part. Coat suspected area with oil, repressurize and look for bubbles. The source then requires the separate NEGATIVE-PRESSURE TEST under 5.4.3; passing positive pressure alone does not clear the seals.
  • After testing open vent, remove hose and test flange, undo muffler screws, remove sealing plate and retighten muffler screws. Positive branch says insert/tighten OUTER SCREW on muffler; preparation and vacuum teardown instead say LOWER CRANKCASE SCREW. This terminology difference remains unresolved, not an invented additional screw. Refit carburetor per Components and reverse remaining disassembly.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 crankcase pressure test: 0.5 bar must hold for 20 seconds.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 crankcase pressure test: 0.5 bar must hold for 20 seconds, PDF pages 13, 14

Part numbers (1)
  • 1106 850 2905 — Pressure testerLater powerhead service reference · Positive crankcase test, constant 0.5 bar for at least20 seconds; exact-linked 2004-03 HT75 scope only

Service note · HT 75

HT 75 crankcase vacuum test: retain the printed 0.3 bar wording

The 0.5 bar starting vacuum and 20-second criterion are separate from the positive-pressure test; the wording is ambiguous.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.4.3 explains that an oil-seal lip may lift from crankshaft during intake when internal counterpressure is absent; negative-pressure testing can expose a failure missed by a positive test. Use the same preparation, connect suction hose of vacuum pump 0000 850 3501 to test-flange nipple. The scan says CONNECT VENT SCREW(1) TO PUMP CYLINDER, then actuate lever(2) until gauge(3) shows negative-pressure magnitude 50 kPa(0.5 bar). No signed gauge convention is explicitly stated.
  • Acceptance wording is retained: vacuum remains constant OR “pressure does not rise to more than 30 kPa(0.3 bar) within20 seconds”; the next sentence requires seal replacement if vacuum DECREASES FURTHER. The pressure-rise versus vacuum-magnitude wording is ambiguous. Do not silently reinterpret it as an allowed 0.3 bar loss, positive pressure, or a validated automated comparator. A decreasing vacuum magnitude from 0.5 toward 0.3 bar is an interpretation, not an independently established source correction.
  • After testing open vent, remove hose andflange, undo muffler screws, remove plate, retighten TWO UPPER muffler screws, then insert/tighten LOWER CRANKCASE SCREW. Refit carburetor per Components and reverse remaining disassembly. This preserves the difference from the positive branch OUTER SCREW wording; no actual leak test orseal diagnosis occurred.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 crankcase vacuum test: retain the printed 0.3 bar wording.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 crankcase vacuum test: retain the printed 0.3 bar wording, PDF pages 14

Part numbers (1)
  • 0000 850 3501 — Vacuum pumpLater powerhead service reference · Negative crankcase test; retain ambiguous 0.3 bar acceptance wording; exact-linked 2004-03 HT75 scope only

Service note · HT 75

HT 75 oil seals: different sleeves for clutch and starter sides

Seal replacement does not require full engine dismantling, but access and sleeves differ by side.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.5 distinguishes CLUTCH SIDE (remove flywheel, section 6.3) from STARTER SIDE (remove carrier, Components manual). Lightly unseat each seal with a suitable tube/punch, extract with puller 5910 890 4400 and jaws 0000 893 3706, PROFILE 3.1. Do not damage the crankshaft stub; clean the sealing surface with STIHL degreasant and grease the sealing lips.
  • CLUTCH SIDE: slide the seal over the crankshaft stub, OPEN SIDE TOWARD CRANKCASE; press toward the outside with sleeve 4112 893 2401, then refit flywheel. STARTER SIDE: first protect the stub with installing sleeve 4112 893 2400; slide the seal over it, OPEN SIDE TOWARD CRANKCASE; press outward with sleeve 1115 893 4600. Remove the protective sleeve and refit carrier. Remaining assembly reverses removal.
  • These are three distinct sleeves and two different access operations. The page gives no replacement-seal order number or universal seal dimension. Section 7 later calls 1115 893 4600 an installing sleeve; section 5.5 calls it a press sleeve. The same printed number is preserved without inventing a second tool.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 oil seals: different sleeves for clutch and starter sides.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 oil seals: different sleeves for clutch and starter sides, PDF pages 15, 16

Part numbers (5)
  • 5910 890 4400 — Oil-seal pullerLater powerhead service reference · Both sides; exact-linked 2004-03 HT 75 scope only
  • 0000 893 3706 — Puller jawsLater powerhead service reference · Profile 3.1 for both oil seals; exact-linked 2004-03 HT 75 scope only
  • 4112 893 2401 — Press sleeveLater powerhead service reference · Clutch-side seal; exact-linked 2004-03 HT 75 scope only
  • 4112 893 2400 — Protective installing sleeveLater powerhead service reference · Starter-side crankshaft stub; exact-linked 2004-03 HT 75 scope only
  • 1115 893 4600 — Press / installing sleeveLater powerhead service reference · Starter-side seal; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 crankshaft removal: two tool positions and mandatory renewals

Starter-side hole15 and clutch-side hole14 setups must not be exchanged.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.6.1 first removes carrier (Components reference), flywheel, cylinder and piston, unhooks the guard and removes the crankcase-half screws. Tool ZS 5910 007 2220 has a LEFT-HAND-THREADED SPINDLE. On the STARTER SIDE, put notch 1 at bottom and starter-cover screws through holes 15 until resting against the perforated disk. Turning the spindle COUNTERCLOCKWISE pushes the crankshaft from the bearing and separates the halves.
  • On the CLUTCH SIDE, place one sleeve 5910 893 1701 (30 mm) and two sleeves 5910 893 1702 (35 mm) over the housing holes as figure 935RA019 shows. Put tool notch 12 at bottom; use THREE M5x72 SCREWS through holes 14, with washers and nuts. Turn spindle COUNTERCLOCKWISE to push the crankshaft out. These screw dimensions are not order numbers.
  • The crankshaft, connecting rod and needle bearing form an INSEPARABLE UNIT, replaced as a complete part. Replacing the crankshaft also requires NEW DEEP-GROOVE BALL BEARINGS AND OIL SEALS; seals may need driving out with a punch. Bearings on both flywheel and starter sides are pressed INWARD out of the case with arbor 4119 893 7200. Inspect halves for cracks/fractures and replace as necessary.
  • Figure 935RA070 on PDF 17 is the perforated disk VIEWED FROM BELOW. Its dimension anchors are now separately transcribed in the ZS disk drawing note. The shared hole 14/6 is not independently dimensioned. This is NOT a validated drilling template or authority to modify tooling.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 crankshaft removal: two tool positions and mandatory renewals.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 crankshaft removal: two tool positions and mandatory renewals, PDF pages 16, 17, 18

Part numbers (4)
  • 5910 007 2220 — ZS installing tool setLater powerhead service reference · Crankcase separation; exact-linked 2004-03 HT 75 scope only
  • 5910 893 1701 — Sleeve 30 mmLater powerhead service reference · Clutch-side figure 935RA019 callout1; exact-linked 2004-03 HT 75 scope only
  • 5910 893 1702 — Sleeve 35 mmLater powerhead service reference · Two clutch-side sleeves, callout2; exact-linked 2004-03 HT 75 scope only
  • 4119 893 7200 — Press arborLater powerhead service reference · Both bearings pressed inward for removal; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 crankcase bearings: separate halves and outward seating

New halves include bearings; reused halves require clean sealing faces and centering sleeves.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 5.6.2 permits each damaged crankcase half to be replaced separately. New halves are supplied with deep-groove ball bearings already installed. Reused halves require removal of old seal remnants and absolutely clean sealing surfaces. CENTERING SLEEVES MUST BE PRESENT; fit missing sleeves into the housing half.
  • For each bearing seat, the source heats the housing half to approximately 120 °C, then promptly seats the bearing by hand AS FAR AS POSSIBLE TOWARD THE OUTSIDE. The bearing heats and expands immediately. If the half cannot be heated, use press arbor 4119 893 7200 to seat the bearing outward. This is the opposite direction to bearing removal.
  • The first side is called starter side; the other is called flywheel side in the heating instruction and clutch side in the unheated pressing alternative. No bearing size, interference tolerance, dwell time, permissible oven method or replacement-half order number is provided. These are printed source constraints, not a performed heating operation.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 crankcase bearings: separate halves and outward seating.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 crankcase bearings: separate halves and outward seating, PDF pages 18, 19

Part numbers (1)
  • 4119 893 7200 — Press arborLater powerhead service reference · Unheated bearing-installation alternative; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 crankshaft installation: shorter stub and tension-free case

The installing tool has a left-hand internal thread but screws clockwise onto the crankshaft.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Insert the SHORTER CRANKSHAFT STUB in the starter-side bearing. Screw the spindle of tool 5910 890 2202 completely into its sleeve (LEFT-HAND THREAD), then screw the spindle CLOCKWISE onto the crankshaft stub. Hold the spindle while turning the sleeve COUNTERCLOCKWISE against the bearing; hold the sleeve while turning the spindle CLOCKWISE to draw the crankshaft against the bearing.
  • The connecting rod, WITHOUT PISTON, must point toward the CYLINDER FLANGE while drawing in the crankshaft. Hold the crankshaft and turn spindle counterclockwise to remove the tool. Apply a THIN FILM OF SEALANT to the case-half mating surface, following the sealant manufacturer directions (section 8 reference).
  • Guide the flywheel-side half onto the crankshaft. Again screw spindle clockwise onto the crankshaft, bring sleeve counterclockwise against the bearing, then turn spindle clockwise while holding sleeve until the halves meet. Remove tool; tighten crankcase screws with bit 0812 542 2104 to section 3.3 (the distinct crankcase row is9.5 Nm). Grease lips and install seals per 5.5.
  • The crankshaft MUST TURN EASILY WITHOUT RESISTANCE. If not, repeat installation so parts are not under tension. Reverse remaining removal steps. Section 8 describes the sealant application as engine pan/cylinder while 5.6.2 specifies the crankcase mating face; retain that wording difference rather than infer a different joint or product.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 crankshaft installation: shorter stub and tension-free case.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 crankshaft installation: shorter stub and tension-free case, PDF pages 19, 20

Part numbers (2)
  • 5910 890 2202 — Crankshaft installing toolLater powerhead service reference · Spindle and sleeve figure 935RA032; exact-linked 2004-03 HT 75 scope only
  • 0812 542 2104 — T27 bitLater powerhead service reference · Crankcase screws; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 spark-plug boot: spring hook location and adapter nut

The spring hook enters the lead center approximately 5 mm from the end.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 6 warns that ignition high voltage can cause serious or fatal injury; fault finding begins at the spark plug. This is a capacitive, breakerless system consisting essentially of ignition module and flywheel. No energized test was performed.
  • Section 6.1 removes the shroud (Components reference), unplugs the boot, pulls the leg spring from it with suitable pliers, unhooks the spring and removes the boot. Coat approximately 20 mm of the lead end with oil before refitting the boot. Pull the lead out through the boot, then pinch the spring hook into the CENTER OF THE LEAD, ABOUT 5 mm FROM ITS END.
  • Pull the lead back until the spring locates properly inside the boot. If the spark plug has a DETACHABLE ADAPTER NUT, ensure it is fitted and firmly tightened; this is conditional, not an instruction to add a nut to every plug. Reconnect boot and refit shroud. The20 mm oiling length and5 mm hook position are different dimensions; no boot/spring order number or adapter-nut torque is printed.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 spark-plug boot: spring hook location and adapter nut.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 spark-plug boot: spring hook location and adapter nut, PDF pages 20, 21

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 ignition module: mounting variants do not resolve torque conflict

Detailed procedures refer back to the inconsistent torque table rather than supply independent values.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Sections 6.2/6.2.1 identify high-voltage output with lead, short-circuit connector tab and GROUND WIRE IF INSTALLED. Timing is NOT ADJUSTABLE; the source attributes stable timing to lack of mechanical wear. Accurate module testing requires special equipment; workshop spark testing and verification of wiring/stop switch precede replacement. This is not proof that every no-start needs a module.
  • Remove starter mechanism or fan housing with starter (Components reference). Disconnect short-circuit wire; on TWO-WIRE units disconnect BOTH from module and terminal socket. Unplug boot; remove screws with washers and module; dismantle boot. THE IGNITION LEAD IS INTEGRALLY MOULDED INTO THE MODULE in this section, not established as separately replaceable hardware.
  • Fit module loosely. Where installed, secure ground wire and short-circuit connector tab under UPPER SCREW. Older versions may have a PLASTIC DISK BETWEEN CYLINDER AND MODULE AT BOTH UPPER AND LOWER SCREWS; refit as required. No serial/year changeover or disk order number is printed.
  • Use setting gauge 4118 890 6401 between module arms and flywheel magnetic poles; press module against it and tighten screws. The instruction refers ONLY to section 3.3. Spark-plug test preparation also refers to 3.3. Neither supplies an independent numeric torque; the M4/spark-plug and M14/module mismatch REMAINS UNRESOLVED AND NOT USABLE TORQUE GUIDANCE. No silent swap is justified.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 ignition module: mounting variants do not resolve torque conflict.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 ignition module: mounting variants do not resolve torque conflict, PDF pages 21, 22, 23

Part numbers (1)
  • 4118 890 6401 — Setting gaugeLater powerhead service reference · Ignition module to flywheel poles; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 spark testers: ZAT3 and ZAT4 have different connections

A visible spark tests ignition output, not ignition timing or a running engine.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 6.2.3 lists ZAT4 5910 850 4503 and ZAT3 5910 850 4520. THIS IS A SPARK TEST, NOT AN IGNITION-TIMING TEST. Both preparations specify a NEW PLUG in the cylinder tightened via section 3.3; its torque conflict remains unresolved, so this source summary is not a ready-to-run bench procedure.
  • ZAT4: connect plug boot to input 1 and output 3 to the plug; crank with rewind starter at MINIMUM 1,000 rpm and observe window 2. A visible spark is the source positive result; unclear results require ZAT3 or6.4 chart. No spark leads to harness/start-stop inspection, leg-spring check and the chart, not immediate module replacement.
  • ZAT3: connect boot to terminal 2, ground terminal 1 to the plug, and set approximately 2 mm spark gap with adjusting knob 3. Source callout3 is also used for the spark window in its caution; retain that combined labeling rather than invent a new terminal. Hold ONLY HANDLE 4 or place safely, maintaining AT LEAST 1 cm body clearance from window 3, high-voltage connection 2, ground connection 5 and terminal 1.
  • ZAT3 also specifies minimum 1,000 rpm cranking and observation of window 3. If no spark, inspect harness/slide control, leg spring and 6.4 chart. Section 6.2.3 calls this the SERIES SPARK GAP;6.4 calls ZAT3 the MAIN SPARK GAP and references TI32.94. The separate ZAT3 reference note now reconciles these as distinct 6 mm engine-ground and 2 mm plug-in-circuit modes, reusing reviewed TI32/1994 guidance. Do not merge the configurations; no energized operation was carried out.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 spark testers: ZAT3 and ZAT4 have different connections.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 spark testers: ZAT3 and ZAT4 have different connections, PDF pages 23, 24

Part numbers (2)
  • 5910 850 4503 — ZAT4 ignition testerLater powerhead service reference · Spark test, not timing; exact-linked 2004-03 HT 75 scope only
  • 5910 850 4520 — ZAT3 ignition testerLater powerhead service reference · Series spark gap per6.2.3; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 flywheel: puller, damage checks and groove orientation

The hub and crankshaft stub are degreased before reassembly; damaged poles require replacement.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 6.3 first removes the clutch (Components reference), then pulls off the flywheel. If it cannot be removed by hand, screw on puller 4133 893 0800, lightly tap its face and remove the flywheel. This is the named flywheel tool, not the oil-seal puller or crankshaft installing tool.
  • Inspect flywheel and magnetic poles: ANY SIGN OF DAMAGE REQUIRES FLYWHEEL REPLACEMENT. Degrease crankshaft stub and flywheel-hub bore with STIHL degreasant; position flywheel with attention to the GROOVE, install clutch via Components and reverse remaining removal steps. The source does not give a separate key number, groove angle, flywheel torque or replacement-flywheel order number.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 flywheel: puller, damage checks and groove orientation.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 flywheel: puller, damage checks and groove orientation, PDF pages 24, 25

Part numbers (1)
  • 4133 893 0800 — Flywheel pullerLater powerhead service reference · If removal by hand is unsuccessful; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 ignition flowchart: resistance units and branch order

The original scan gives 1.5–12 kΩ boot-to-ground and <10 Ω lead resistance, not watts.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 6.4 begins with ENGINE DOES NOT RUN: set slide control or separate stop switch to I; inspect plug oil/blackening, soot, electrode gap and shorted contacts, cleaning/resetting/replacing as needed. Check boot seating, spring-hook position and boot damage; replace boot/spring if needed. Test with ZAT3 or ZAT4; the ZAT3 MAIN SPARK GAP note points to TI32.94, now reconciled in the separate ZAT3 reference note as the 6 mm engine-ground mode, distinct from section 6.2.3’s 2 mm series mode.
  • FIRST POWERFUL-SPARK DECISION: YES bypasses the air-gap/wiring/module-replacement chain and proceeds to ENGINE RUNS? NO leads to air-gap reset if needed, flywheel pole shoes (replace flywheel if blue), disconnecting short-circuit wire, and lead/boot inspection. These are chart branches, not a mandate to perform every action when a good spark already exists.
  • The original PDF 27 image prints BOOT-TO-GROUND RESISTANCE 1.5–12 kΩ and IGNITION-LEAD RESISTANCE <10 Ω. Text extraction renders these as kW/W; use the visually verified OHM symbols, not power units. Check severe chafing and boot holes/cracks. The chart suggests new boot and/or ignition lead, but 6.2.2 says the lead is integrally moulded into the module; RETAIN THIS SERVICEABILITY CONFLICT, without claiming a separately replaceable lead for this exact module.
  • Continue by checking slide control/stop switch, chafed short-circuit wire and contact-spring gap; the chart suggests ignition lead and/or contact springs as needed. RECONNECT SHORT-CIRCUIT WIRE before the SECOND powerful-spark decision. YES proceeds to engine-run decision; NO installs a new module before that decision.
  • FINAL ENGINE-RUN DECISION: YES checks RUN/STOP function. NO investigates fuel system/carburetor, engine leaks and flywheel position on crankshaft. No numeric contact-spring gap, universal resistance range for other engines, verified fault or hardware readiness is inferred.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 ignition flowchart: resistance units and branch order.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 ignition flowchart: resistance units and branch order, PDF pages 26, 27, 28

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 powerhead service aids: oil-seal grease and sealant wording

The accessories table has three rows numbered1,2,4; no missing product is invented.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 8 lists GREASE, 370 g TUBE, 0781 120 1111 for oil seals; STIHL DEGREASANT for crankshaft stub/flywheel hub, with NO PRINTED ORDER NUMBER; and DIRKO SEALANT 0783 830 2120 for ENGINE PAN/CYLINDER. Its rows are numbered1,2,4, not a four-item inventory.
  • Section 5.6.2 directs a thin sealant film on the CRANKCASE-HALF MATING SURFACE and compliance with manufacturer directions. Preserve that application-wording difference from section 8; do not invent an engine pan, a product substitution, curing time or current availability. Section 5.5 separately uses degreasant for oil-seal seating surfaces.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 powerhead service aids: oil-seal grease and sealant wording.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 powerhead service aids: oil-seal grease and sealant wording, PDF pages 19, 31

Part numbers (2)
  • 0781 120 1111 — Grease, 370 g tubeLater powerhead service reference · Oil seals; exact-linked 2004-03 HT 75 scope only
  • 0783 830 2120 — Dirko sealantLater powerhead service reference · Printed engine pan/cylinder application;5.6.2 case-face reference retained; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 powerhead tool inventory:28 numbered rows and wrench restrictions

Tool numbers are source references, not fitted machine parts or a complete bench-readiness list.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Section 7 contains 28 numbered tool rows. Rows 14–15 are retained separately in the fixture-conflict note; the other 26 are listed here with their printed applications. Rows 21–22 have BLANK APPLICATION CELLS; their side-specific lengths come from 5.6.1, not this table.
  • Row 2 lists jaws with profiles3.1 AND 4, whereas the oil-seal procedure specifically requires3.1. A list of both profiles is not permission to substitute 4 in that procedure. Row 4 vacuum-pump applications include crankcase leakage and tank vent; row 3 tester covers crankcase AND carburetor.
  • Footnote 1 restricts screwdriver 5910 890 2400 to UNSCREWING DG/P screws. Footnote 2 requires a TORQUE WRENCH TO TIGHTEN DG/P screws. These restrictions override a generic all-IS-screws application label.
  • Row 12 wrench 5910 890 0301 covers0.5–18 Nm; footnote 3 permits visual/acoustic 5910 890 0302 instead. Row 13 wrench 5910 890 0311 covers6–80 Nm; footnote 4 permits visual/acoustic 5910 890 0312 instead. These are TOOL RANGES, NOT FASTENER TORQUES, and do not resolve the plug/module torque conflict.
  • T27x125 bit 0812 542 2104 is listed for electric/pneumatic screwdrivers and torque-wrench tightening; Q-T27x150 screwdriver 5910 890 2400 is a separate tool. The ZAT3 table application is SERIES spark gap, preserving the main/series wording discrepancy against 6.4. No hardware test or claim of present tool availability is made.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 powerhead tool inventory:28 numbered rows and wrench restrictions.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 powerhead tool inventory:28 numbered rows and wrench restrictions, PDF pages 29, 30

Part numbers (28)
  • 5910 890 4400 — 1 PullerLater powerhead service reference · Removing oil seals; exact-linked 2004-03 HT 75 scope only
  • 0000 893 3706 — 2 Jaws, profiles3.1+4Later powerhead service reference · Extracting oil seals;procedure uses3.1; exact-linked 2004-03 HT 75 scope only
  • 1106 850 2905 — 3 Carburetor/crankcase testerLater powerhead service reference · Leak testing crankcase and carburetor; exact-linked 2004-03 HT 75 scope only
  • 0000 850 3501 — 4 Vacuum pumpLater powerhead service reference · Crankcase leakage and tank vent tests; exact-linked 2004-03 HT 75 scope only
  • 0000 850 8106 — 5 Sealing plateLater powerhead service reference · Sealing exhaust port; exact-linked 2004-03 HT 75 scope only
  • 1128 850 4200 — 6 FlangeLater powerhead service reference · Leakage test; exact-linked 2004-03 HT 75 scope only
  • 4112 893 2400 — 7 Installing sleeveLater powerhead service reference · Protecting starter-side oil seal; exact-linked 2004-03 HT 75 scope only
  • 1115 893 4600 — 8 Installing sleeveLater powerhead service reference · Installing starter-side oil seal; exact-linked 2004-03 HT 75 scope only
  • 4112 893 2401 — 9 Press sleeveLater powerhead service reference · Installing clutch-side oil seal; exact-linked 2004-03 HT 75 scope only
  • 4118 890 6401 — 10 Setting gaugeLater powerhead service reference · Module/flywheel air gap; exact-linked 2004-03 HT 75 scope only
  • 5910 890 2400 — 11 Q-T27x150 screwdriverLater powerhead service reference · All IS screws;DG/P unscrewing only; exact-linked 2004-03 HT 75 scope only
  • 5910 890 0301 — 12 Torque wrenchLater powerhead service reference · Range 0.5–18 Nm; exact-linked 2004-03 HT 75 scope only
  • 5910 890 0311 — 13 Torque wrenchLater powerhead service reference · Range 6–80 Nm; exact-linked 2004-03 HT 75 scope only
  • 1114 893 4700 — 16 Assembly driftLater powerhead service reference · Installing piston pin; exact-linked 2004-03 HT 75 scope only
  • 1108 893 4800 — 17 Wooden assembly blockLater powerhead service reference · Mounting piston; exact-linked 2004-03 HT 75 scope only
  • 0000 893 2600 — 18 Collar clampLater powerhead service reference · Tensioning piston rings; exact-linked 2004-03 HT 75 scope only
  • 5910 890 2208 — 19 Installing tool8Later powerhead service reference · Hookless piston snap rings; exact-linked 2004-03 HT 75 scope only
  • 0812 542 2104 — 20 T27x125 bitLater powerhead service reference · Internal-star screws and torque wrench; exact-linked 2004-03 HT 75 scope only
  • 5910 893 1701 — 21 SleeveLater powerhead service reference · Application blank in this table; exact-linked 2004-03 HT 75 scope only
  • 5910 893 1702 — 22 SleeveLater powerhead service reference · Application blank in this table; exact-linked 2004-03 HT 75 scope only
  • 4119 893 7200 — 23 Press arborLater powerhead service reference · Pressing deep-groove ball bearings in/out; exact-linked 2004-03 HT 75 scope only
  • 5910 890 2202 — 24 Installing toolLater powerhead service reference · Installing crankshaft; exact-linked 2004-03 HT 75 scope only
  • 5910 007 2220 — 25 ZS installing tool setLater powerhead service reference · Separating crankcase halves; exact-linked 2004-03 HT 75 scope only
  • 5910 850 4503 — 26 ZAT4 ignition testerLater powerhead service reference · Testing ignition system; exact-linked 2004-03 HT 75 scope only
  • 5910 850 4520 — 27 ZAT3 ignition testerLater powerhead service reference · Testing series spark gap; exact-linked 2004-03 HT 75 scope only
  • 4133 893 0800 — 28 PullerLater powerhead service reference · Removing flywheel; exact-linked 2004-03 HT 75 scope only
  • 5910 890 0302 — Footnote 3 alternative torque wrenchLater powerhead service reference · Visual/acoustic alternative to row 12; exact-linked 2004-03 HT 75 scope only
  • 5910 890 0312 — Footnote 4 alternative torque wrenchLater powerhead service reference · Visual/acoustic alternative to row 13; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 powerhead fixtures: introduction and tool table disagree

The manual prints different middle groups and roles; do not merge these fixture references.

No exact-model IPL link: Exact catalog HT70/HT75 link to 2004-03 Series 4137 Powerhead document 5488; later-source comparison, not recovery of the 1996 type 4138 machine or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 Series 4137 Powerhead is linked by the retained catalog to HT 70 / HT 75. This note is limited to HT 75; it does not establish original 1996 configuration, series 4138/4137 equivalence or authorize a repair.
  • Introduction figure 366RA265 names ASSEMBLY STAND5910 893 8800 (callout2) and CLAMPING PLATE5910 893 3100 (callout1), allowing the powerhead to swivel. These are the exact introductory numbers, already retained as source-only references.
  • Section 7 row 14 instead names ASSEMBLY STAND5910 890 3100 for FS/FR models. Row 15 names CLAMP5910 890 8800 for shaft power tools, installed on chainsaw assembly block5910 890 3100. Both the middle number group893/890 AND the3100/8800 roles differ.
  • These are CONFLICTING SOURCE REFERENCES, NOT VERIFIED SUBSTITUTIONS OR SUPERSESSIONS. The FS/FR application label is not an HT75 model-binding extension. Retain both sets; no corrected order number, mounting bolt, compatibility guarantee or ready fixture is inferred.
  • No hardware operation was performed. This is a scoped manual dependency review, not whole-manual import, original-edition recovery or proof of current material availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 powerhead fixtures: introduction and tool table disagree.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 powerhead fixtures: introduction and tool table disagree, PDF pages 3, 29

Part numbers (4)
  • 5910 893 8800 — Introduction: assembly standLater powerhead service reference · Figure 366RA265 callout2; exact-linked 2004-03 HT 75 scope only
  • 5910 893 3100 — Introduction: clamping plateLater powerhead service reference · Figure 366RA265 callout1; exact-linked 2004-03 HT 75 scope only
  • 5910 890 3100 — Tool table 14: assembly stand / blockLater powerhead service reference · FS/FR;row 15 clamp base, not asserted HT75 interchange; exact-linked 2004-03 HT 75 scope only
  • 5910 890 8800 — Tool table 15: shaft-tool clampLater powerhead service reference · For printed base 5910 890 3100; exact-linked 2004-03 HT 75 scope only

Service note · HT 75

HT 75 ZS disk drawing: underside view and hole 14/15 offsets

Figure 935RA070 is source geometry, not a scale drilling template.

No exact-model IPL link: Exact HT 75 later-source comparison; not recovery of original 1996 procedures or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 STIHL Series 4137 Powerhead, scoped to HT 75. This does not recover the original 1996 type 4138 configuration, prove 4138/4137 equivalence or establish exact C1Q-S28A fitment.
  • PDF 17 (printed page 16), figure 935RA070, shows the perforated disk FROM BELOW. The source permits modification of installing devices lacking holes 14 and 15. Its explicit hole-diameter callout is Ø5.5; the figure gives no separate unit legend or machining tolerances. Dimensions below retain the printed numerical values; millimetres are inferred from the surrounding metric tooling context, not explicitly restated in this figure.
  • Using the drawn central horizontal/vertical lines as origin, positive x RIGHT and positive y UP in this UNDERSIDE VIEW, dimension-derived hole centers are: upper-left 14 = (−10.9, +33.6); upper-right 15 = (+4.7, +35.7); right 14 = (+31.3, −5); lower-right 15 = (+23.4, −30.5); lower-left 15 = (−30.5, −23.4). These are a transcription of dimension anchors, NOT coordinates measured from image pixels.
  • The additional lower-left hole labeled 14/6 is drawn but NOT independently dimensioned. Do not invent its center from the picture or label 6. The 52.3 vertical dimension runs from the central horizontal line to the top datum/outline; it is NOT the upper-left hole y-coordinate. Preserve the drawing orientation and the Ø5.5 leader; no tool diameter, plate thickness, counterbore, tolerance or executable drill file is established.
  • Use context remains distinct: starter side uses holes 15 with notch 1 at bottom; clutch side uses holes 14 with notch 12 at bottom and the specified sleeves/M5x72 screws. The disk drawing is NOT a validated drilling template or authorization to modify tooling. The undimensioned shared hole is a source limitation, not a reason to infer missing geometry.
  • No hardware operation was performed. Scoped source review, not a verified repair, whole-manual import or evidence of current parts availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 ZS disk drawing: underside view and hole 14/15 offsets.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 ZS disk drawing: underside view and hole 14/15 offsets, PDF pages 16, 17

Part numbers (1)
  • 5910 007 2220 — ZS installing tool setLater manual service reference · Figure 935RA070 / section 5.6.1; HT 75 later-source scope only

Service note · HT 75

HT 75 ZAT3 reference: main and series gaps are different circuits

The 6 mm engine-ground setup must not be mixed with the 2 mm plug-in-circuit setup.

No exact-model IPL link: Exact HT 75 later-source comparison; not recovery of original 1996 procedures or exact C1Q-S28A configuration.

  • Later-source comparison only: 2004-03 STIHL Series 4137 Powerhead, scoped to HT 75. This does not recover the original 1996 type 4138 configuration, prove 4138/4137 equivalence or establish exact C1Q-S28A fitment.
  • Section 6.2.3 uses a new installed spark plug and approximately 2 mm SERIES spark gap. Section 6.4 instead explicitly calls for ZAT3 as MAIN spark gap and refers to TI32.94. Reconciliation reuses the already-reviewed TI 32/1994 main-gap and auxiliary-gap notes; no duplicate review or replacement of that bulletin was performed.
  • TI 32/1994 MAIN mode: remove the spark plug, connect the clip to an engine ground such as a cylinder fin, set 6 mm and pull the starter quickly. AUXILIARY mode: clip to the spark plug, set 2 mm; the plug remains in the circuit and the engine can start. The later manual’s SERIES configuration corresponds to this auxiliary circuit, not to the main circuit. This correspondence is an evidence-based comparison of connections and gap values, not a claim that the manual uses identical terminology.
  • Keep the 2004 section 6.2.3 and section 6.4 instructions separate. Do not silently change both to 2 mm, combine engine-ground wiring with the auxiliary setting, or use the 6 mm value as a spark-plug electrode gap. Both sources’ high-voltage precautions apply; the 1994 note requires at least 1 cm body clearance, holding only the handle, and no use near fuel/gas or with wet hands. Auxiliary-mode engine-start precautions require the operator manual.
  • The retained notes include start/no-start diagnostic branches and limitations. A visible spark is not proof of ignition timing or every load-dependent fault. The later plug/module torque conflict remains unresolved; resolving this reference does not make a ready-to-run bench procedure.
  • No hardware operation was performed. Scoped source review, not a verified repair, whole-manual import or evidence of current parts availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 ZAT3 reference: main and series gaps are different circuits.

Referenced bulletin evidence: TI 32/1994, p. 1 · TI 32/1994, p. 2 — Already-reviewed TI32/1994 main and auxiliary circuits; reused without re-review.

Later manual evidence: STIHL Series 4137 Powerhead (2004-03), section HT 75 ZAT3 reference: main and series gaps are different circuits, PDF pages 23, 24, 26

Part numbers (1)
  • 5910 850 4520 — ZAT3 ignition testerLater manual service reference · Main versus series/auxiliary circuit comparison; HT 75 later-source scope only

Service note · HT 75

HT 75 clutch and chain-drive diagnosis: ten cause/remedy rows

A moving chain at idle is not automatically a failed clutch.

No exact-model IPL link: Exact HT 75 later-source comparison; not recovery of original 1996 procedures or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 STIHL Series 4137 Components HT, scoped to HT 75. This does not recover the original 1996 type 4138 configuration, prove 4138/4137 equivalence or establish exact C1Q-S28A fitment.
  • Complete section 4.1 table: CHAIN STOPS UNDER LOAD AT FULL THROTTLE — badly worn clutch shoes: new shoes or clutch; badly worn drum: new drum. CHAIN ROTATES AT IDLE — excessive idle speed: readjust idle screw counterclockwise; stretched/fatigued springs: replace springs; broken spring hooks: replace springs.
  • LOUD NOISES — stretched/fatigued springs: replace ALL clutch springs; broken shoe retainer: new retainer; worn shoes and retainers: new clutch. RAPID SPROCKET WEAR — chain improperly tensioned: tension as specified; wrong pitch: correct-pitch chain. These are ten printed alternatives, not measured faults or a requirement to replace every part.
  • The generic counterclockwise idle-screw remedy is not permission to override the separately reviewed carburetor/LD/limiter variants and their direction or speed constraints. This table supplies no numeric chain tension, replacement part numbers or new interchange claim. Original cutting-length/link-count conflict remains retained.
  • No hardware operation was performed. Scoped source review, not a verified repair, whole-manual import or evidence of current parts availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 clutch and chain-drive diagnosis: ten cause/remedy rows.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 clutch and chain-drive diagnosis: ten cause/remedy rows, PDF pages 8

No parts-table entry added. Tool references, where present, are retained in the manual notes above.

Service note · HT 75

HT 75 clutch access: shoe orientation and spring seating

The clutch removal direction is counterclockwise; reassembly retains both hexagon descriptions.

No exact-model IPL link: Exact HT 75 later-source comparison; not recovery of original 1996 procedures or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 STIHL Series 4137 Components HT, scoped to HT 75. This does not recover the original 1996 type 4138 configuration, prove 4138/4137 equivalence or establish exact C1Q-S28A fitment.
  • Section 5.2 refers to 4.1, removes shroud, fan-housing screws and engine from the housing, then inspects the drum for scoring/excessive wear. Noticeable internal wear requires a wall-thickness check; LESS THAN ABOUT 80% OF ORIGINAL THICKNESS requires a new drum. This is a relative rejection criterion, not 80% wear allowed or a supplied absolute thickness.
  • Remove spark-plug boot and plug, insert locking strip 0000 893 5903 into the cylinder and unscrew the clutch COUNTERCLOCKWISE. Use hook 5910 890 2800 to remove springs, pull shoes off carrier and retainers off shoes. Clean parts per section 12; replace damaged parts. The source recommends replacing the whole clutch where possible, while its troubleshooting table also allows shoes/springs/retainer repairs.
  • Retainers: NARROW SIDE ON THE SAME SIDE AS THE SHOE NUMBER. Shoes: NUMBER ON THE SAME SIDE AS THE CARRIER’S RAISED HEXAGON. Clamp with protective jaws; attach one end of each spring, hook the other end and press firmly into shoes. Final installation says LOWER HEXAGON FACING OUTWARDS. Keep both printed descriptions; do not silently rename raised/lower or infer a different carrier.
  • Tighten clutch per section 3.2 (the already-reviewed clutch-carrier/flywheel/crankshaft M8 row is 26 Nm). Confirm fan-housing plugs present, locate engine lugs in plugs, tighten housing screws per 3.2, REMOVE LOCKING STRIP and reverse remaining removal. This is not the separate starter-carrier M8/14 Nm row; no interchange or executed repair is established.
  • No hardware operation was performed. Scoped source review, not a verified repair, whole-manual import or evidence of current parts availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 clutch access: shoe orientation and spring seating.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 clutch access: shoe orientation and spring seating, PDF pages 13, 14, 15

Part numbers (2)
  • 0000 893 5903 — Piston locking stripLater manual service reference · Clutch removal; HT 75 later-source scope only
  • 5910 890 2800 — Spring hookLater manual service reference · Clutch springs; HT 75 later-source scope only

Service note · HT 75

HT 75 clutch drum: different removal and installation drifts

A faulty drum bearing requires the whole fan housing in this source.

No exact-model IPL link: Exact HT 75 later-source comparison; not recovery of original 1996 procedures or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 STIHL Series 4137 Components HT, scoped to HT 75. This does not recover the original 1996 type 4138 configuration, prove 4138/4137 equivalence or establish exact C1Q-S28A fitment.
  • Section 5.3 begins by removing the anti-vibration rubber element from the fan housing (already-reviewed section 7.1). Use pliers 0816 610 1495 to remove the circlip from the drum output stub. Drift 4180 893 4400 presses the drum OUT OF THE BALL BEARING.
  • Check the ball bearing. If faulty, the manual requires replacement of the WHOLE FAN HOUSING; it does not provide a separate bearing repair or order number. Use drift 1108 893 4700 to press the drum HOME AS FAR AS THE STOP, then reverse removal. The two drift numbers are distinct; no improvised substitute is established.
  • The section 5.2 wear check rejects a drum below about 80% of original wall thickness. No original thickness, bearing dimensions, pressing force or independent circlip clearance is printed. Earlier conflicting fan-housing removal wording is retained, not resolved by this procedure.
  • No hardware operation was performed. Scoped source review, not a verified repair, whole-manual import or evidence of current parts availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 clutch drum: different removal and installation drifts.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 clutch drum: different removal and installation drifts, PDF pages 13, 15, 16

Part numbers (3)
  • 0816 610 1495 — Circlip pliersLater manual service reference · Drum output-stub circlip; HT 75 later-source scope only
  • 4180 893 4400 — Removal driftLater manual service reference · Press drum out of bearing; HT 75 later-source scope only
  • 1108 893 4700 — Installing driftLater manual service reference · Press drum home to stop; HT 75 later-source scope only

Service note · HT 75

HT 75 starter carrier and pawl: long and short spring legs

Carrier removal closes the starter-side seal/crankshaft access reference, not a full rewind-starter overhaul.

No exact-model IPL link: Exact HT 75 later-source comparison; not recovery of original 1996 procedures or exact C1Q-S28A configuration.

  • Later-source comparison only: 2005-04 STIHL Series 4137 Components HT, scoped to HT 75. This does not recover the original 1996 type 4138 configuration, prove 4138/4137 equivalence or establish exact C1Q-S28A fitment.
  • Section 6.7 unscrews the spark plug, blocks the piston with locking strip 0000 893 5903 (5.2), removes the rewind starter (6.2, already reviewed), then unscrews the carrier from the crankshaft. The paragraph gives NO EXPLICIT ROTATION DIRECTION; do not borrow the clutch or ZS spindle direction.
  • Squeeze together the ends of the pawl peg, remove the pawl and take off the torsion spring. Fit the spring to the new pawl and place it in the carrier hole. LONG SPRING LEG AGAINST CARRIER; SHORT LEG AGAINST PAWL, as figure 936RA057 shows. The visible R marking is retained as an illustration marking, not a newly inferred serial or rotation instruction.
  • Screw the carrier onto the crankshaft and tighten per 3.2 (separate M8 carrier row: 14 Nm, not the 26 Nm clutch row). Refit starter, REMOVE LOCKING STRIP, refit/tighten plug via 3.2, reconnect boot and refit shroud. The component table prints 20 Nm for its plug row; this does NOT silently resolve the conflicting 2004 Powerhead table or establish original-1996 torque applicability.
  • This closes the carrier prerequisite cited for starter-side seals/crankshaft work. Adjacent starter-rope replacement and unrelated rewind-spring repair are outside this scoped access dependency; no full-manual semantic closure is claimed.
  • No hardware operation was performed. Scoped source review, not a verified repair, whole-manual import or evidence of current parts availability.

TI dependency: TI 47/1996, p. 3 · TI 47/1996, p. 4 — HT 75 starter carrier and pawl: long and short spring legs.

Later manual evidence: STIHL Series 4137 Components HT (2005-04), section HT 75 starter carrier and pawl: long and short spring legs, PDF pages 22, 23

Part numbers (1)
  • 0000 893 5903 — Piston locking stripLater manual service reference · Starter-carrier removal; HT 75 later-source scope only

Full text

Page 1 of 4

TI 47/1996 page 1
Text of page 1 — search, copy, screen readers
Technical Information

                                                                   47.96

Pole pruner STIHL HT 75 - type 4138

The new pole pruner STIHL HT 75 makes an ideal
tool for cutting and maintaining tree limbs.

The telescoping shaft allows the HT 75 to be
easily adjusted for length. The hook molded onto

the gearbox serves as a stop when sawing.

The machine is equipped with a powerful engine
(0.9 kW/1.2 HP) and weighs 14.6 lbs.                  fo
The power unit in the HT 75 is the same as that of
the brushcutters STIHL FS 75, 80 and 85. Other
assemblies (such as the control handle) are also

the same as in these brushcutter models.

The STIHL pole pruner is fitted with a
Picco-Mini bar and chain (as for the STIHL 017

chainsaw) with a bar length of 14 in.

Page 2 of 4

TI 47/1996 page 2
Text of page 2 — search, copy, screen readers
Technical Information 47.96 - Page 2

&RQWHQWV

1.    Technical description
2.    Technical specifications
3.    Bar and chain
4.    Special accessories for the user
5.    Servicing accessories
6.    Repairs

1.======Technical description

The engine is identical to that of the STIHL FS 75, 80, 85.

The cutting attachment is the same as that of the chainsaw 017 - any differences are specified.

Telescoping shaft
• Telescoping tube with profiled shaft (pre-lubricated) running in the supportive tubing and ball bearings.

Gearbox / fastening for bar and chain
• Spiral-toothed 90° pinion gear, with a mount for the cutting attachment.

Oil pump
• Same mechanical design as on STIHL 021, 023, 025.                 fo
2.======Technical specifications

The technical specifications are the same as those for the brushcutters FS 75, 80, 85.

Any discrepancies are specified.

2.1=====Engine

Type  Lp          Lp (50 ft.)
      (operators  ANSI B175.3
      ear)
      ANSI B175.3

HT 75 101         69

2.2=====Dimensions / weight

2.2.1=Overall length
Shaft fully retracted                - without cutting attachments: approx. 7.7 ft.

                                     - with cutting attachments: approx. 8.7 ft.
Shaft fully extended                 - with cutting attachments: approx. 12.5 ft.

2.2.2=Weight
HT 75:                               14.6 lbs.

Page 3 of 4

TI 47/1996 page 3
Text of page 3 — search, copy, screen readers
Technical Information 47.96 - Page 3

3.====Cutting attachments

Bar length 14 in; Oilomatic chain 3/8", Picco-Micro-Narrow (PMN), 44 links;
Rollomatic Mini guide bar; spur chain sprocket, 7 teeth, for 3/8" P

4.====Special accessories for the user

Part name                 Part number         Use, remarks

File holder               5605 750 4327       Sharpening the chain
including:
- Round file,             0811 411 8073       5/32" diameter

Filing gauge              0000 893 4000

5.====Servicing accessories

5.1===Special tools

The same special tools are required as for the brushcutters FS 75, 80 and 85.

5.2===Aids
Part name                 Part number         Use                                                    Remarks

Set of carburetor parts   4226 007 1060       Zama C1Q-S28A carburetor                               new
Grease (40 g tube)        0781 120 6602       Drive shaft (profiled shaft), gear                     new

6.====Repairs

The specific national safety regulations and the safety instructions in the User Manual
must be noted when the machine is put into operation.

Settings, test values and other notes are identical with those for the brushcutters FS 75, 80, 85.

Any differences are specified.

6.1===Tightening torques

Connecting                                                                            Tightening torque
element                   Thread size         For part                                (Nm)         (ft. lbs.)Rem.

Socket-head screw         lS-DG5x12           Oil tank / gear housing                 2.5            1.8
Socket-head screw         IS-M5x20            Clamp / large protective tube           3.0            2.2
Socket-head screw         IS-M5x20            Clamp / small protective tube           3.0            2.2
Socket-head screw         IS-M6x14            Clamping collar / carrying ring         4.5            3.3
Socket-head screw         IS-M6x20            Clamp / power unit / shaft              4.5            3.3
Set screw                 M8                  Bar fixture                                                      1)

5HPDUNV

1) Use a medium-grade adhesive (e.g. Loctite 243) to secure and screw down to 19.5 Nm. (14.4 ft. lbs.).

Page 4 of 4

TI 47/1996 page 4
Text of page 4 — search, copy, screen readers
Technical Information 47.96 - Page 4

6.2===Service notes

The STIHL HT 75 must be serviced and repaired
in accordance with the Repair Manual STIHL
FS 75, 80, 85, FC 75. Any service notes not
included there (telescoping shaft, gear) can be
found in TI 03.97.
The Repair Manual does not include a chapter on
"Repairing the carburetor" and "Troubleshooting",
nor does it contain standard repairs. These are
dealt with in special manuals.

                                                        Andreas Stihl D1/MTK-na
© 1996 Andreas Stihl                                    Technical Documentation    5920

Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.

Report a transcription error →
